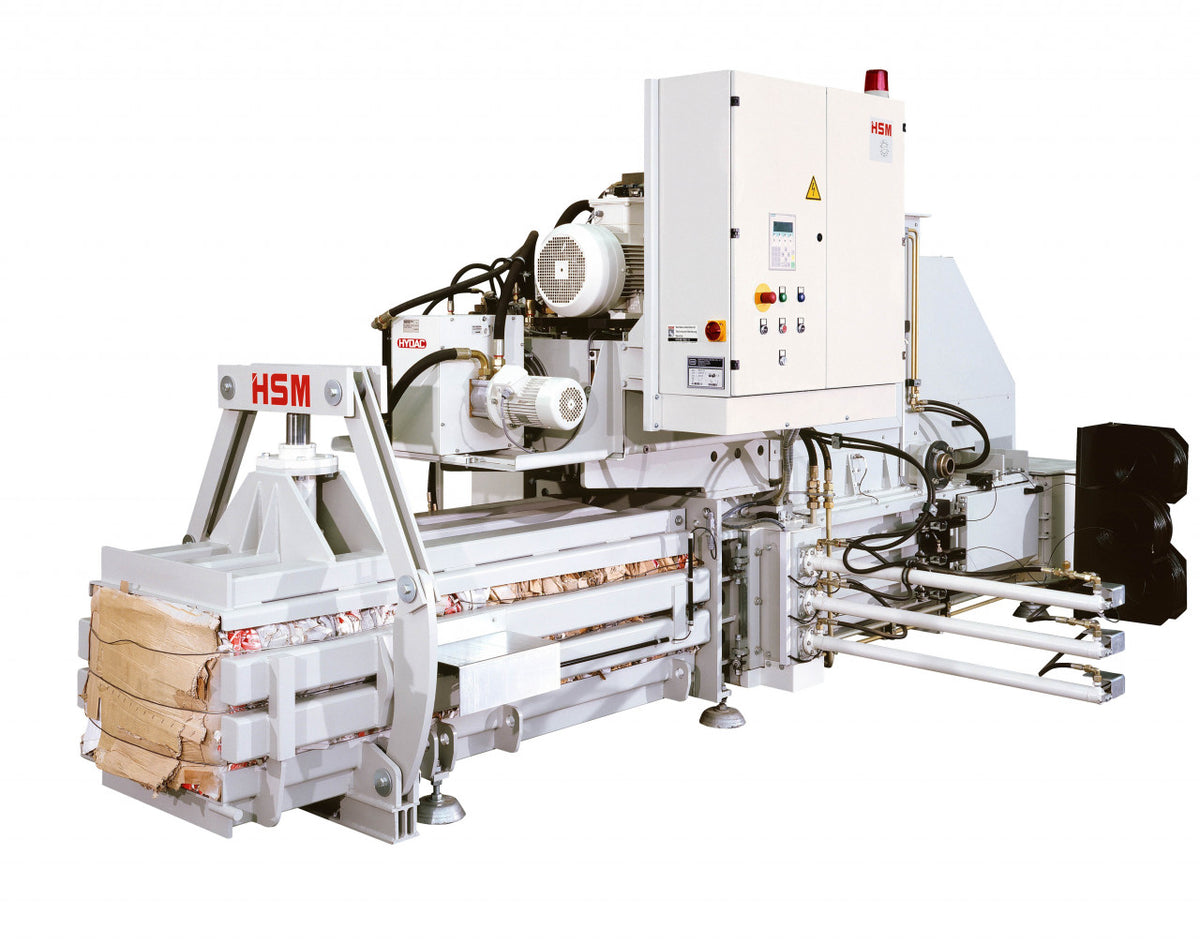

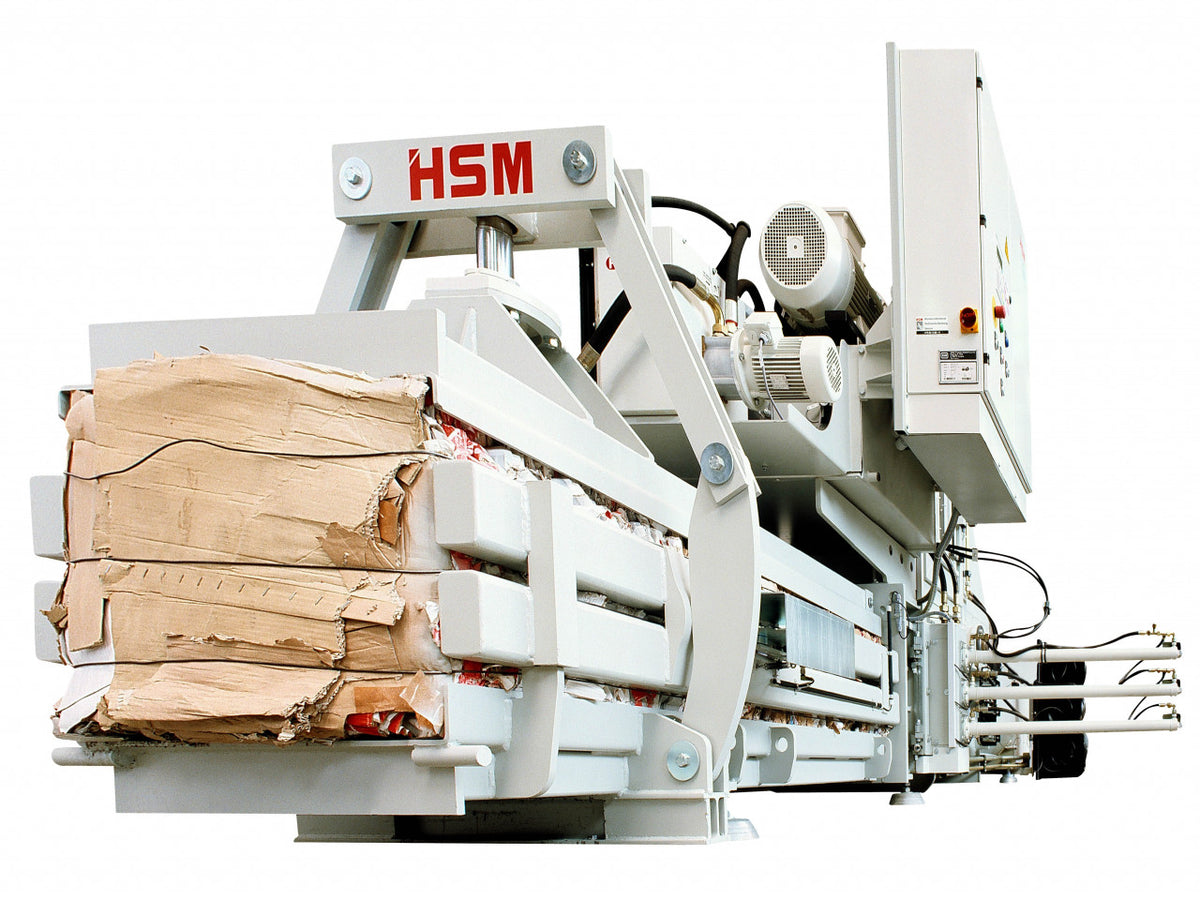

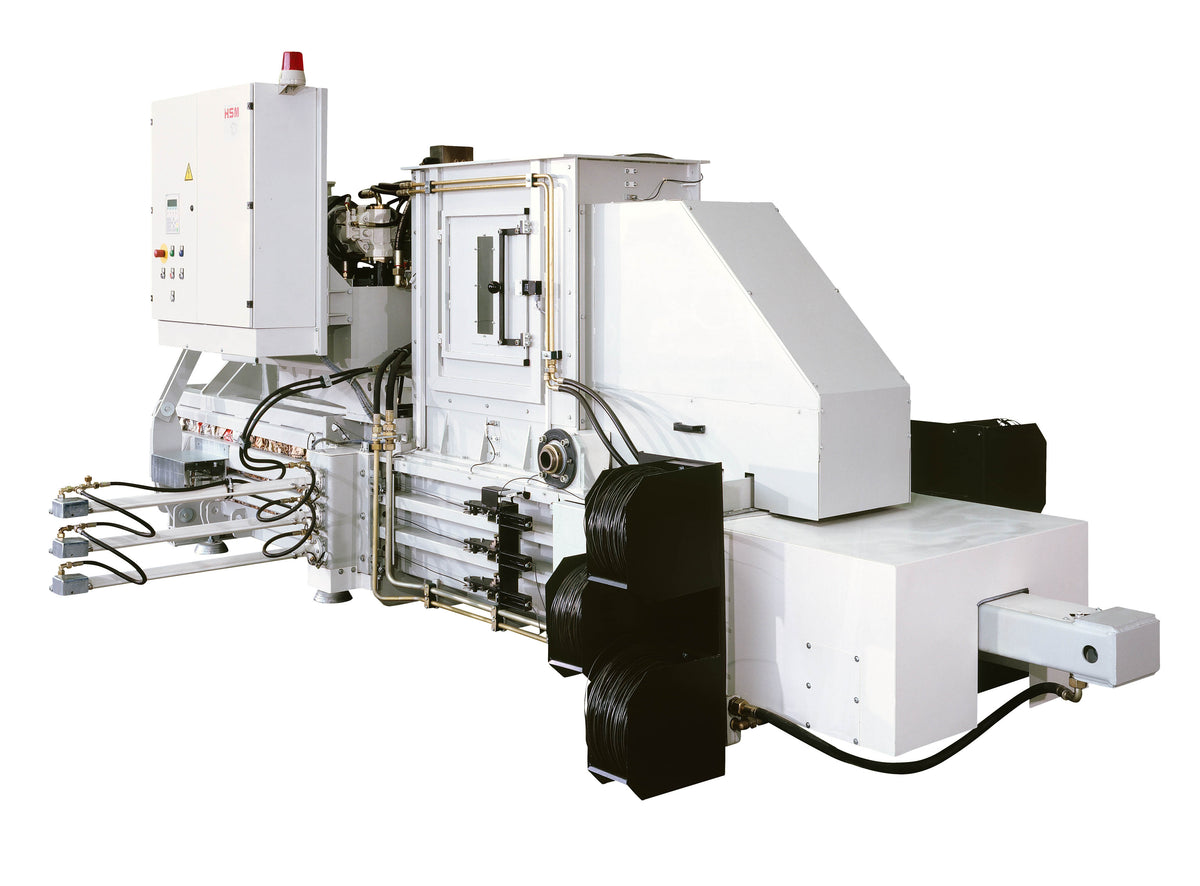

VK 2310 12.34 HP Channel Baling Press

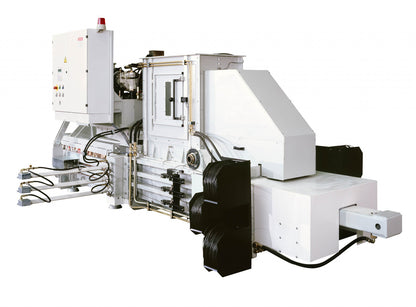

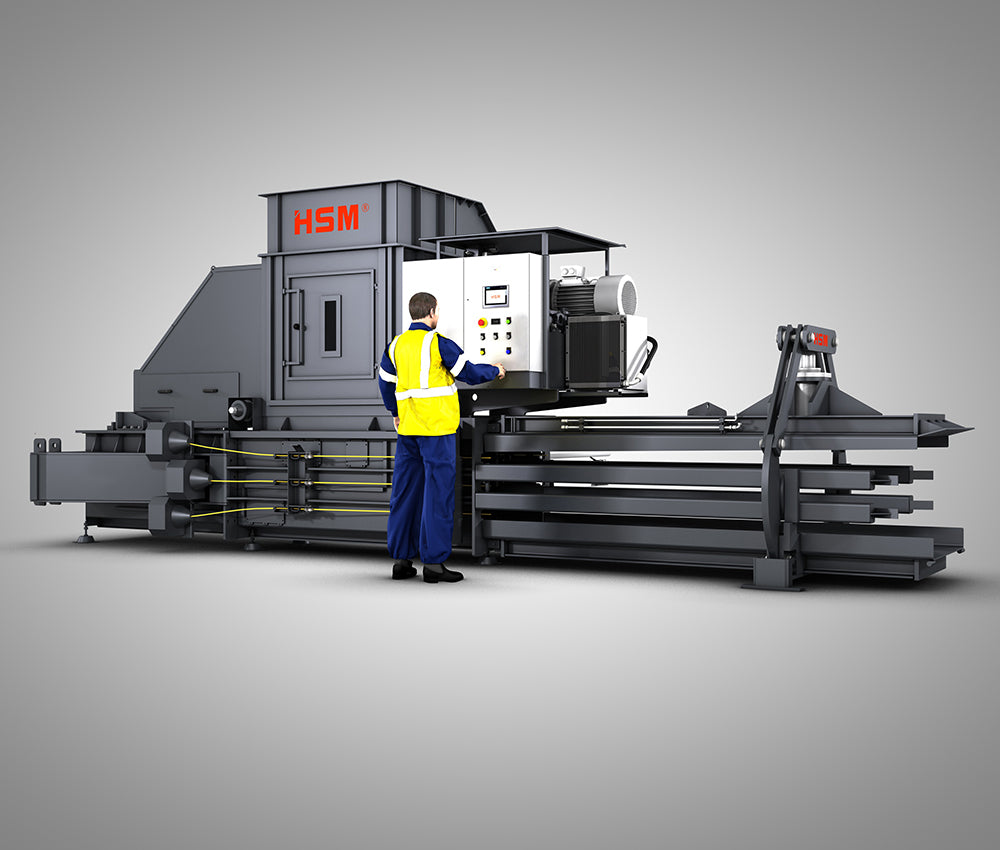

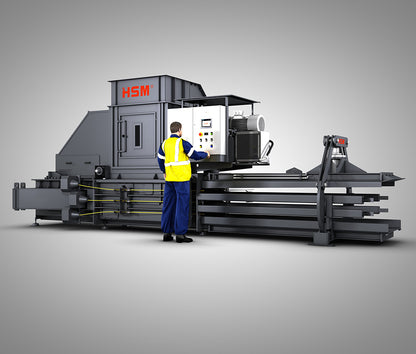

The HSM VK 2310 12.34 HP is a 240 kN automatic channel baler whose 26.4 x 39.4 in (670 x 1,000 mm) loading opening takes long material such as unfolded cartons, trim and offcuts without cutting it down first. On this 9.2 kW drive it idles at 17.2 seconds per cycle and produces three-wire bales of 27.6 x 19.7 in (700 x 500 mm) weighing up to about 551 lb (250 kg). It is intended for lines where material is awkwardly long but arrives at a moderate, even rate.

VK 2310 12.34 HP at a glance

• Opening 1,000 mm long in the feed direction, against 600 mm on the VK 2306
• 240 kN, or 64 N/cm² on the bale face
• 12.34 HP (9.2 kW) motor, 17.2 s idle cycle

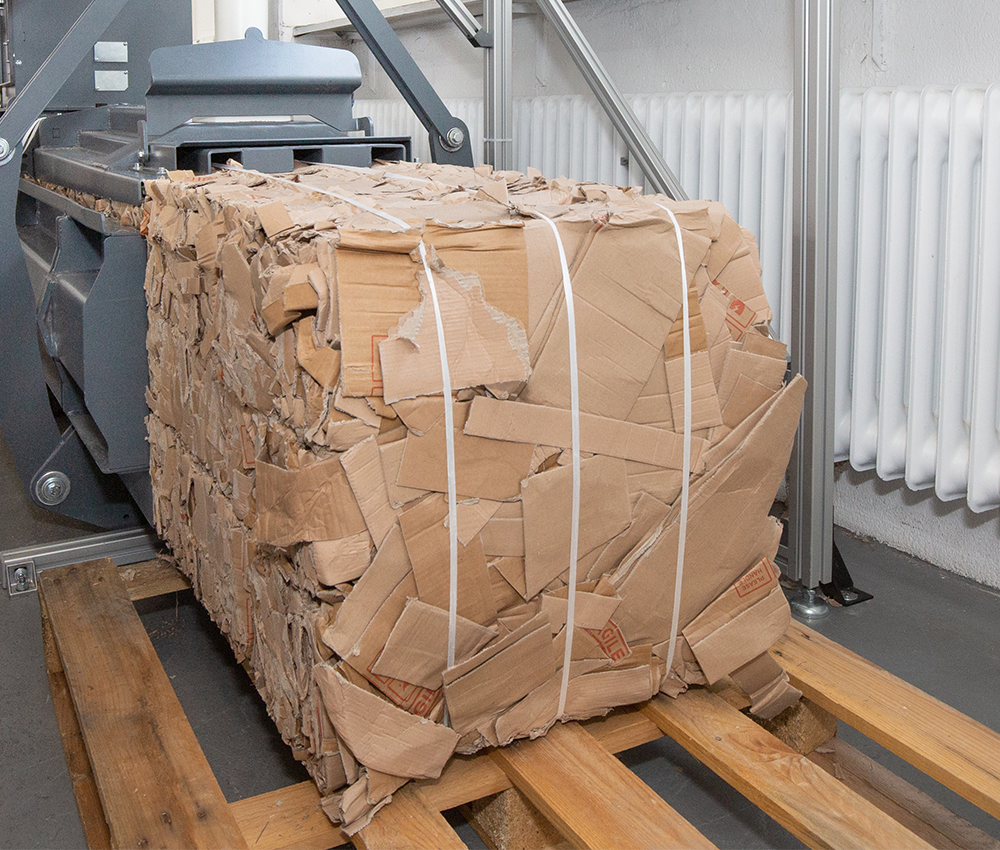

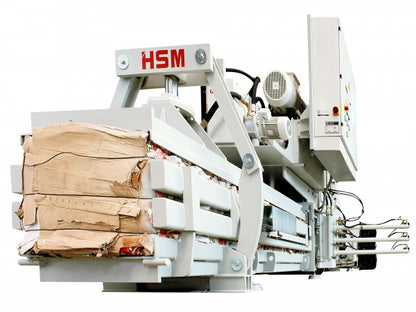

• Three-wire bales up to roughly 551 lb
• Bales cardboard, film, PET and aluminum cans

Why the long opening matters

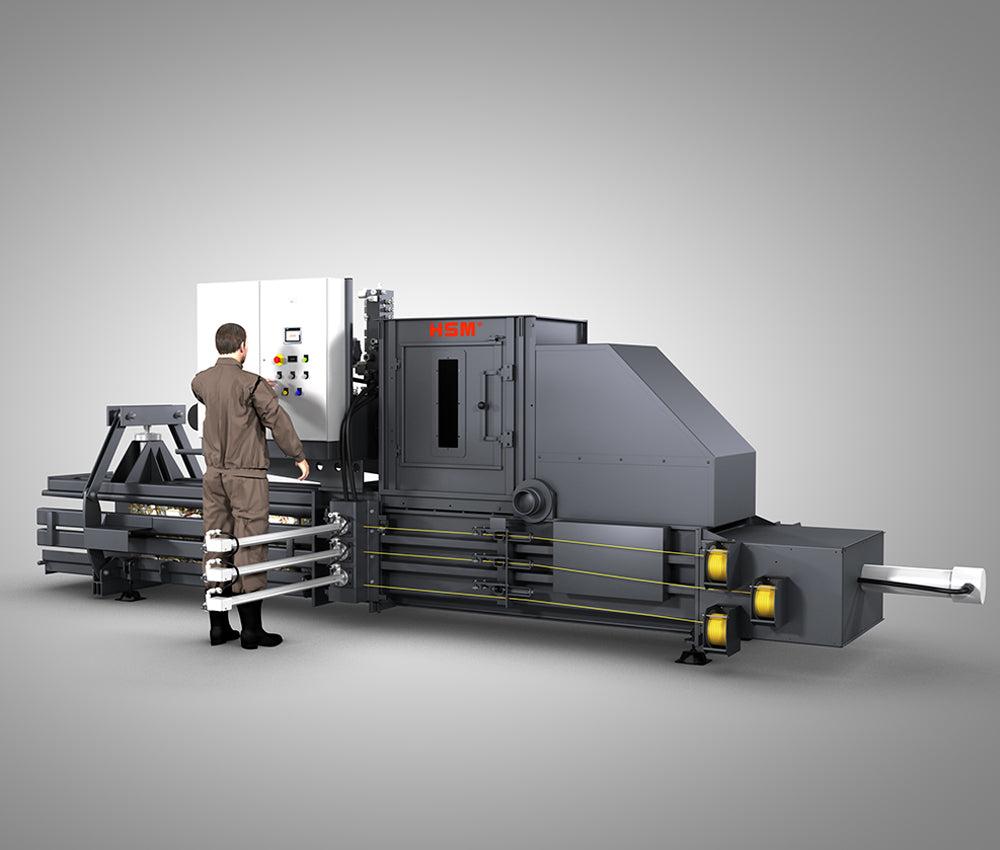

With a 600 mm opening, long pieces have to be folded, cut or pre-shredded before they reach the ram, which costs labor or extra equipment. The 2310's opening is 1,000 mm long, so a box plant clearing offcuts or a converting line producing trim can feed the press as material comes. The trade-off is floor length: at 240.0 in (6,095 mm) the machine is 835 mm longer than a VK 2306, so check the bay before comparing prices.

When the 9.2 kW drive is enough

HSM gives a 17.2 second idle cycle for this motor and 9.4 seconds for the 15 kW version; ram force, opening and bale are identical. HSM also quotes a headline of up to approximately 144 m³/h for the VK 2310 model without saying which drive it belongs to, so we do not credit it to this one. If your feed is steady and nobody waits on the baler, the slower cycle does the job on less connected load.

Delivery, wire and strapping

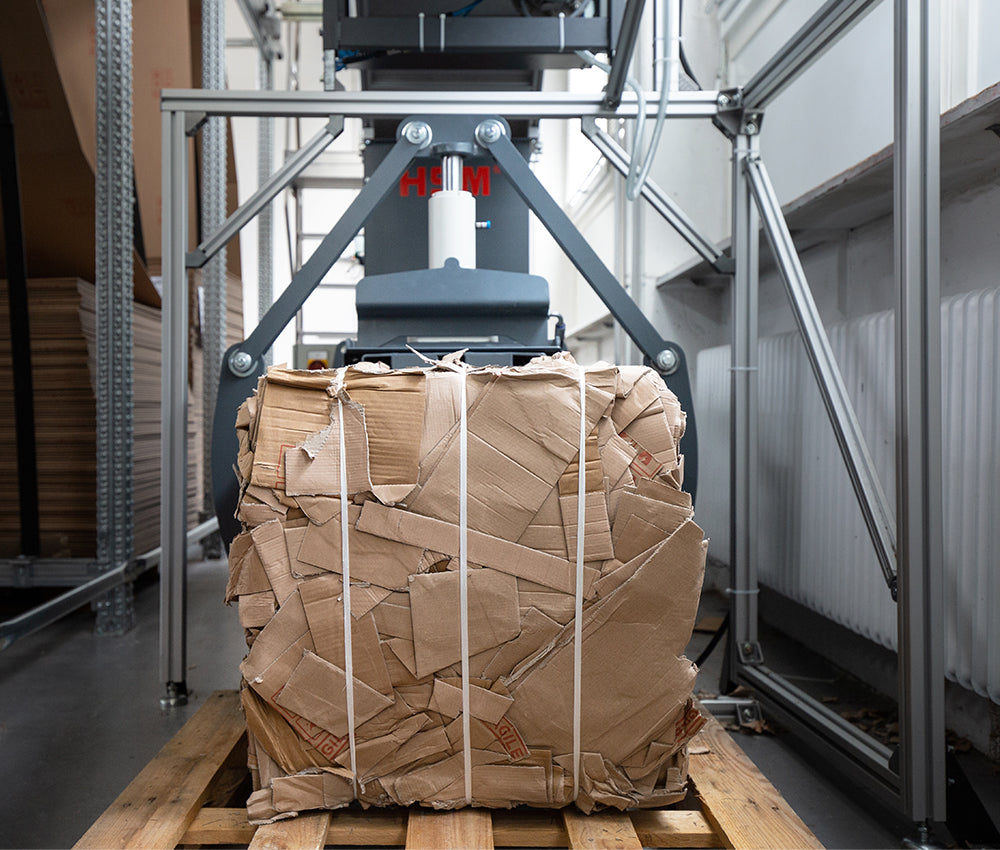

No formal scope of delivery is published. The press is placed, leveled, connected to three-phase power and commissioned, with conveyors, hoppers and guarding specified separately. It ties automatically with steel wire on rolls, which is not included; HSM also sells optional manual strapping equipment for tying loose material by hand away from the machine.

VK 2310 12.34 HP specifications

Choosing between the VK 2310 12.34 HP and nearby models

• VK 2310 20.12 HP: same opening and bale, with the idle cycle cut to 9.4 s, for heavy or bursty feeds.
• VK 2306: same 240 kN and bale through a 620 x 600 mm opening, 835 mm shorter. Better if nothing you bale exceeds 600 mm.
• VK 5012: a 1,100 mm wide mill bale up to 550 kg, for rigid HDPE containers and big bags.

Who it suits

A box plant, converter or sorting station with long, bulky material arriving at a moderate pace gets the full 1,000 mm opening without paying for a faster drive. Already shredded or compact material does not need it; a recycler demanding 1,100 mm bales points to the VK 5012.
