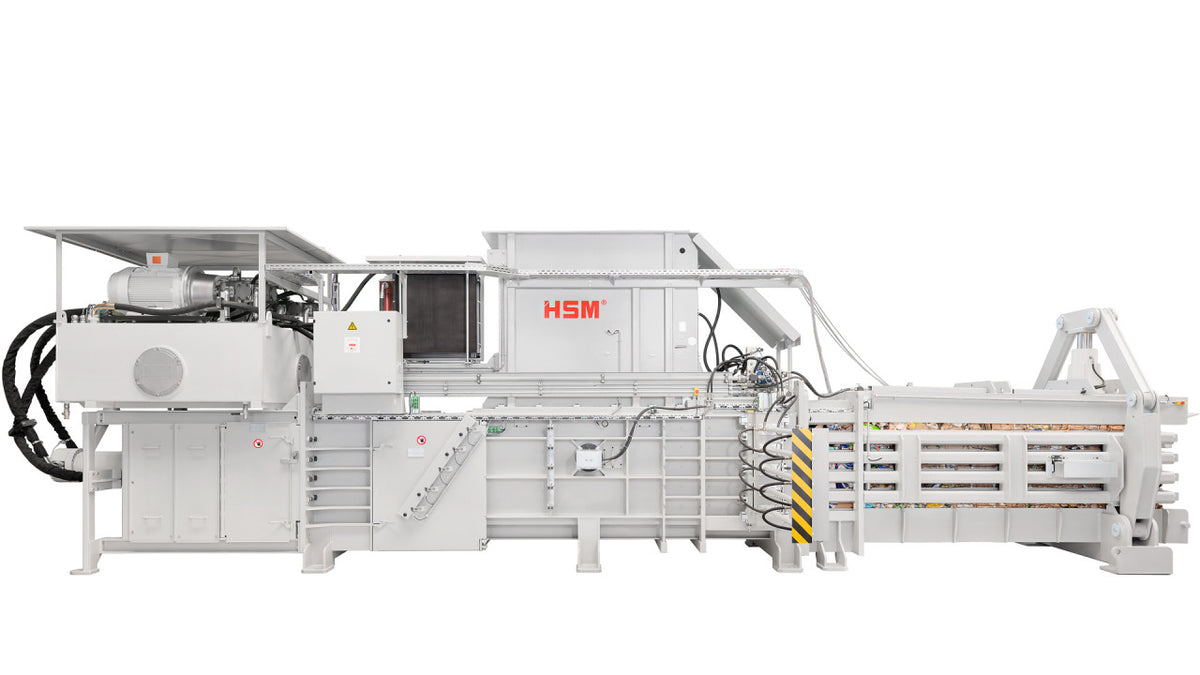

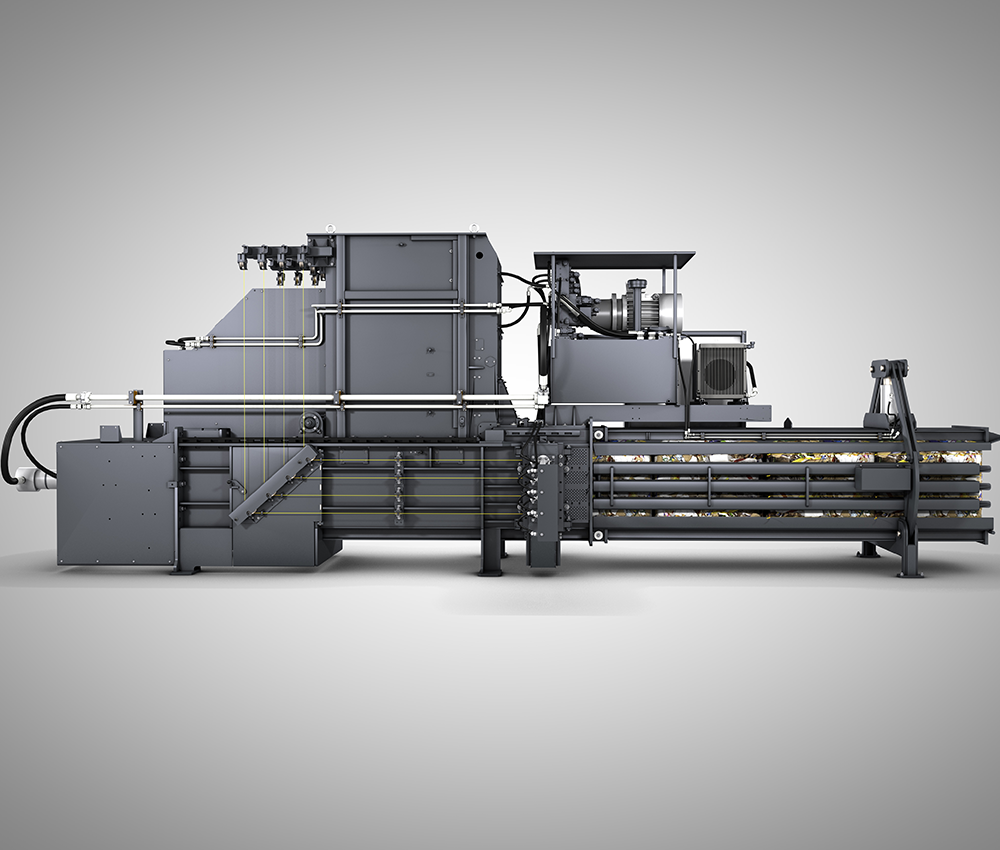

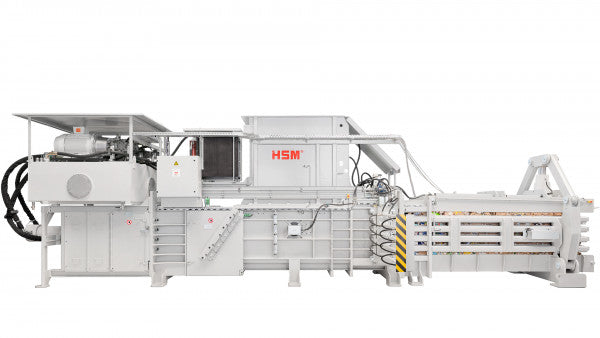

The HSM VK 12018 100.6+100.6 HP is the quickest fixed-speed version of HSM's largest channel baling press, using two 75 kW motors to cycle a 1,200 kN ram in 9.4 seconds at idle. HSM rates it at 837 m³/h idle and 41.85 t/h on 50 kg/m³ material, the highest fixed-speed figures it publishes for this press. It is built for high-volume recovery plants running long or continuous shifts, where a baler that falls behind holds up the entire sorting line.

VK 12018 100.6+100.6 HP at a glance

  • Two 100.6 HP (75 kW) motors, 150 kW installed
  • 9.4 s idle cycle and 29,558 cft/h (837 m³/h) theoretical volume
  • 41.85 t/h on material at 50 kg/m³
  • Five-wire bales, 43.3 x 43.3 in (1,100 x 1,100 mm), up to 2,425 lb
  • Lightest VK 12018 at 79,366 lb (36,000 kg)

What the top drive buys, and what it costs to run

The ram, chamber, 970 x 1,800 mm opening and five-wire tie are shared with the slower VK 12018 drives, so the bale itself does not change. The gain is pace: 9.4 seconds per idle stroke against 11.3 on the 73.8+73.8 HP press and 15.5 on the 60.4+60.4 HP. The 73.8+73.8 HP machine reaches 34.6 t/h, which is 83% of this drive's output on 73% of its installed power. Over years of operation that gap in energy can outweigh the difference in purchase price, so run the numbers for your own shift pattern.

Why this version is two tonnes lighter

HSM lists this press at 36,000 kg, while the 45+45 kW and 55+55 kW machines weigh 38 tonnes. The frame size is the same at 12,413 x 4,159 x 3,622 mm; the difference comes from a different hydraulic and drive layout. It is a genuine published figure, not an error, but your foundation engineer should still work from the data sheet supplied with the order.

Fixed speed or frequency regulated?

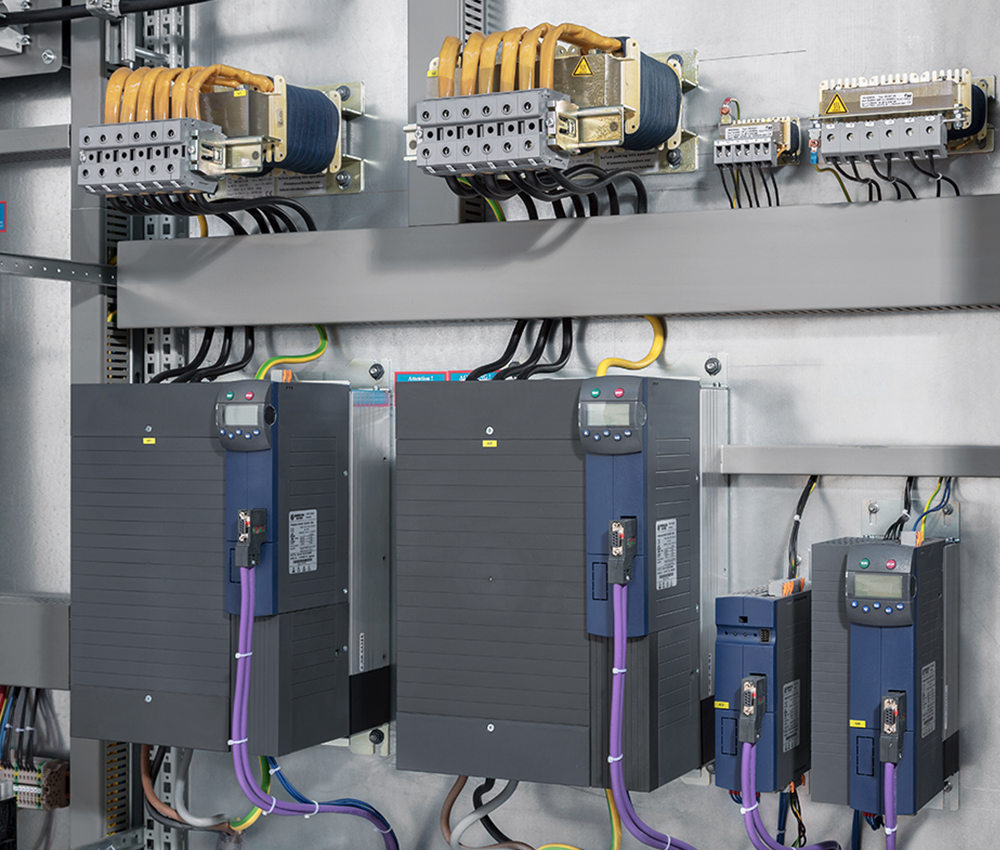

HSM's frequency-controlled 55+55 kW VK 12018 is published at an 8.8 second cycle and 887 m³/h, faster on paper than this fixed-speed press while using 110 kW of installed power, with HSM quoting about 40% lower energy consumption. The option is chosen at order. Where electricity is billed heavily, get both machines quoted before deciding.

VK 12018 100.6+100.6 HP specifications

Press type Automatic channel baler
Ram force 1,200 kN
Force on bale face 99.2 N/cm²
Motors Two at 100.6 HP each (75 + 75 kW)
Electrical supply US listing 480 V / 60 Hz, three phase; HSM standard 400 V / 50 Hz; 380 V / 60 Hz available on request
Idle cycle 9.4 s
Theoretical idle volume 29,558 cft/h (837 m³/h)
Output on 50 kg/m³ material 41.85 t/h
Feed opening, width x length 38.2 in x 70.9 in (970 mm x 1,800 mm)
Bale face, width x height 43.3 in x 43.3 in (1,100 mm x 1,100 mm)
Bale length, adjustable 23.6 to 78.7 in (600 to 2,000 mm)
Bale weight, by material 1,543 to 2,425 lb (700 to 1,100 kg)

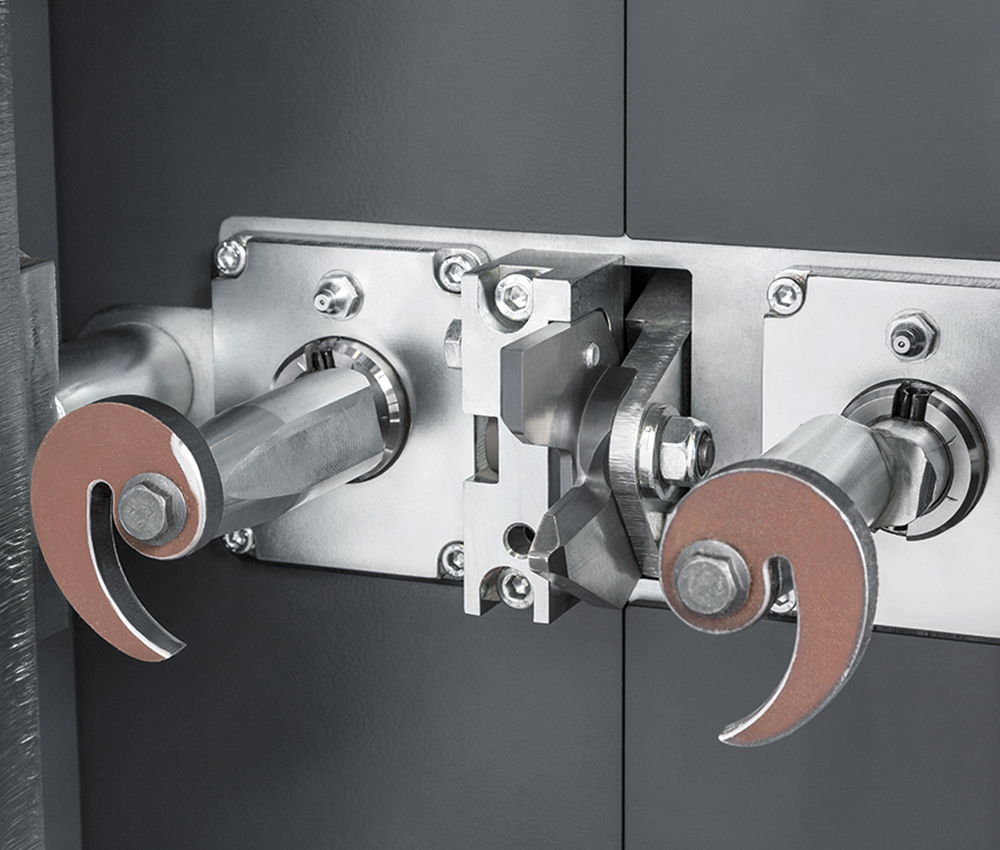

Ties per bale 5, steel wire
Overall length x width x height 488.7 in x 163.7 in x 142.6 in (12,413 mm x 4,159 mm x 3,622 mm)
Machine weight 79,366 lb (36,000 kg)
Listed materials HDPE and LDPE containers, plastic bottles, plastic film, cardboard, mixed paper, big bags and punch waste

Who needs the 150 kW drive, and who does not

Choose it when the baler is the bottleneck in a plant running two or three shifts on high-volume material, and a fast, wide sorting belt must be kept clear. If your line supplies less than about 25 tonnes an hour of 50 kg/m³ material, the 60.4+60.4 HP press already copes, and a top drive cycling on a half-empty chamber only adds power draw and wear on the guides.

Product Specification
Machine Type
Bailing Press
Shredder Series
VK Series
Shreddable Materials
Cardboard, mixed paper, plastic film, punch waste, big bags, HDPE/LDPE containers and plastic bottles
Throat Width
38.2 in (970 mm)
Power Consumption
100.6 + 100.6 HP (75 + 75 kW)
Voltage
480 V / 60 Hz
Weight
79,366 lb (36,000 kg)
Dimensions (WxDxH)
488.7 x 163.7 x 142.6 in (12,413 x 4,159 x 3,622 mm), L x W x H

Product Resources

Product listing details

Vendor
HSM
Product type
Channel Baling Press
Condition
New
SKU
6436009
GTIN
4026631074483
Price
Price on request
Currency
USD
Availability
In stock
Shipping policy
Click to view policy
Refund policy
Click to view policy
Return policy
Click to view policy
View full details
Before you specify

Frequently Asked Questions

How fast is the VK 12018 100.6+100.6 HP?

It is the fastest fixed-speed VK 12018. HSM publishes a 9.4 second idle cycle, a theoretical 837 m³/h at idle and 41.85 t/h on material with a bulk density of 50 kg/m³. The other fixed-speed drives cycle in 11.3 and 15.5 seconds.

Why is the 100.6+100.6 HP VK 12018 lighter than the smaller-motor versions?

It uses a different hydraulic and drive arrangement. HSM lists it at 36,000 kg, while the 45+45 kW and 55+55 kW versions weigh 38 tonnes. The external dimensions of 12,413 x 4,159 x 3,622 mm are the same for all three.

Is a frequency-regulated VK 12018 faster than the 100.6+100.6 HP model?

On HSM's published figures, yes. The frequency-controlled 55+55 kW version is listed at an 8.8 second cycle and 887 m³/h, ahead of this machine's 9.4 seconds and 837 m³/h, on less installed power and with about 40% lower energy use claimed. Price and your electricity tariff decide which makes more sense.

What feed rate justifies the 100.6+100.6 HP drive?

A line that keeps the 970 x 1,800 mm opening supplied almost continuously and outpaces an 11.3 or 15.5 second cycle. If your sorting line delivers less than about 25 tonnes an hour of 50 kg/m³ material, the 45+45 kW press covers it, and this drive would spend much of its time waiting.

How are the VK 12018's 1,100 kg bales handled?

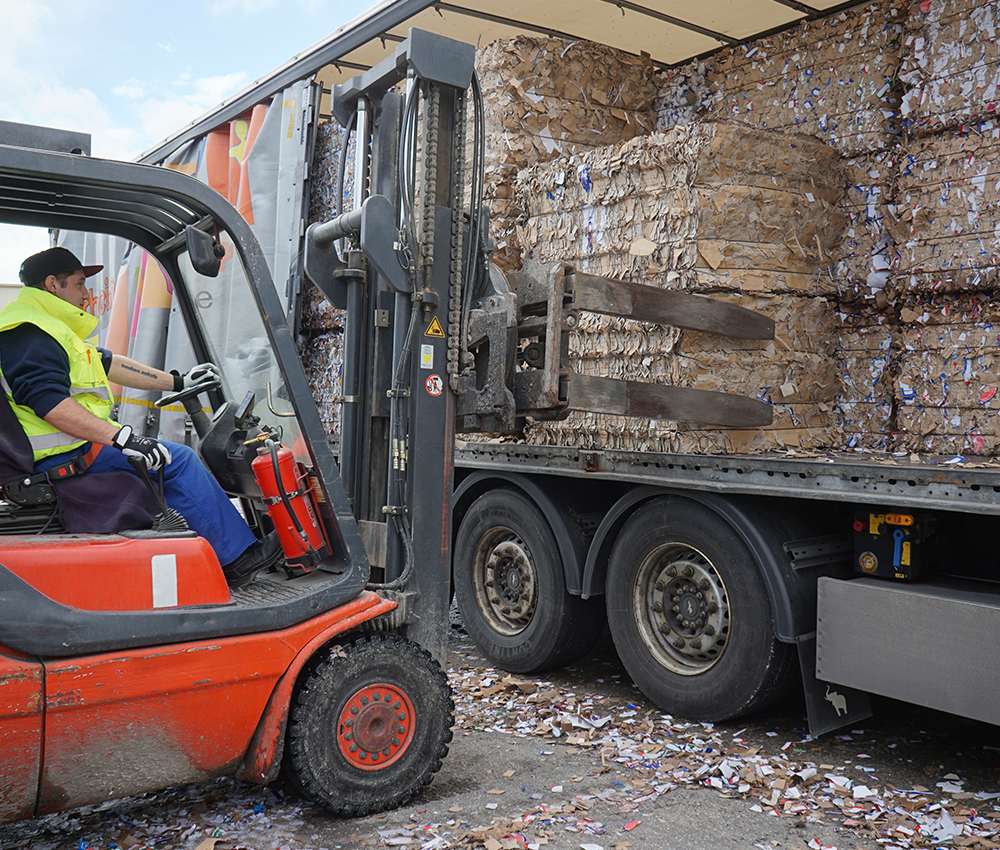

Each bale is 1,100 x 1,100 mm in section, 600 to 2,000 mm long and 700 to 1,100 kg, held by five wires that the press applies automatically. Moving them needs a properly rated counterbalance forklift or bale clamp and a storage area designed for stacked point loads.

Does HSM publish a warranty for the VK 12018?

No catalog warranty term is published for HSM baling presses, so we do not quote one. For a machine of this size, warranty, commissioning scope, spare parts and service response are agreed for each order. Ask for those terms in writing with your quotation.
