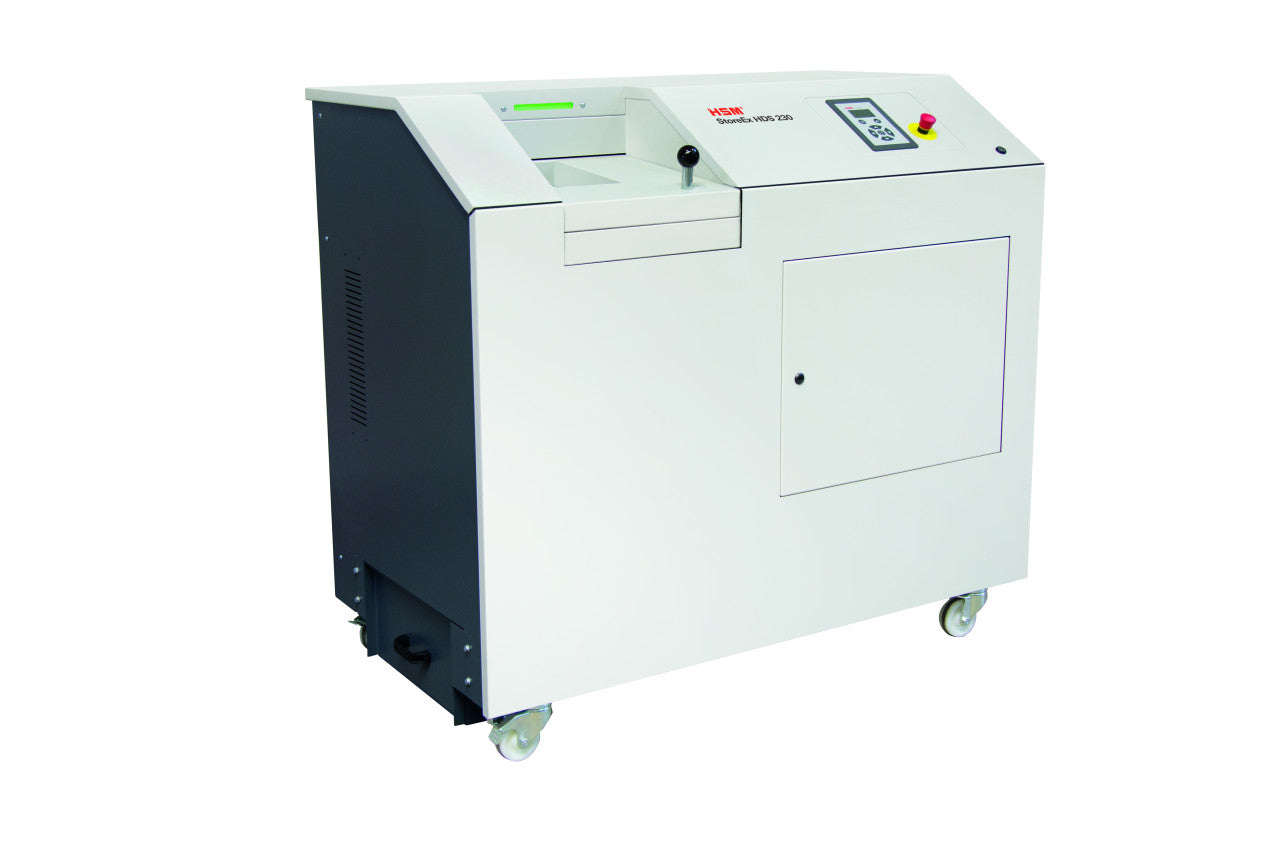

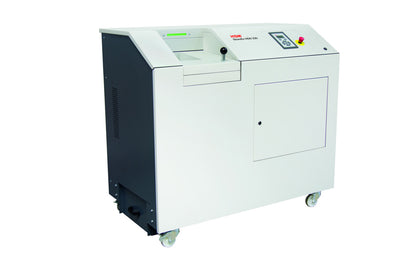

HSM StoreEx HDS 230 0.78 x 1.5-2 with Discharge conveyor belt H-4

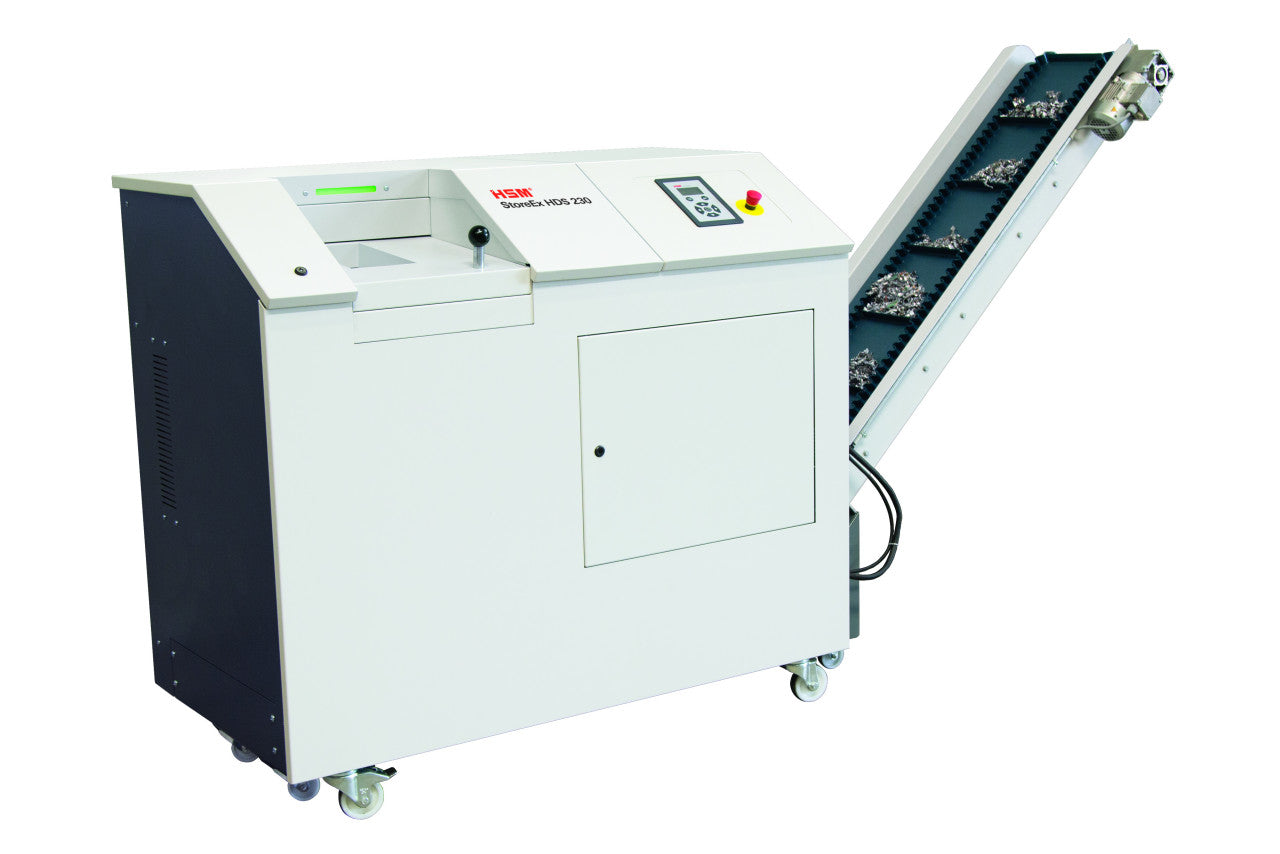

Same single-stage H-4 cutting unit as the tray version of the HSM StoreEx HDS 230, with one change that reshapes the workflow: a discharge conveyor belt carries shredded material out of the machine and into a container you position yourself. That turns a machine that pauses whenever a 45-litre bin fills into one that runs until a gaylord is full. Everything else - 360 hard drives per hour, 20 x 40-50 mm particles, DIN 66399 H-4 - is unchanged.

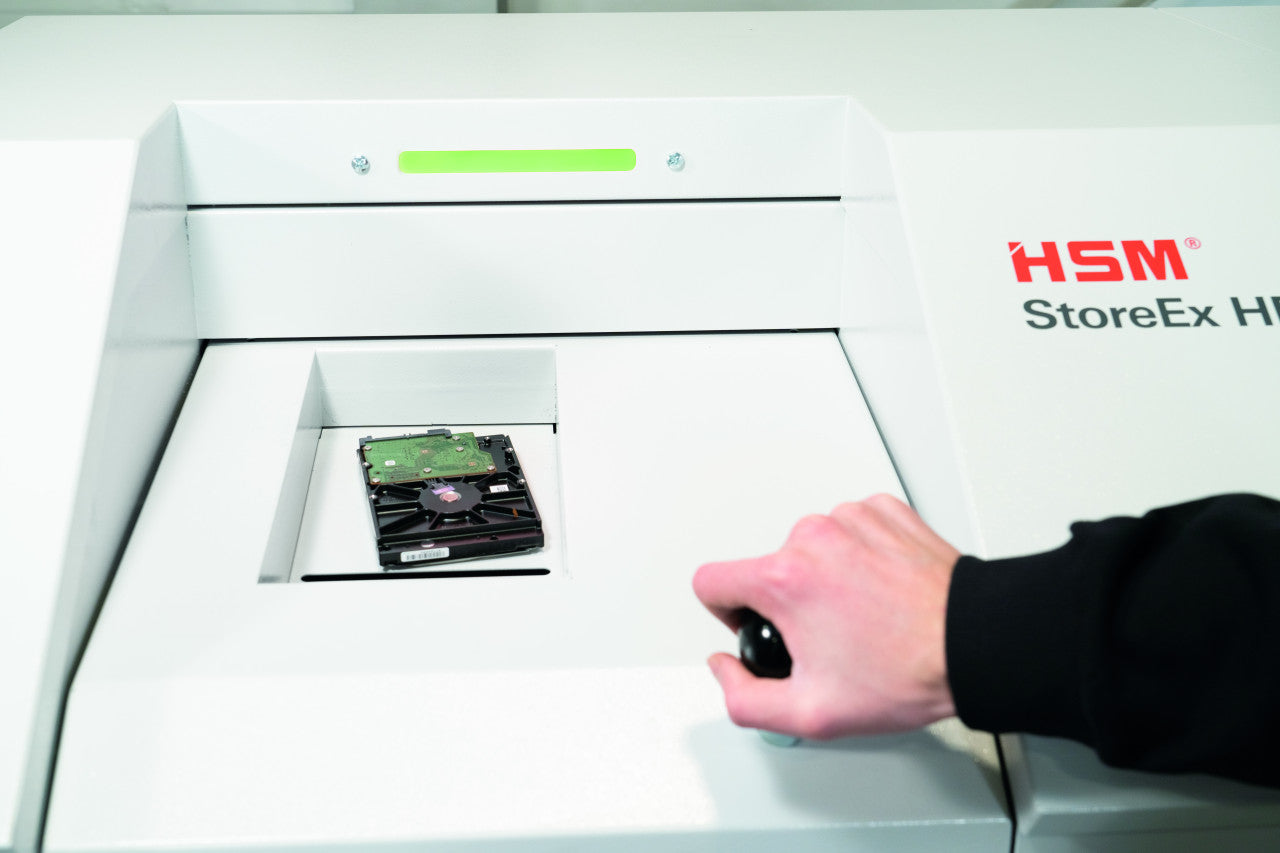

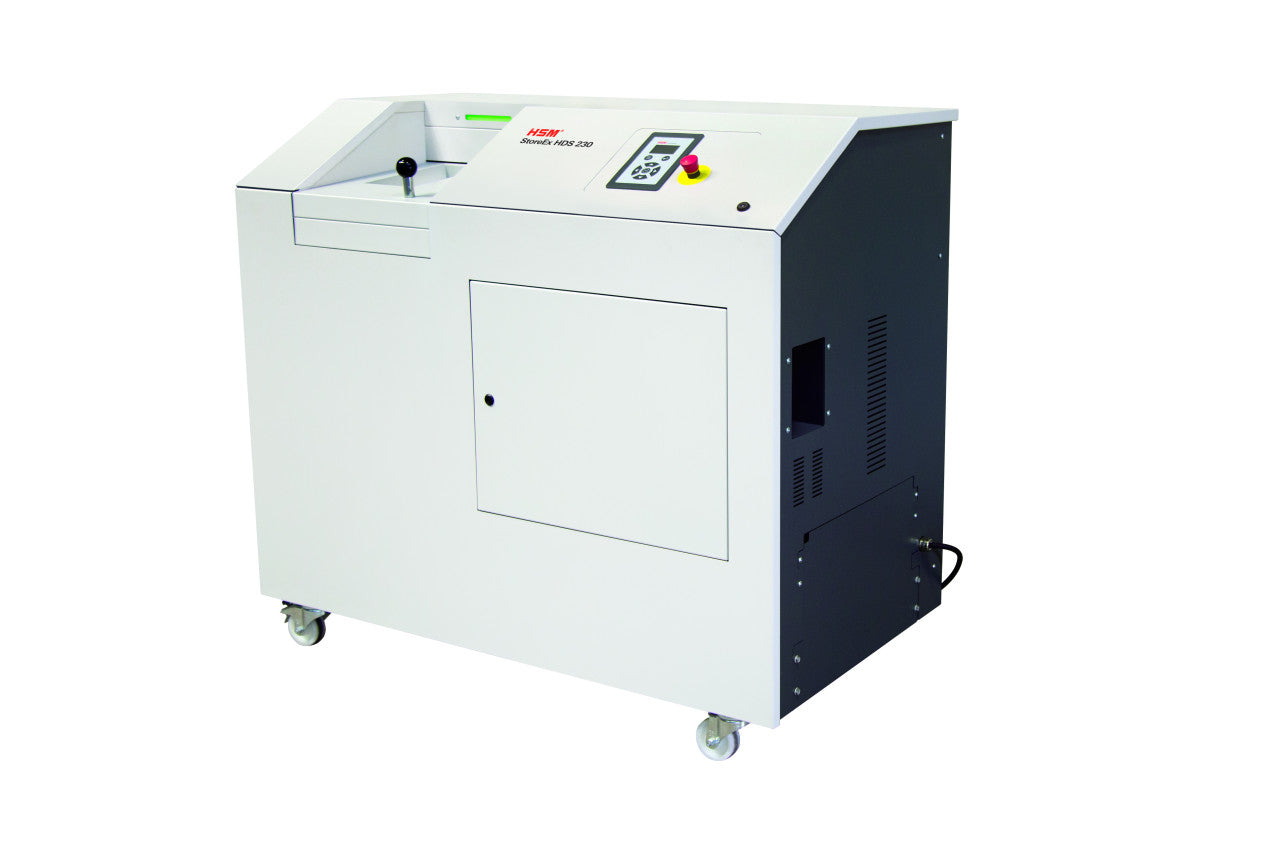

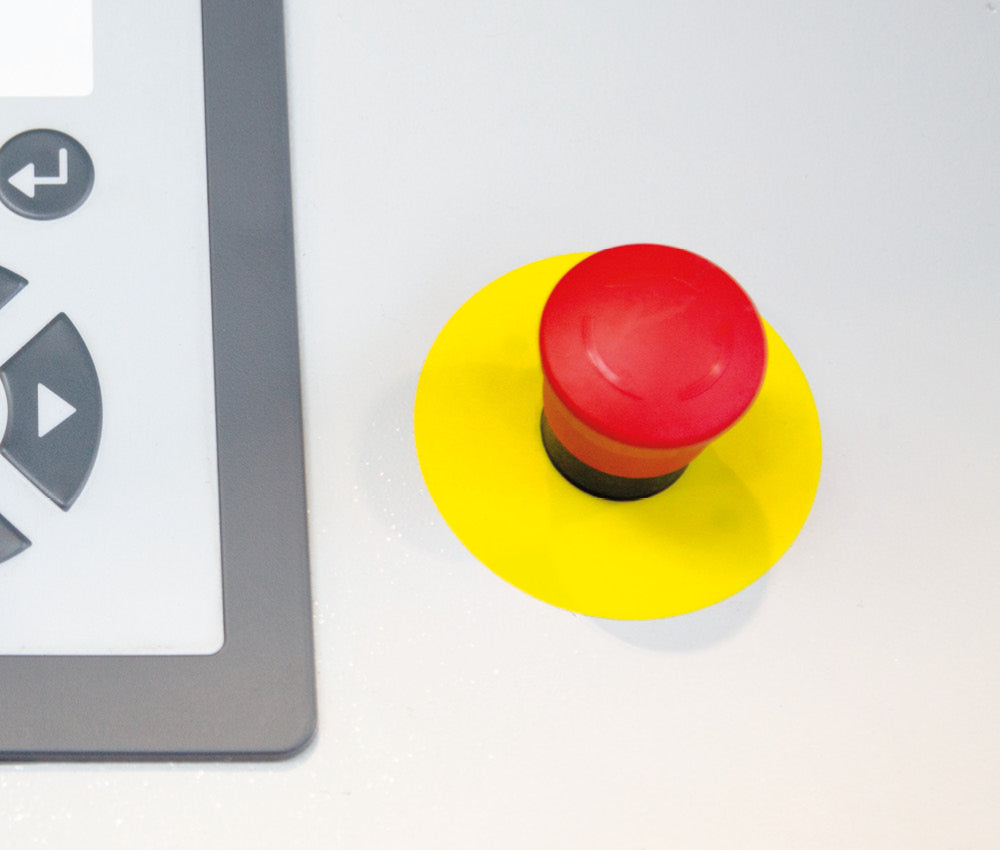

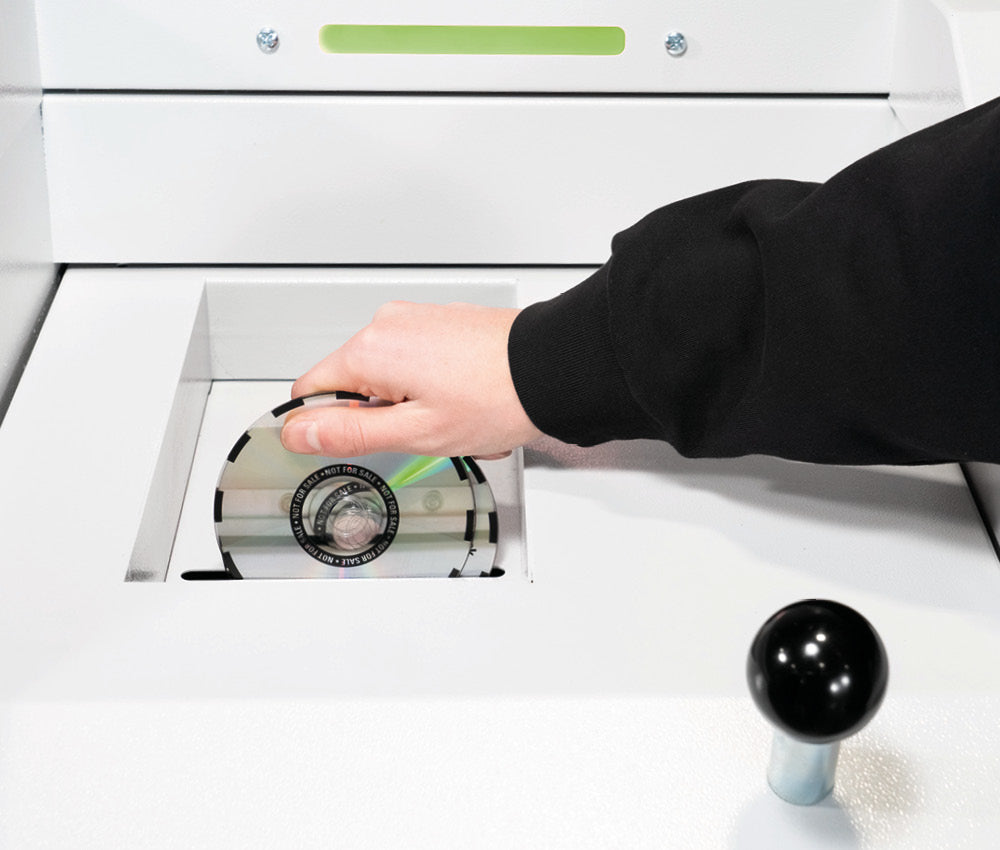

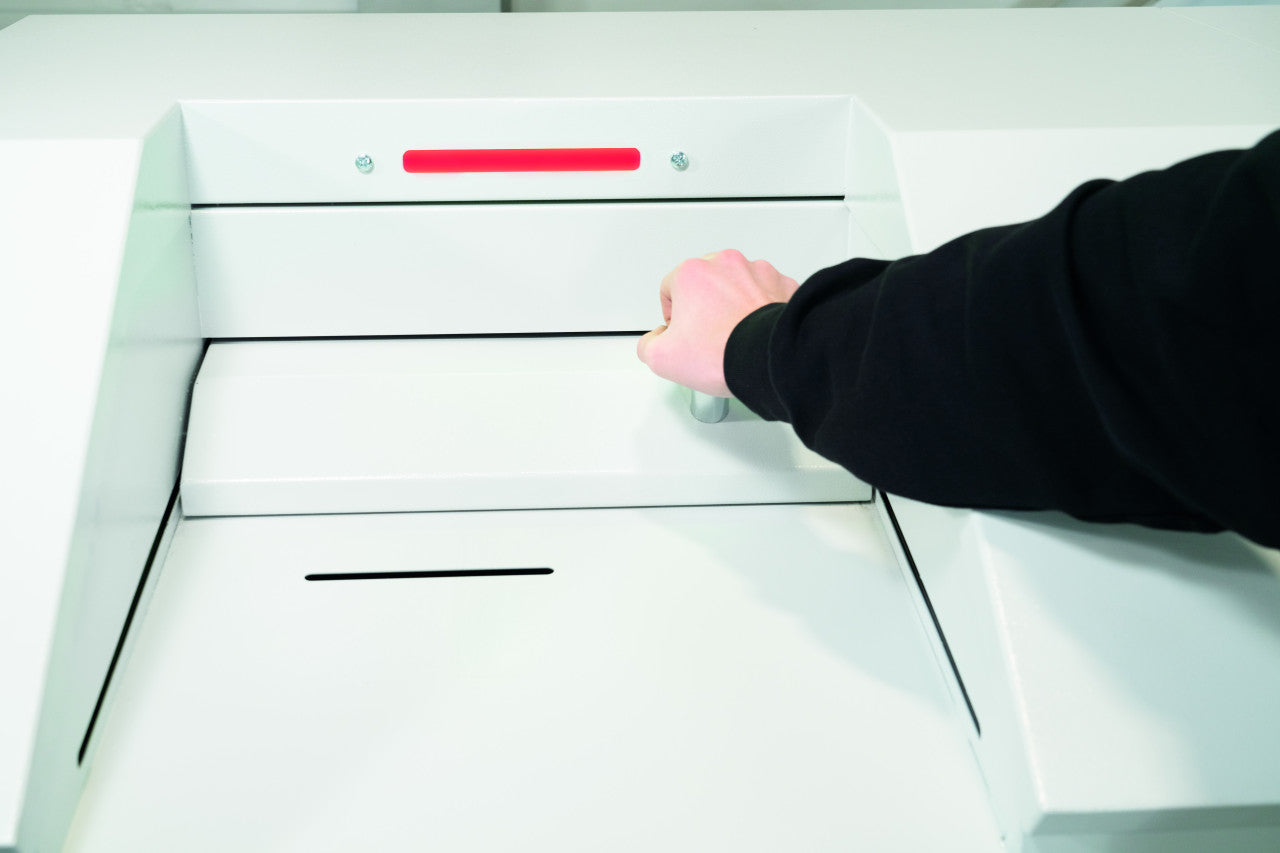

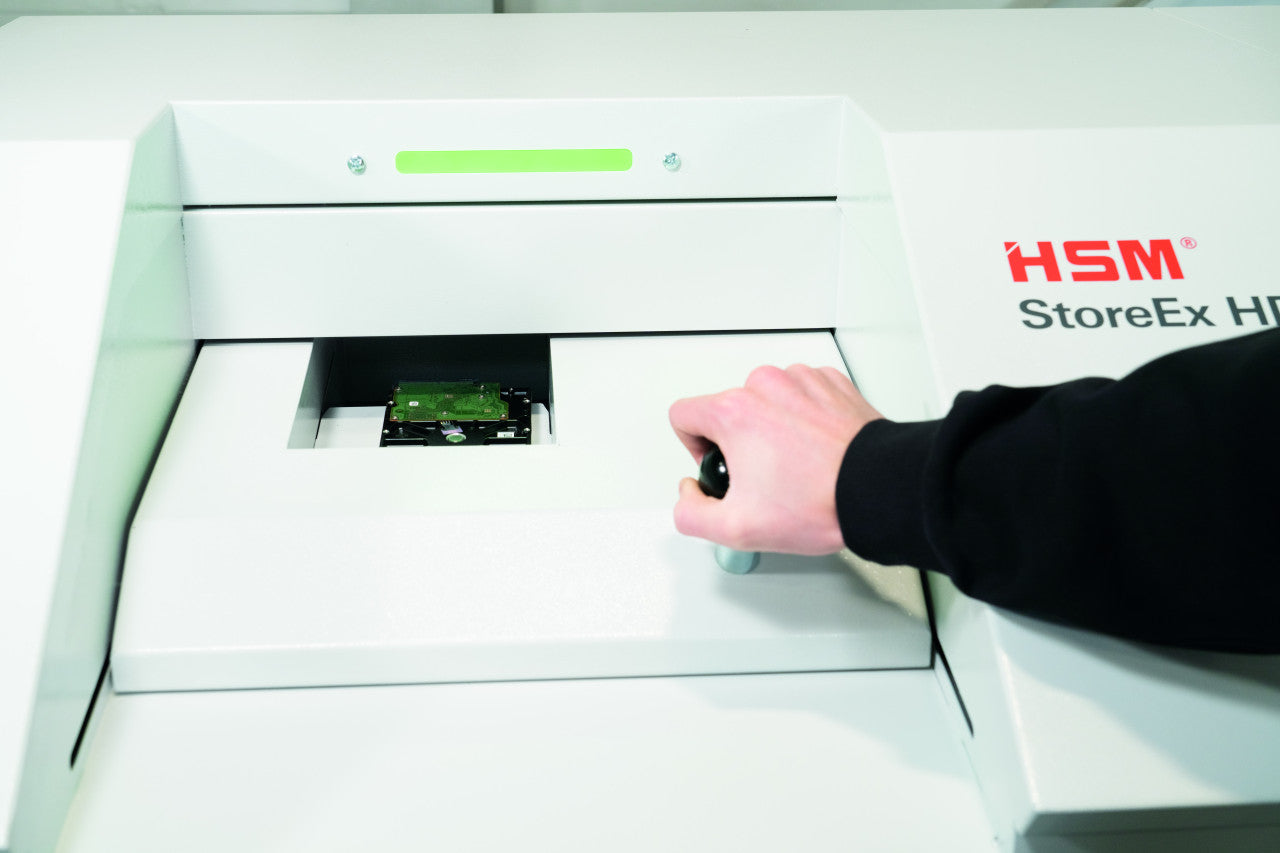

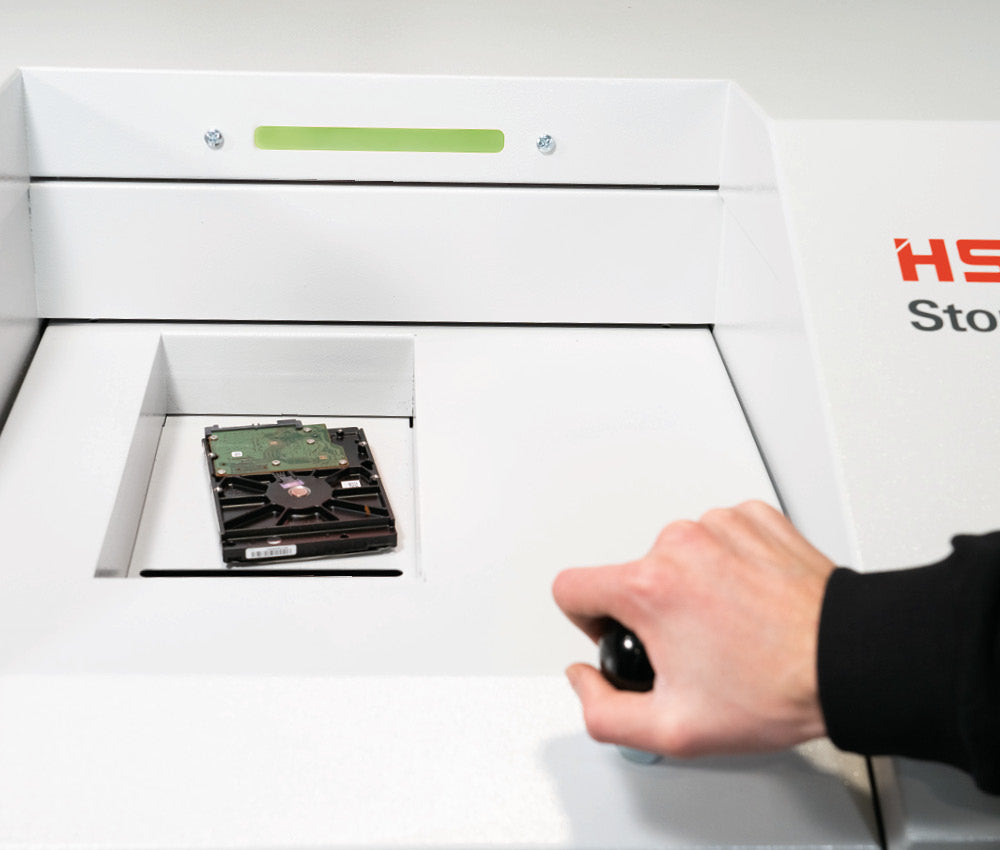

All four HDS 230 configurations share one chassis. The loading aperture measures 11.81 x 6.5 x 2.36 in (300 x 165 x 60 mm), which accepts hard drives and magnetic tape cartridges up to 3.5 in. Cutting rollers are solid hardened steel with an automatic reverse that clears jams without operator intervention, the collection container is a 11.9-gallon (45 L) pull-out bin, and supply is 208 V / 60 Hz. An emergency stop is fitted, and a storage table for staged data carriers sits on the infeed side. What varies is the number of cutting stages - one or two - and whether the machine discharges into the pull-out bin or onto a conveyor belt.

Key Features

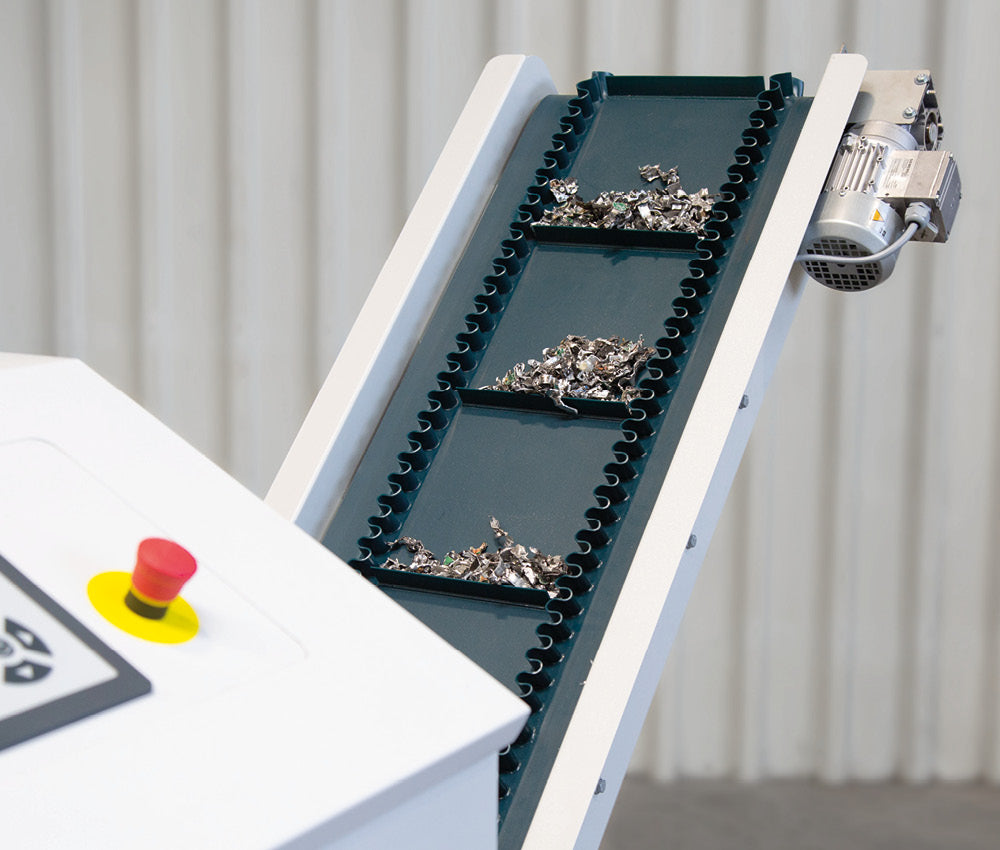

• Discharge conveyor belt - output lands in a gaylord, tote or roll-off instead of a pull-out bin. This is the difference between batch destruction and continuous destruction.
• 360 hard drives per hour at 3.5 in, 1,500 at 2.5 in - the belt does not change the cutting rate, it removes the interruptions.
• DIN 66399 H-4 in a single pass - 20 x 40-50 mm particles, plus E-2, O-1 and T-2 for other media.

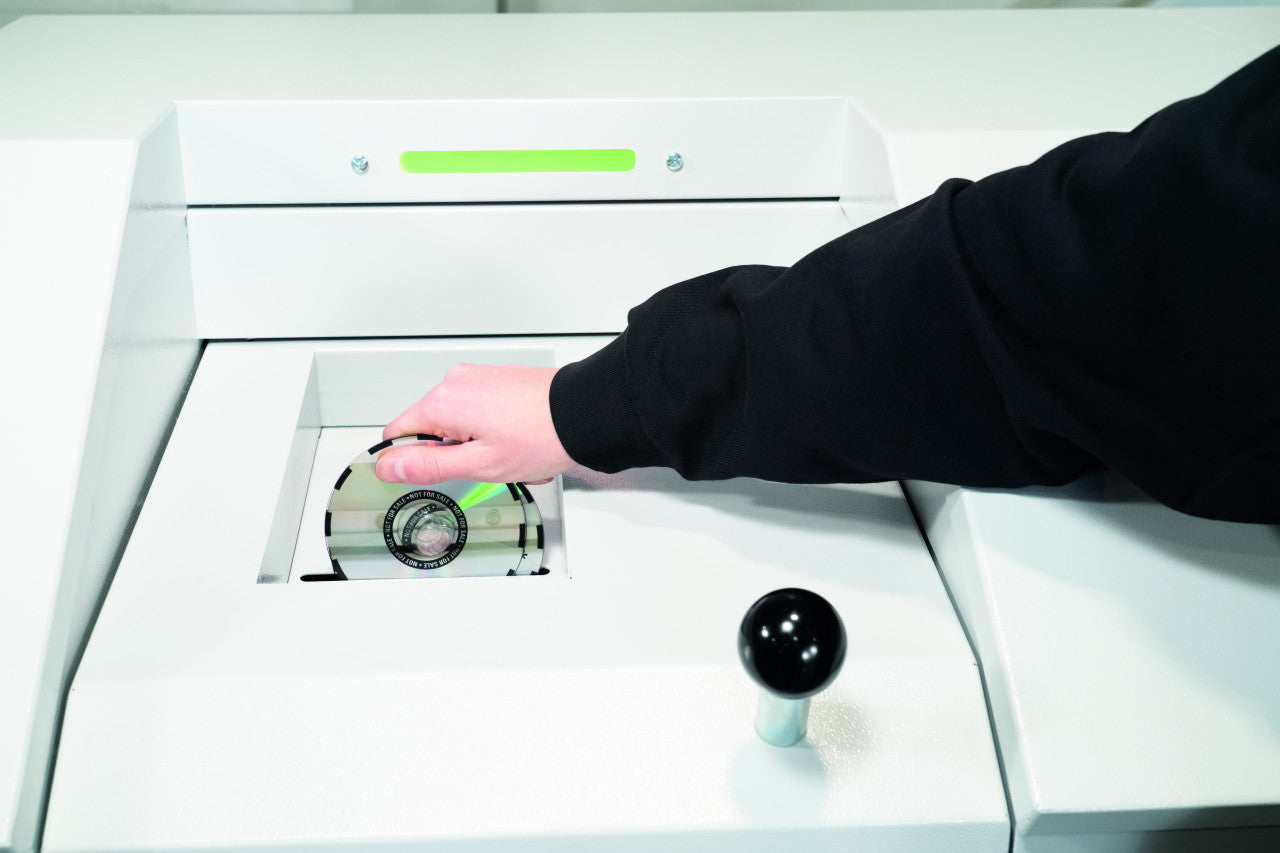

• 7,500 CDs or DVDs per hour, 500 magnetic tapes per hour.

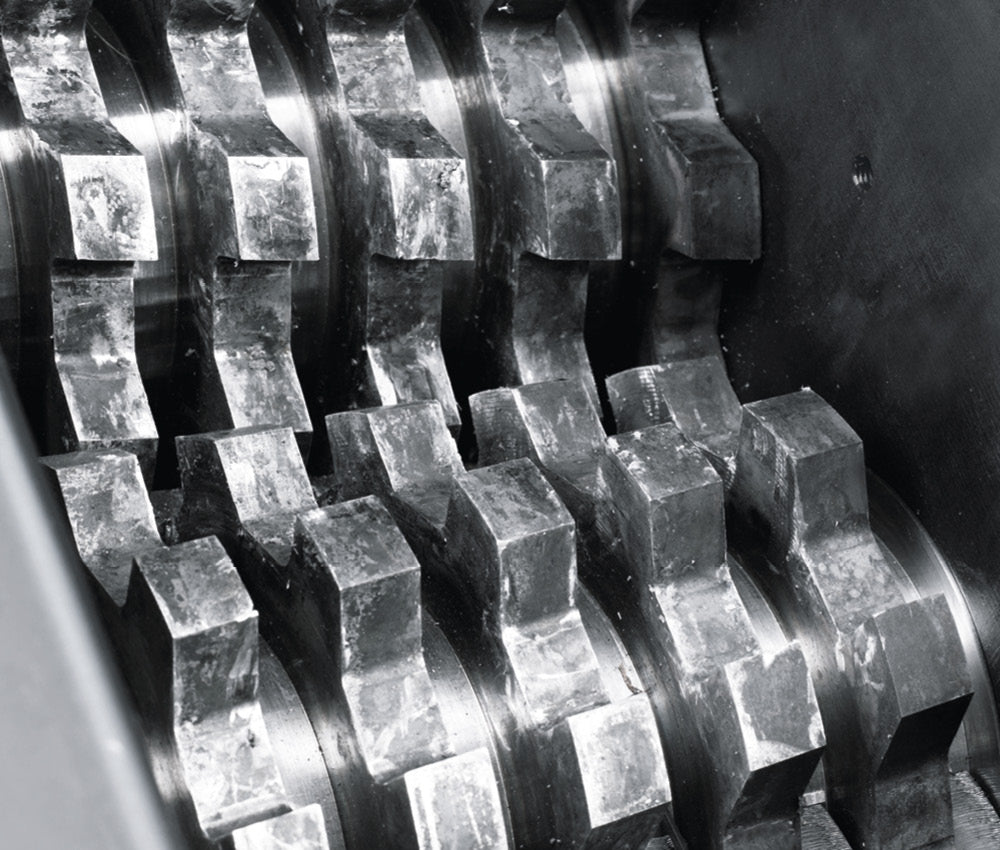

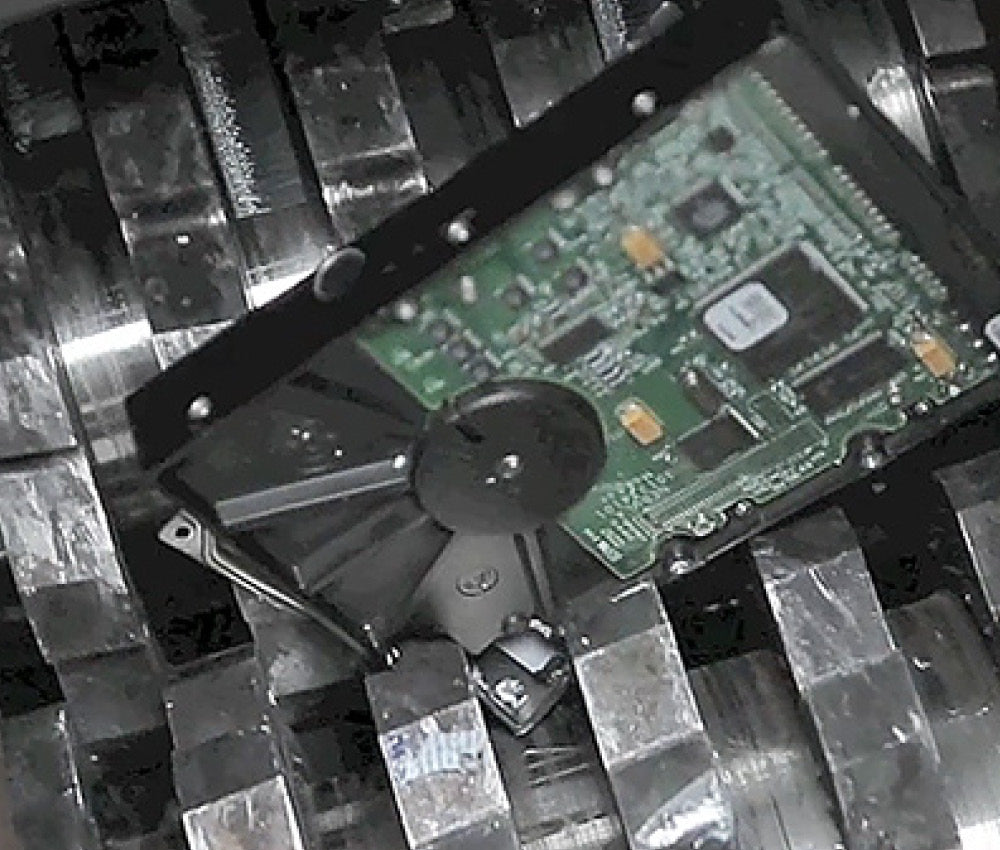

• Solid steel rollers with automatic reverse - jams are cleared by the machine, which matters more on a continuous line than on a batch machine.
• Container height freedom - the belt discharges above bin height, so you can use a container sized to your logistics rather than to the machine.

Specifications

Two figures are deliberately absent. HSM publishes no drive power rating for the 208 V article, and it publishes no idle noise figure for this specific conveyor-equipped H-4 machine - the tray version is quoted at approximately 49 dB(A) and the conveyor-equipped H-5 machine at approximately 55 dB(A), so this one sits somewhere between, but we are not going to print a number HSM has not. The 11.9-gallon container volume in the table is the machine's own bin specification, which is retained in the data sheet even though the belt is the normal discharge route.

A note on NSA claims. Listings for HSM media shredders - including, until now, this one - have stated that HSM hard drive shredders are covered by the NSA/CSS Evaluated Products List. We checked the current NSA/CSS EPL for Hard Disk Drive Sanitization Devices and Deformers and the earlier EPL for Hard Disk Drive Destruction Devices. HSM does not appear on either. If you are destroying classified US government media you must select a device from the applicable NSA EPL and follow NSA/CSS Policy Manual 9-12. DIN 66399 H-ratings are a European commercial standard and are not an NSA authorisation.

What's in the Box

The machine arrives assembled with its cutting unit, filtration and collection container fitted. Because of the size, weight and special handling requirements, HSM ships the HDS 230 FOB origin regardless of standard vendor shipping policy - freight is quoted separately and requires a forklift or dock at delivery. Confirm floor loading, door and corridor clearances and the 208 V / 60 Hz supply before ordering. HSM does not publish a machine warranty term in the article data we can verify; get it in writing on the quotation.

Who Should Buy This - and Who Should Not

Buy it if drive destruction is a production line rather than an occasional task - an ITAD facility, a recycler, a large data centre decommissioning at scale. The belt removes the single biggest interruption in the tray workflow and lets one operator feed continuously. At 113 inches long, it needs a bay, not a store room.

Do not buy it if floor space is tight or volume is modest - the HDS 230 H-4 with tray is 51 inches shorter, 280 lb lighter and cheaper, with identical cutting performance. If your policy requires H-5, the HDS 230 H-5 with discharge conveyor belt is the dual-stage equivalent of this machine. And if you only have 120 V service, none of the HDS 230 range will work - look at the StoreEx HDS 150.
