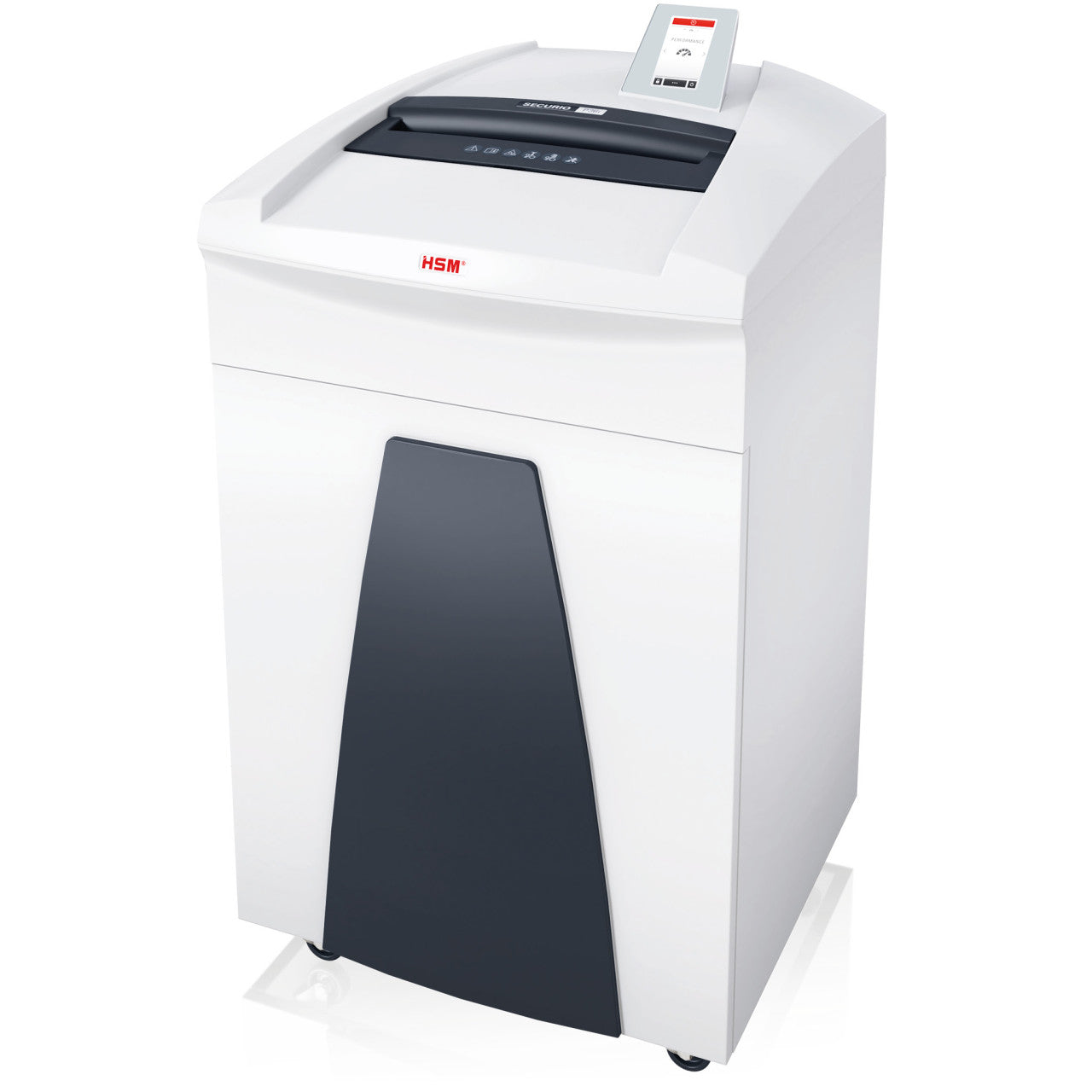

HSM SECURIO P36i 1/16 x 5/8 Cross Cut Shredder - HSM1852

HSM SECURIO P36i 1/16 x 5/8 Cross Cut Shredder - HSM1852

DIN 66399 security level P-5max 30 mm² particleInformation intended to be kept secret: medical reports, strategy papers, financial models, privileged material. See every P-5 machine
Cut
Micro Cut
Cut size
1.9 x 15 mm (approx. 1/16 x 5/8 in)
Sheet capacity
16-18 sheets of 80 g/m2 paper (about 21 lb bond)
Throat width
12.99 in (330 mm)
Regular price $3,335.70 USD
Regular price $8,761.71 USD Sale price $3,335.70 USD
Sale Sold out
Quantity

Volume pricing, freight, installation, trade-in and GSA pricing — written quote within one business day.

Request a quote

HSM SECURIO P36i 1/16 x 5/8 Cross Cut Shredder - HSM1852 Listed at $3,335.70

Anything else we should price in?

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

No obligation. A specialist replies within one business day, 08:00 AM – 05:00 PM PST.

  • Free shipping across the USA Included on every machine in the catalogue
  • 30-day return policy Shipping, refund and return terms published in full
  • +1 (858) 266-0509 Speak to a specification specialist · 08:00 AM – 05:00 PM PST, Monday to Friday

Authorized HSM dealer New stock through the manufacturer's authorized channel, with the manufacturer's own warranty · what this covers

Description

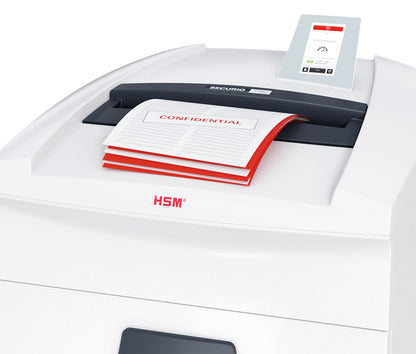

The P36i at 1.9 x 15 mm is the sweet spot of HSM's departmental range: DIN 66399 P-5 security at 16 to 18 sheets a pass, from a machine rated for continuous running. Nothing else in this batch combines that security level with that throughput. It is also the highest security level HSM still covers with its 5-year machine warranty and lifetime cutting-roller warranty - a real financial difference against the P-6 and P-7 variants of the same chassis. A 330 mm throat swallows A3 and letter or legal portrait, waste falls into a 145 l compartment, and an integrated automatic oiler removes the main maintenance chore on a micro-cut machine.

Key Features

  • 1.9 x 15 mm particle cut - 28.5 mm2, inside the 30 mm2 ceiling for DIN P-5

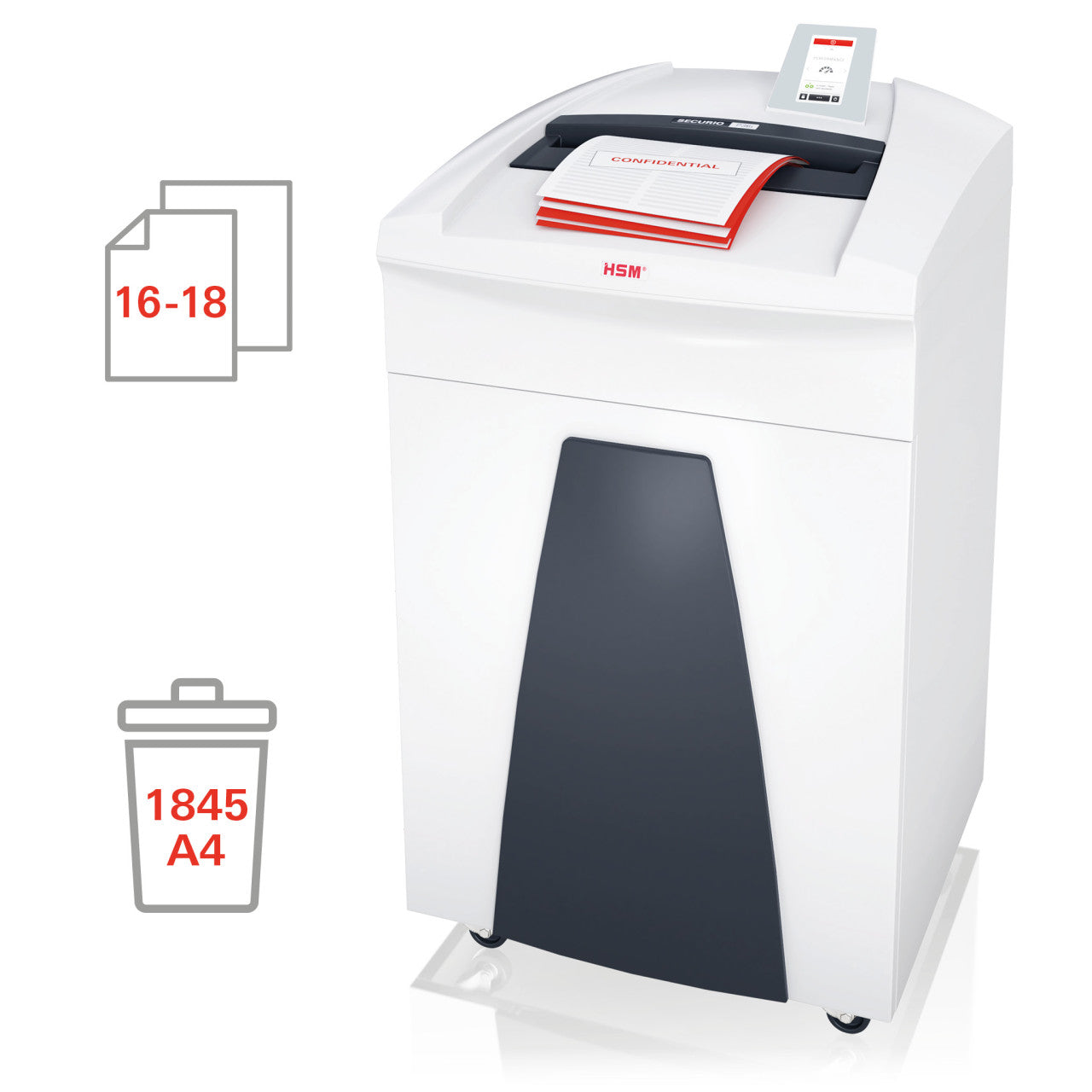

  • 16 to 18 sheets a pass, roughly double the throughput of the P-7 variant of the same machine
  • Rated O-4 for optical media, so CDs and DVDs go through the main throat without a separate unit

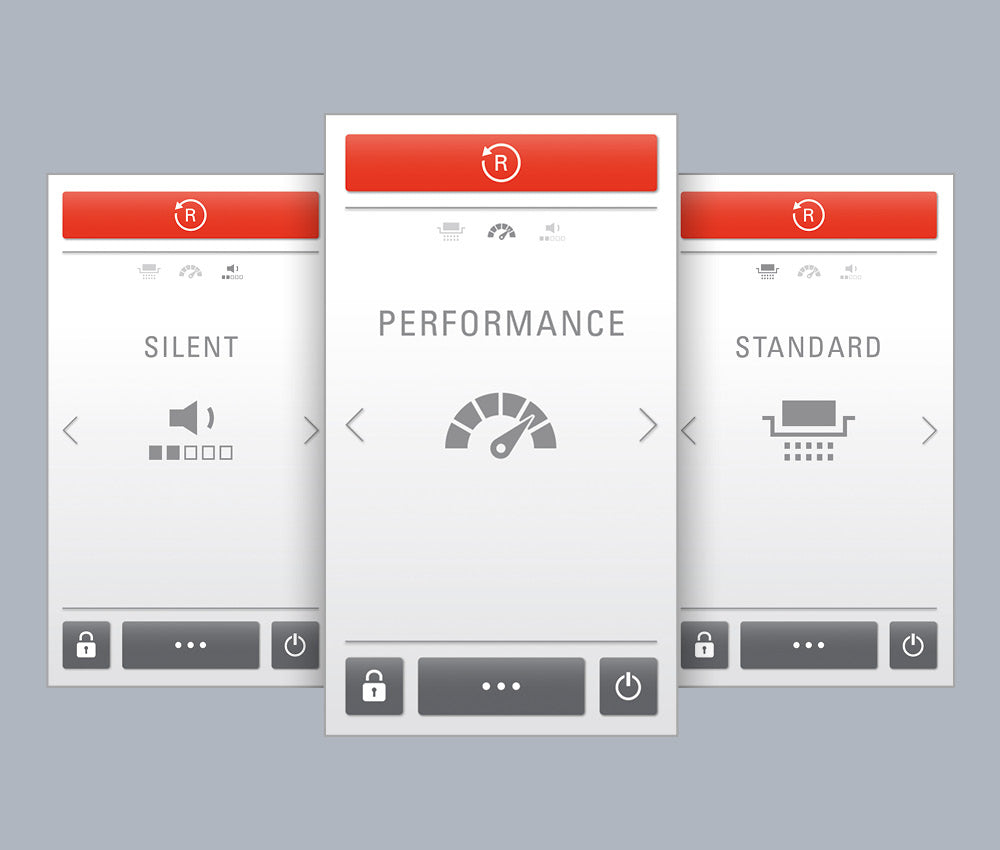

  • 1000 W IntelligentDrive motor with performance, standard and silent modes, rated for continuous operation

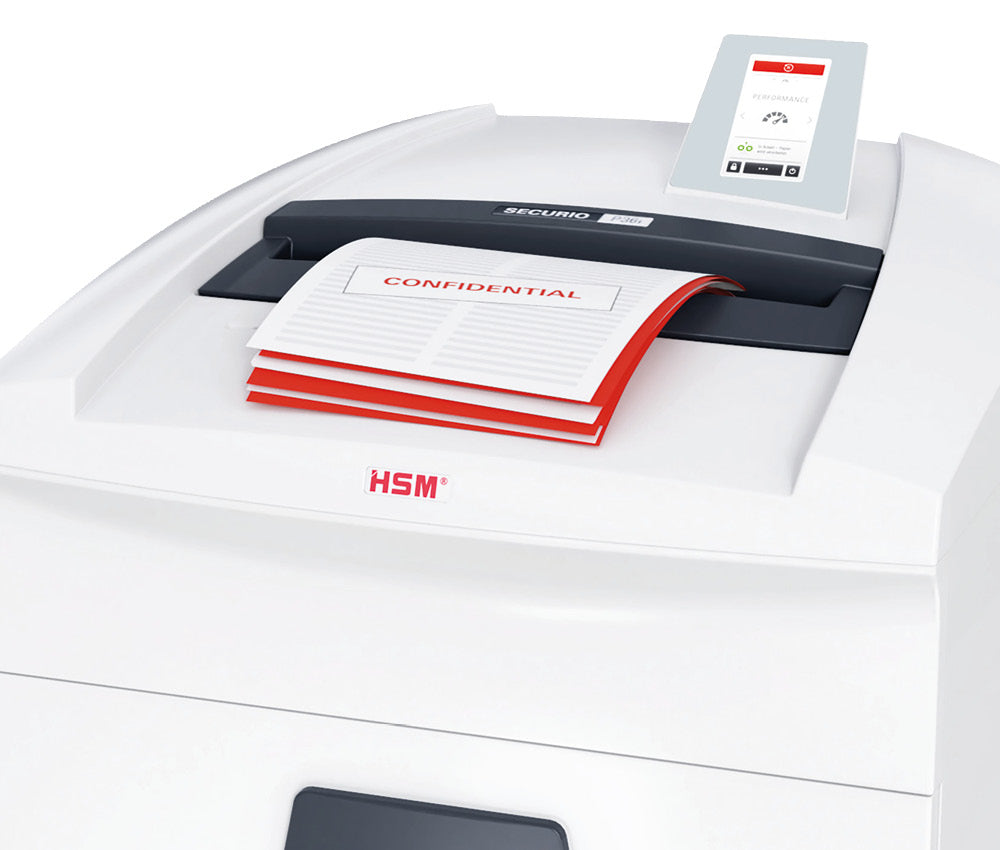

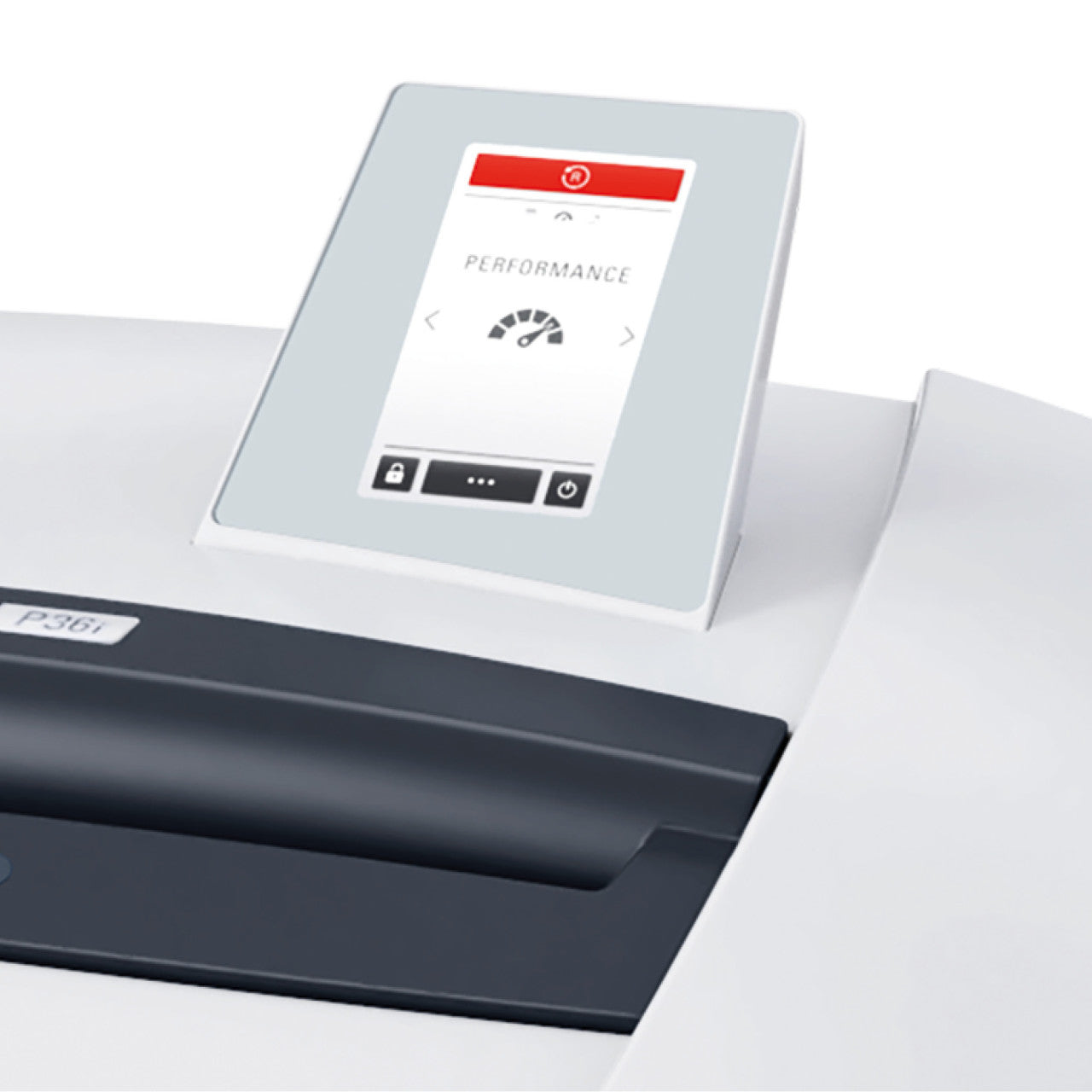

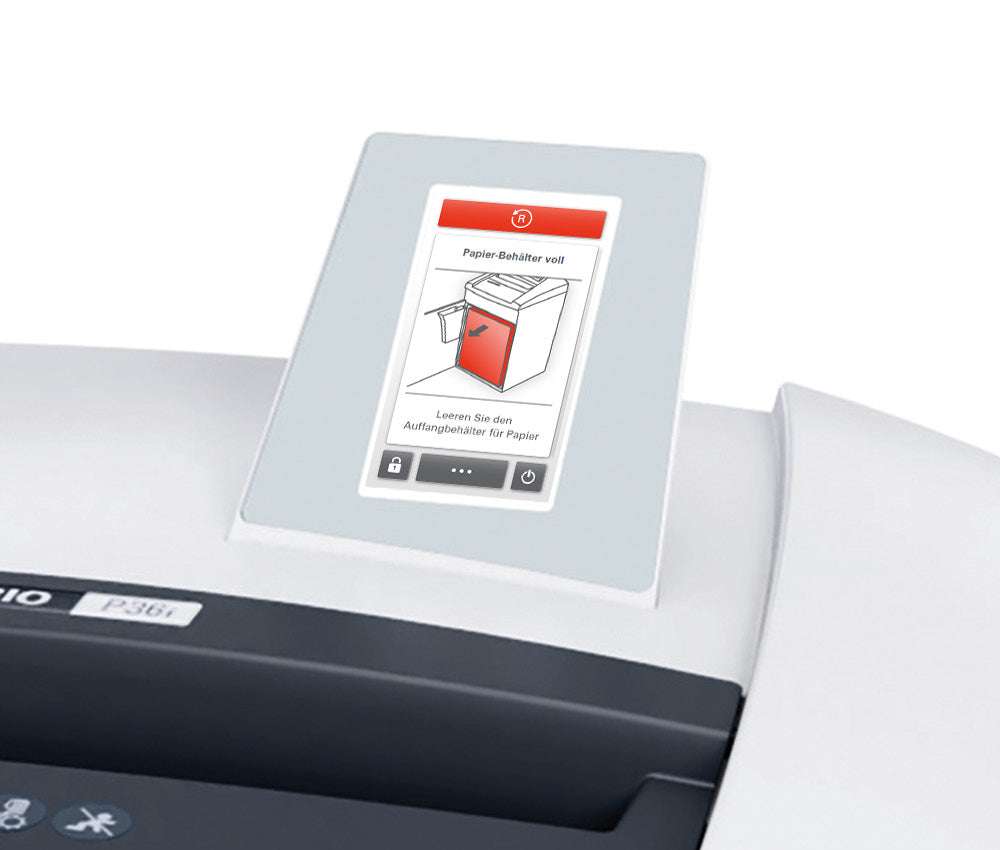

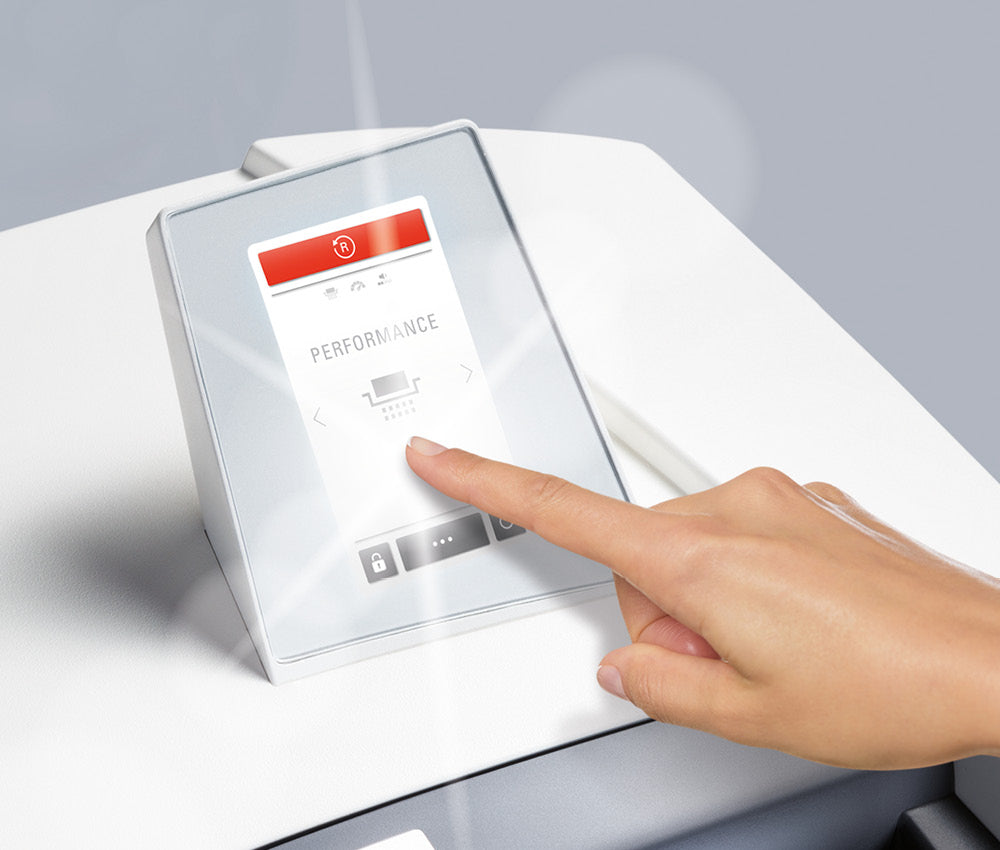

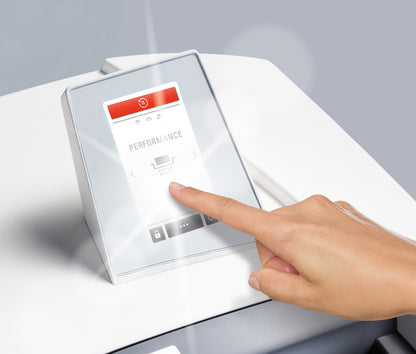

  • 4.3 in touch display with multilingual menus, full-bin notification and jam prevention with automatic reverse
  • 330 mm (12.99 in) throat takes A3 and US letter or legal fed portrait

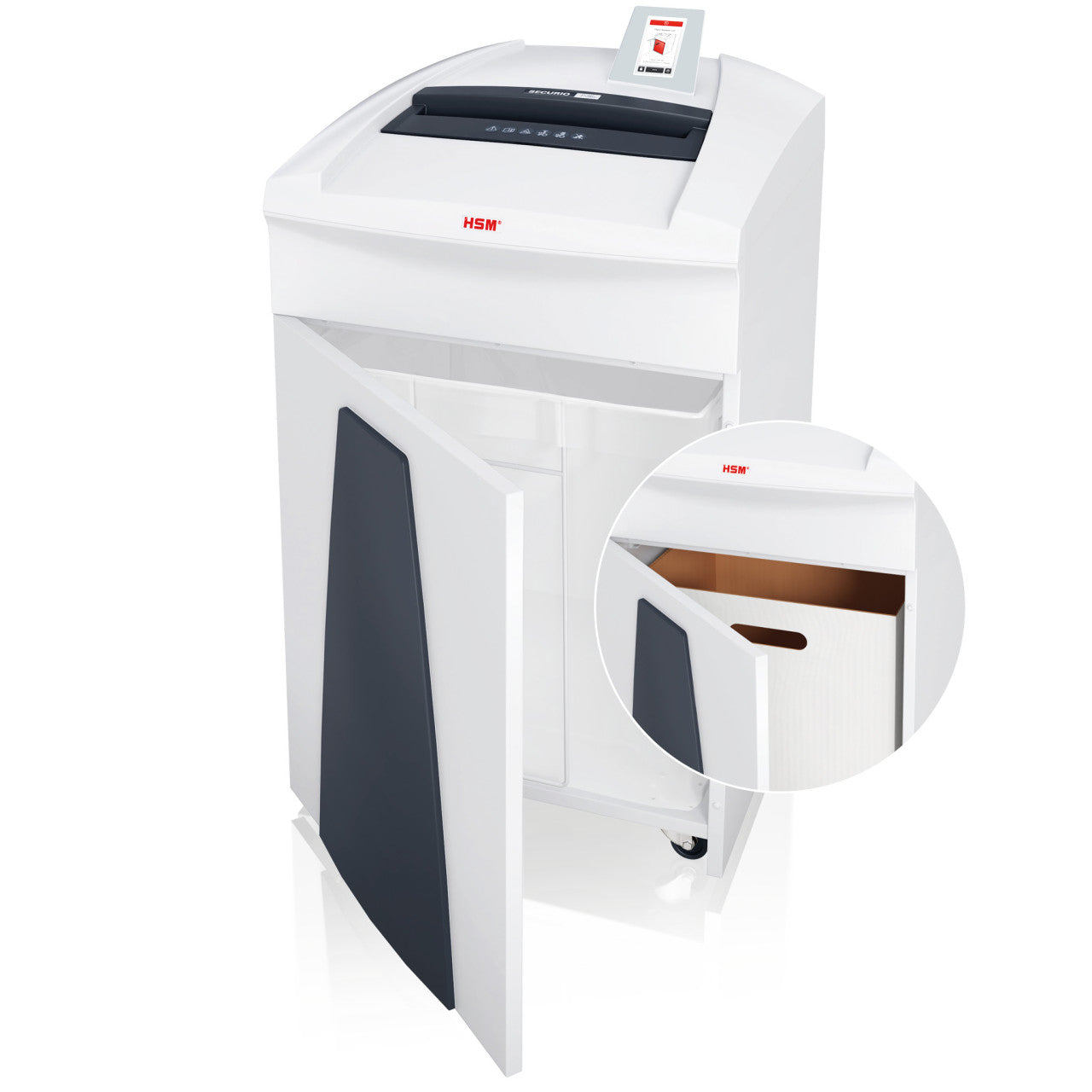

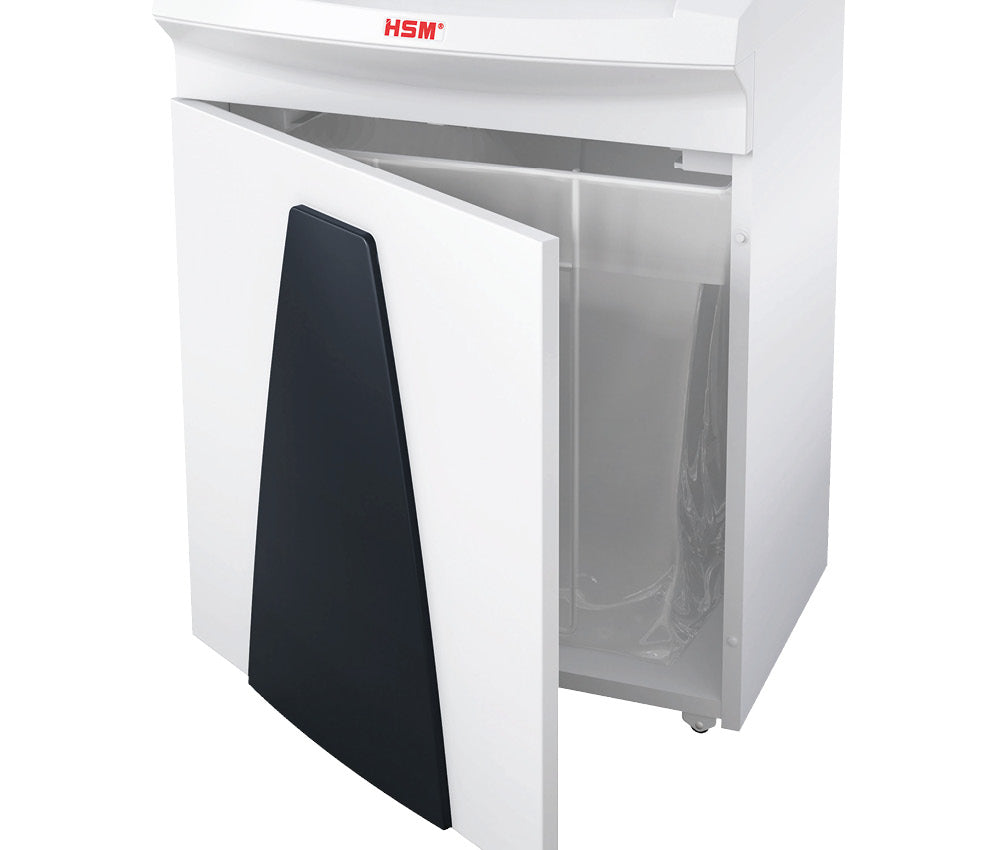

  • 145 l (38.3 gallon) waste compartment behind a full-width door, with an inspection window

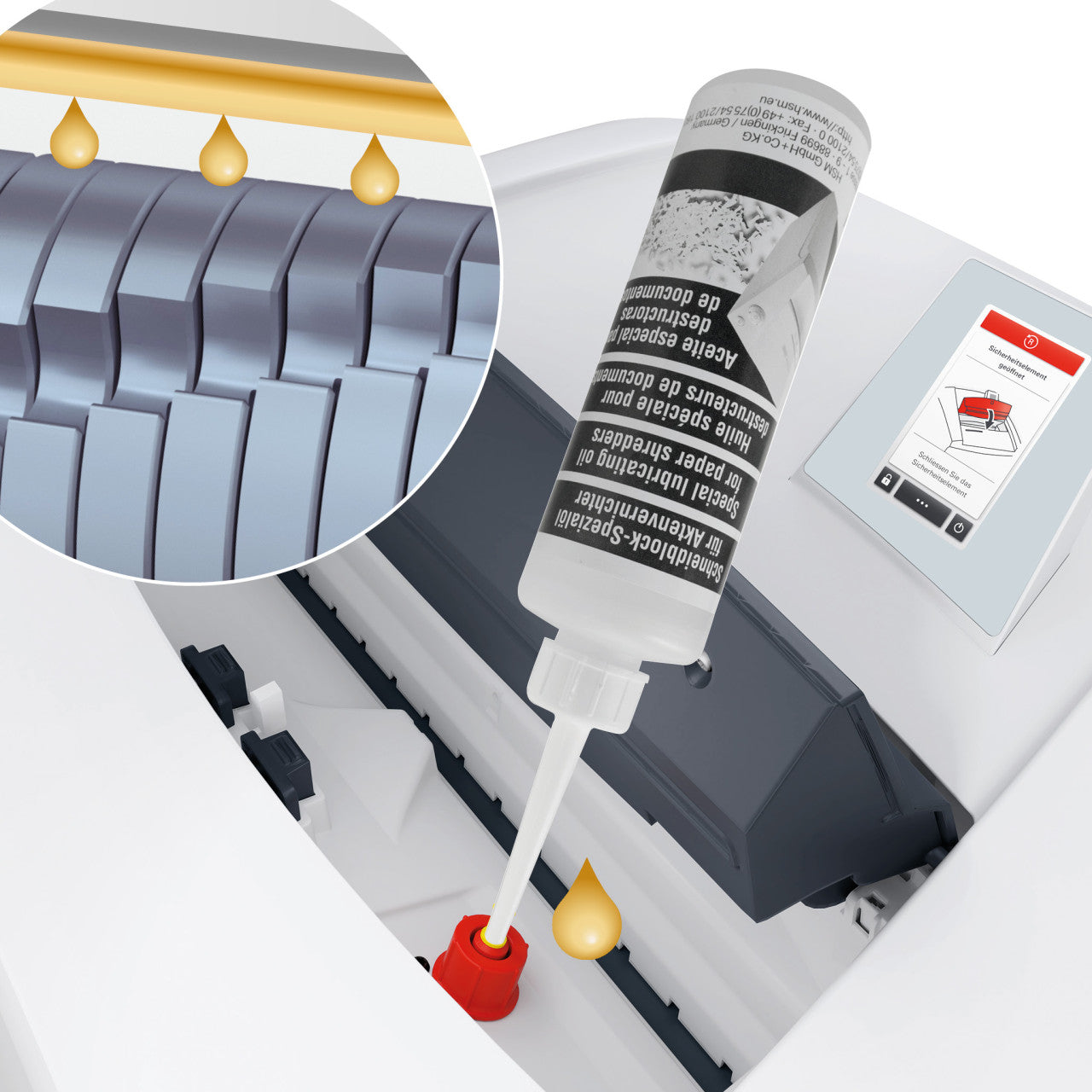

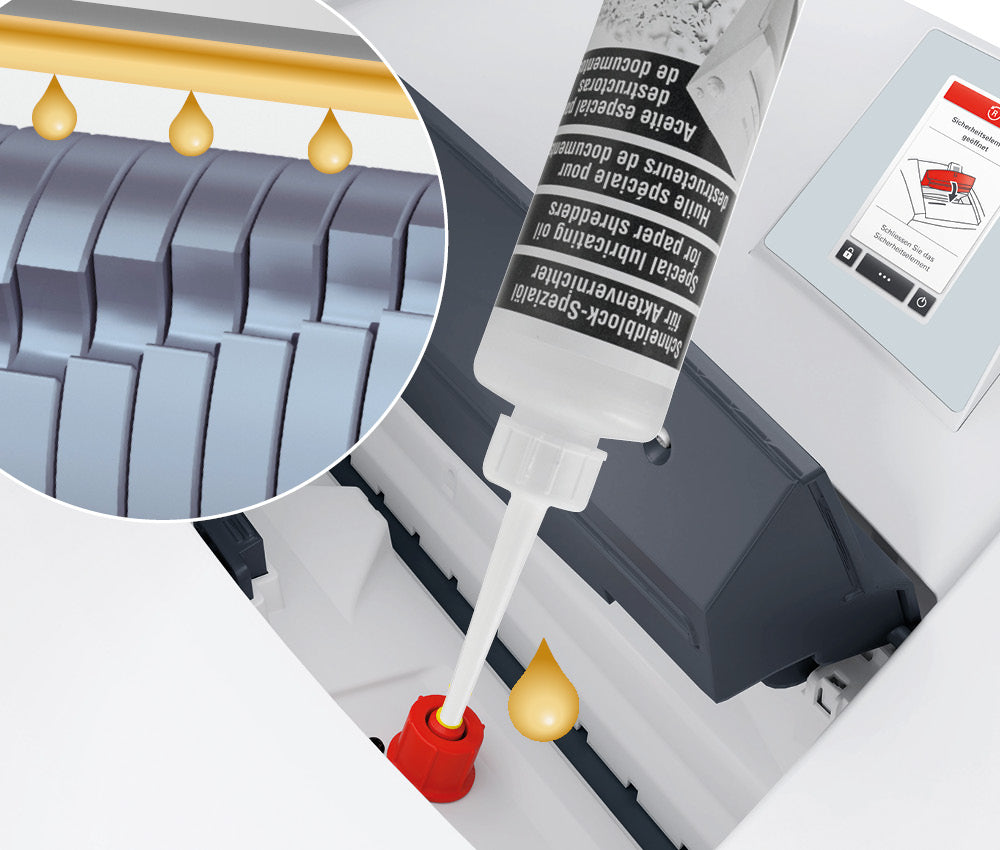

  • Integrated automatic oiler keeps the micro-cut rollers lubricated
  • Approximately 55 dB(A) at idle, and 0.1 W in EcoSmart standby
  • The highest security level still covered by HSM's 5-year machine warranty and lifetime cutting-roller warranty

Specifications

Security level (DIN 66399 / ISO/IEC 21964) E-4 | F-2 | O-4 | P-5 | T-5 (P-5)
Cut type Micro-cut (particle cut)
Cut size 1.9 x 15 mm (approx. 1/16 x 5/8 in)
Sheet capacity 16-18 sheets of 80 g/m2 paper (about 21 lb bond)
Throat width 12.99 in (330 mm)
Waste container volume 38.3 gal (145 l)
Motor power 1000 W
Voltage 100-240 V / 50-60 Hz
Noise level approx. 55 dB(A) at idle

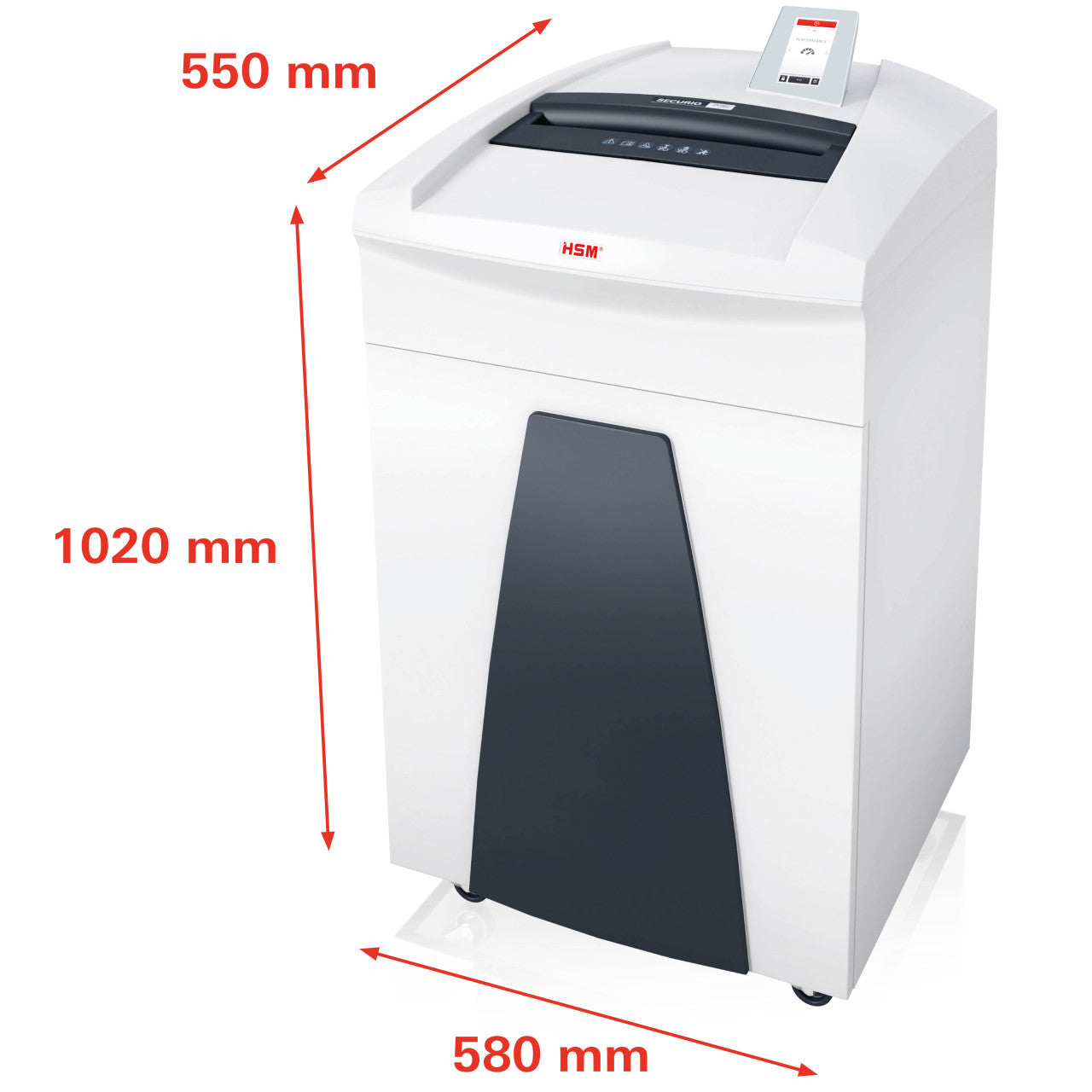

Dimensions (W x D x H) 22.83 x 21.65 x 40.16 in (580 x 550 x 1020 mm)
Weight 149.91 lb (68 kg)
Shreddable materials Paper, staples, paper clips, credit and chip cards, CDs and DVDs
Warranty 5-year machine warranty plus HSM's lifetime warranty on the solid steel cutting rollers (HSM applies both to SECURIO models rated P-2 to P-5)

What's in the Box

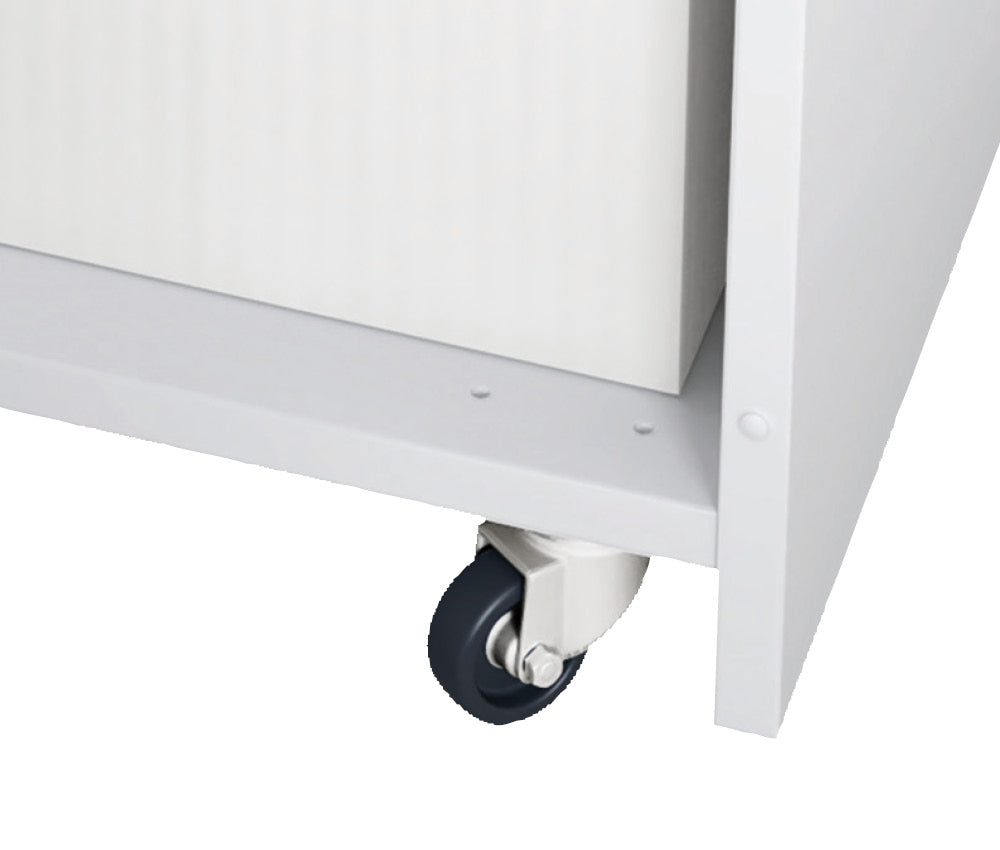

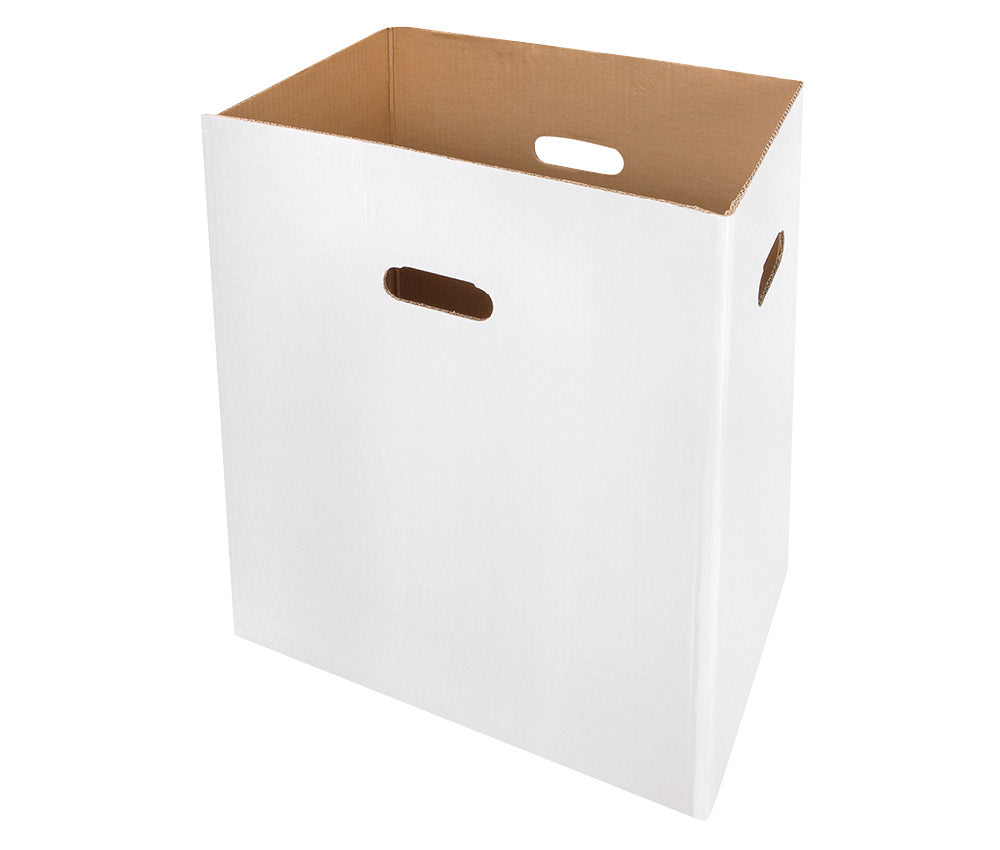

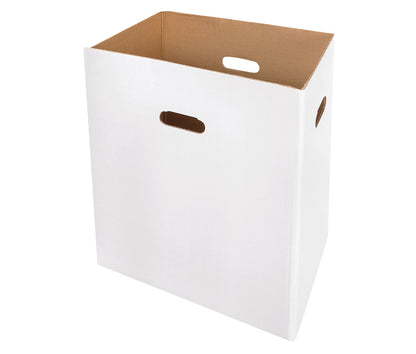

Supplied assembled on castors with power cord and operating instructions. The waste compartment takes HSM's cardboard box liner for the P36i/P40i chassis; boxes are a consumable and are ordered separately.

Who Should Buy This - and Who Should Not

This is the machine for a department of roughly five to fifteen people that handles personal, financial or medical records and needs a level above P-4. It runs continuously, holds 38.3 gallons, oils itself, and still takes 16 to 18 sheets a pass - so it will not become the bottleneck the way a desk-side unit does. It is not a high-security machine. P-5 permits particles up to 30 mm2; if your policy or contract calls for P-6, P-7 or an NSA-listed shredder, this model does not qualify and is not on the NSA/CSS EPL. Step up to the HSM SECURIO P36i 0.78 x 11 mm (HSM1855) for P-6 at 11 to 13 sheets, or the HSM SECURIO P36i 1 x 5 mm (HSM1854) for P-7 at eight sheets - accepting in both cases that HSM's lifetime roller warranty no longer applies. It is also overkill for a single user: at 68 kg and 40 inches tall, a C-series desk-side machine such as the SECURIO C18 3.9 x 30 mm (HSM1913) makes more sense for one person at P-4.

Product Specification

Machine Type
Departmental
Shredder Series
SECURIO
Cut Type
Micro Cut
Shreddable Materials
Paper, staples, paper clips, credit and chip cards, CDs and DVDs
Cut Size
1.9 x 15 mm (approx. 1/16 x 5/8 in)
Bin Size / Container Volume
38.3 gal (145 l)
Throat Width
12.99 in (330 mm)
Power Consumption
1000 W
Voltage
100-240 V / 50-60 Hz
Weight
149.91 lb (68 kg)
Security Level
P-5
Sheet Capacity
16-18 sheets of 80 g/m2 paper (about 21 lb bond)
Dimensions (WxDxH)
22.83 x 21.65 x 40.16 in (580 x 550 x 1020 mm)
Warranty
5-year machine warranty plus HSM's lifetime warranty on the solid steel cutting rollers (HSM applies both to SECURIO models rated P-2 to P-5)
dB Level
approx. 55 dB(A) at idle

Product listing details

Vendor
HSM
Product type
Document Shredder
Condition
New
SKU
1852121
GTIN
4026631057882
Price
$3,335.70 USD
Currency
USD
Availability
In stock
Shipping policy
Click to view policy
Refund policy
Click to view policy
Return policy
Click to view policy
View full details
Before you specify

Frequently Asked Questions

How many people can share this before it bottlenecks?

HSM positions the P36i as a departmental machine, and in practice five to fifteen regular users is the realistic band. Three things keep it from bottlenecking: the continuous-operation rating, 16 to 18 sheets a pass, and a 145 l bin that a normal office fills in weeks rather than days. What does slow it down is people feeding stapled bundles one page at a time, so it is worth telling users the rollers handle staples.

Can it shred CDs and DVDs?

Yes, through the main throat - this variant is rated O-4 for optical media, which means discs are destroyed to particles of 30 mm2 or less. Feed them one at a time and on their own. Note that the higher-security P36i variants cannot do this: a P-6 or P-7 paper cutter is too fine to survive a disc, which is why those models are sold with a separate OMDD cutting unit instead.

Is this shredder NSA approved?

No. NSA/CSS 02-01 requires a maximum particle of 1 mm x 5 mm and the specific model to appear on the NSA/CSS Evaluated Products List. At 1.9 x 15 mm this machine meets neither. HSM does have P36i variants on the EPL - the SECURIO P36i (L6) and the P36i (L6) OMDD Combo - but those are the 1 x 5 mm models, at eight sheets a pass instead of 16 to 18.

Does it need manual oiling?

No. The P36i has an integrated automatic oiler. You keep it topped up with HSM shredder oil rather than running oil sheets or spraying the throat. This is not a cosmetic feature - micro-cut rollers wear quickly when run dry, and on machines without an auto-oiler, missed lubrication is the most common cause of premature failure. Do not substitute vegetable oil or aerosol lubricants.

How often will the 38.3 gallon bin need emptying?

Far less often than a desk-side machine. P-5 particles pack tightly, and 145 l is a large volume - a department shredding a few hundred pages a day will typically go two to four weeks between changes. The touch display gives a full-bin warning and the machine stops rather than jamming. The full-width door means the box comes out without wrestling.

Can it run all day without stopping?

Yes. HSM rates the P36i for continuous operation, which is the main structural difference between this and the C-series desk-side machines. The IntelligentDrive motor offers a performance mode for clearing a backlog and a silent mode for shared spaces. The practical limits are the bin and the operator, not the duty cycle.

Will it take stapled and clipped paperwork?

Yes. HSM builds the P36i with induction-hardened solid steel cutting rollers rated for staples and paper clips, and a P-5 cut is coarse enough to tolerate them. Remove bulldog clips, binder spines and anything substantially heavier than a standard staple. Be aware that the finer P-6 and P-7 versions of this same chassis are far less tolerant of metal - HSM sells a metal-detection variant for exactly that reason.

What warranty comes with it?

HSM publishes a 5-year machine warranty and a lifetime warranty on the solid steel cutting rollers for SECURIO models in security levels P-2 to P-5. At P-5, this machine is the highest-security P36i that still qualifies for both. The P-6 and P-7 variants of the same chassis carry a 3-year machine warranty and no lifetime roller cover, which is worth pricing in if you are choosing between them.
