HSM SECURIO P36 L6 OMDD COMBO 1/32 x 3/16 plus separate OMDD cutting unit 2.2x4m - HSM1854M

HSM SECURIO P36 L6 OMDD COMBO 1/32 x 3/16 plus separate OMDD cutting unit 2.2x4m - HSM1854M

DIN 66399 security level P-7max 5 mm² particleHighest levelStrictly confidential material: classified national security, military and intelligence documents. See every P-7 machine
Cut
Micro Cut
Cut size
1 x 5 mm on the paper unit (approx. 1/32 x 3/16 in)
Sheet capacity
8 sheets of 80 g/m2 paper (about 21 lb bond)
Throat width
12.99 in (330 mm)
Regular price $5,169.00 USD
Regular price $16,933.27 USD Sale price $5,169.00 USD
Sale Sold out
Quantity

Volume pricing, freight, installation, trade-in and GSA pricing — written quote within one business day.

Request a quote

HSM SECURIO P36 L6 OMDD COMBO 1/32 x 3/16 plus separate OMDD cutting unit 2.2x4m - HSM1854M Listed at $5,169.00

Anything else we should price in?

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

No obligation. A specialist replies within one business day, 08:00 AM – 05:00 PM PST.

  • Free shipping across the USA Included on every machine in the catalogue
  • 30-day return policy Shipping, refund and return terms published in full
  • +1 (858) 266-0509 Speak to a specification specialist · 08:00 AM – 05:00 PM PST, Monday to Friday

Authorized HSM dealer New stock through the manufacturer's authorized channel, with the manufacturer's own warranty · what this covers

Description

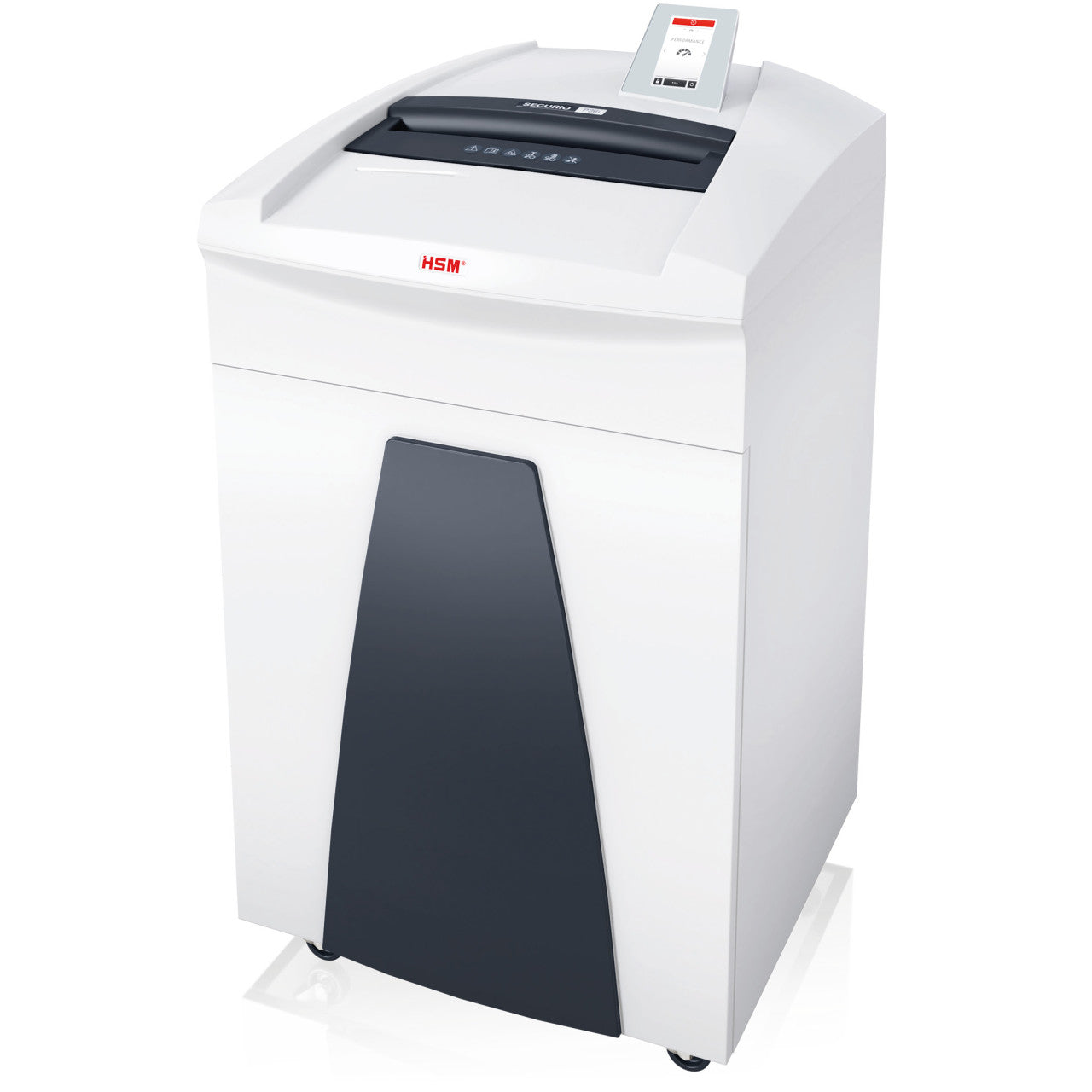

This is the P36i built as a two-slot machine: a 1 x 5 mm paper cutter at DIN 66399 P-7, and a separate OMDD cutting unit alongside it that handles optical discs, chip cards and magnetic media to O-6, E-5 and T-6. The reason it exists is that a P-7 paper cutter is far too fine to survive a CD - so HSM gives the media its own path rather than compromising either one. The SECURIO P36i (L6) OMDD Combo appears on the current NSA/CSS Evaluated Products List for paper shredders. It is a floor-standing 145 l machine on a 1000 W IntelligentDrive motor, rated for continuous operation.

Key Features

  • Two independent cutting units: 1 x 5 mm for paper at P-7, and a separate OMDD unit rated O-6, E-5 and T-6 for optical, chip and magnetic media
  • The SECURIO P36i (L6) OMDD Combo is listed on the NSA/CSS Evaluated Products List for paper shredders

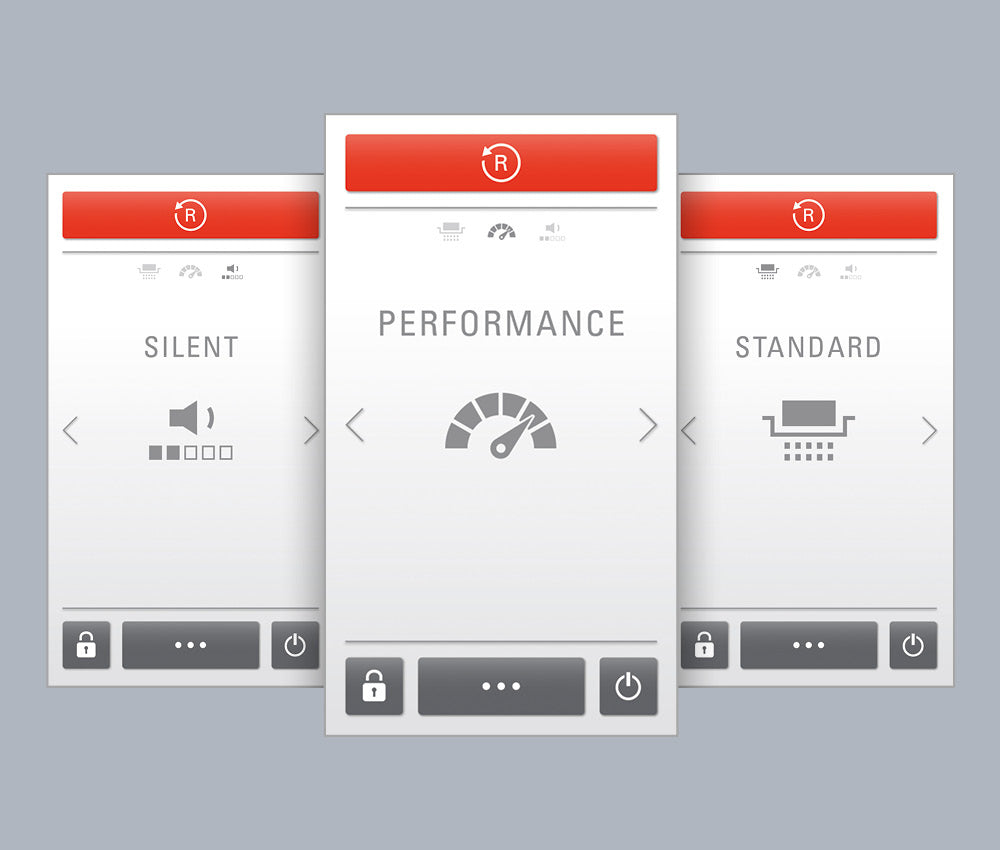

  • 1000 W IntelligentDrive motor with performance, standard and silent modes, rated for continuous running

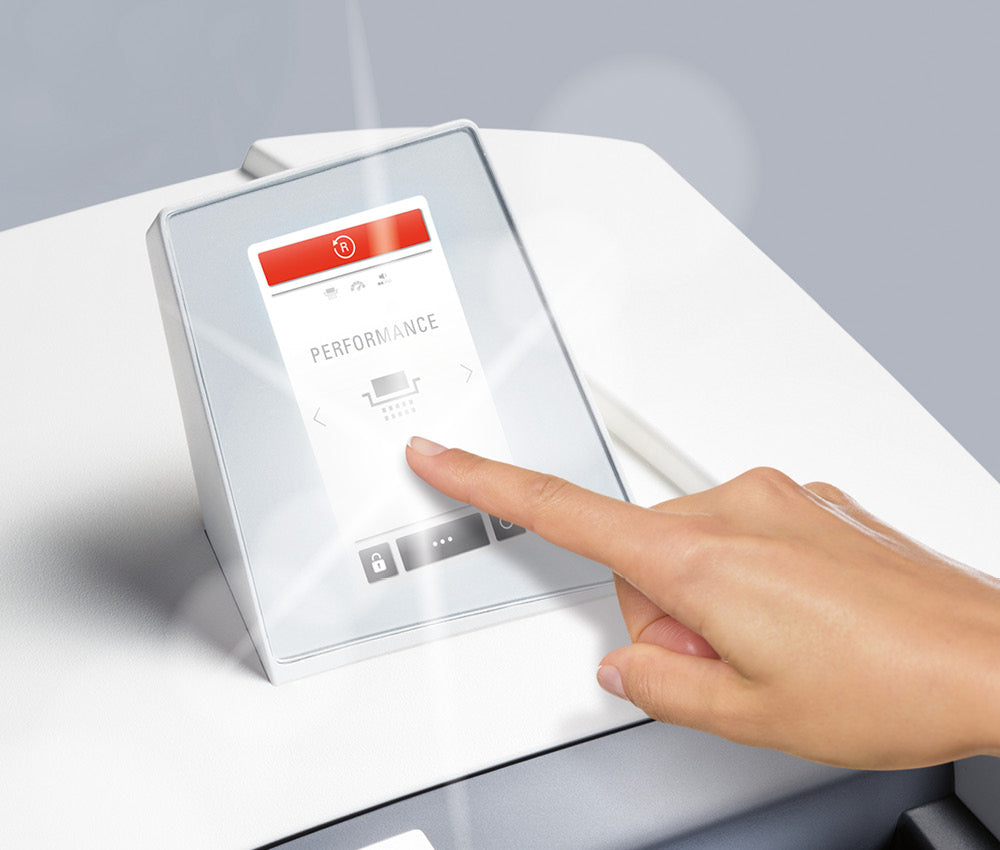

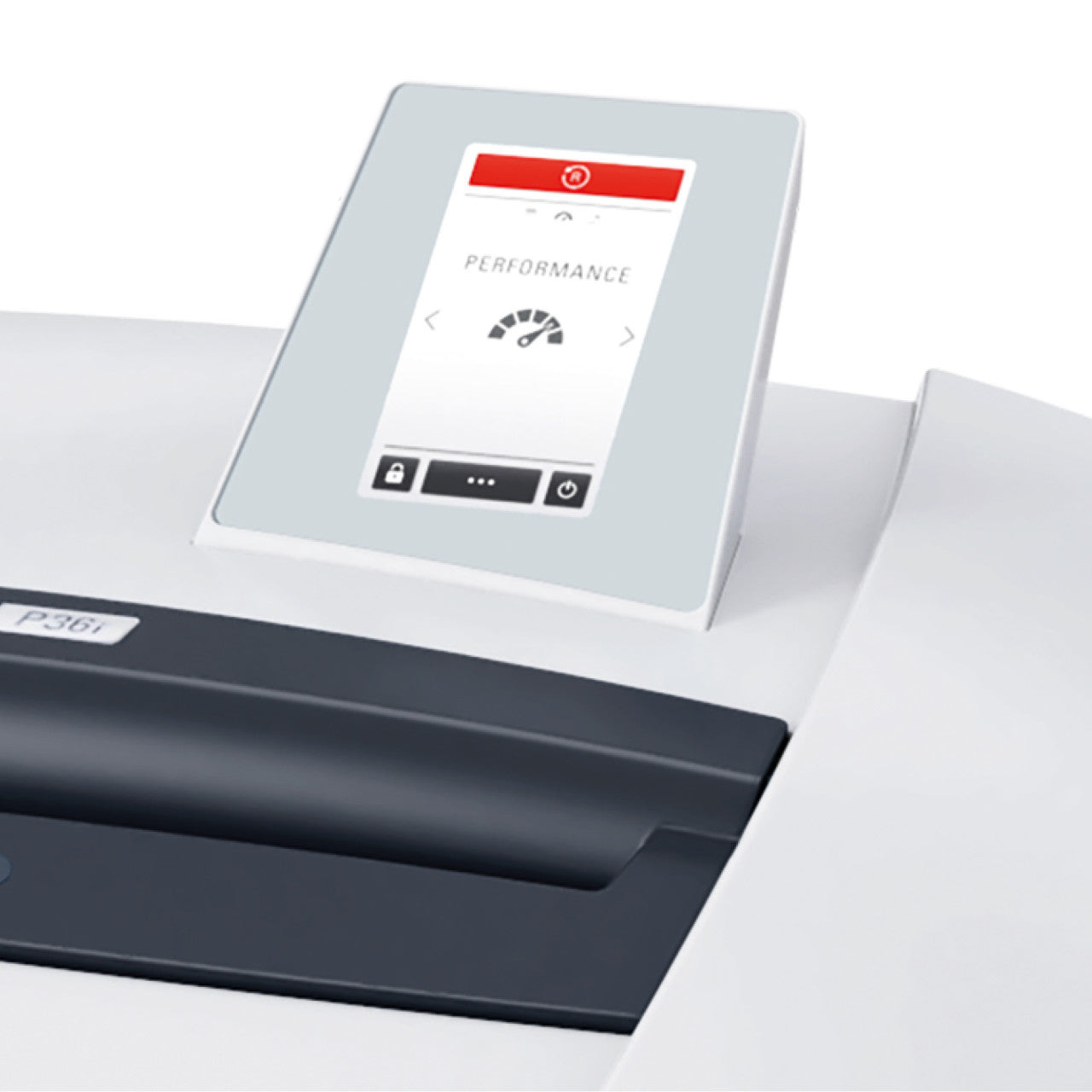

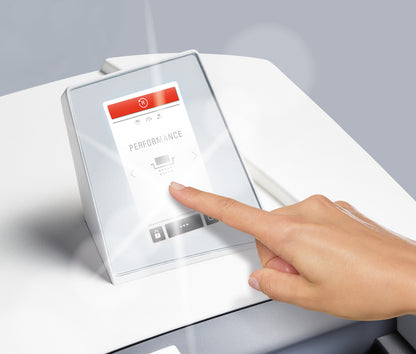

  • 4.3 in touch display with multilingual menus and full-bin notification

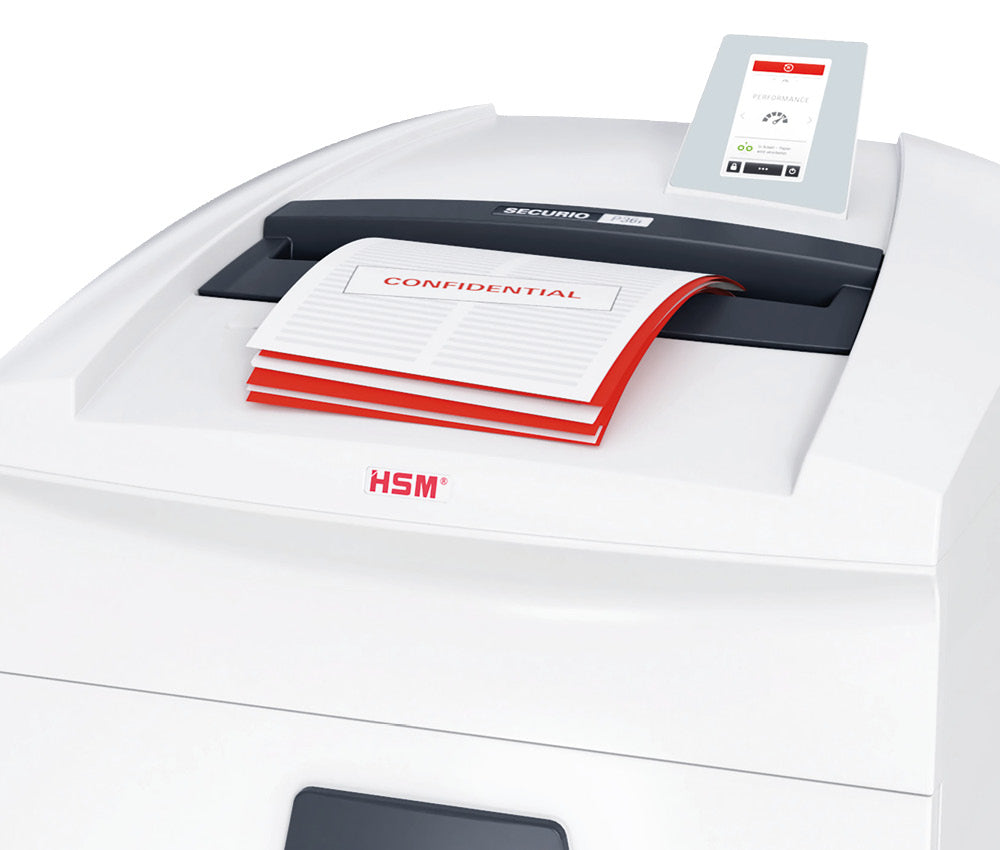

  • 330 mm (12.99 in) throat accepts A3 and letter or legal fed portrait

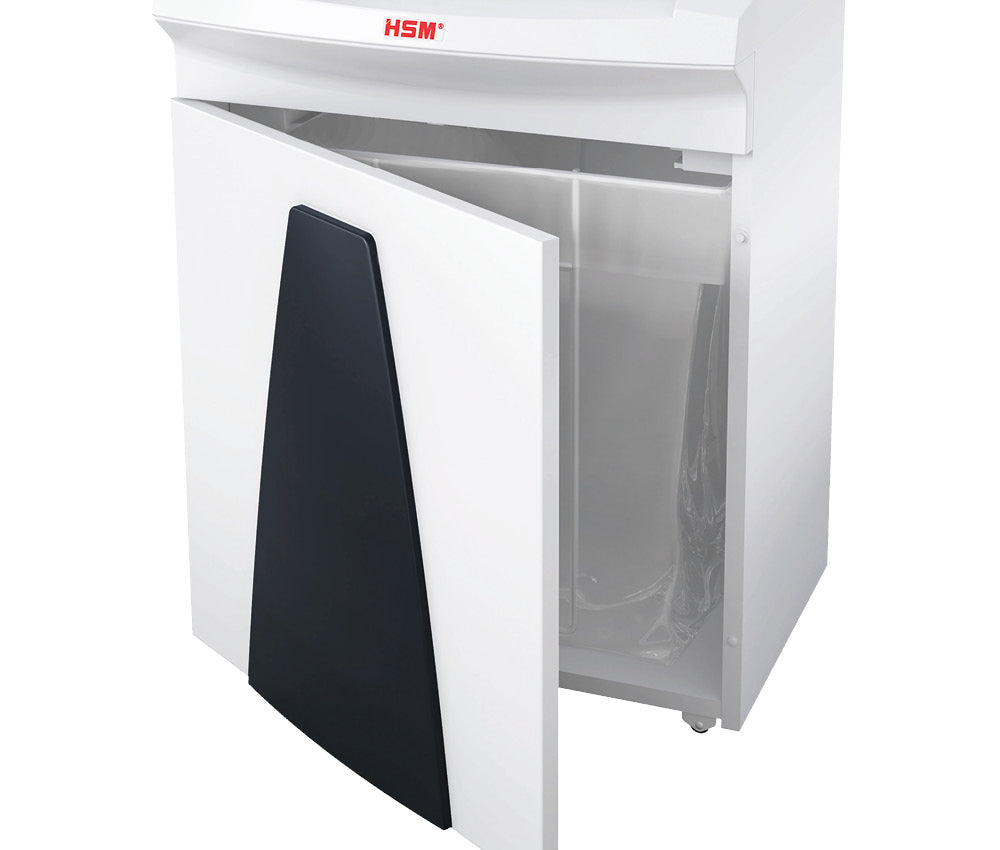

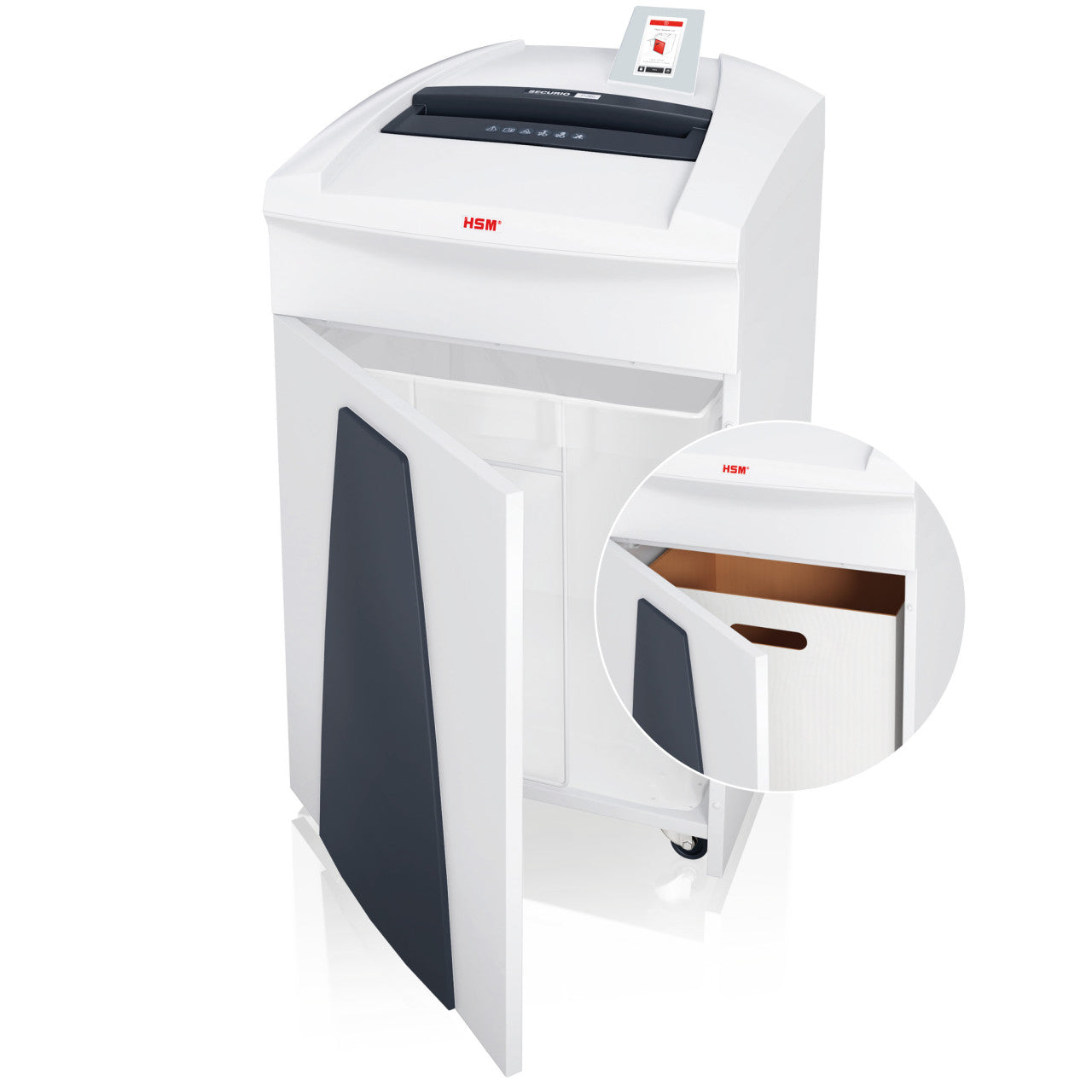

  • 145 l (38.3 gallon) waste capacity behind a full-width door, using the HSM cardboard box liner for the P36i/P40i chassis

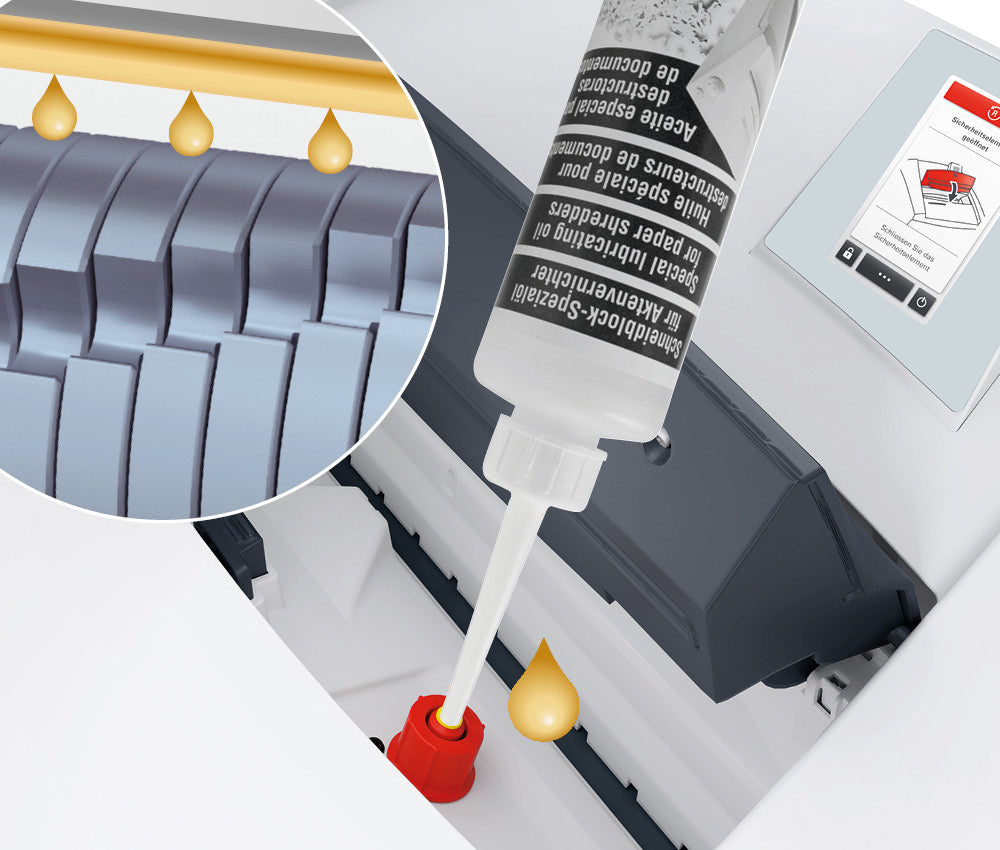

  • Integrated automatic oiler keeps the micro-cut rollers lubricated without manual intervention
  • Approximately 55 dB(A) at idle, low for a machine of this class
  • EcoSmart standby draws 0.1 W

Specifications

Security level (DIN 66399 / ISO/IEC 21964) E-5 | F-3 | O-6 | P-7 | T-6 (P-7)
Cut type Micro-cut (particle cut)
Cut size 1 x 5 mm on the paper unit (approx. 1/32 x 3/16 in)
Sheet capacity 8 sheets of 80 g/m2 paper (about 21 lb bond)
Throat width 12.99 in (330 mm)
Waste container volume 38.3 gal (145 l)
Motor power 1000 W
Voltage 100-240 V / 50-60 Hz
Noise level approx. 55 dB(A) at idle

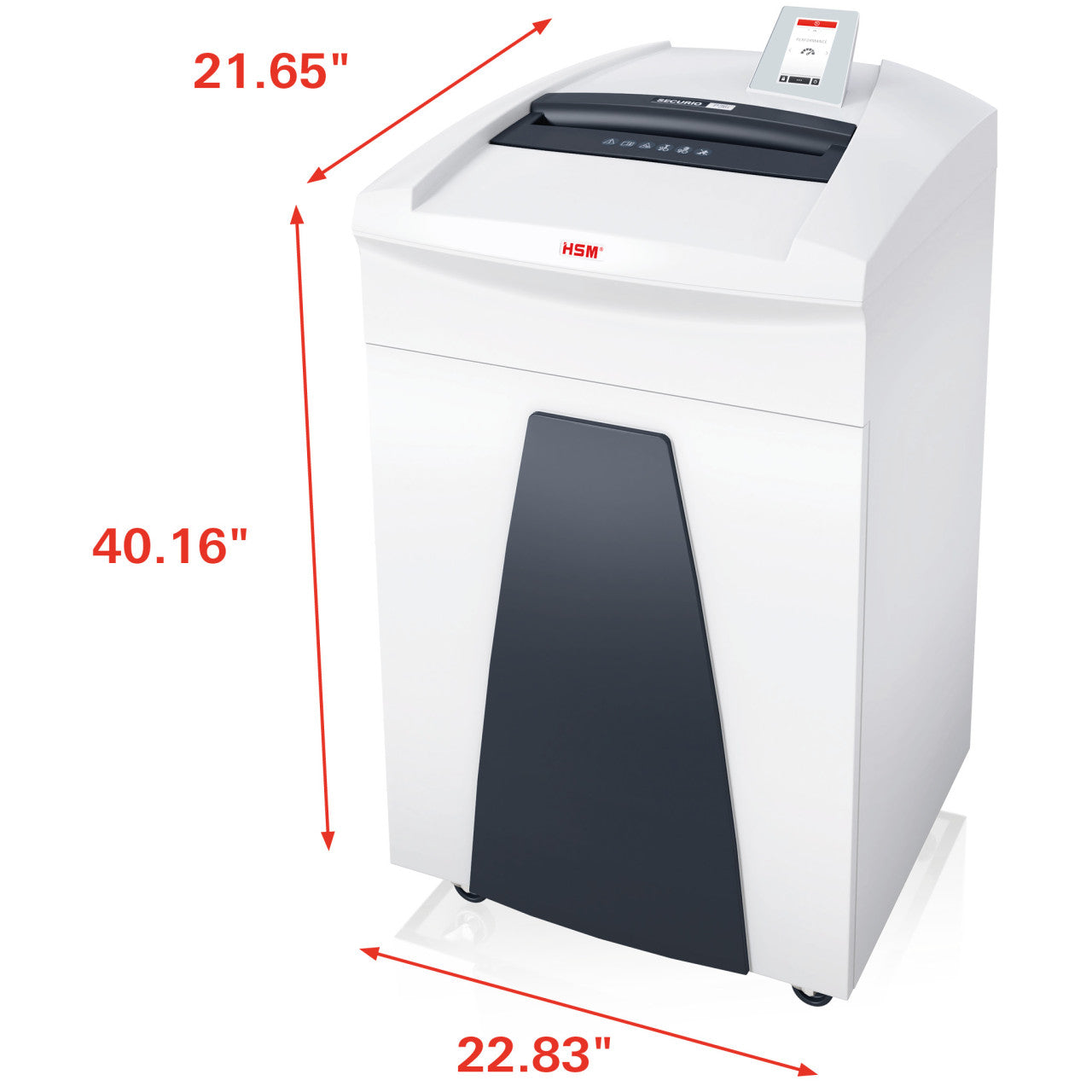

Dimensions (W x D x H) 22.83 x 21.65 x 40.16 in (580 x 550 x 1020 mm)
Weight 163.14 lb (74 kg)
Shreddable materials Paper and film through the main unit; optical media, chip cards and magnetic media through the separate OMDD cutting unit
Warranty 3-year machine warranty. HSM's lifetime cutting-roller warranty applies to P-2 to P-5 models only, so it does not extend to this machine

What's in the Box

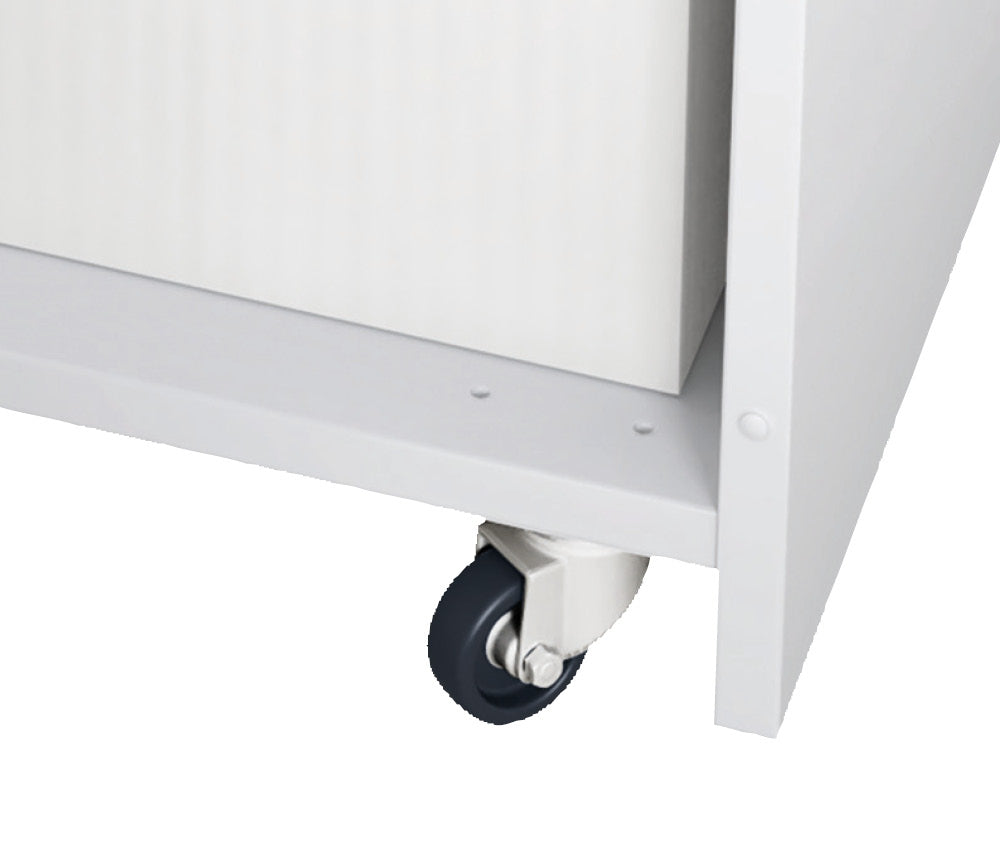

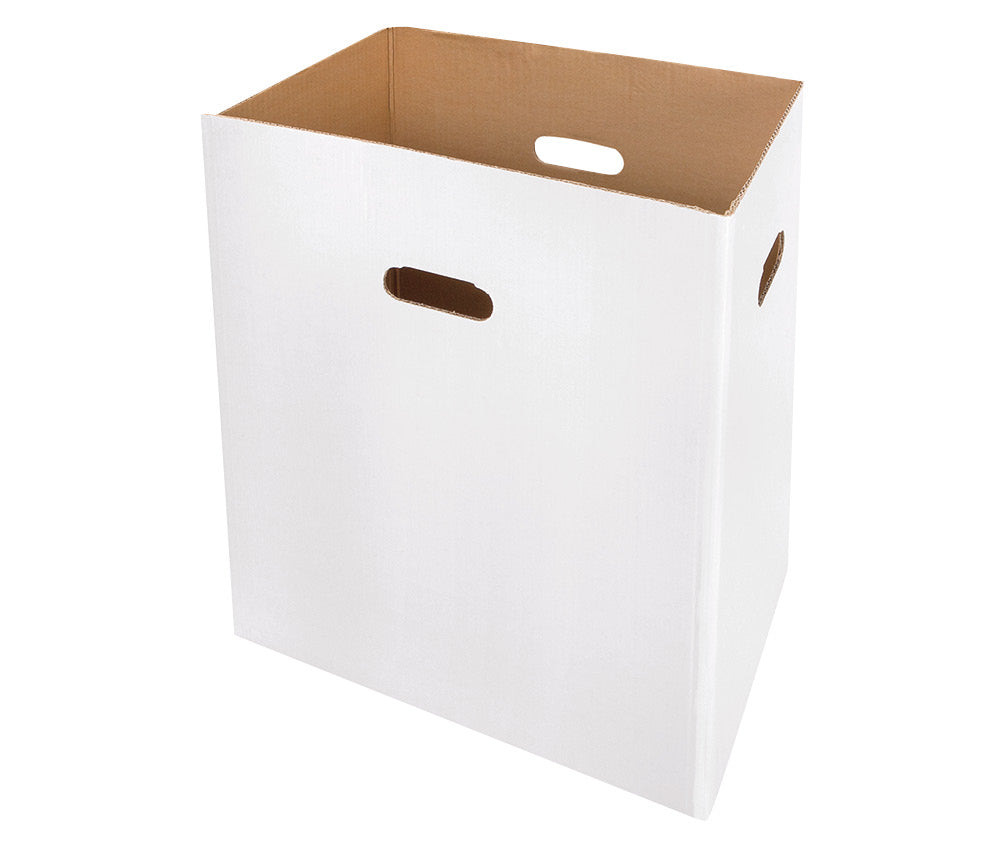

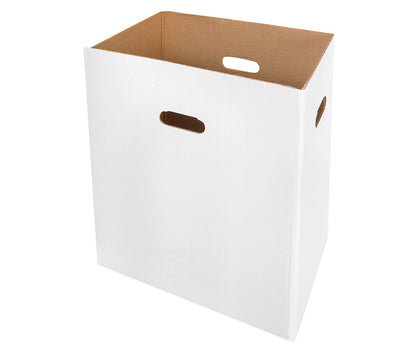

The machine ships assembled on castors with its power cord and operating instructions. Waste is collected in the HSM cardboard box liner for the P36i/P40i chassis, which is a consumable and is ordered separately - budget for a supply when you buy the machine.

Who Should Buy This - and Who Should Not

Buy this if you have both classified or highly sensitive paper and optical or chip media to destroy, and you want one machine and one audit trail rather than two. The combination of a P-7 paper cutter and a dedicated O-6 media unit is exactly what government contractors, defence suppliers and secure records facilities are usually specifying, and the P36i (L6) OMDD Combo's presence on the NSA/CSS EPL is why. Two caveats worth stating plainly. Eight sheets a pass is slow - this is a security machine, not a volume machine, and a department shredding thousands of routine pages a day will hate it. And HSM's lifetime cutting-roller warranty stops at P-5, so this machine carries a 3-year warranty with no lifetime roller cover. If you do not need optical media destruction, the HSM SECURIO P36i 1 x 5 mm (HSM1854) is the same paper performance without the second unit. If you want the same configuration plus metal detection to protect the fine cutters, take the P36i 1 x 5 mm with metal detection and OMDD unit (1854121N). If P-7 is more than your policy requires, the P36i 1.9 x 15 mm (HSM1852) is P-5 at 16 to 18 sheets and keeps the 5-year warranty.

Product Specification

Machine Type
Departmental
Shredder Series
SECURIO
Cut Type
Micro Cut
Shreddable Materials
Paper and film through the main unit; optical media, chip cards and magnetic media through the separate OMDD cutting unit
Cut Size
1 x 5 mm on the paper unit (approx. 1/32 x 3/16 in)
Bin Size / Container Volume
38.3 gal (145 l)
Throat Width
12.99 in (330 mm)
Power Consumption
1000 W
Voltage
100-240 V / 50-60 Hz
Weight
163.14 lb (74 kg)
Security Level
P-7
Sheet Capacity
8 sheets of 80 g/m2 paper (about 21 lb bond)
Dimensions (WxDxH)
22.83 x 21.65 x 40.16 in (580 x 550 x 1020 mm)
Warranty
3-year machine warranty. HSM's lifetime cutting-roller warranty applies to P-2 to P-5 models only, so it does not extend to this machine
dB Level
approx. 55 dB(A) at idle

Product listing details

Vendor
HSM
Product type
Document Shredder
Condition
New
SKU
1854123M
GTIN
4026631058605
Price
$5,169.00 USD
Currency
USD
Availability
In stock
Shipping policy
Click to view policy
Refund policy
Click to view policy
Return policy
Click to view policy
View full details
Before you specify

Frequently Asked Questions

Is this machine NSA approved?

The SECURIO P36i (L6) OMDD Combo appears on the current NSA/CSS Evaluated Products List for paper shredders, which is the list that matters for classified paper destruction under NSA/CSS 02-01. Two things to check before you rely on it: confirm that the exact configuration you order matches the EPL entry, and note that optical media destruction devices are evaluated on a separate NSA list. Always verify against the current published EPL rather than a dealer claim, including ours.

Why is there a separate slot for CDs?

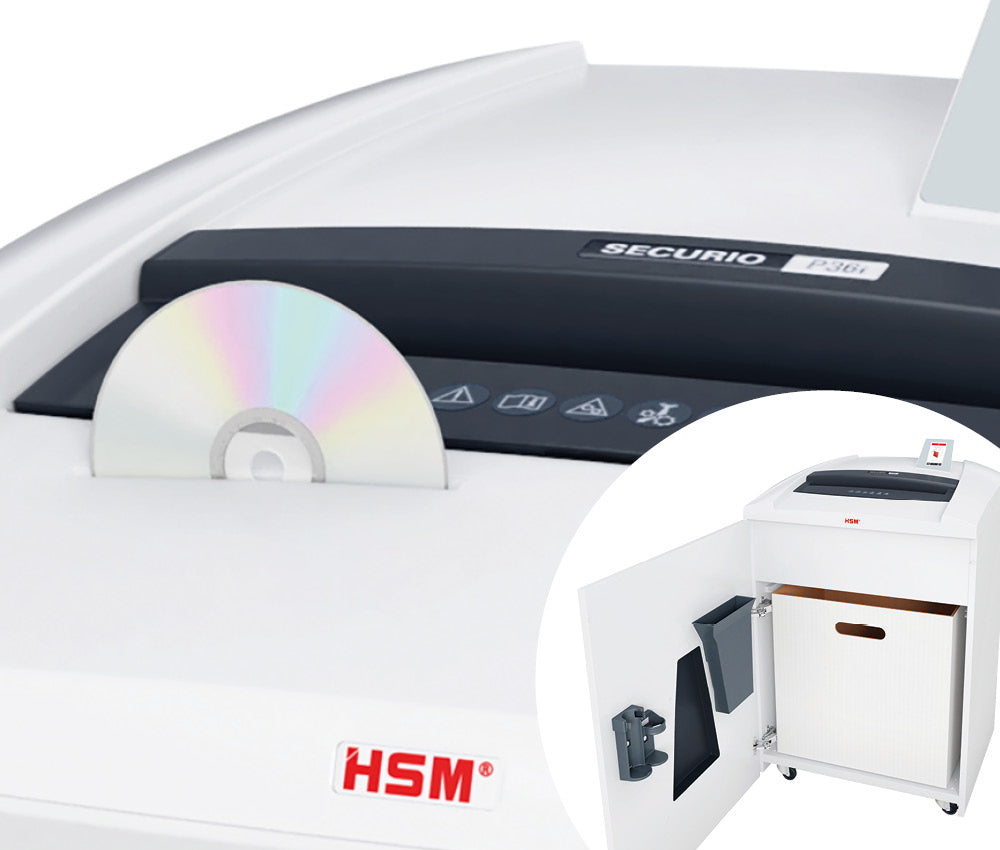

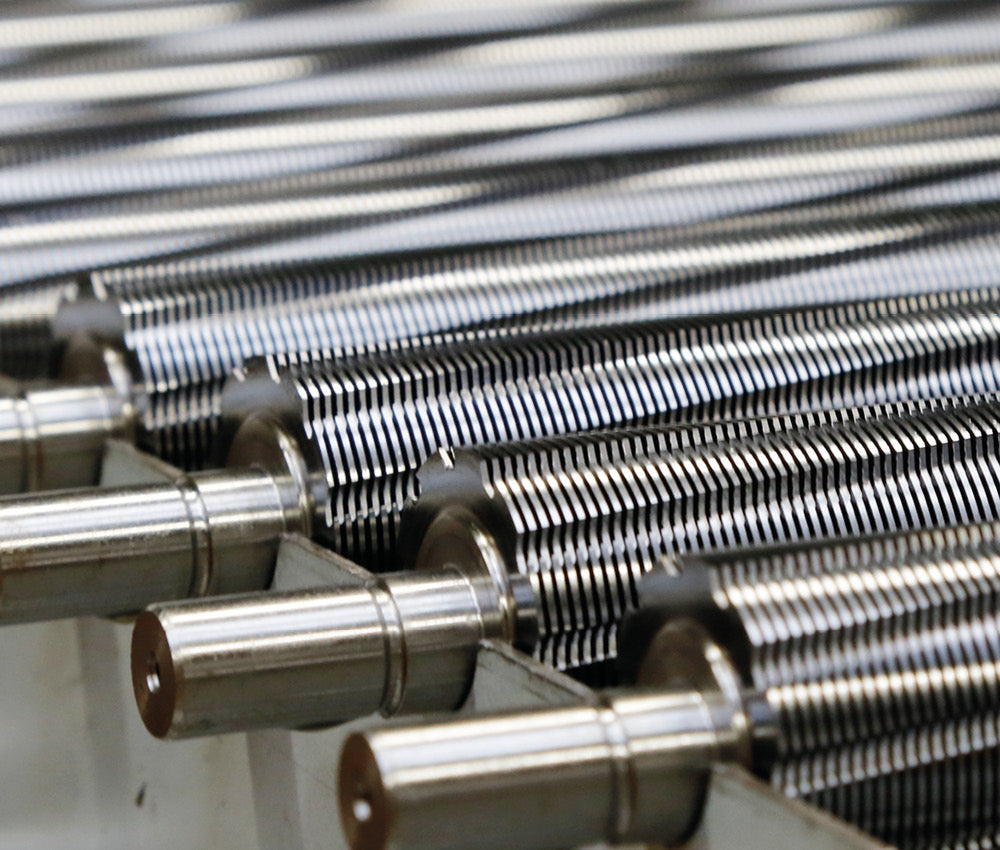

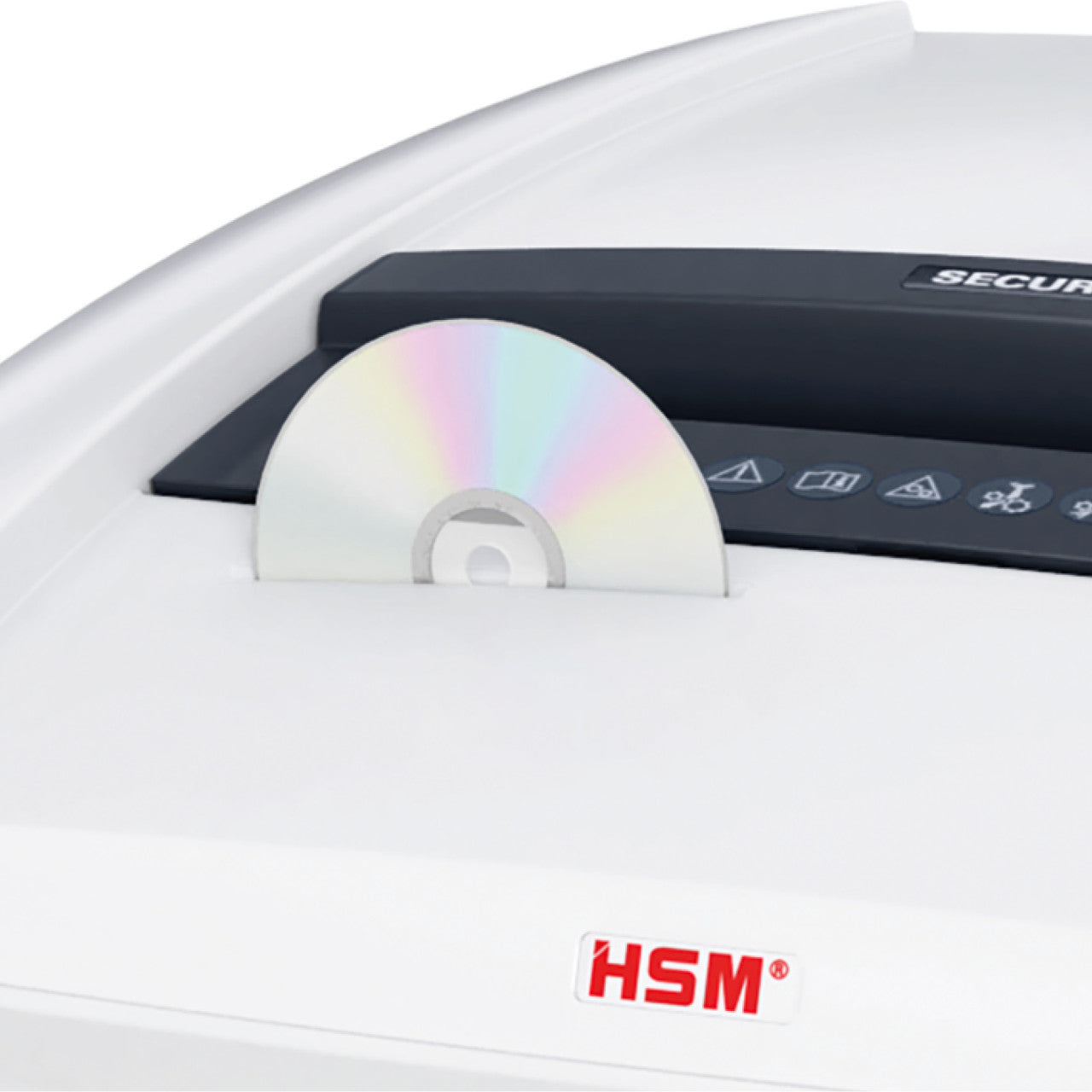

Because a 1 x 5 mm paper cutter cannot survive optical discs. The cutting rollers that produce P-7 particles are extremely fine, and disc fragments would damage them. HSM's answer is a second, coarser cutting unit built for optical and chip media, rated O-6, E-5 and T-6. You feed paper into one slot and discs or cards into the other; they share the machine, the bin and the motor, but not the cutters.

Only eight sheets a pass - is that a mistake?

No, that is the correct figure at 80 g/m2. Cutting a sheet into roughly 5 mm2 particles is enormously more work than a cross cut, and every P-7 machine on the market pays for it in throughput. If eight sheets is unworkable for your volume, the honest answer is that you need a lower security level, not a different P-7 machine: the P36i at 0.78 x 11 mm is P-6 at 11 to 13 sheets, and at 1.9 x 15 mm it is P-5 at 16 to 18.

Can I feed stapled documents into the paper slot?

Do not make a habit of it. Metal is the main threat to a P-7 cutting unit, which is precisely why HSM sells a variant of this machine with metal detection built in. Remove staples, clips and any fastener before feeding. If your workflow cannot guarantee that, order the metal-detection version (1854121N) instead - the sensor stops the machine before metal reaches the rollers.

What does the waste go into, and how often is it emptied?

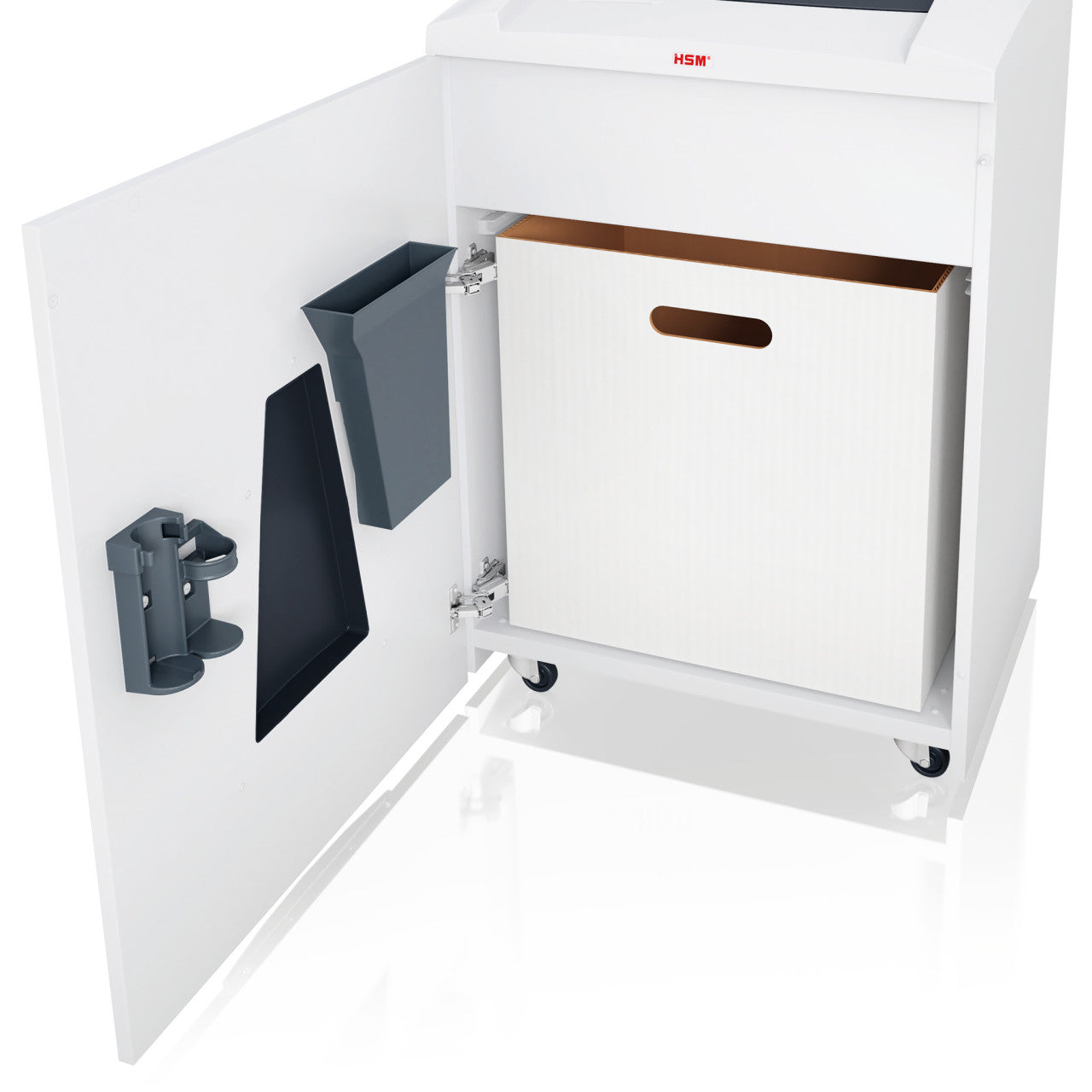

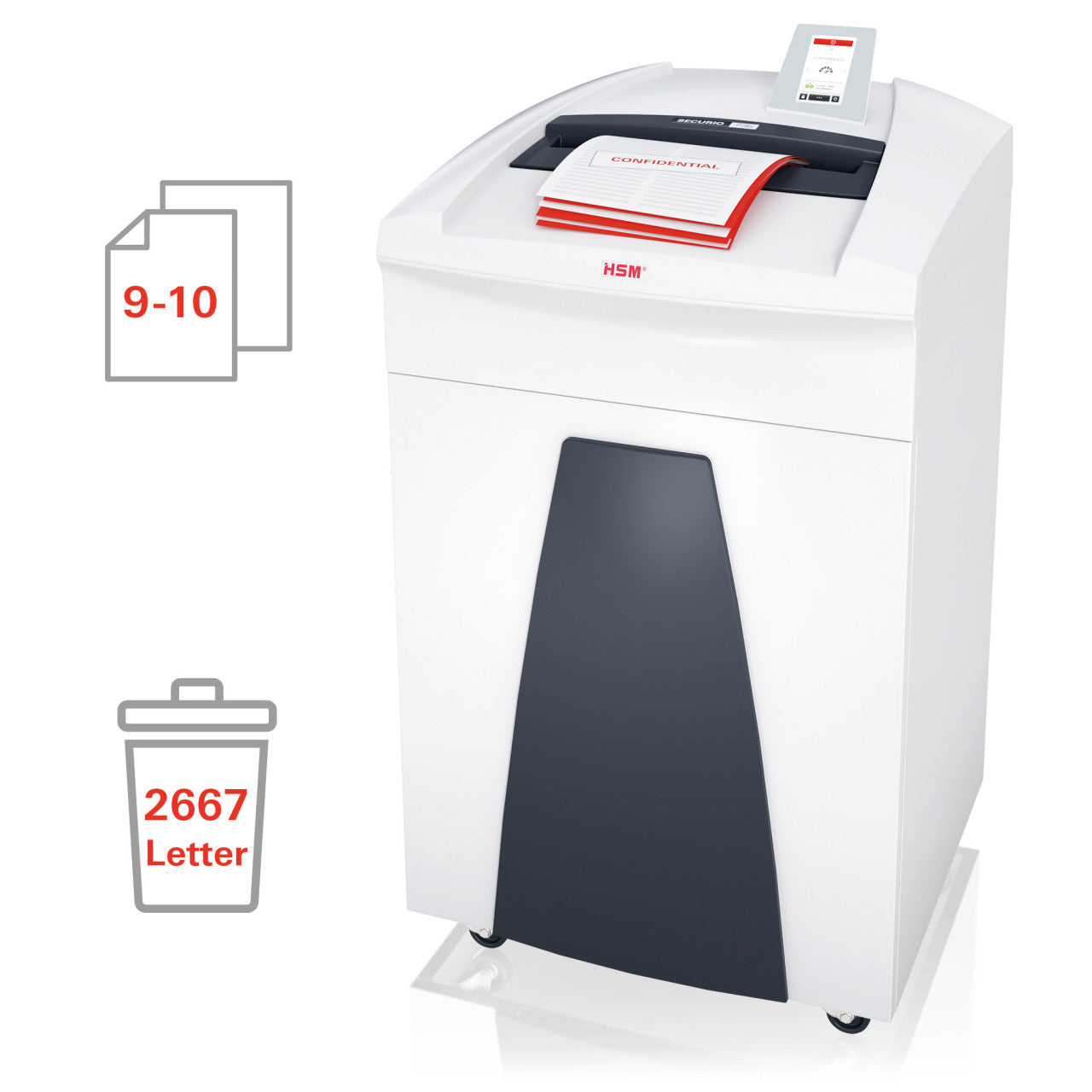

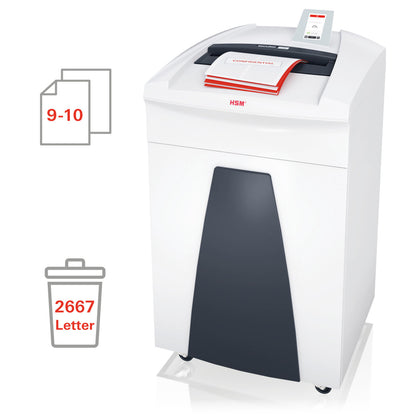

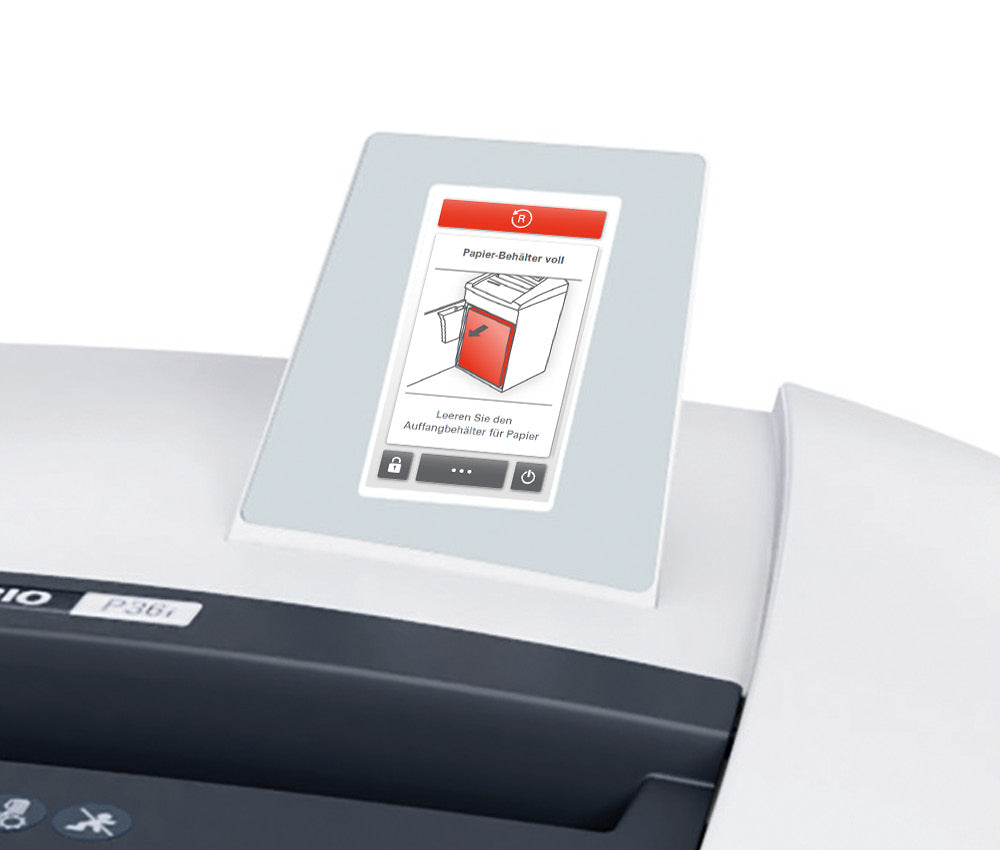

A 145 l (38.3 gallon) compartment behind a full-width door, lined with HSM's cardboard box for the P36i/P40i chassis. Because P-7 particles are tiny they pack densely - HSM rates a 1 x 5 mm P36i at roughly 2,667 sheets before the bin is full - so despite the low sheets-per-pass figure the bin lasts a long time. The display gives a full-bin notification and the machine stops.

Does it need oiling?

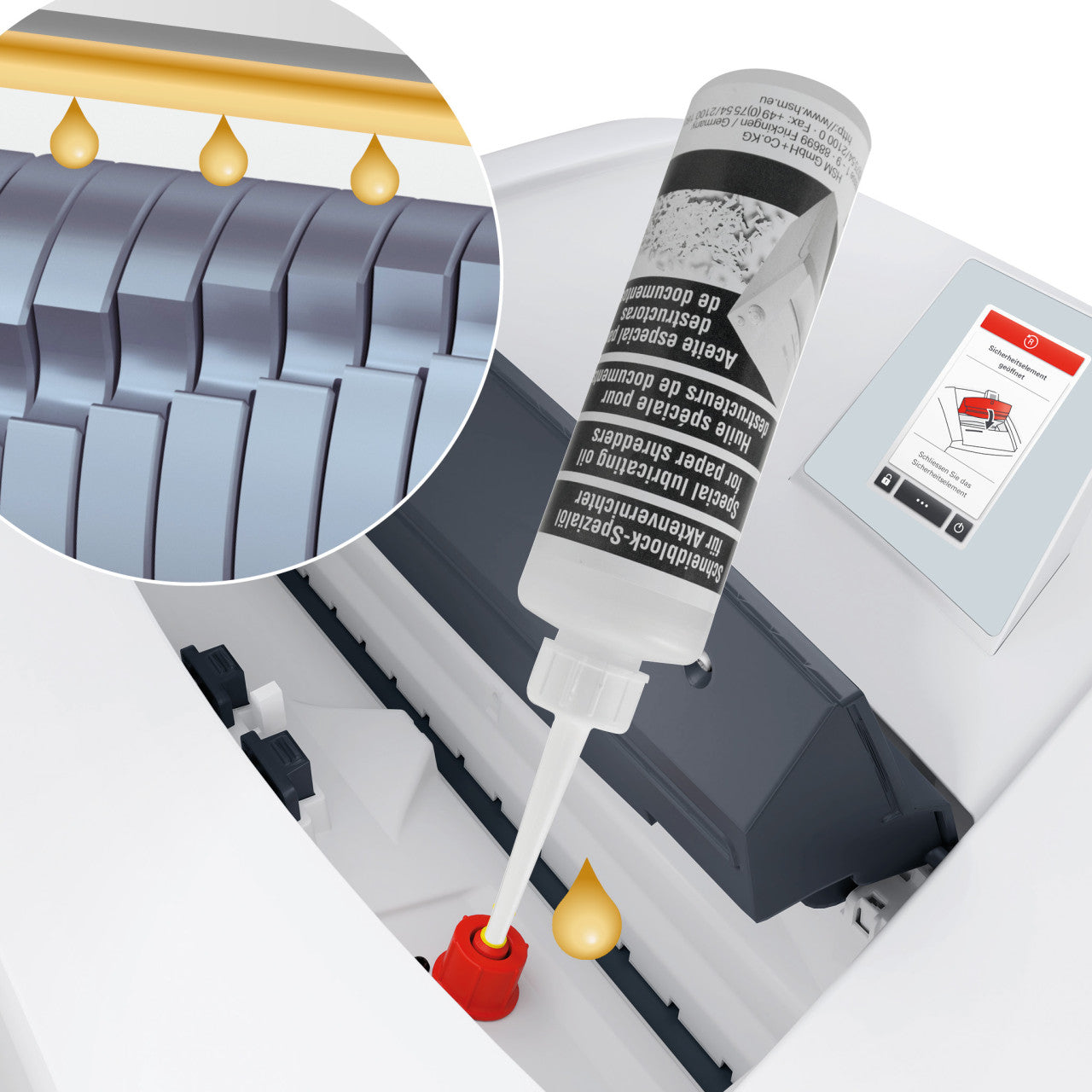

The P36i has an integrated automatic oiler, so routine manual oiling is not part of the job. This matters more on a micro-cut machine than on any other type: fine cutting rollers depend on lubrication and dry running is the usual cause of premature wear. You still need to keep the oiler topped up with HSM shredder oil - that is the consumable that replaces the manual routine, not an elimination of it.

What warranty does it carry?

HSM's lifetime cutting-roller warranty and 5-year machine warranty apply to SECURIO models rated P-2 to P-5 only. A P-7 machine falls outside both and carries HSM's 3-year machine warranty. This is a genuine downgrade against the lower-security P36i variants and is worth factoring into a total-cost comparison, particularly given that micro-cut rollers are the most expensive part of the machine.

How is this different from the P36i with metal detection?

The metal-detection variant (1854121N) has the same 1 x 5 mm paper cutter and the same separate OMDD cutting unit, plus a sensor that halts the feed if metal is detected before it reaches the rollers. HSM lists that machine at 68 kg against 74 kg for this one. If your operators are disciplined about removing staples, this model does the same job; if they are not, the sensor pays for itself the first time it works.
