HSM SECURIO B35 3/16 x 1 1/8 with External Automatic Oiler - HSM19234

HSM SECURIO B35 3/16 x 1 1/8 with External Automatic Oiler - HSM19234

DIN 66399 security level P-4max 160 mm² particleOffice baselineParticularly sensitive personal data: HR files, contracts, payroll, patient and customer records. See every P-4 machine
Cut
Cross Cut
Cut size
3/16" x 1 1/8" (4.5 x 30 mm)
Sheet capacity
21 - 22 sheets at 80 g/m2
Throat width
15.75" (400 mm)
Regular price $2,332.19 USD
Regular price $6,621.77 USD Sale price $2,332.19 USD
Sale Sold out
Quantity
  • Free shipping across the USA Included on every machine in the catalogue
  • 30-day return policy Shipping, refund and return terms published in full
  • +1 (858) 266-0509 Speak to a specification specialist · 08:00 AM – 05:00 PM PST, Monday to Friday

Authorized HSM dealer New stock through the manufacturer's authorized channel, with the manufacturer's own warranty · what this covers

Description

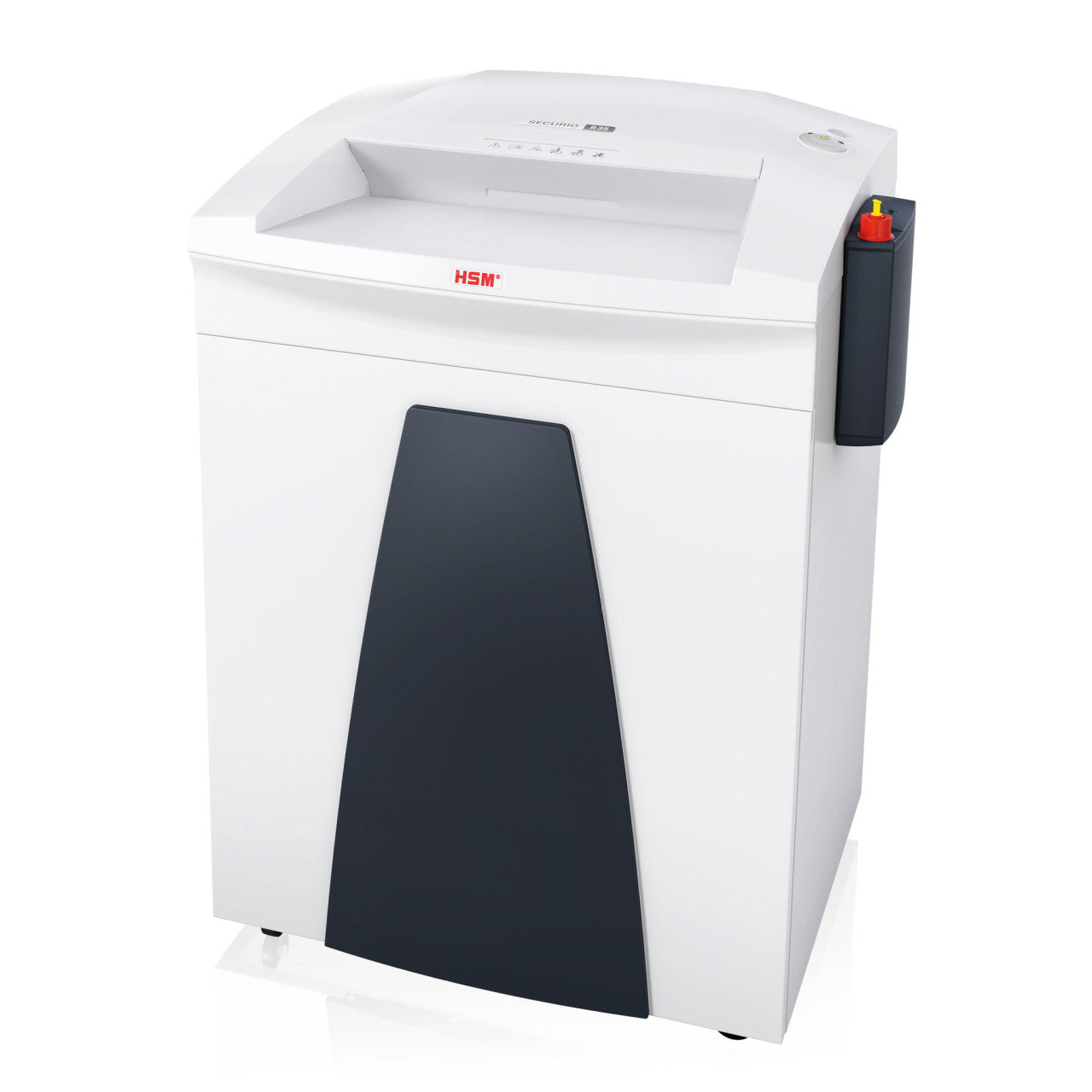

This is the P-4 cross-cut HSM SECURIO B35 (4.5 x 30 mm) with HSM's external automatic oiler installed at the factory. It is the configuration to buy when the shredder serves a whole department and maintenance is nobody's named job. The cutting performance is unchanged from the standard 1923113 at 21 to 22 sheets per pass through the 400 mm throat; the oiler simply keeps the rollers lubricated on a schedule, which is the single largest preventable cause of capacity loss and jamming in a busy office shredder.

Key Features

  • 15.75" throat (400 mm). Letter, legal and A4 feed in unfolded; the B35 chassis also clears 11 x 17 in tabloid and wide continuous stationery.
  • DIN 66399 level P-4 at 3/16" x 1 1/8" (4.5 x 30 mm). Verified from HSM's own European datasheet rather than a distributor listing, so the security class and the cut geometry agree.
  • 21 - 22 sheets per pass at 80 g/m². HSM rates capacity at 80 g/m²; standard US 20 lb bond is about 75 g/m², so expect slightly more in practice, not less.

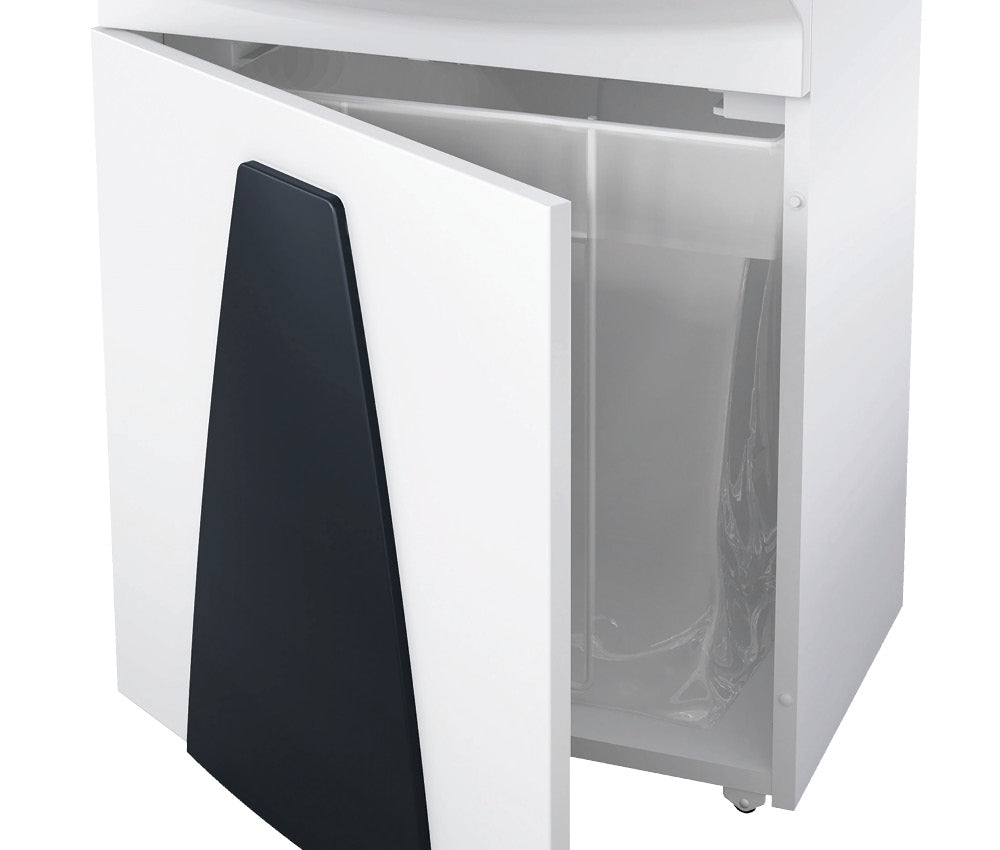

  • 34.3 gal (130 L) container built into the cabinet. HSM rates that at roughly 1,590 shredded sheets for this cut.
  • External automatic oiler fitted from the factory. Lubricant is metered onto the cutting rollers on a schedule, which removes the most commonly skipped maintenance task on a shared machine.

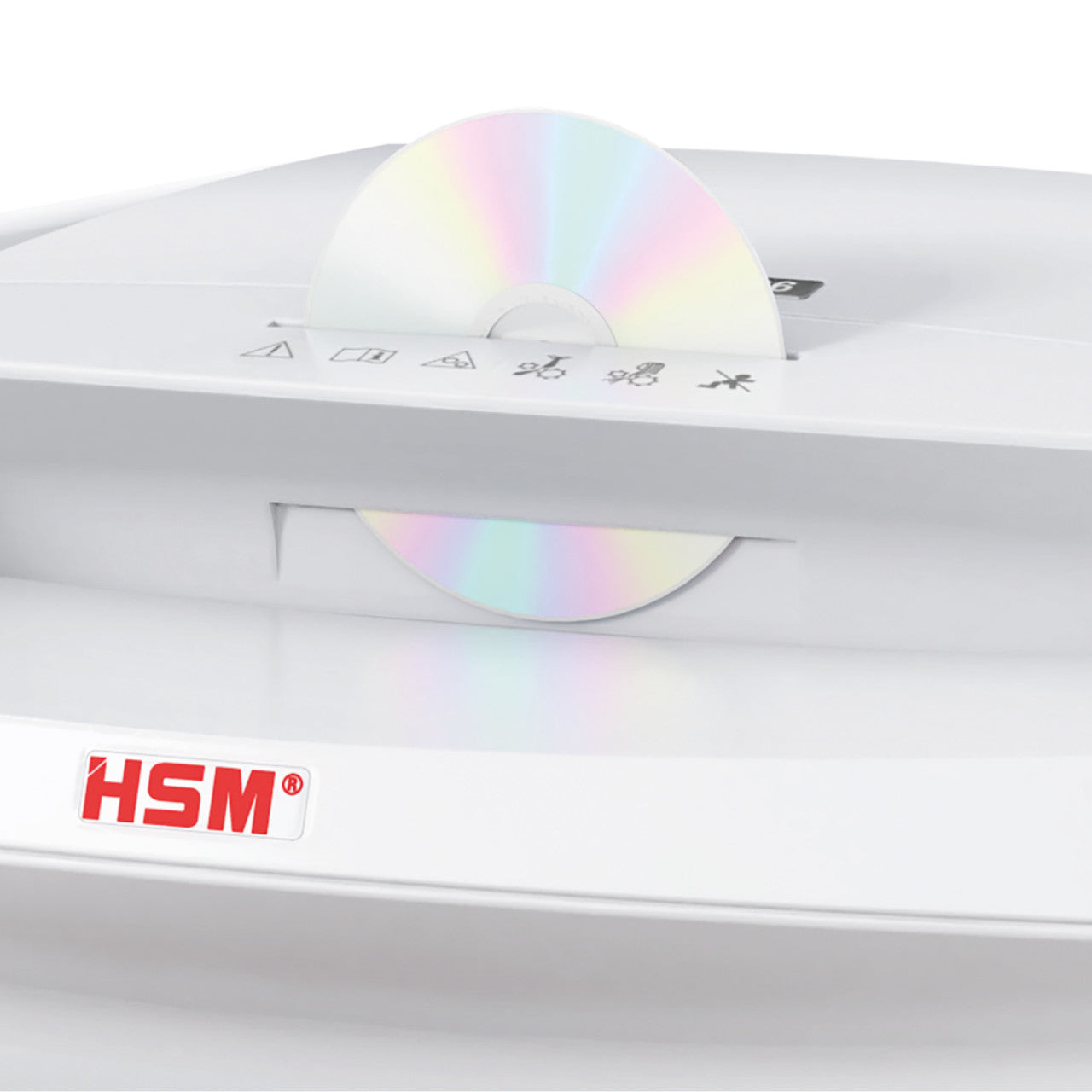

  • Handles staples, paper clips, credit cards and CDs/DVDs. No document prep, and no separate media shredder for the occasional disc.
  • 700 W drive, approximately 56 dB(A) at idle. Quiet enough to sit in an open office rather than a service room.

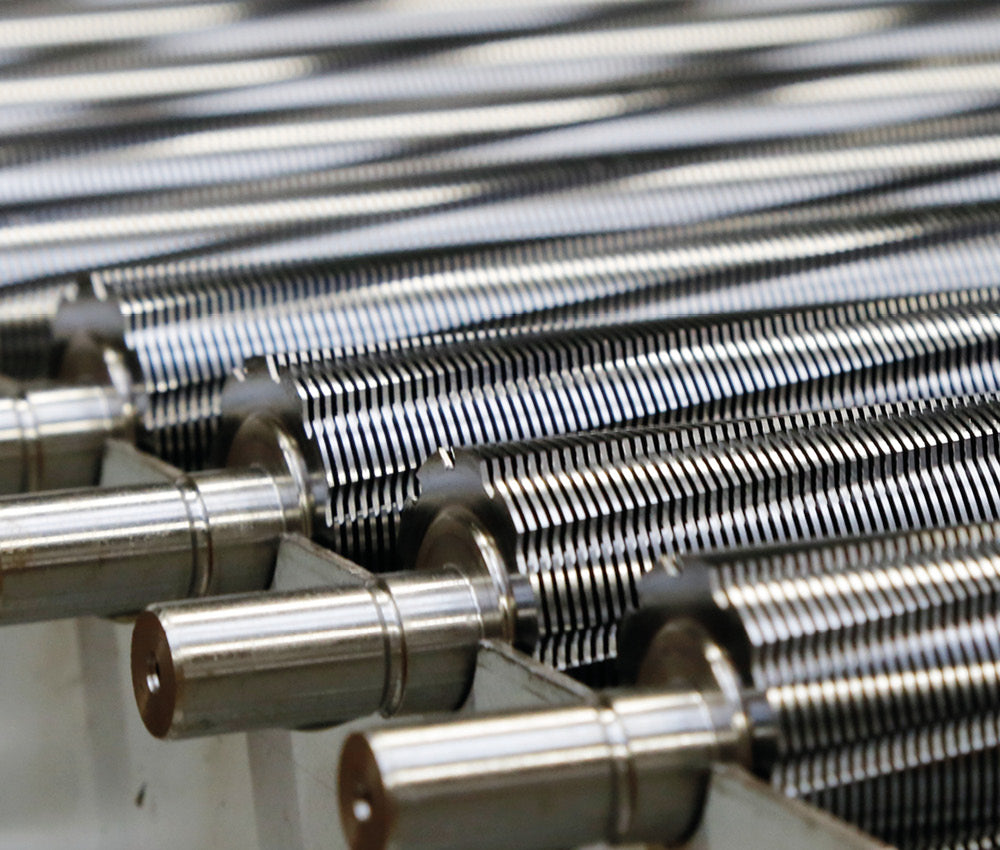

  • Lifetime warranty on the induction-hardened solid steel cutting rollers. HSM applies this cover to P-2 through P-5 machines, which includes this one.

Specifications

Security level (DIN 66399 / ISO IEC 21964) P-4 — full classification E-3 | F-1 | O-3 | P-4 | T-4
Cut type Cross Cut
Cut size 3/16" x 1 1/8" (4.5 x 30 mm)
Sheet capacity 21 - 22 sheets at 80 g/m²
Throat width 15.75" (400 mm)
Container volume 34.3 gal (130 L), approx. 1,590 sheets
Drive power 700 W
Voltage 110-120 V / 60 Hz
Noise level approx. 56 dB(A) at idle

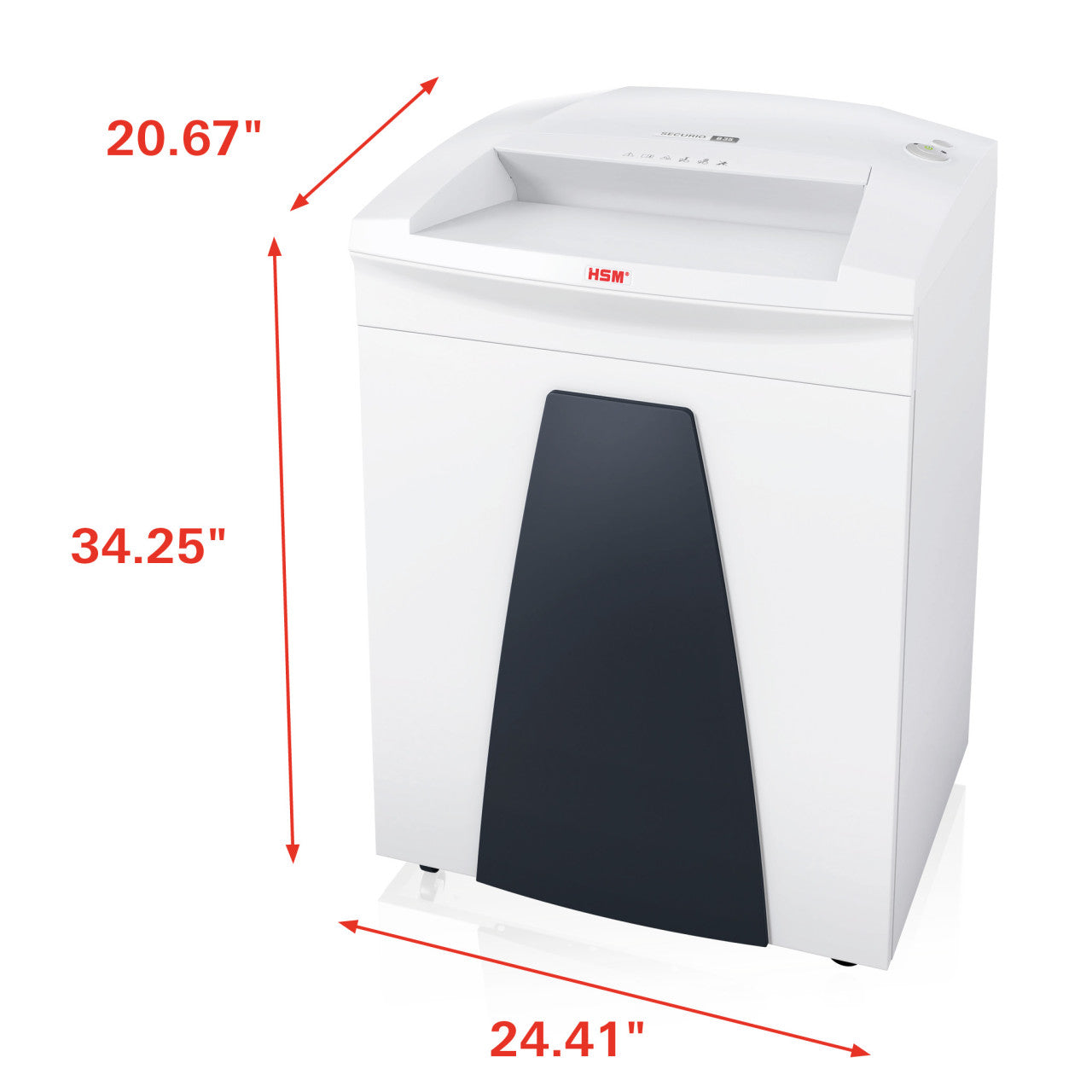

Dimensions (W x D x H) 26.4" x 20.7" x 34.25" (670 x 525 x 870 mm)
Weight 123.0 lb (55.8 kg)
Shreddable materials Paper, staples, paper clips, credit cards, CDs/DVDs
Cutting roller warranty Lifetime warranty on the solid steel cutting rollers

All figures above are taken from HSM's European datasheet for article number 1923111O, the metric-native source for this model. Sheet capacity is stated at 80 g/m².

What's in the Box

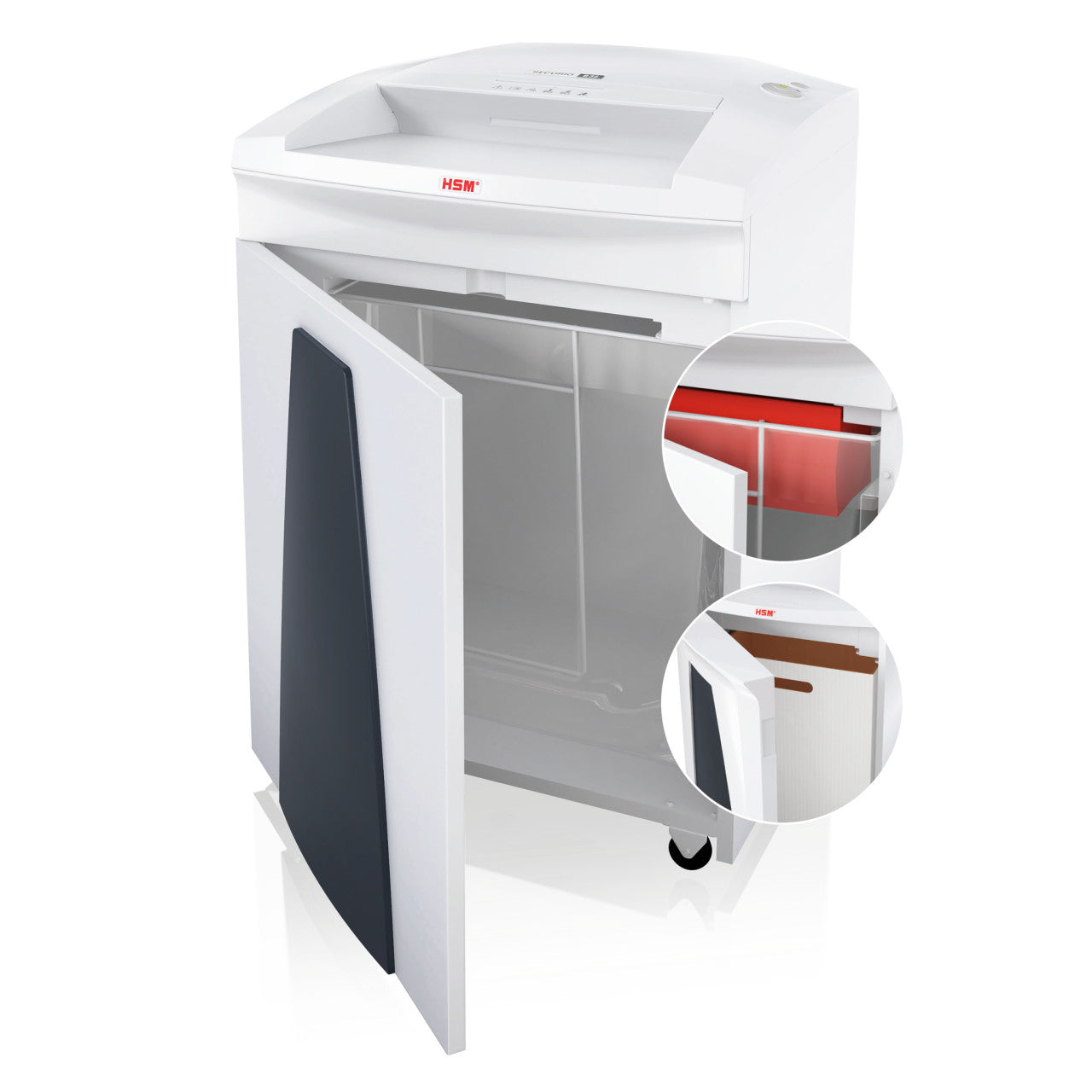

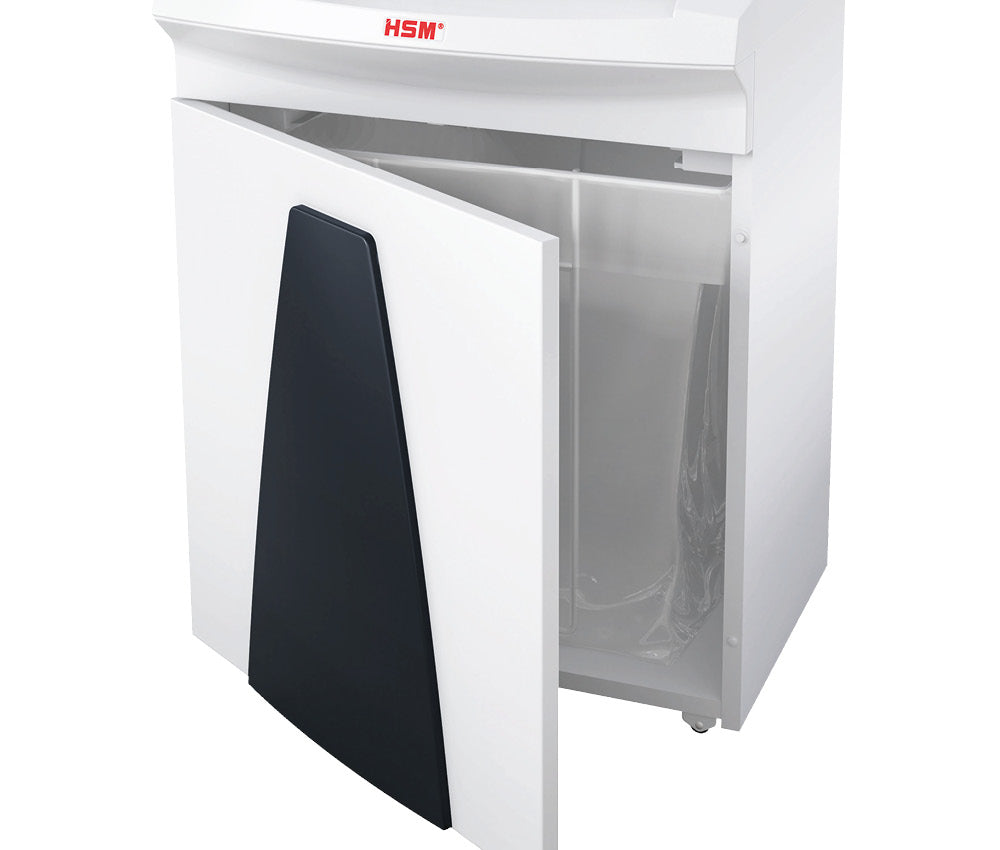

The shredder ships assembled: cutting head, cabinet and the integrated 130 L collection container, plus the power cord and operating instructions. The external automatic oiler is fitted to the cabinet on this SKU; that is what accounts for the wider footprint against the standard model.

Shredder bags are not included. HSM lists collection bags and cutting-block oil as separate consumables. The bags for this chassis are the reusable collection bags for HSM 390, 411, 630, 730, 740, 830, SECURIO B35, SECURIO P36i and P40i, sold in packs of 10 or 100 (1442995000 / 1442995110 / 1442995001); a cardboard box - b35 is also available. Order at least one pack with the machine.

Who Should Buy This — and Who Should Not

Buy this for departmental P-4 shredding where the machine has many users and no owner. That is the situation automatic oiling is designed for, and it is the most common reason office shredders underperform their rated capacity within a year or two.

Do not buy this if a facilities routine already covers lubrication - the standard SECURIO B35 3/16 x 1 1/8 inch (HSM1923) cuts identically for less, and is 50 mm narrower. Do not buy it if your requirement is P-5 rather than P-4; the SECURIO B35 1/16 x 5/8 inch with oiler (HSM19224) is the equivalent automated machine at the higher security class. If 400 mm of throat is more than you need, the SECURIO B34 3/16 x 1 1/8 inch with oiler (HSM18434) is the smaller-chassis equivalent.

Product Specification

Machine Type
Large Office
Shredder Series
Securio
Cut Type
Cross Cut
Shreddable Materials
Paper, staples, paper clips, credit cards, CDs/DVDs
Cut Size
3/16" x 1 1/8" (4.5 x 30 mm)
Bin Size / Container Volume
34.3 gal (130 L)
Throat Width
15.75" (400 mm)
Power Consumption
700 W
Voltage
110-120 V / 60 Hz
Weight
123.0 lb (55.8 kg)
Security Level
P-4
Sheet Capacity
21 - 22 sheets at 80 g/m2
Dimensions (WxDxH)
26.4" x 20.7" x 34.25" (670 x 525 x 870 mm)
Warranty
Lifetime warranty on the solid steel cutting rollers
dB Level
56

Product listing details

Vendor
HSM
Product type
Document Shredder
Condition
New
SKU
1923113O
GTIN
4026631046404
Price
$2,332.19 USD
Currency
USD
Availability
In stock
Shipping policy
Click to view policy
Refund policy
Click to view policy
Return policy
Click to view policy
View full details
Before you specify

Frequently Asked Questions

Can this shredder handle staples, paper clips and credit cards?

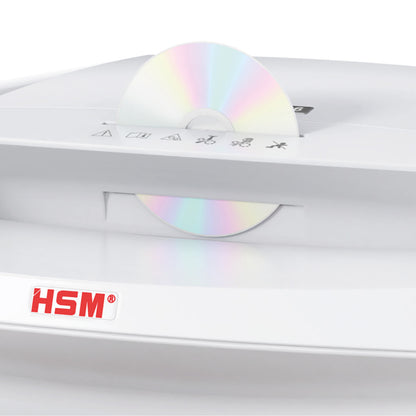

Yes. HSM rates this cutting head for paper, staples, paper clips, credit cards and CDs/DVDs, so documents do not need to be prepared before feeding. Optical media and cards should go in one at a time rather than stacked with paper. Continuously feeding heavy staples or cards will wear the rollers faster than paper alone, so treat cards and discs as occasional items rather than the machine's daily diet.

How many people can share this machine before it becomes a bottleneck?

That depends on volume rather than headcount, but the useful figures are 21 - 22 sheets per pass and a 130 L container holding about 1,590 shredded sheets. As a rough guide, a P-4 machine like this suits a workgroup that generates up to a few hundred pages of shredding a day. If people start queuing, the constraint is almost always the security level rather than the motor - a lower DIN class on the same chassis runs considerably faster.

Is the sheet capacity figure realistic for US paper?

The 21 - 22 sheet rating is HSM's own figure measured at 80 g/m² paper. Standard US 20 lb bond letter is about 75 g/m², so on typical American office paper you should meet or slightly beat the rating. Be aware that HSM's overview brochure quotes capacity at 70 g/m² instead, which produces numbers roughly 15 percent higher; if you are comparing our spec against a brochure figure, check which paper weight each one uses.

Will legal and tabloid paper fit?

Yes. The throat is 15.75 in (400 mm), so 8.5 x 14 in legal and 11 x 17 in tabloid both feed in unfolded, as does A4 and A3 fed short edge. Wide continuous computer stationery also clears. This throat width is the main practical reason to choose the B35 over the narrower SECURIO B34, whose 310 mm intake handles letter, legal and A4 but leaves less margin on oversized stock.

Is this shredder NSA approved?

We have not verified a listing for this model on the NSA/CSS Evaluated Products List, so we do not claim NSA approval for it. Those two things are separate: NSA/CSS 02-01 requires a maximum particle of 1 mm x 5 mm and the specific model must appear on the NSA's own list. A DIN 66399 rating on its own - including P-7 - does not establish NSA approval. If you have a classified-destruction requirement, verify the model number directly against the current NSA EPL before ordering.

What bags fit this model, and are any included?

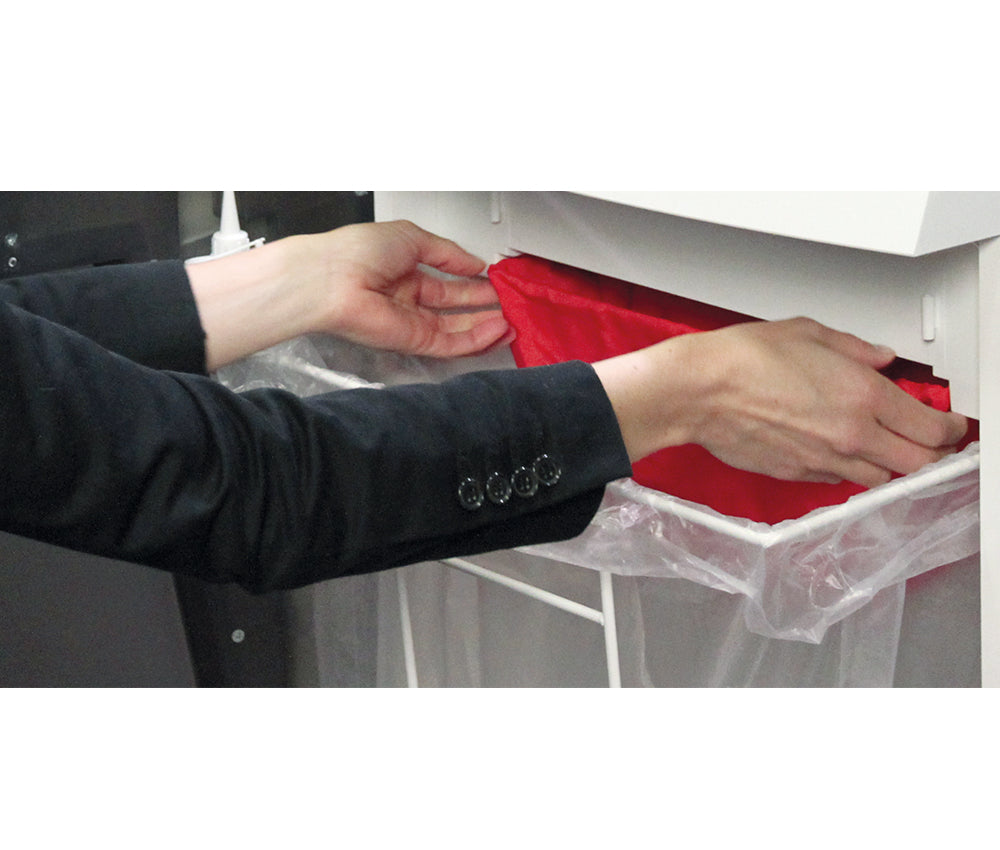

No bags are supplied with the machine. This chassis uses HSM's reusable collection bags for HSM 390, 411, 630, 730, 740, 830, SECURIO B35, SECURIO P36i and P40i, available in packs of 10 or 100 under part numbers 1442995000 / 1442995110 / 1442995001. Generic 34.3 gal liners will physically fit the 130 L container but often tear at the fold or slip off the frame, which makes emptying messier rather than cheaper. HSM also offers a cardboard box - b35 as an alternative to plastic.

How does the external automatic oiler work, and does it need topping up?

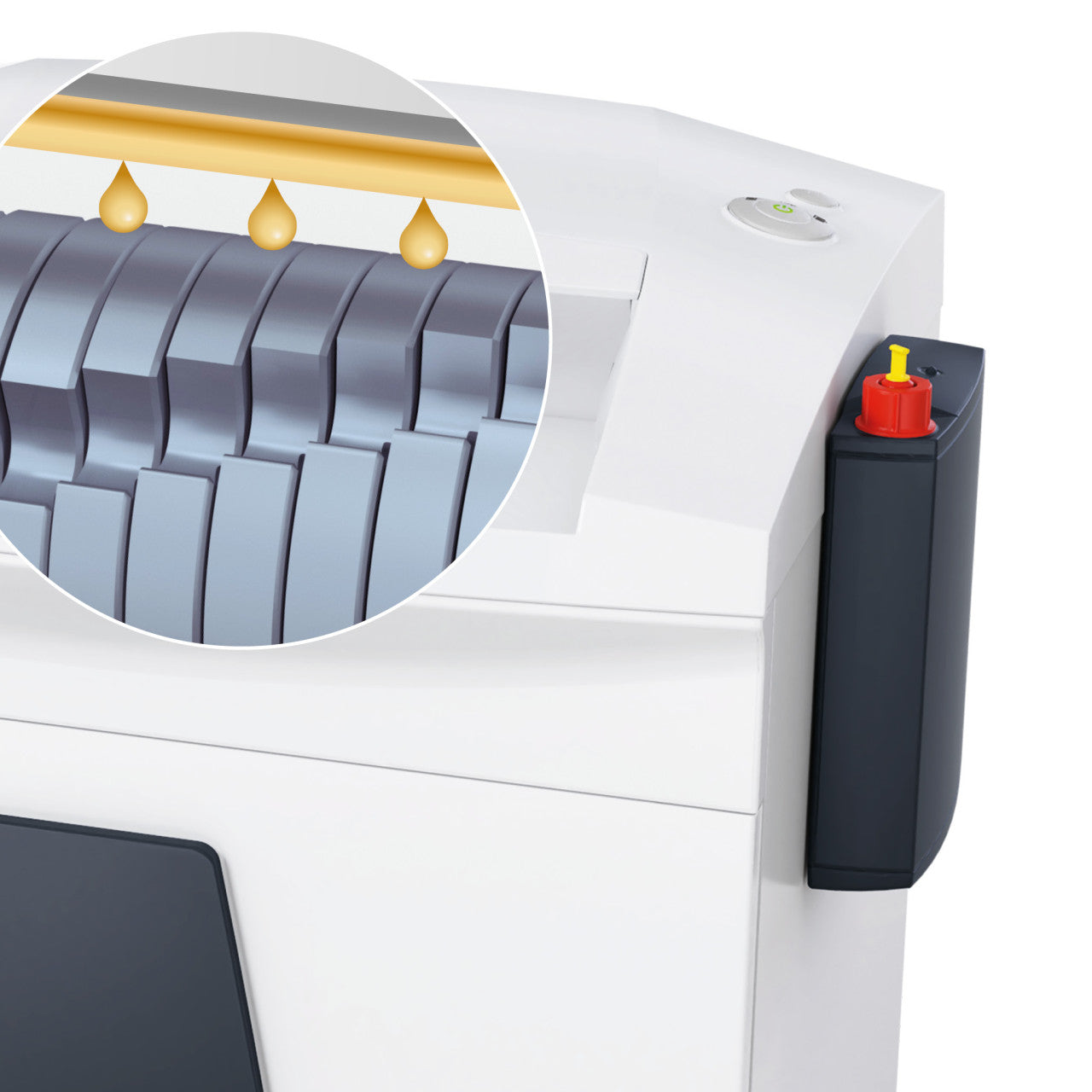

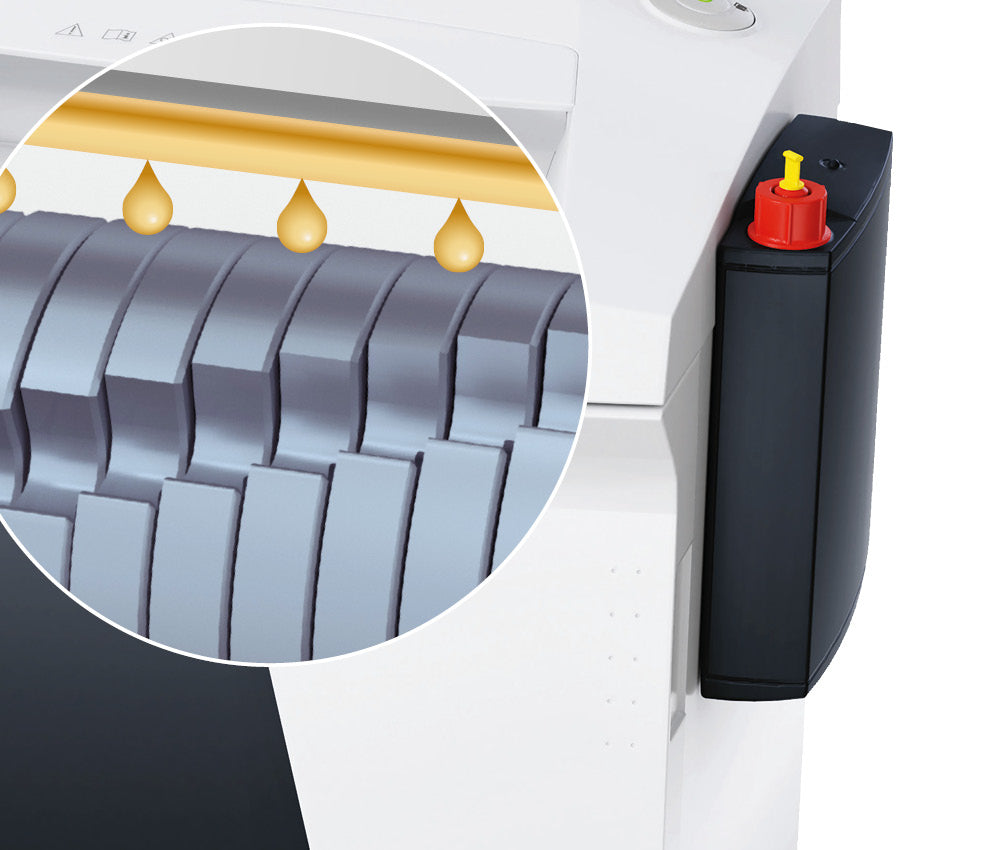

The oiler is a reservoir unit mounted on the side of the cabinet that meters HSM cutting-block oil onto the rollers automatically during operation, so nobody has to run oiled sheets through by hand. It is a consumable system: the oil reservoir needs refilling with HSM's cutting-block special oil, and you should keep a bottle on hand. Note that the oiler adds 50 mm to the cabinet width against the standard model, so check your clearance before ordering.

Can it run continuously, and how loud is it?

HSM builds the SECURIO cabinet range for continuous operation rather than short duty cycles, so it is designed to run through a full bin rather than needing a cooling pause every few minutes. Sustained overloading will still trip the thermal protection; feeding at or under the rated 21 - 22 sheets avoids that. Noise is around 56 dB(A) at idle, which is quiet enough to place the machine in an open-plan office rather than banishing it to a service room.
