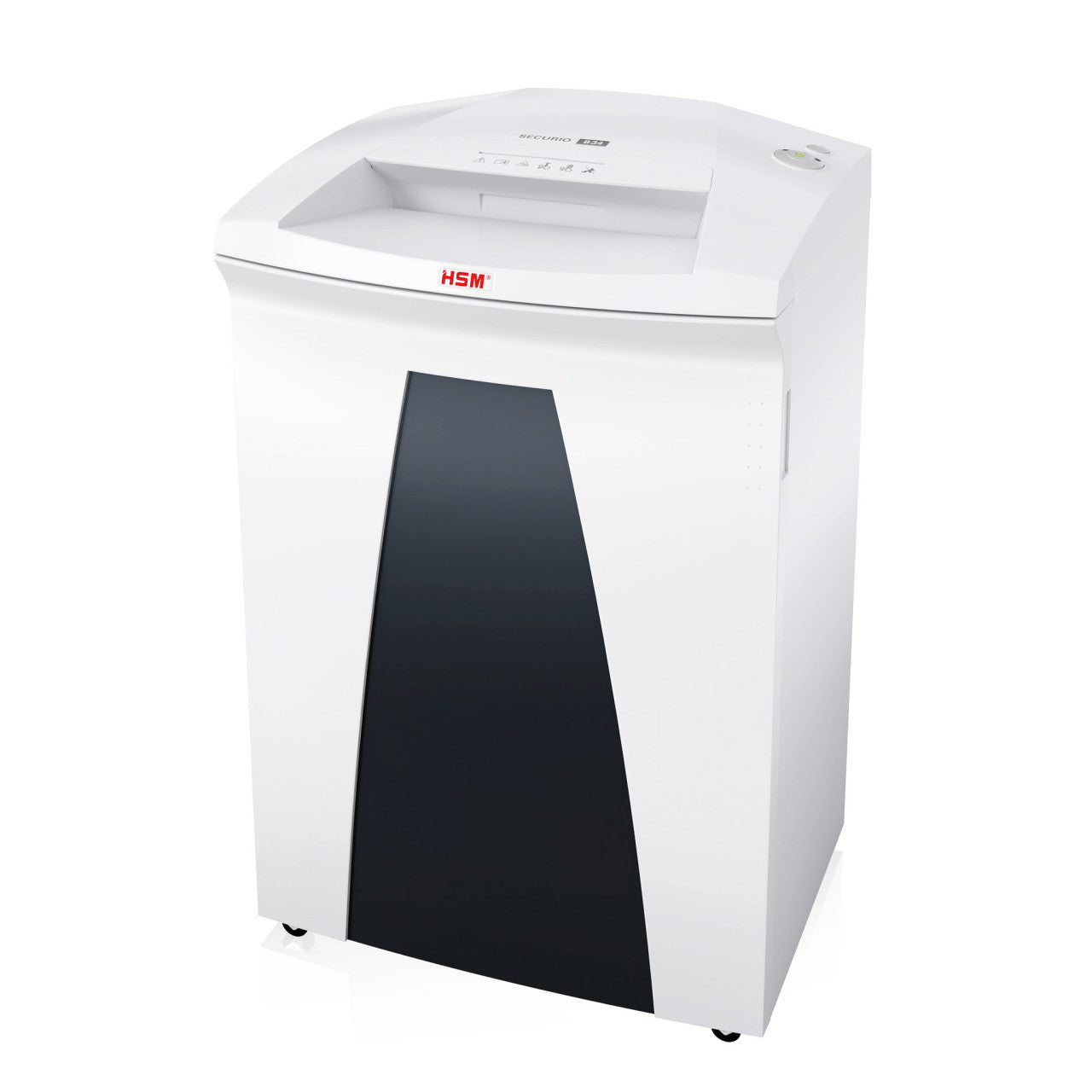

HSM SECURIO B34 3/16 x 1 1/8 Cross Cut Document Shredder - HSM1843

HSM SECURIO B34 3/16 x 1 1/8 Cross Cut Document Shredder - HSM1843

DIN 66399 security level P-4max 160 mm² particleOffice baselineParticularly sensitive personal data: HR files, contracts, payroll, patient and customer records. See every P-4 machine
Cut
Cross Cut
Cut size
3/16" x 1 1/8" (4.5 x 30 mm)
Sheet capacity
20 - 22 sheets at 80 g/m2
Throat width
12.2" (310 mm)
Regular price $1,600.00 USD
Regular price $4,369.33 USD Sale price $1,600.00 USD
Sale Sold out
Quantity
  • Free shipping across the USA Included on every machine in the catalogue
  • 30-day return policy Shipping, refund and return terms published in full
  • +1 (858) 266-0509 Speak to a specification specialist · 08:00 AM – 05:00 PM PST, Monday to Friday

Authorized HSM dealer New stock through the manufacturer's authorized channel, with the manufacturer's own warranty · what this covers

Description

The HSM SECURIO B34 3/16 x 1 1/8 inch (4.5 x 30 mm) is the cross-cut, DIN P-4 configuration of HSM's 310 mm departmental chassis, and it is the version most US buyers actually need. A 4.5 x 30 mm particle is 135 mm², comfortably inside the 160 mm² ceiling that P-4 requires, which is the level most privacy programs cite for records containing personal data. Capacity drops to 20 to 22 sheets per pass against the strip-cut B34, and the machine gains about 7.5 kg of cutting head. That extra mass is the cutting block, and it is the reason this model handles staples, clips, cards and optical media without complaint.

Key Features

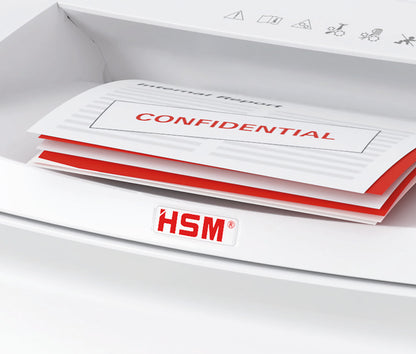

  • 12.2" throat (310 mm). Letter, legal, A4 and 11 in tabloid stock feed in without folding.
  • DIN 66399 level P-4 at 3/16" x 1 1/8" (4.5 x 30 mm). Verified from HSM's own European datasheet rather than a distributor listing, so the security class and the cut geometry agree.
  • 20 - 22 sheets per pass at 80 g/m². HSM rates capacity at 80 g/m²; standard US 20 lb bond is about 75 g/m², so expect slightly more in practice, not less.
  • 26.4 gal (100 L) container built into the cabinet. HSM rates that at roughly 1,223 shredded sheets for this cut.

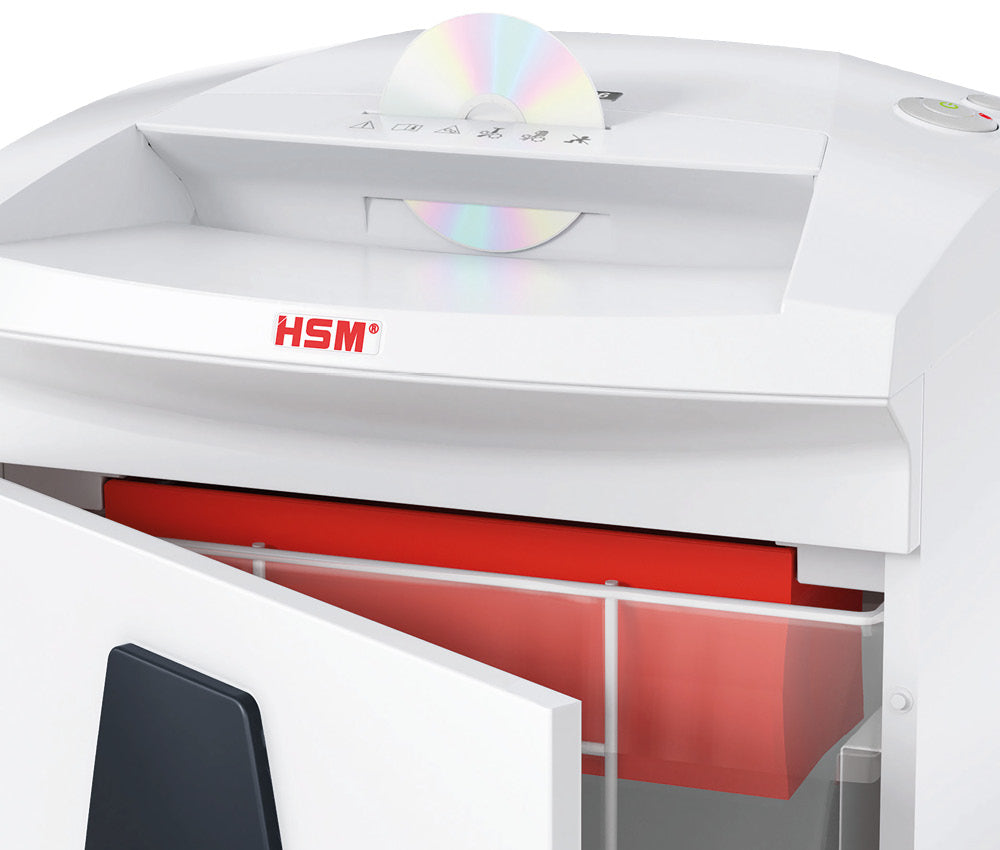

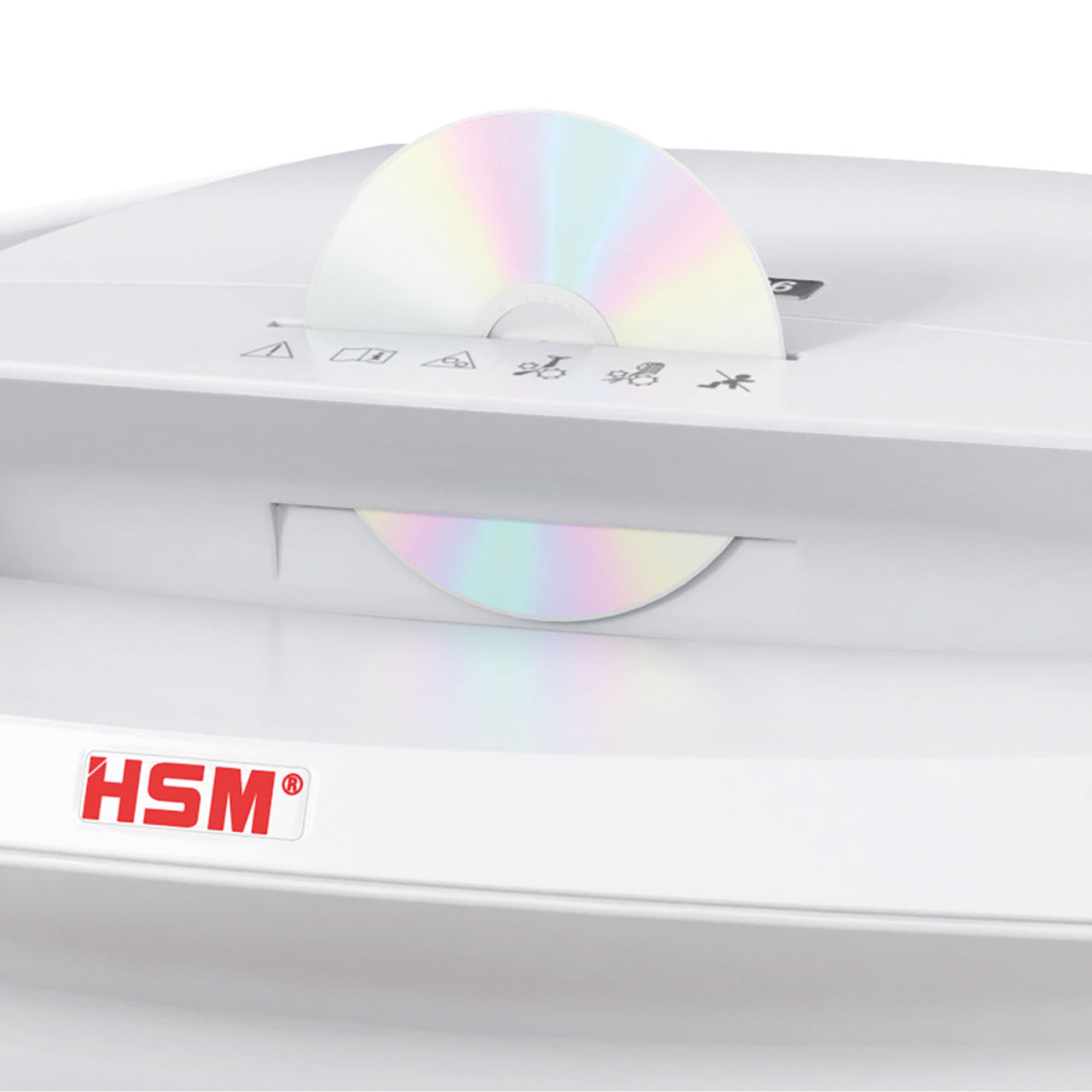

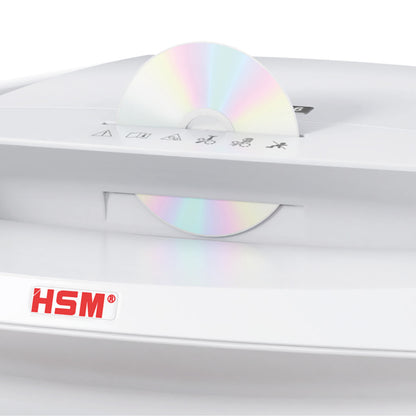

  • Handles staples, paper clips, credit cards and CDs/DVDs. No document prep, and no separate media shredder for the occasional disc.
  • 700 W drive, approximately 56 dB(A) at idle. Quiet enough to sit in an open office rather than a service room.

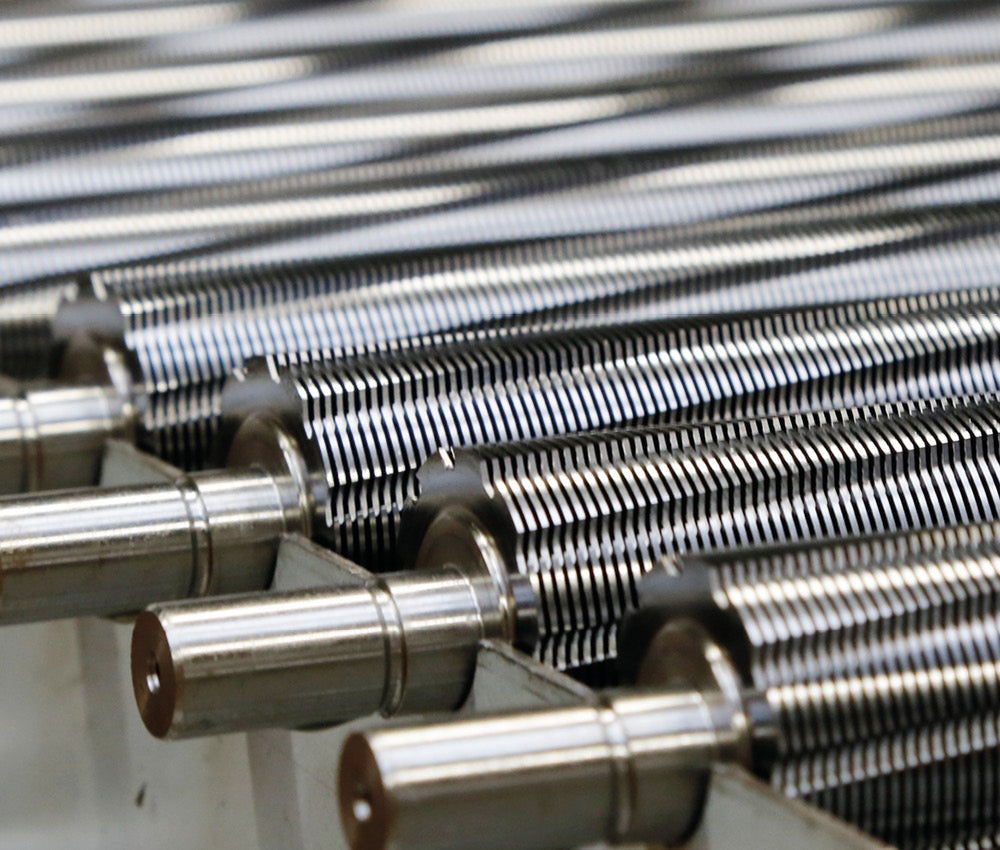

  • Lifetime warranty on the induction-hardened solid steel cutting rollers. HSM applies this cover to P-2 through P-5 machines, which includes this one.

Specifications

Security level (DIN 66399 / ISO IEC 21964) P-4 — full classification E-3 | F-1 | O-3 | P-4 | T-4
Cut type Cross Cut
Cut size 3/16" x 1 1/8" (4.5 x 30 mm)

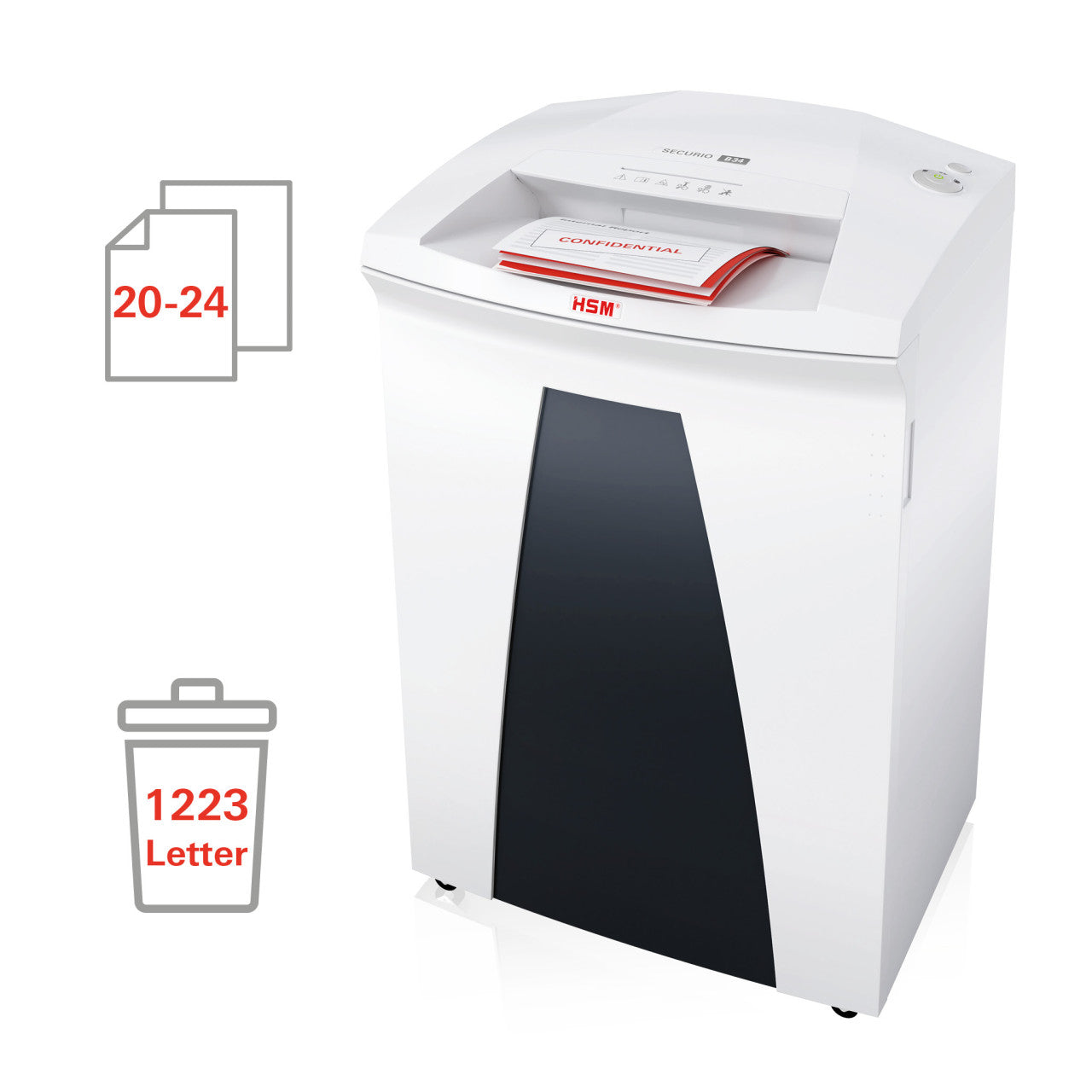

Sheet capacity 20 - 22 sheets at 80 g/m²
Throat width 12.2" (310 mm)
Container volume 26.4 gal (100 L), approx. 1,223 sheets
Drive power 700 W
Voltage 110-120 V / 60 Hz
Noise level approx. 56 dB(A) at idle

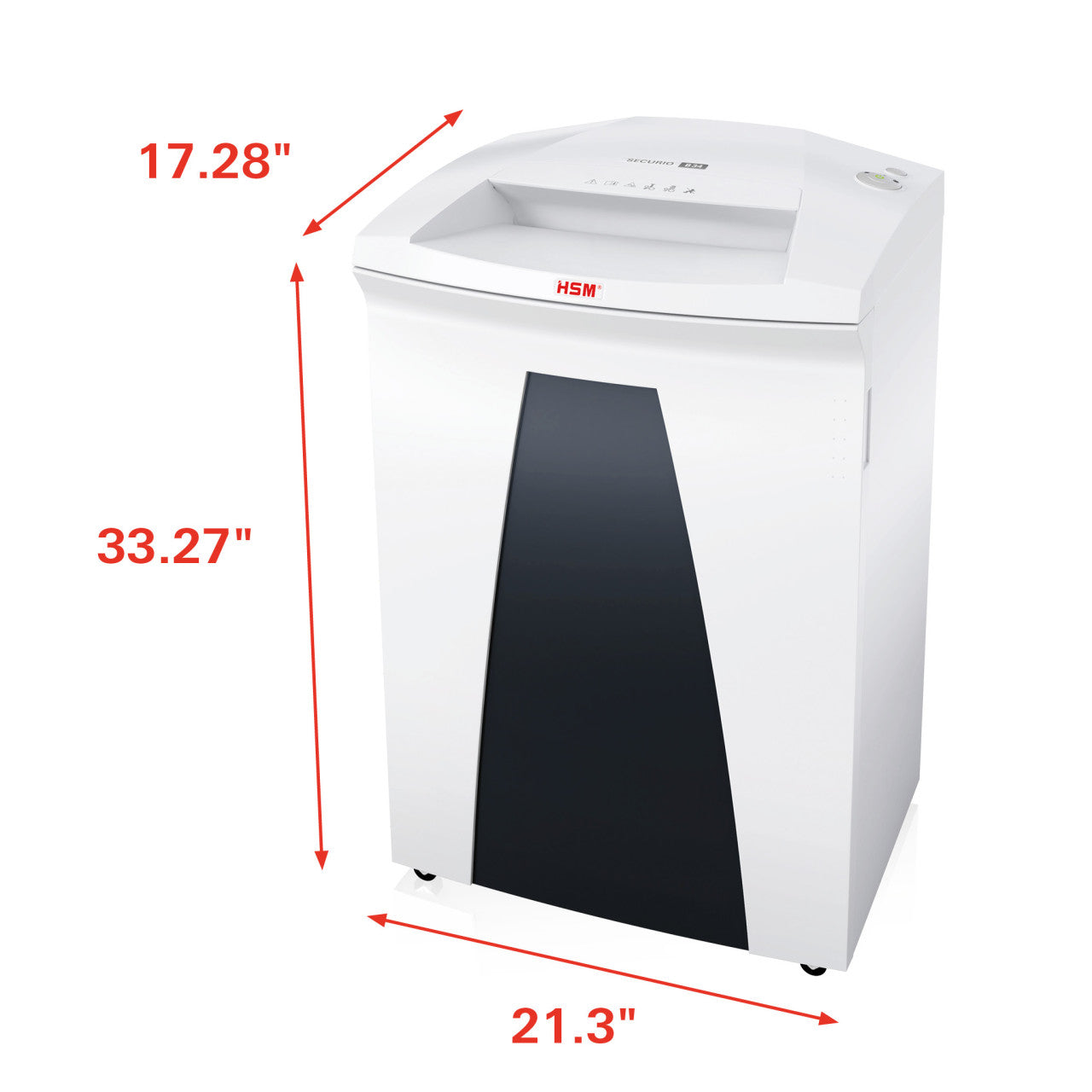

Dimensions (W x D x H) 21.3" x 17.3" x 33.3" (541 x 439 x 845 mm)
Weight 92.6 lb (42.0 kg)
Shreddable materials Paper, staples, paper clips, credit cards, CDs/DVDs
Cutting roller warranty Lifetime warranty on the solid steel cutting rollers

All figures above are taken from HSM's European datasheet for article number 1843111, the metric-native source for this model. Sheet capacity is stated at 80 g/m².

What's in the Box

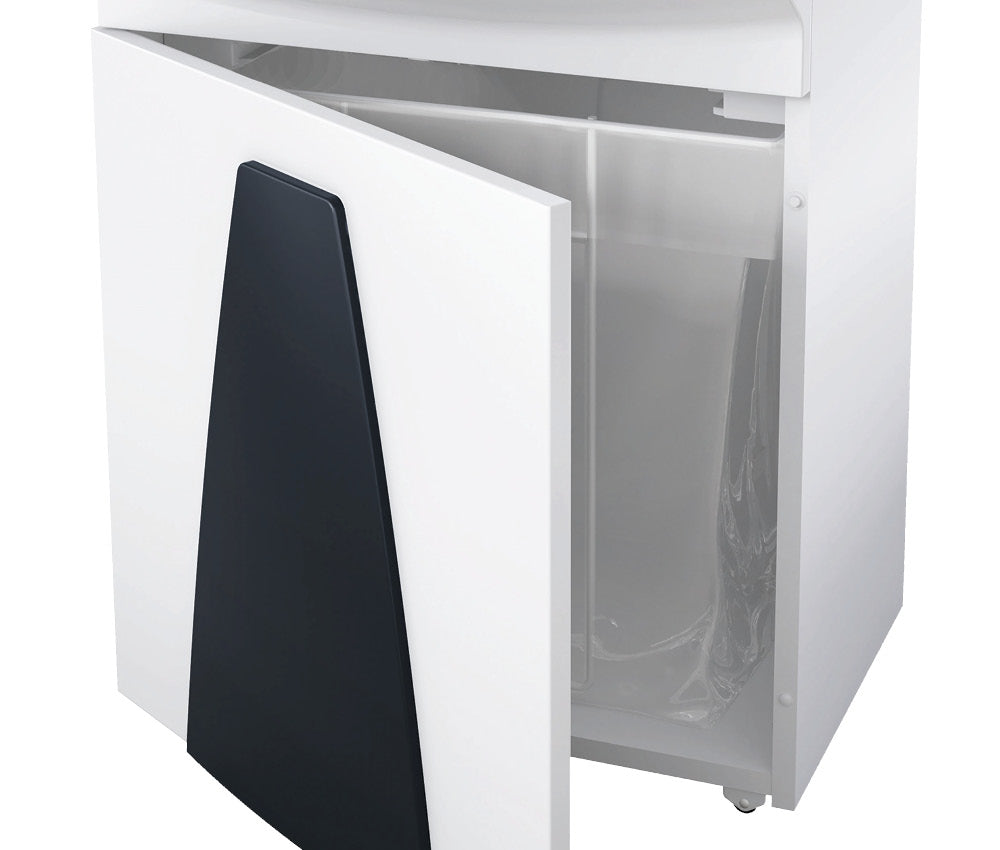

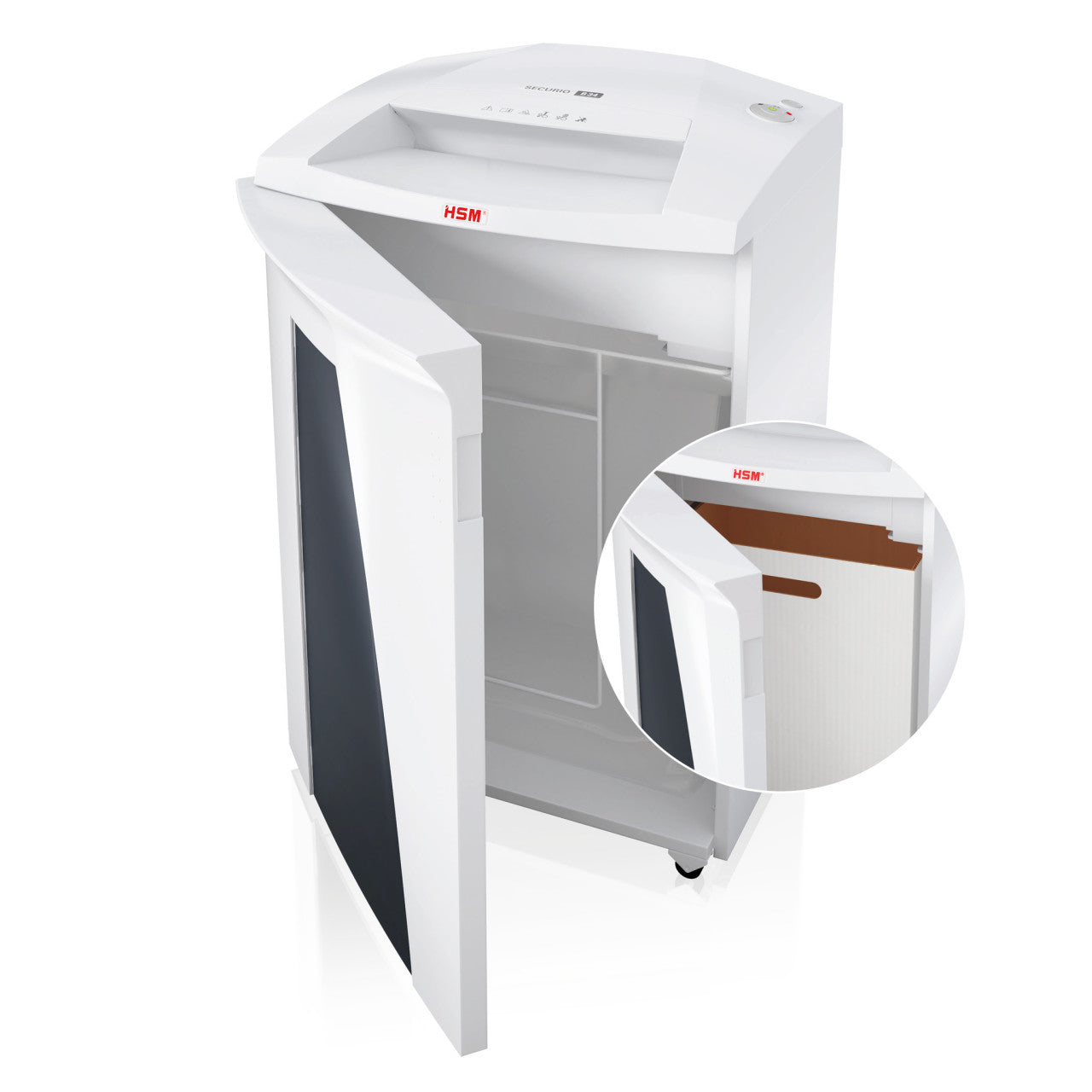

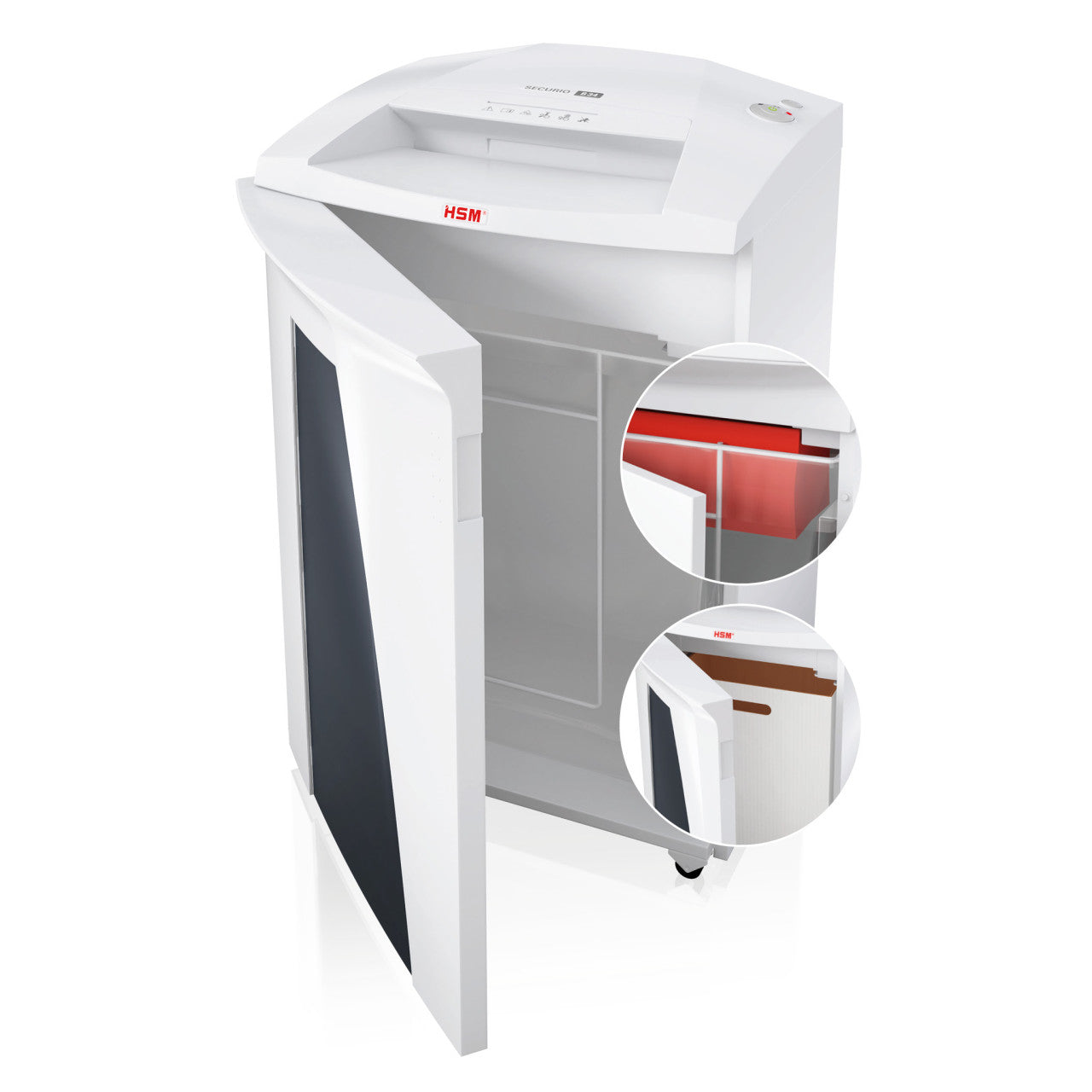

The shredder ships assembled: cutting head, cabinet and the integrated 100 L collection container, plus the power cord and operating instructions.

Shredder bags are not included. HSM lists collection bags and cutting-block oil as separate consumables. The bags for this chassis are the reusable collection bags for HSM 225, 386 and SECURIO B34, sold in packs of 10 or 100 (1410995000 / 1410995100); a cardboard box - b34 is also available. Order at least one pack with the machine.

Who Should Buy This — and Who Should Not

Buy this if you need a DIN P-4 shredder that a department can share, and 310 mm of throat width is enough. It handles letter, legal and A4 without folding, accepts staples and clips so nobody has to prep documents, and the 100 litre container means emptying is a weekly job rather than a daily one in most offices.

Do not buy this if your policy specifies P-5 or higher - the B34 range in the US does not offer P-5, so you would move to the SECURIO B35 1/16 x 5/8 inch (HSM1922). Also skip it if you regularly feed tabloid, wide computer print-outs or thick continuous stationery; the 400 mm throat of the SECURIO B35 3/16 x 1 1/8 inch (HSM1923) is the better fit. And if the machine will be shared with no owner, take the automatic-oiler version, HSM18434.

Product Specification

Machine Type
Large Office
Shredder Series
Securio
Cut Type
Cross Cut
Shreddable Materials
Paper, staples, paper clips, credit cards, CDs/DVDs
Cut Size
3/16" x 1 1/8" (4.5 x 30 mm)
Bin Size / Container Volume
26.4 gal (100 L)
Throat Width
12.2" (310 mm)
Power Consumption
700 W
Voltage
110-120 V / 60 Hz
Weight
92.6 lb (42.0 kg)
Security Level
P-4
Sheet Capacity
20 - 22 sheets at 80 g/m2
Dimensions (WxDxH)
21.3" x 17.3" x 33.3" (541 x 439 x 845 mm)
Warranty
Lifetime warranty on the solid steel cutting rollers
dB Level
56

Product listing details

Vendor
HSM
Product type
Document Shredder
Condition
New
SKU
1843113
GTIN
4026631035705
Price
$1,600.00 USD
Currency
USD
Availability
In stock
Shipping policy
Click to view policy
Refund policy
Click to view policy
Return policy
Click to view policy
View full details
Before you specify

Frequently Asked Questions

Can this shredder handle staples, paper clips and credit cards?

Yes. HSM rates this cutting head for paper, staples, paper clips, credit cards and CDs/DVDs, so documents do not need to be prepared before feeding. Optical media and cards should go in one at a time rather than stacked with paper. Continuously feeding heavy staples or cards will wear the rollers faster than paper alone, so treat cards and discs as occasional items rather than the machine's daily diet.

How many people can share this machine before it becomes a bottleneck?

That depends on volume rather than headcount, but the useful figures are 20 - 22 sheets per pass and a 100 L container holding about 1,223 shredded sheets. As a rough guide, a P-4 machine like this suits a workgroup that generates up to a few hundred pages of shredding a day. If people start queuing, the constraint is almost always the security level rather than the motor - a lower DIN class on the same chassis runs considerably faster.

Is the sheet capacity figure realistic for US paper?

The 20 - 22 sheet rating is HSM's own figure measured at 80 g/m² paper. Standard US 20 lb bond letter is about 75 g/m², so on typical American office paper you should meet or slightly beat the rating. Be aware that HSM's overview brochure quotes capacity at 70 g/m² instead, which produces numbers roughly 15 percent higher; if you are comparing our spec against a brochure figure, check which paper weight each one uses.

Will legal and A4 paper fit through the throat?

Yes. The intake is 12.2 in (310 mm), which takes 8.5 in letter and legal stock and 210 mm A4 with room to spare, and will clear 11 in tabloid fed short edge. What it will not comfortably take is wide continuous computer stationery or A3 fed long edge. If oversized stock is routine for you, the SECURIO B35 offers a 15.75 in (400 mm) throat on an otherwise comparable machine.

Is this shredder NSA approved?

We have not verified a listing for this model on the NSA/CSS Evaluated Products List, so we do not claim NSA approval for it. Those two things are separate: NSA/CSS 02-01 requires a maximum particle of 1 mm x 5 mm and the specific model must appear on the NSA's own list. A DIN 66399 rating on its own - including P-7 - does not establish NSA approval. If you have a classified-destruction requirement, verify the model number directly against the current NSA EPL before ordering.

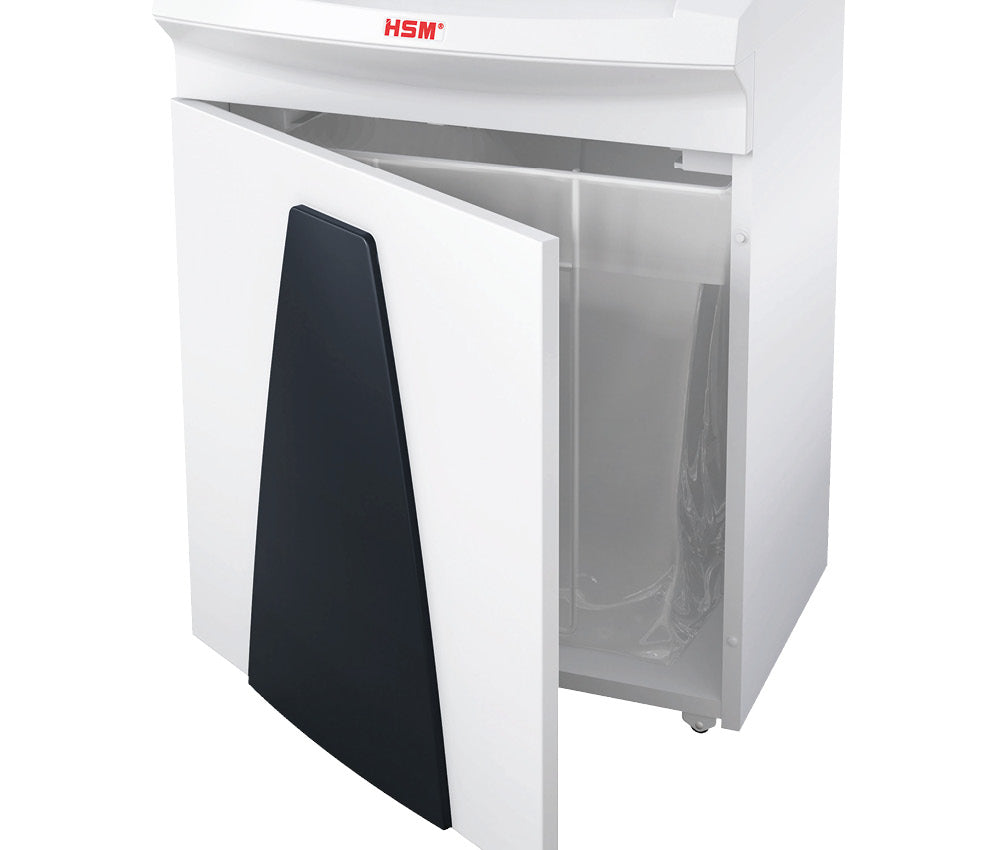

What bags fit this model, and are any included?

No bags are supplied with the machine. This chassis uses HSM's reusable collection bags for HSM 225, 386 and SECURIO B34, available in packs of 10 or 100 under part numbers 1410995000 / 1410995100. Generic 26.4 gal liners will physically fit the 100 L container but often tear at the fold or slip off the frame, which makes emptying messier rather than cheaper. HSM also offers a cardboard box - b34 as an alternative to plastic.

How often does this shredder need oiling?

Any cross cut cutting head benefits from regular lubrication - the usual guidance is an oiled sheet or a pass of HSM cutting-block oil each time you empty the bin, and more often under heavy use. Dry rollers lose sheet capacity before they fail, so a shredder that seems to be weakening is usually just under-oiled. If nobody in your office will own that task, buy the version of this machine with the external automatic oiler fitted instead.

Can it run continuously, and how loud is it?

HSM builds the SECURIO cabinet range for continuous operation rather than short duty cycles, so it is designed to run through a full bin rather than needing a cooling pause every few minutes. Sustained overloading will still trip the thermal protection; feeding at or under the rated 20 - 22 sheets avoids that. Noise is around 56 dB(A) at idle, which is quiet enough to place the machine in an open-plan office rather than banishing it to a service room.
