HSM SECURIO B34 1/16 x 5/8 Inch with External Automatic Oiler - HSM18424

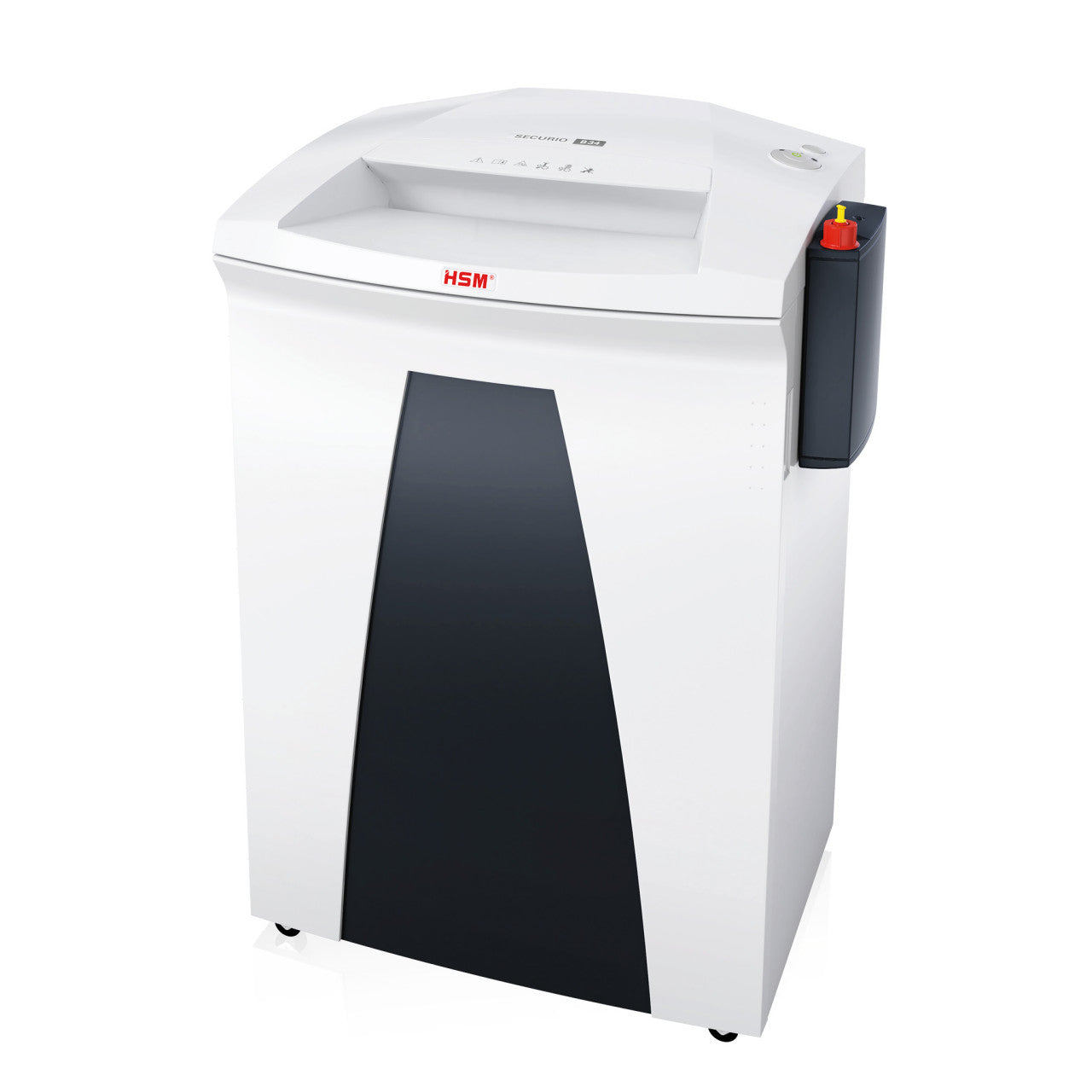

The HSM SECURIO B34 1/16 x 5/8 Inch with External Automatic Oiler (HSM18424) is a P-5 departmental shredder that cuts 1.9 x 15 mm particles, takes 13 to 15 sheets per pass and comes with HSM's oiler already mounted on the cabinet. It is meant for records, legal, medical and finance teams that have settled on P-5 and want the head lubricated without a manual routine.

HSM18424 quick facts

• 28.5 mm² particle: inside both P-5 limits of 30 mm² area and 2 mm width

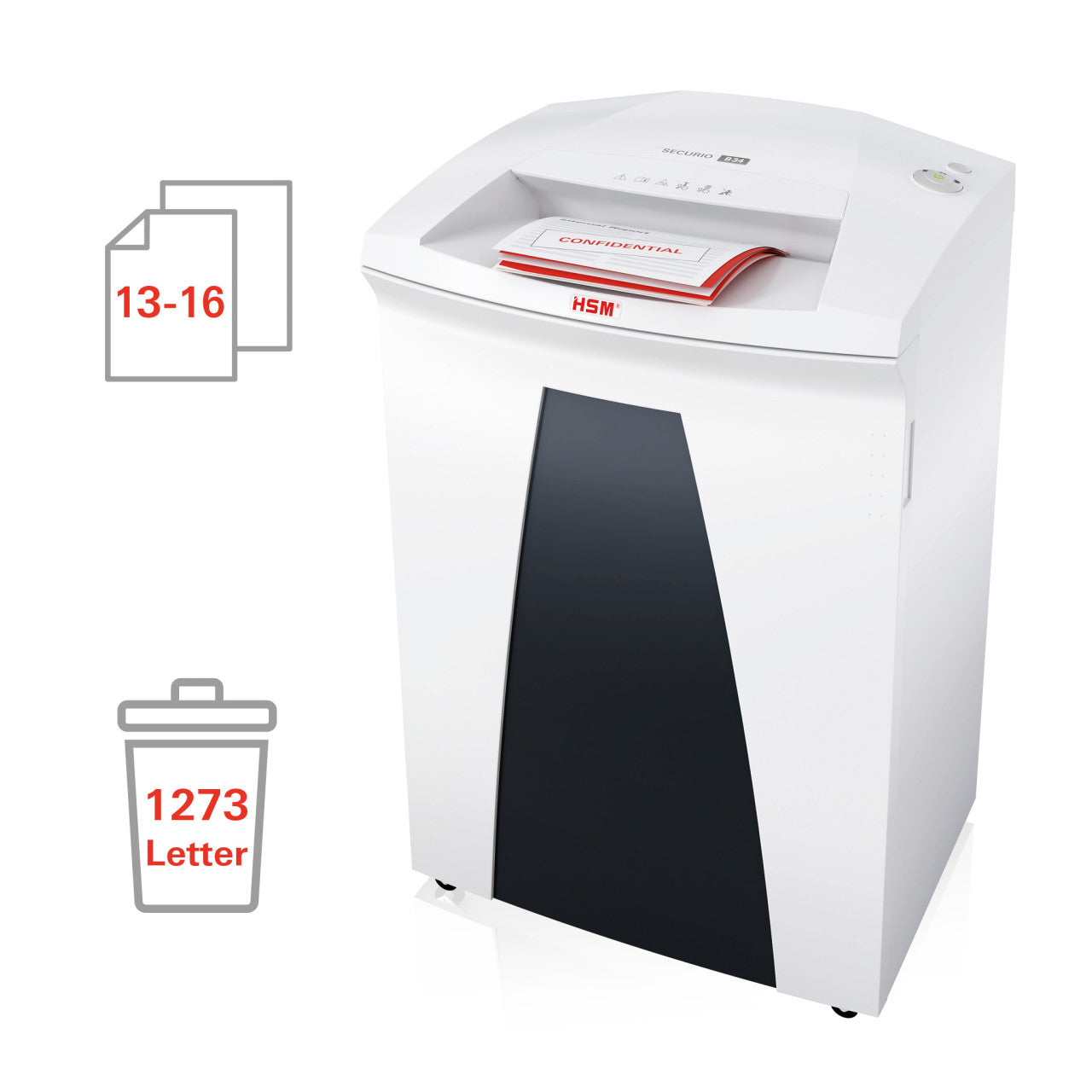

• 13-15 sheets per pass at 80 g/m²
• External automatic oiler fitted at the factory
• 100-liter (26.4 gal) bin, about 1,273 shredded sheets
• Lifetime warranty on the cutting rollers
• Rated E-4, F-2, P-5, T-5; no optical-media rating

The finest B34 cut that keeps lifetime roller cover

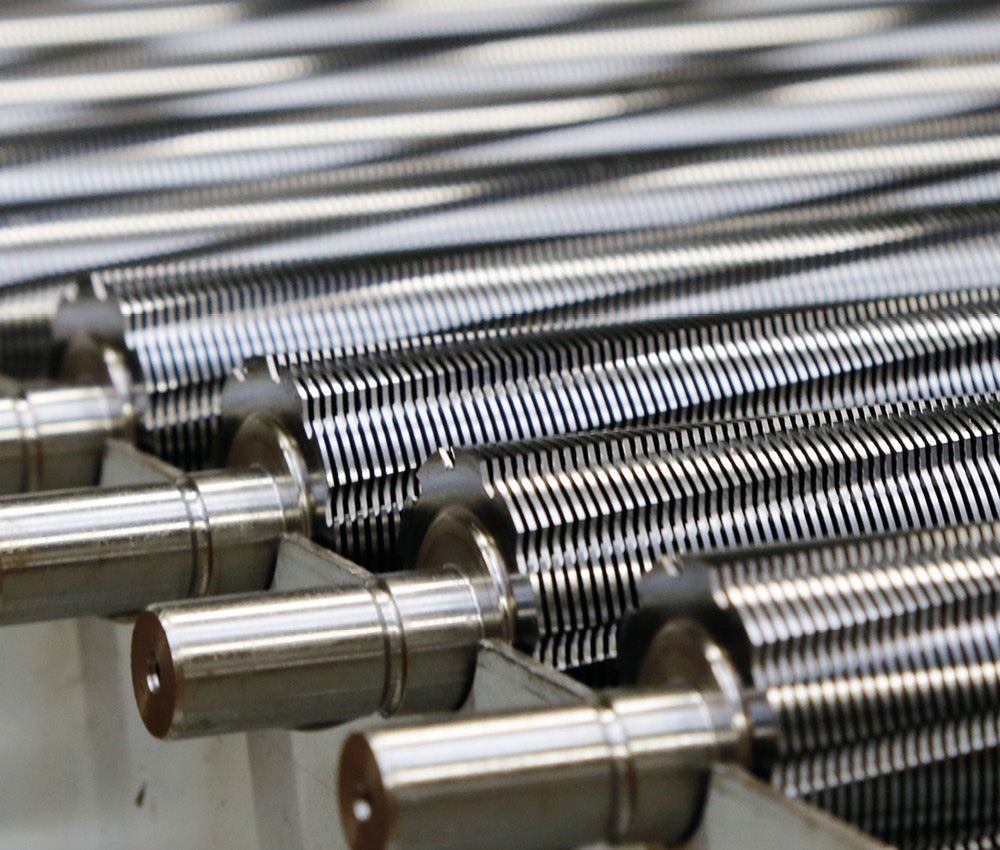

HSM's lifetime warranty on its induction-hardened solid steel rollers runs from P-2 to P-5. On the B34 chassis, this 1.9 x 15 mm head is the last stop before that cover ends. The P-6 and P-7 versions of the same cabinet give up the lifetime cover and drop to eight and five sheets per pass. For many buyers, P-5 at 13 to 15 sheets with lifetime roller cover is the better long-term choice than going finer.

Compared with P-4, the jump is real: P-4 allows up to 160 mm² per particle, roughly five times the area of this one.

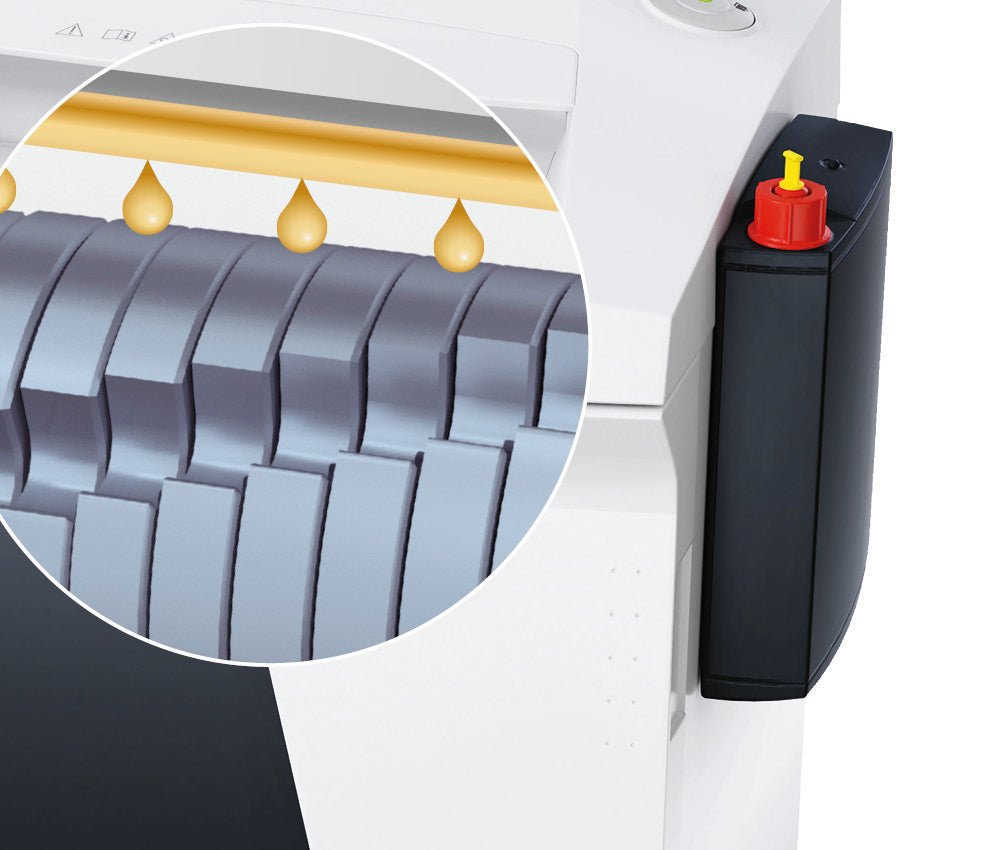

Living with the oiler

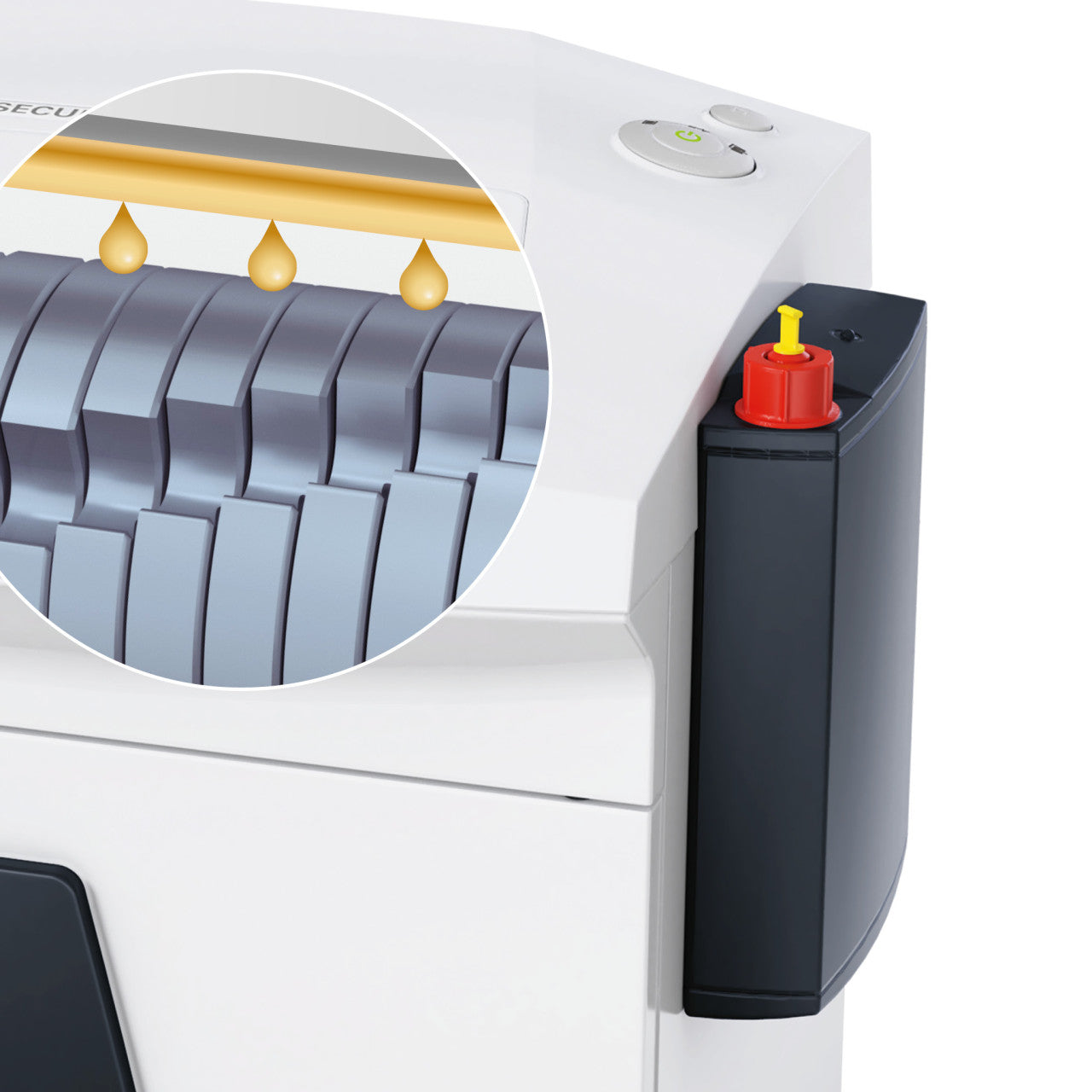

A fine particle head dries out faster than a coarse one, and dry rollers cut poorly and strain the motor. The oiler applies lubricant automatically during operation, drawing from a bottle you refill. HSM does not publish a refill interval, and its documents do not confirm whether a filled bottle ships with the unit, so order HSM shredder oil with the machine and check the level when you empty the bin.

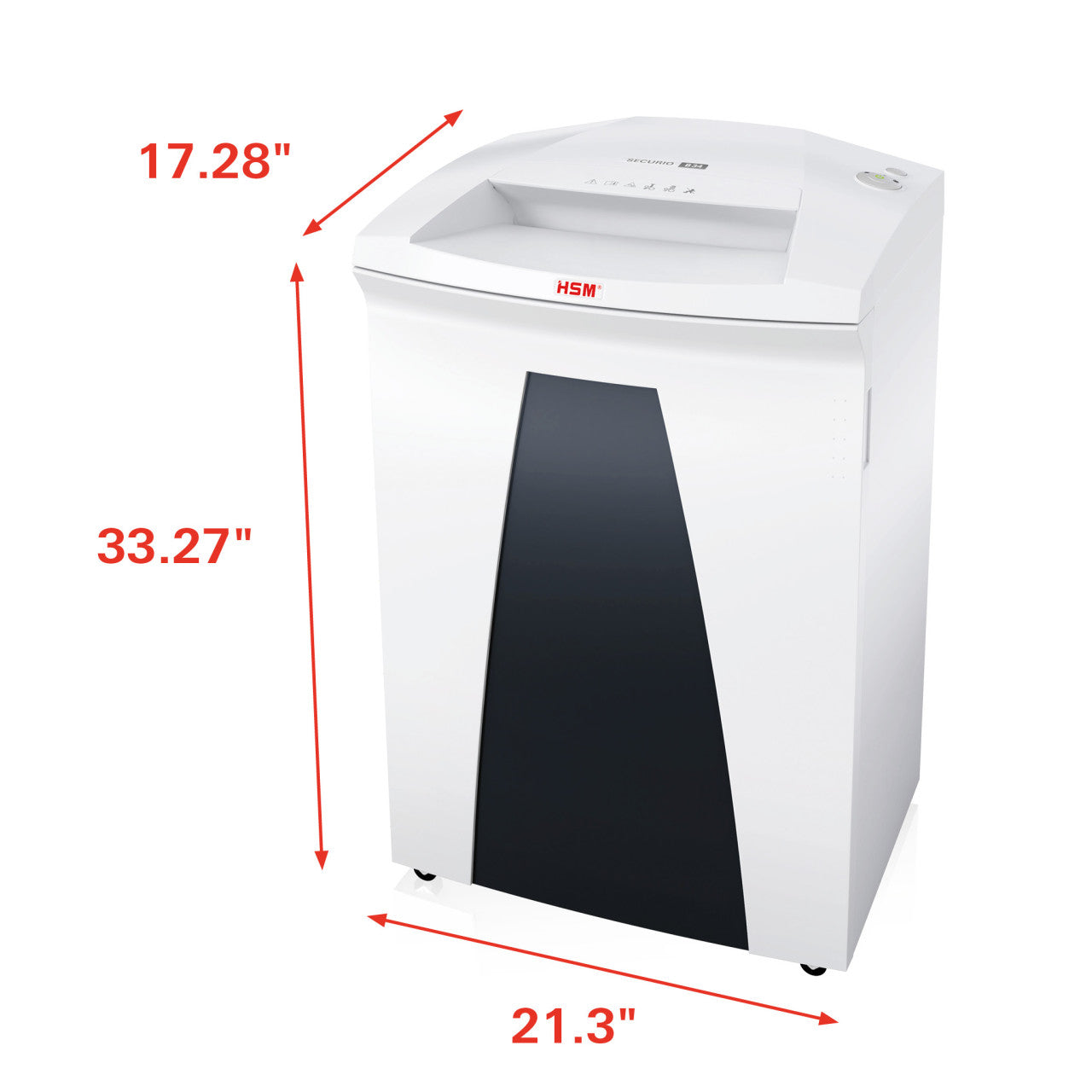

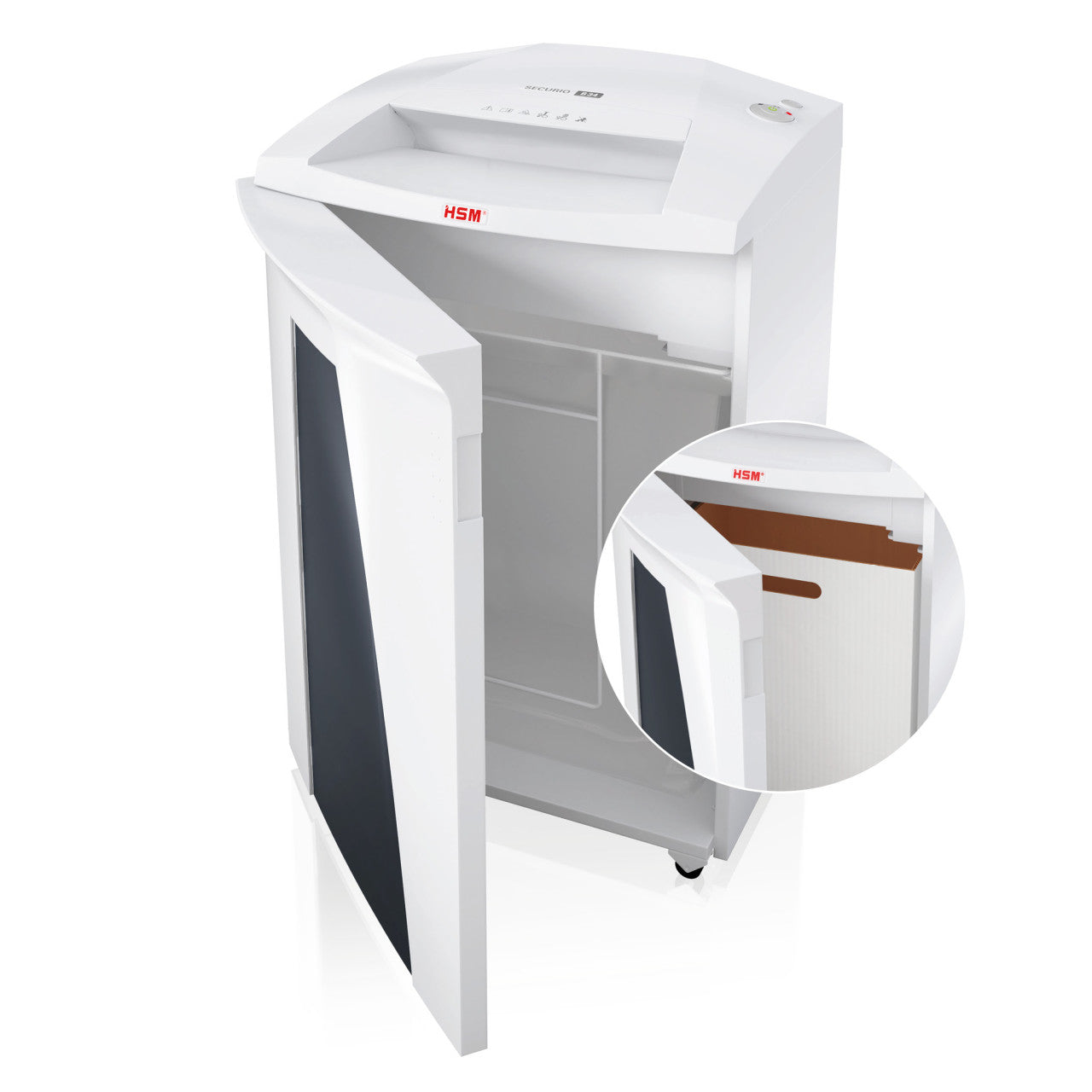

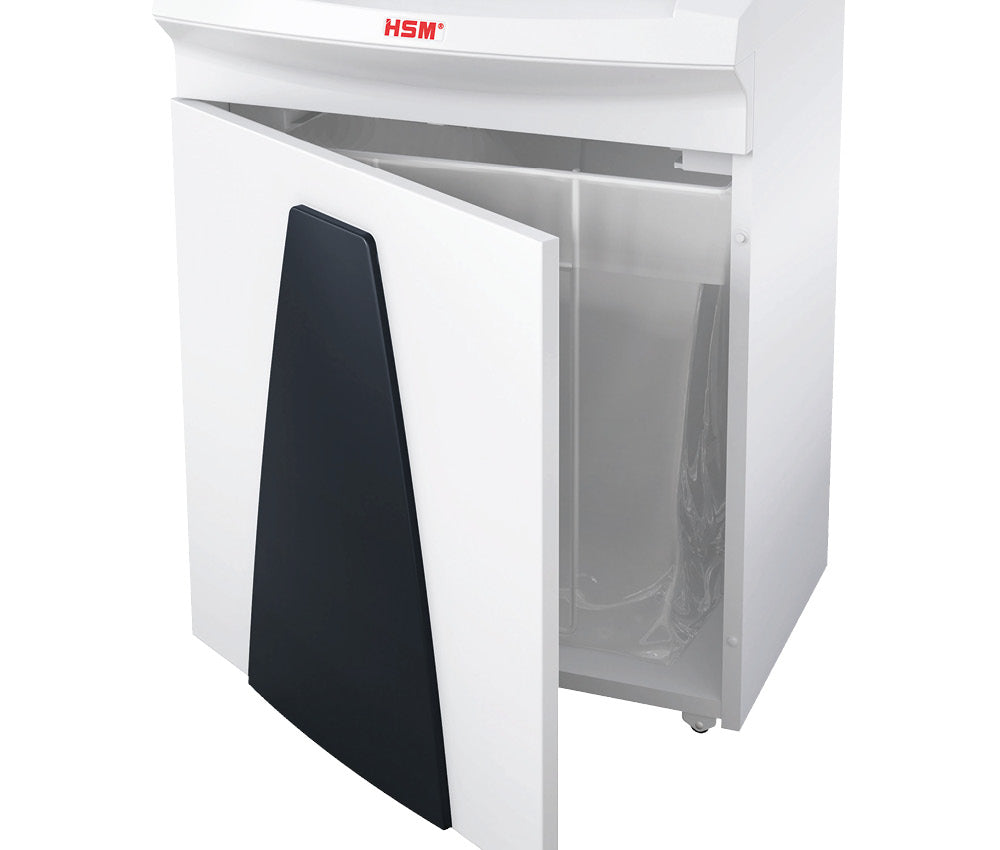

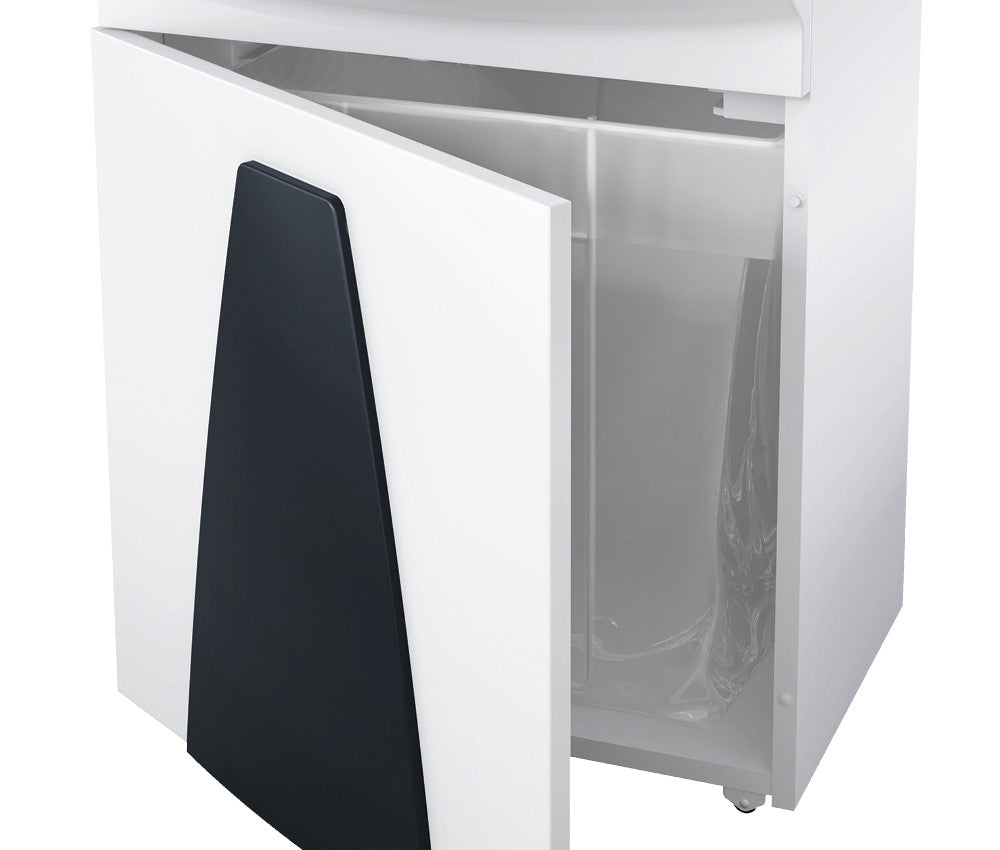

The oiler adds 50 mm to the side of the cabinet, bringing width to 591 mm against 541 mm for the plain model. Leave room in front to draw out the 100-liter container and on the oiler side for bottle changes.

HSM SECURIO B34 P-5 with oiler: full specifications

Picking between nearby B34 models

• B34 1/16 x 5/8 without oiler (HSM1842): identical cut and capacity in a 541 mm cabinet, oiled by hand.
• B34 1/32 x 7/16 (HSM1845): P-6 at 0.78 x 11 mm, eight sheets per pass, outside lifetime roller cover.
• B34 1/4 in strip cut (HSM1841): P-2 at 30-32 sheets, for bulk paper that is not sensitive.

Who the oiler version is for

Pick it for a busy shared P-5 machine where nobody owns maintenance. If your policy names P-6, P-7 or a 1 x 5 mm residue, this model will not comply. If space is tight or one careful user will run it, the standard HSM1842 does the same cutting for less.
