HSM SECURIO B34 1/16 x 5/8 Cross Cut Document Shredder - HSM1842

HSM SECURIO B34 1/16 x 5/8 Cross Cut Document Shredder - HSM1842

DIN 66399 security level P-5max 30 mm² particleInformation intended to be kept secret: medical reports, strategy papers, financial models, privileged material. See every P-5 machine
Cut
Micro Cut
Cut size
1/16" x 5/8" (1.9 x 15 mm)
Sheet capacity
13-15 sheets (80 g/m2)
Throat width
12.2" (310 mm)
Regular price $1,820.21 USD
Regular price $5,110.11 USD Sale price $1,820.21 USD
Sale Sold out
Quantity
  • Free shipping across the USA Included on every machine in the catalogue
  • 30-day return policy Shipping, refund and return terms published in full
  • +1 (858) 266-0509 Speak to a specification specialist · 08:00 AM – 05:00 PM PST, Monday to Friday

Authorized HSM dealer New stock through the manufacturer's authorized channel, with the manufacturer's own warranty · what this covers

Description

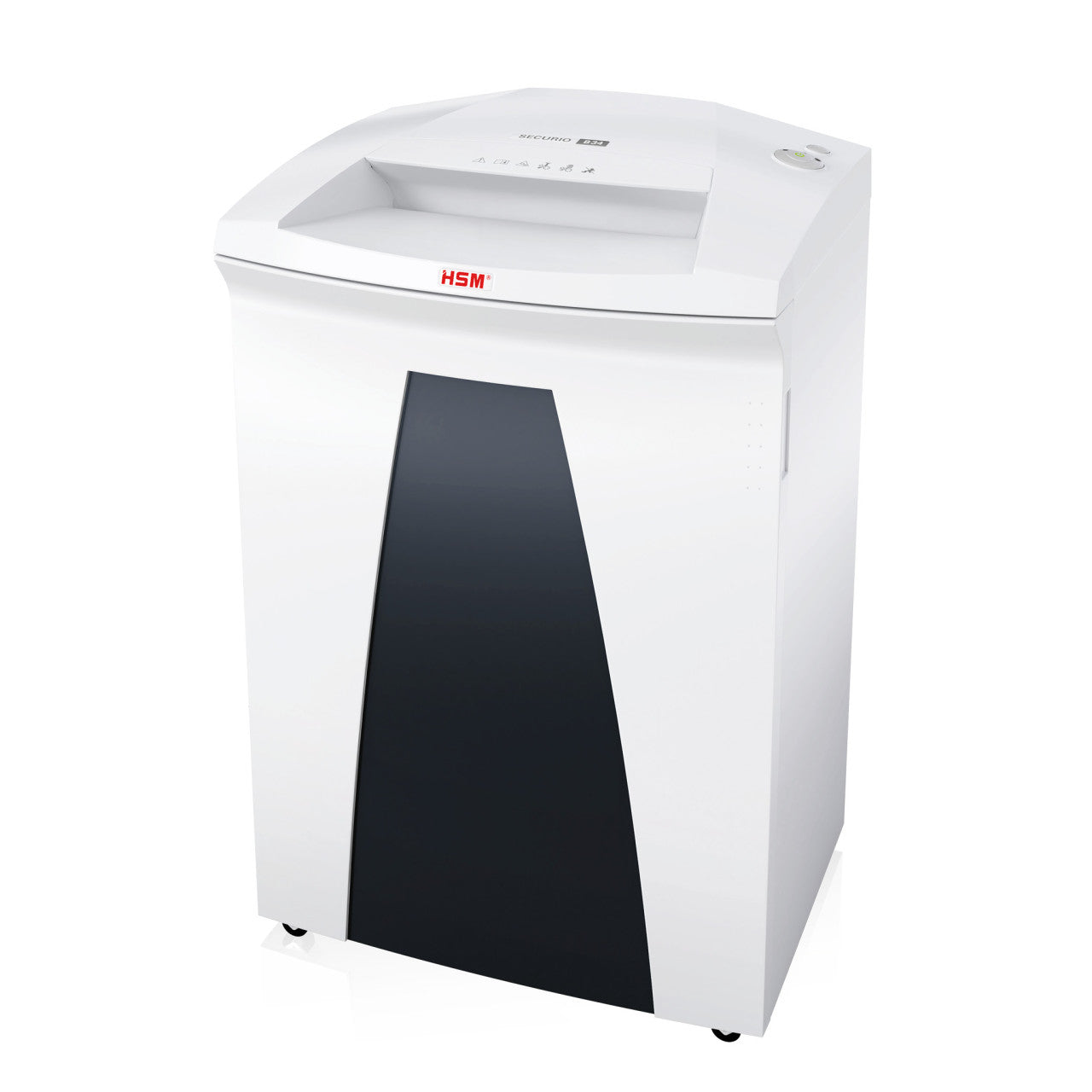

The SECURIO B34 is the machine to specify when P-5 security has to serve a whole department rather than one desk. It cuts the same 1.9 x 15 mm particle as HSM's smaller P-5 models but pairs it with a 100 litre bin, a 310 mm throat and a 700 W motor, so throughput does not collapse the way it usually does when you move up a security level.

Thirteen to fifteen sheets per pass at P-5 is the headline number. For comparison, the deskside B24 in the identical cut manages nine to eleven. That gap is what the extra motor and the larger cutting head buy you, and over a working week it is the difference between a shredder people use and one they avoid. The container holds roughly 1,273 shredded sheets, which for most departments means emptying weekly.

Key Features

  • DIN P-5 at 1.9 x 15 mm (28.5 mm², against the 30 mm² standard limit), with T-5, E-4 and F-2 ratings alongside.
  • 13–15 sheets per pass at 80 g/m² — among the highest sheet ratings available at this security level in a self-contained office machine.

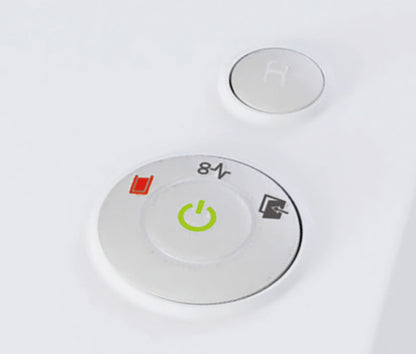

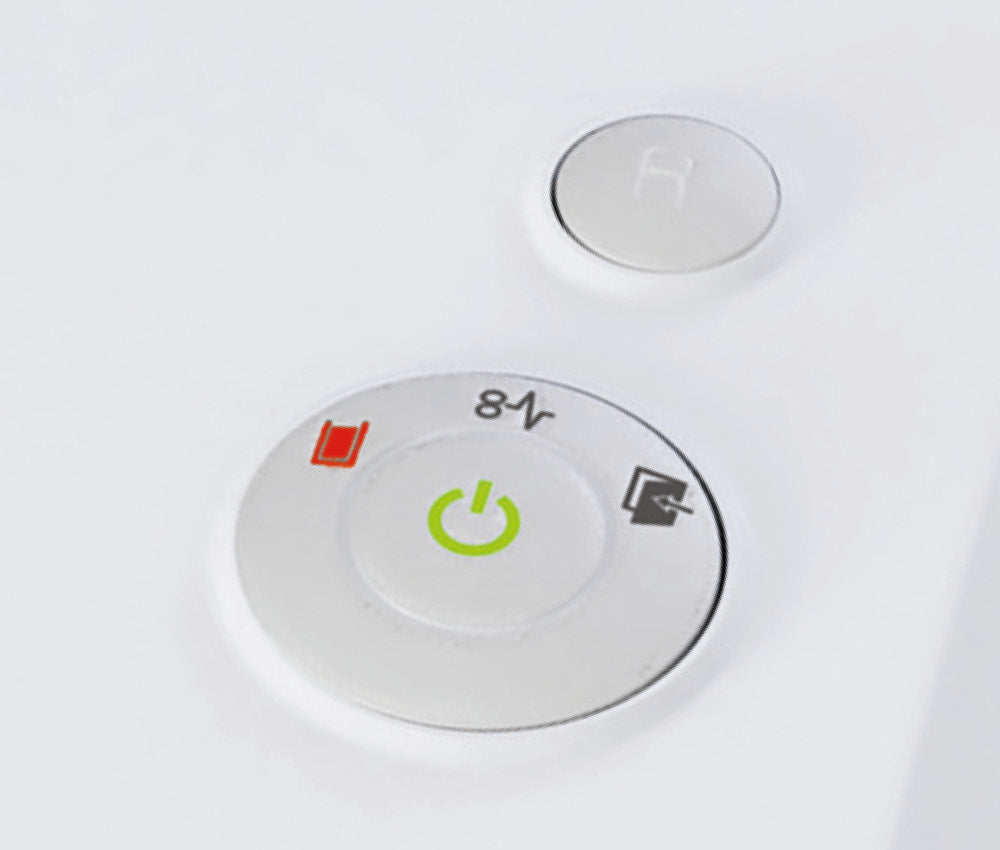

  • 26.4 gallon (100 L) container, approx. 1,273 sheets, with automatic full detection shown on the display and automatic shutdown.
  • 12.2 in (310 mm) throat that clears tabloid sheets short-edge first, not just letter and legal.
  • 700 W motor, a step up from the 610 W used in the B24 and B32, which is where the extra sheet capacity at a finer cut comes from.
  • Induction-hardened solid steel cutting rollers with a lifetime warranty, rated to pass staples and paper clips.
  • Reusable nylon collecting bag available (HSM 3NB210R03330, listed for the B32 and B34 series) as an alternative to disposable bags.

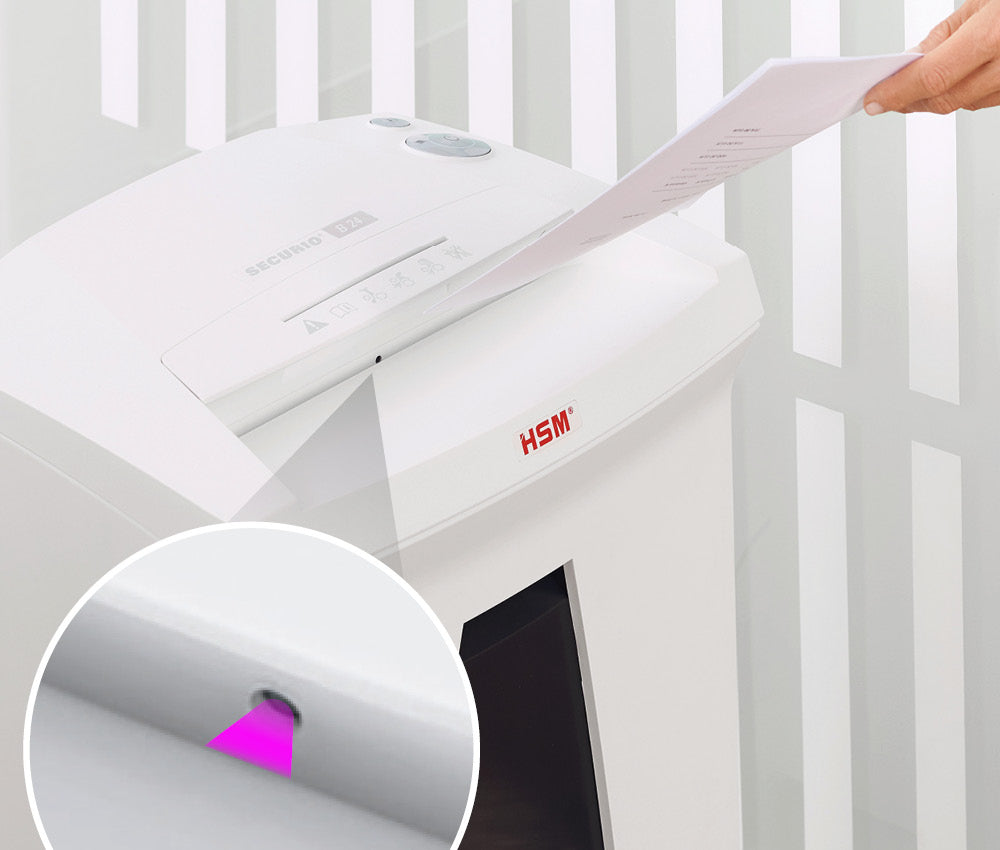

  • Quiet operating mode, approx. 56 dB(A) at idle, 0.1 W EcoSmart standby, light-barrier automatic start and stop.

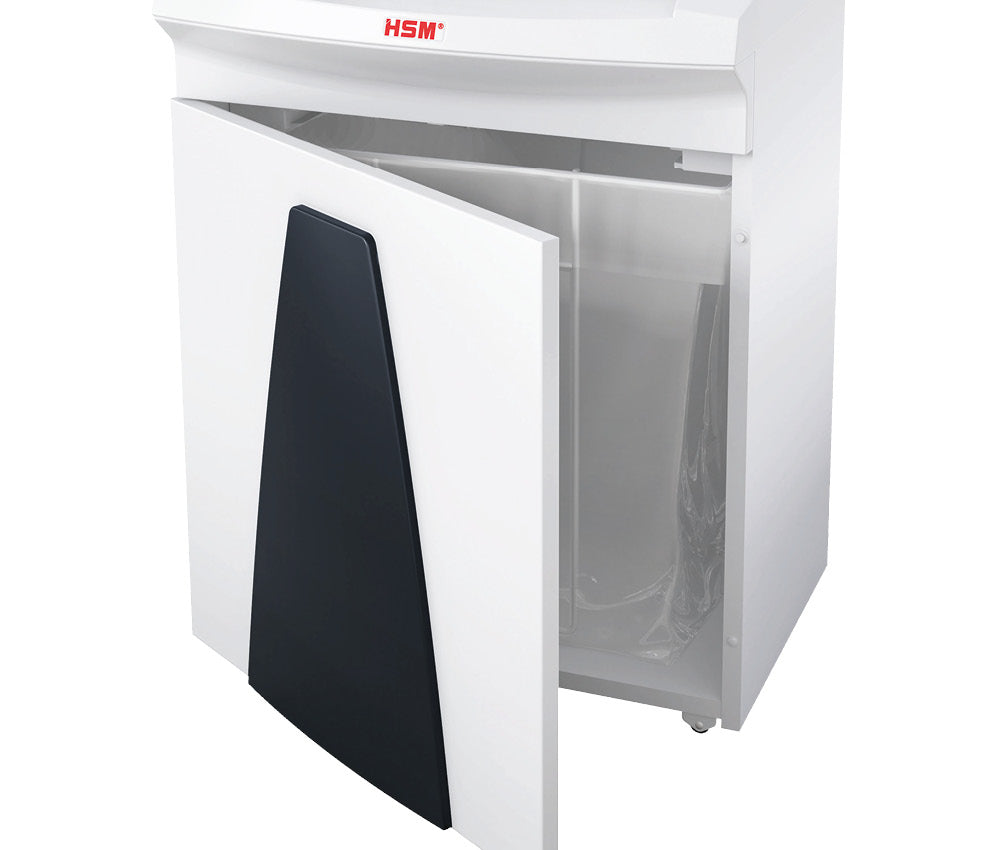

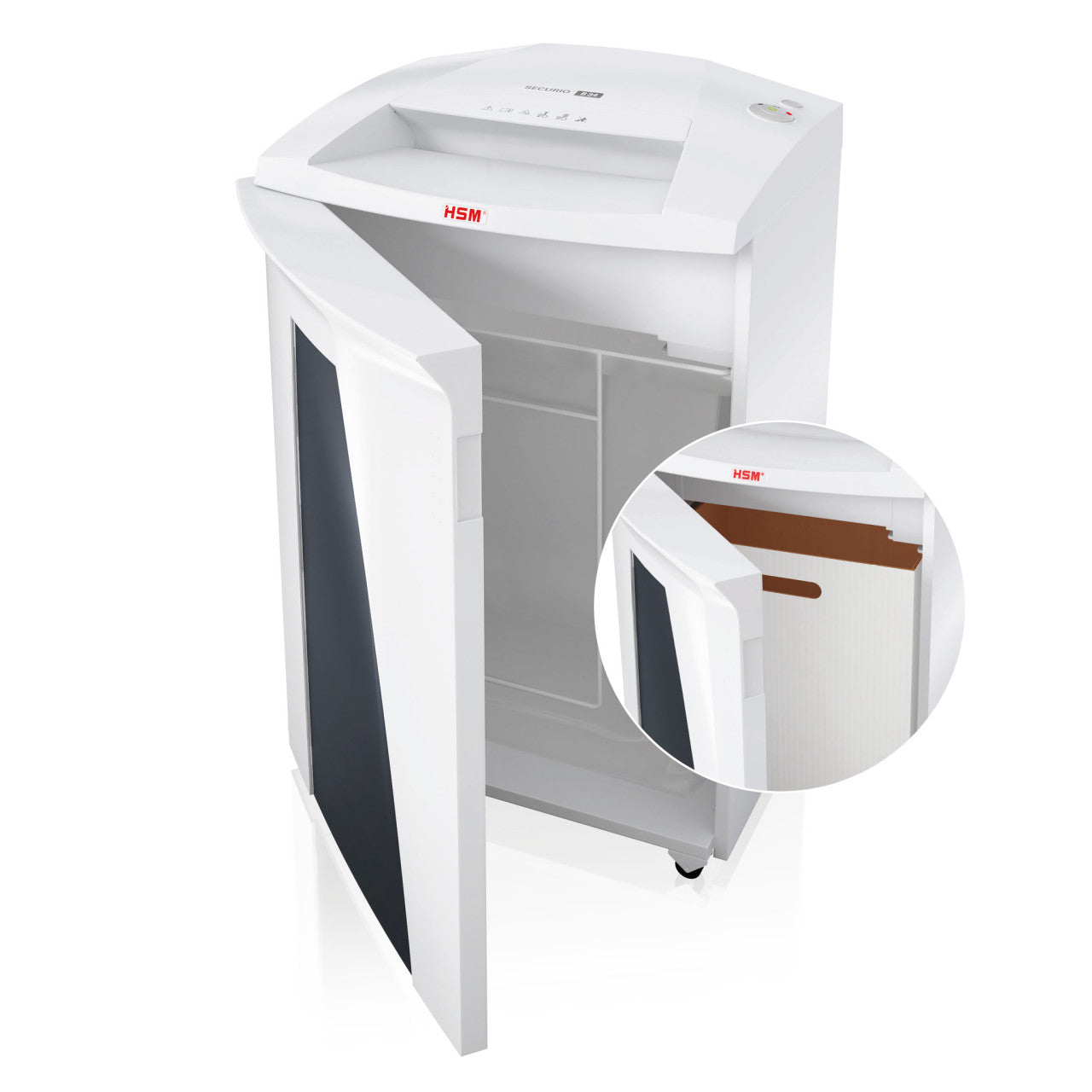

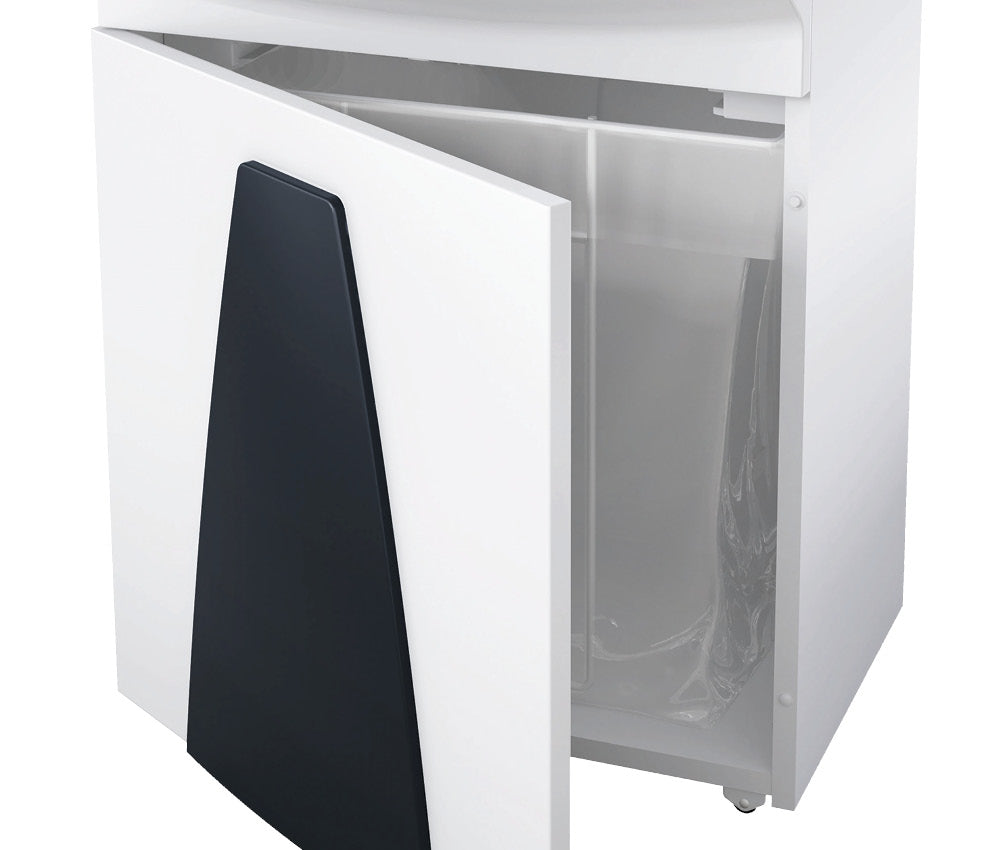

  • Large door opening and inspection window so a 42 kg machine can be emptied without wrestling the container.

Specifications

Security level (DIN 66399 / ISO IEC 21964) P-5 · T-5 · E-4 · F-2
Cut type Cross cut (micro particle)
Cut size 1/16 x 5/8 in (1.9 x 15 mm)
Sheet capacity 13–15 sheets (80 g/m²)
Throat width 12.2 in (310 mm)
Bin volume 26.4 gal (100 L), approx. 1,273 shredded sheets
Motor / power draw 700 W
Voltage 110–120 V / 60 Hz
Noise level (idle) approx. 56 dB(A)

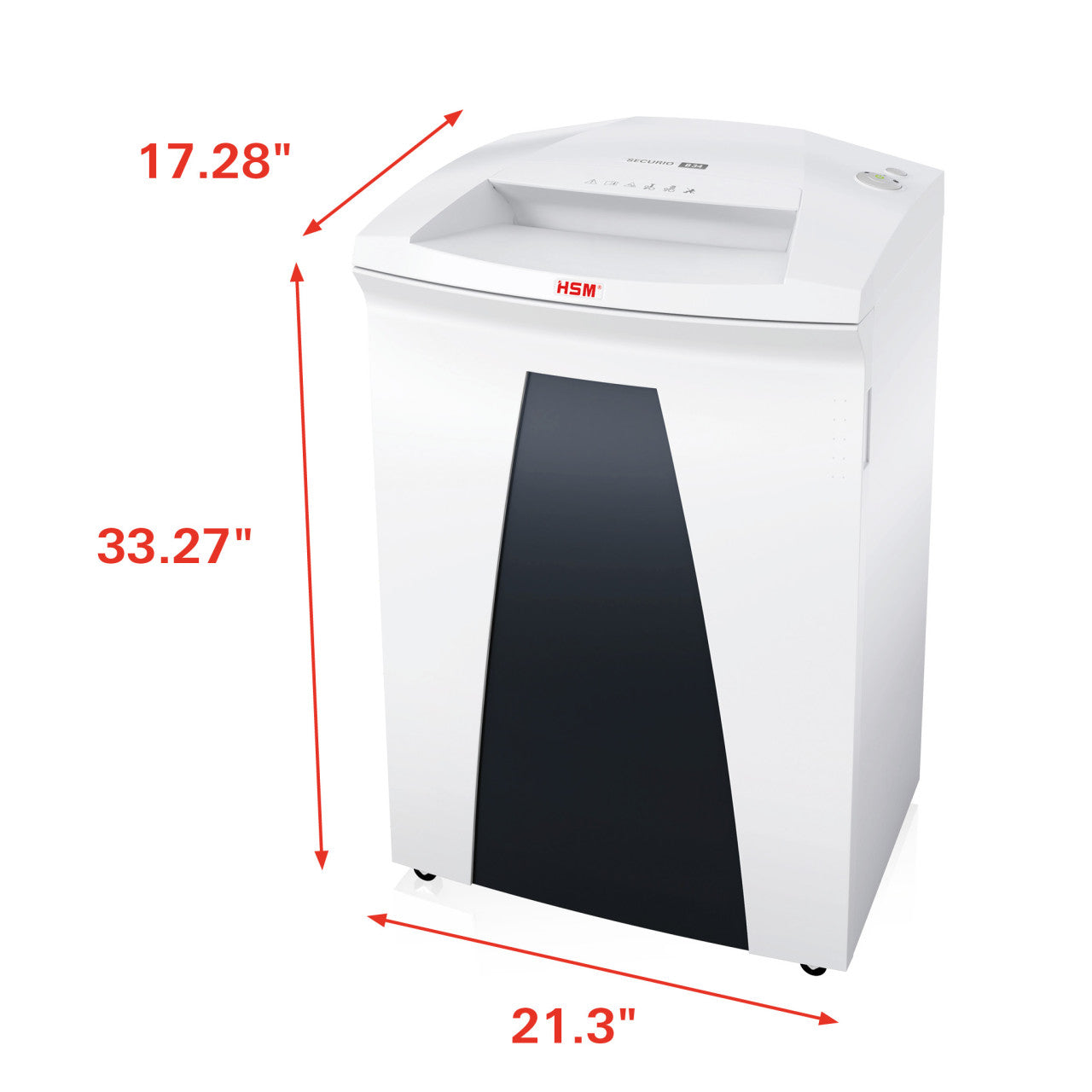

Dimensions (W × D × H) 21.3 x 17.28 x 33.27 in (541 x 439 x 845 mm)
Weight 92.59 lb (42 kg)
Shreds Paper, staples, paper clips, credit cards
Warranty 3 years on the machine; lifetime on the solid steel cutting rollers

What's in the Box

  • SECURIO B34 shredder, assembled, on castors
  • Removable 26.4 gallon waste container
  • Operating instructions

Bags are ordered separately: HSM 34 gallon disposable bags (3310000004) or the reusable nylon bag 3NB210R03330.

Who Should Buy This — and Who Should Not

Specify the B34 when a written standard puts you at P-5 and the machine has to serve fifteen to forty people. Hospital administration, insurance claims teams, HR shared services, legal practices and financial back offices are where it earns its keep, because those environments generate confidential paper continuously and cannot afford a shredder that takes nine sheets and stops every hour to be emptied.

It is the wrong machine for a private office. At 33 inches tall and 93 lb it is not something you move casually, and one person shredding a folder a day will never use the capacity — the B24 at the same P-5 cut costs a fraction as much. It also does not take CDs or DVDs: the 1.9 x 15 mm geometry carries no optical media rating, so plan a separate route for discs. And if your requirement is level 6, do not buy this and hope; the B35 at 0.78 x 11 mm is the machine that clears P-6 at departmental scale.

Product Specification

Machine Type
Large Office
Shredder Series
SECURIO
Cut Type
Micro Cut
Shreddable Materials
Paper, staples, paper clips, credit cards
Cut Size
1/16" x 5/8" (1.9 x 15 mm)
Bin Size / Container Volume
26.4 gal (100 L)
Throat Width
12.2" (310 mm)
Power Consumption
700 W
Voltage
110-120 V / 60 Hz
Weight
92.59 lb (42 kg)
Security Level
P-5
Sheet Capacity
13-15 sheets (80 g/m2)
Dimensions (WxDxH)
21.3" x 17.28" x 33.27" (541 x 439 x 845 mm)
Warranty
3 years on the machine; lifetime warranty on the solid steel cutting rollers
dB Level
approx. 56 dB(A) idle

Product listing details

Vendor
HSM
Product type
Document Shredder
Condition
New
SKU
1842113
GTIN
4026631026451
Price
$1,820.21 USD
Currency
USD
Availability
In stock
Shipping policy
Click to view policy
Refund policy
Click to view policy
Return policy
Click to view policy
View full details
Before you specify

Frequently Asked Questions

How many sheets does the B34 take at P-5, and why more than the B24?

Thirteen to fifteen sheets of 80 g/m2 paper, against nine to eleven for the deskside B24 in the identical 1.9 x 15 mm cut. The difference comes from the motor and the cutting head: the B34 uses a 700 W drive where the B24 uses 610 W, with a wider 310 mm cutting assembly. If your bottleneck is people standing at a shredder feeding small stacks, that jump is the main thing you are paying for.

How long before the container needs emptying?

HSM measures the 26.4 gallon (100 litre) container at approximately 1,273 shredded sheets at this cut. A department of twenty people shredding ordinary confidential paper will typically empty it once a week. The machine shows a bin-full indication on the display and shuts off automatically, so it will not back material up into the cutting head. A large door opening makes emptying manageable despite the machine's 93 lb weight.

Can it shred CDs, DVDs or other optical media?

No. HSM rates this configuration for paper, staples, paper clips and credit cards, with no O rating for optical media. The micro-cut geometry that delivers P-5 cannot pass a rigid disc safely. If discs are part of your disposal stream, run them through a P-4 machine that carries an O-3 rating, such as the SECURIO B32 at 4.5 x 30 mm, or use a dedicated media destroyer.

Will tabloid or A3 paper feed without folding?

Yes. The intake is 12.2 in (310 mm) wide. Tabloid at 11 in and A3 at 297 mm both feed short-edge first with clearance. Letter, legal and A4 are straightforward. Only very wide plan sheets need folding, and for those the SECURIO B35 offers a 15.75 in throat. Remember that folding doubles the paper thickness and correspondingly halves your effective sheet capacity.

What bags fit the B34?

Two options. Disposable: HSM 34 gallon tear-resistant bags, part 3310000004, on a 100 count roll, shared with the Classic 125 and the SECURIO B26, B32 and AF500. Reusable: the blue nylon HSM shred bag 3NB210R03330, listed for the Classic 225 and the SECURIO B32 and B34 series. On a machine emptied weekly for years, the reusable bag is usually the cheaper choice.

Does the lifetime cutting roller warranty apply here?

Yes. HSM's lifetime warranty on solid steel cutting rollers covers SECURIO document shredders at security levels P-2 to P-5, and this model is P-5, so it sits inside that cover. The machine itself carries a three-year warranty. Worth noting for comparison: the P-6 models in the SECURIO range fall outside the lifetime roller cover, so stepping up a security level can mean stepping down in warranty.

Is this shredder NSA approved?

No. NSA/CSS Specification 02-01 requires a maximum particle of 1 mm x 5 mm together with listing on the NSA Evaluated Products List. This machine cuts 1.9 x 15 mm, above the limit on both dimensions, and it is not on the EPL. DIN P-5 is a commercial confidentiality classification and does not carry across to US government classified destruction requirements, whatever a listing elsewhere may imply.

Is it quiet enough to sit in an open-plan office?

HSM publishes approximately 56 dB(A) at idle and lists a quiet operating mode among the machine's features. Idle is not the figure you hear during a shred, and no manufacturer publishes a meaningful under-load number, so treat 56 dB(A) as a comparison point rather than a promise. In practice a B34 is usually sited in a copy room or a corridor bay rather than next to desks, mainly because of its footprint.
