HSM

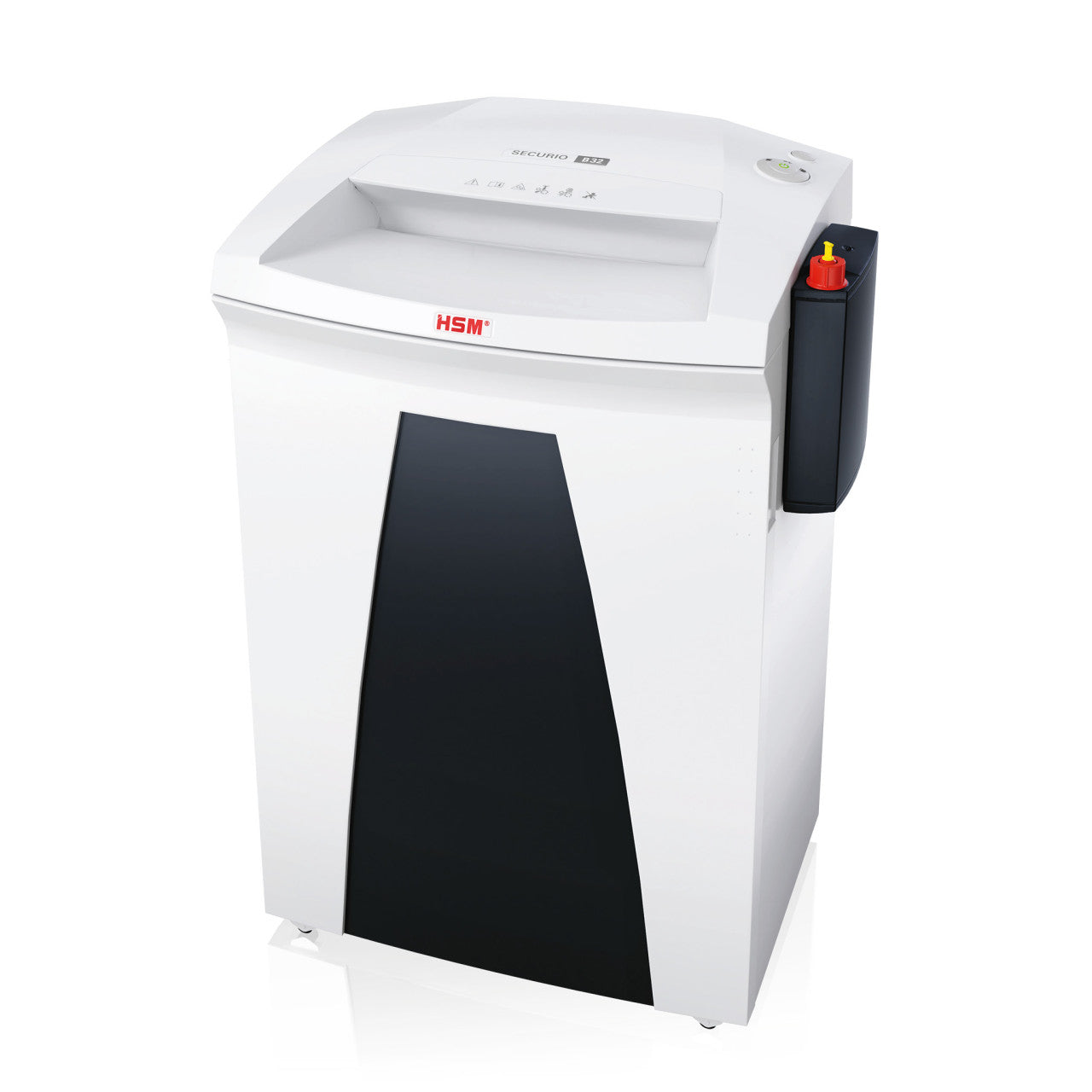

HSM SECURIO B32 1/32 x 7/16 with External Automatic Oiler - HSM18254

HSM SECURIO B32 1/32 x 7/16 with External Automatic Oiler - HSM18254

DIN 66399 security level P-6max 10 mm² particleSecret material with a high protection requirement: R&D, pre-announcement IP, sensitive government work. See every P-6 machine
Cut
Micro Cut
Cut size
0.78 x 11 mm (1/32" x 7/16")
Sheet capacity
6 sheets (80 g/m2)
Throat width
310 mm (12.2 in)
Regular price $1,666.44 USD
Regular price $4,362.71 USD Sale price $1,666.44 USD
Sale Sold out
Quantity
  • Free shipping across the USA Included on every machine in the catalogue
  • 30-day return policy Shipping, refund and return terms published in full
  • +1 (858) 266-0509 Speak to a specification specialist · 08:00 AM – 05:00 PM PST, Monday to Friday

Authorized HSM dealer New stock through the manufacturer's authorized channel, with the manufacturer's own warranty · what this covers

Description

The P-6 SECURIO B32 with HSM's external automatic oiler fitted from the factory. The cut is a 0.78 x 11 mm particle - 8.58 mm2, and under the 1 mm width limit, so genuinely P-6 rather than the P-5 it is often mislabelled as - and the machine takes six sheets of 80 g/m2 paper per pass. What the oiler buys you is one fewer maintenance task on a cutting head that will not tolerate being neglected.

Key Features

  • 0.78 x 11 mm particle, DIN 66399 P-6. Both P-6 conditions are met: 8.58 mm2 is under the 10 mm2 area limit and 0.78 mm is under the 1 mm width limit. Do not accept a P-5 label on this cut - P-5 allows up to 30 mm2 and is visibly coarser.

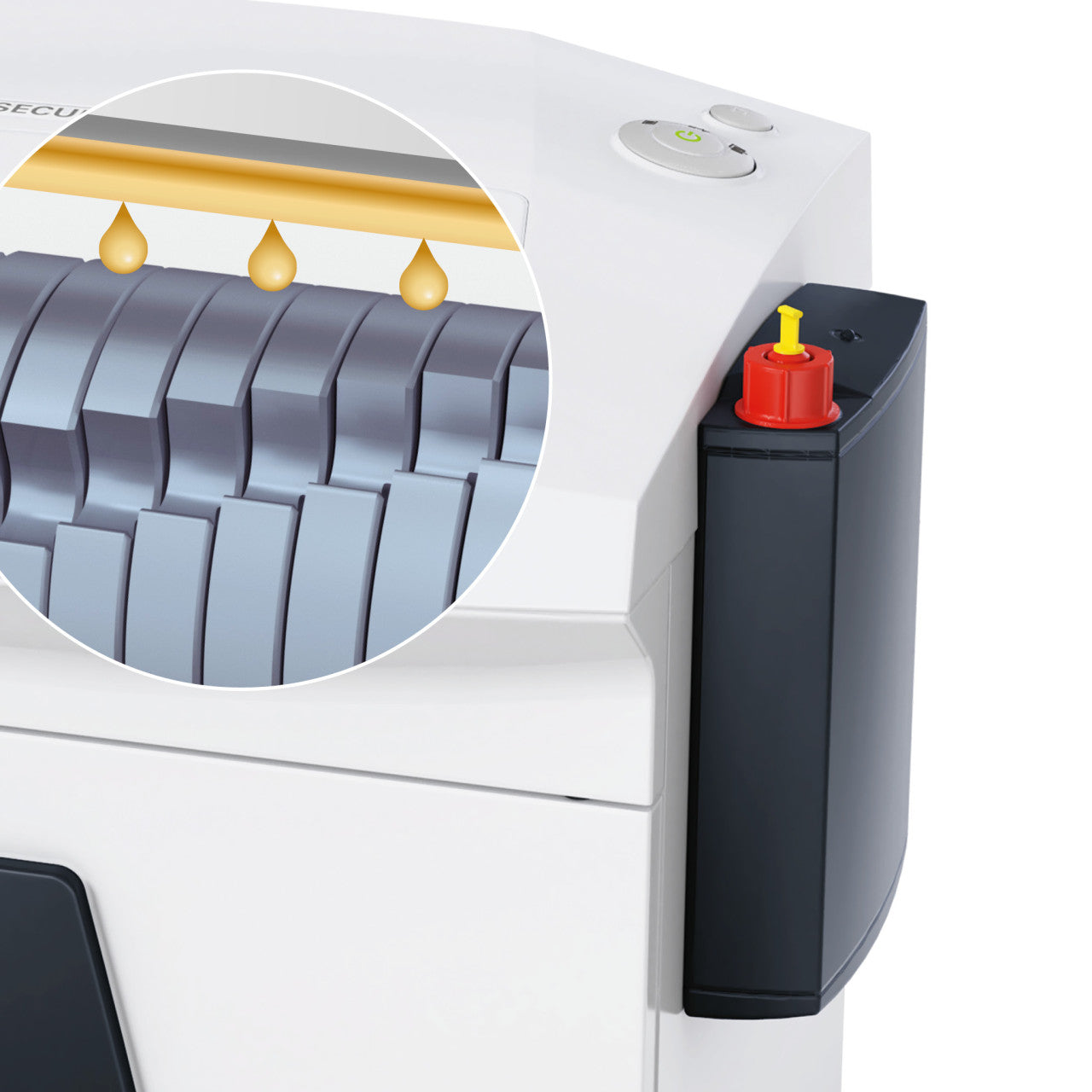

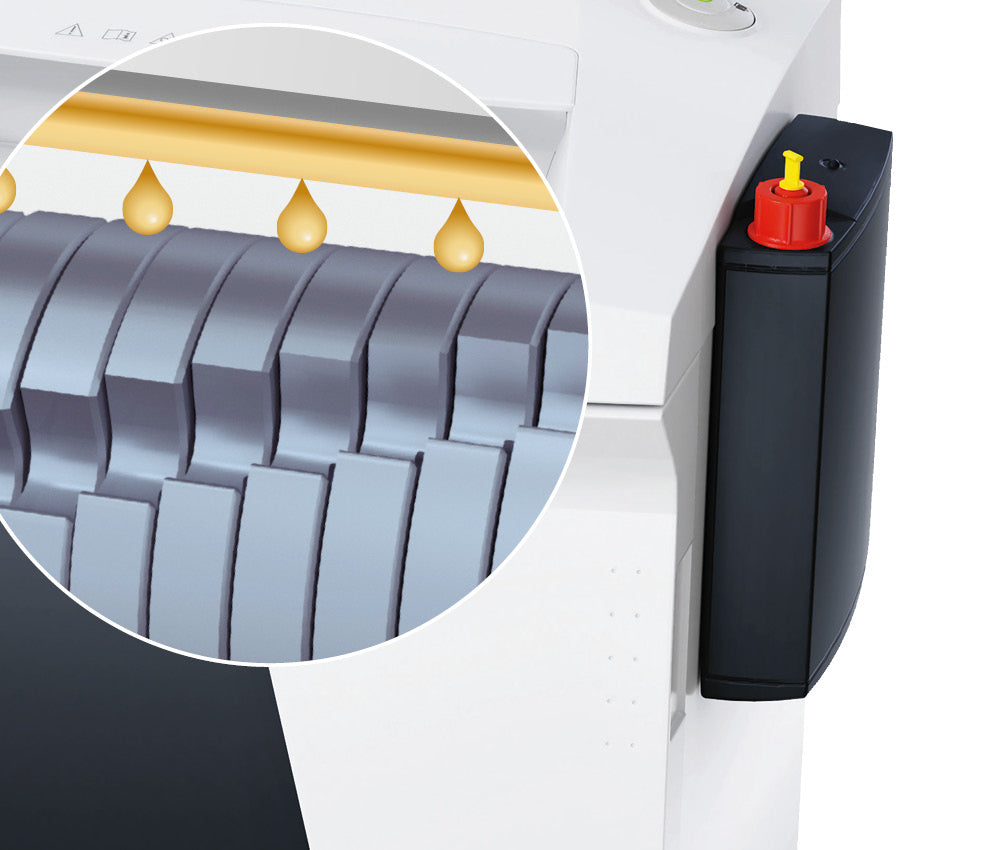

  • Factory-fitted external automatic oiler. Lubricates the rollers automatically as the machine runs. Micro-cut heads degrade quickly without oil, and this removes the dependency on somebody remembering to do it.
  • Rated for staples and paper clips. HSM lists fasteners as acceptable on the 0.78 x 11 mm cut, which the P-7 version of this cabinet is not. In a real filing-room clear-out that saves more time than the sheet capacity does.
  • 547 mm overall width. The oiler adds 50 mm to the standard B32 cabinet; depth (398 mm) and height (793 mm) are unchanged.

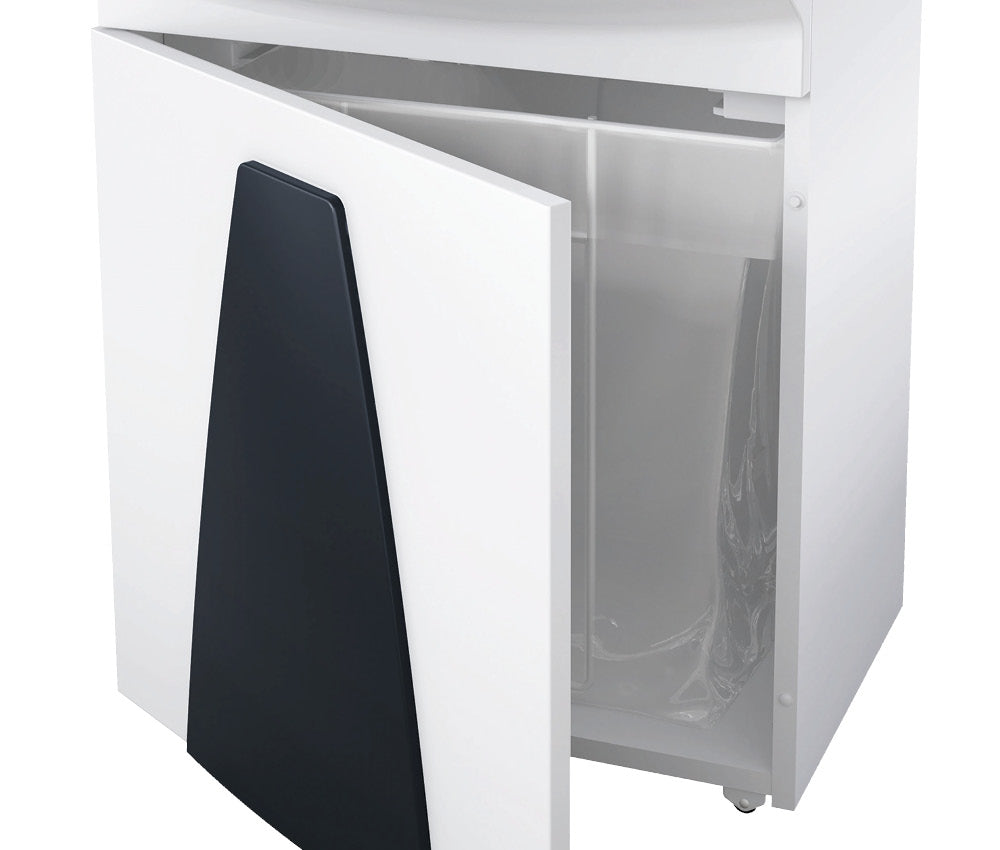

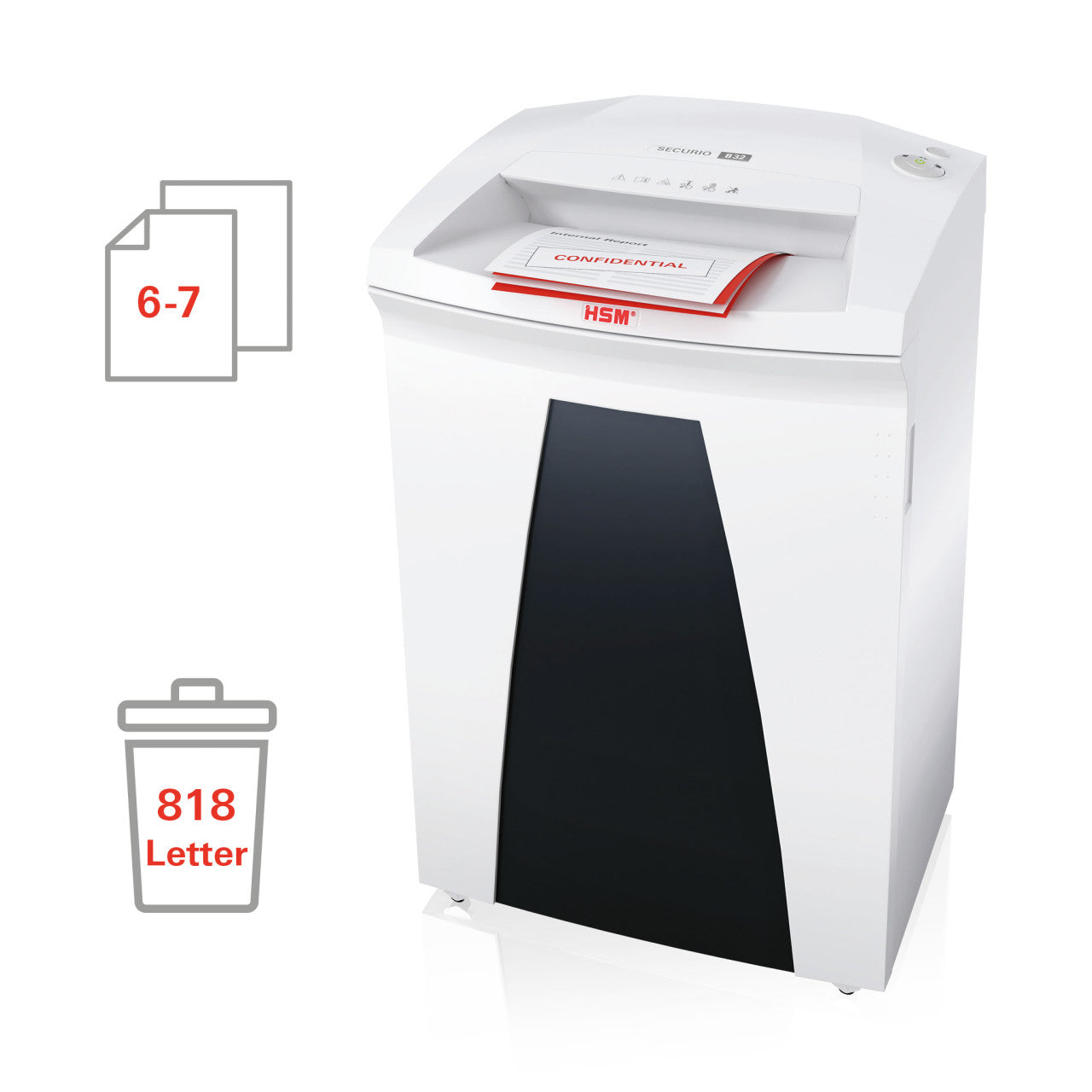

  • 82-litre pull-out container. HSM rates it at roughly 818 shredded sheets at this cut, with an inspection window in the door so you can check the level without opening it.
  • Quiet, low-standby operation. Approximately 56 dB(A) at idle and 0.1 W standby draw under HSM's EcoSmart control.

Specifications

Security level (DIN 66399 / ISO/IEC 21964) P-6 — full rating F-3 | P-6
Cut type Particle cut
Cut size 0.78 x 11 mm particle (approx. 1/32 in x 7/16 in)
Sheet capacity 6, measured at 80 g/m2 paper
Throat / intake width 310 mm (12.2 in)
Waste container volume 82 l (21.7 gal)
Container capacity in shredded sheets 818 sheets at this cut (HSM figure)
Motor power 610 W
Voltage / frequency (US model) 110-120 V / 60 Hz
Noise level approx. 56 dB(A) (idle)

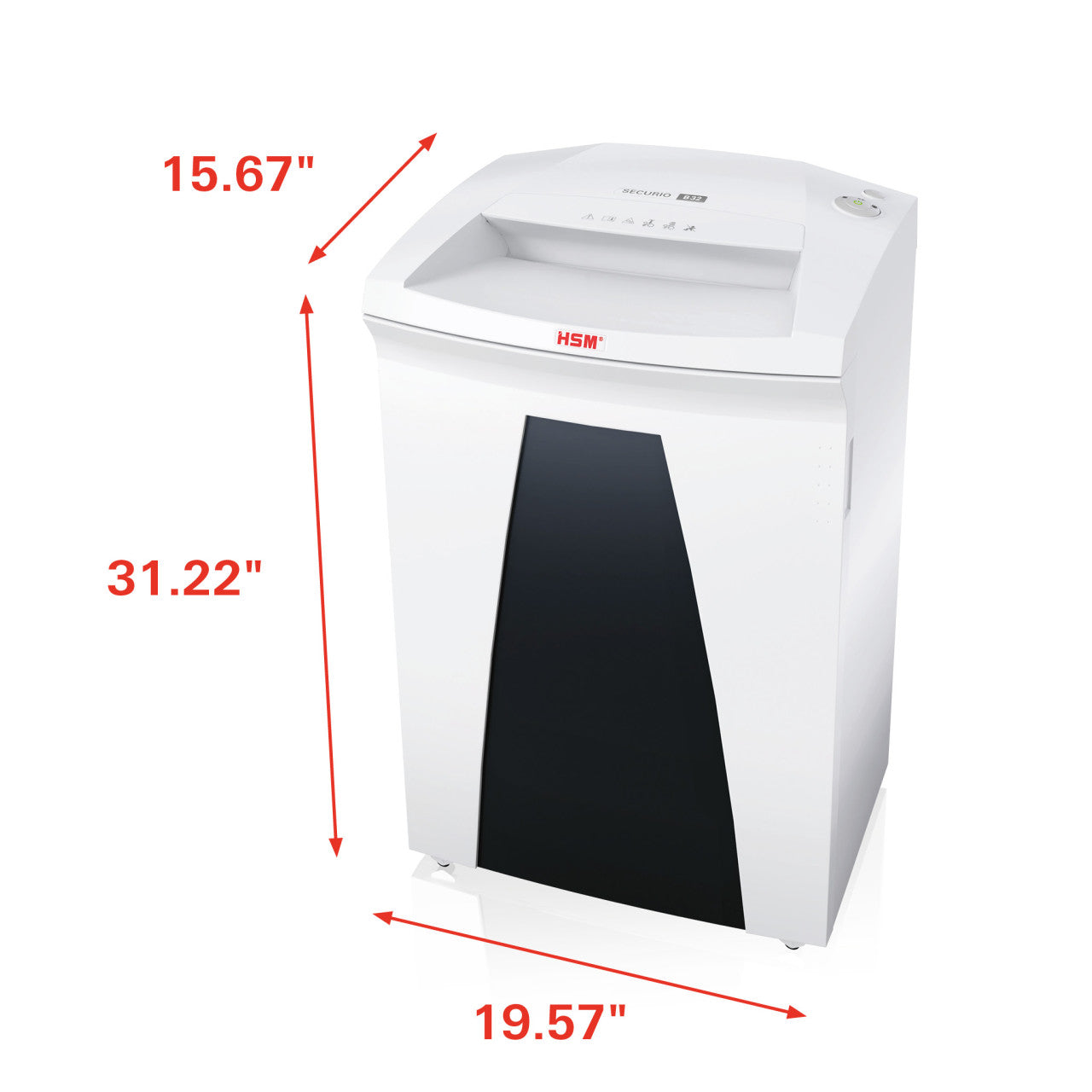

Dimensions (W x D x H) 547 x 398 x 793 mm (21.5 x 15.7 x 31.2 in)
Weight 27 kg (59.5 lb)
Shreddable materials Paper, staples and paper clips
External automatic oiler Fitted from the factory
Warranty HSM standard machine warranty; the lifetime cutting-roller warranty covers security levels P-2 to P-5 only, so it does not apply to this model
Article number (US / EU) 1825113O / 1825111O

What's in the Box

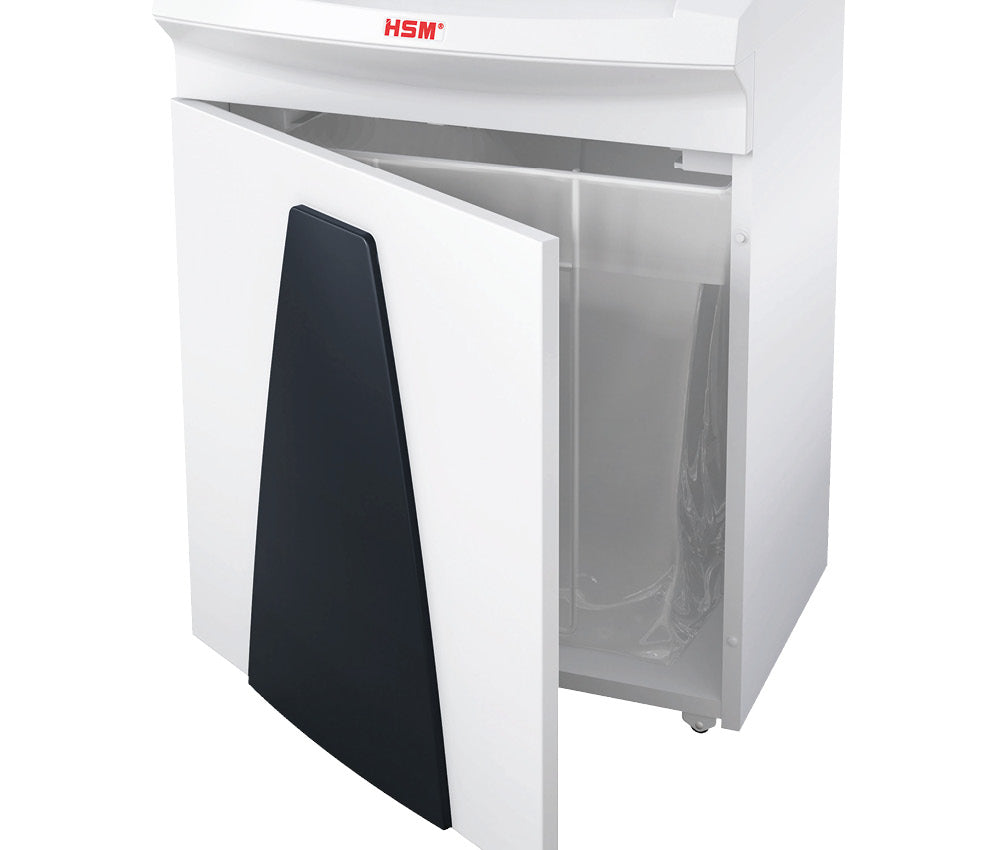

The HSM SECURIO B32 arrives assembled: the cutting head and cabinet are a single unit, with the 82 l (21.7 gal) waste container in place behind the cabinet door, plus the mains lead and the HSM operating manual. The external automatic oiler is mounted on the cabinet at the factory; nothing needs assembling on site.

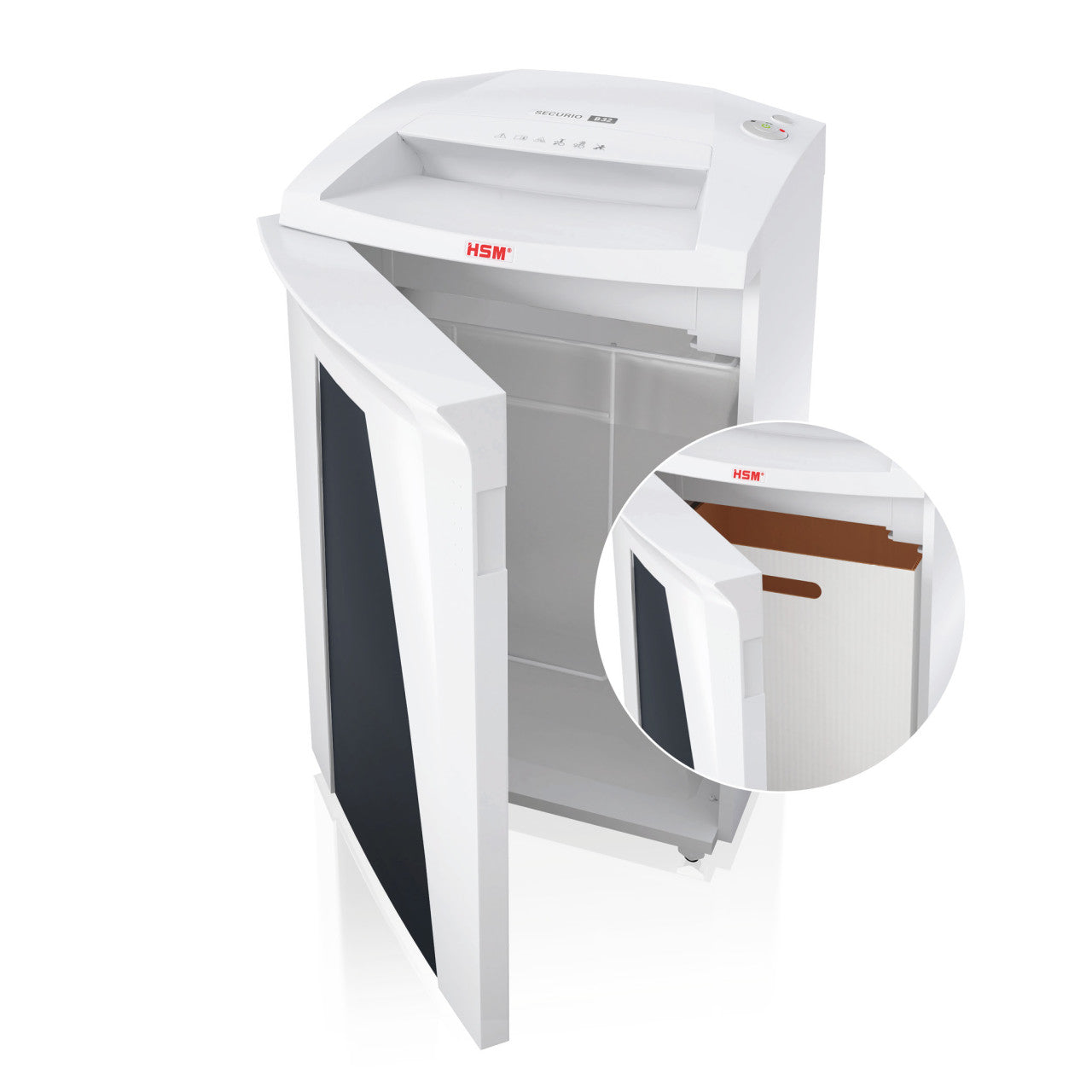

Shredder bags and HSM's fitting cardboard waste box are consumables and are not included — order them with the machine if you do not intend to empty the container loose. We could not confirm from HSM’s published documentation whether a filled oil bottle ships with the unit, so add HSM shredder oil to your order and use HSM’s own oil rather than a generic lubricant.

Who Should Buy This — and Who Should Not

This is a good fit for a legal practice, clinic, HR department or finance team that destroys sensitive paperwork daily, needs a security level above P-4, and does not have anyone whose job it is to maintain office equipment. The combination of P-6, staple tolerance and automatic lubrication makes it the least demanding high-security shredder in the B32 range to actually live with.

Do not buy it if your policy explicitly says P-7 or 1 x 5 mm - it will not comply, and the 1 x 5 mm B32 is the model you need. Do not buy it for general volume shredding either; six sheets a pass is slow, and the P-4 cross-cut B32 handles 14 to 16. If you want this cut with a larger bin and a stronger motor, the SECURIO B34 at 0.78 x 11 mm takes eight sheets and holds 100 litres. And be aware that HSM's lifetime cutting-roller warranty covers P-2 to P-5 only, so the head on this machine is not covered by it - a fair point to weigh against a P-5 alternative.

Product Specification

Machine Type
Office
Shredder Series
SECURIO
Cut Type
Micro Cut
Shreddable Materials
Paper, staples and paper clips
Cut Size
0.78 x 11 mm (1/32" x 7/16")
Bin Size / Container Volume
82 l (21.7 gal)
Throat Width
310 mm (12.2 in)
Power Consumption
610 W
Voltage
110-120 V / 60 Hz
Weight
27 kg (59.5 lb)
Security Level
P-6
Sheet Capacity
6 sheets (80 g/m2)
Dimensions (WxDxH)
547 x 398 x 793 mm (21.5 x 15.7 x 31.2 in)
Warranty
HSM standard machine warranty; the lifetime cutting-roller warranty covers security levels P-2 to P-5 only, so it does not apply to this model
dB Level
approx. 56 dB(A) (idle)

Product listing details

Vendor
HSM
Product type
Document Shredder
Condition
New
SKU
1825113O
GTIN
4026631043137
Price
$1,666.44 USD
Currency
USD
Availability
In stock
Shipping policy
Click to view policy
Refund policy
Click to view policy
Return policy
Click to view policy
View full details
Before you specify

Frequently Asked Questions

Is this cut P-5 or P-6?

P-6. The 0.78 x 11 mm particle is 8.58 mm2, under the 10 mm2 P-6 area limit, and 0.78 mm wide, under the 1 mm P-6 width limit. Both tests are satisfied. Listings that call it P-5 are simply wrong; P-5 permits particles up to 30 mm2, such as HSM's 1.9 x 15 mm cut, which is a noticeably larger fragment.

What does the automatic oiler save me?

The routine of spraying shredder oil across the feed opening every few bins. On micro-cut heads that job matters - dry rollers cut poorly, run hot and load the motor. The oiler applies oil as the machine runs. It is fed from a replaceable bottle, so it is an ongoing consumable rather than a one-off feature.

Is oil included, and what should I use?

We could not confirm from HSM's documentation whether a bottle ships with the machine, so plan on ordering HSM shredder oil separately. Use HSM's own oil - generic lubricants of the wrong viscosity can leave residue that makes the problem worse rather than better.

Can it shred credit cards or CDs?

No. HSM rates this model F-3 and P-6 - film and paper only. There is no optical-media or card rating for the micro-cut B32, and the fine rollers are not designed for rigid plastic. Use a separate media destroyer, or one of the strip-cut or P-4 B32 models, which do carry O and T ratings.

How much wider is it than the standard B32?

547 mm instead of 497 mm - the oiler is mounted on the side and adds about two inches. Depth and height are unchanged at 398 x 793 mm. Measure any fitted alcove before ordering, and leave room to pull the 82-litre waste container forward.

How many sheets before the bin is full?

HSM rates the 82-litre container at approximately 818 sheets at this cut. Micro-cut waste settles as it accumulates, so the bin can look less full than it is - check through the inspection window rather than by eye when the door is open.

Is the cutting head covered by the lifetime warranty?

No. HSM's lifetime warranty on the induction-hardened cutting rollers applies to security levels P-2 through P-5, and this is a P-6 machine, so the rollers fall under the standard machine warranty instead. We could not verify the length of that standard warranty for the US market from HSM's published documentation.
