HSM

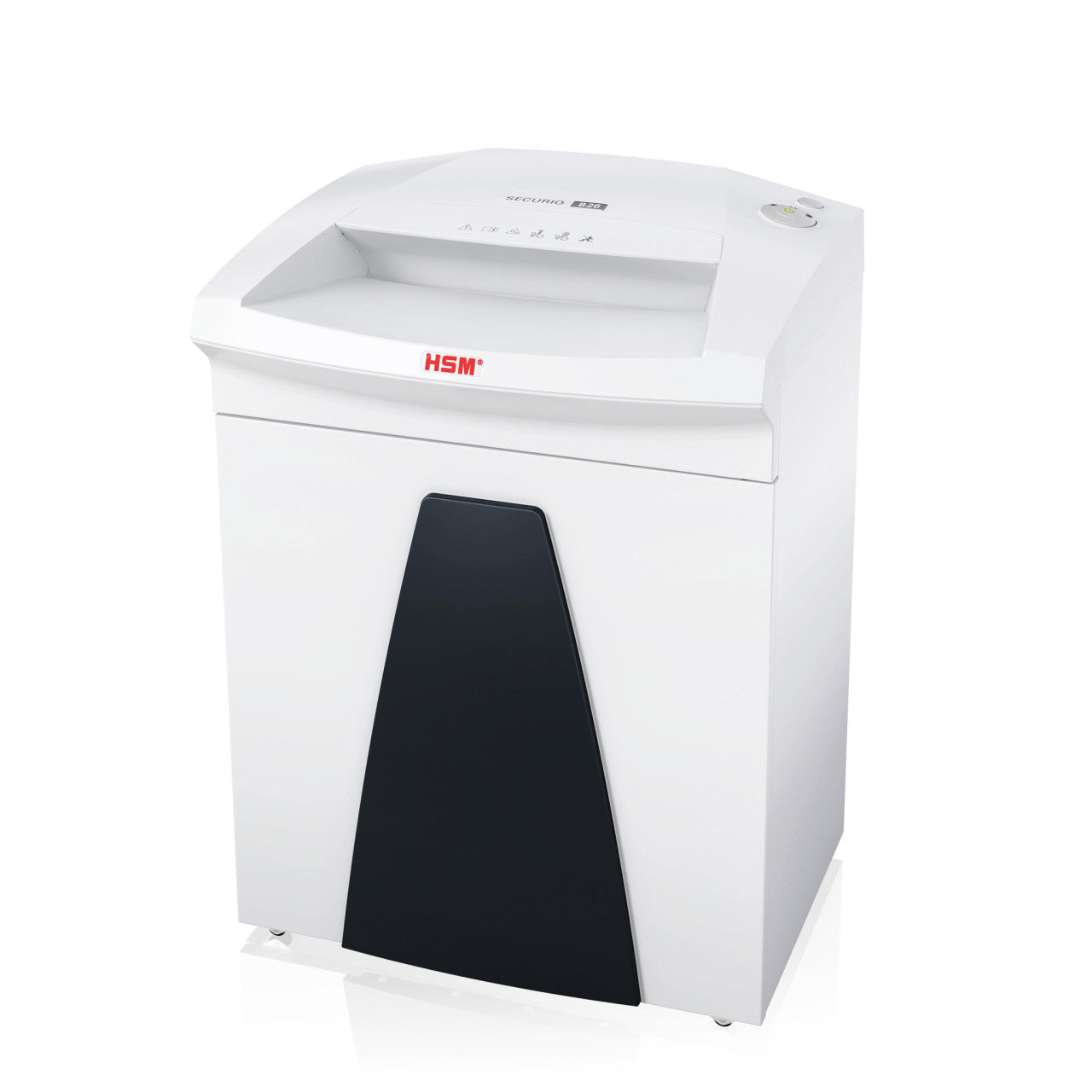

HSM SECURIO B26 1/16 x 5/8 Cross Cut Document Shredder - HSM1802

HSM SECURIO B26 1/16 x 5/8 Cross Cut Document Shredder - HSM1802

DIN 66399 security level P-5max 30 mm² particleInformation intended to be kept secret: medical reports, strategy papers, financial models, privileged material. See every P-5 machine
Cut
Micro Cut
Cut size
1/16" x 5/8" (1.9 x 15 mm)
Sheet capacity
9-11 sheets (80 g/m²)
Throat width
12.2"
Regular price $928.85 USD
Regular price $2,153.14 USD Sale price $928.85 USD
Sale Sold out
Quantity
  • Free shipping across the USA Included on every machine in the catalogue
  • 30-day return policy Shipping, refund and return terms published in full
  • +1 (858) 266-0509 Speak to a specification specialist · 08:00 AM – 05:00 PM PST, Monday to Friday

Authorized HSM dealer New stock through the manufacturer's authorized channel, with the manufacturer's own warranty · what this covers

Description

The SECURIO B26 at 1.9 x 15 mm is the model most offices land on when P-4 is no longer defensible. Its 28.5 mm² particle puts it squarely in DIN 66399 level P-5, one step finer than the 4.5 x 30 mm cross cut, and it is still a genuine shared-office machine rather than a slow high-security unit.

What you trade for the finer cut is throughput: 9-11 sheets a pass instead of 14-16. What you gain, besides the security level, is bin life — smaller particles pack more densely, so the same 55-litre container swallows about 700 sheets at this cut size.

Key Features

  • P-5 particle cut at 1.9 x 15 mm — 28.5 mm² per particle against the DIN 66399 P-5 ceiling of 30 mm² — the level normally specified for personnel files, payroll and health data.
  • 12.2-inch intake — letter and legal fed flat, and A3 or 11 x 17 folded once; the same throat as the larger B32.

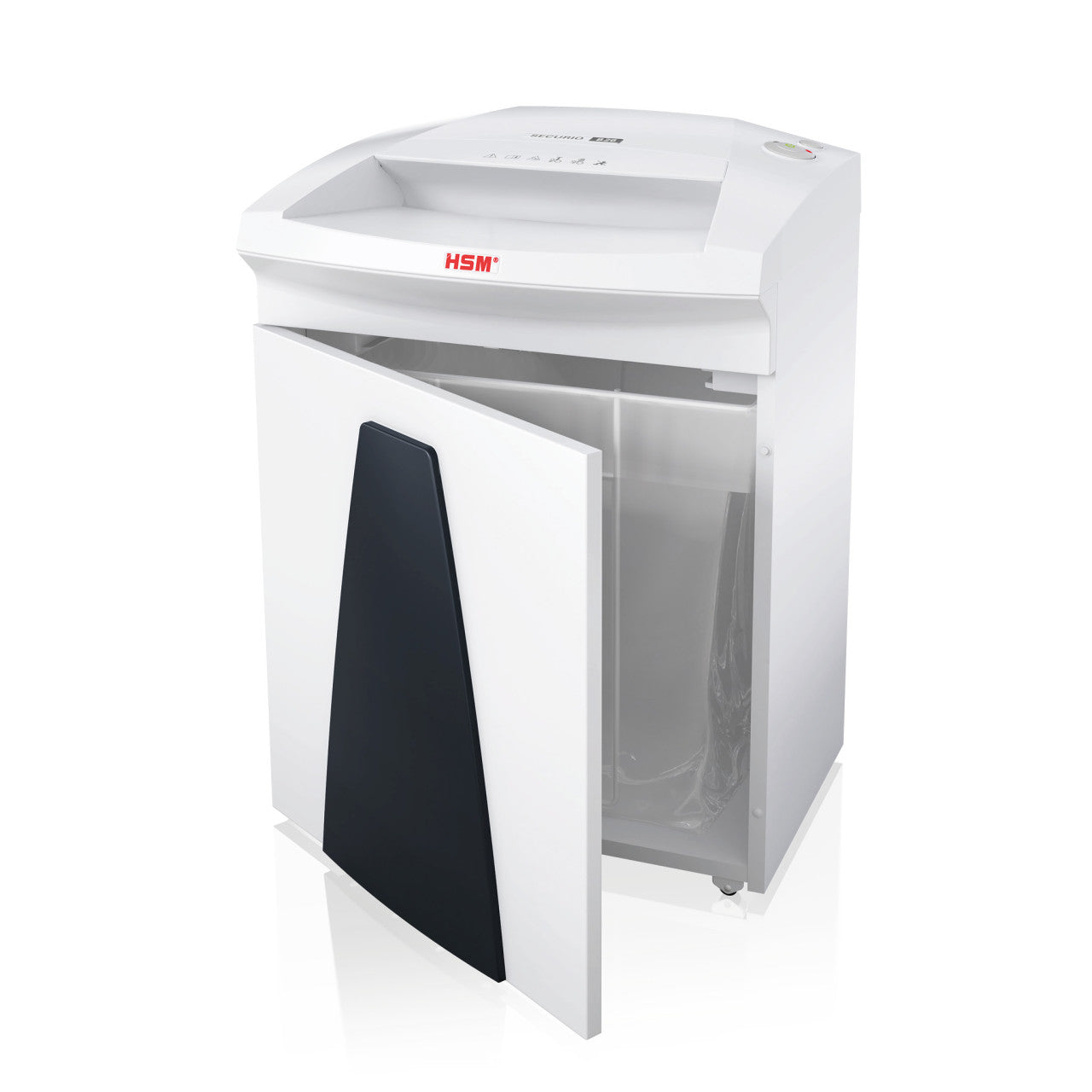

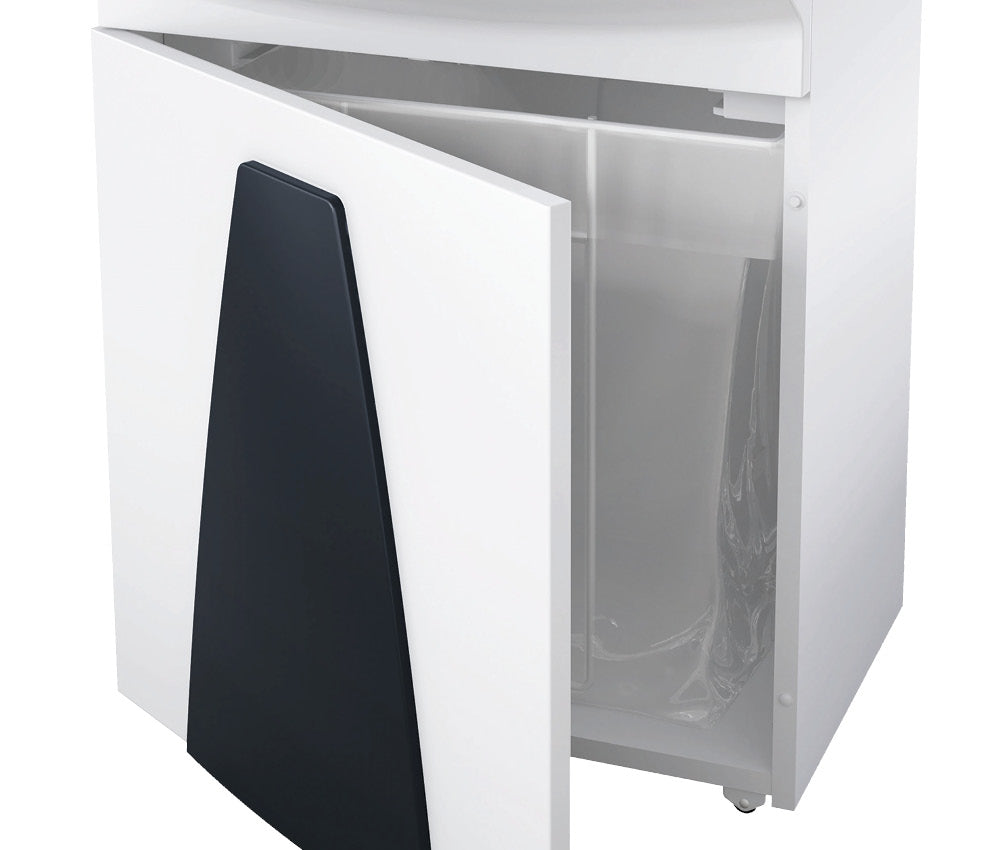

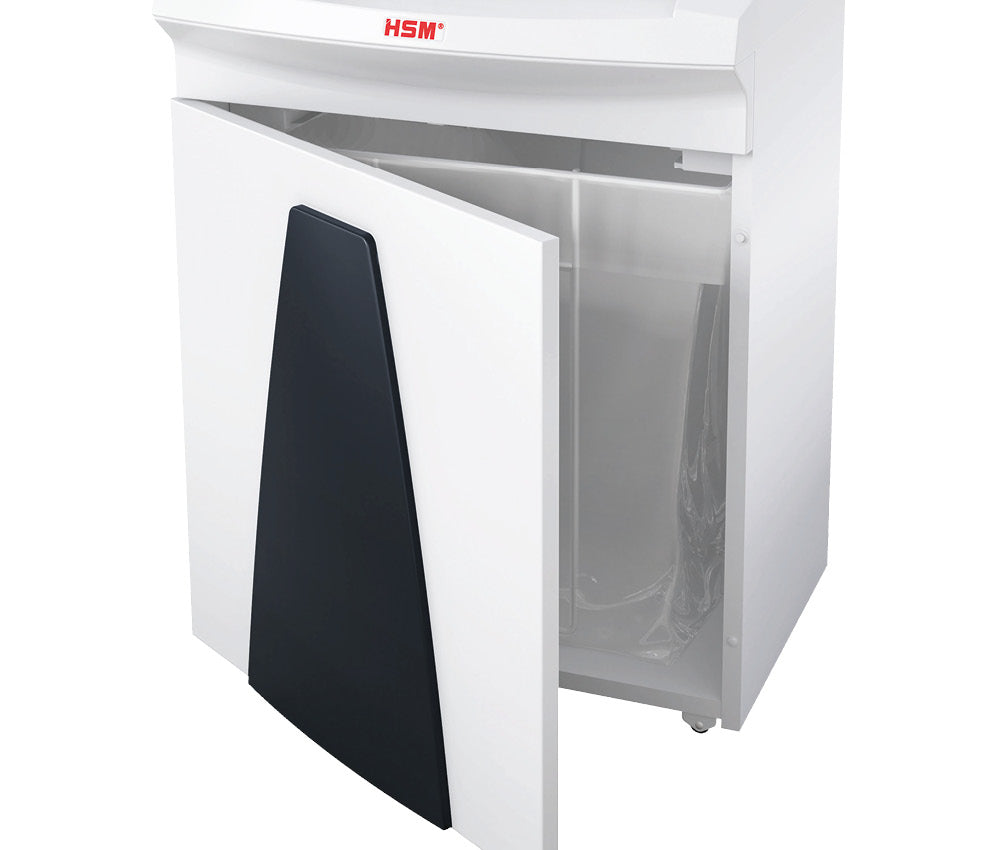

  • 14.5-gallon bin, about 700 sheets — a pull-out container rather than a lift-off head, so emptying does not mean wrestling the cutting unit.
  • 610 W continuous-duty motor — rated for continuous operation, not a duty-cycled deskside motor that stops to cool.
  • Lifetime cutting-cylinder warranty — P-5 is the finest level HSM covers under its lifetime cutting-cylinder warranty, so this model gets it and the P-6 and P-7 B26 variants do not.
  • EcoSmart standby of 0.1 W — leave it powered at the wall; the standby draw is negligible.
  • Approximately 55 dB(A) at idle — quiet enough to sit in an open-plan area without becoming a complaint.

Specifications

Security level (DIN 66399 / ISO 21964) P-5 — also rated E-4, F-2 and T-5
Cut type Particle cut (micro cut)
Cut size 1/16" x 5/8" (1.9 x 15 mm)
Sheet capacity 9-11 sheets at 80 g/m² (11-13 sheets at 70 g/m²)
Throat width 12.2" (310 mm)

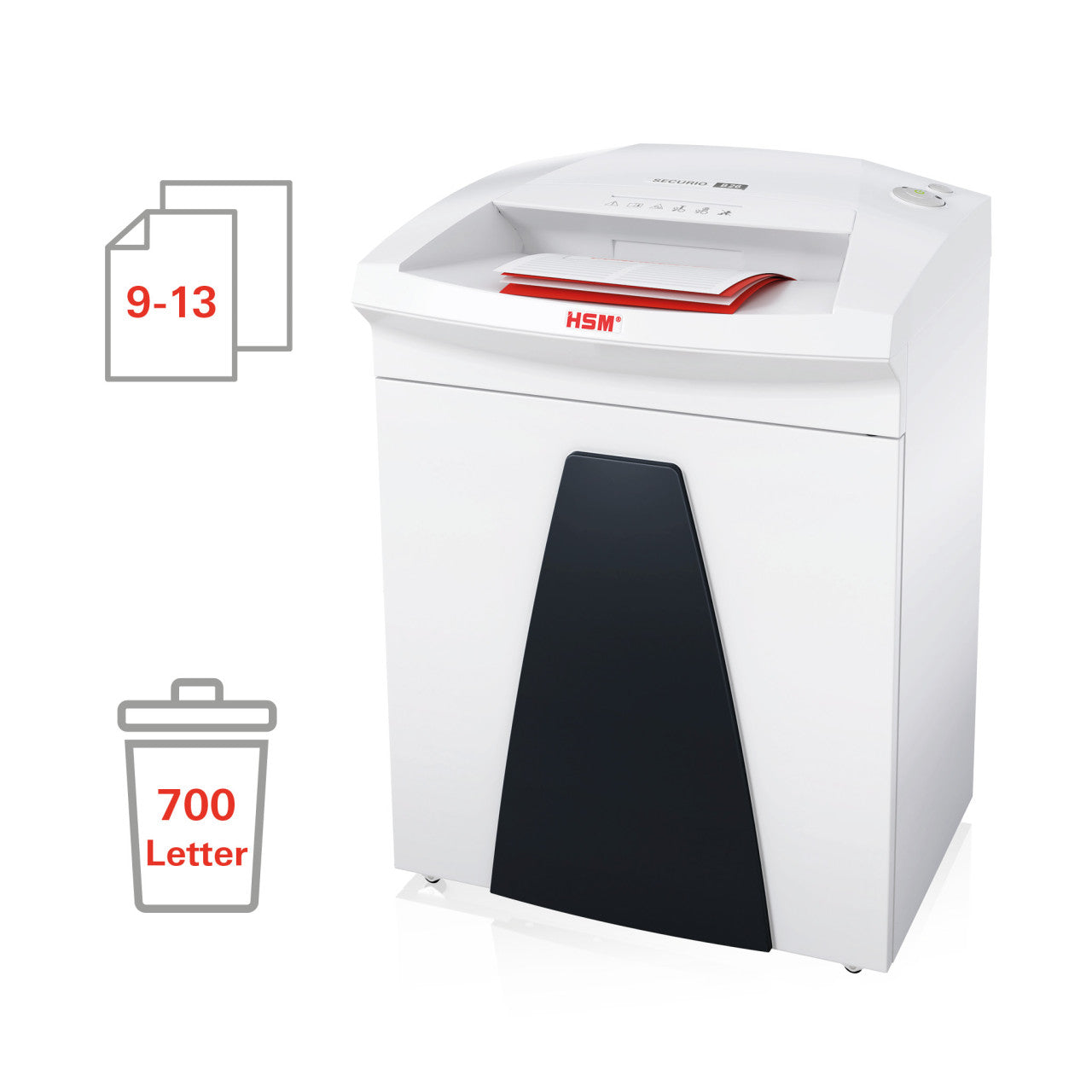

Bin volume 14.5 gal (55 L) — approximately 700 sheets before emptying
Motor 610 W, continuous duty
Voltage 110-120 V / 60 Hz
Noise level approx. 55 dB(A) at idle

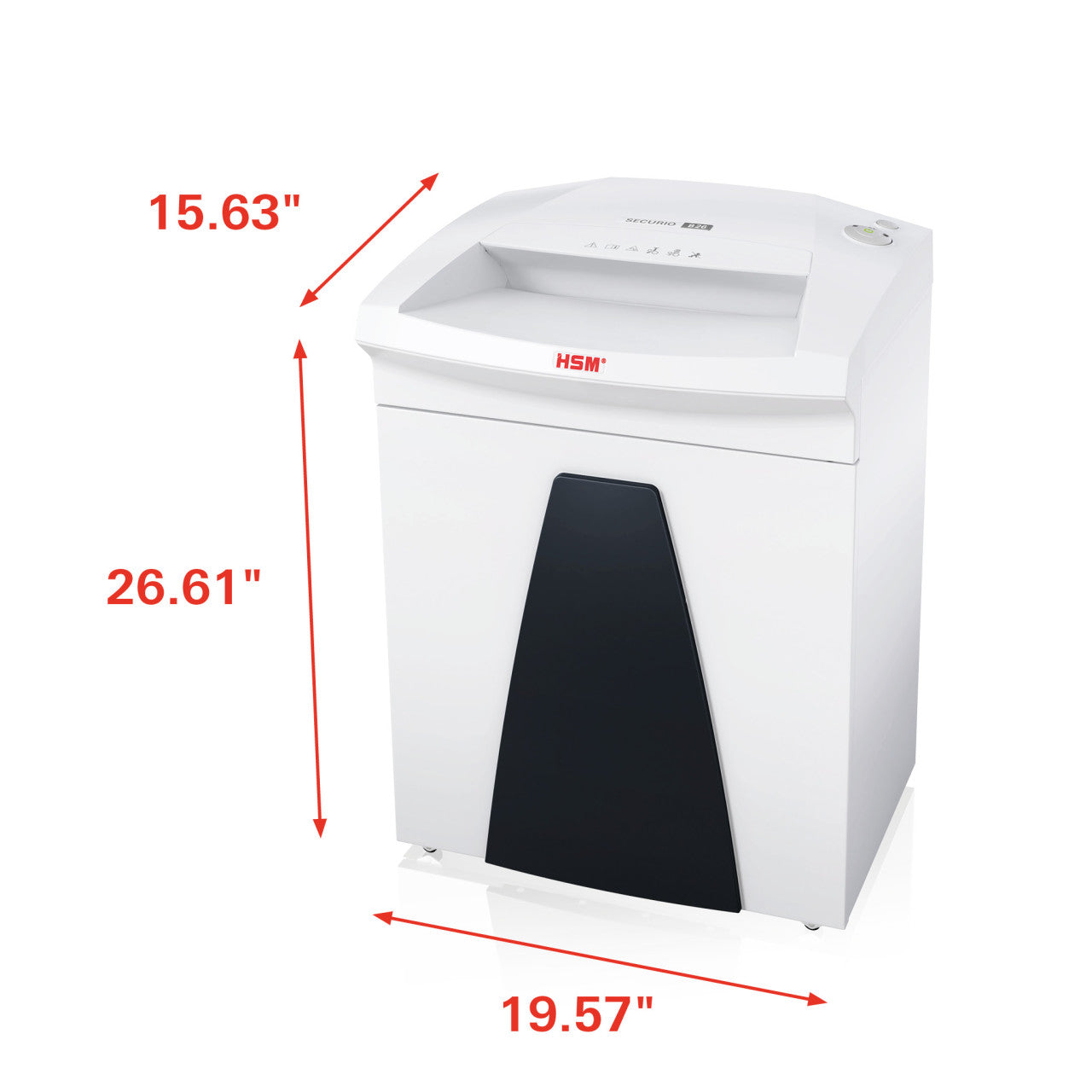

Dimensions (W x D x H) 19.6" x 15.6" x 26.6" (497 x 397 x 676 mm)
Weight 58.6 lb (26.6 kg)
Shreddable materials Paper, staples and paper clips, credit cards
Warranty Lifetime warranty on the induction-hardened solid steel cutting cylinders

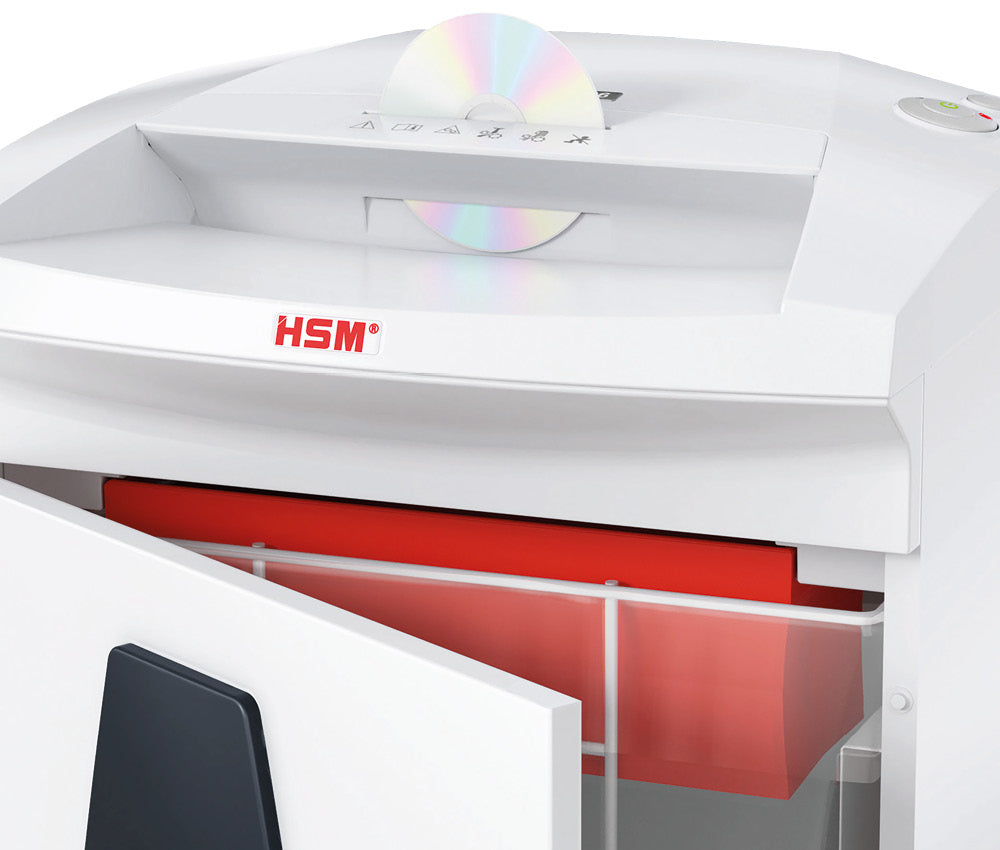

Note the materials list: at 1.9 x 15 mm HSM rates the machine for paper, fasteners and credit cards, but does not list CDs and DVDs. If optical discs are part of your disposal stream, the 4.5 x 30 mm P-4 version of the same B26 does list them.

What’s in the Box

  • SECURIO B26 shredder on castors with 55 L pull-out bin
  • Power cord and operating instructions

Shredder bags are not included. The B26 takes HSM1815 bags (34 gal, roll of 100, MPN 3310000004), which also fit the Classic 125, SECURIO B32, B34 and AF500, and the Pure 530 and 630.

Who Should Buy This — and Who Should Not

This is the right machine for an HR, finance or clinical department that has written P-5 into a retention policy and still needs a shredder a whole floor can share. The 12.2-inch throat and 55-litre bin mean it behaves like a general office machine; the cut size means the output would take serious effort to reconstruct.

Skip it if volume is the constraint rather than security. At 9-11 sheets a pass it is noticeably slower than the P-4 B26 at 14-16, and a team that regularly clears filing boxes will feel that. If you want P-5 with more bin between emptyings, the SECURIO B32 uses the same 1.9 x 15 mm cut in an 82-litre cabinet rated at about 1,043 sheets. And if a P-6 or P-7 obligation is coming, buy for it now — the B26 exists at 0.78 x 11 mm and 1 x 5 mm, though both are much slower and neither carries the lifetime cylinder warranty.

Product Specification

Machine Type
Office
Shredder Series
SECURIO
Cut Type
Micro Cut
Shreddable Materials
Paper, staples and paper clips, credit cards
Cut Size
1/16" x 5/8" (1.9 x 15 mm)
Bin Size / Container Volume
14.5 gal
Throat Width
12.2"
Power Consumption
610 W
Voltage
110-120 V / 60 Hz
Weight
58.6 lb (26.6 kg)
Security Level
P-5
Sheet Capacity
9-11 sheets (80 g/m²)
Dimensions (WxDxH)
19.57" x 15.63" x 26.61"
Warranty
Lifetime warranty on the induction-hardened solid steel cutting cylinders
dB Level
55 dB(A)

Product listing details

Vendor
HSM
Product type
Document Shredder
Condition
New
SKU
1802113
GTIN
4026631044561
Price
$928.85 USD
Currency
USD
Availability
In stock
Shipping policy
Click to view policy
Refund policy
Click to view policy
Return policy
Click to view policy
View full details
Before you specify

Frequently Asked Questions

Is 1.9 x 15 mm really P-5, or is it P-4?

It is P-5. DIN 66399 sets P-5 at a maximum particle area of 30 mm² with a strip width no greater than 2 mm. A 1.9 x 15 mm particle is 28.5 mm² and 1.9 mm wide, so it clears both limits with very little margin. P-4 would allow up to 160 mm². HSM also publishes E-4, F-2 and T-5 media classes for this cutting head.

How many people can share it before it bottlenecks?

HSM positions the B26 as a workgroup machine, and the 610 W motor is rated for continuous operation rather than short bursts. The practical limit is not the motor but the bin and the 9-11 sheet feed rate. A department that shreds a few dozen pages a day will never notice; one that clears archive boxes will queue and will be emptying the bin every day or two. For that pattern, look at the B32 or an autofeed model.

Can it shred CDs, DVDs or USB sticks?

No. HSM’s materials list for the B26 at 1.9 x 15 mm covers paper, staples and paper clips, and credit cards — optical discs are not on it, and neither are USB sticks or hard drives. The E-4 electronic-media class in the DIN table describes the cut geometry, not a licence to feed flash drives. Use the P-4 version of the B26 for discs, or a dedicated media destroyer for electronics.

How often will the bin need emptying?

HSM rates the 55-litre bin at roughly 700 sheets of 80 g/m² paper at this cut size. Two reams is a fair mental model. For a small department that is usually a weekly job; for heavy clear-outs it is daily. The bin pulls out on the front of the cabinet, so emptying does not involve lifting the cutting head off.

Is this NSA approved?

No. NSA/CSS 02-01 requires a 1 mm x 5 mm maximum particle and inclusion on the NSA Evaluated Products List; this machine cuts 1.9 x 15 mm and is not listed. P-5 is a commercial and regulatory standard, widely accepted for personal, financial and health data, but it is not a classified-material standard. Ask us before ordering if you are buying against an NSA requirement.

Will legal or tabloid paper fit?

Legal fits flat with room to spare through the 310 mm throat. Tabloid and A3 do not fit flat and need one fold, which halves your effective sheet capacity for those pages. No office shredder in this class takes 11 x 17 unfolded; that starts at industrial intake widths.

What bags does it take?

HSM1815, a 34-gallon bag supplied on a roll of 100 under MPN 3310000004. The same bag fits the SECURIO B32, B34 and AF500, the Classic 125 and the Pure 530 and 630, so a mixed HSM fleet can hold one bag part. Bags do not come with the machine.
