HSM

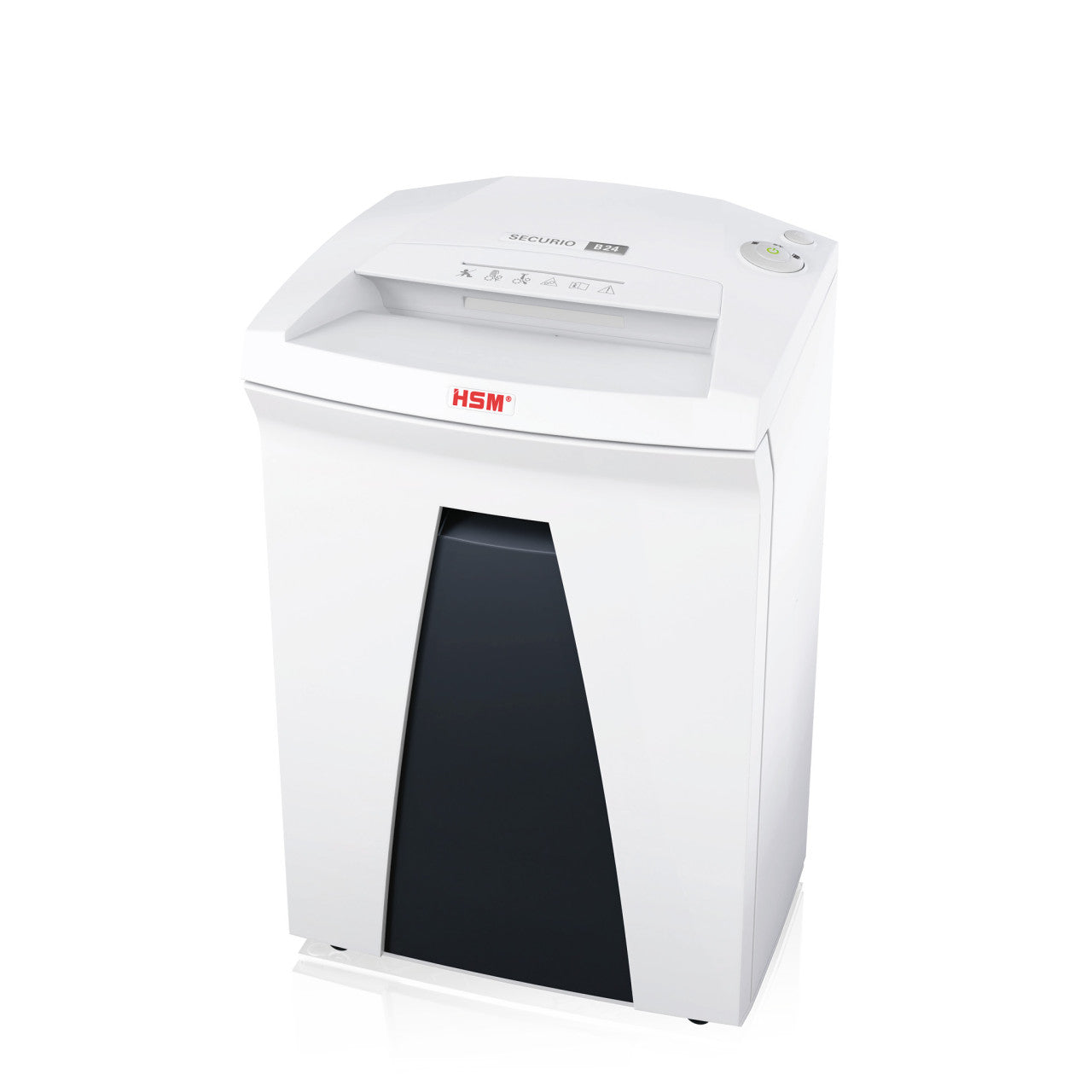

HSM SECURIO B24 3/16 x 1 1/8 Cross Cut Document Shredder - HSM1783

HSM SECURIO B24 3/16 x 1 1/8 Cross Cut Document Shredder - HSM1783

DIN 66399 security level P-4max 160 mm² particleOffice baselineParticularly sensitive personal data: HR files, contracts, payroll, patient and customer records. See every P-4 machine
Cut
Cross Cut
Cut size
3/16" x 1 1/8" (4.5 x 30 mm)
Sheet capacity
14-16 sheets (80 g/m2)
Throat width
9.45" (240 mm)
Regular price $804.12 USD
Regular price $1,554.38 USD Sale price $804.12 USD
Sale Sold out
Quantity
  • Free shipping across the USA Included on every machine in the catalogue
  • 30-day return policy Shipping, refund and return terms published in full
  • +1 (858) 266-0509 Speak to a specification specialist · 08:00 AM – 05:00 PM PST, Monday to Friday

Authorized HSM dealer New stock through the manufacturer's authorized channel, with the manufacturer's own warranty · what this covers

Description

P-4 is the level most data protection policies name when they say "shred it properly", and the SECURIO B24 at 4.5 x 30 mm is the smallest cabinet in HSM's B-series that reaches it while still swallowing staples, paper clips, credit cards and optical discs. If you are replacing a consumer shredder because your auditor asked what happens to customer paperwork, this is the machine that answer usually points at.

The cut produces particles of 4.5 x 30 mm, an area of 135 mm². DIN 66399 caps P-4 at 160 mm², so the B24 clears the threshold with margin rather than sitting on the line. Fourteen to sixteen sheets go in per pass at 80 g/m², which is a genuine two-hands-full of paper, and the 240 mm throat means letter and legal documents feed without folding.

Key Features

  • DIN P-4 particle cut at 4.5 x 30 mm, plus O-3 for optical media, T-4 for film and E-3 for electronic media — the widest material coverage of any B24 configuration.
  • 14–16 sheets per pass at 80 g/m², rising to 17–19 sheets on 70 g/m² stock.

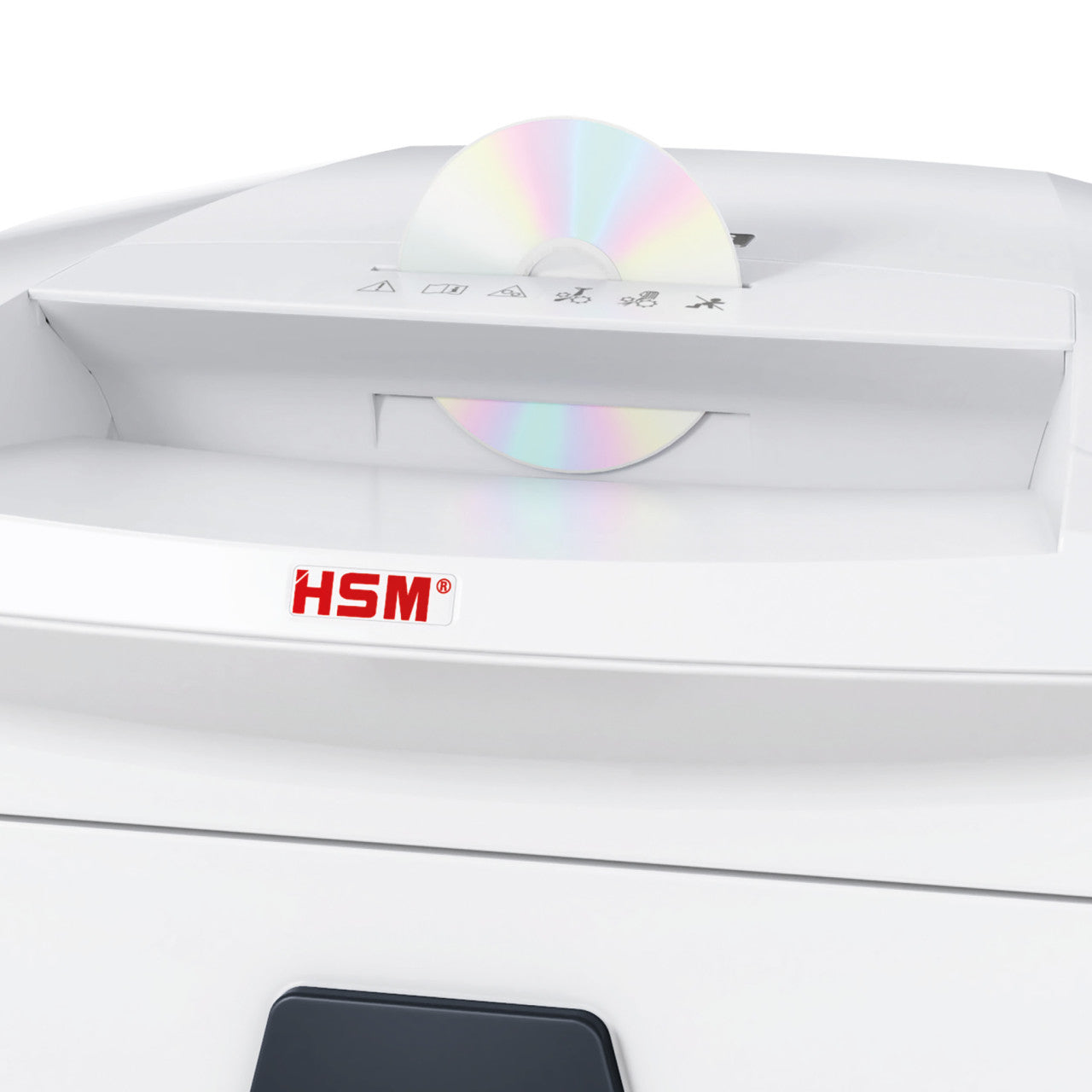

  • Shreds credit cards and CD/DVDs through the same throat. Higher-security B24 variants drop this capability, so if plastic and discs matter to you, this is the version to buy.

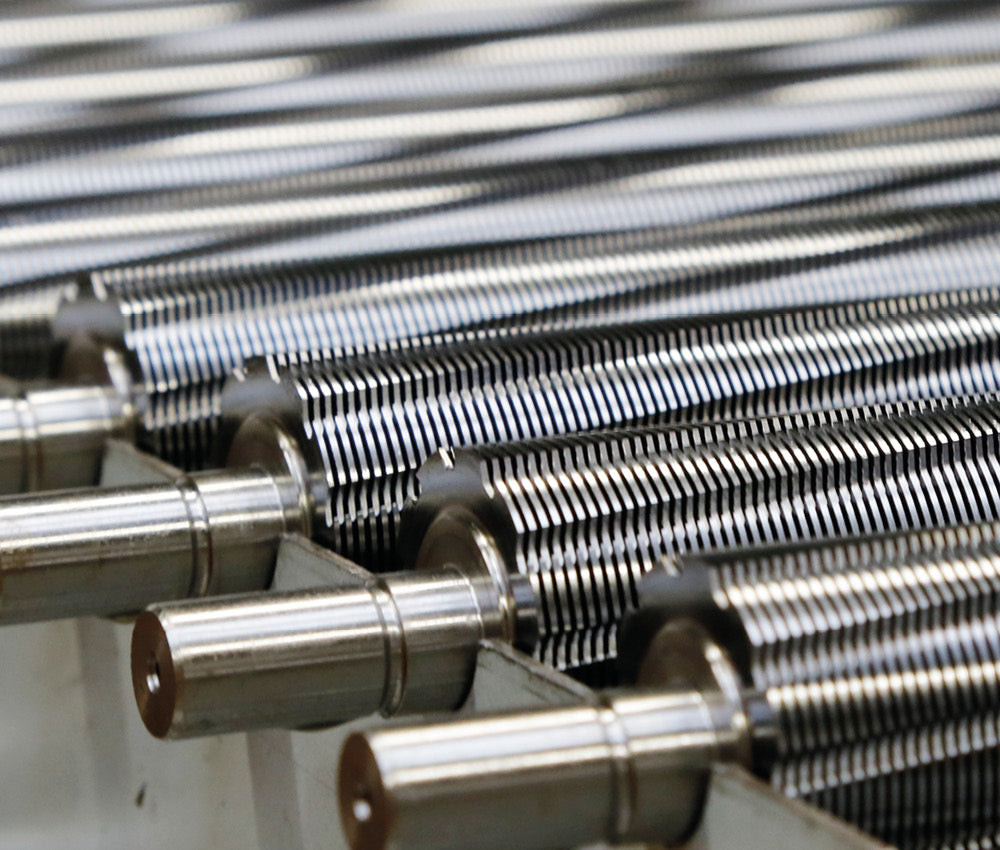

  • Solid steel, induction-hardened cutting rollers carrying a lifetime warranty at P-4, with the machine itself covered for three years.

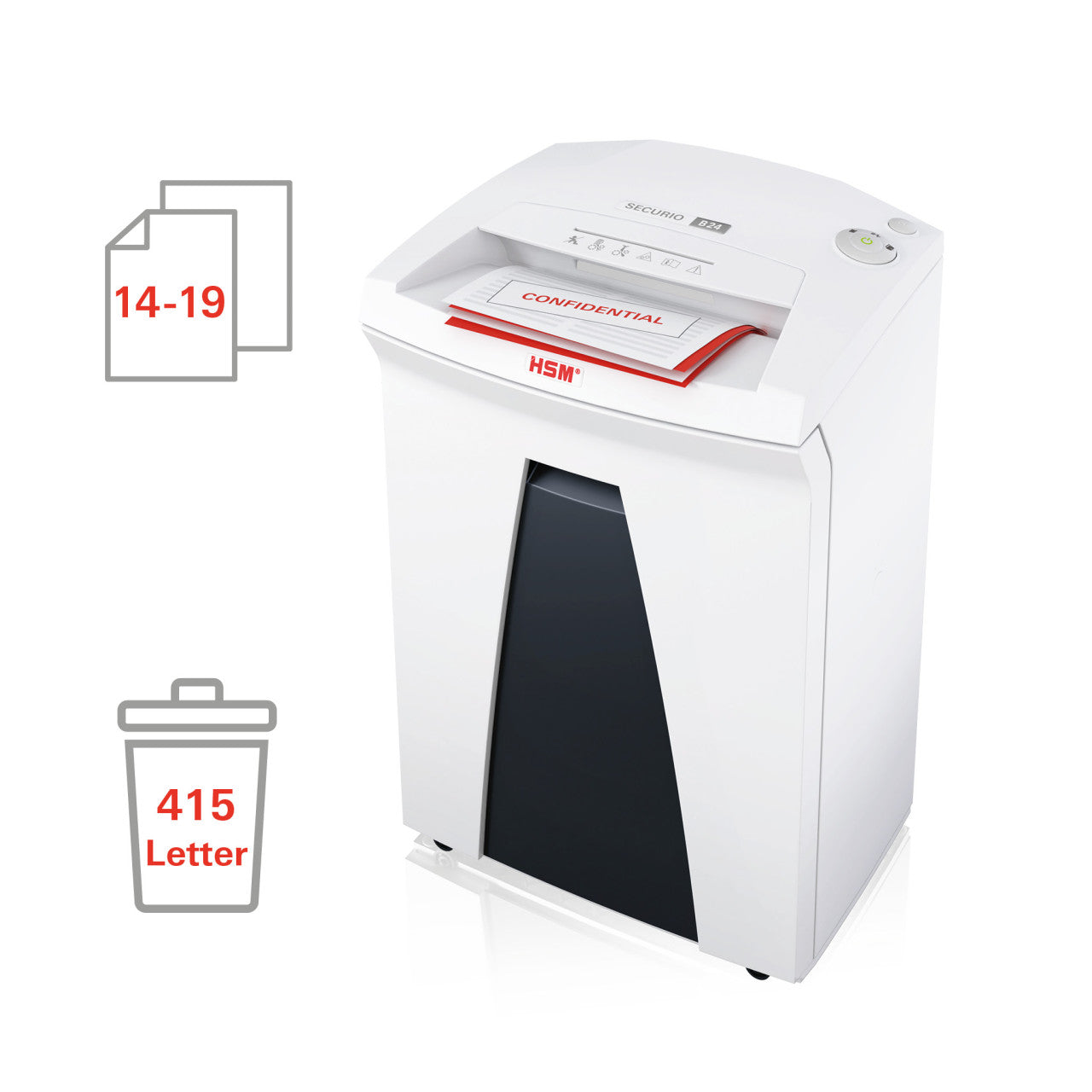

  • 415 shredded sheets per bin fill. Cross-cut waste compacts better than strip cut, so the same 9.2 gallon container goes noticeably further here than on the strip-cut B24.

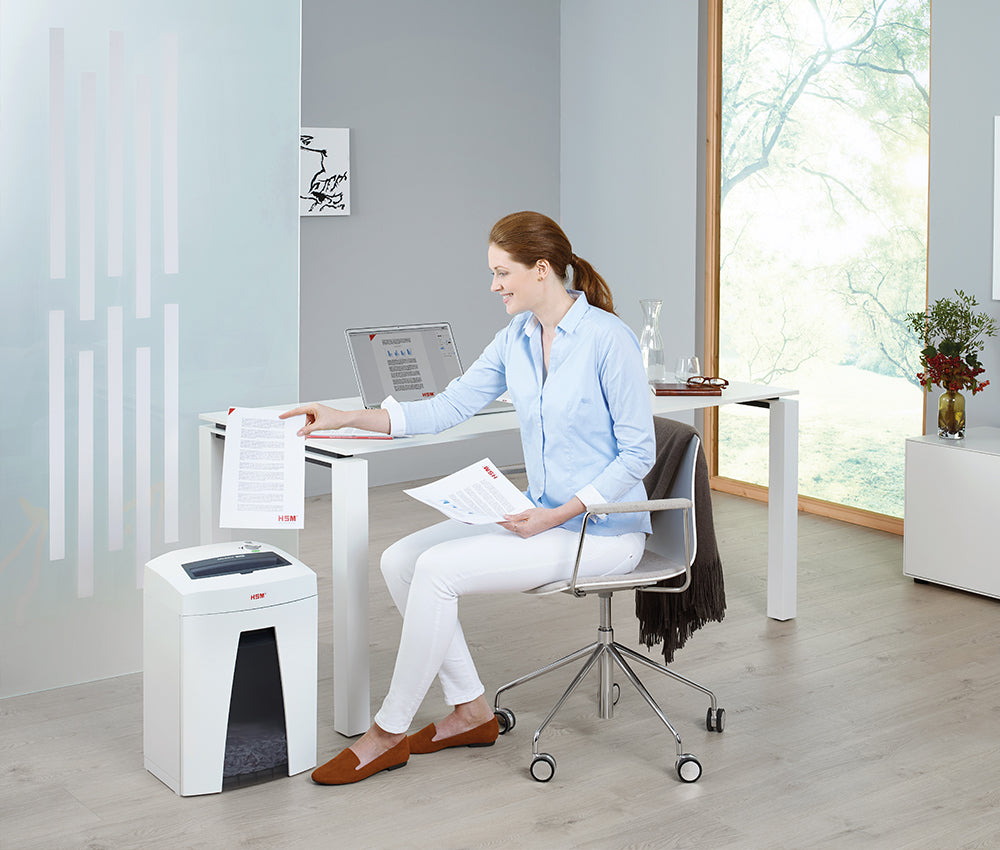

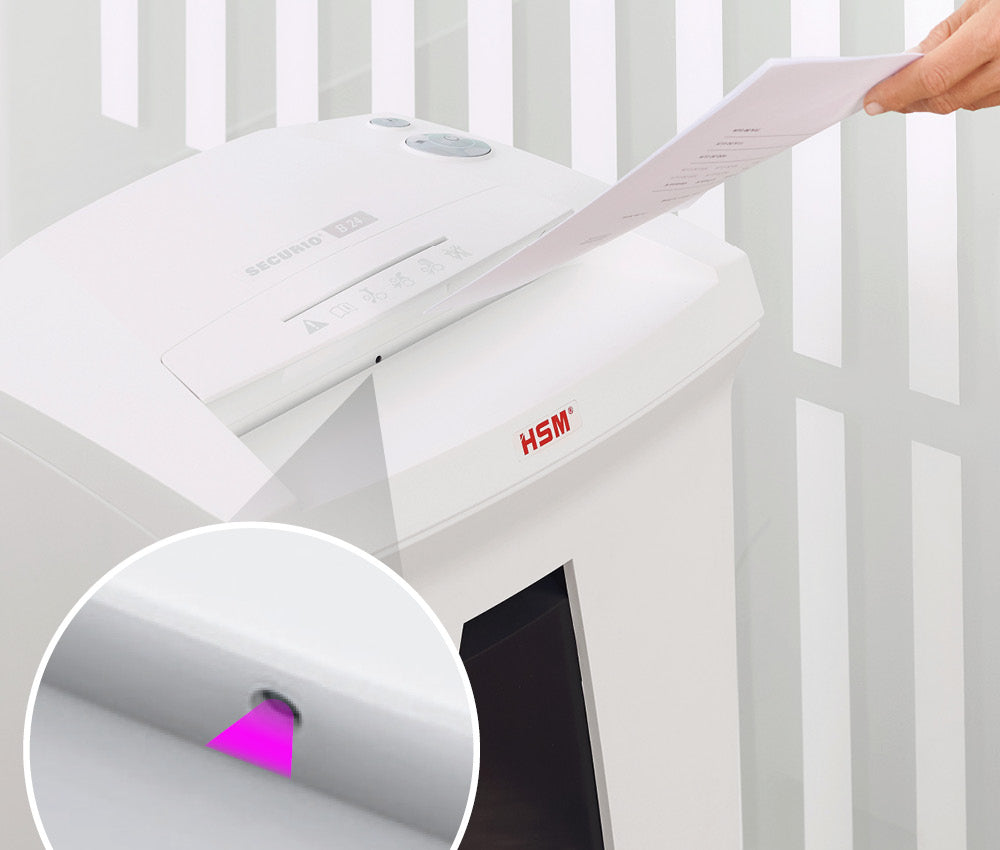

  • Light-barrier automatic start and stop with an EcoSmart standby mode drawing 0.1 W.

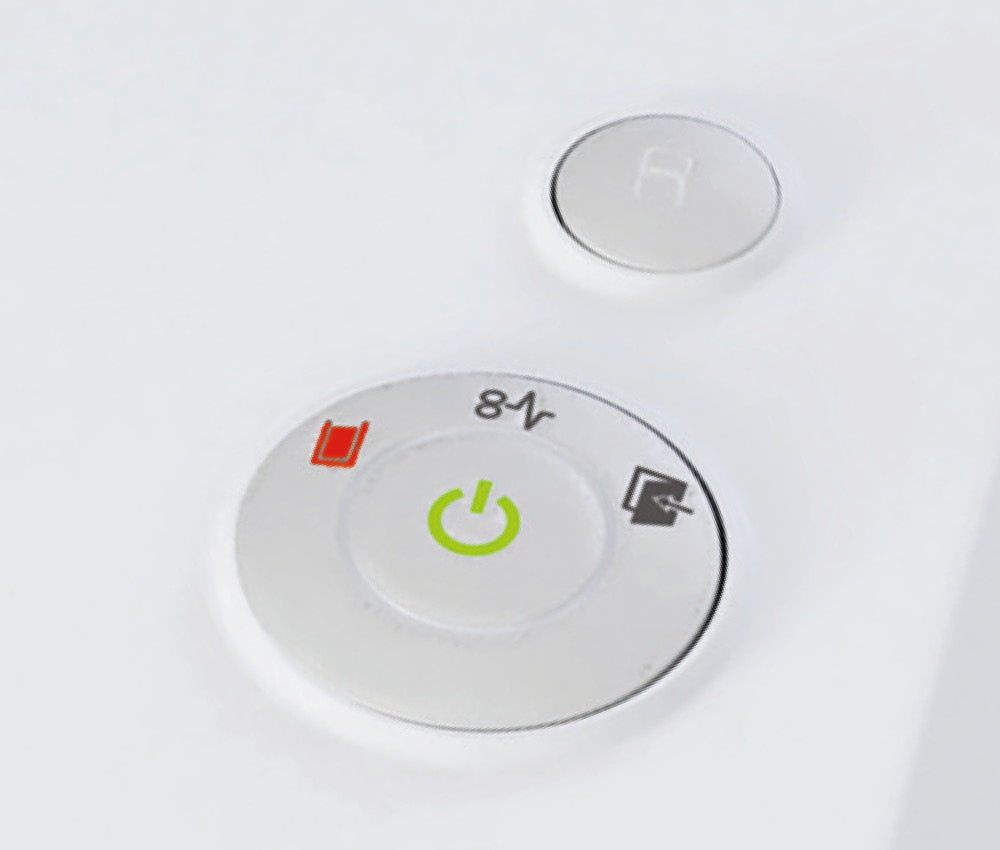

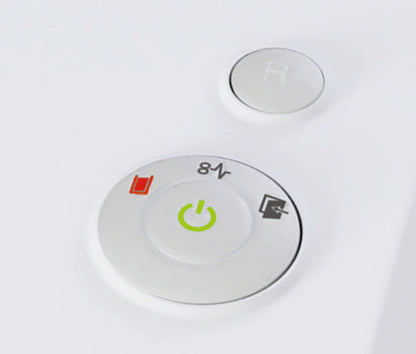

  • Automatic bin-full detection that stops the machine rather than jamming the exit chute.

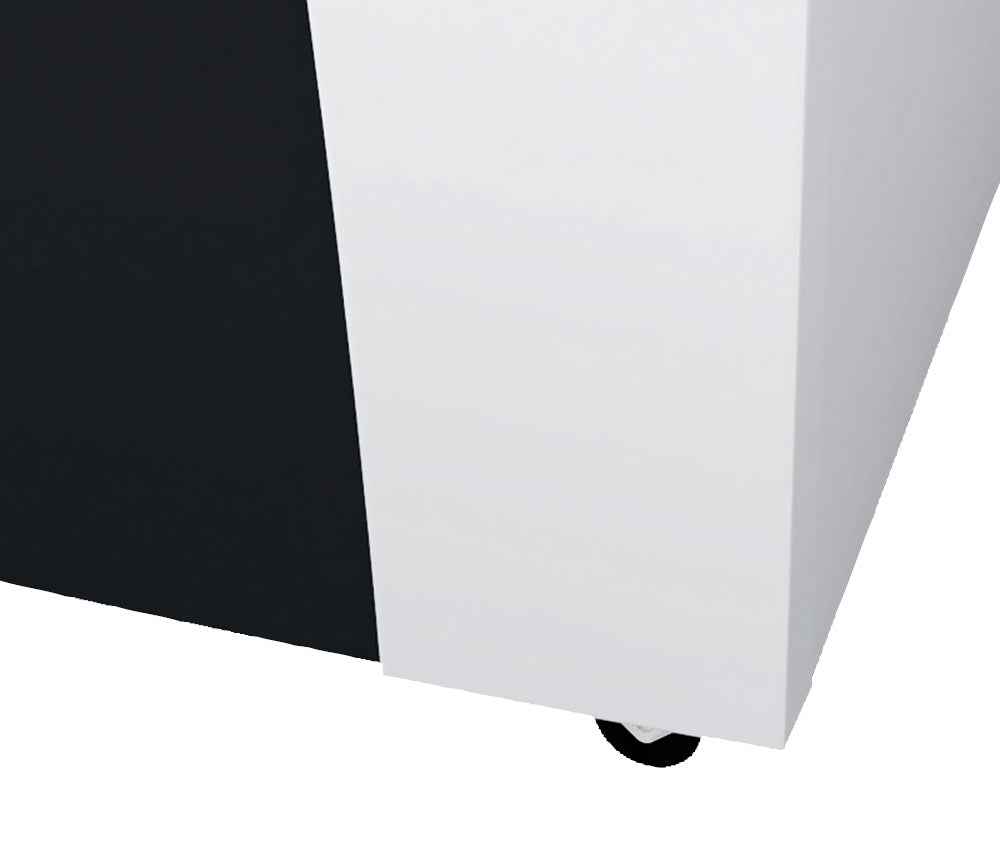

  • Blue Angel certified, built in Germany, and mounted on castors so it can be repositioned without two people.

Specifications

Security level (DIN 66399 / ISO IEC 21964) P-4 · O-3 · T-4 · E-3 · F-1
Cut type Cross cut (particle cut)
Cut size 3/16 x 1 1/8 in (4.5 x 30 mm)
Sheet capacity 14–16 sheets (80 g/m²); 17–19 sheets (70 g/m²)
Throat width 9.45 in (240 mm)
Bin volume 9.2 gal (35 L)
Motor / power draw 610 W
Voltage 110–120 V / 60 Hz
Noise level (idle) approx. 54 dB(A)

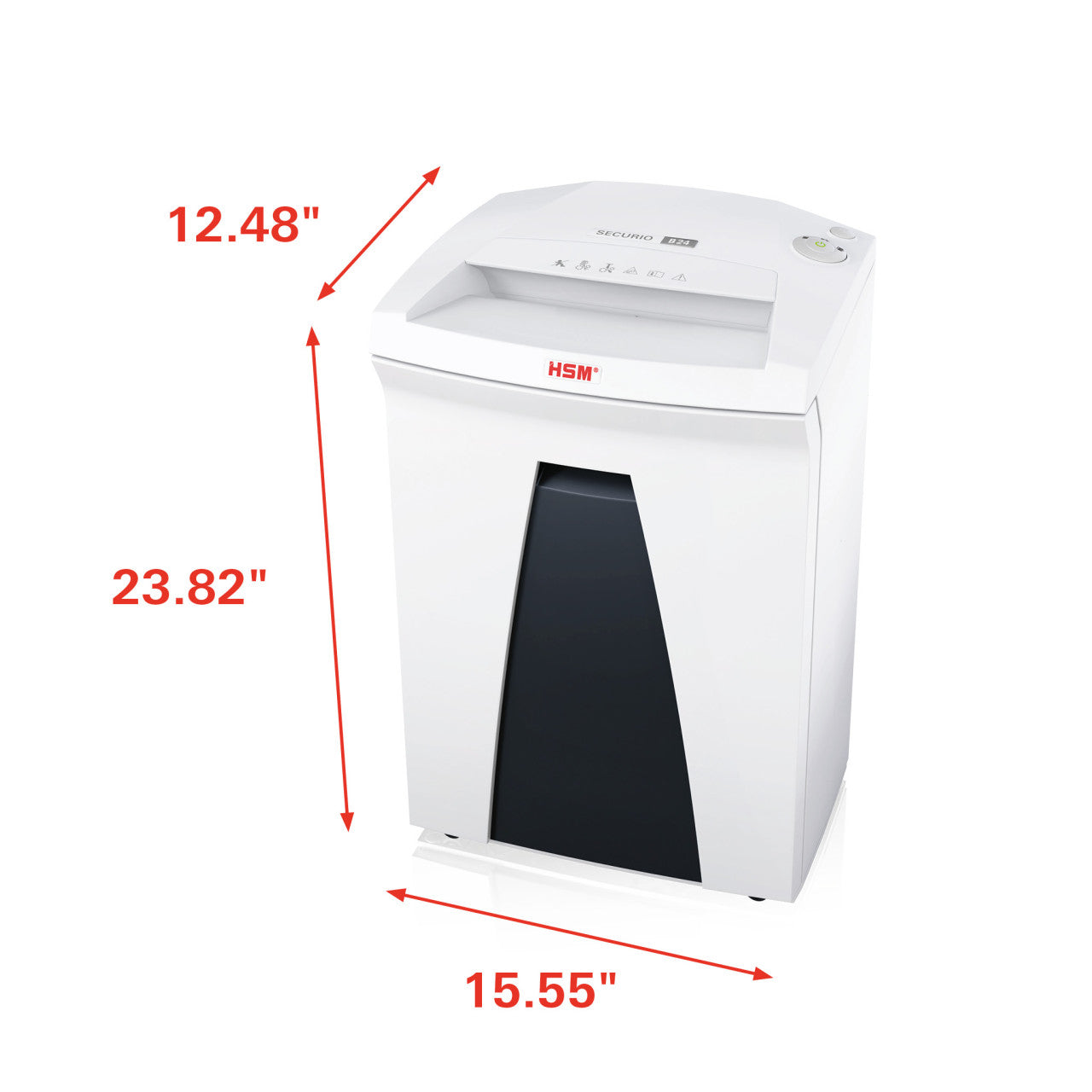

Dimensions (W × D × H) 15.55 x 12.48 x 23.82 in (395 x 317 x 605 mm)
Shreds Paper, staples, paper clips, credit cards, CD/DVD
Warranty 3 years on the machine; lifetime on the solid steel cutting rollers

What's in the Box

  • SECURIO B24 shredder, assembled, on castors
  • Removable 9.2 gallon waste container
  • Operating instructions

Bags are a separate purchase: HSM part 3310000014, a 13 gallon tear-resistant bag supplied on a 100 count roll.

Who Should Buy This — and Who Should Not

This is the right B24 for a small professional office — a clinic front desk, a law firm's admin room, an accountancy practice, a school bursary — where the paper contains names and account numbers and the volume is measured in a few hundred sheets a week. It is also the only sensible B24 choice if part of your disposal stream is expired ID cards, loyalty cards or archive CDs.

Look elsewhere in three situations. First, if your policy specifies P-5, buy the 1.9 x 15 mm version of this cabinet instead of trying to argue P-4 is close enough; the price difference is small. Second, if the machine will serve a whole floor, the 9.2 gallon bin and 415-sheet fill will annoy people daily — the B32 holds roughly 1,000 sheets in the same cut class. Third, if you need to bulk-feed unattended, the AF150 takes the same 4.5 x 30 mm cut but adds a 150 sheet automatic feed tray, and that is a different working experience entirely.

Product Specification

Machine Type
Office
Shredder Series
SECURIO
Cut Type
Cross Cut
Shreddable Materials
Paper, staples, paper clips, credit cards, CD/DVD
Cut Size
3/16" x 1 1/8" (4.5 x 30 mm)
Bin Size / Container Volume
9.2 gal (35 L)
Throat Width
9.45" (240 mm)
Power Consumption
610 W
Voltage
110-120 V / 60 Hz
Security Level
P-4
Sheet Capacity
14-16 sheets (80 g/m2)
Dimensions (WxDxH)
15.55" x 12.48" x 23.82" (395 x 317 x 605 mm)
Warranty
3 years on the machine; lifetime warranty on the solid steel cutting rollers
dB Level
approx. 54 dB(A) idle

Product listing details

Vendor
HSM
Product type
Document Shredder
Condition
New
SKU
1783113
GTIN
4026631049337
Price
$804.12 USD
Currency
USD
Availability
In stock
Shipping policy
Click to view policy
Refund policy
Click to view policy
Return policy
Click to view policy
View full details
Before you specify

Frequently Asked Questions

Is P-4 enough for shredding documents containing personal data?

For ordinary personal data, yes, and P-4 is the level most internal policies and data protection guidance set as the minimum. DIN 66399 defines P-4 as a particle area of 160 mm2 or less; this machine cuts 4.5 x 30 mm, which is 135 mm2. For special category data such as health records, or for anything your own policy classifies as sensitive personal data, the usual requirement is P-5, and HSM builds the same B24 cabinet at 1.9 x 15 mm to meet it.

Does it shred credit cards and CDs?

Yes to both, and this is the highest security B24 that does. The model carries an O-3 rating for optical media and is rated by HSM for credit cards, alongside paper, staples and paper clips. Feed discs and cards one at a time rather than in a stack. Note that the 1.9 x 15 mm and 0.78 x 11 mm versions of the B24 drop optical media and, in the finest cut, cards too, because the tighter cutting geometry cannot pass rigid material.

How many people can share one B24 before it becomes a bottleneck?

The limiting factor is the bin, not the motor. The 9.2 gallon container holds about 415 cross-cut sheets. A team of four to six people doing normal office shredding will fill it roughly once a day. Above that, someone is emptying it mid-morning and mid-afternoon, and the machine starts to feel like a chore. For a shared floor or a department of ten or more, the SECURIO B32 at around 1,000 sheets per fill is the better fit.

What is the duty cycle before it needs to cool down?

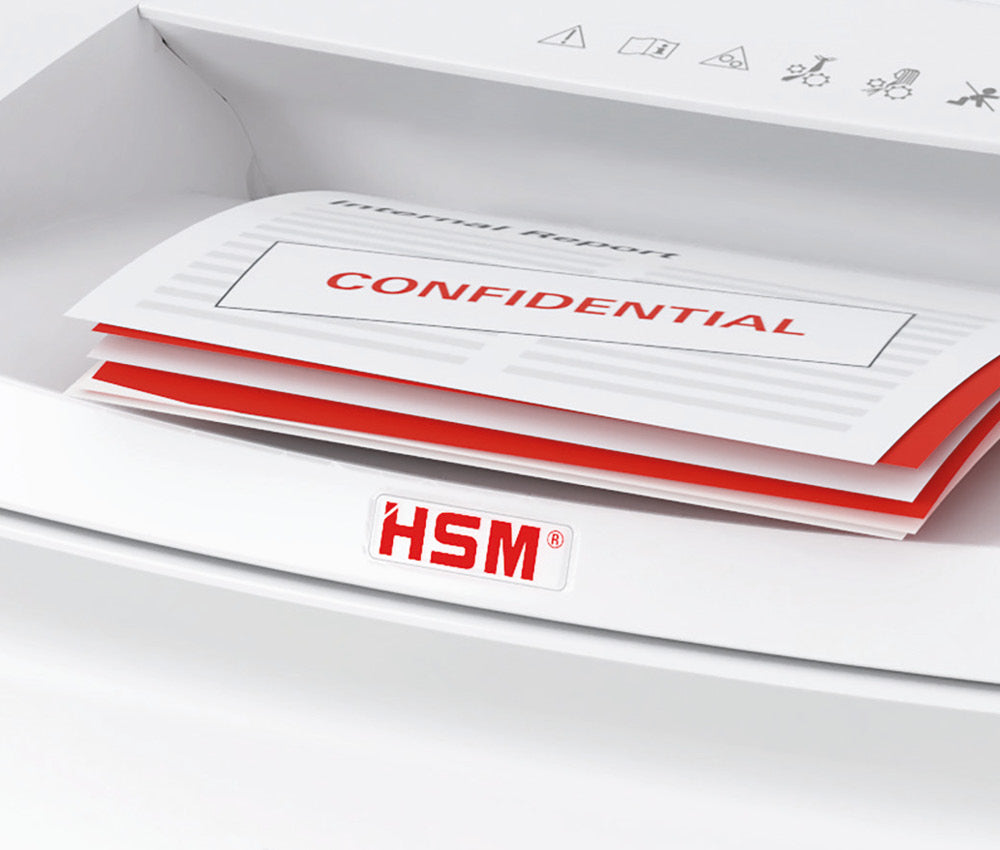

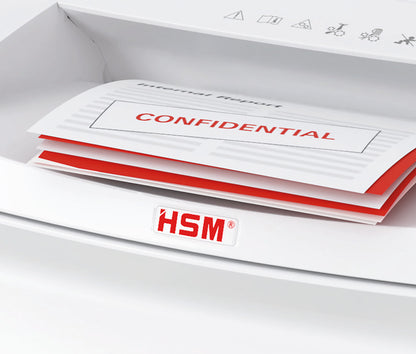

HSM does not publish a run time or cool-down duty cycle for the B24 in its datasheet, so we will not invent one. What the datasheet does state is an overload-protected paper feed that reduces jamming when the machine is over-fed. In practice, treat continuous heavy feeding at the maximum sheet rating as the thing to avoid; feeding slightly under the rating and letting the automatic start/stop cycle the rollers is what the machine is designed for.

Will 11 x 17 tabloid paper fit?

No. The throat is 9.45 in (240 mm). Letter and legal paper feed short-edge first at 8.5 in wide with clearance to spare, but tabloid is 11 in across the short edge and will not enter. Folding tabloid in half works but halves your effective sheet capacity. If tabloid is routine, the SECURIO B32 (12.2 in throat) or B35 (15.75 in) is the correct machine.

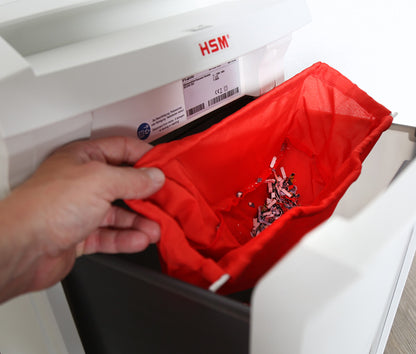

What bags fit, and do I have to use one?

HSM 13 gallon tear-resistant shredder bags, part 3310000014, on a 100 count roll; the same bag serves the Classic 108, AF150 and AF300. You do not have to use one. The waste container is a rigid pull-out bin and can be tipped straight into a recycling cart. Bags mainly help when the shredded material has to leave the building in a sealed form, or when dust is a concern.

Is this machine NSA approved?

No. NSA/CSS Specification 02-01 requires a maximum particle of 1 mm x 5 mm and listing on the NSA Evaluated Products List. A 4.5 x 30 mm particle is far larger, and this model is not on the EPL. A DIN rating and an NSA listing are separate things; even HSM's P-7 machines only qualify if they appear on the current EPL. For classified US government destruction, check the EPL directly before purchasing anything.

How does this compare with the AF150, which has the same cut?

Same 4.5 x 30 mm cut, same P-4 rating, same 9.2 gallon bin, same 610 W motor. The difference is feeding. The B24 is a manual machine rated at 14 to 16 sheets per pass. The AF150 adds an automatic feed tray that takes up to 150 sheets, closes, and runs unattended, but its manual slot only handles 8 to 10 sheets. Choose the B24 if people stand at the machine and feed thick stacks; choose the AF150 if they want to drop a pile and walk away.
