HSM SECURIO B24 1/16 x 5/8 Inch with External Automatic Oiler - HSM17824

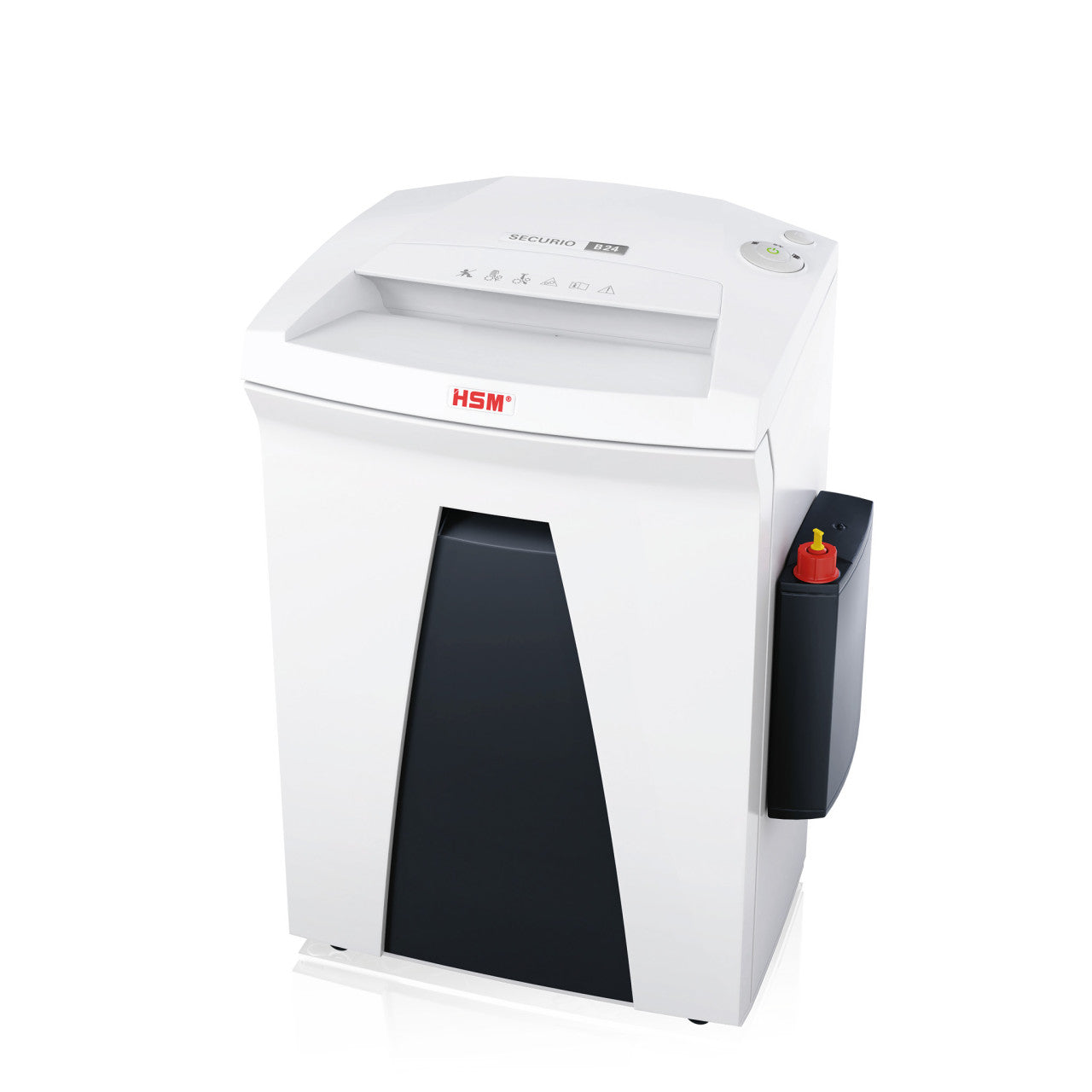

This configuration pairs the P-5 SECURIO B24 with HSM's external automatic oiler, and the oiler is the reason to choose it. Micro-cut heads fail in one predictable way: paper dust builds between the cutting discs, sheet capacity falls, and the machine starts jamming on six sheets when it used to take eleven. Manual oiling prevents that, and in practice nobody does it consistently. The automatic unit doses the cutting block on a schedule instead. Underneath it is a straightforward P-5 departmental shredder - 1.9 x 15 mm particles, 9-11 sheets per pass, a 610 W drive HSM rates for continuous operation, and a 9.2-gallon pull-out bin.

Key Features

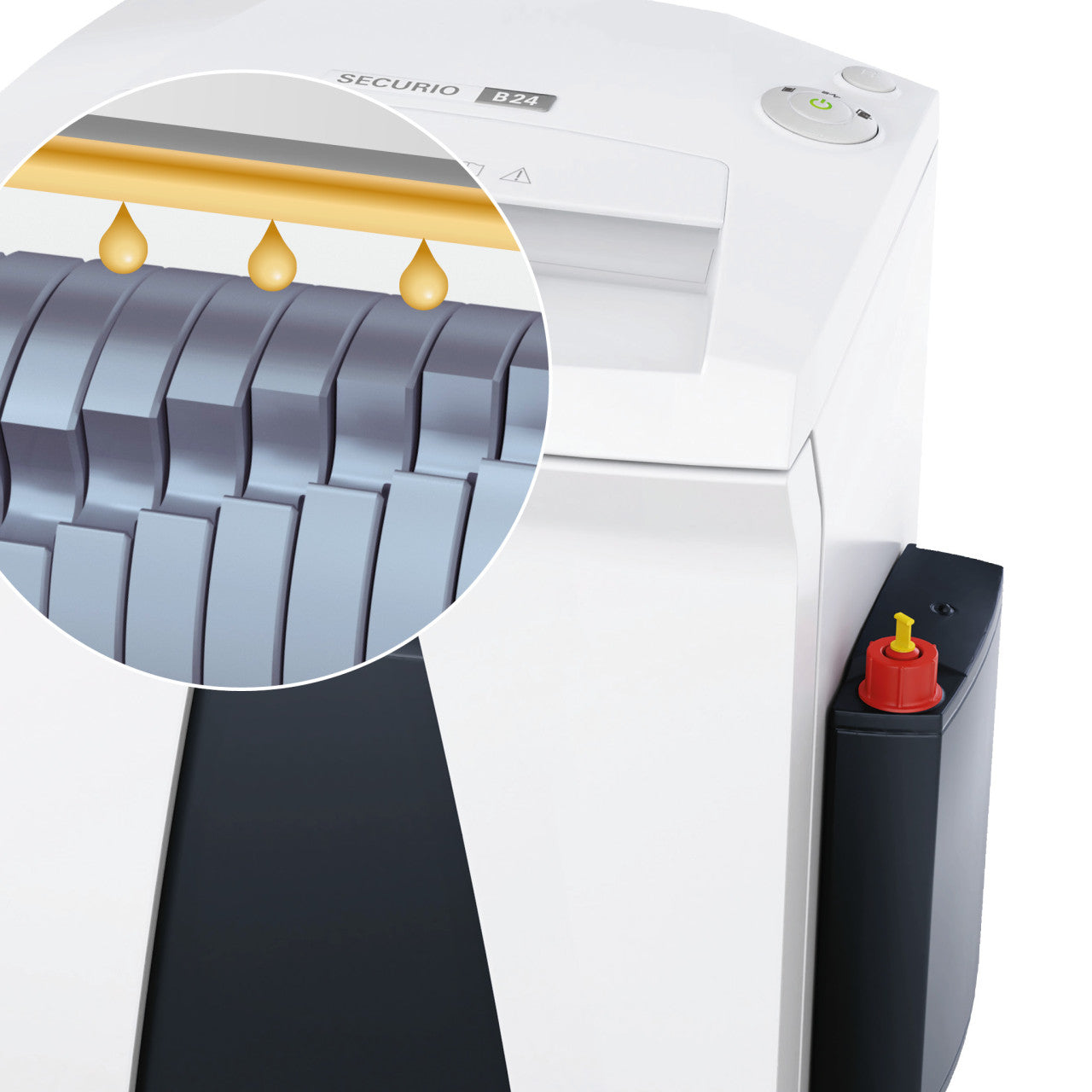

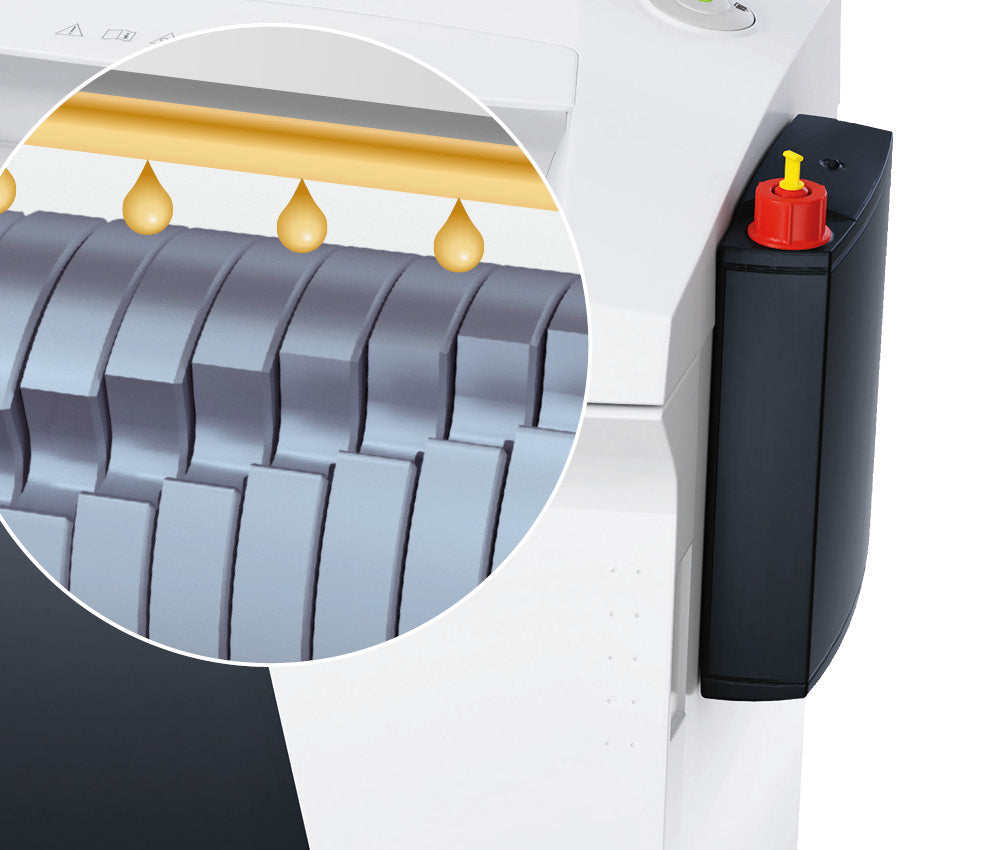

• External automatic oiler included – Lubricates the cutting block without anyone remembering to do it, which is the single biggest factor in whether a micro-cut shredder keeps its rated sheet capacity.
• DIN 66399 P-5 at 1.9 x 15 mm – 28.5 mm² particles, inside the 30 mm² class limit and appropriate for financial, medical and legal records.
• 9-11 sheets per pass – Two sheets more than the equivalent B22 at the same security level, on a motor built for heavier use.
• T-5 rating for magnetic-stripe cards – Bank and ID cards can be destroyed to the same class as the paper.
• 610 W continuous-operation drive – HSM specifies the B24's drive components for sustained running rather than short bursts.
• Lifetime warranty on the cutting rollers – P-5 is the highest class covered by HSM's lifetime roller warranty.

Specifications

Specifications are taken from HSM's datasheet for article 1782111, the EU-market equivalent of US part 1782113O. Sheet capacities are quoted at 80 g/m²; HSM's range brochure quotes higher figures measured at 70 g/m².

What's in the Box

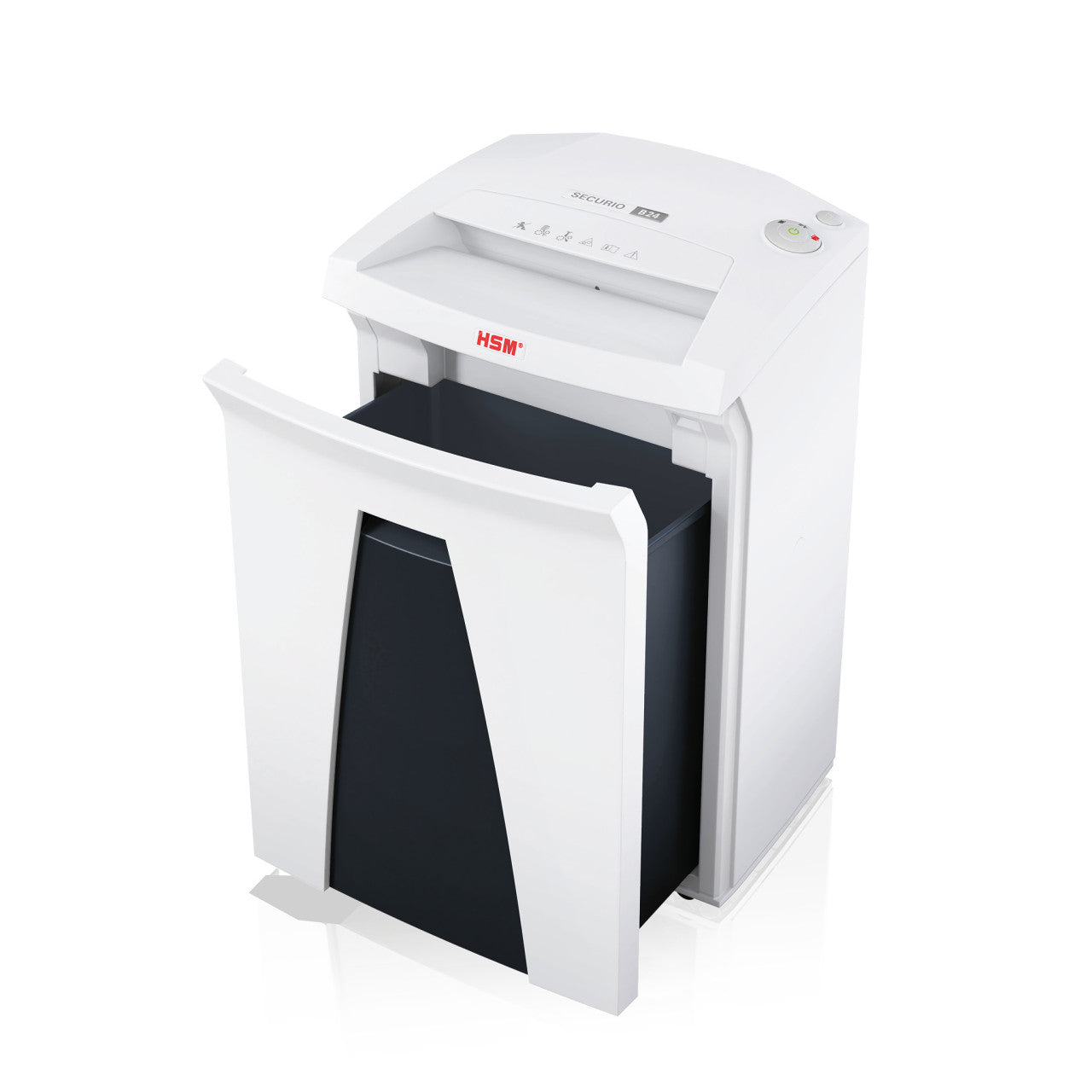

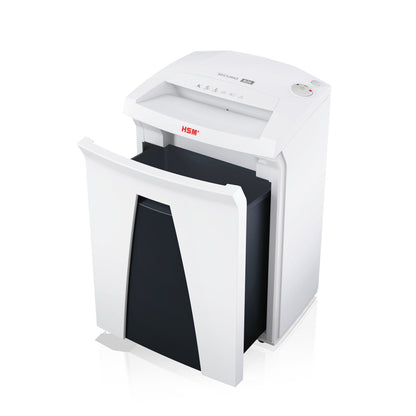

The shredder arrives assembled with its pull-out 9.2-gallon bin, and the external automatic oiler unit is supplied with it - that is what distinguishes this SKU from the standard P-5 B24. Refill oil is a consumable and will need reordering; use HSM cutting-block special oil only. Shredder bags are not included. HSM lists one reusable collecting bag covering the 104, 105, 108, 420, AF150, AF300, B22 and B24, catalogued in the US as HSM 1310.

Who Should Buy This — and Who Should Not

This is a good purchase for a department that has settled on P-5 and knows from experience that maintenance does not get done. Shared machines in finance, HR, legal and clinical administration are exactly where automatic oiling pays for itself, because no individual owns the machine and nobody reaches for the oil bottle.

Do not pay for the oiler if a single person is responsible for the shredder and will actually oil it - the standard 1/16" x 5/8" B24 is the same machine for less money. Do not choose P-5 at all if your requirement is higher: the 1/32" x 7/16" B24 reaches P-6 and the 1/32" x 3/16" B24 reaches P-7 and is the HSM office model listed on the NSA/CSS Evaluated Products List. Be aware that both of those sacrifice HSM's lifetime cutting-roller warranty, which stops at P-5. If volume rather than security is your constraint, the AF500 in this same cutting size adds a 500-sheet automatic feed tray and a 21.7-gallon bin.
