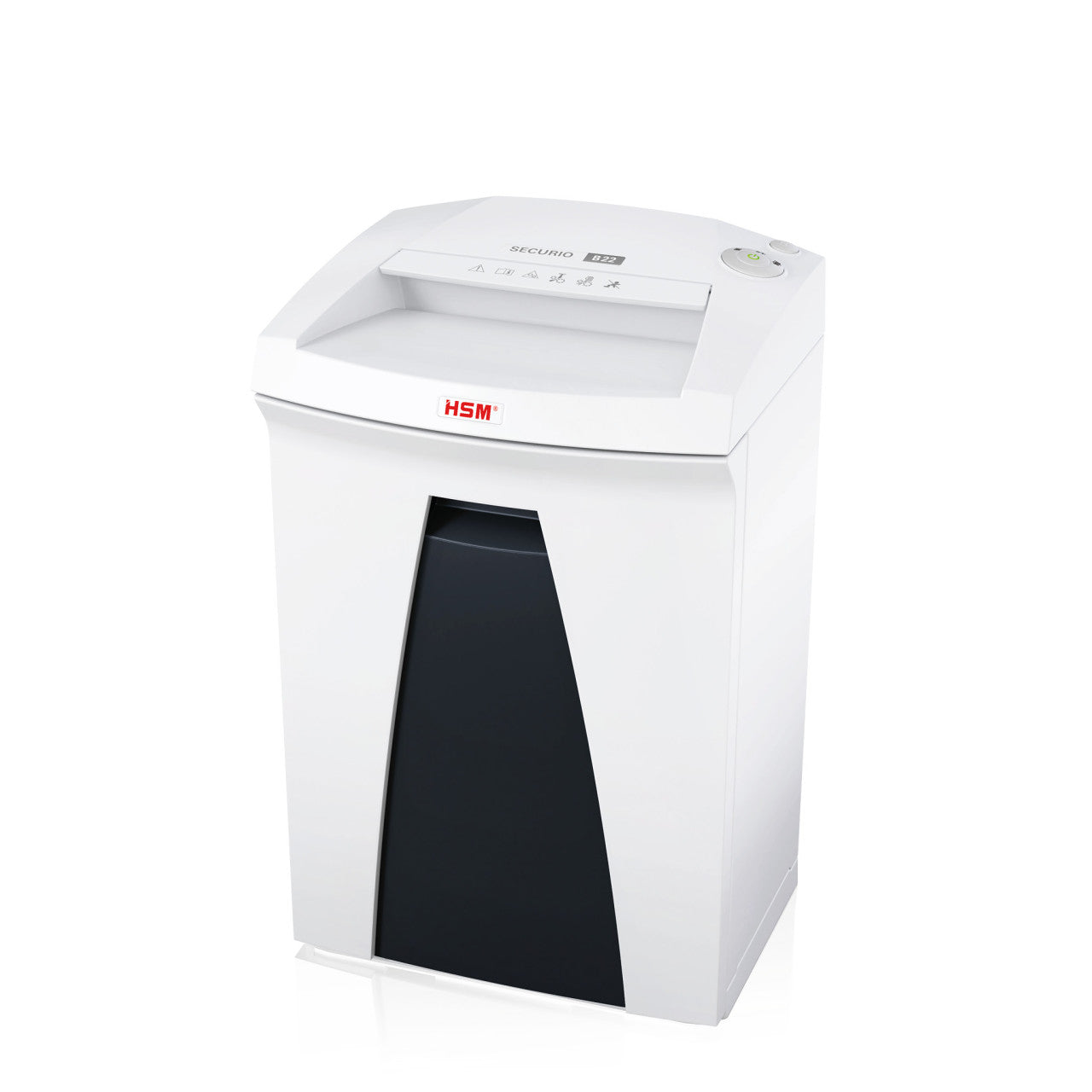

HSM SECURIO B22 1/8 x 1 1/8 Cross Cut Document Shredder - HSM1833

HSM SECURIO B22 1/8 x 1 1/8 Cross Cut Document Shredder - HSM1833

DIN 66399 security level P-4max 160 mm² particleOffice baselineParticularly sensitive personal data: HR files, contracts, payroll, patient and customer records. See every P-4 machine
Cut
Cross Cut
Cut size
1/8" x 1 1/8" (3.9 x 30 mm)
Sheet capacity
9-11 sheets (80 g/m²)
Throat width
9.45" (240 mm)
Regular price $626.00 USD
Regular price $1,432.20 USD Sale price $626.00 USD
Sale Sold out
Quantity
  • Free shipping across the USA Included on every machine in the catalogue
  • 30-day return policy Shipping, refund and return terms published in full
  • +1 (858) 266-0509 Speak to a specification specialist · 08:00 AM – 05:00 PM PST, Monday to Friday

Authorized HSM dealer New stock through the manufacturer's authorized channel, with the manufacturer's own warranty · what this covers

Description

P-4 is the level most offices should be shredding to, and the 1/8" x 1 1/8" SECURIO B22 is HSM's most compact way of getting there. Its 3.9 x 30 mm particles measure 117 mm², inside the 160 mm² ceiling that DIN 66399 sets for the class, and that is the point at which a shredded page stops being a reassembly project and starts being confetti. Compared with the strip-cut B22 models you give up roughly half the sheet capacity - 9-11 per pass rather than 17-19 - in exchange for a security level that a data-protection policy can actually reference.

Key Features

  • DIN 66399 P-4 cross cut – 3.9 x 30 mm particles, the practical baseline for destroying documents containing personal data.
  • 9-11 sheets per pass at 80 g/m² – Enough for real work: a stapled ten-page report goes through in one go.
  • Rated for cards as well as paper – E-3, F-1 and T-4 media classes alongside P-4, so bank and ID cards can be destroyed in the same machine.

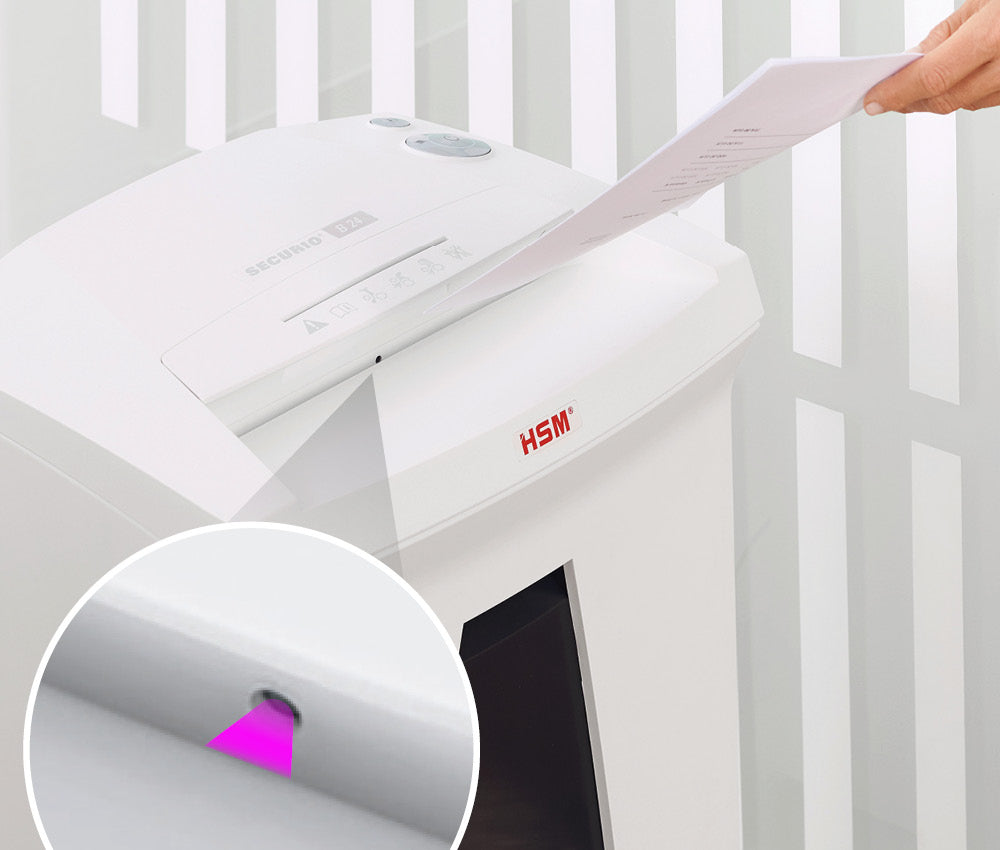

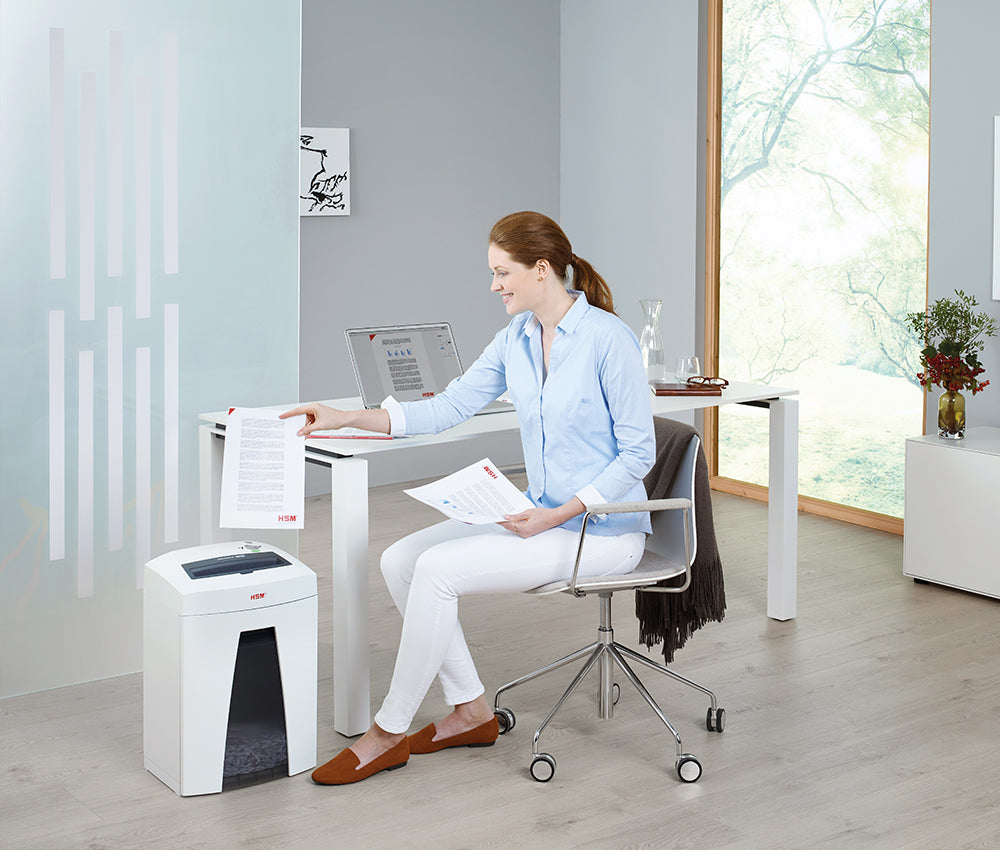

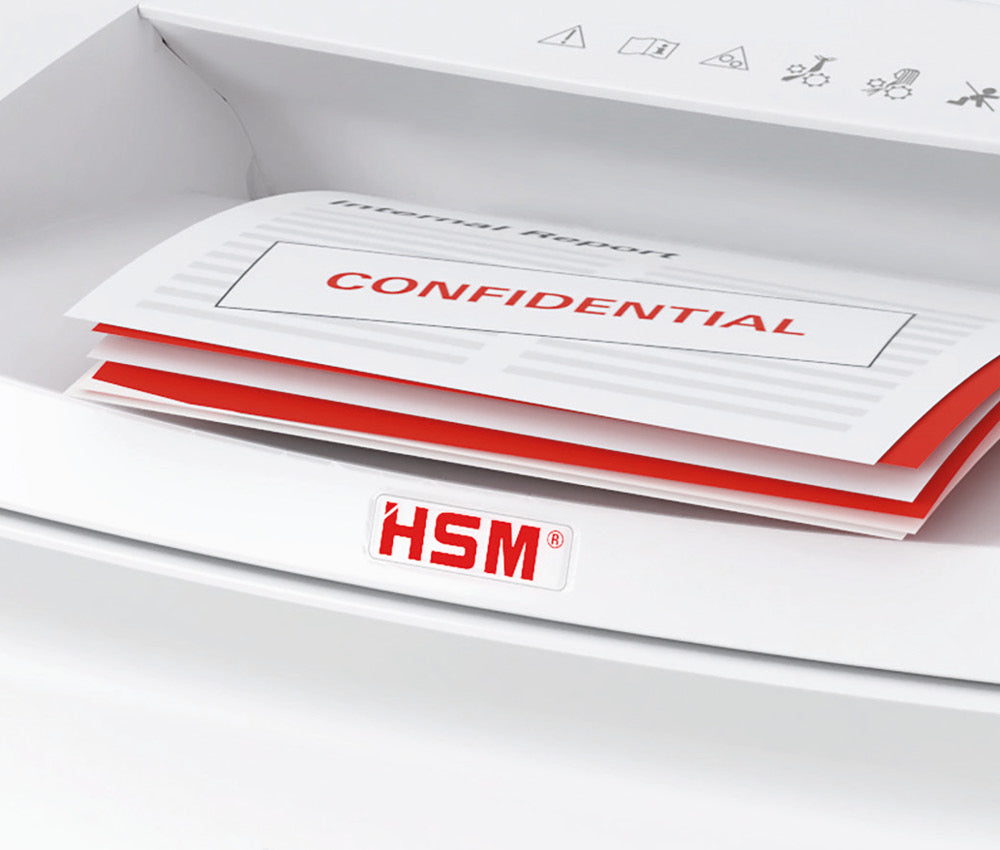

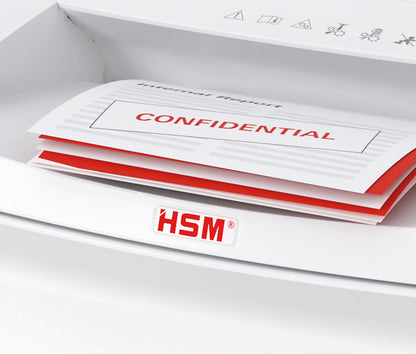

  • Automatic start-stop and overload-protected feed – Reduces jams, which is the failure mode people actually experience with cross-cut shredders.

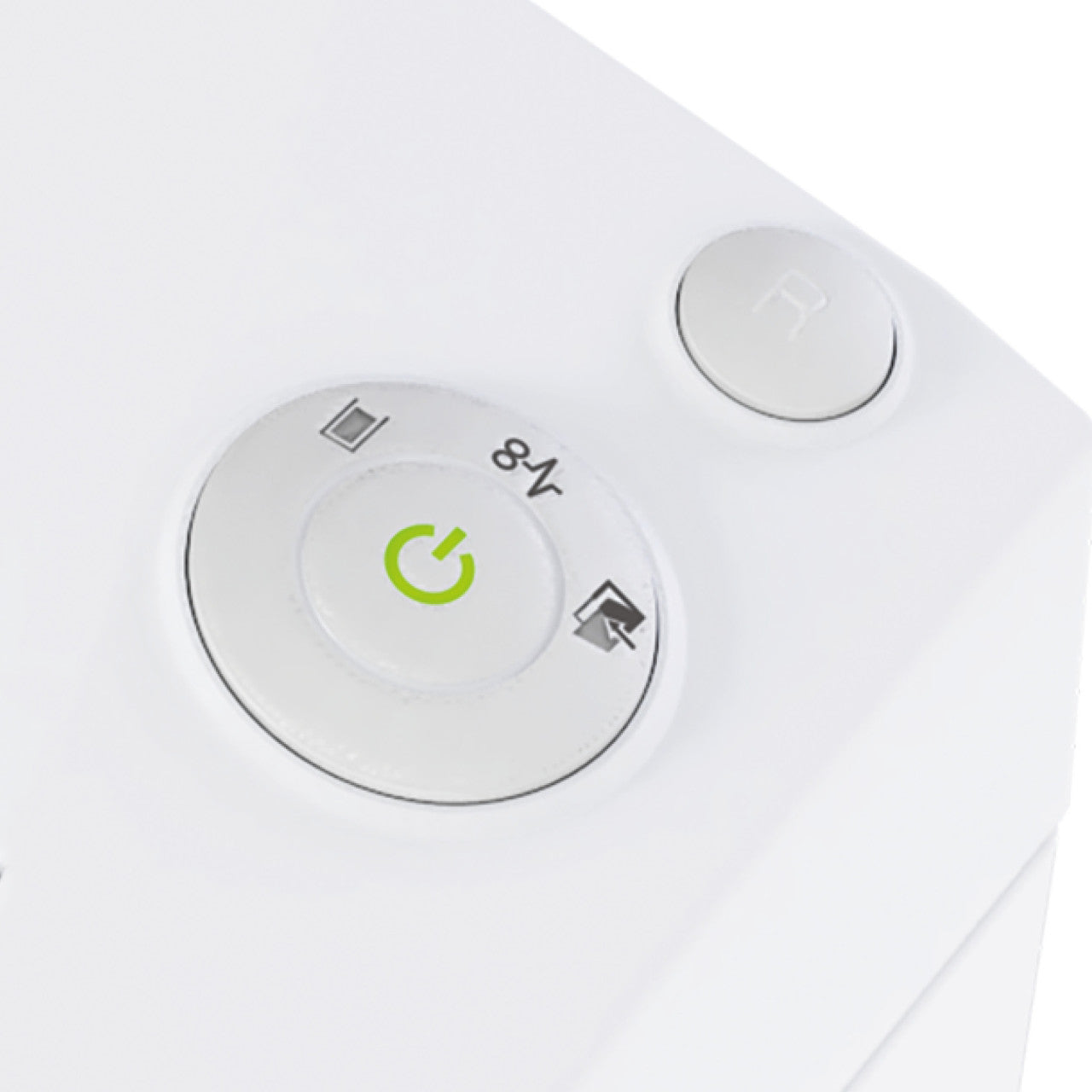

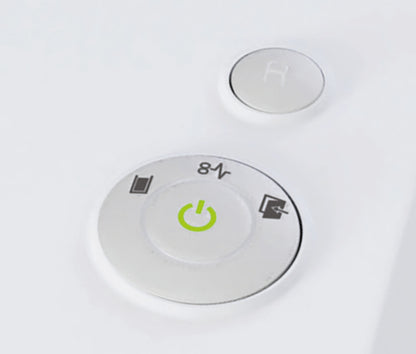

  • EcoSmart 0.1 W standby – The control programme powers down between jobs instead of idling.

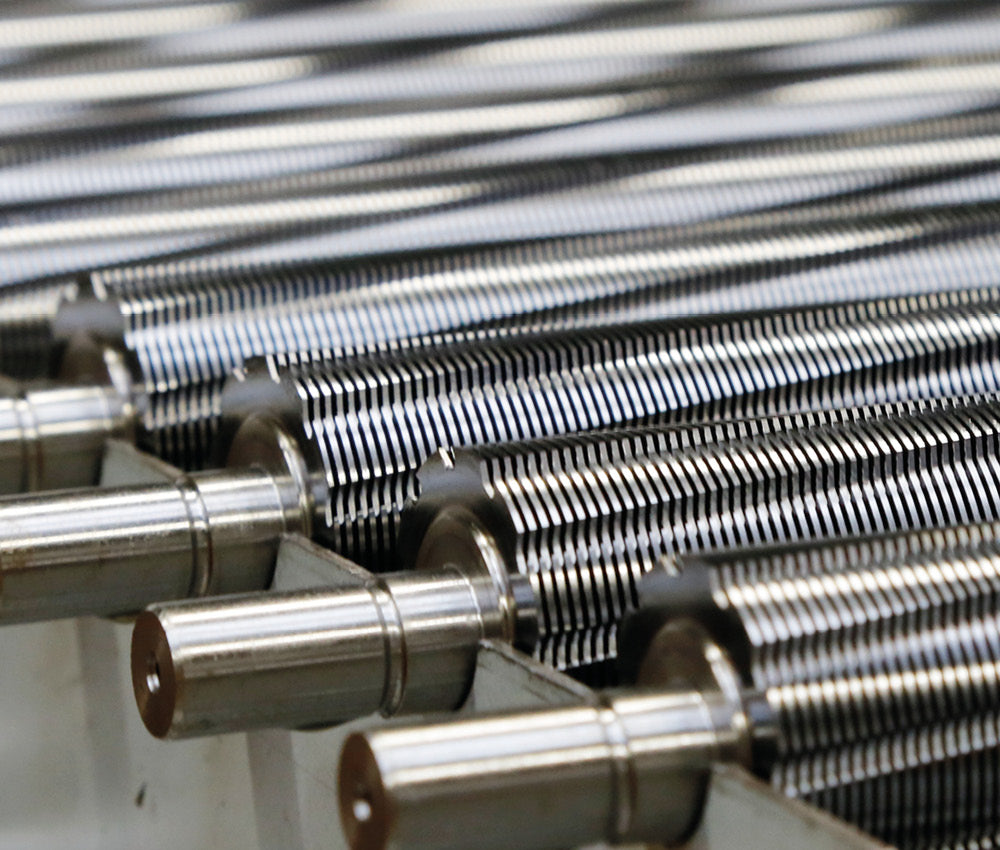

  • Lifetime warranty on the cutting rollers – HSM covers the solid steel rollers for life on P-2 to P-5 machines, which includes this one.

Specifications

Security level (DIN 66399 / ISO 21964) P-4  (full media classification E-3 | F-1 | P-4 | T-4)
Cut type Cross-cut
Cut size 1/8" x 1 1/8" (3.9 x 30 mm)
Sheet capacity 9-11 sheets (80 g/m²)
Throat width 9.45" (240 mm)
Bin volume 8.7 gal (33 l)
Motor power 440 W
Voltage 120 V / 60 Hz
Noise level 57 dB(A) (idle)

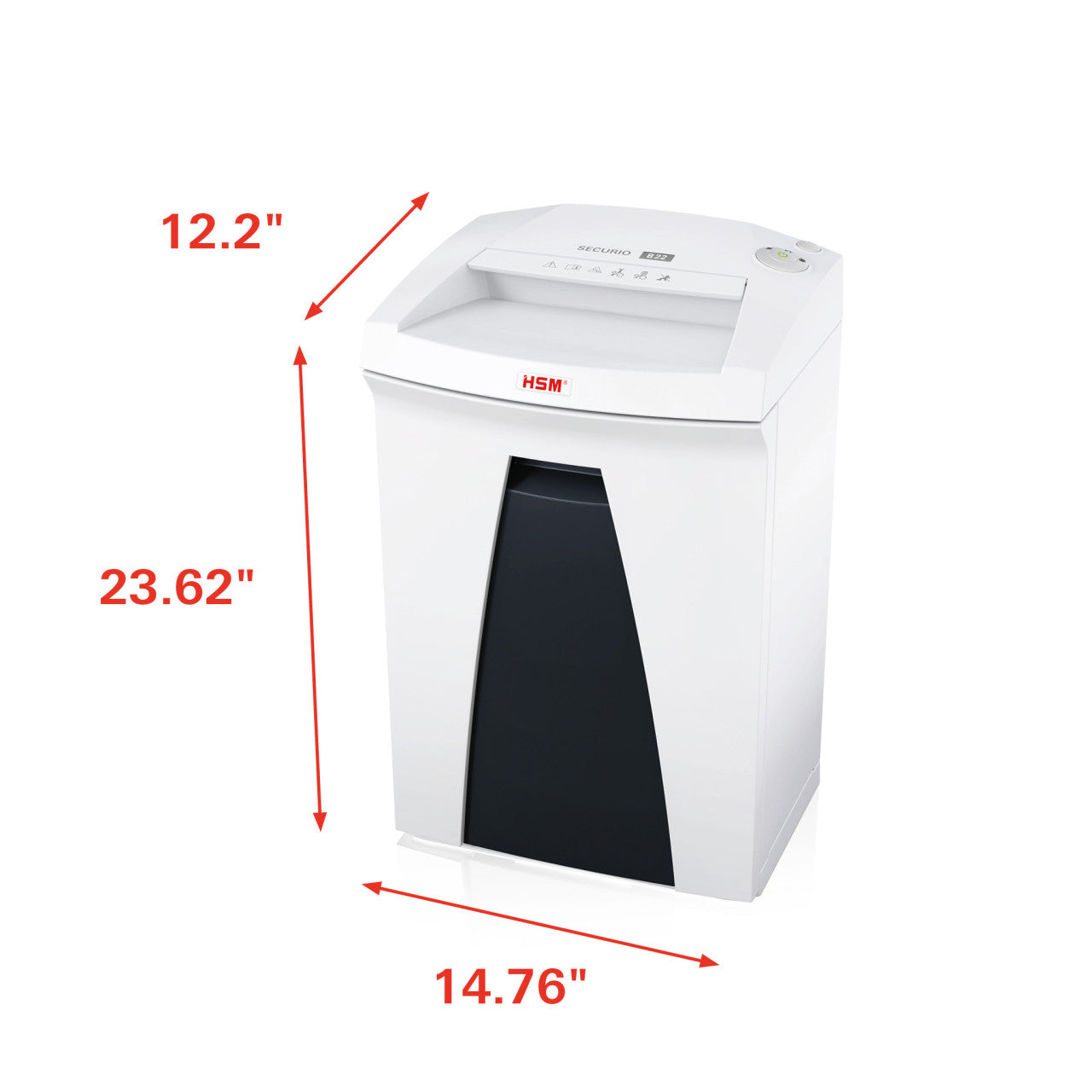

Dimensions (W x D x H) 14.76" W x 12.2" D x 23.62" H (375 x 310 x 600 mm)
Weight 27.6 lb (12.5 kg)
Shreddable materials Paper, staples and paper clips, credit cards
Warranty Lifetime warranty on the solid steel cutting rollers

Specifications are taken from HSM's datasheet for article 1833121, the EU-market equivalent of US part 1833123. Sheet capacities are quoted at 80 g/m²; HSM's range brochure quotes higher figures measured at 70 g/m².

What's in the Box

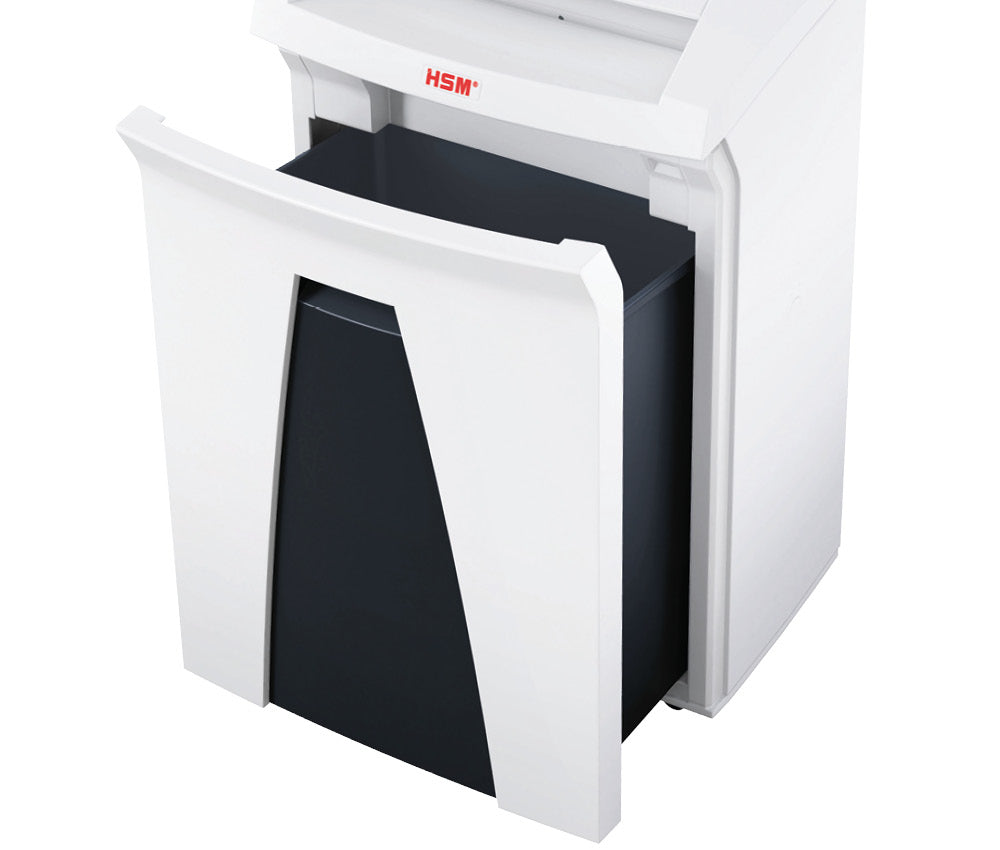

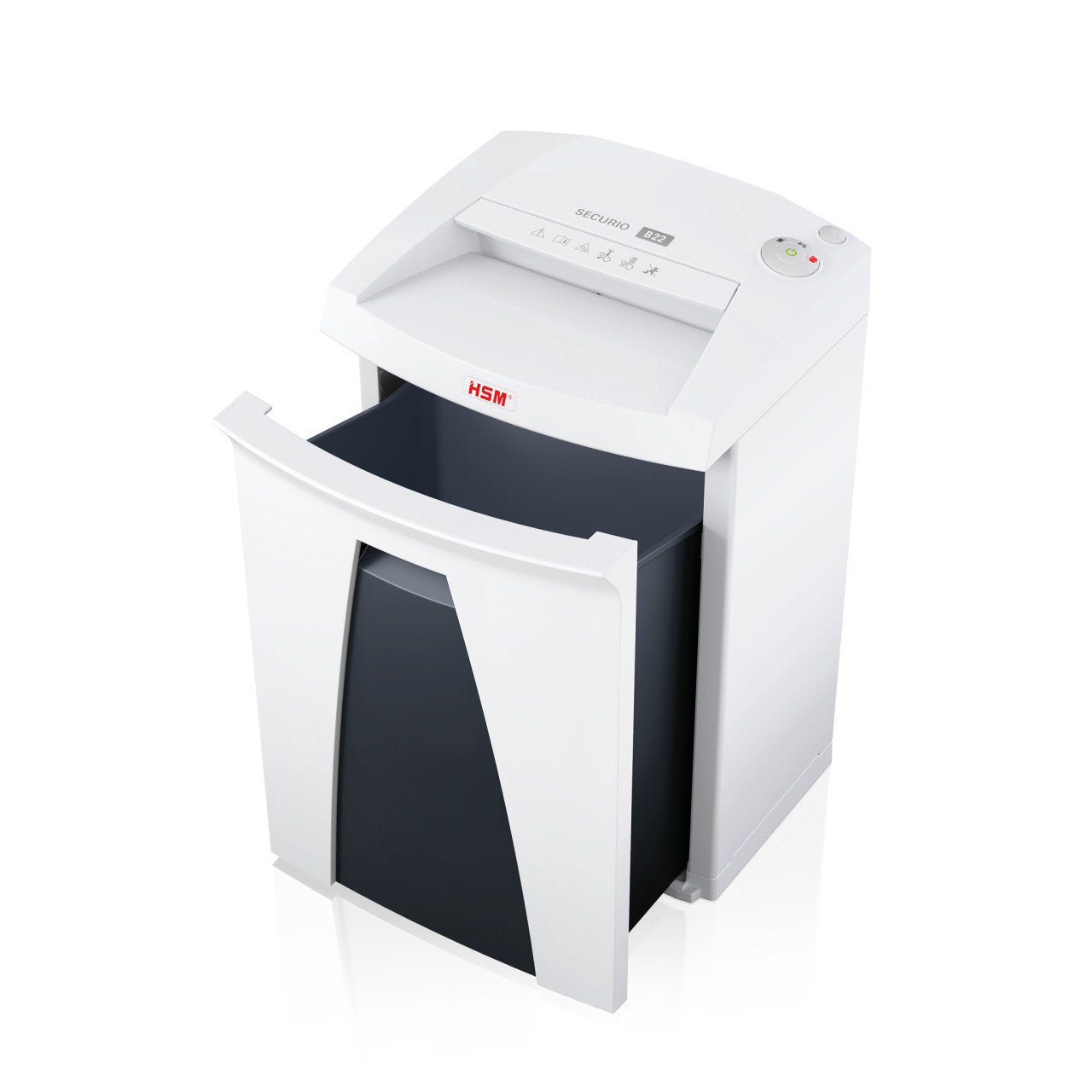

Ships assembled with the pull-out 8.7-gallon bin in place. Bags are not included; HSM's reusable collecting bag for the 104/105/108/420/AF150/AF300/B22/B24 group is the correct consumable and is catalogued in the US as HSM 1310. A bottle of HSM cutting-block special oil is sold separately and is worth ordering with the machine - cross-cut heads accumulate paper dust and lose capacity without it.

Who Should Buy This — and Who Should Not

Buy this if you run a small office, a professional practice or a home-based business that handles other people's information and wants a machine that is defensible without being slow. It is the balanced choice on the B22 chassis: adequate speed, a security level that satisfies most policies, and a footprint that fits beside a desk.

Do not buy it if your policy specifies P-5 - the difference is not cosmetic, since P-5 caps particles at 30 mm² against P-4's 160 mm². The 1/16" x 5/8" SECURIO B22 is the same cabinet with the finer head, at 7-9 sheets per pass. Also skip it if you have CDs and DVDs to destroy, because this cutting head carries no optical media rating; only the 1/4" strip-cut B22 does, and that machine is P-2. And if several people will hammer the machine daily, the SECURIO B24 with its 610 W continuous-duty drive and 9.2-gallon bin is the more durable answer.

Product Specification

Machine Type
Office
Shredder Series
SECURIO
Cut Type
Cross Cut
Shreddable Materials
Paper, staples and paper clips, credit cards
Cut Size
1/8" x 1 1/8" (3.9 x 30 mm)
Bin Size / Container Volume
8.7 gal (33 l)
Throat Width
9.45" (240 mm)
Power Consumption
440 W
Voltage
120 V / 60 Hz
Weight
27.6 lb (12.5 kg)
Security Level
P-4
Sheet Capacity
9-11 sheets (80 g/m²)
Dimensions (WxDxH)
14.76" W x 12.2" D x 23.62" H (375 x 310 x 600 mm)
Warranty
Lifetime warranty on the solid steel cutting rollers
dB Level
57 dB(A) (idle)

Product listing details

Vendor
HSM
Product type
Document Shredder
Condition
New
SKU
1833123
GTIN
4026631049313
Price
$626.00 USD
Currency
USD
Availability
In stock
Shipping policy
Click to view policy
Refund policy
Click to view policy
Return policy
Click to view policy
View full details
Before you specify

Frequently Asked Questions

Is P-4 good enough for GDPR or HIPAA-type material?

Neither regulation names a DIN class, so no shredder can be described as compliant by itself. What P-4 gives you is a documented, widely accepted standard for destroying personal data - 160 mm² maximum particle area - that auditors recognise. Many organisations set P-4 as their floor for personal data and P-5 for special-category or financial records. Check your own policy before assuming P-4 satisfies it.

How many sheets at once, and does paper weight matter?

Nine to eleven sheets of 80 g/m² paper, taken from HSM's datasheet for this article number. Paper weight matters a great deal: HSM's range brochure quotes higher figures because it measures at 70 g/m². US 20 lb copier paper is about 75 g/m², so 9-11 is the realistic figure. Heavy 24 lb or 28 lb stock will reduce it further.

Can it shred credit cards?

Yes, one at a time through the middle of the throat. The head is rated T-4 for magnetic-stripe media. Give the machine a second between cards rather than feeding several in a row, and do not push a card through alongside a stack of paper. Optical discs are a different class and this model is not rated for them.

How often does it need oiling?

More often than a strip-cut machine. A practical rule is to oil every time you empty the bin, or roughly every 30 minutes of accumulated running time under heavy use. Use HSM cutting-block special oil, run it across the full width of the intake, then let the machine run briefly. Skipping this is the single most common reason a cross-cut shredder starts jamming at six sheets when it used to manage ten.

How full does the bin get, and how quickly?

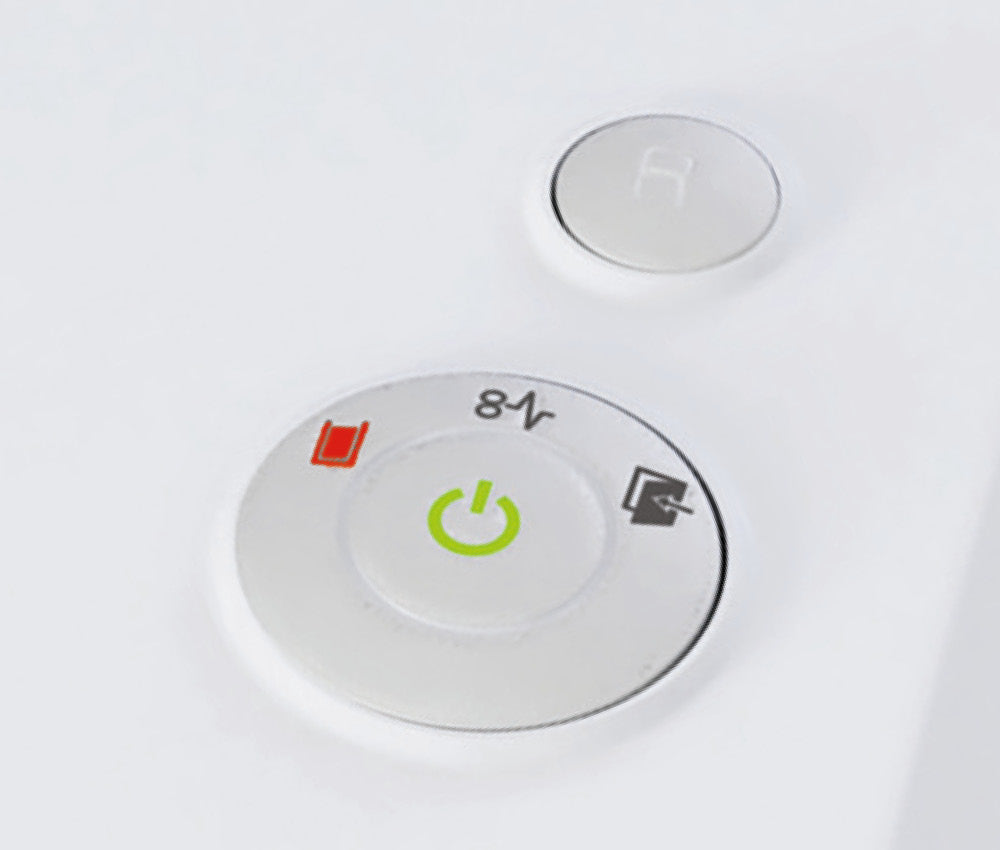

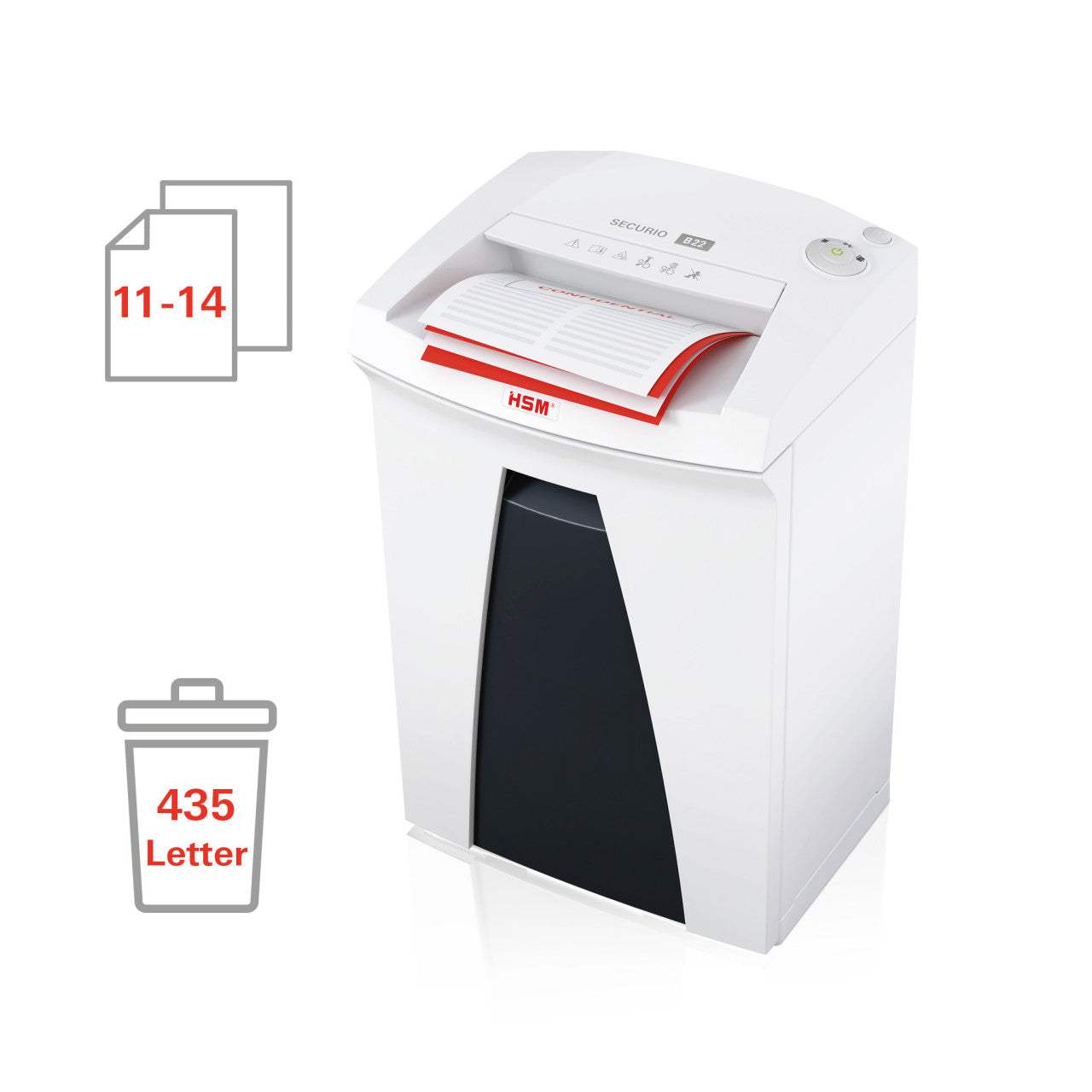

The bin is 8.7 gallons - 33 litres - and HSM rates it at roughly 435 sheets' worth of shredded material at this cutting size. Cross-cut particles settle more densely than strips, so this cut gets meaningfully more paper into the same bin than either strip-cut B22 does. The display tells you when it is full and the machine stops rather than compacting waste into the cutting head.

Will it take a stapled document without me pulling the staples?

Yes. HSM rates the cutting rollers for staples and paper clips and the rollers are induction-hardened solid steel. Remove heavy binder clips, spiral bindings and anything laminated. Sticky notes and plastic windows from envelopes are fine in small quantities but add to the dust that builds up between the cutting discs, so oil a little more often if you shred a lot of window envelopes.

What is the difference between this and the P-5 version of the B22?

Only the cutting head. Same 440 W motor, same 9.45-inch throat, same 8.7-gallon bin, same 375 x 310 x 600 mm cabinet, same lifetime roller warranty. This model cuts 3.9 x 30 mm at 9-11 sheets; the P-5 model cuts 1.9 x 15 mm at 7-9 sheets. If your policy does not require P-5, the extra two sheets per pass here is a real day-to-day benefit.
