HSM Pure 830 3/16 x 1 1/8 Cross Cut Document Shredder - HSM2383

HSM Pure 830 3/16 x 1 1/8 Cross Cut Document Shredder - HSM2383

DIN 66399 security level P-4max 160 mm² particleOffice baselineParticularly sensitive personal data: HR files, contracts, payroll, patient and customer records. See every P-4 machine
Cut
Cross Cut
Cut size
4.5 x 30 mm (approx. 3/16" x 1 1/8")
Sheet capacity
33 - 35 sheets (80 g/m²)
Throat width
13.0" (330 mm)
Regular price $3,220.37 USD
Regular price $11,150.96 USD Sale price $3,220.37 USD
Sale Sold out
Quantity

Volume pricing, freight, installation, trade-in and GSA pricing — written quote within one business day.

Request a quote

HSM Pure 830 3/16 x 1 1/8 Cross Cut Document Shredder - HSM2383 Listed at $3,220.37

Anything else we should price in?

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

No obligation. A specialist replies within one business day, 08:00 AM – 05:00 PM PST.

  • Free shipping across the USA Included on every machine in the catalogue
  • 30-day return policy Shipping, refund and return terms published in full
  • +1 (858) 266-0509 Speak to a specification specialist · 08:00 AM – 05:00 PM PST, Monday to Friday

Authorized HSM dealer New stock through the manufacturer's authorized channel, with the manufacturer's own warranty · what this covers

Description

If there is one machine in the Pure range that resolves the usual trade-off between security and speed, it is this one. Thirty-three to thirty-five sheets a pass at DIN 66399 P-4 is a strip-cut sheet rating with a particle-cut output, and the 1,920 W motor is what makes it possible.

For comparison within its own family: the Pure 630 and Pure 740 produce identical 4.5 x 30 mm particles and manage 20 to 22 sheets on 700 W. The Pure 830 does the same job at roughly 60 percent higher throughput. What you give up for it is a narrower 330 mm throat than the 740's 400 mm, about 5 dB(A) more noise, and a demanding electrical supply.

Key Features

  • 33 to 35 sheets at 80 g/m2, at P-4. The highest particle-cut sheet rating in the Pure range by a wide margin.
  • 1,920 W motor. Nearly three times the power of the 700 W Pure 630 and 740, which is the entire reason the sheet count is what it is.
  • 4.5 x 30 mm particles, 135 mm2. Inside the 160 mm2 DIN 66399 sets as the P-4 ceiling, classified E-3|F-1|O-3|P-4|T-4.

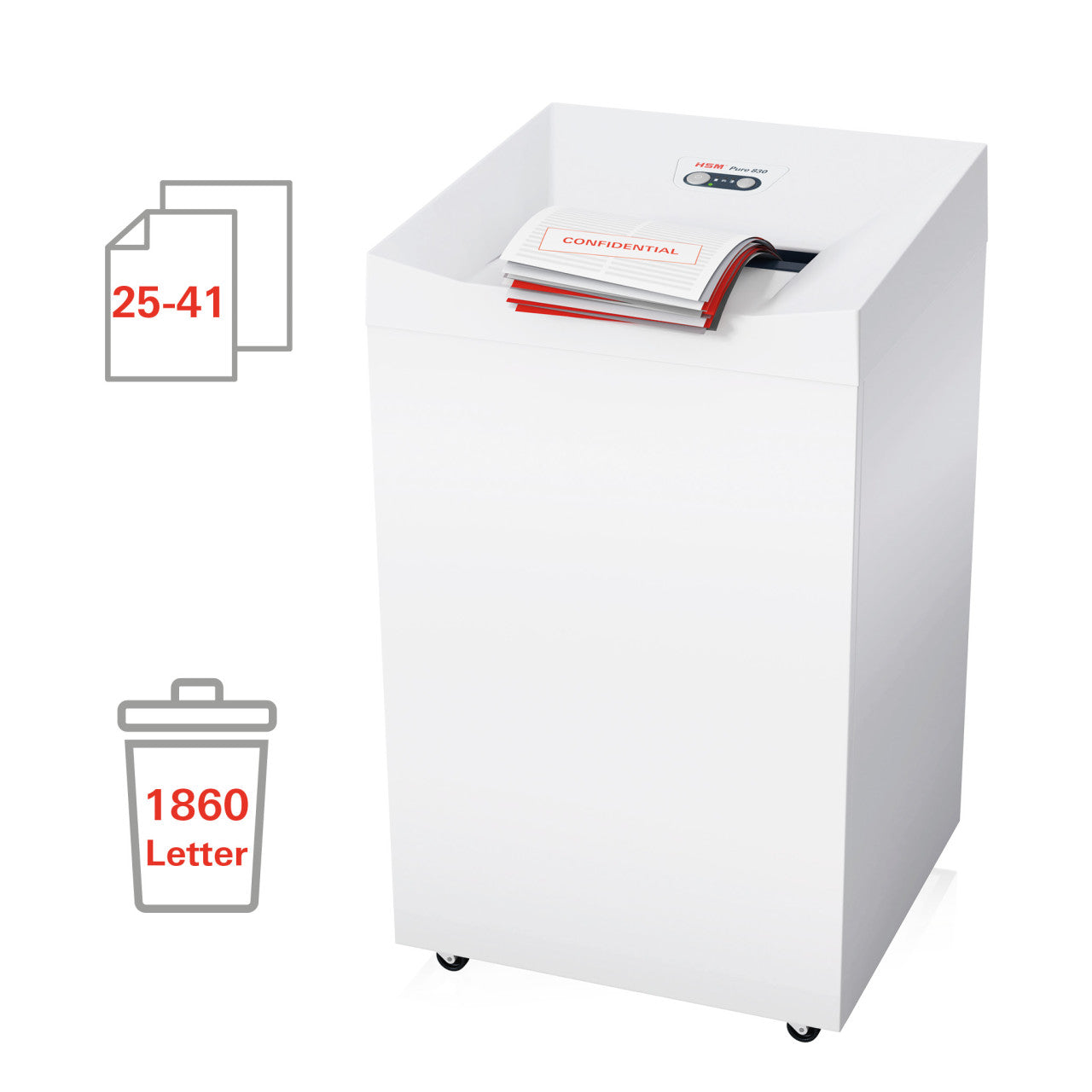

  • 150 litre bin, about 1,860 shredded sheets. Comparable collection to the Pure 740's bin, in a cabinet 40 mm narrower.

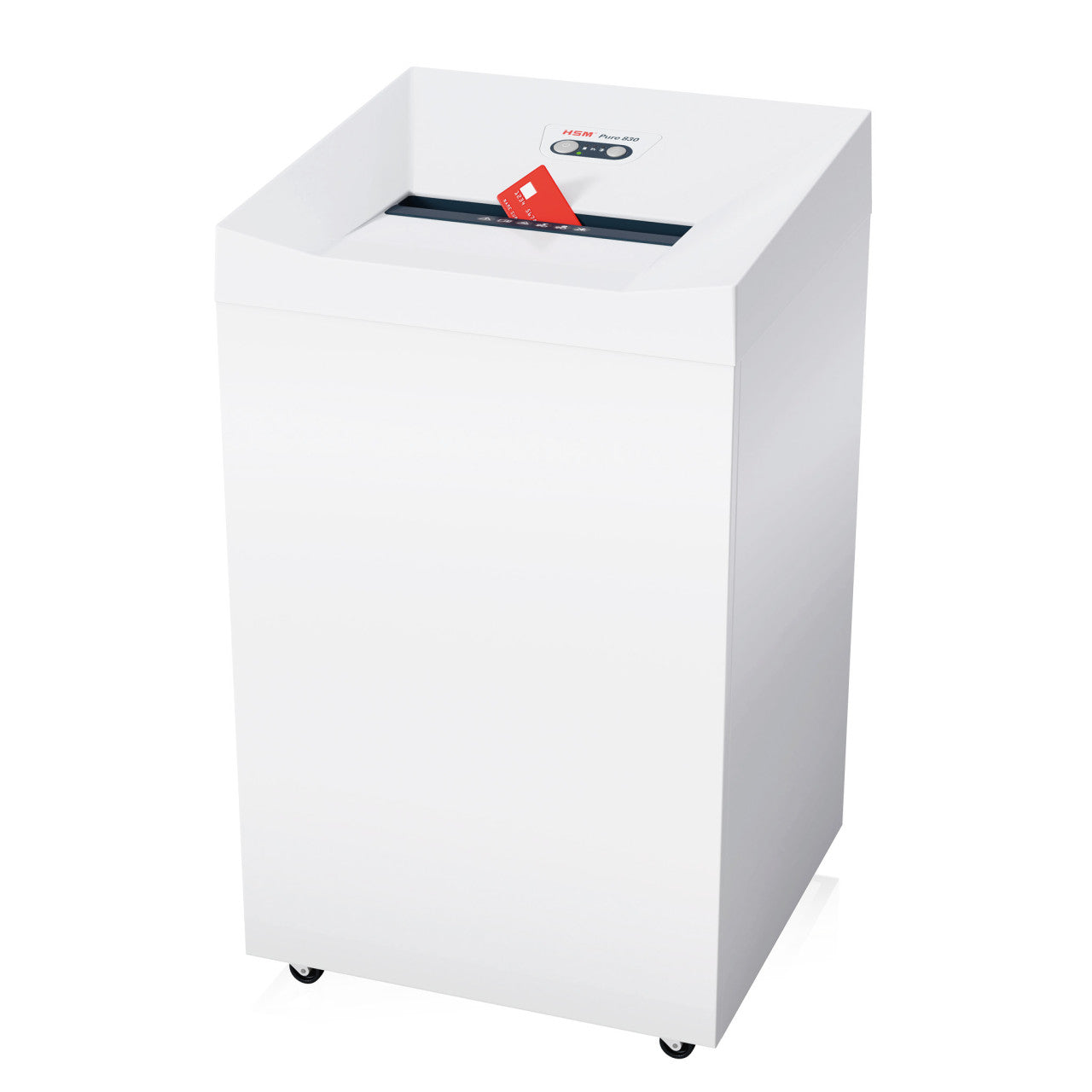

  • Rated for cards, discs, film and magnetic media. Staples and paper clips pass through the induction-hardened rollers without preparation.

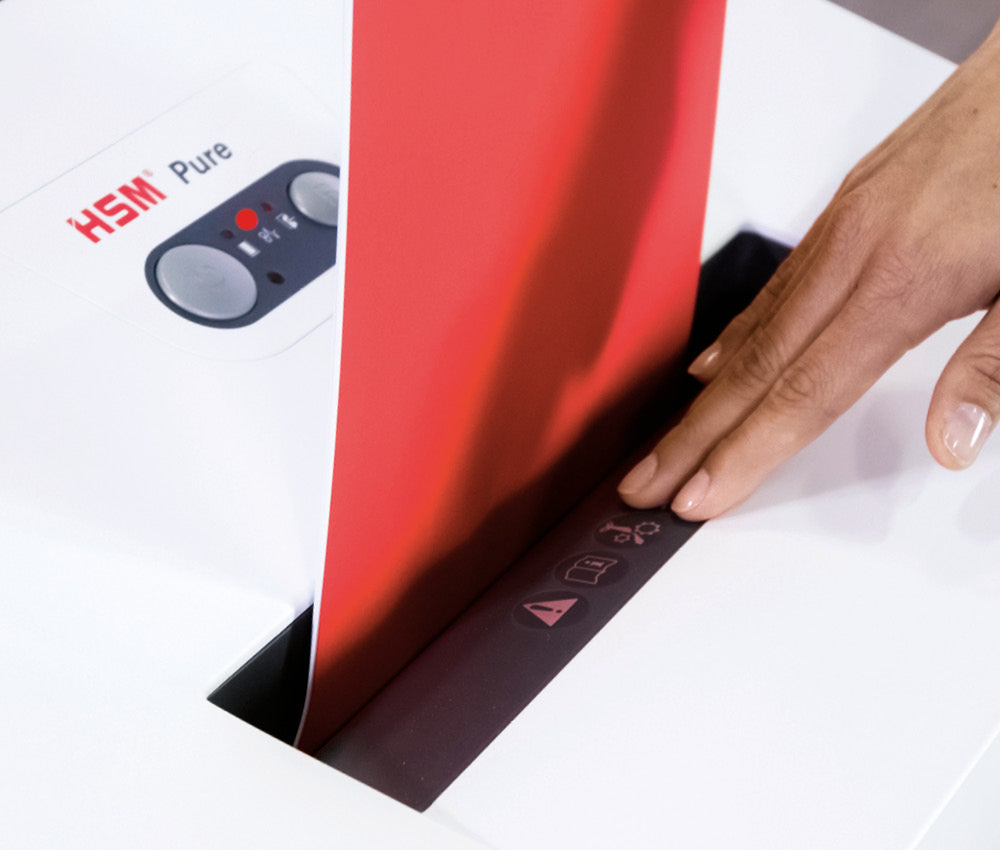

  • Continuous-duty design with full-bin cut-out. Automatic start/stop, standby, overload protection on the feed and a wide cabinet door for bag changes.

Specifications

Specification HSM Pure 830
Security level (DIN 66399 / ISO 21964) P-4 (full classification E-3|F-1|O-3|P-4|T-4)
Cut type Particle cut (cross cut)
Cut size 4.5 x 30 mm (approx. 3/16" x 1 1/8"); 135 mm2 particle area
Sheet capacity 33 - 35 sheets at 80 g/m2
Feed / throat width 330 mm (13.0")
Bin volume 150 l (39.6 US gal), approx. 1,860 shredded sheets
Motor power 1,920 W
Voltage 120 V / 60 Hz
Noise level approx. 60 dB(A) at idle

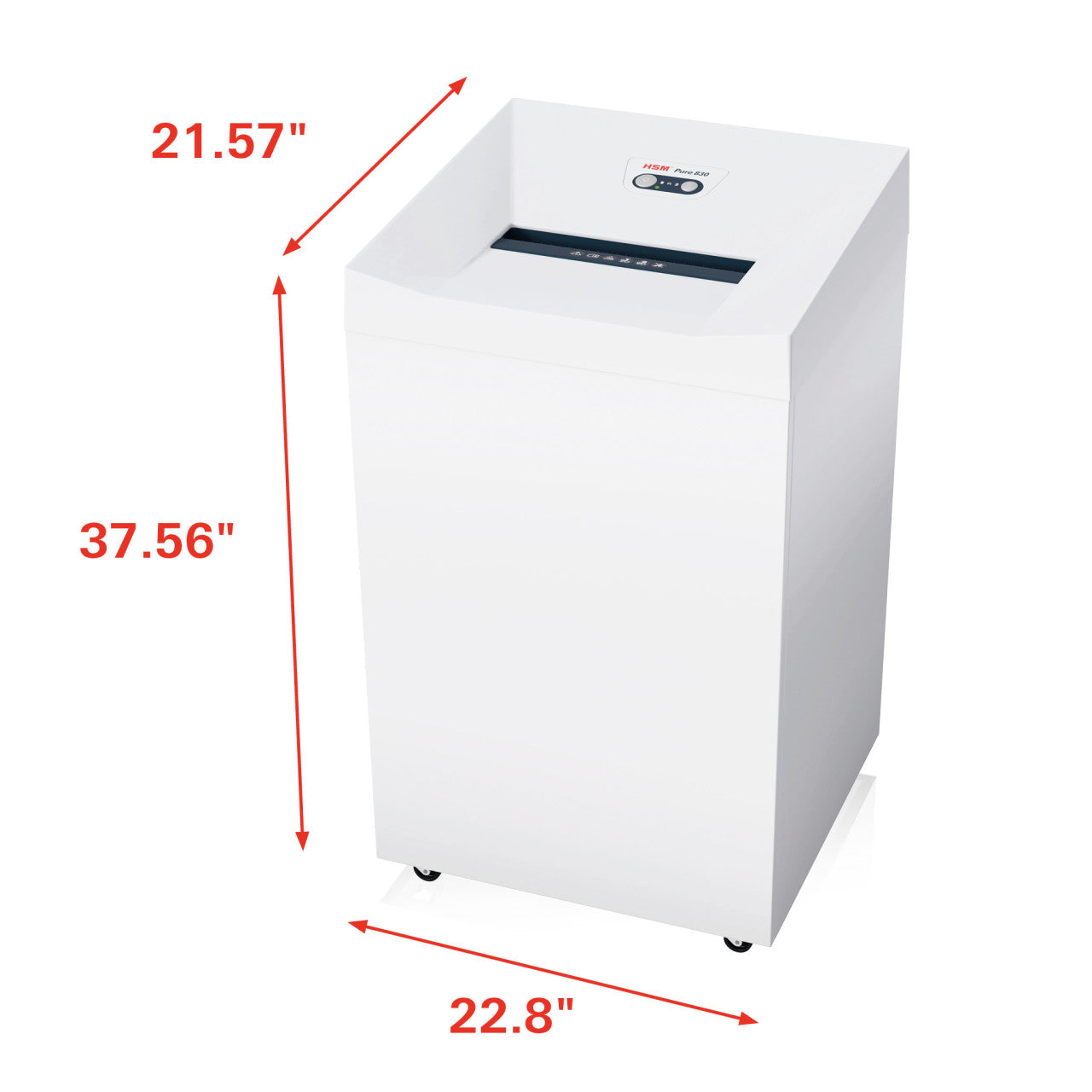

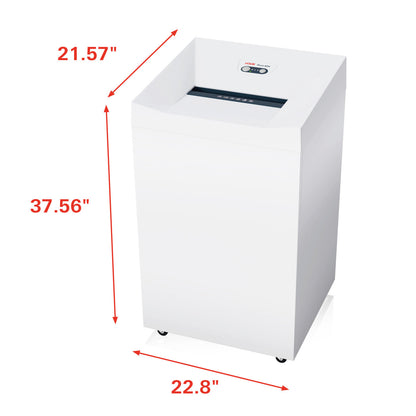

Dimensions (W x D x H) 579 x 548 x 954 mm (22.8" x 21.6" x 37.6")
Weight 73 kg (161 lb)
Shreddable materials Paper, staples and paper clips, credit cards, CDs/DVDs
Warranty Lifetime warranty on the induction-hardened solid steel cutting rollers

What's in the Box

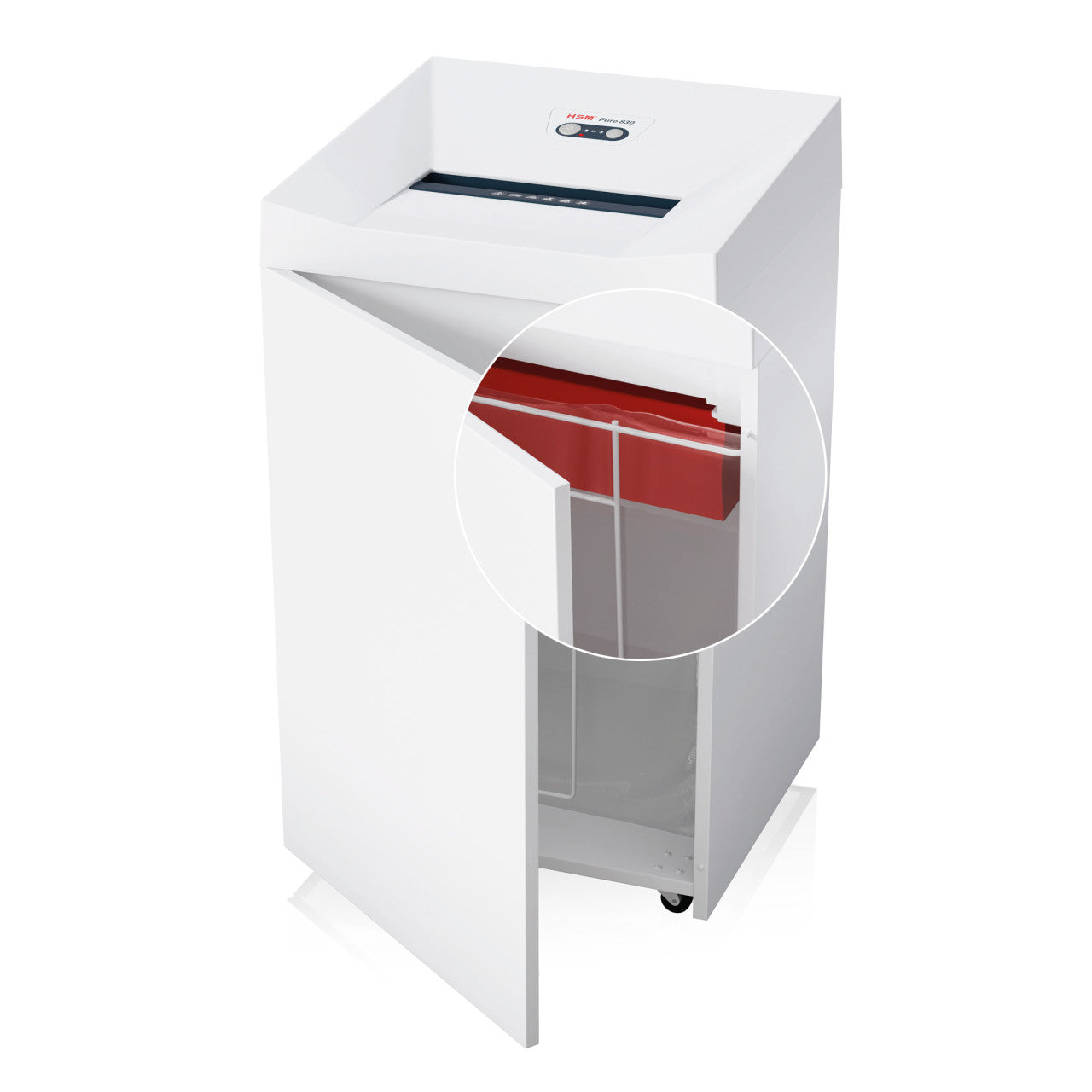

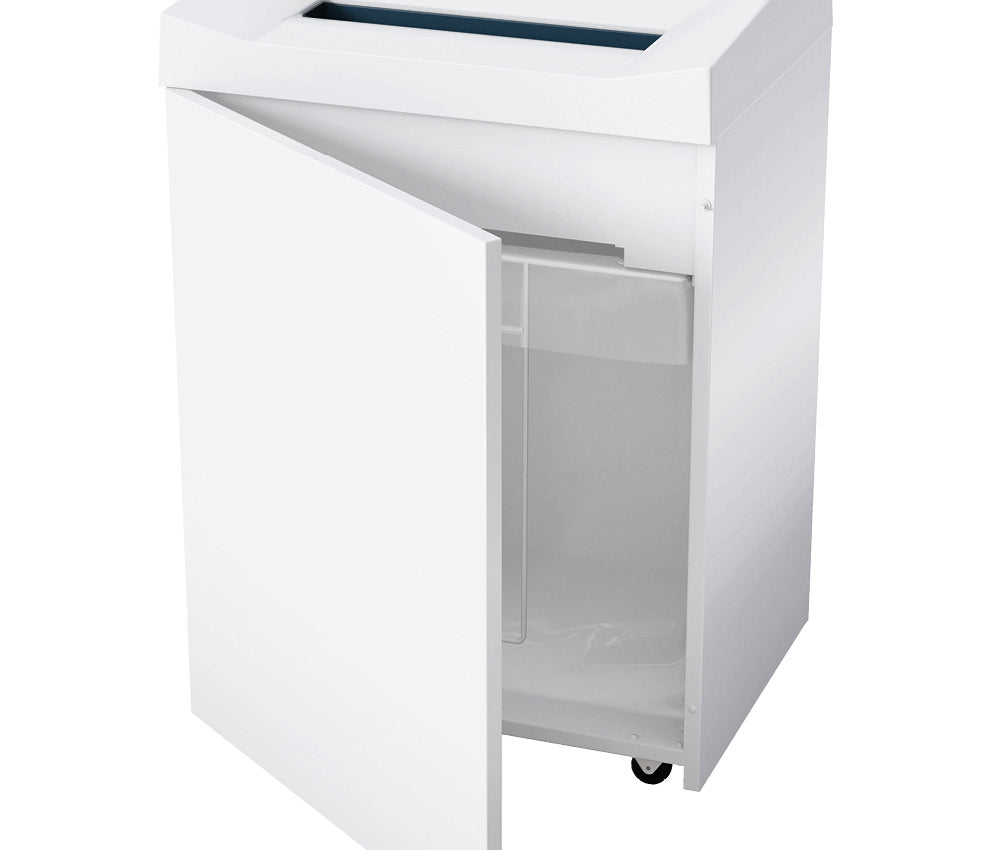

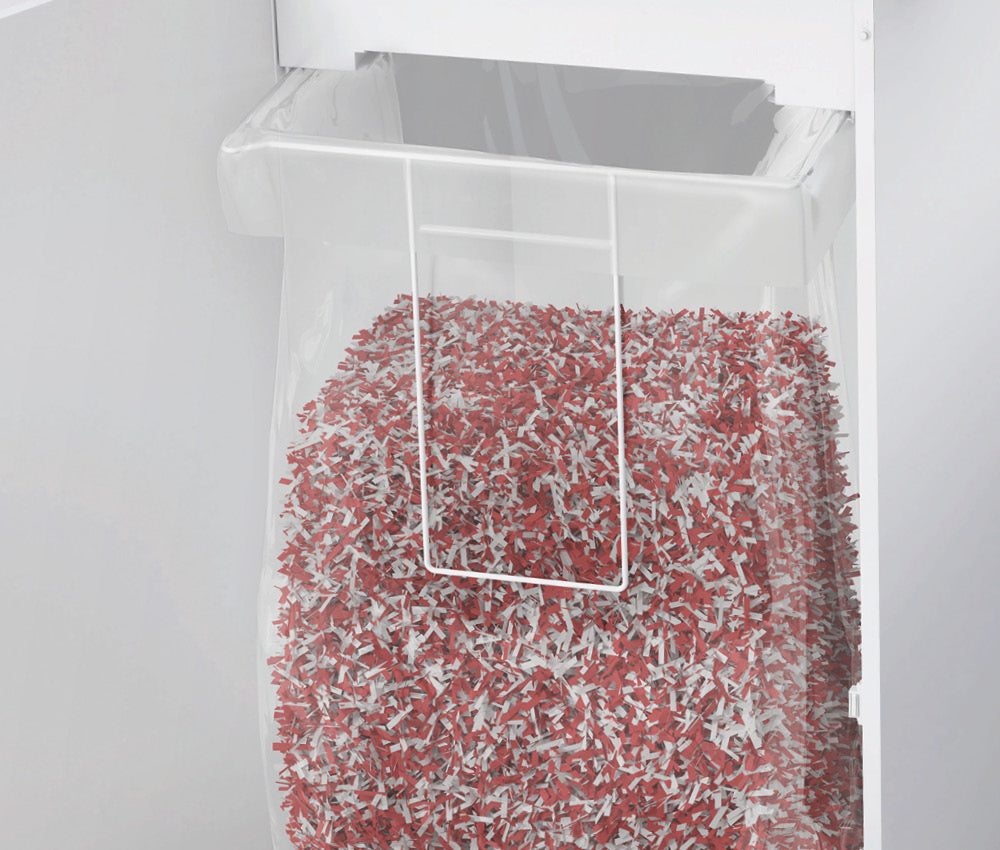

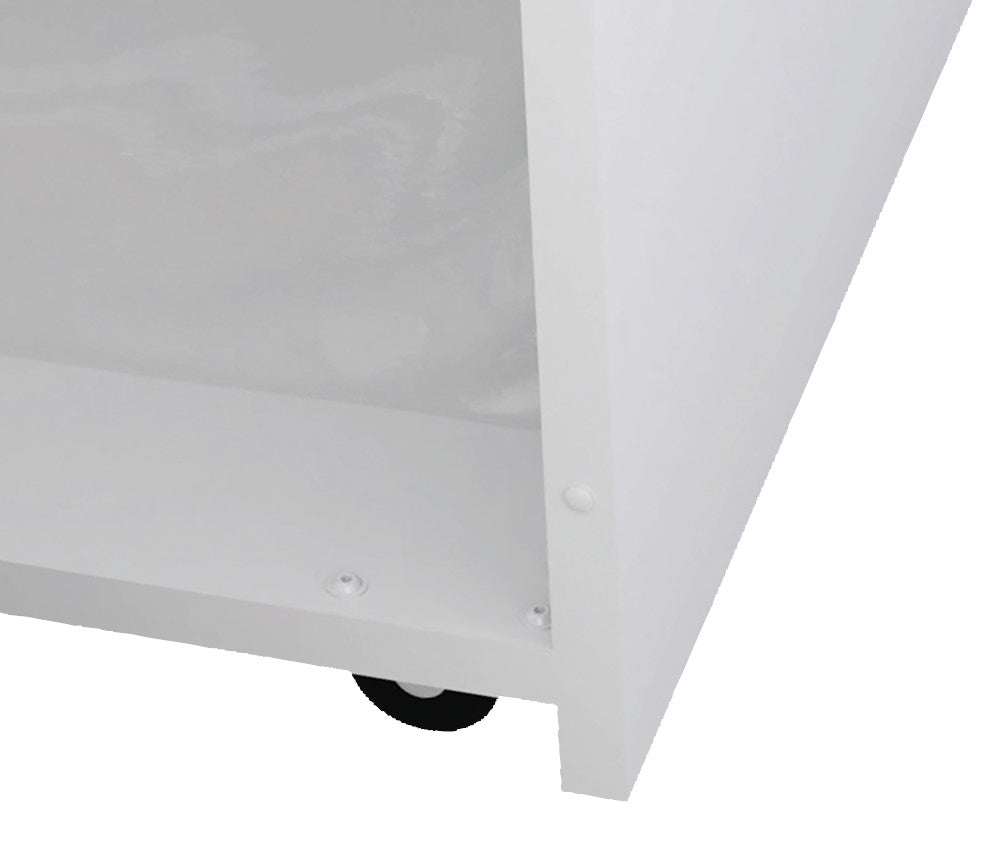

Floor cabinet with wooden base on castors, removable collecting bag frame, wide door opening, power lead. Waste bags are not included; the bin takes a 150 litre liner. There is no automatic oiler option on the Pure 830, so manual lubrication of the particle-cut head needs to be somebody's named responsibility - order shredder oil or oil sheets at the same time.

Who Should Buy This — and Who Should Not

This is the machine for a department that has standardised on P-4 and shreds enough that the 20-sheet ceiling on the Pure 630 and 740 has become annoying. Fifteen to thirty people can share it comfortably. It is also the sensible central machine for a floor that wants one shredder rather than three.

Three reasons to choose something else. Electrical supply: 1,920 W at 120 V is about 16 A, which needs a dedicated circuit - if you cannot provide one, the 700 W Pure 740 is the pragmatic answer at 21 to 22 sheets. Throat width: at 330 mm this is 70 mm narrower than the Pure 740, so if oversized or folded documents are routine, the 740 is easier to live with. Lubrication: with no oiler option here, a shared 830 depends on someone remembering, whereas the Pure 740 with external automatic oiler does not. If your policy specifies P-5 rather than P-4, the Pure 830 1.9 x 15 mm is this same chassis at 19 to 21 sheets.

Product Specification

Machine Type
Departmental
Shredder Series
Pure
Cut Type
Cross Cut
Shreddable Materials
Paper, staples and paper clips, credit cards, CDs/DVDs
Cut Size
4.5 x 30 mm (approx. 3/16" x 1 1/8")
Bin Size / Container Volume
39.6 gal (150 l)
Throat Width
13.0" (330 mm)
Power Consumption
1920 W
Voltage
120 V / 60 Hz
Weight
161 lb (73 kg)
Security Level
P-4
Sheet Capacity
33 - 35 sheets (80 g/m²)
Dimensions (WxDxH)
22.8" x 21.6" x 37.6" (579 x 548 x 954 mm)
Warranty
Lifetime warranty on the induction-hardened solid steel cutting rollers
dB Level
approx. 60 dB(A) at idle

Product listing details

Vendor
HSM
Product type
Document Shredder
Condition
New
SKU
2383133
GTIN
4026631054454
Price
$3,220.37 USD
Currency
USD
Availability
In stock
Shipping policy
Click to view policy
Refund policy
Click to view policy
Return policy
Click to view policy
View full details
Before you specify

Frequently Asked Questions

How can a P-4 machine take 33 sheets when the Pure 740 takes 21?

Motor power, almost entirely. The cutting head geometry is identical - 4.5 x 30 mm particles in both - but the Pure 830 has a 1,920 W motor against the 740's 700 W. Particle cutting is power-limited rather than geometry-limited at this scale, so more watts translate fairly directly into more sheets per pass.

What electrical supply does it need?

Plan for a dedicated 20 A circuit at 120 V. A 1,920 W load is roughly 16 A, which is above what a 15 A branch circuit should carry continuously. Do not run it from an extension lead or a shared outlet with other high-draw equipment. This is the single most common installation issue with the 830 and it is much cheaper to solve before delivery.

Does it shred CDs, DVDs and credit cards?

Yes. The classification is E-3|F-1|O-3|P-4|T-4, so optical discs, cards, film and magnetic carriers are within specification, along with staples and paper clips in ordinary paperwork. Feed discs and cards individually. If disc destruction is a large part of your workload, the micro-cut Pure 830 destroys optical media to O-4 rather than O-3.

How many bin changes should we expect?

The 150 litre bin holds about 1,860 shredded sheets. A floor destroying 500 pages a day will change it roughly every three to four working days. If that is too often, the Pure 740 max carries 240 litres and about 2,950 sheets with the same P-4 cut, though on a 700 W motor with a lower sheet rating.

Is it too loud for an open-plan office?

Probably. At around 60 dB(A) idle it is roughly 5 dB(A) above the Pure 530, 630 and 740, and it is louder again when cutting. Site it in a print room, copy area or utility space. If it has to live among desks, the quieter 700 W machines are the better neighbours.

Does the lifetime cutting-roller warranty apply here?

Yes. HSM covers the induction-hardened solid steel cutting rollers for the life of the machine on cuts from P-2 to P-5, and this is a P-4. The warranty covers the rollers themselves, not the motor, electronics or cabinet, and it assumes the machine has been used within its rated materials - staples and paper clips are fine, ring binder hardware is not.

Should I buy this or the Pure 740 with the automatic oiler?

Ask who will maintain it. If lubrication will be done reliably, the 830 gives you 50 percent more sheets per pass for the same P-4 output and a similar bin. If the machine will be communal and unowned, the oiler on the 740 is worth more over five years than the extra sheet capacity, because an unoiled particle-cut head loses capacity anyway.
