HSM Pure 630 3/16 x 1 1/8 with External Automatic Oiler - HSM23634

The HSM Pure 630 with external automatic oiler is a P-4 cross-cut floor shredder (DIN 66399) that cuts 4.5 x 30 mm particles, accepts 20-22 sheets per pass and lubricates its own cutting rollers from a pump mounted on the cabinet. It is the Pure 630 to choose for a shared departmental machine, where everyone uses it and nobody takes responsibility for oiling it.

Pure 630 with oiler at a glance

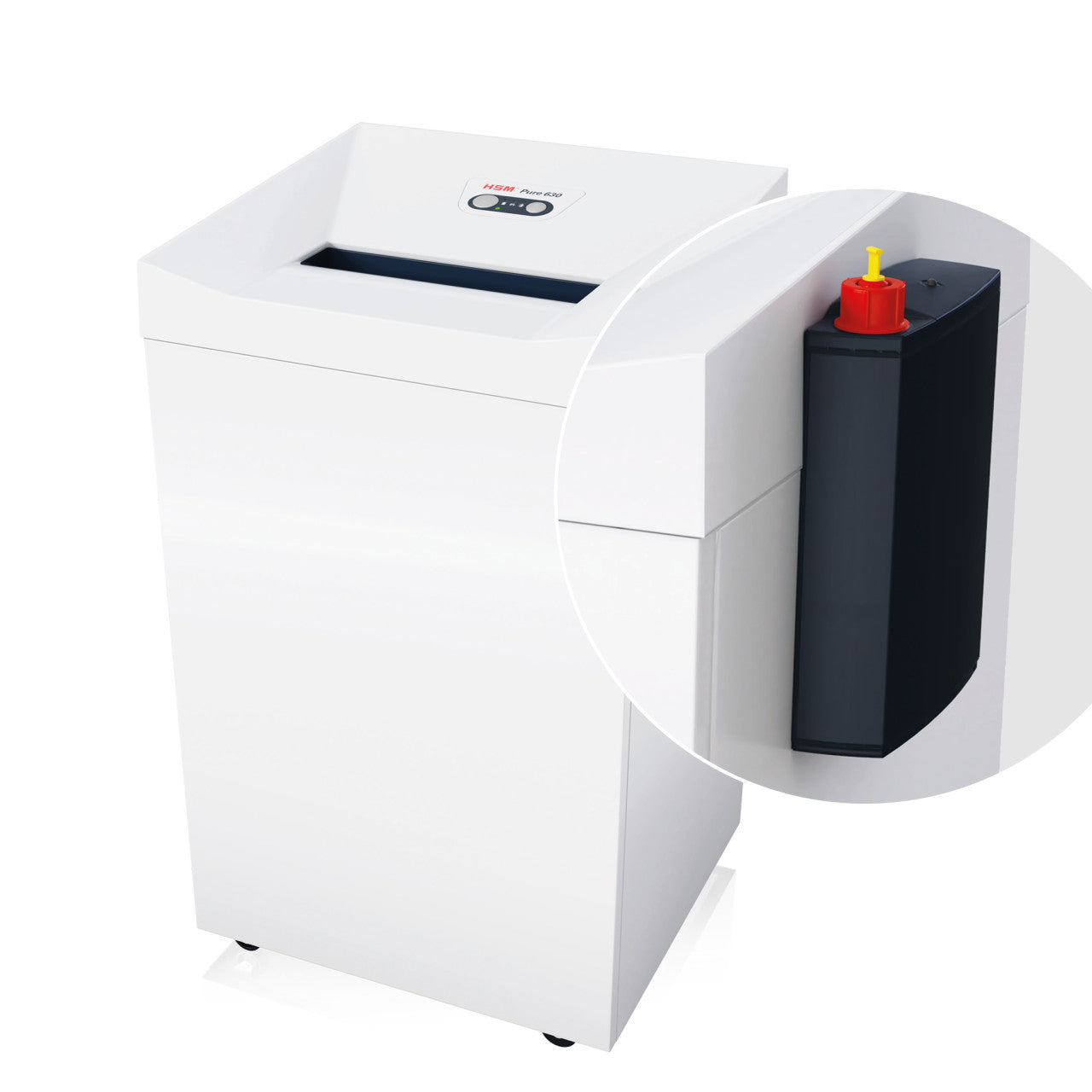

• Factory-fitted external automatic oiler with outside reservoir
• P-4 particle of 135 mm², classified E-3 | F-1 | O-3 | P-4 | T-4
• 20-22 sheets per pass at 80 g/m², 700 W motor

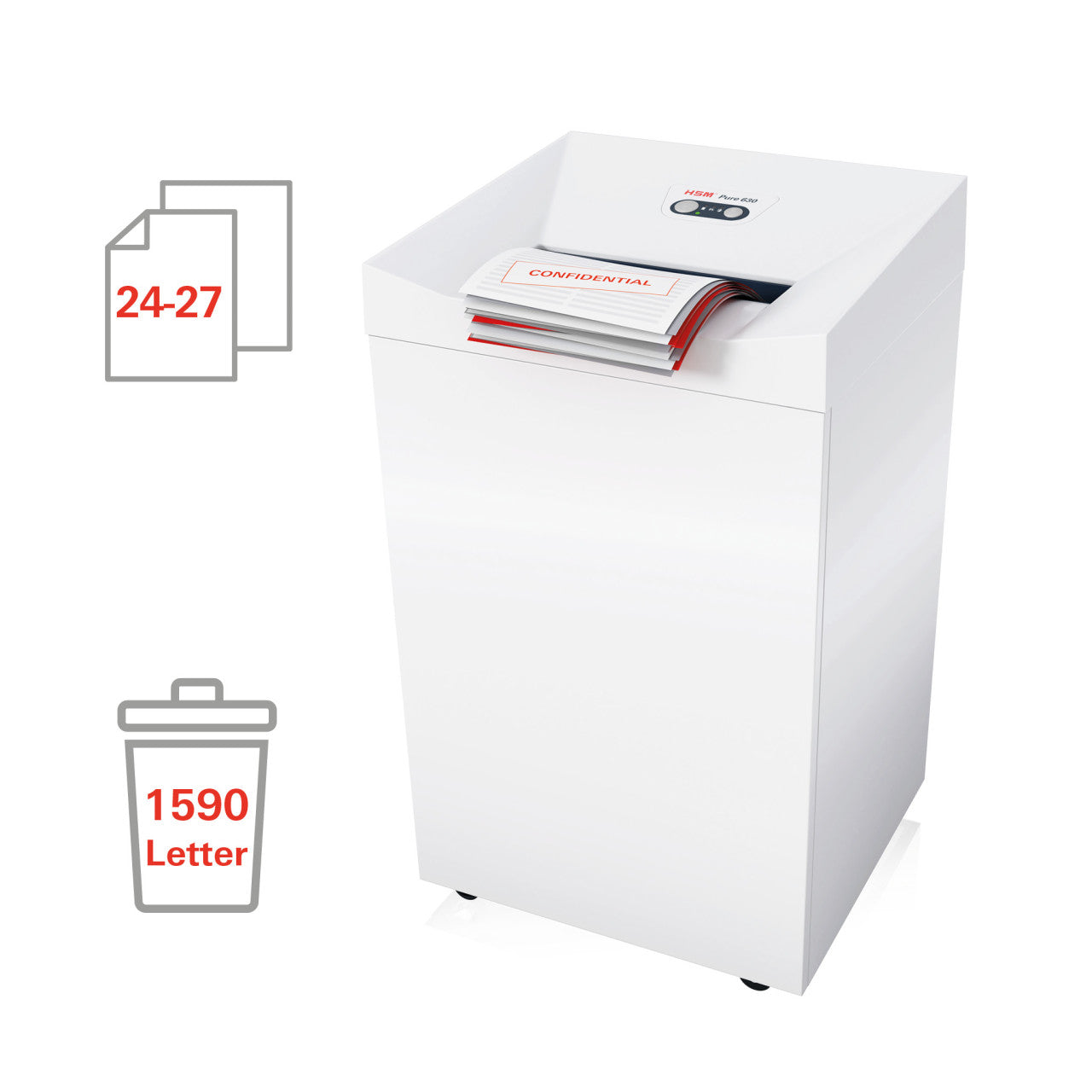

• 12.2 in (310 mm) feed and a 130-liter bin of about 1,590 sheets

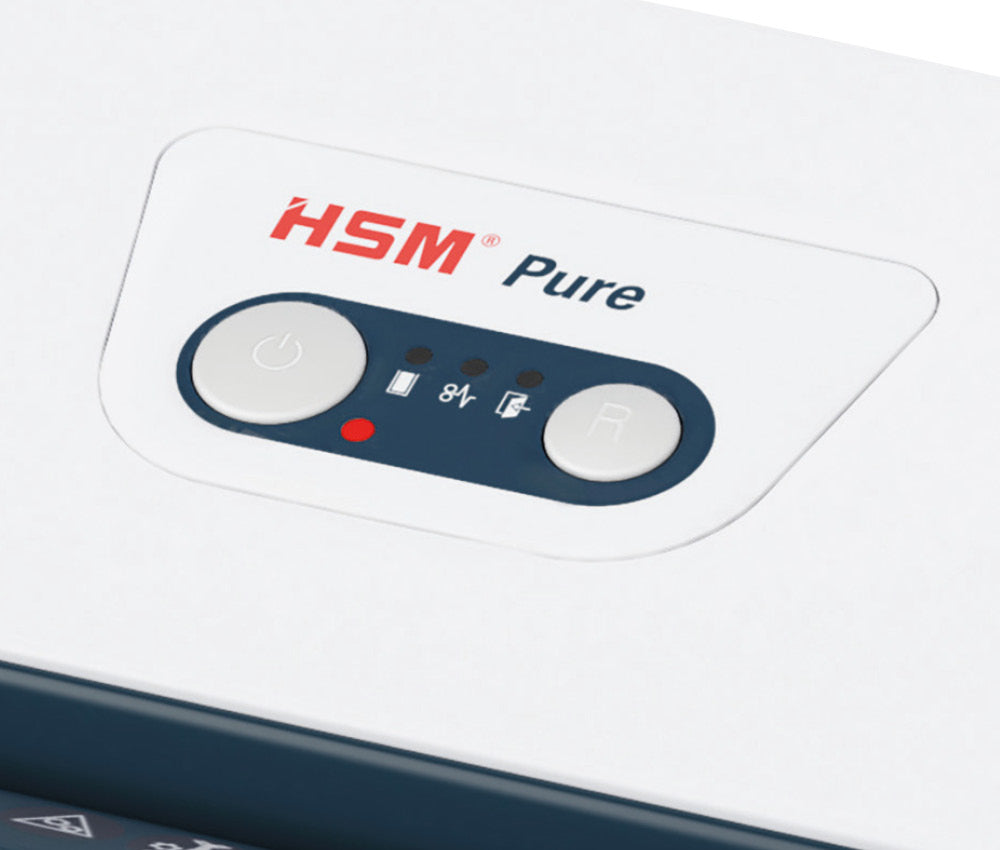

• Full-bin shutoff and overload reverse

Why shared shredders benefit most from an oiler

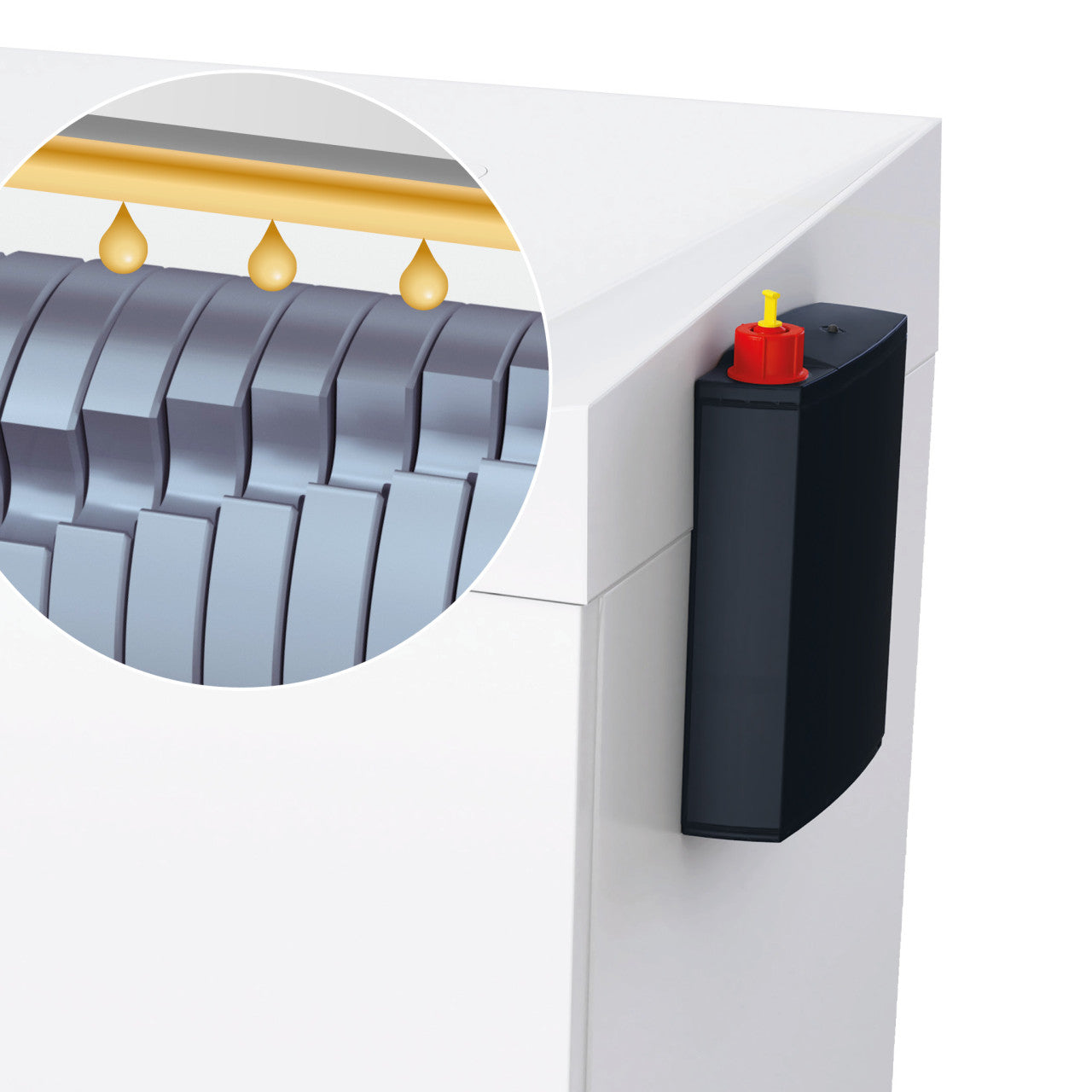

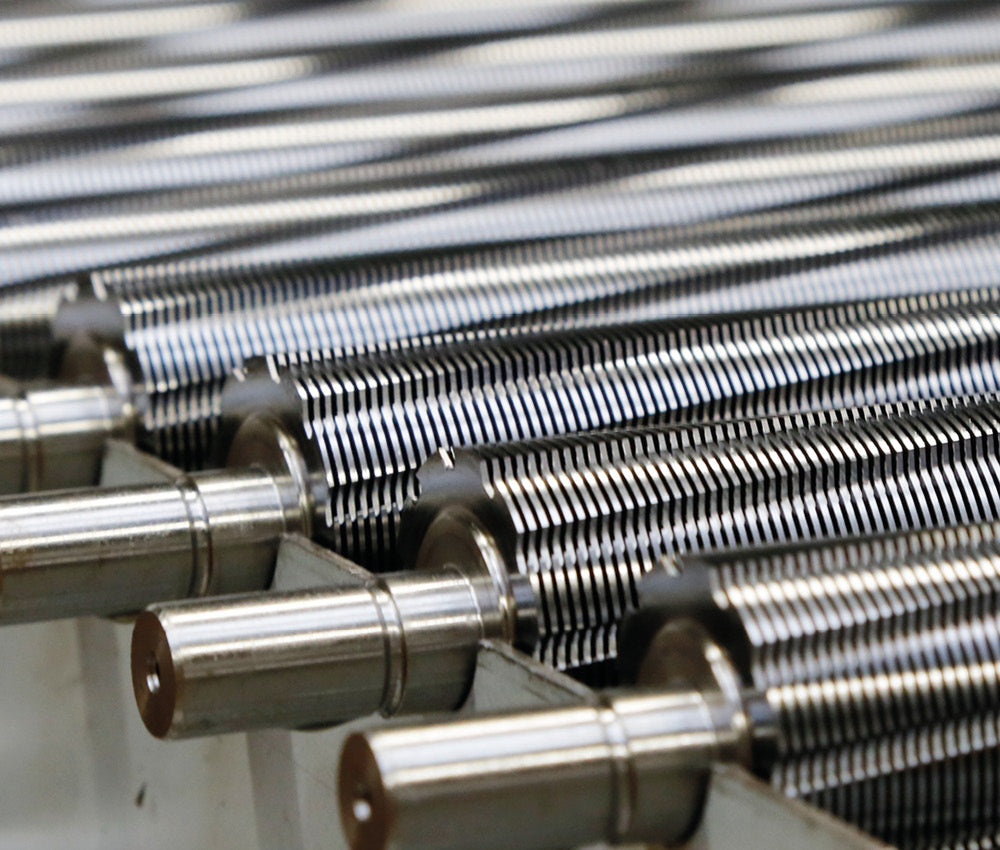

When a shredder belongs to everyone, maintenance belongs to no one. A particle-cut head run without oil does not fail overnight; it loses capacity month by month until a machine rated for 22 sheets struggles with far fewer, then it starts to jam. HSM's advice for the plain 630 is to oil at each bin change, which is exactly the task that gets skipped. On this version a pump meters oil onto the rollers during operation, so the rated capacity holds over the years. Your only job is to keep the reservoir filled with HSM cutting-roller oil, and because the reservoir is on the outside of the cabinet that takes no tools and no access to the cutting head.

Same security and capacity as the standard Pure 630

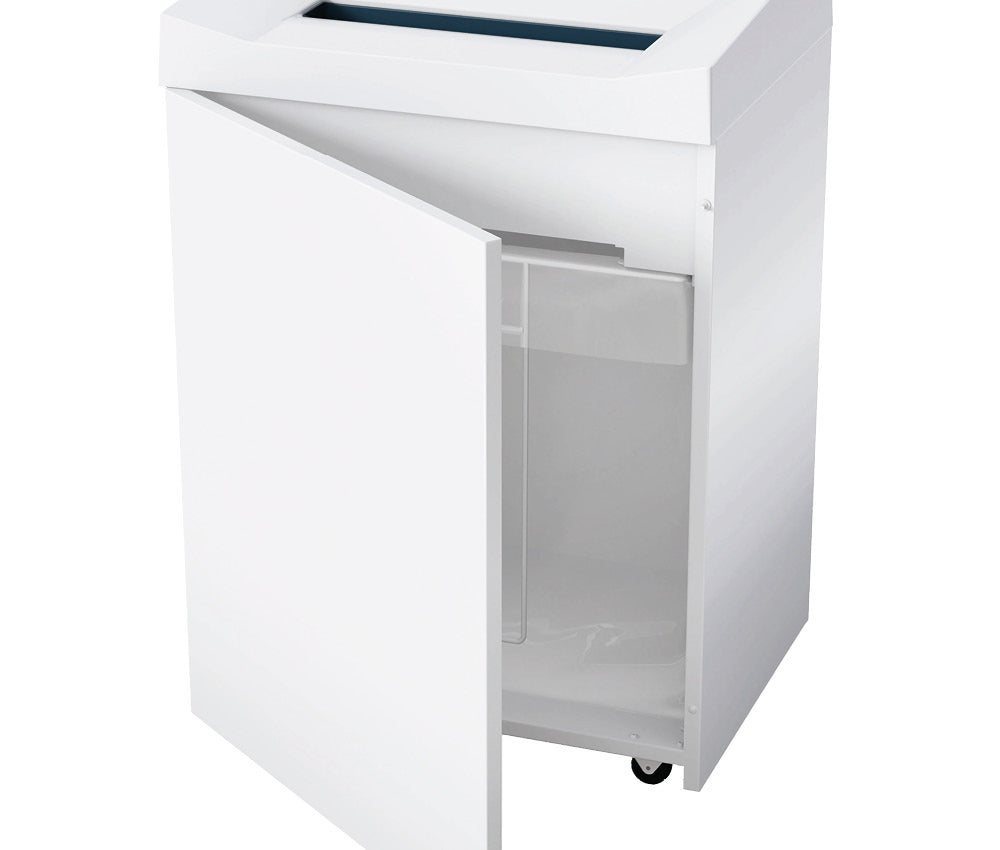

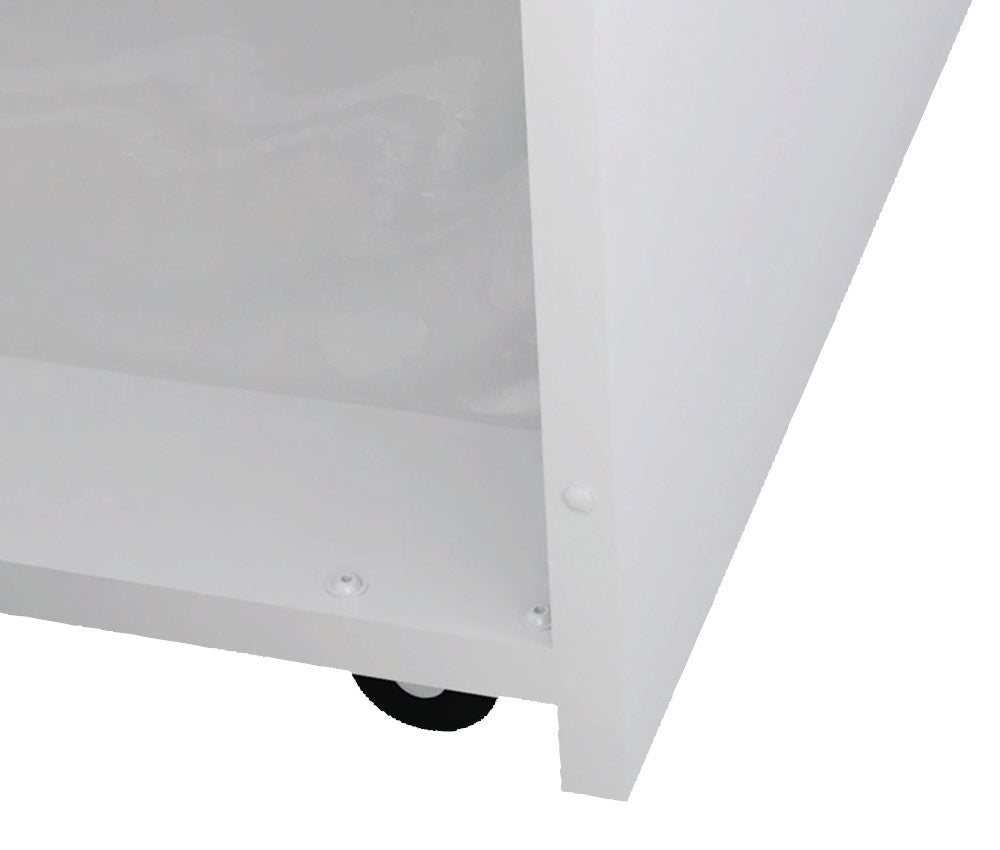

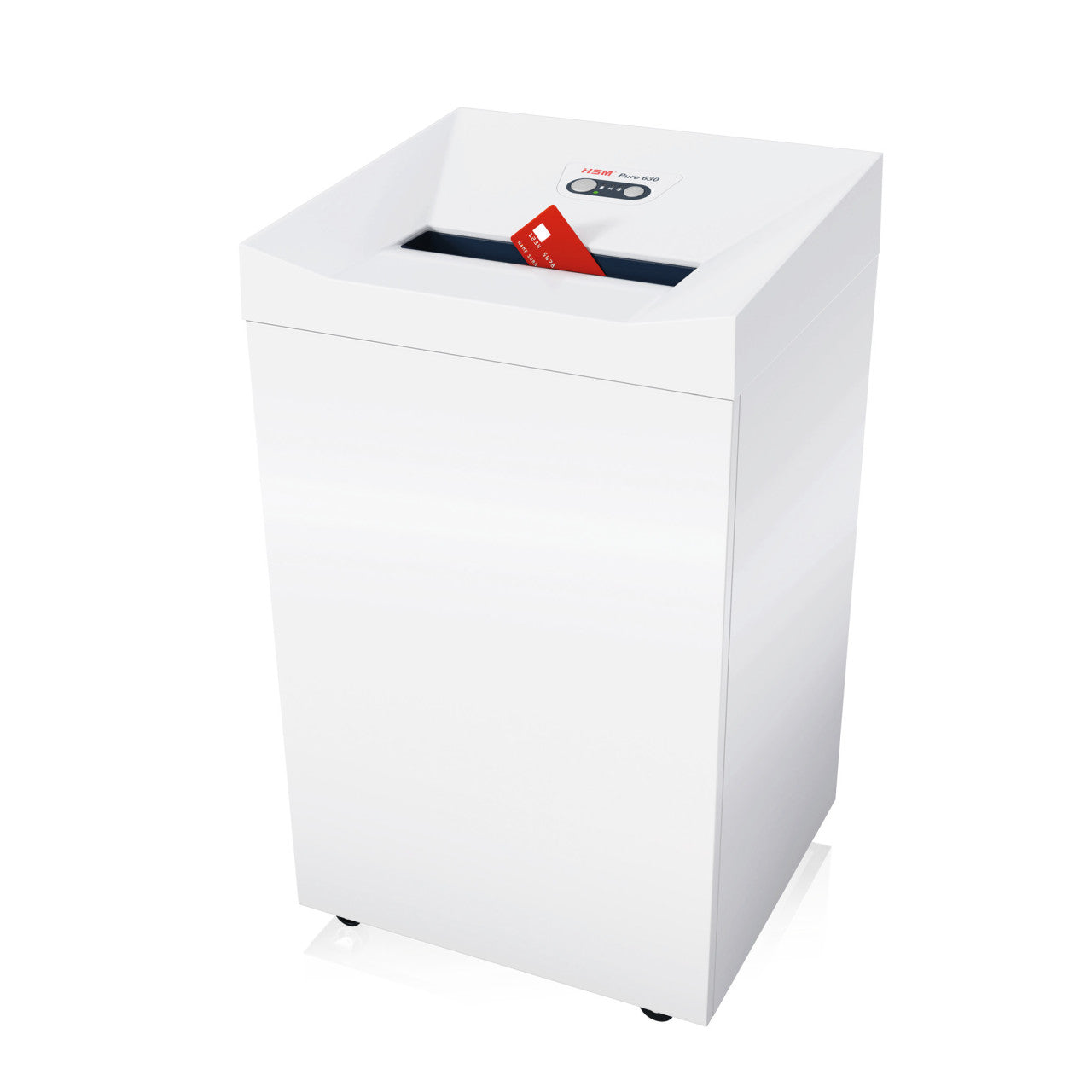

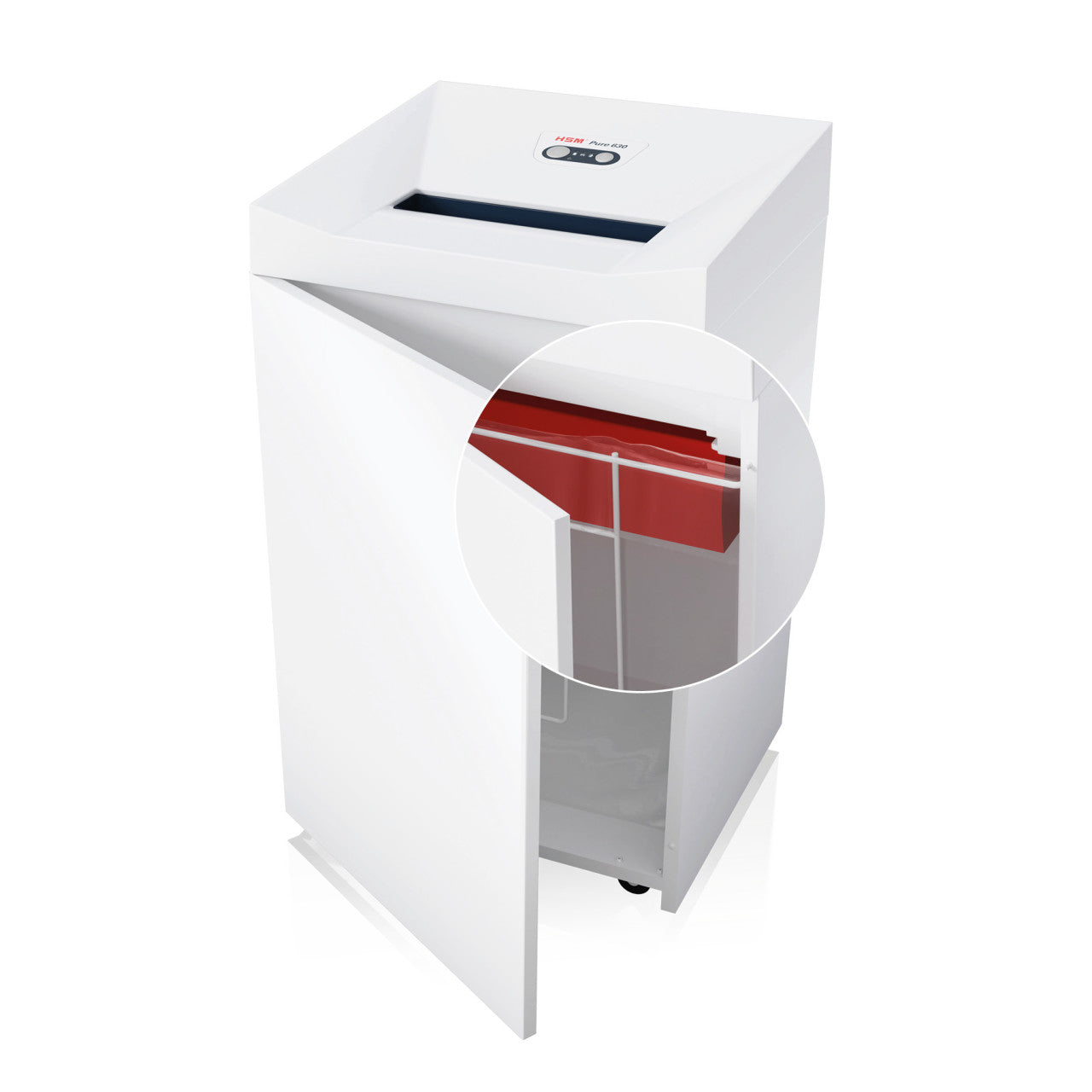

The oiler does not alter the cut. Particles measure 4.5 x 30 mm, within the 160 mm² ceiling DIN 66399 sets for P-4, suitable for HR, payroll and client records. Credit cards, CDs and DVDs, staples and paper clips are within specification. The 130-liter bin takes about 1,590 sheets; the machine stops itself when it is full and reverses the rollers if a stack is too thick. Idle noise is around 55 dB(A), and the cabinet rolls on castors. Bags are not included, so order 130-liter liners and a supply of oil together.

HSM Pure 630 with external automatic oiler specifications

Comparing the oiled 630 with related machines

• Standard Pure 630 cross cut: identical cutting head and bin without the pump; cheaper if one person will reliably oil it.
• Pure 740 with external automatic oiler: a wider 400 mm feed and a 145-liter bin at 21-22 sheets.
• Pure 740 max 1.9 x 15 mm with external automatic oiler: the oiled P-5 option, at 14-15 sheets per pass.
• Pure 530 with external automatic oiler: the same P-4 cut at 14-16 sheets with an 80-liter bin, for smaller teams.
• Pure 630 strip cut: a quicker 35-37 sheets in this cabinet, at the cost of dropping to P-2.

Who it suits

A department of several people working to a P-4 policy, sharing one machine, is the clear use case: the oiler protects the investment where nobody owns the upkeep. If a single person will oil the standard 630 every bin change, save the difference. Choose the 740 if wide documents are routine, and a P-5 model if your policy calls for P-5.
