HSM

HSM Pure 530 3/16 x 1 1/8 Cross Cut - HSM2353

HSM Pure 530 3/16 x 1 1/8 Cross Cut - HSM2353

DIN 66399 security level P-4max 160 mm² particleOffice baselineParticularly sensitive personal data: HR files, contracts, payroll, patient and customer records. See every P-4 machine
Cut
Cross Cut
Cut size
4.5 x 30 mm (approx. 3/16" x 1 3/16") particle cut
Sheet capacity
14-16 sheets (80 g/m2)
Throat width
11.8" (300 mm)
Regular price $1,008.00 USD
Regular price $2,314.10 USD Sale price $1,008.00 USD
Sale Sold out
Quantity
  • Free shipping across the USA Included on every machine in the catalogue
  • 30-day return policy Shipping, refund and return terms published in full
  • +1 (858) 266-0509 Speak to a specification specialist · 08:00 AM – 05:00 PM PST, Monday to Friday

Authorized HSM dealer New stock through the manufacturer's authorized channel, with the manufacturer's own warranty · what this covers

Description

The cross-cut HSM Pure 530 is the machine to specify when a department needs DIN 66399 P-4 security, a throat wide enough for tabloid and A3, and a bin that does not need emptying every day. It cuts 4.5 x 30 mm particles, takes 14 to 16 sheets a pass through a 300 mm intake, and packs roughly 978 shredded sheets into its 80 litre container - by a wide margin the largest working capacity in the Pure range.

That bin figure is the quiet argument for this model over its strip-cut twin. Both use the same 80 litre container; the strip-cut version holds about 526 sheets because strips trap air, while particle cut compacts to nearly double that. So the more secure machine is also the one you interrupt work to empty less often - an unusual combination, and worth knowing when someone objects to the price difference.

Key Features

  • P-4 through a 300 mm throat. The only Pure model that offers confidential-grade security on tabloid and A3 documents without folding them first.
  • Approximately 978 shredded sheets per bin. Nearly double the strip-cut version's, in the same 80 litre container.
  • 4.5 x 30 mm particle - 135 mm², inside the 160 mm² DIN allows for P-4. Full rating: E-3, F-1, O-3, P-4, T-4.

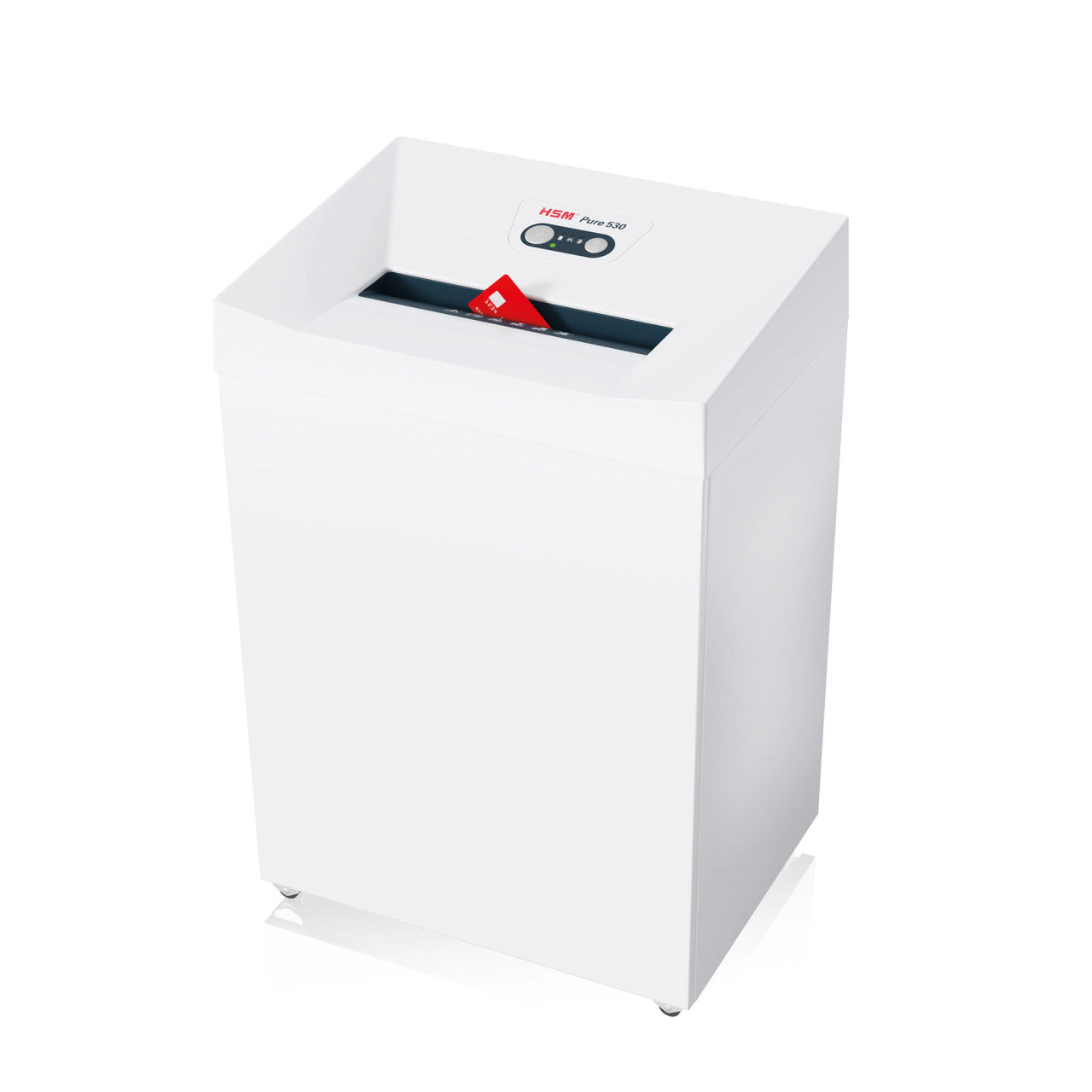

  • Rated for film, optical media and magnetic cards as well as paper, so a mixed destruction list needs only one machine.
  • Full-bin display with automatic shut-off. Essential on a bin this size, because nobody looks inside an 80 litre drawer until it stops working.
  • 610 W motor with overload-protected feed. The feed relieves pressure rather than stalling when someone pushes in one handful too many.
  • Induction-hardened solid steel cutting rollers, lifetime warranty, handling staples and paper clips without pre-sorting.
  • Approximately 55 dB(A) at idle. Quieter than most machines with this footprint.

Specifications

Security level (DIN 66399 / ISO 21964) P-4 (full rating E-3 | F-1 | O-3 | P-4 | T-4)
Cut type Cross cut (HSM: particle cut)
Cut size 4.5 x 30 mm (approx. 3/16" x 1 3/16") - 135 mm² particle area
Sheet capacity 14 - 16 sheets at 80 g/m²
Throat width 300 mm (11.8") - accepts up to A3 / tabloid
Bin volume 80 L (21.1 US gal)
Bin holds approx. 978 shredded sheets
Motor / power consumption 610 W
Voltage 110-120 V / 60 Hz
Noise level approx. 55 dB(A) at idle

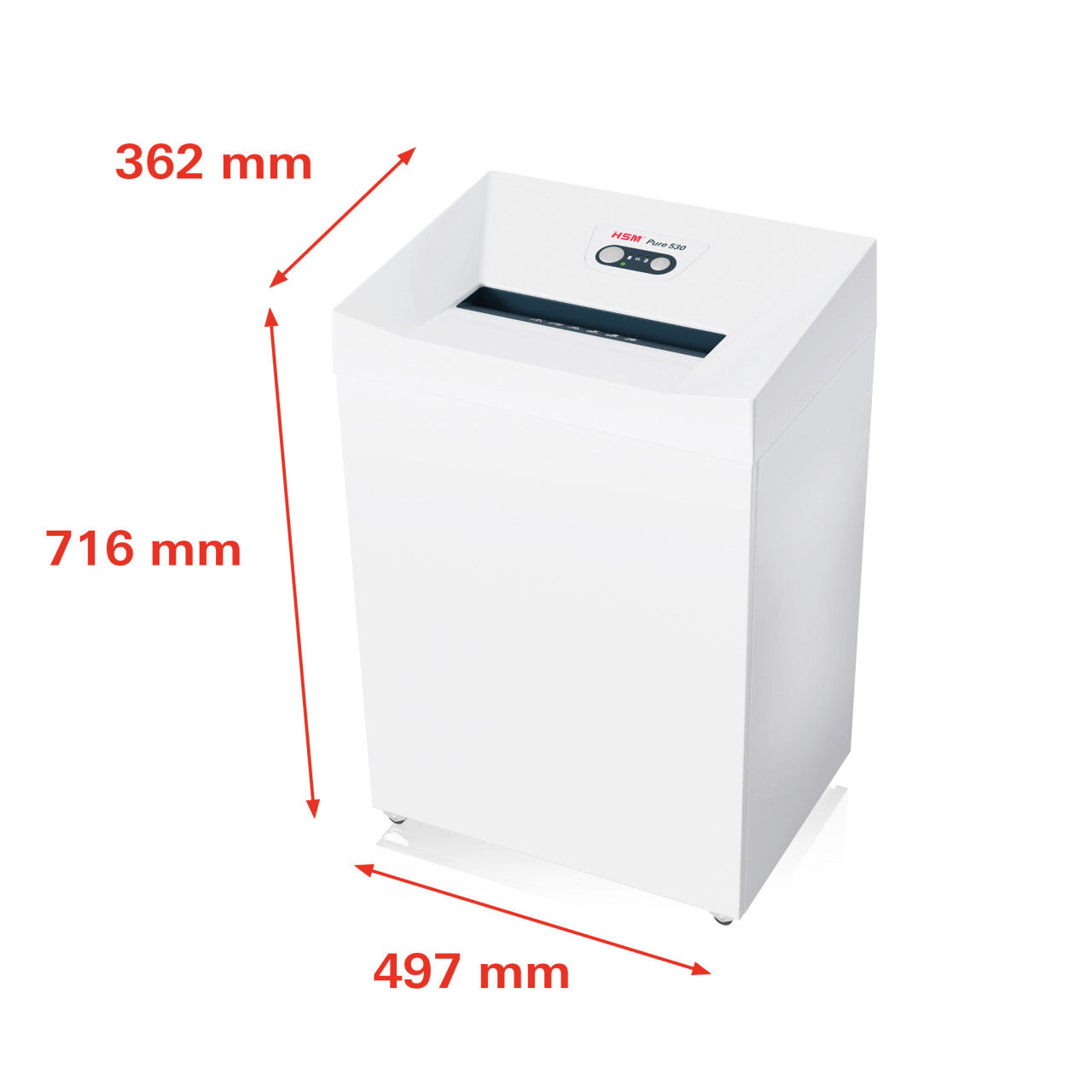

Dimensions (W x D x H) 497 x 362 x 716 mm (19.6" x 14.3" x 28.2")
Weight 29.5 kg (65.0 lb)
Shreddable materials Paper, staples, paper clips, credit and magnetic cards, CDs and DVDs, film
Warranty Lifetime warranty on the steel cutting rollers

Sheet capacity is HSM's own figure at 80 g/m². Standard US 20 lb copier paper is about 75 g/m², slightly lighter, so the published figure is a conservative one for a typical American office. Any shredder quoted against lighter paper will look better on paper than it performs.

What's in the Box

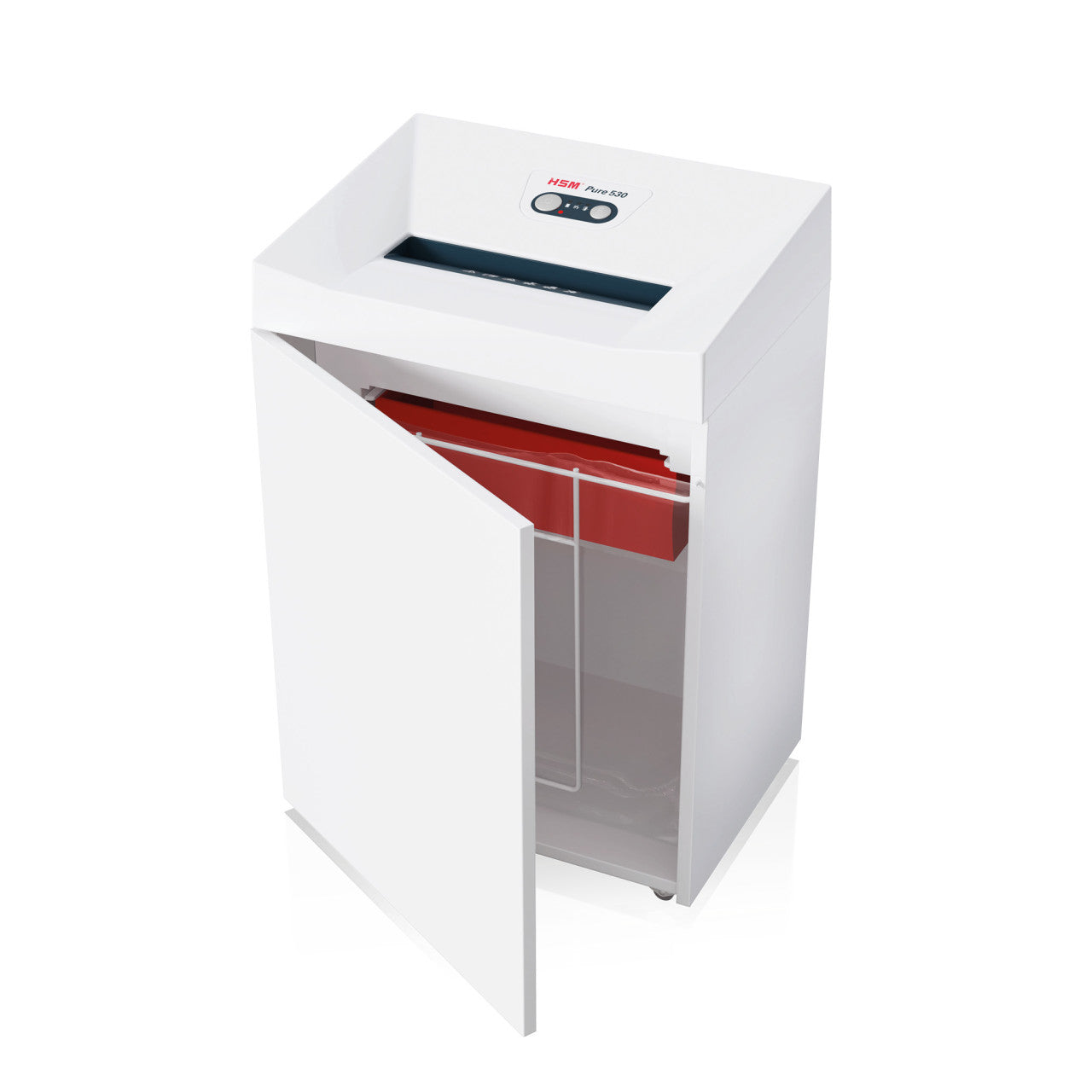

Shredder, 80 litre pull-out container, operating instructions. Bags are not supplied; on an 80 litre bin a liner is close to essential for practical emptying, and we can supply the HSM bag sized to this container. Buy shredder oil at the same time - particle-cut heads want periodic lubrication and this one will be working.

Who Should Buy This - and Who Should Not

This is the right central machine for a department of ten to twenty-five people that handles confidential paper and produces large-format documents: architecture and engineering practices, medical records offices, local government departments, finance teams working with printed schedules. The combination of P-4, an A3-capable throat and a near-thousand-sheet bin is not available anywhere else in the Pure line.

Do not buy it if you only ever shred letter and legal paper - the HSM Pure 420 cross-cut gives the same P-4 particle and the same optical and film ratings in a smaller, cheaper cabinet, and its 420-sheet bin is adequate for most teams. Do not buy it purely for speed: the HSM Pure 530 strip-cut takes 25 to 27 sheets a pass but at P-2, which is not a security level. And if your destruction policy names P-5, P-6 or an NSA listing, no Pure model qualifies - that requirement belongs in the HSM SECURIO high-security range, and it is worth knowing that HSM's lifetime cutting-roller warranty covers P-2 to P-5 only, so a P-6 machine is a warranty downgrade as well as a capacity one.

Product Specification

Machine Type
Office
Shredder Series
Pure
Cut Type
Cross Cut
Shreddable Materials
Paper, Staples and paper clips, Credit card, CD/DVD
Cut Size
4.5 x 30 mm (approx. 3/16" x 1 3/16") particle cut
Bin Size / Container Volume
21.1 US gal (80 L)
Throat Width
11.8" (300 mm)
Power Consumption
610 W
Voltage
110-120 V / 60 Hz
Weight
65.0 lb (29.5 kg)
Security Level
P-4
Sheet Capacity
14-16 sheets (80 g/m2)
Dimensions (WxDxH)
19.6" x 14.3" x 28.2" (497 x 362 x 716 mm)
Warranty
Lifetime warranty on the steel cutting rollers
dB Level
approx. 55 dB(A) idle

Product listing details

Vendor
HSM
Product type
Document Shredder
Condition
New
SKU
2353113
GTIN
4026631054348
Price
$1,008.00 USD
Currency
USD
Availability
In stock
Shipping policy
Click to view policy
Refund policy
Click to view policy
Return policy
Click to view policy
View full details
Before you specify

Frequently Asked Questions

Why does the cross-cut hold nearly twice as many sheets as the strip-cut?

Because of how the waste packs. Both models use the same 80 litre container, but HSM rates the cross-cut at approximately 978 shredded sheets against 526 for the strip cut. Strip-cut waste is long and springy and traps a lot of air; 4.5 x 30 mm particles settle densely. The practical result is that the more secure machine is emptied less often, which is the opposite of what most buyers expect.

Will it take tabloid, A3 and folded plans?

Tabloid and A3 yes - the throat is 300 mm and HSM states the machine accepts documents up to DIN A3, which is 297 mm wide. Tabloid at 11 inches is 279 mm. Larger plans need folding to under 300 mm across, and remember that each fold counts against your 14 to 16 sheet pass limit, so a folded A1 drawing is effectively four sheets going in at once.

Is P-4 enough for medical or legal records?

For records administration, yes - P-4 is the level most organisations specify for material containing personal, medical or financial detail, and it is what an auditor typically expects to see. For material where reconstruction would be seriously damaging - privileged case files, research under NDA, anything classified - your policy may call for P-5 or higher, and this machine does not reach it. Check your own retention and destruction policy before assuming.

Can it shred CDs, film and laminated documents?

CDs and film yes; laminated documents, cautiously. The rating is E-3, F-1, O-3, P-4, T-4, so optical media and film are within specification. Heavy laminate and plastic-covered binding are a different material and will load the rollers hard even though F-1 is present. Feed discs singly. Remove ring binders, bulldog clips and plastic comb bindings in all cases.

How many people can this machine support?

A department of ten to twenty-five in normal use. Fourteen to sixteen sheets a pass keeps a queue from forming and the 978-sheet bin means emptying perhaps weekly for most teams. HSM does not publish a duty-cycle figure, so if the machine will be fed continuously for hours - a records clearance project, for instance - plan pauses into the work or look at a departmental machine from the SECURIO range.

What does the lifetime warranty cover, and what does it not?

It covers the induction-hardened solid steel cutting rollers, which is where a shredder normally dies. HSM applies this cover to its P-2 through P-5 machines, so this P-4 model qualifies in full. It does not cover the motor, electronics or housing, which fall under the standard product warranty, and it does not cover damage from feeding material outside the specification - laminate, binders, clips, or paper quantities well over the pass limit.

Is it NSA approved?

No. NSA/CSS 02-01 requires particles no larger than 1 mm by 5 mm and requires the specific model to be on the NSA Evaluated Products List. This machine produces a 4.5 x 30 mm particle and appears on no such list. A DIN P-4 rating and an NSA approval are unrelated claims. If you need NSA-listed destruction, we can direct you to the high-security models that genuinely hold it.
