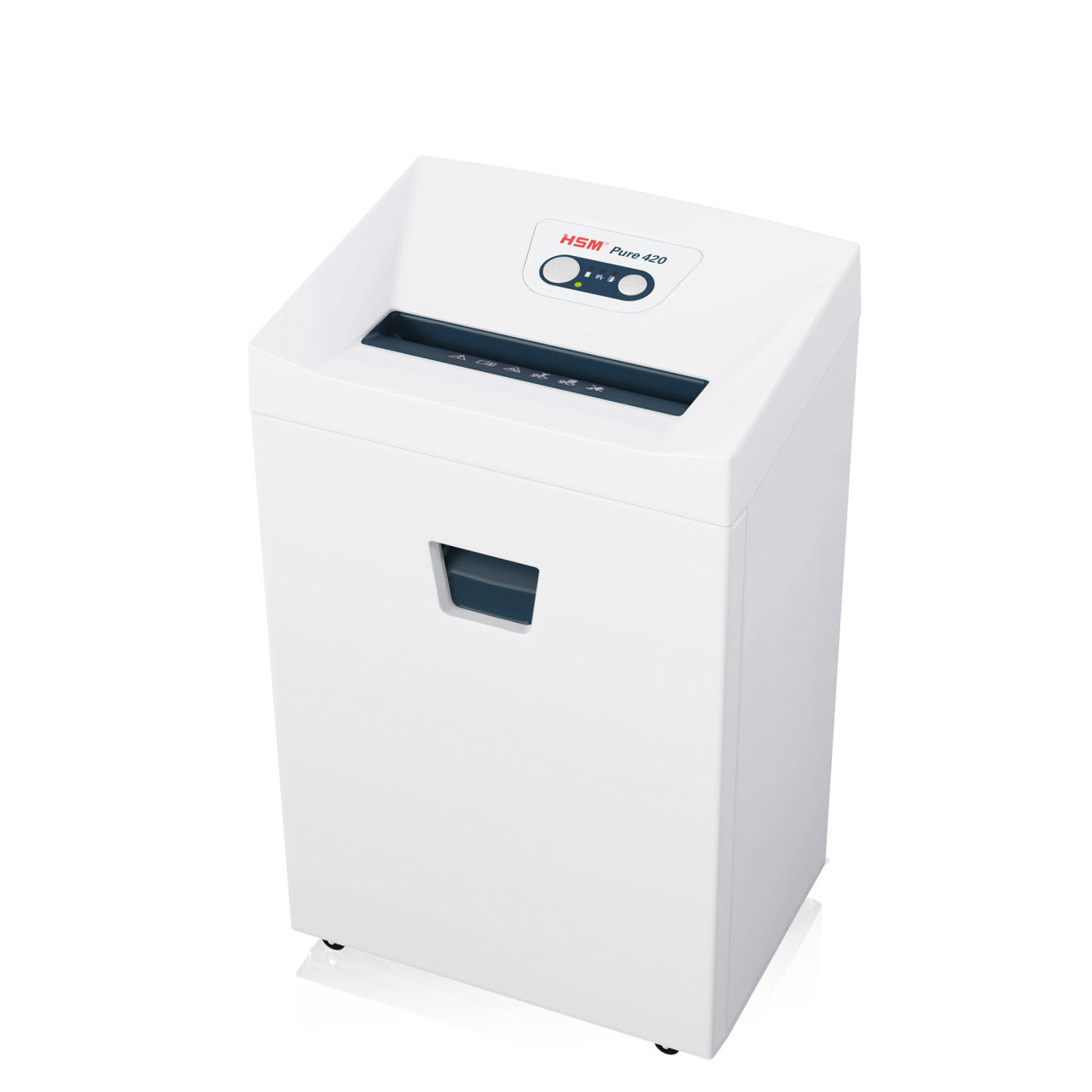

HSM Pure 420 3/16 x 1 1/8 Cross Cut - HSM2343

HSM Pure 420 3/16 x 1 1/8 Cross Cut - HSM2343

DIN 66399 security level P-4max 160 mm² particleOffice baselineParticularly sensitive personal data: HR files, contracts, payroll, patient and customer records. See every P-4 machine
Cut
Cross Cut
Cut size
4.5 x 30 mm (approx. 3/16" x 1 3/16") particle cut
Sheet capacity
13-15 sheets (80 g/m2)
Throat width
9.4" (240 mm)
Regular price $634.09 USD
Regular price $1,467.61 USD Sale price $634.09 USD
Sale Sold out
Quantity
  • Free shipping across the USA Included on every machine in the catalogue
  • 30-day return policy Shipping, refund and return terms published in full
  • +1 (858) 266-0509 Speak to a specification specialist · 08:00 AM – 05:00 PM PST, Monday to Friday

Authorized HSM dealer New stock through the manufacturer's authorized channel, with the manufacturer's own warranty · what this covers

Description

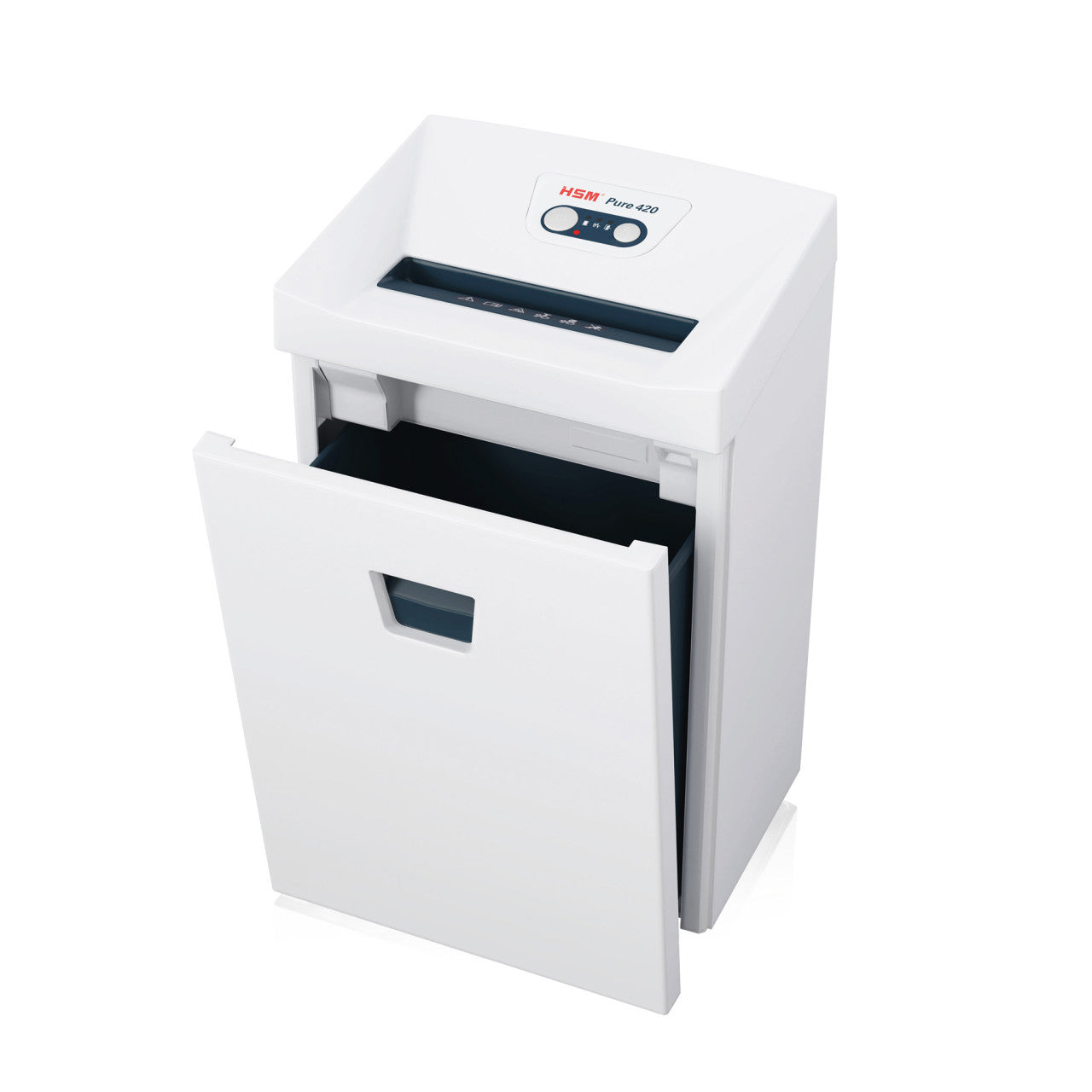

This is the most broadly useful machine in the HSM Pure range: DIN 66399 P-4 paper security at 13 to 15 sheets a pass, in a shared-office cabinet with a full-bin display, automatic shut-off and a 35 litre pull-out container. It is also the smallest Pure model that combines P-4 with an optical-media rating, so paper, cards and discs all go through one machine.

The cut is 4.5 x 30 mm, which is 135 mm². DIN allows up to 160 mm² at P-4, so the rating is genuine but the particle is at the coarser end of the level - worth knowing if your destruction policy specifies a particle size rather than a DIN class. Its full rating is E-3, F-1, O-3, P-4, T-4: film, optical media, paper and magnetic carriers all covered.

Key Features

  • P-4 with an O-3 optical rating. The strip-cut Pure 320 shreds discs but only at P-2 on paper; the cross-cut Pure 320 does P-4 but no discs. This machine is the first in the series to do both.
  • 13 to 15 sheets a pass at 80 g/m². Enough for shared use without dropping below P-4.
  • 420-sheet bin capacity. The 35 litre container holds around 420 shredded sheets in particle cut, against 245 in the strip-cut version, because particles pack far more densely than strips.
  • Full-bin display and automatic shut-off. The machine stops rather than being fed into a full bin - the single most useful feature on a machine several people use.
  • 610 W motor rated by HSM for reliable continuous operation.
  • 240 mm throat. Letter, legal and A4 all feed unfolded.
  • Induction-hardened solid steel cutting rollers, lifetime warranty. Staples and paper clips need no pre-sorting, and P-4 sits inside HSM's P-2 to P-5 lifetime roller cover.
  • Safety element, overload-protected feed, stand-by. Contact halts the feed instantly; the feed reverses pressure before stalling; idle consumption drops automatically.

Specifications

Security level (DIN 66399 / ISO 21964) P-4 (full rating E-3 | F-1 | O-3 | P-4 | T-4)
Cut type Cross cut (HSM: particle cut)
Cut size 4.5 x 30 mm (approx. 3/16" x 1 3/16") - 135 mm² particle area
Sheet capacity 13 - 15 sheets at 80 g/m²
Throat width 240 mm (9.4")
Bin volume 35 L (9.2 US gal)
Bin holds approx. 420 shredded sheets
Motor / power consumption 610 W
Voltage 110-120 V / 60 Hz
Noise level approx. 56 dB(A) at idle

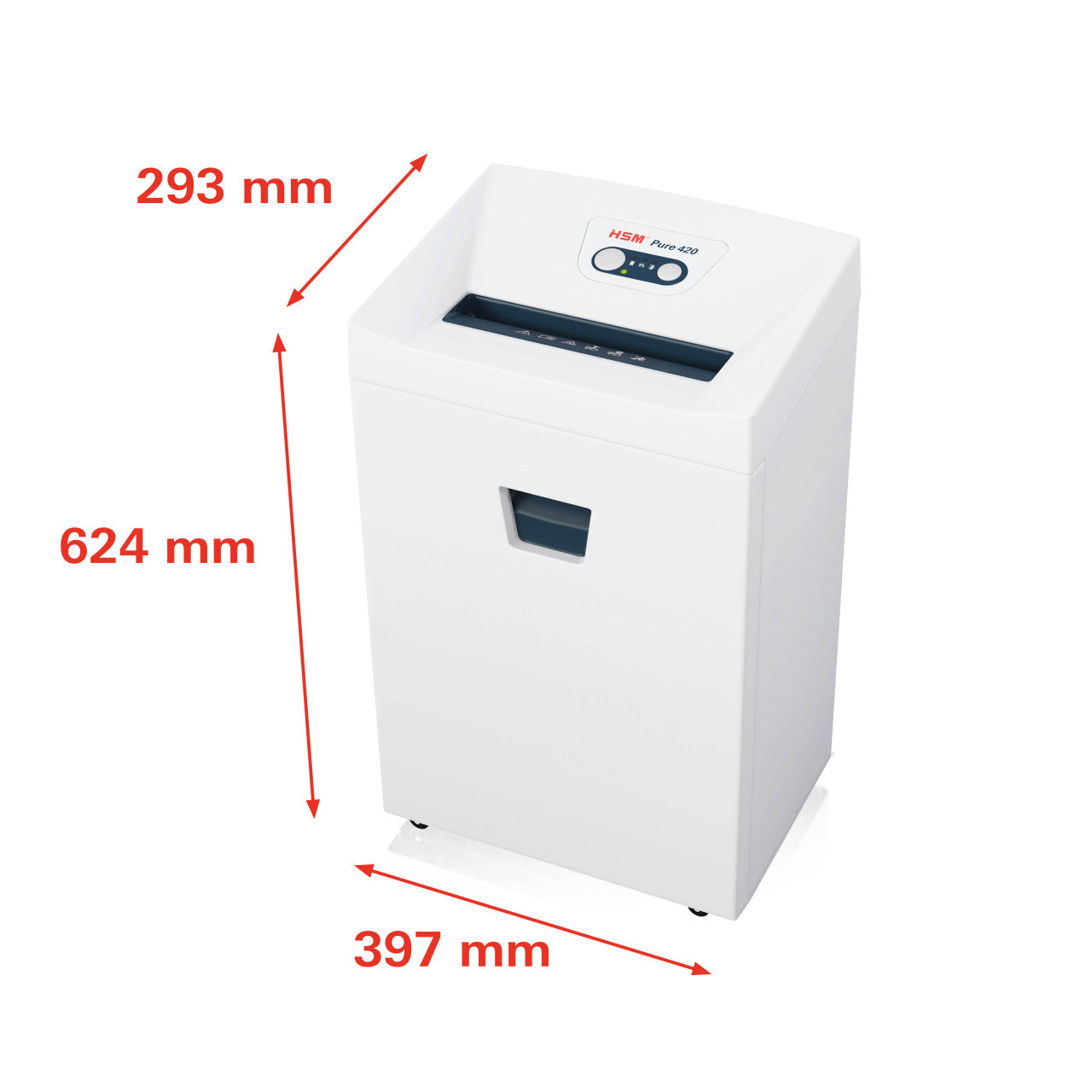

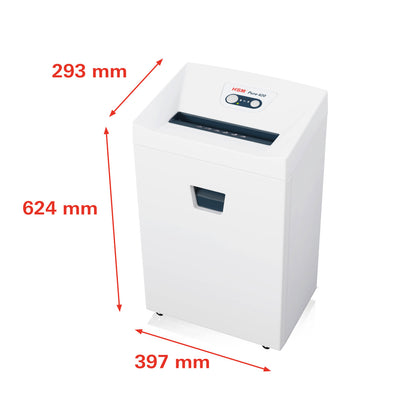

Dimensions (W x D x H) 397 x 293 x 621 mm (15.6" x 11.5" x 24.5")
Weight 20.5 kg (45.2 lb)
Shreddable materials Paper, staples, paper clips, credit and magnetic cards, CDs and DVDs, film
Warranty Lifetime warranty on the steel cutting rollers

Sheet capacity is HSM's own figure at 80 g/m². Standard US 20 lb copier paper is about 75 g/m², slightly lighter, so the published figure is a conservative one for a typical American office. Any shredder quoted against lighter paper will look better on paper than it performs.

What's in the Box

Shredder with 35 litre pull-out container fitted, and HSM operating instructions. Bags and shredder oil are ordered separately. Particle-cut heads do want periodic lubrication - buy a bottle of proper shredder oil with the machine and follow the interval in the manual, particularly if it will run hard.

Who Should Buy This - and Who Should Not

This is the default recommendation for a five-to-fifteen person office that destroys genuinely confidential paper: HR and payroll, patient administration, client files, financial records. It is also the right machine where a mixed destruction list - paper, old ID cards, backup CDs, laminated film - would otherwise mean buying two devices. Thirteen to fifteen sheets a pass is enough that a shared queue does not form, and 420 sheets in the bin means weekly rather than daily emptying for most teams.

Do not buy it if you need volume above all - the HSM Pure 420 strip-cut is the same cabinet at 22 to 24 sheets, but only P-2, which is not a security level. Do not buy it if you need tabloid or A3 unfolded: the throat is 240 mm and the HSM Pure 530 cross-cut at 300 mm is the model that takes them, with a much larger 80 litre bin as well. And do not buy it if your policy specifies P-5 or higher - HSM builds a 1.9 x 15 mm P-5 head for this chassis, and for anything above that the SECURIO high-security range is the correct family. No Pure model is NSA listed.

Product Specification

Machine Type
Office
Shredder Series
Pure
Cut Type
Cross Cut
Shreddable Materials
Paper, Staples and paper clips, Credit card, CD/DVD
Cut Size
4.5 x 30 mm (approx. 3/16" x 1 3/16") particle cut
Bin Size / Container Volume
9.2 US gal (35 L)
Throat Width
9.4" (240 mm)
Power Consumption
610 W
Voltage
110-120 V / 60 Hz
Weight
45.2 lb (20.5 kg)
Security Level
P-4
Sheet Capacity
13-15 sheets (80 g/m2)
Dimensions (WxDxH)
15.6" x 11.5" x 24.5" (397 x 293 x 621 mm)
Warranty
Lifetime warranty on the steel cutting rollers
dB Level
approx. 56 dB(A) idle

Product listing details

Vendor
HSM
Product type
Document Shredder
Condition
New
SKU
2343113
GTIN
4026631054263
Price
$634.09 USD
Currency
USD
Availability
In stock
Shipping policy
Click to view policy
Refund policy
Click to view policy
Return policy
Click to view policy
View full details
Before you specify

Frequently Asked Questions

Is 4.5 x 30 mm genuinely P-4?

Yes. The particle area is 135 mm2 and DIN 66399 allows up to 160 mm2 at P-4, so it classifies properly with room to spare. It is at the coarser end of the level though: the Pure 320 cross-cut, for instance, produces a 117 mm2 particle. If your destruction policy specifies a maximum particle dimension rather than a DIN class, check the 4.5 x 30 mm figure against it before ordering.

Can it destroy CDs, DVDs and old ID cards?

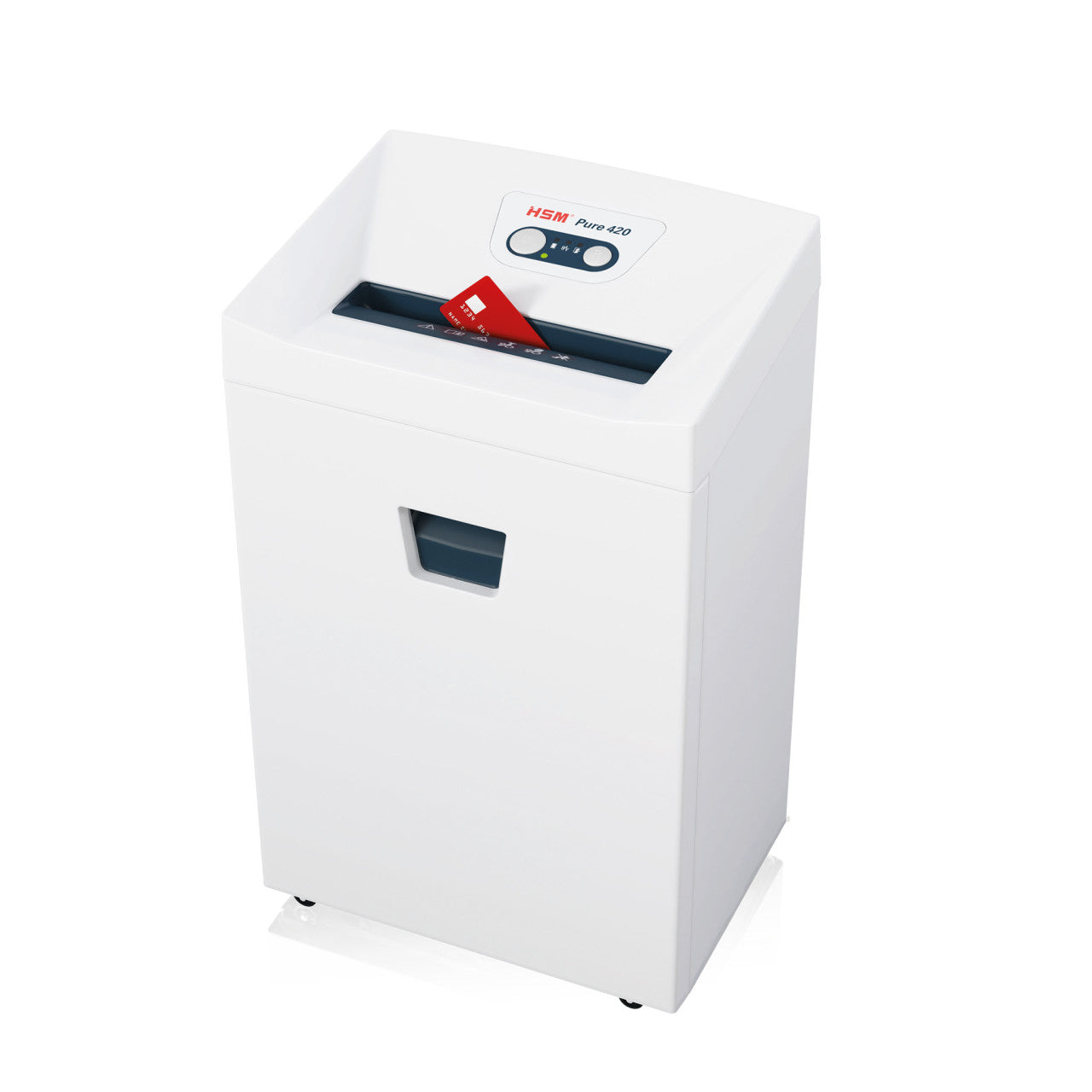

Yes to all three. The full rating is E-3, F-1, O-3, P-4, T-4: O covers optical data carriers, T covers magnetic ones such as bank and access cards, F covers film. Feed discs and cards one at a time, not mixed into a stack of paper. This is the smallest machine in the Pure range that offers P-4 paper security and optical media destruction together.

How often will a busy team empty the bin?

HSM rates the 35 litre container at about 420 shredded sheets in this cut. A ten-person office destroying a hundred pages a day would empty it roughly every four days. The full-bin display tells you before it becomes a problem and the machine shuts off automatically, so the failure mode is a pause rather than a jammed cutting head.

Will it take a stapled report in one go?

Only a short one. Thirteen to fifteen sheets is the pass limit at 80 g/m2, so a thirty-page stapled report needs splitting into two or three feeds. The staples themselves are not a problem - HSM specifies the induction-hardened rollers to handle staples and paper clips. Bulldog clips, plastic comb bindings, ring binders and laminated covers must be removed first.

Is this shredder NSA approved for classified material?

No. NSA/CSS 02-01 requires a maximum particle size of 1 mm by 5 mm and requires the individual model to be listed on the NSA Evaluated Products List. This machine cuts 4.5 x 30 mm and is not listed. A P-4 rating and an NSA listing are entirely different things, and any supplier suggesting otherwise is wrong. For classified destruction you need a listed P-7 machine.

Does it need oiling, and how often?

Particle-cut cutting heads benefit from regular lubrication, and neglecting it is the usual reason a cross-cut shredder loses capacity over a couple of years. Use HSM shredder oil, applied across the full width of the intake with the machine running, then run it briefly in reverse. The manual gives the recommended interval for your usage level. Never substitute aerosol lubricant or vegetable oil.

What exactly does the lifetime warranty cover?

The cutting rollers. HSM's lifetime cover applies to the induction-hardened solid steel cutting rollers on its P-2 to P-5 shredders, and this P-4 machine sits comfortably inside that band. It is worth noting that the same guarantee does not extend to HSM's P-6 and P-7 high-security heads, which is a genuine consideration if you are weighing this machine against a higher-security one.
