HSM

HSM Pure 420 1/4 inch Strip Cut Document Shredder - HSM2341

HSM Pure 420 1/4 inch Strip Cut Document Shredder - HSM2341

DIN 66399 security level P-2max 800 mm² particleInternal documents: work instructions, routine forms, correspondence carrying no personal data. See every P-2 machine
Cut
Strip Cut
Cut size
5.8 mm (approx. 1/4") strip
Sheet capacity
22-24 sheets (80 g/m2)
Throat width
9.4" (240 mm)
Regular price $612.50 USD
Regular price $1,219.03 USD Sale price $612.50 USD
Sale Sold out
Quantity
  • Free shipping across the USA Included on every machine in the catalogue
  • 30-day return policy Shipping, refund and return terms published in full
  • +1 (858) 266-0509 Speak to a specification specialist · 08:00 AM – 05:00 PM PST, Monday to Friday

Authorized HSM dealer New stock through the manufacturer's authorized channel, with the manufacturer's own warranty · what this covers

Description

Twenty-two to twenty-four sheets in one pass. That is the number that defines the HSM Pure 420 in 5.8 mm strip cut, and it is why this machine ends up in stockrooms, print rooms and post rooms rather than under desks. It is a P-2 bulk-destruction shredder with a 610 W motor, a 35 litre pull-out container, a full-bin display and automatic shut-off - a machine designed to be shared.

P-2 is the honest limitation. A 5.8 mm strip leaves complete lines of type legible, so this is a machine for volume, not for records. What it does offer beyond the smaller Pure models is an O-2 optical rating, so discs can go in the same machine as the paper, and a bin big enough that emptying is not a daily interruption.

Key Features

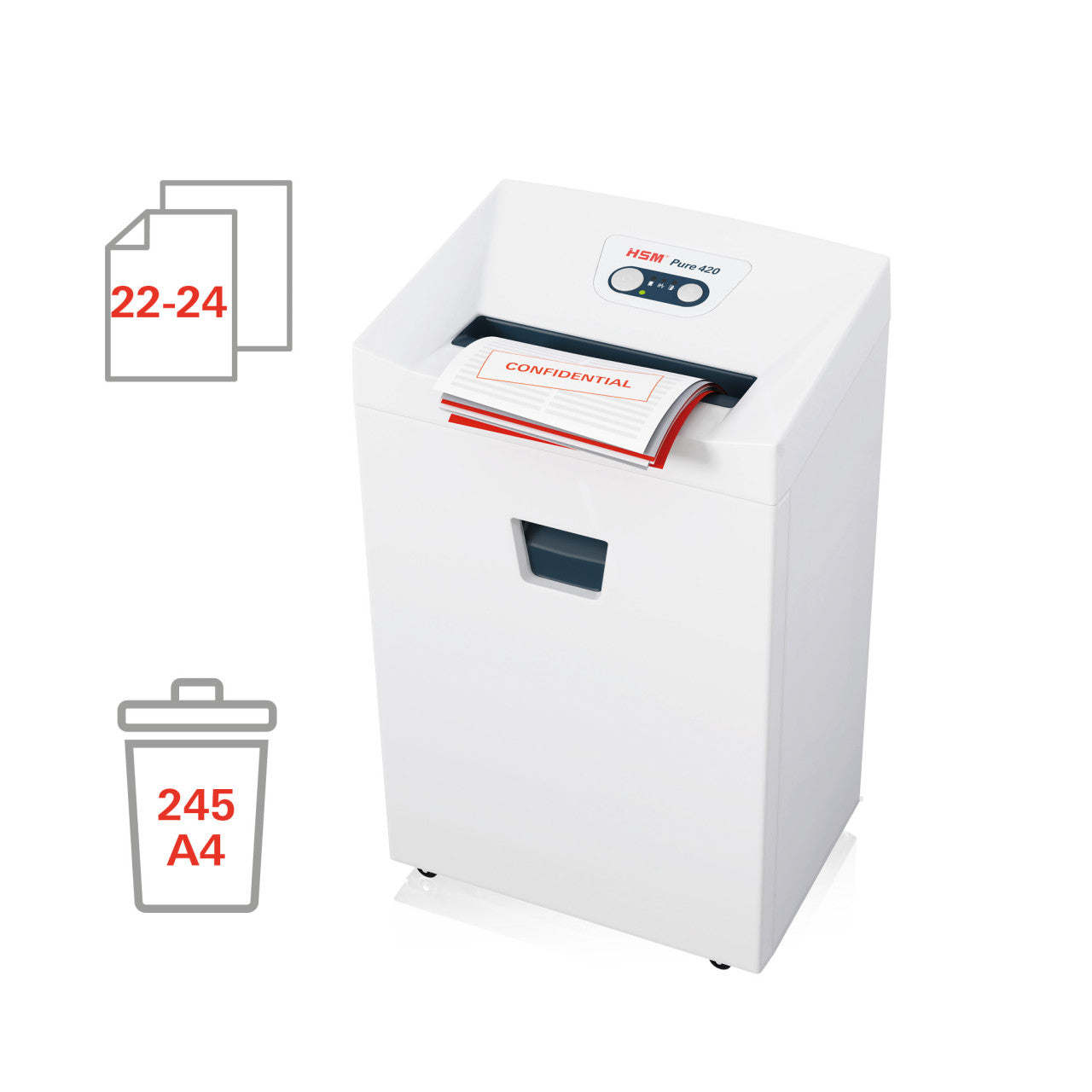

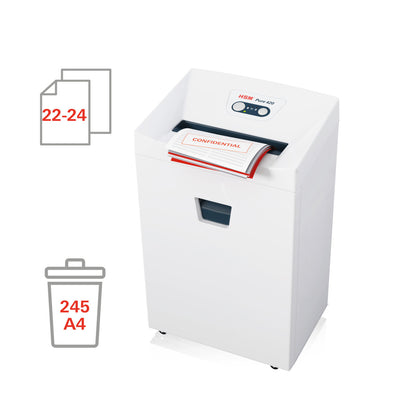

  • 22 to 24 sheets a pass at 80 g/m². Roughly a third more than the Pure 320 strip cut and nearly double the Pure 220's.
  • Full-bin display with automatic shut-off. The machine tells you the container is full and stops rather than packing waste back into the cutting head. On a shared machine this is the feature that prevents most jams.

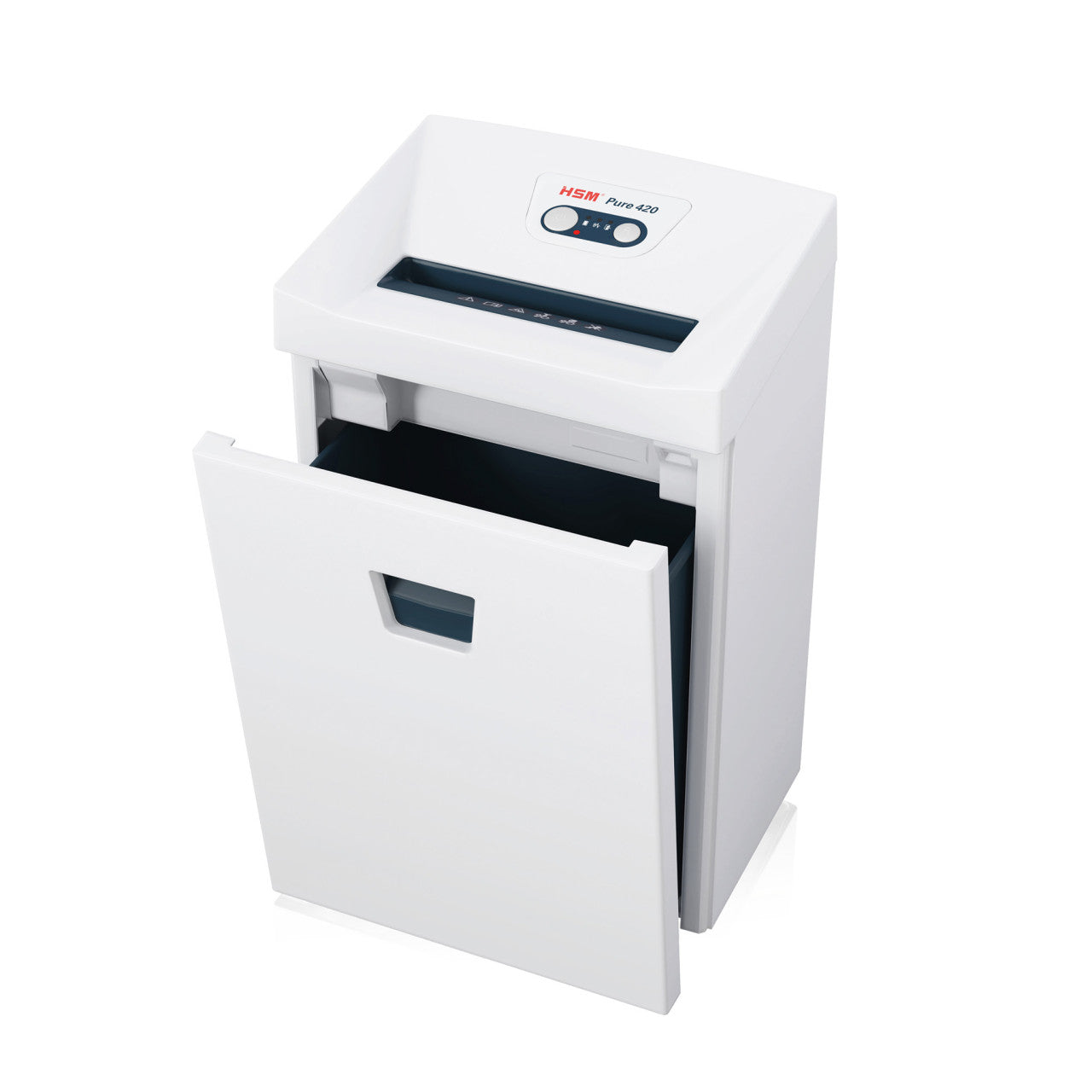

  • 35 litre pull-out container, rated by HSM at approximately 245 shredded strip-cut sheets.
  • 610 W continuous-rated motor. HSM describes it as delivering high cutting capacity and reliable continuous operation, which is the language it reserves for machines meant to run in sequence rather than in bursts.
  • 240 mm throat. Letter, legal and A4 feed unfolded.

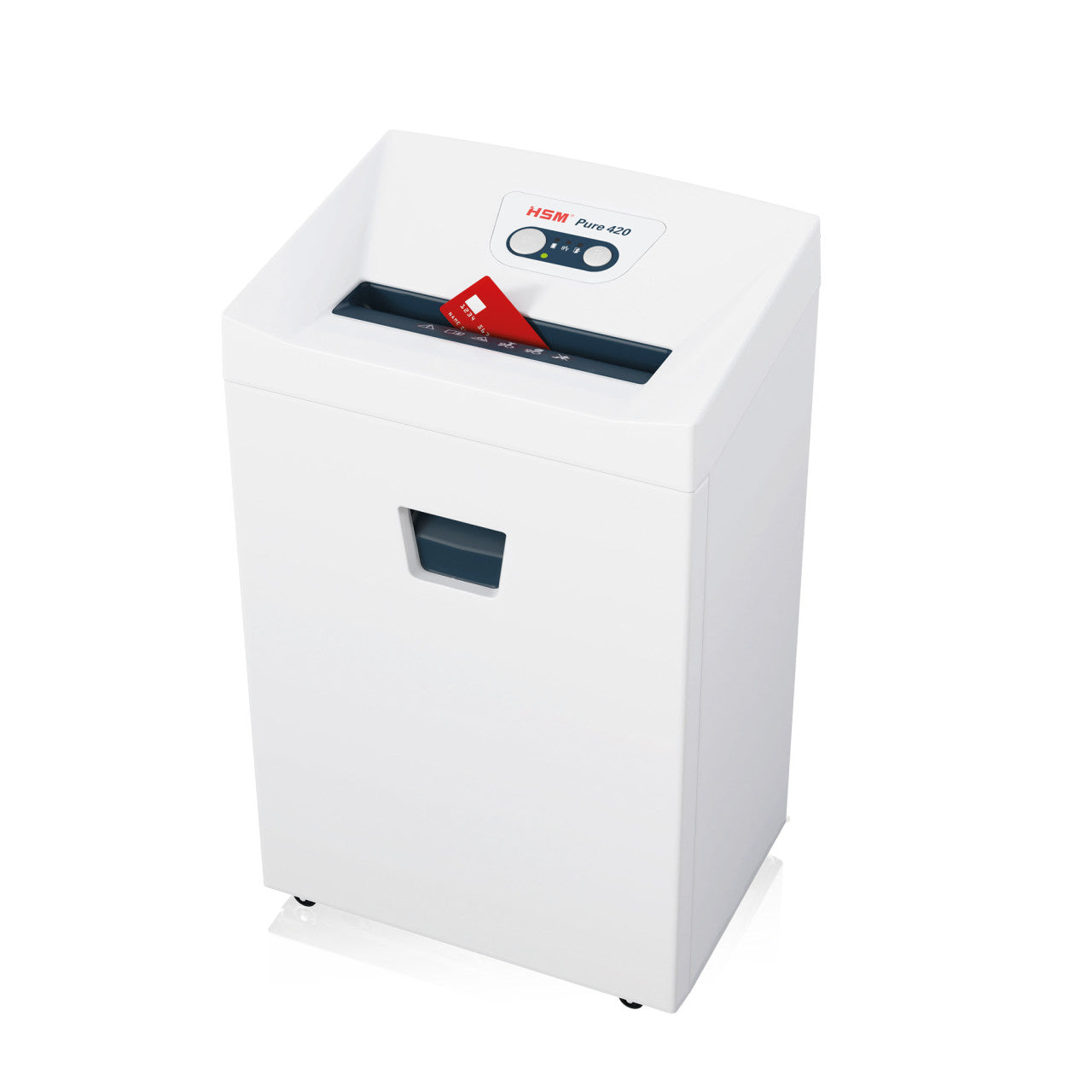

  • Rated for CDs (O-2), cards (T-2) and film (no F class on this variant). Staples and paper clips are handled without pre-sorting.
  • Induction-hardened solid steel cutting rollers with lifetime warranty. HSM's lifetime roller cover spans P-2 to P-5, so this machine is fully inside it.
  • Safety element, overload-protected feed and stand-by mode. Contact stops the feed; the feed backs off before it stalls; idle draw drops automatically.

Specifications

Security level (DIN 66399 / ISO 21964) P-2 (full rating E-2 | O-2 | P-2 | T-2)
Cut type Strip cut
Cut size 5.8 mm (0.228", just under 1/4")
Sheet capacity 22 - 24 sheets at 80 g/m²
Throat width 240 mm (9.4")
Bin volume 35 L (9.2 US gal)
Bin holds approx. 245 shredded sheets
Motor / power consumption 610 W
Voltage 110-120 V / 60 Hz
Noise level approx. 56 dB(A) at idle

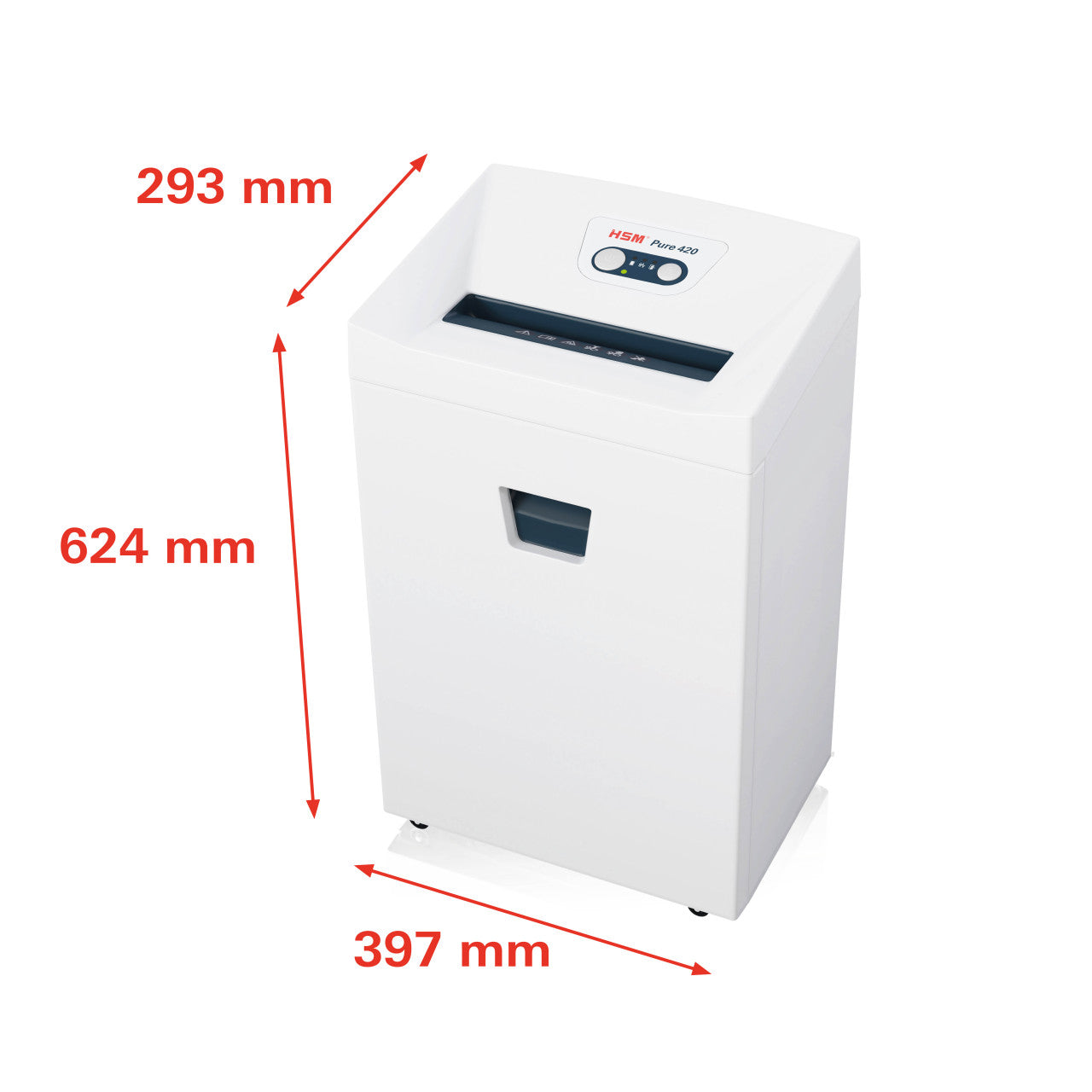

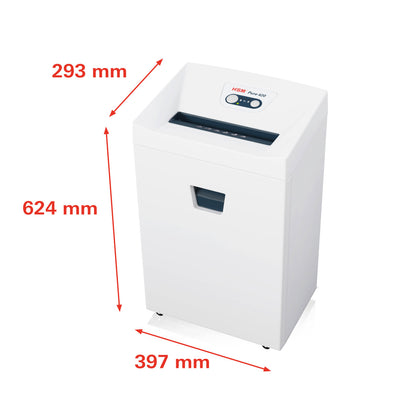

Dimensions (W x D x H) 397 x 293 x 621 mm (15.6" x 11.5" x 24.5")
Weight 18.0 kg (39.7 lb)
Shreddable materials Paper, staples, paper clips, credit cards, CDs and DVDs
Warranty Lifetime warranty on the steel cutting rollers

Sheet capacity is HSM's own figure at 80 g/m². Standard US 20 lb copier paper is about 75 g/m², slightly lighter, so the published figure is a conservative one for a typical American office. Any shredder quoted against lighter paper will look better on paper than it performs.

What's in the Box

The Pure 420 with its 35 litre pull-out container in place, plus HSM's operating instructions. Shredder bags are not included. On a shared machine a liner is worth having - ask us for the HSM bag sized to the 35 litre container rather than using a generic office sack, which tends to slump into the cutting head.

Who Should Buy This - and Who Should Not

Buy the Pure 420 strip-cut for a team of five to fifteen people producing a real volume of routine paper: a warehouse office, a school department, a print room, a busy reception, a retail back office. Twenty-plus sheets a pass and a full-bin indicator make it a machine several people can use without a queue or a jam, and the optical rating removes the need for a separate disc destroyer.

Do not buy it for anything you would not leave on a desk overnight. For confidential records at similar volume, the HSM Pure 420 cross-cut is the same cabinet at DIN P-4, giving up half the sheet capacity - 13 to 15 - and gaining a 4.5 x 30 mm particle plus an O-3 optical rating. If tabloid or A3 has to go in unfolded, the throat here is 240 mm and you need the HSM Pure 530 at 300 mm. And if a whole floor is feeding one machine all day, this is still a workplace shredder rather than a central station; that job belongs to the HSM SECURIO or Powerline range.

Product Specification

Machine Type
Office
Shredder Series
Pure
Cut Type
Strip Cut
Shreddable Materials
Paper, Staples and paper clips, Credit card, CD/DVD
Cut Size
5.8 mm (approx. 1/4") strip
Bin Size / Container Volume
9.2 US gal (35 L)
Throat Width
9.4" (240 mm)
Power Consumption
610 W
Voltage
110-120 V / 60 Hz
Weight
39.7 lb (18.0 kg)
Security Level
P-2
Sheet Capacity
22-24 sheets (80 g/m2)
Dimensions (WxDxH)
15.6" x 11.5" x 24.5" (397 x 293 x 621 mm)
Warranty
Lifetime warranty on the steel cutting rollers
dB Level
approx. 56 dB(A) idle

Product listing details

Vendor
HSM
Product type
Document Shredder
Condition
New
SKU
2341113
GTIN
4026631054249
Price
$612.50 USD
Currency
USD
Availability
In stock
Shipping policy
Click to view policy
Refund policy
Click to view policy
Return policy
Click to view policy
View full details
Before you specify

Frequently Asked Questions

How many people can realistically share this machine?

A working group of five to fifteen, in our experience. The 22 to 24 sheet capacity means nobody waits long, and the full-bin display with automatic shut-off is what stops a shared machine being jammed by whoever ignores a full container. HSM does not publish a formal duty-cycle rating, so if your usage is genuinely continuous for hours at a time, look at a departmental machine from the SECURIO range instead.

What does the full-bin indicator actually do?

It shows on the display that the container has reached capacity and switches the machine off automatically, so nothing is fed into a bin that cannot take it. That matters more than it sounds: on shared shredders, the most common cause of a seized cutting head is somebody continuing to feed a full machine. Empty the 35 litre container - roughly 245 strip-cut sheets - and it resets.

Does it shred CDs, credit cards and film?

CDs and credit cards yes; film is not rated on this variant. The strip-cut Pure 420 carries E-2, O-2, P-2 and T-2 classes under DIN 66399 - O for optical media, T for magnetic cards. It has no F class, which is the classification for film, whereas the cross-cut version does. Feed discs and cards singly rather than mixed into a stack of paper.

Will legal or tabloid paper fit?

Legal fits easily - the throat is 240 mm, which is 9.45 inches, and legal paper is 8.5 inches wide. Tabloid at 11 inches, or 279 mm, does not, and neither does A3 at 297 mm. Folding tabloid in half works but halves your effective capacity per pass. If unfolded tabloid or A3 is a regular requirement, the Pure 530 with its 300 mm throat is the model to buy.

Is 5.8 mm really a quarter inch?

Not quite. 5.8 mm converts to 0.228 inch, a shade under 1/4 inch. The quarter-inch figure in the product title is a rounded conversion carried over from US listings; HSM's own figure for this cutting head is 5.8 mm. It stays within P-2 either way, since DIN 66399 permits strip widths up to 6 mm at that level.

Does it need shredder oil?

Strip-cut heads are much less oil-dependent than particle-cut heads and HSM does not specify a routine oiling schedule for this variant. If throughput drops off or the cutting head starts sounding strained, apply proper shredder oil across the width of the intake and run the machine briefly in reverse. Do not use aerosol lubricants, WD-40 or cooking oil - all of them gum the head and none are covered by the warranty.

Is it NSA approved?

No. NSA/CSS 02-01 requires a maximum particle of 1 mm x 5 mm and requires the specific model to appear on the NSA Evaluated Products List. A 5.8 mm strip is nowhere near that, and the Pure 420 is not listed. Anyone with a genuine classified-destruction obligation needs a P-7 high-security shredder that carries an individual NSA listing, and we are happy to point you to those.
