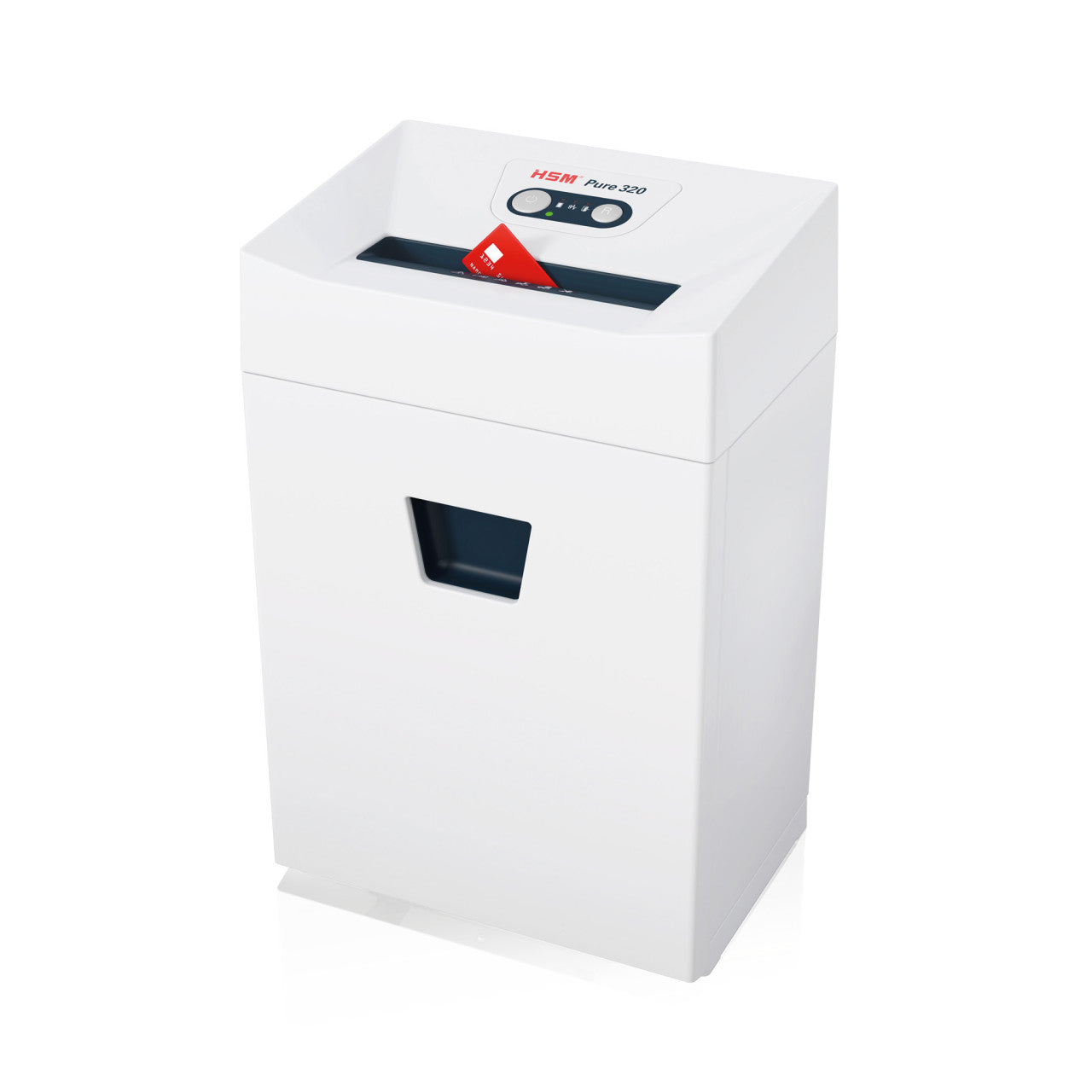

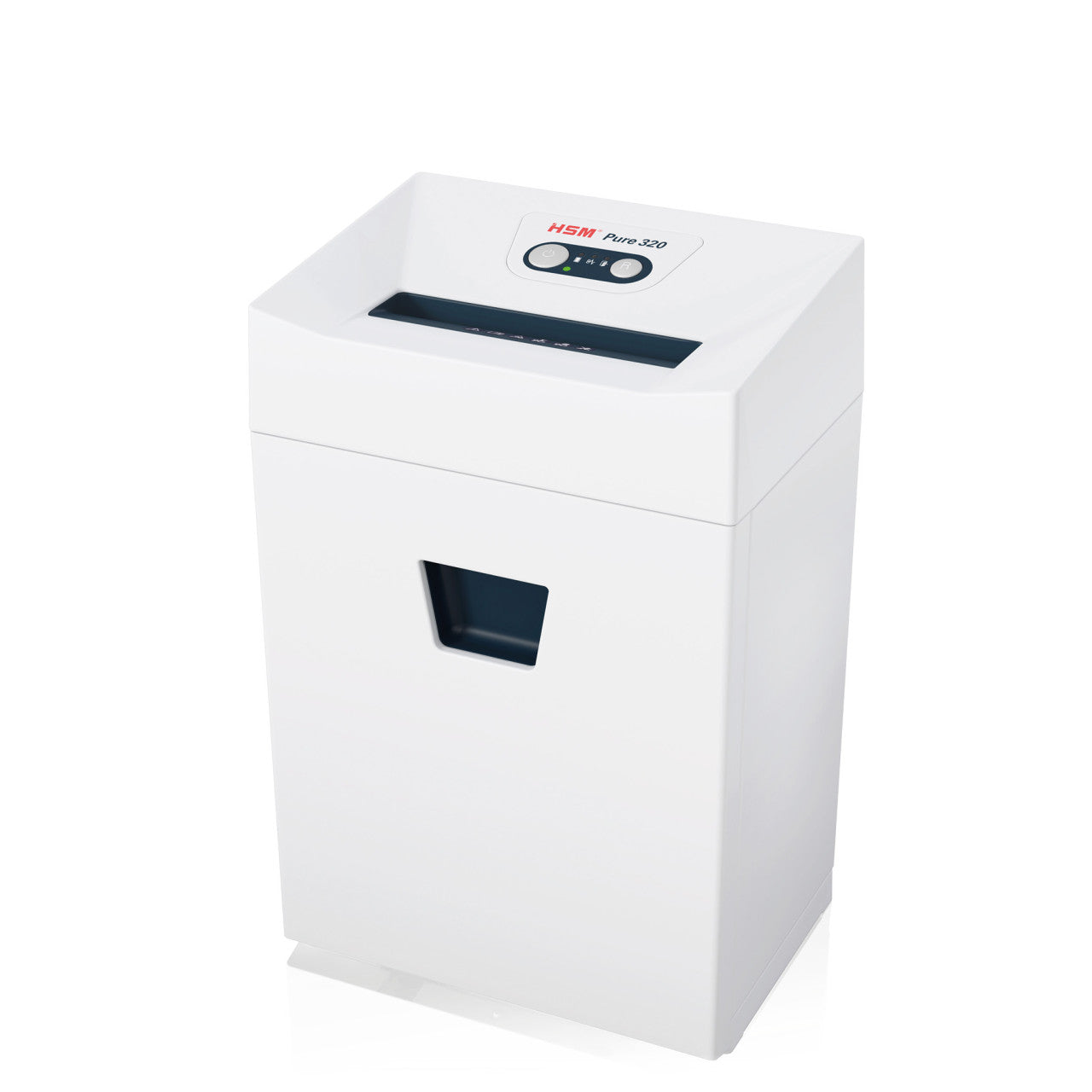

HSM Pure 320 1/8 x 1 1/8 Cross Cut Shredder - HSM2333

HSM Pure 320 1/8 x 1 1/8 Cross Cut Shredder - HSM2333

DIN 66399 security level P-4max 160 mm² particleOffice baselineParticularly sensitive personal data: HR files, contracts, payroll, patient and customer records. See every P-4 machine
Cut
Cross Cut
Cut size
3.9 x 30 mm (approx. 5/32" x 1 3/16") particle cut
Sheet capacity
8-9 sheets (80 g/m2)
Throat width
9.1" (230 mm)
Regular price $539.00 USD
Regular price $1,277.32 USD Sale price $539.00 USD
Sale Sold out
Quantity
  • Free shipping across the USA Included on every machine in the catalogue
  • 30-day return policy Shipping, refund and return terms published in full
  • +1 (858) 266-0509 Speak to a specification specialist · 08:00 AM – 05:00 PM PST, Monday to Friday

Authorized HSM dealer New stock through the manufacturer's authorized channel, with the manufacturer's own warranty · what this covers

Description

The cross-cut HSM Pure 320 puts DIN 66399 P-4 security into a floor-standing cabinet with a 360 W motor and a pull-out bin. It cuts 3.9 x 30 mm particles - 117 mm², inside the 160 mm² ceiling DIN sets for P-4 - and takes 8 to 9 sheets a pass. Against the desktop Pure 220 cross-cut, that is roughly a third more paper per pass and, more usefully, a bin that holds around 350 shredded sheets instead of 230.

One thing to check before you order: unlike its strip-cut stablemate, this model carries no optical-media class. The Pure 320 strip cut is rated O-2 for CDs; the cross-cut is rated E-3, F-1, P-4 and T-4 only. Paper, film, cards yes; discs no. If you need P-4 paper security and disc destruction from one machine, the Pure 420 cross-cut is the smallest model that does both.

Key Features

  • 3.9 x 30 mm particle cut at P-4. A 117 mm² particle - meaningfully below the DIN limit rather than scraping it.
  • 350-sheet bin capacity. Particle cut packs tightly, so the same 25 litre container that holds 165 strip-cut sheets holds more than twice as many here.
  • 360 W motor with overload-protected feed. The feed backs off before it stalls, which is what keeps a P-4 machine usable when someone pushes a slightly-too-thick stack in.
  • Pull-out container. Slides out of the cabinet on its own rather than requiring the housing to be lifted.
  • 230 mm throat. Letter and legal feed flat and unfolded.
  • Feed-activated start, automatic stop, stand-by. Nothing to switch on, nothing left running.
  • Safety element at the intake. Contact stops the paper feed immediately.
  • Approximately 55 dB(A) at idle. One of the quieter machines in its size class.
  • Lifetime warranty on the steel cutting rollers, which handle staples and paper clips without pre-sorting.

Specifications

Security level (DIN 66399 / ISO 21964) P-4 (full rating E-3 | F-1 | P-4 | T-4)
Cut type Cross cut (HSM: particle cut)
Cut size 3.9 x 30 mm (approx. 5/32" x 1 3/16") - 117 mm² particle area
Sheet capacity 8 - 9 sheets at 80 g/m²
Throat width 230 mm (9.1")
Bin volume 25 L (6.6 US gal)
Bin holds approx. 350 shredded sheets
Motor / power consumption 360 W
Voltage 110-120 V / 60 Hz
Noise level approx. 55 dB(A) at idle

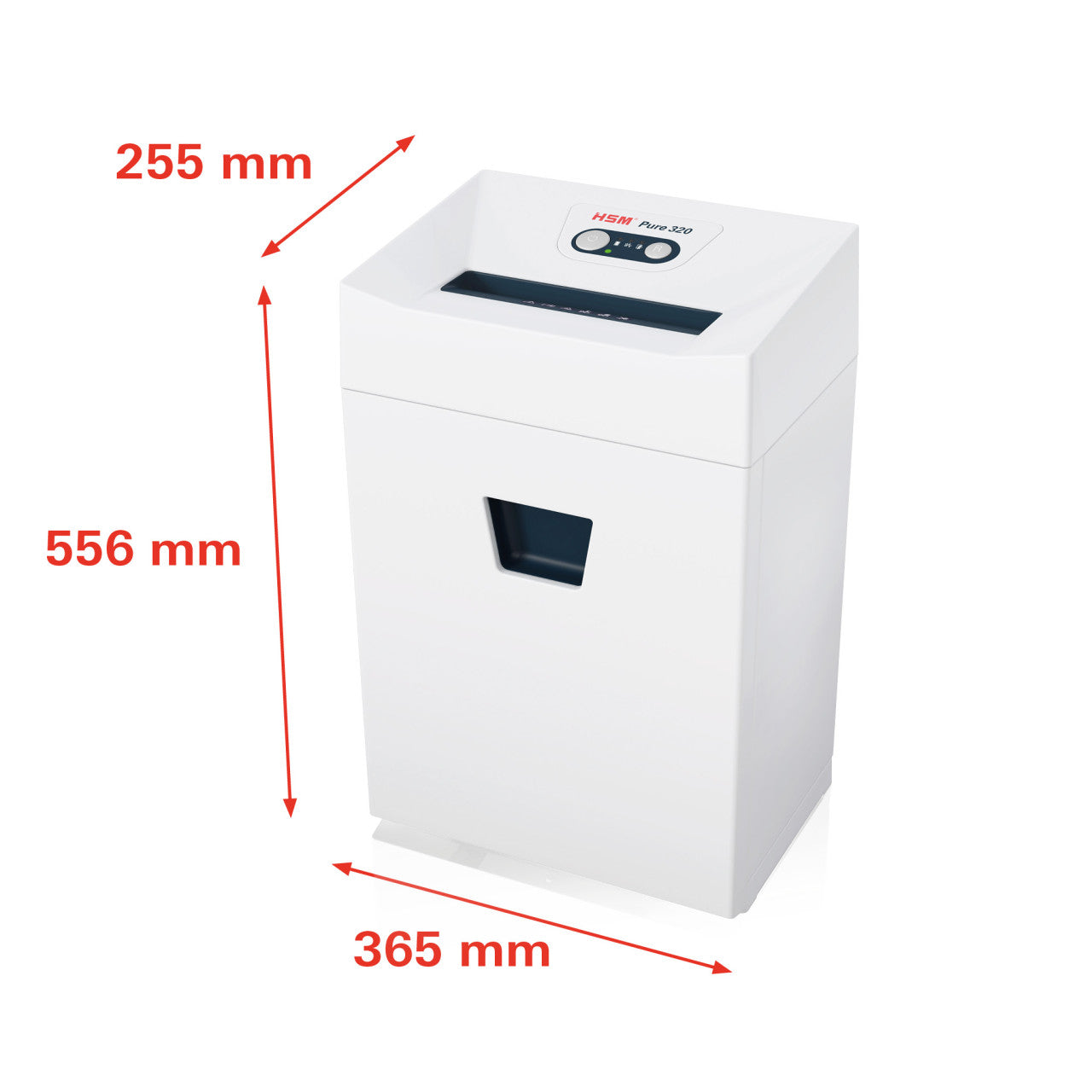

Dimensions (W x D x H) 365 x 255 x 556 mm (14.4" x 10.0" x 21.9")
Weight 11.1 kg (24.5 lb)
Shreddable materials Paper, staples, paper clips, credit and magnetic cards (no optical media)
Warranty Lifetime warranty on the steel cutting rollers

Sheet capacity is HSM's own figure at 80 g/m². Standard US 20 lb copier paper is about 75 g/m², slightly lighter, so the published figure is a conservative one for a typical American office. Any shredder quoted against lighter paper will look better on paper than it performs.

What's in the Box

Shredder, 25 litre pull-out container, operating instructions. Bags, oil and accessories are separate. Particle-cut cutting heads do benefit from periodic lubrication with proper shredder oil - if you are going to run this machine hard, buy a bottle at the same time and check the interval in the manual.

Who Should Buy This - and Who Should Not

Buy it when a small office needs real confidentiality without a departmental machine's footprint or price: a two-to-five person professional practice, a school office handling pupil records, a clinic's front desk, a finance team in a small business. Eight to nine sheets a pass is honest office capacity, and the 350-sheet bin means emptying is a weekly rather than daily chore for most users.

Do not buy it if discs are part of the destruction list - it has no optical rating, and the HSM Pure 420 cross-cut (P-4 with an O-3 class) is the smallest Pure that covers both. Do not buy it if you need speed above security: the HSM Pure 320 strip-cut does 17 to 19 sheets in the identical cabinet, at P-2. And if your policy calls for P-5 or higher, no Pure 320 variant reaches it; the Pure 420 and 530 offer a 1.9 x 15 mm P-5 head in Europe and the HSM SECURIO range covers high-security work properly. Tabloid and A3 do not fit a 230 mm throat - that needs the Pure 530.

Product Specification

Machine Type
Personal
Shredder Series
Pure
Cut Type
Cross Cut
Shreddable Materials
Paper, Staples and paper clips, Credit card
Cut Size
3.9 x 30 mm (approx. 5/32" x 1 3/16") particle cut
Bin Size / Container Volume
6.6 US gal (25 L)
Throat Width
9.1" (230 mm)
Power Consumption
360 W
Voltage
110-120 V / 60 Hz
Weight
24.5 lb (11.1 kg)
Security Level
P-4
Sheet Capacity
8-9 sheets (80 g/m2)
Dimensions (WxDxH)
14.4" x 10.0" x 21.9" (365 x 255 x 556 mm)
Warranty
Lifetime warranty on the steel cutting rollers
dB Level
approx. 55 dB(A) idle

Product listing details

Vendor
HSM
Product type
Document Shredder
Condition
New
SKU
2333123
GTIN
4026631059985
Price
$539.00 USD
Currency
USD
Availability
In stock
Shipping policy
Click to view policy
Refund policy
Click to view policy
Return policy
Click to view policy
View full details
Before you specify

Frequently Asked Questions

Does the cross-cut Pure 320 shred CDs?

No, and this catches people out because the strip-cut version of the same machine does. The cross-cut Pure 320 is rated E-3, F-1, P-4 and T-4 under DIN 66399, with no O class for optical data carriers. Feeding a disc into it risks damaging a cutting head built for paper. The smallest Pure model that combines P-4 paper security with an optical rating is the Pure 420 cross-cut, which carries O-3.

Is the cut really 1/8 x 1 1/8 inch?

Not exactly. HSM specifies 3.9 x 30 mm for article 2333121, which converts to about 0.154 x 1.18 inch - nearer 5/32 x 1 3/16 than 1/8 x 1 1/8. The rounded imperial figure has been repeated widely, including in our own listing title. What matters for compliance is the particle area: 117 mm2, inside the 160 mm2 that DIN 66399 allows for P-4.

How often will the bin need emptying?

Less often than the sheet capacity suggests. HSM rates the 25 litre container at roughly 350 shredded sheets on this model, because particle cut compacts far better than strip cut. For an office destroying fifty pages a day that is about a week between empties. The container pulls out of the cabinet as a drawer rather than needing the top lifted off.

Can it handle staples, clips and stapled reports?

Staples and paper clips are within HSM's specification for the steel cutting rollers, so ordinary stapled documents can go straight in. What you should not do is feed a thick stapled report as a block - eight to nine sheets is the pass limit and a twenty-page report needs splitting. Bulldog clips, ring binders, plastic wallets and laminated pages should always be removed.

Is it quiet enough to sit in an open-plan office?

At approximately 55 dB(A) idle it is one of the quieter machines in its class, and quieter than the desktop Pure 120 and 220 despite the larger motor. Under load it is noticeably louder, as all shredders are. In practice it is unobtrusive in a room where people are working, and it will be noticed in a room where people are on video calls.

Is P-4 enough, or should I be looking at P-5?

P-4 is the level most organisations specify for records containing personal data, and it is what a typical destruction policy or auditor expects for HR, payroll, patient administration and customer files. P-5 exists for material where the consequence of reconstruction is serious - commercially sensitive research, legal privilege, classified work. If your policy names P-5, this machine does not meet it and no Pure 320 variant does.
