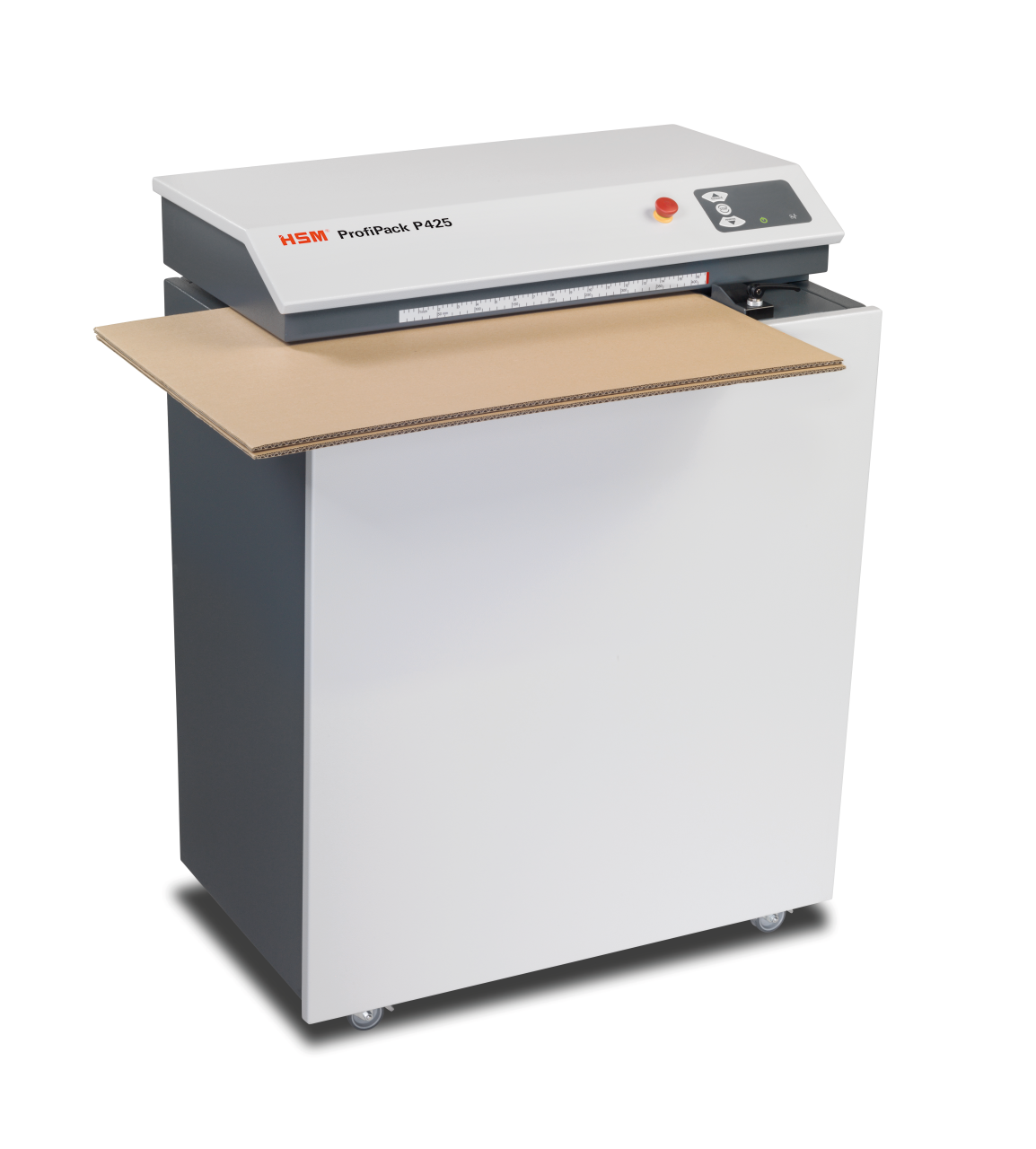

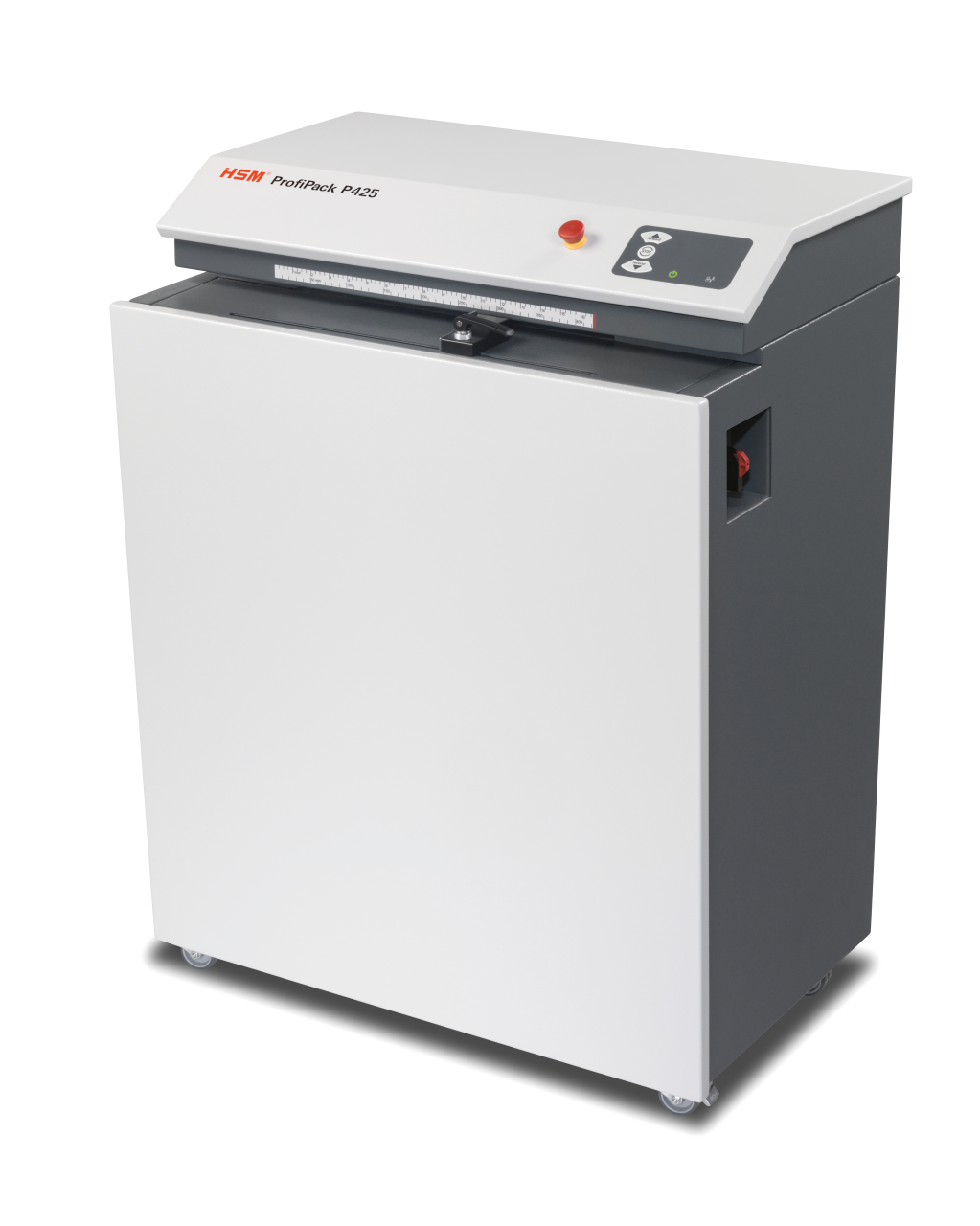

HSM ProfiPack P425 Packaging Padding Machine for Cardboard Conversion - Three-phase current Standard

The HSM ProfiPack P425 Three-phase current Standard is the high-output version of HSM's floor-standing cardboard padding machine, built around a 3.8 kW motor on a 208 V / 60 Hz three-phase supply. It converts single- and double-wall cartons, up to three layers or 20 mm (0.8 in) at a time, into multi-layer cushioning mat at up to 120 kg (265 lb) per hour. It is the choice for packing operations where several benches draw padding from one machine for most of a shift.

Three-phase P425 at a glance

• 3,800 W (3.8 kW) drive, hard-wired to 208 V three-phase
• Up to 120 kg/h (265 lb/h) of cushioning mat

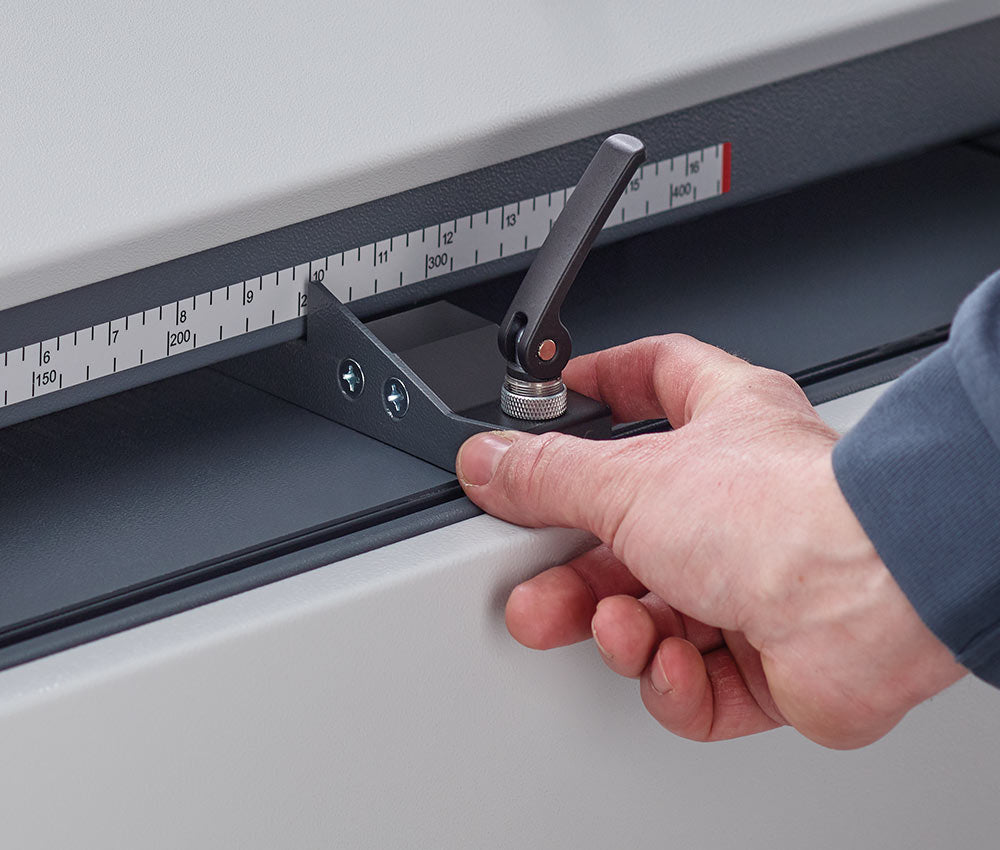

• 425 mm (16.73 in) intake, 20 mm infeed height, up to 3 layers
• Same 770 x 611 x 1040 mm footprint as the single-phase model
• No consumables: cardboard in, padding out

What the bigger motor buys you

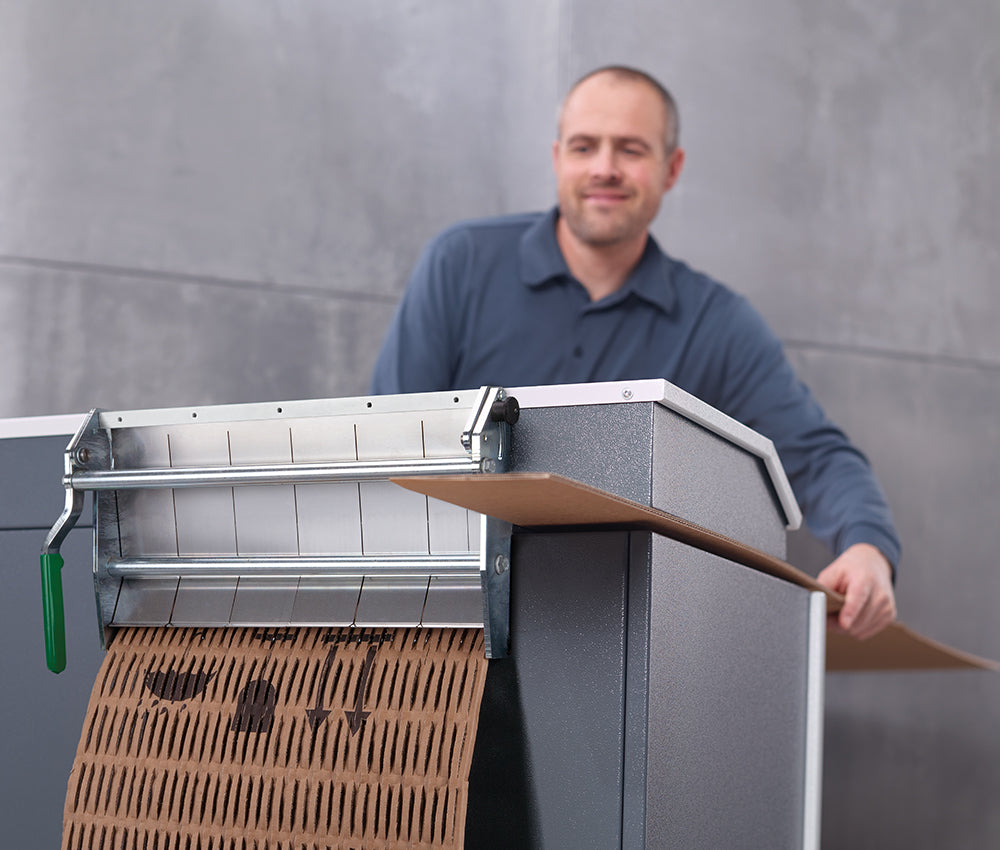

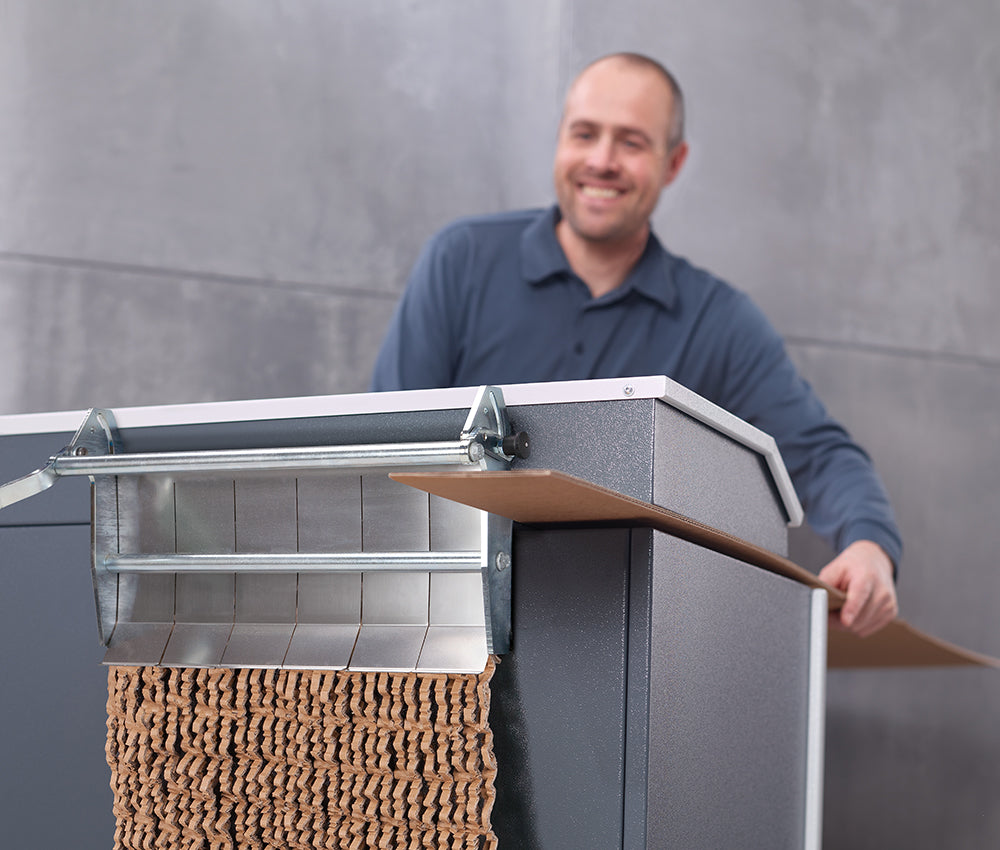

Compared with the single-phase P425 on the same chassis, this machine doubles the drive power, from 1,870 W to 3.8 kW, and lifts rated output from 80 to 120 kg an hour. The headline figure only matters if the machine is fed continuously. Where an operator works through a stack of incoming cartons, the extra torque keeps the rollers at speed through thick, multi-layer feeds, so consistent multi-layer mats become routine rather than occasional. If the machine will only run in short bursts between packing jobs, both versions spend most of the day idle and the single-phase unit is the sensible spend.

Electrical work to plan before delivery

There is no plug-in option. The 208 V three-phase connection has to be installed by an electrician and is not supplied with the machine, so arrange it before the unit arrives; in a leased unit without three-phase power, that may rule this version out. The frame weighs 181 kg (399 lb), 21 kg more than the single-phase model because of the heavier motor and gearing, so it stays put once positioned.

Rollers, mats and running costs

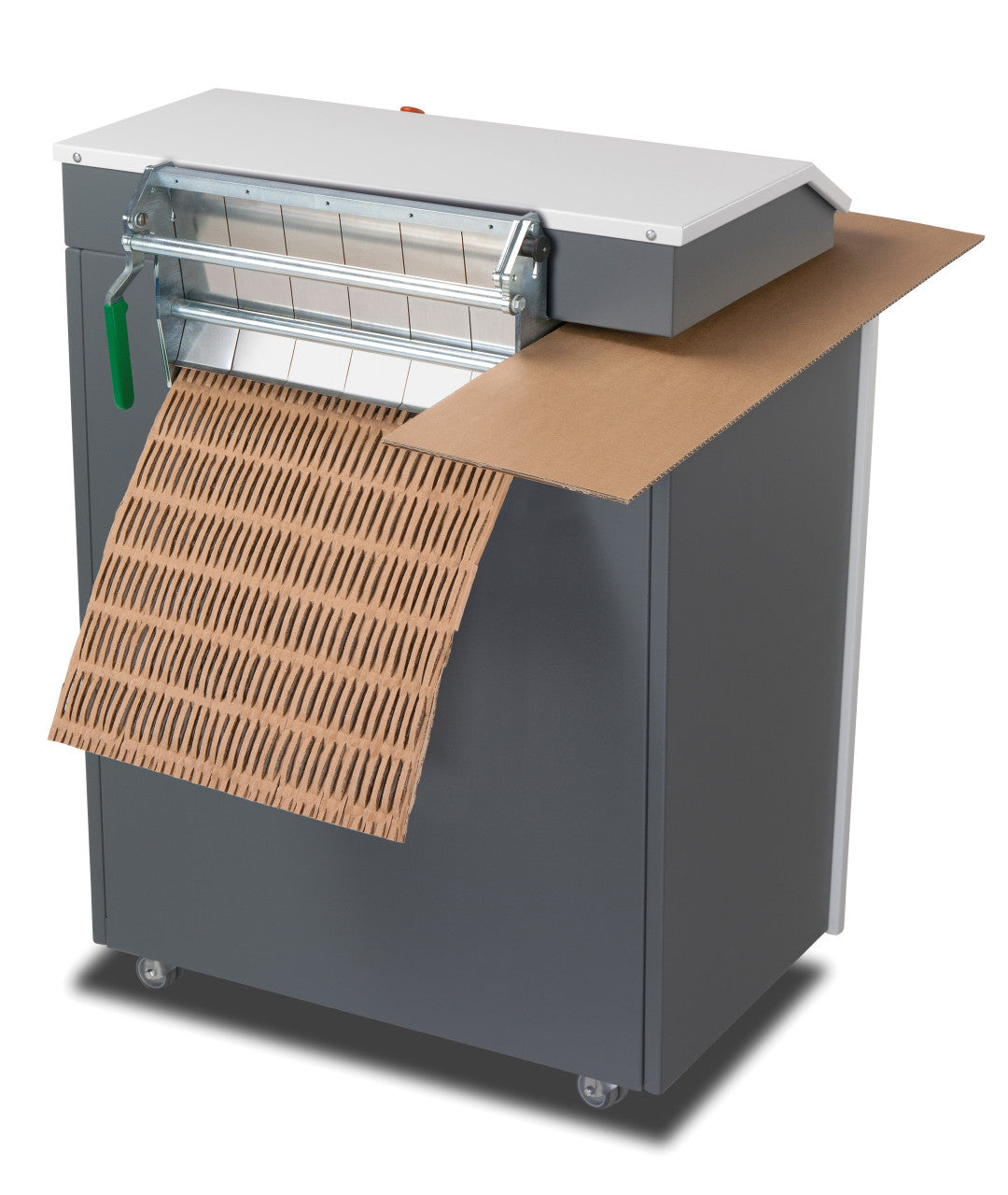

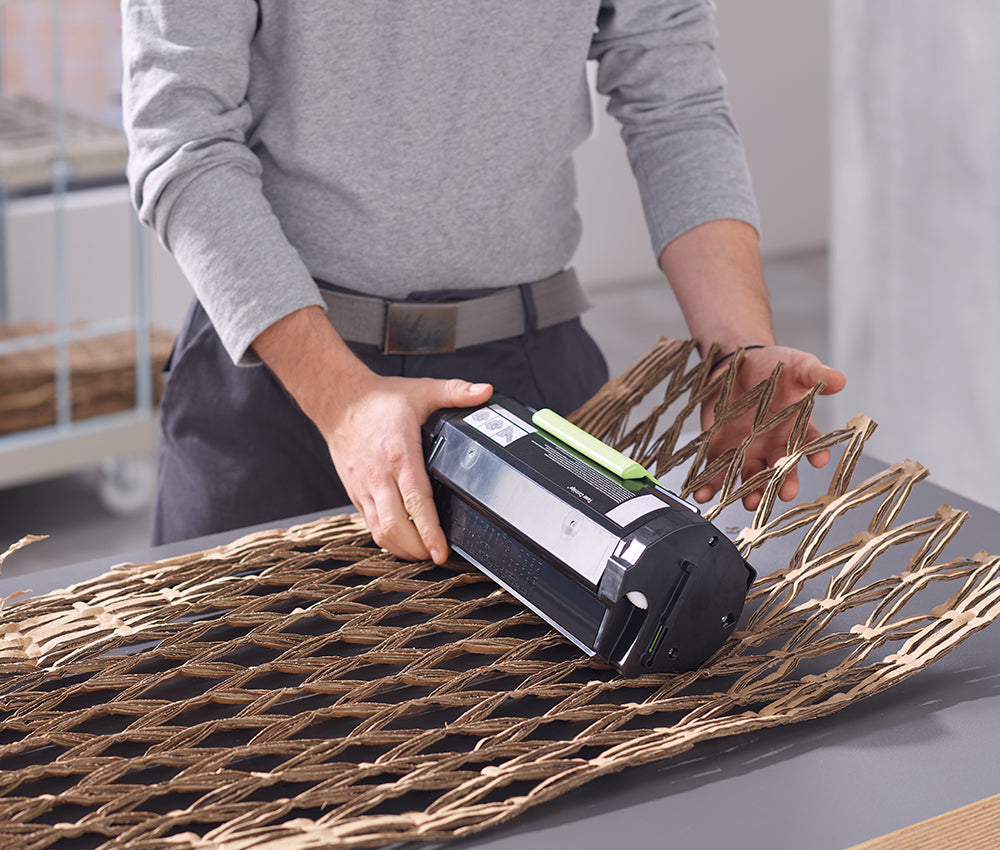

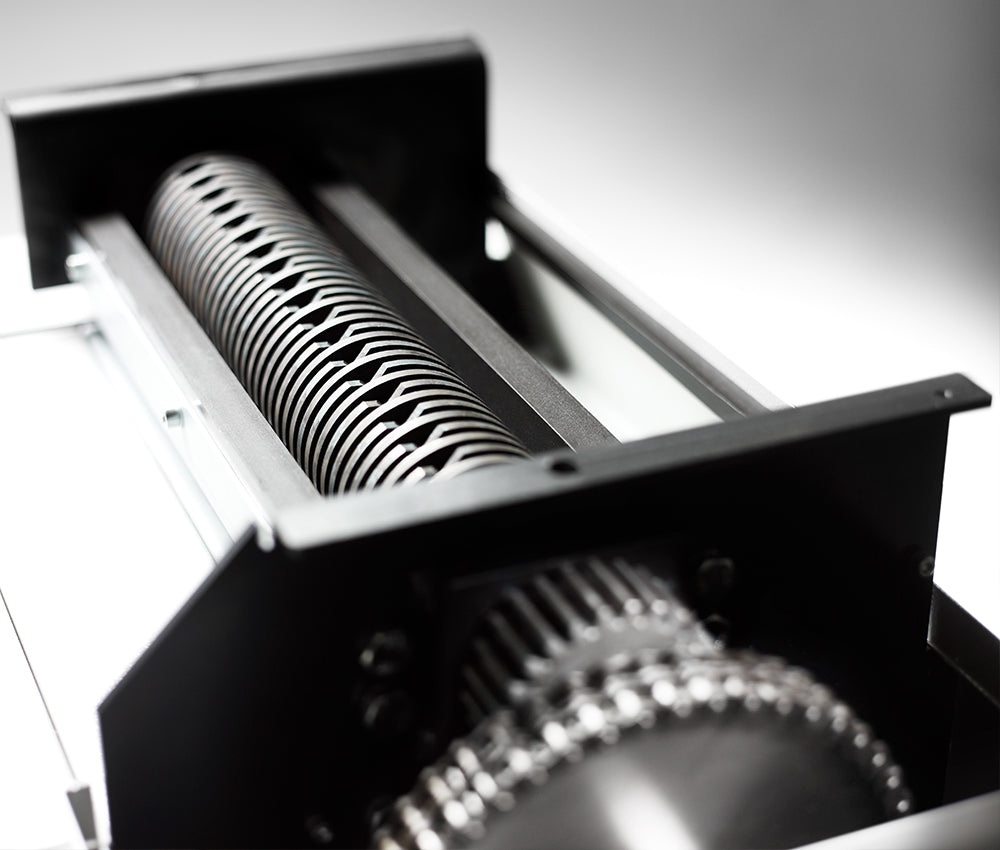

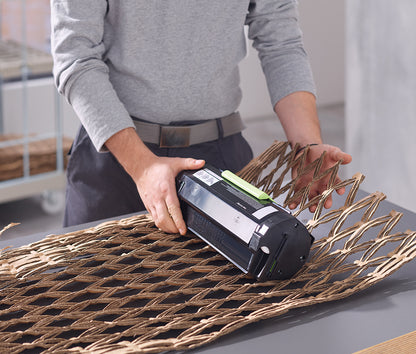

Induction-hardened solid steel rollers perforate and cut the board, coping with the staples and grit that come with used cartons. Output is a perforated multi-layer mat that wraps around goods or lines a carton. Running cost is electricity alone: no bags, oil, strapping or cartridges.

ProfiPack P425 three-phase specifications

Picking the right ProfiPack

• Single-phase P425: same intake and infeed, 1,870 W, 80 kg/h, plugs into a suitable socket. Best where three-phase power is unavailable.
• P425 with dust-extraction adapter set: this same 3.8 kW machine plus the connection hardware for HSM's DE 1-8 extractor, weighing 186 kg. Order it if fiber dust near stock is a concern; this plain article does not include the adapters.
• ProfiPack C400: a benchtop unit for one station at 50 kg/h.
• ProfiPack ecoChip: produces loose cardboard chips instead of mats.

Who should order the three-phase P425

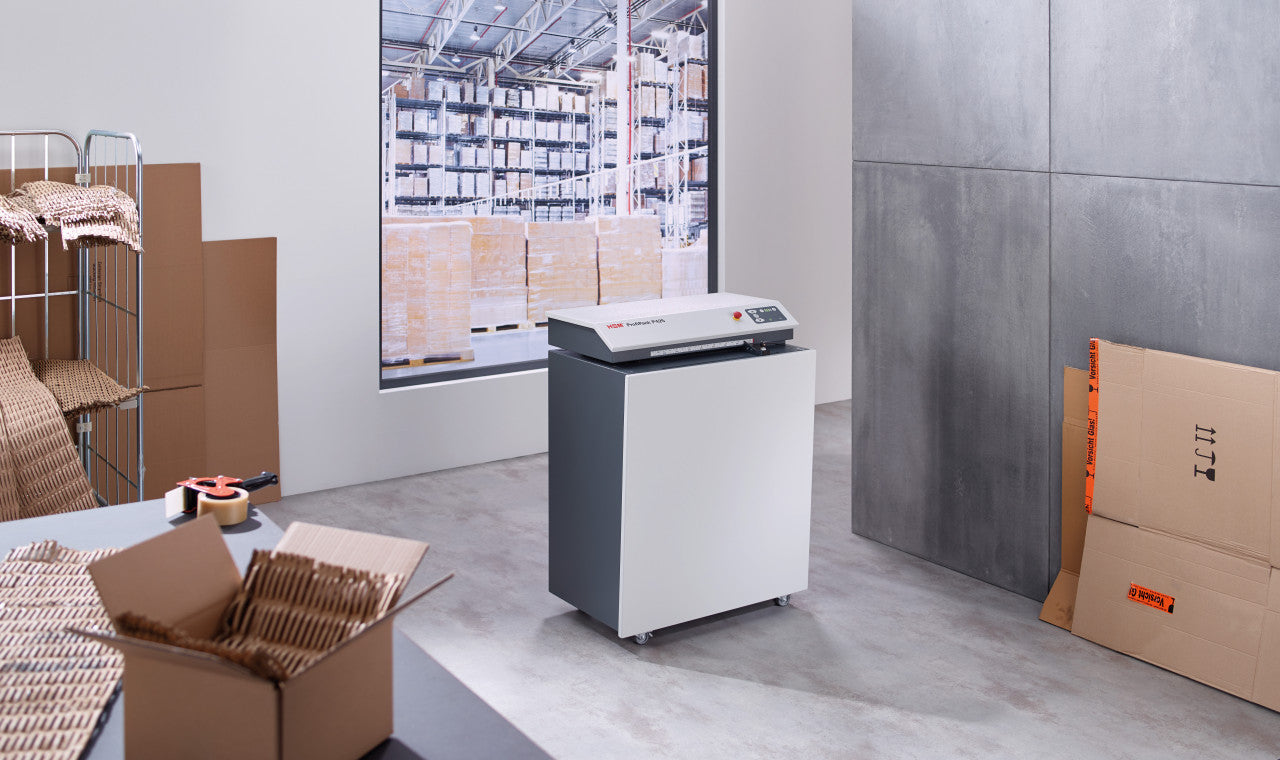

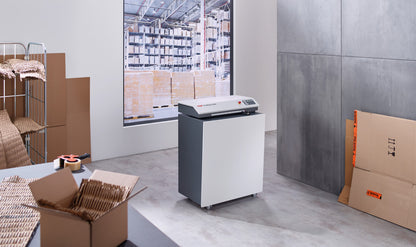

It suits fulfilment centers and dispatch departments with several packers, a steady flow of incoming cartons and a machine expected to run for much of the day, replacing a bought void-fill line. Skip it if three-phase power is not available, if the machine would only run for a few minutes a day, or if you need dust extraction, which calls for the adapter-set version.
