HSM Powerline SP 4040 V - 1/8 x 1 1/2 Industrial Shredder and Baler

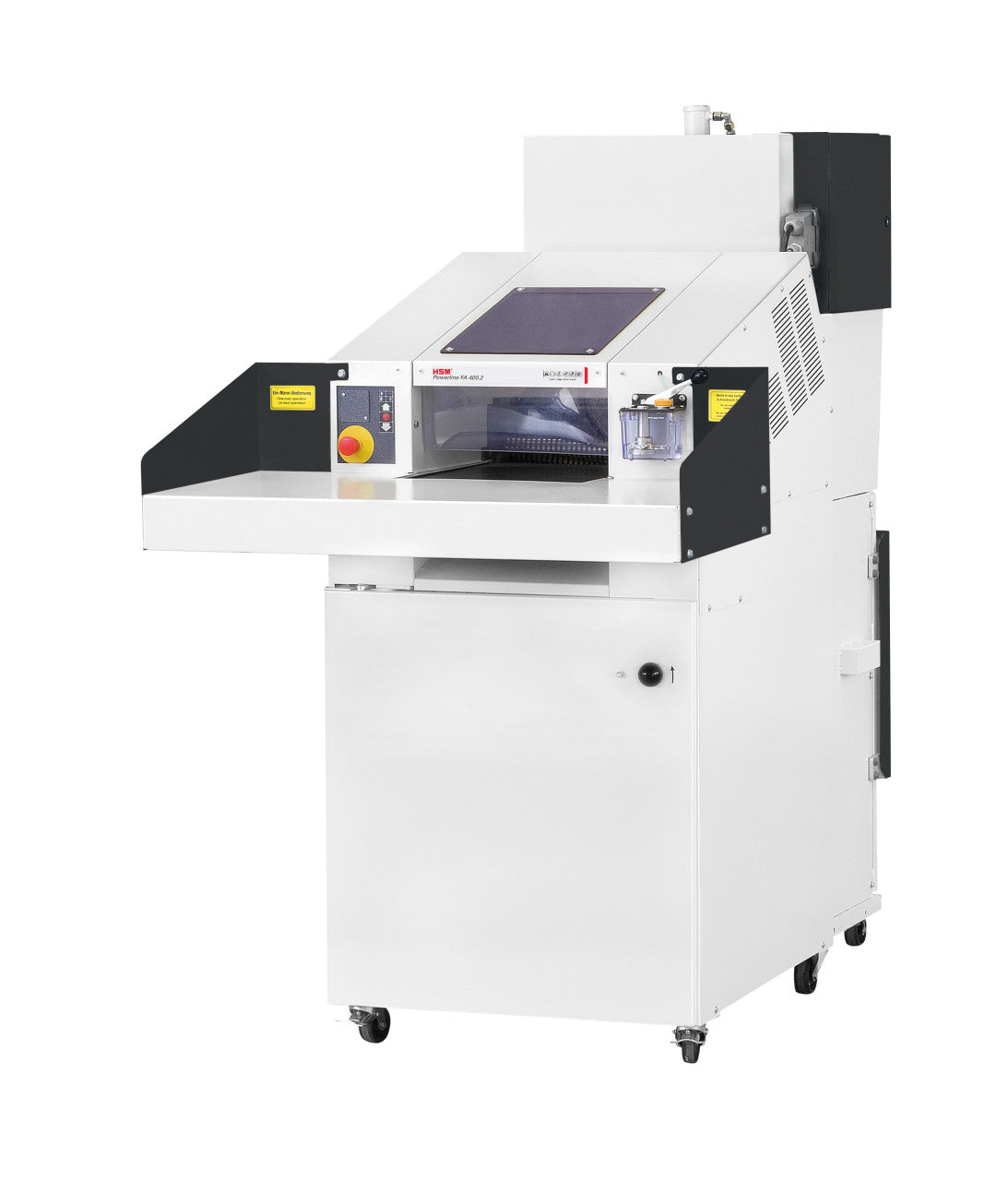

The HSM Powerline SP 4040 V with the 5/32 x 1 9/16 in (3.9 x 40 mm) head is a compact industrial shredder-baler rated DIN 66399 P-4, the level most data-protection policies set for personal information. It shreds 80 sheets per pass and its KP 40 V press bales the particles at 44 kN into blocks of up to 77 lb (35 kg). It is built for clinics, HR and payroll teams, legal and financial offices that must destroy personal records and want the waste baled.

SP 4040 V P-4 in brief

• P-4 particle cut, 3.9 x 40 mm (156 mm² per piece)
• Broadest media coverage of the SP 4040 V range: E-3, F-1, O-3, P-4, T-4

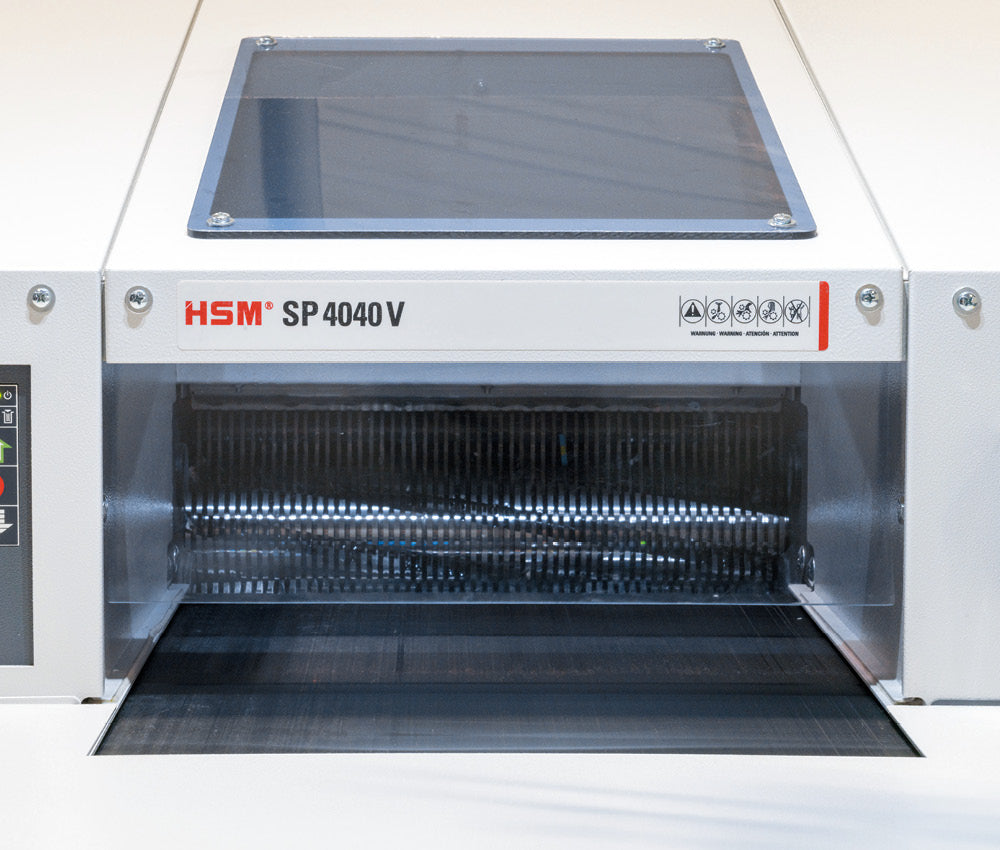

• 80 sheets per pass at 80 g/m², via a 16.9 in (428 mm) conveyor intake

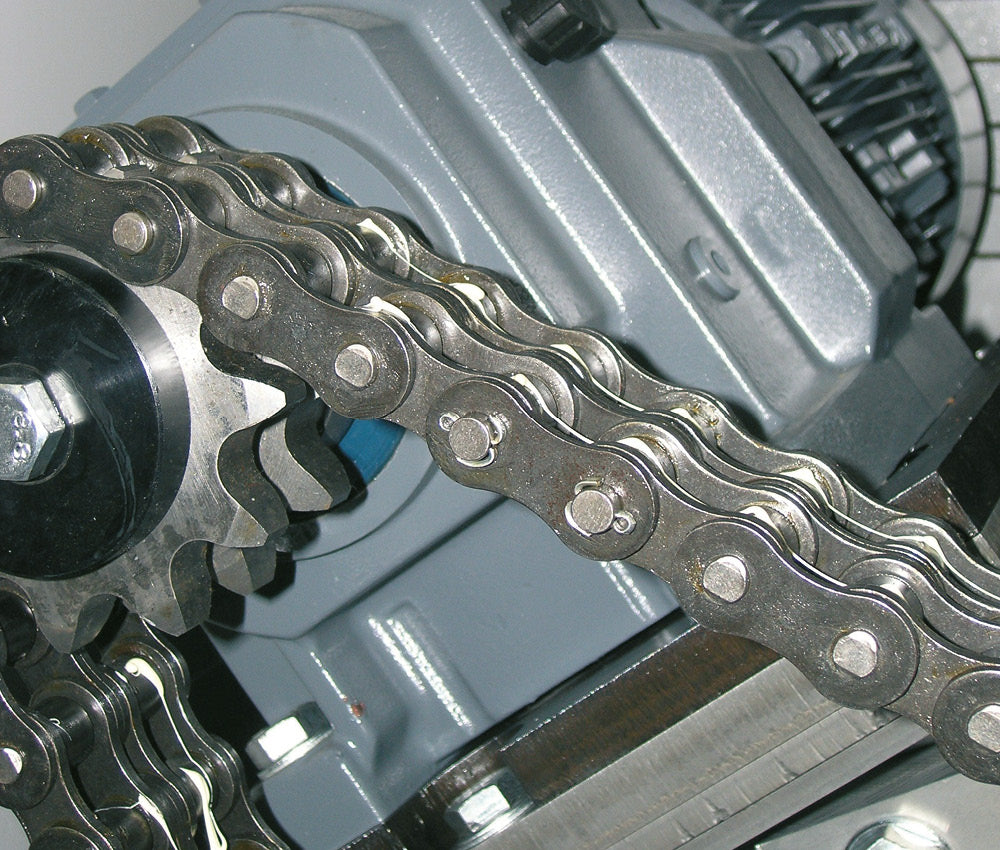

• 8.3 hp (6.2 kW) drive shared with the P-2 and P-3 heads

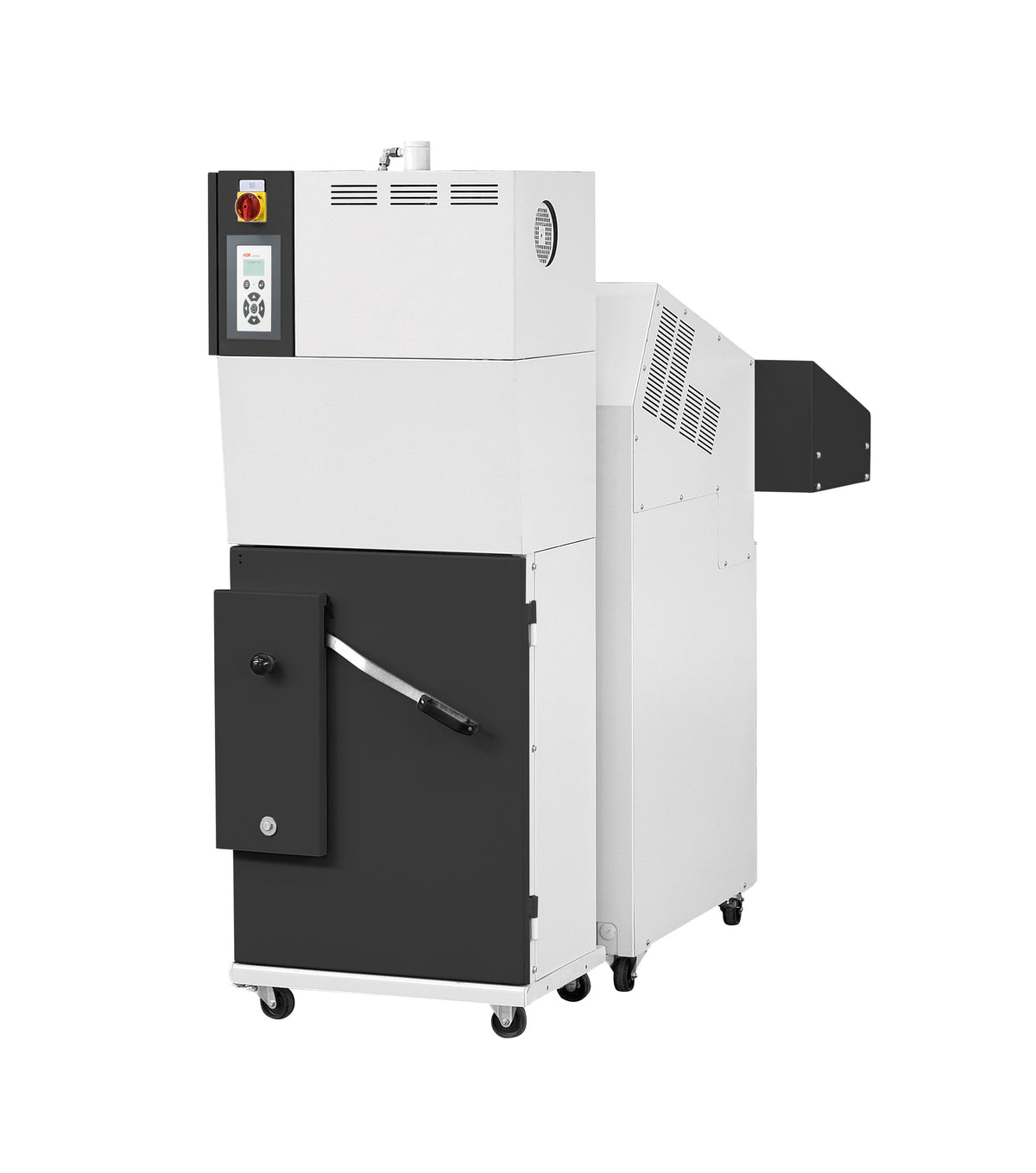

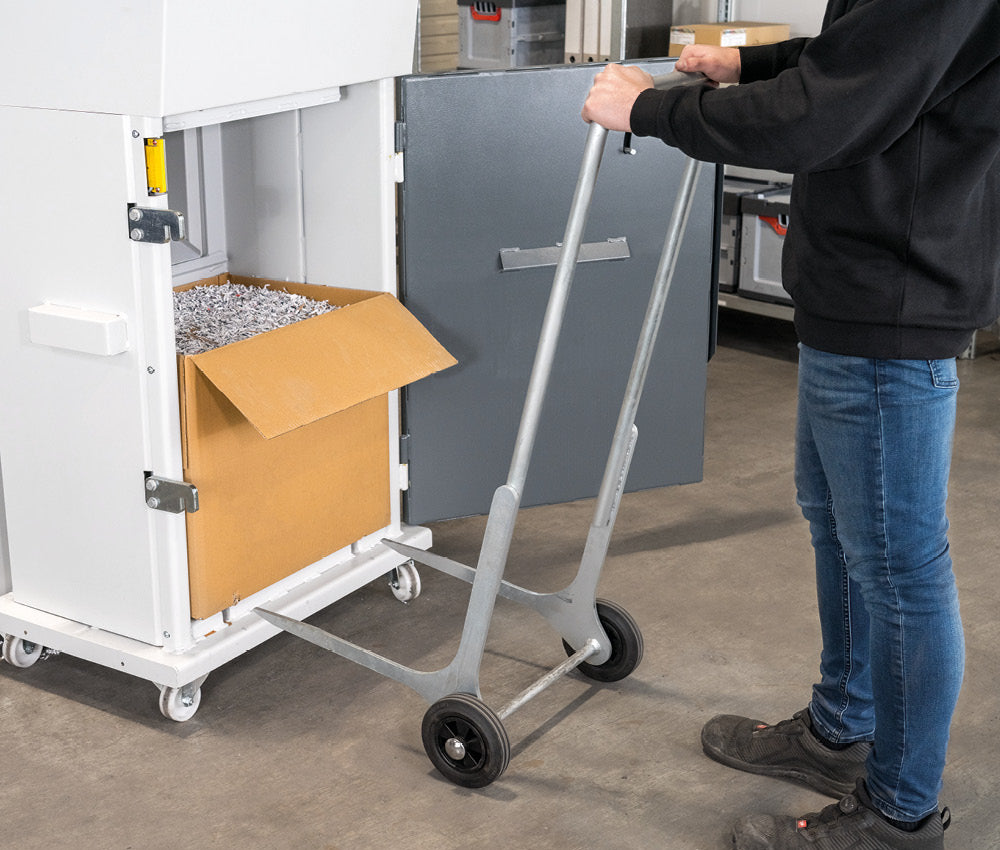

• Bales of 23.6 x 19.7 x 15.7 in (600 x 500 x 400 mm), up to 35 kg

P-4 in plain terms

DIN 66399 limits a P-4 particle to 160 mm². The 3.9 x 40 mm piece from this head measures 156 mm², so it qualifies with little room to spare, which is typical for this cut. In practice that means personnel files, patient letters, payroll runs, customer statements and client case files can go in. It is the smallest HSM shredder-baler that reaches P-4; the SP 4040 V family stops there, so a P-5 requirement means stepping up to the SP 5080.

The extra ratings matter for mixed streams. O-3 covers optical discs, E-3 covers electronic data carriers such as cards, F-1 covers film and T-4 covers microform. The P-2 and P-3 heads on the same chassis only reach E-2 and O-2, so this is the variant to choose when CDs, DVDs and credit cards are destroyed alongside paper.

The throughput trade-off

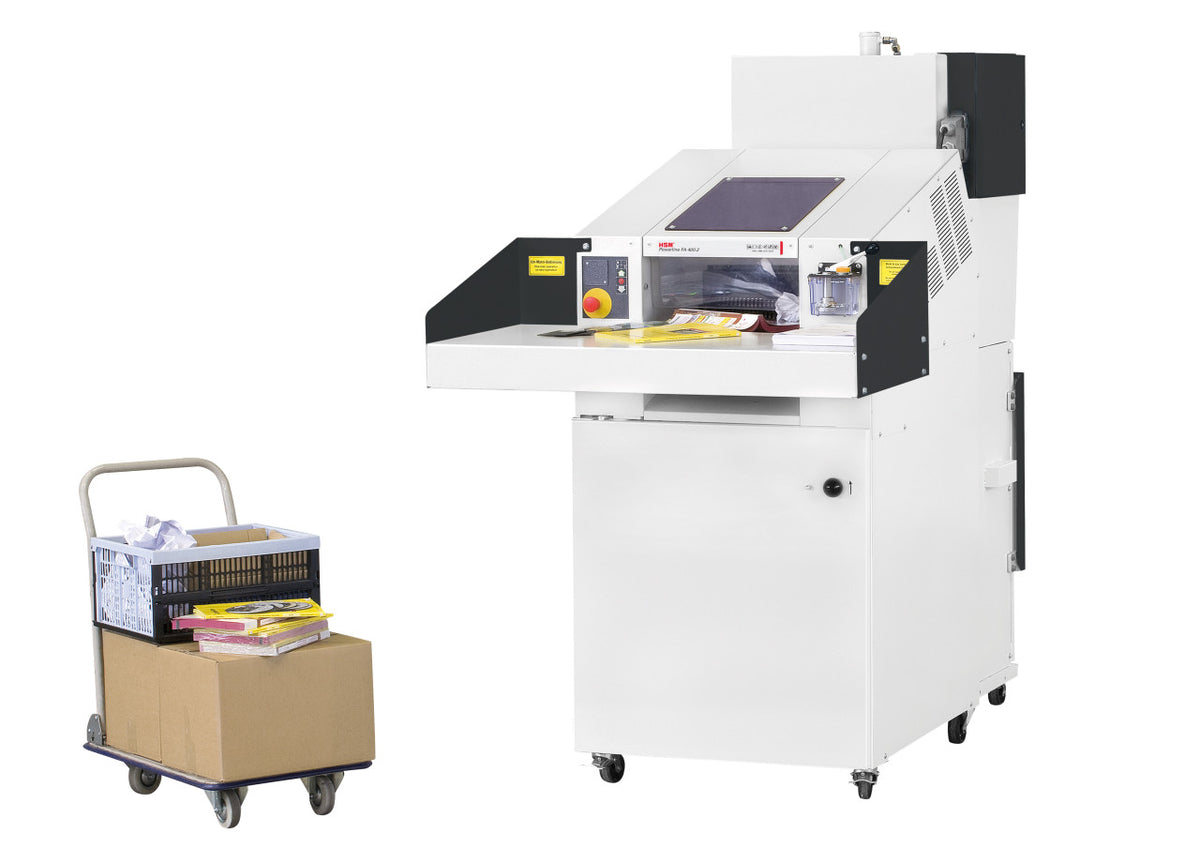

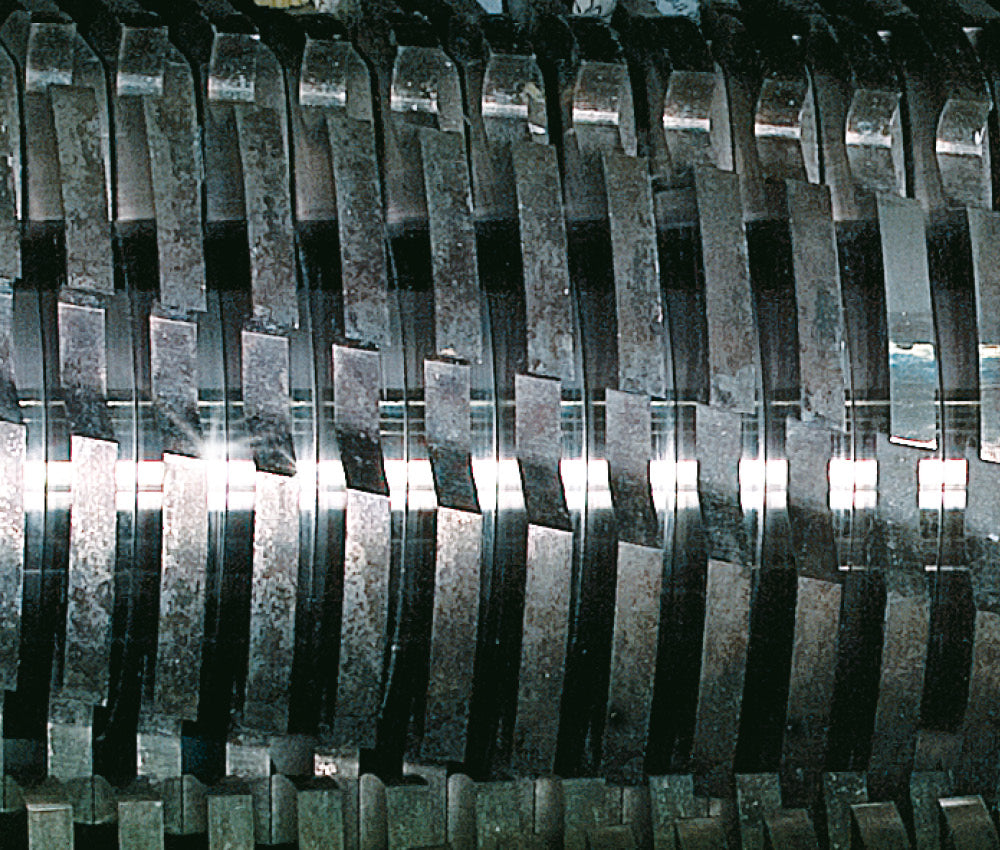

A finer cut means more cutting work per sheet. With the same 6.2 kW motor as its siblings, this head accepts 80 sheets a pass rather than 96 (P-3) or 104 (strip cut). For a department feeding the conveyor from collection consoles that is rarely the bottleneck; feeding speed and the press cycle usually set the pace. The induction-hardened steel rollers accept staples, paper clips and crumpled paper, so nobody has to pre-sort.

Specifications for the 3.9 x 40 mm SP 4040 V

How it compares with other HSM shredder-balers

• SP 4040 V, 5.8 x 50 mm (P-3): 96 sheets per pass on the identical chassis, but only E-2 and O-2 for media. Enough for business-confidential paper without personal data.
• SP 4040 V strip cut (P-2): 104 sheets per pass for non-sensitive bulk paper.
• SP 5080, 3.9 x 40 mm (P-4): the same cut on a 500 mm intake at 180-200 sheets per pass, with 80 kg bales from an 80 kN press; the choice when one machine serves an entire building.

Who it suits, and when to look further

Pick this model when a policy or client contract names P-4, the volume is departmental, and a 35 kg bale suits your handling. It is over-specified for anonymous bulk paper, where the P-3 or strip head will clear boxes faster, and under-specified if a contract asks for P-5. Budget separately for freight, positioning, the three-phase connection and bale-tying supplies.
