HSM Powerline FA 500.3 1/8 x 1 1/2 Industrial Shredder - HSM1994

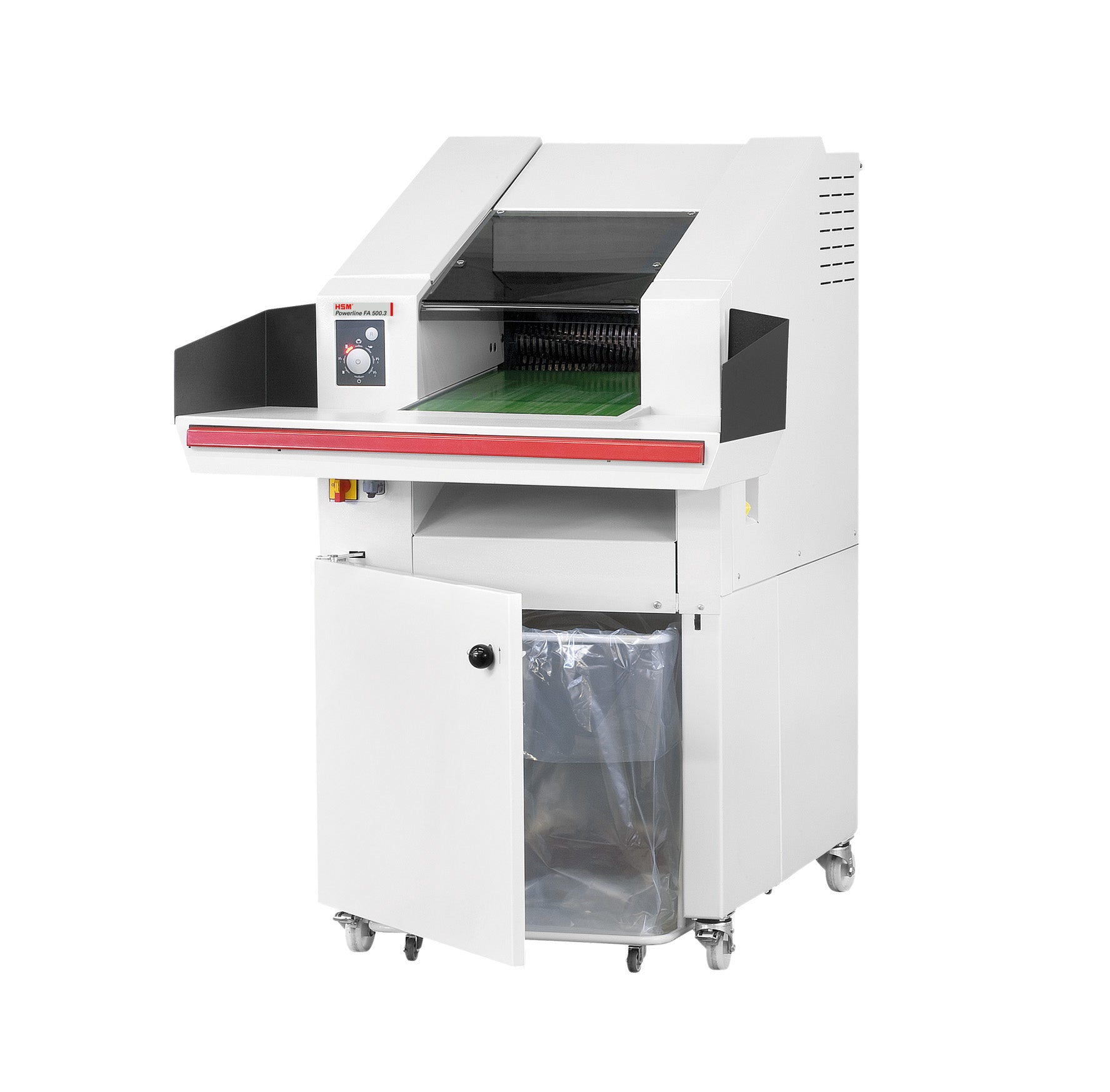

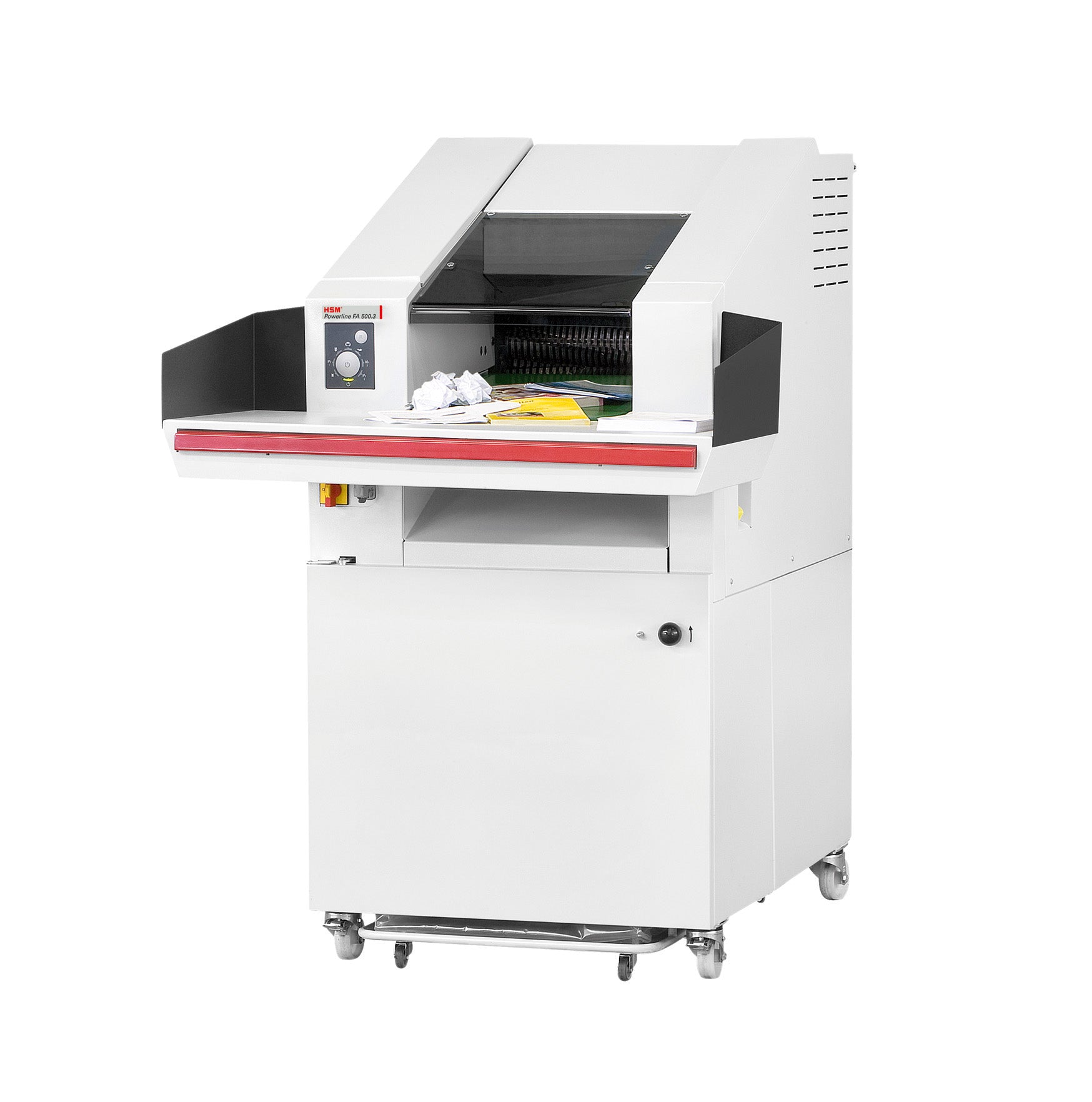

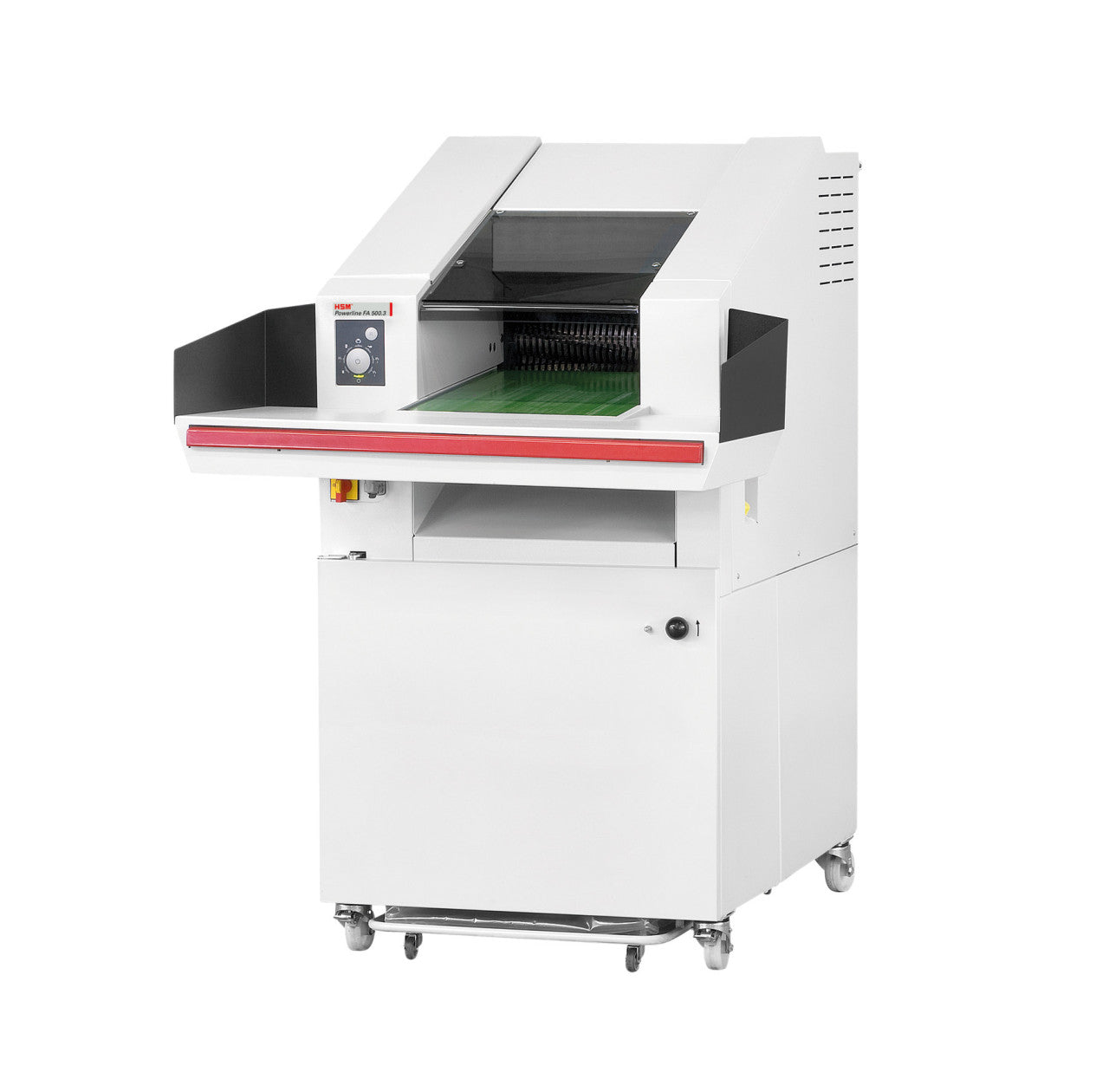

The HSM Powerline FA 500.3 1/8 x 1 1/2 (HSM1994) is a P-4 cross-cut, conveyor-fed industrial shredder that cuts 3.9 x 40 mm particles at 180 to 200 sheets per pass into a 530 liter (140 US gallon) trolley. It is the FA 500.3 most organizations choose when a privacy or data-protection program sets the requirement. It suits central destruction rooms processing patient, employee or customer records in volume.

FA 500.3 P-4 at a glance

• P-4 cross cut, full rating E-3|F-1|O-3|P-4|T-4
• 3.9 x 40 mm particles (approx. 5/32 x 1 9/16 in), 156 mm² each
• 180 to 200 sheets per pass at 80 g/m²

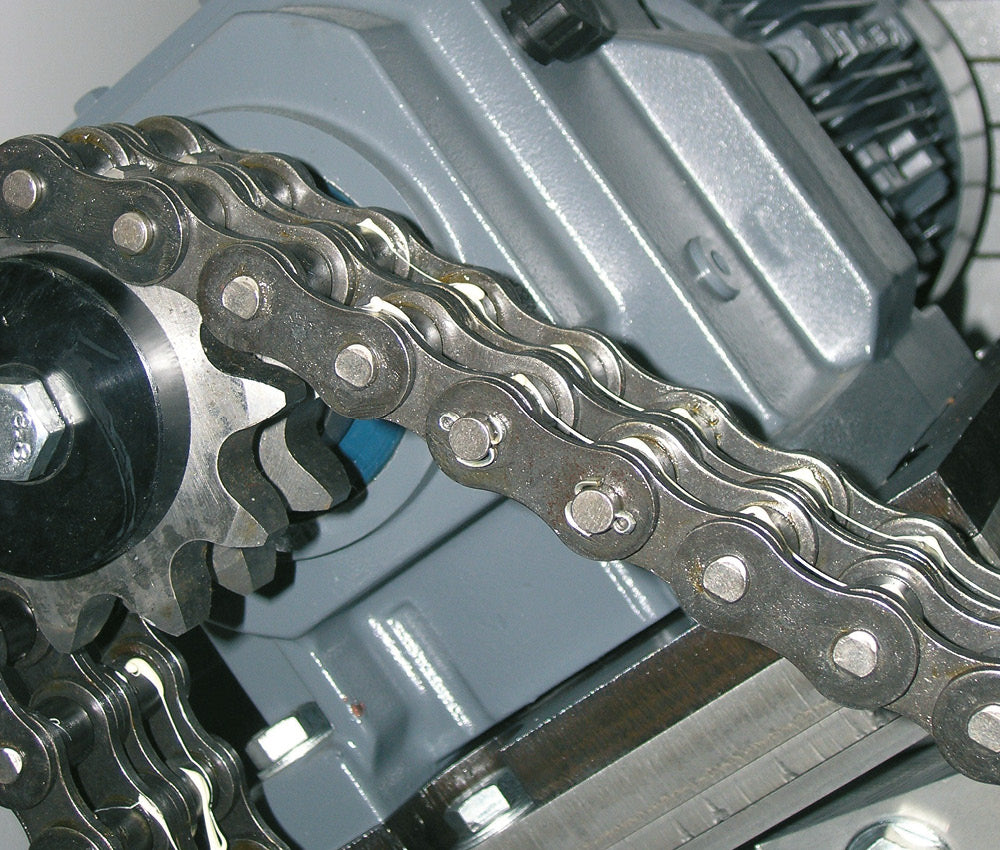

• 7.5 kW (10.1 hp) continuous-duty drive and automatic oiler

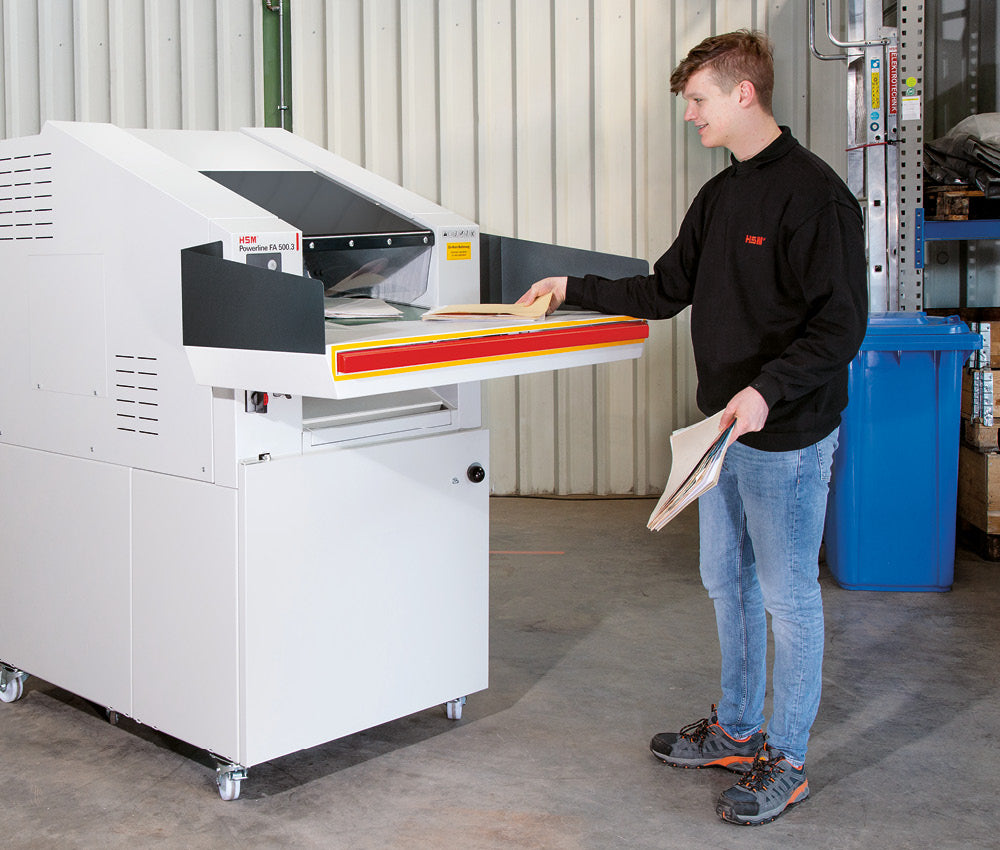

• 500 mm (19.7 in) motorized conveyor belt

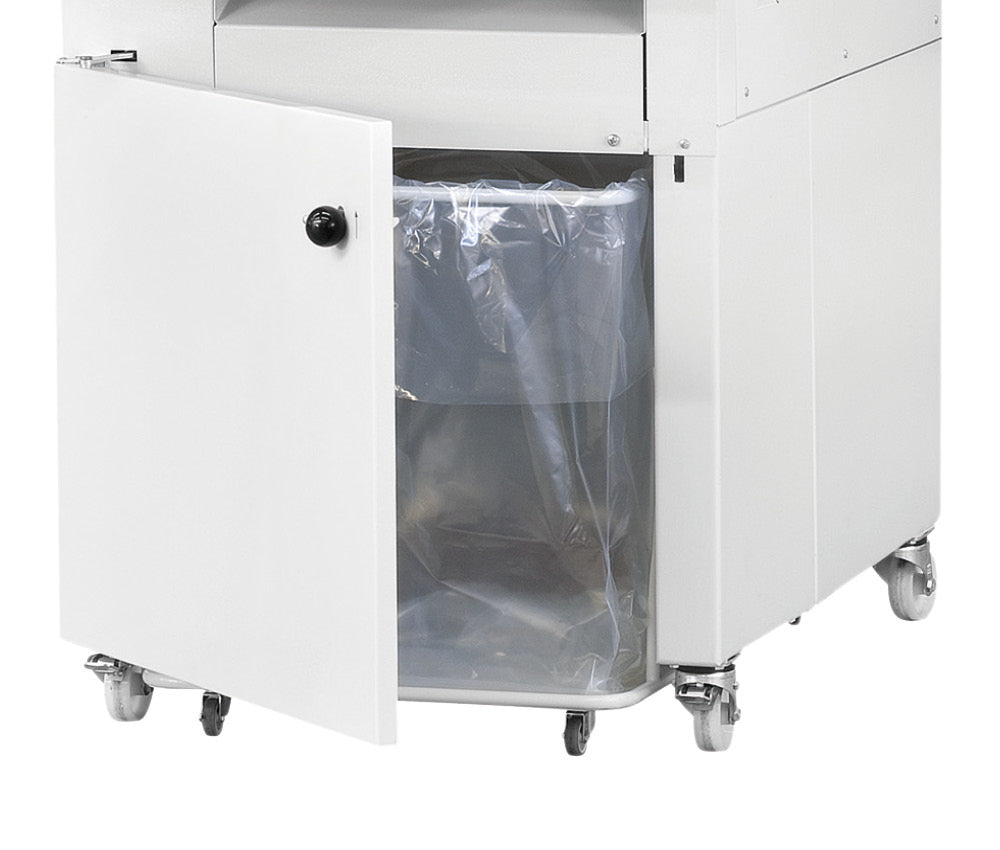

• 530 L trolley with reusable collecting bag

Why P-4 is the usual target for personal data

Each 156 mm² particle sits just under the 160 mm² ceiling DIN 66399 sets for P-4. Laws such as HIPAA and GLBA do not name a DIN level; they require records to be practically unreadable and impossible to reassemble, and P-4 is where most compliance programs and auditors have settled. A note on the title: 3.9 mm is closer to 5/32 in than 1/8 in, so treat the metric figure as the definitive specification. The E-3, F-1, O-3 and T-4 ratings extend coverage to electronic media, film, optical discs and cards.

Same chassis as P-3, different trade

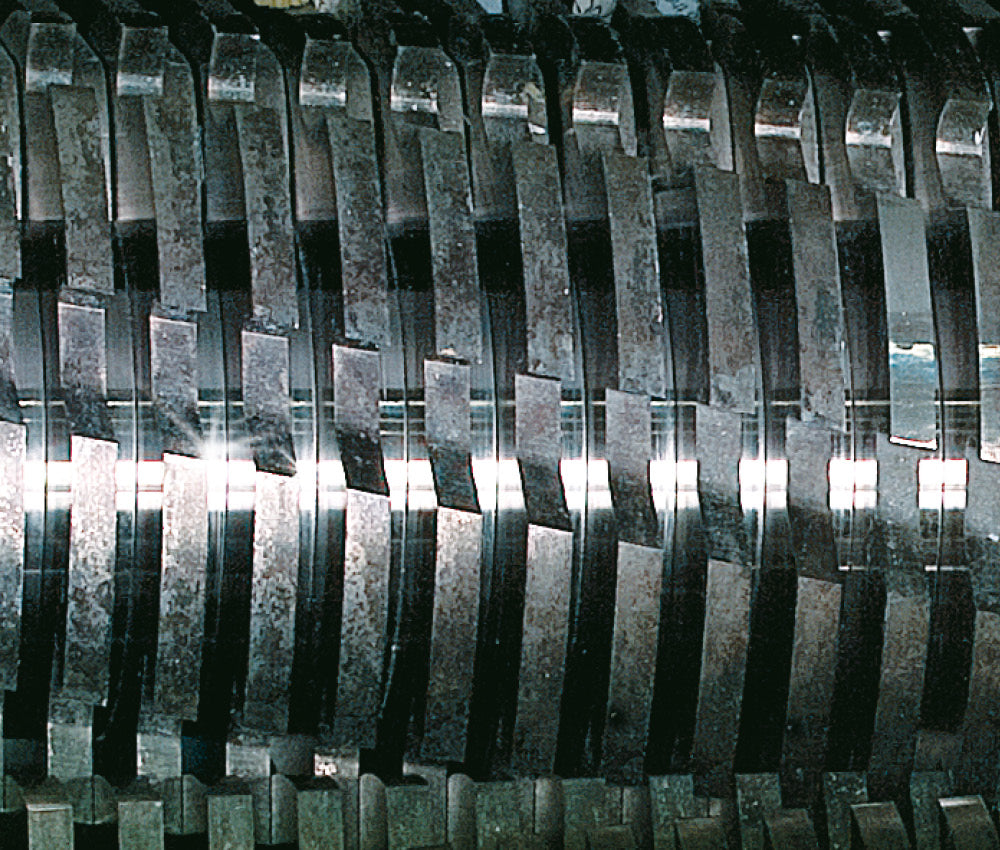

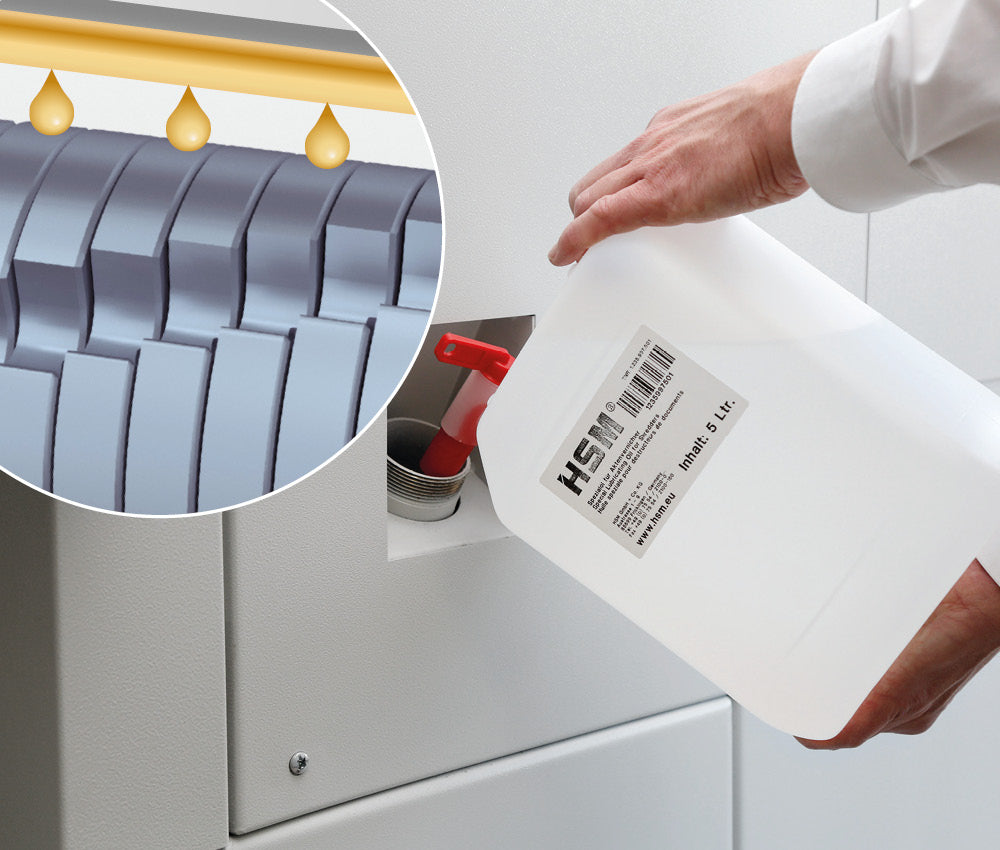

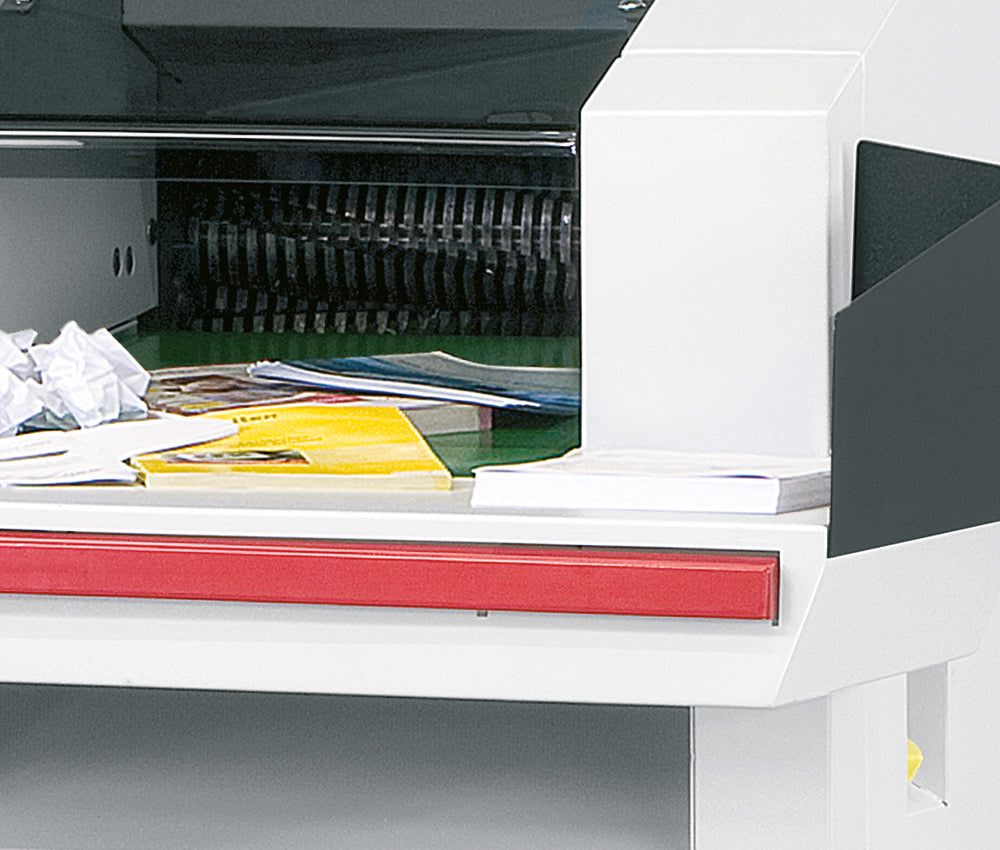

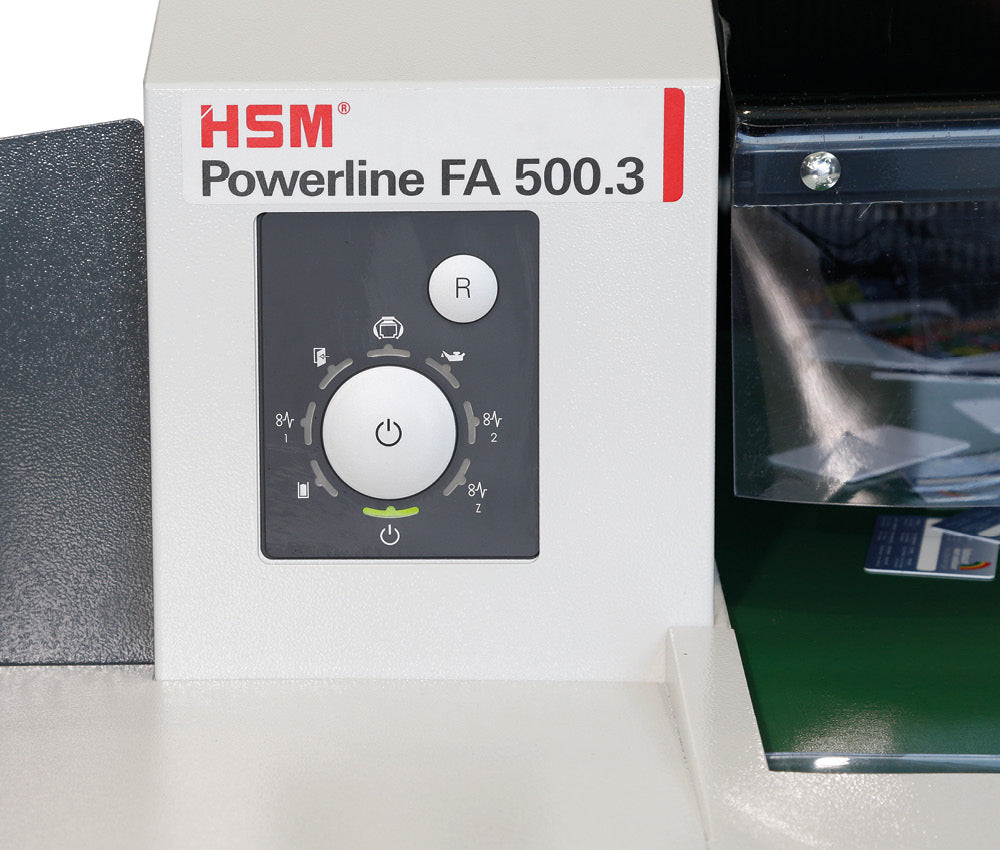

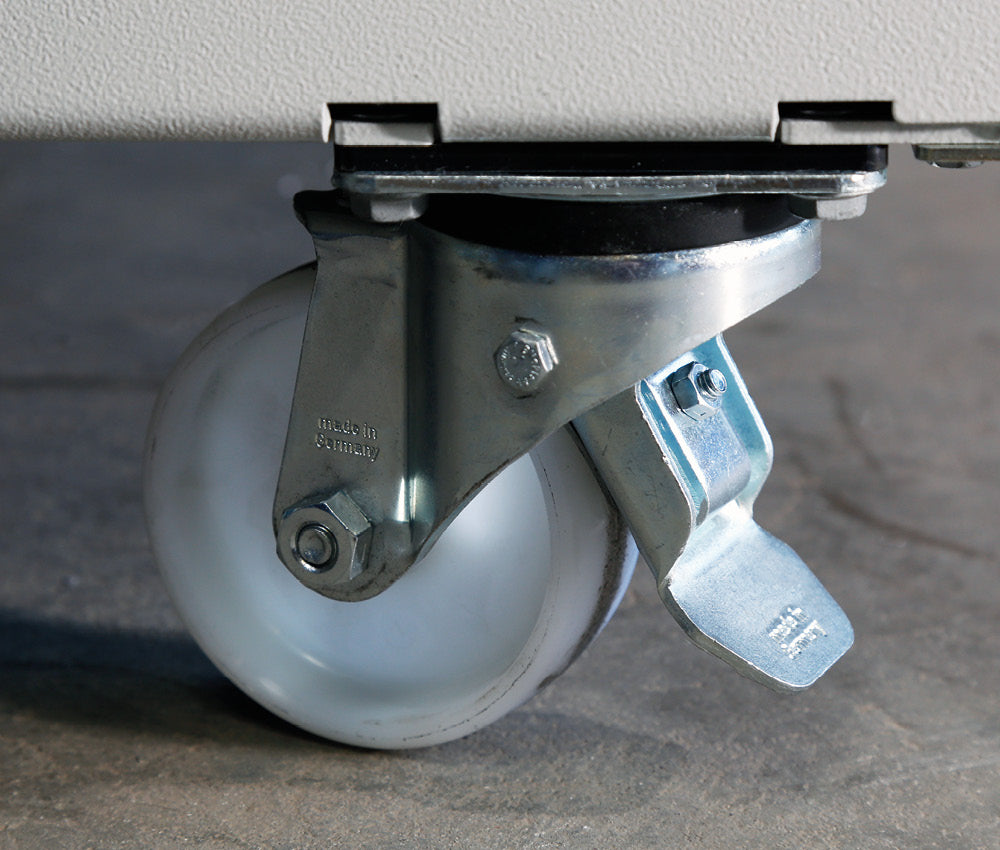

This head shares the 7.5 kW drive, 905 kg weight, footprint, trolley and conveyor with the P-3 FA 500.3, so the only cost of the higher level is speed: 180 to 200 sheets instead of 300 to 350, roughly 40 percent less. On a belt-fed machine rated for continuous use, that shows up as a longer shredding session rather than a hard limit. Induction-hardened solid steel rollers take staples, paper clips, CDs and DVDs, floppy disks, credit cards and USB sticks. The automatic oiler removes manual lubrication, though its reservoir needs topping up with the correct cutting oil. An emergency stop bar, LED controls and braked castors complete the setup.

Specifications

Freight, rigging and the three-phase hookup are priced separately from the machine.

Comparing the FA 500.3 P-4 with nearby options

• FA 500.3 at 1.9 x 15 mm (P-5): 90 to 100 sheets, a 9.5 kW drive and 155 kg more weight, when a contract or insurer names P-5.
• FA 500.3 at 6 x 40-53 mm (P-3): 300 to 350 sheets for business paper that does not identify people.
• SP 5080 at 3.9 x 40 mm (P-4): this cut with a baling press behind it, for sites shipping shred out by the ton.
• Powerline FA 400.2 at 3.9 x 40 mm (P-4): the same particle with throat feeding, 80 sheets and a 460 L bin, for smaller volumes.

Who it suits, and who should look elsewhere

It fits hospitals, insurers, HR shared services and records centers, and it is a safe default when no written policy exists yet, because P-4 is rarely judged insufficient later. Look elsewhere if your rules call for P-5, if nothing you destroy is personal, or if you need baled output rather than bagged shred.
