HSM HL 7009 Lifting Tilting System with Wire Mesh Cart for Horizontal Baling Presses

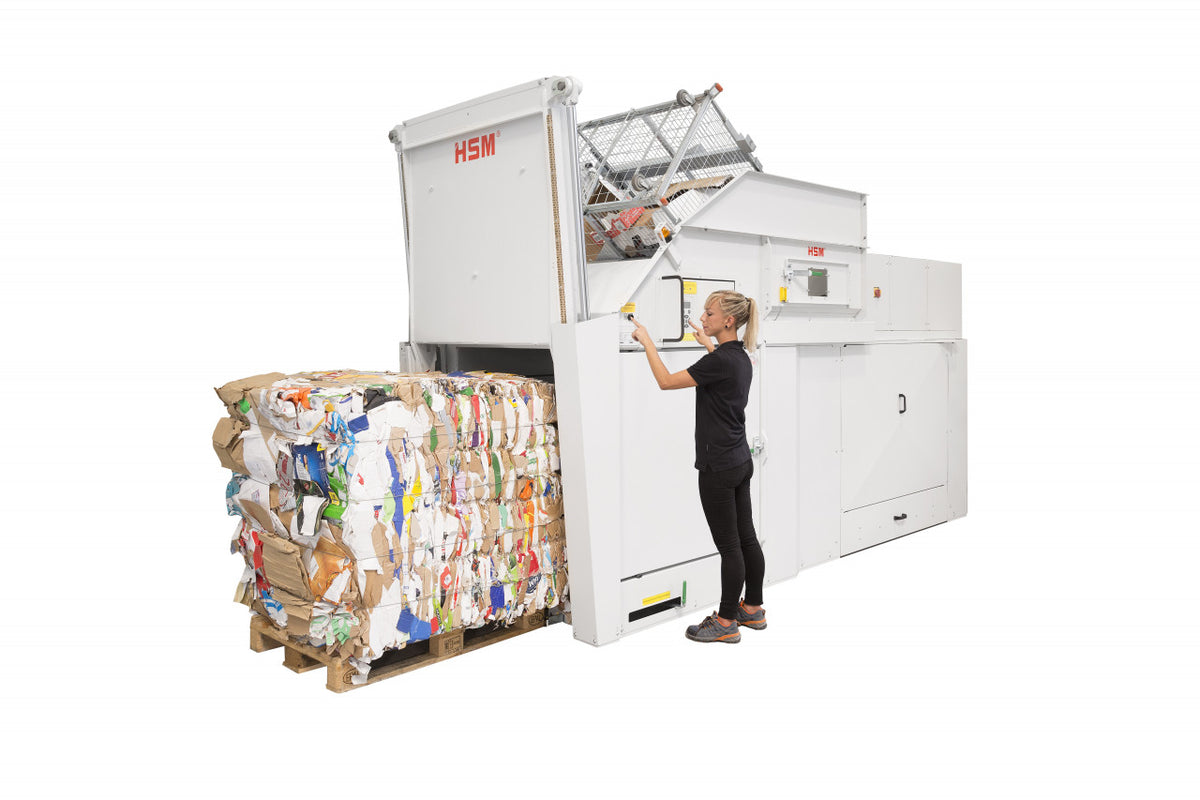

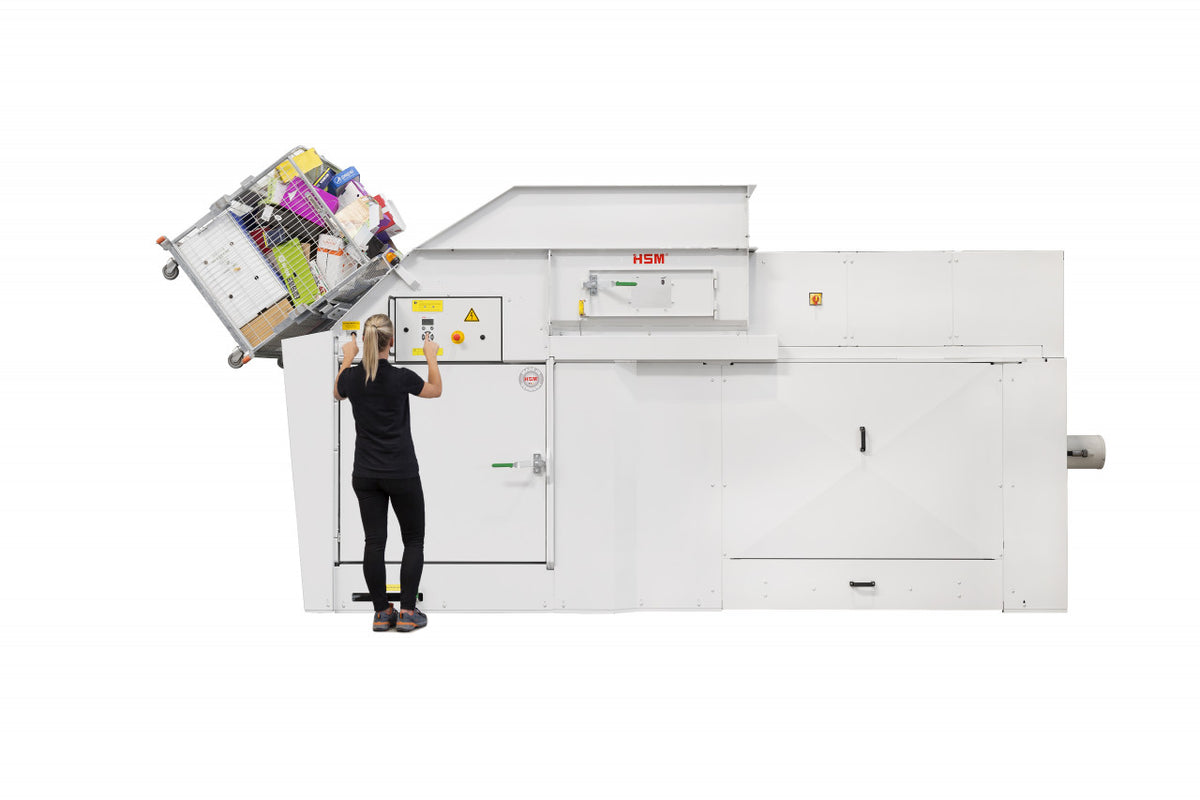

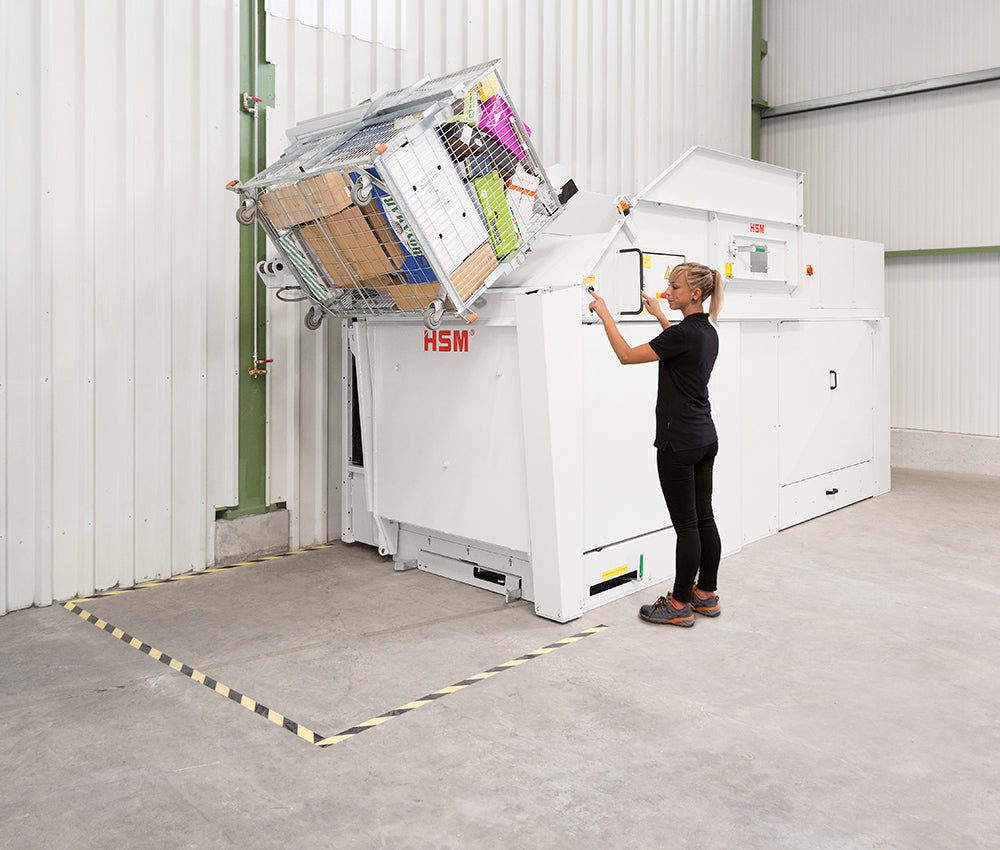

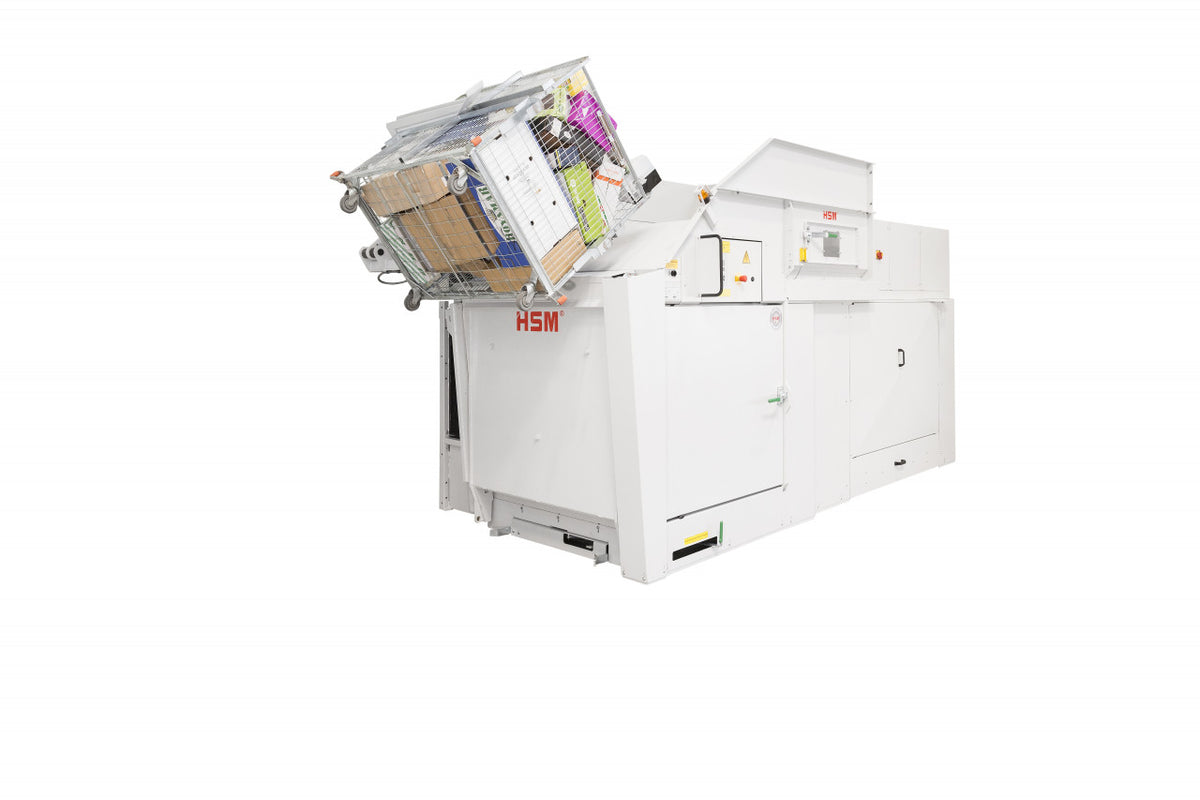

The HSM HL 7009 under order number 6336133 is a complete horizontal channel baling press supplied with a hydraulic lifting and tilting system and a wire mesh cart as its loading method. Operators wheel a filled cart into the lifter, which raises it and tips the contents into the press, so nobody lifts material by hand. The press applies 71 t (approx. 700 kN) and produces wire-tied bales of up to 1323 lb (600 kg) from cardboard, mixed paper and film.

Main points of this HL 7009 configuration

• A full press with cart lifter, not an add-on kit for an existing machine

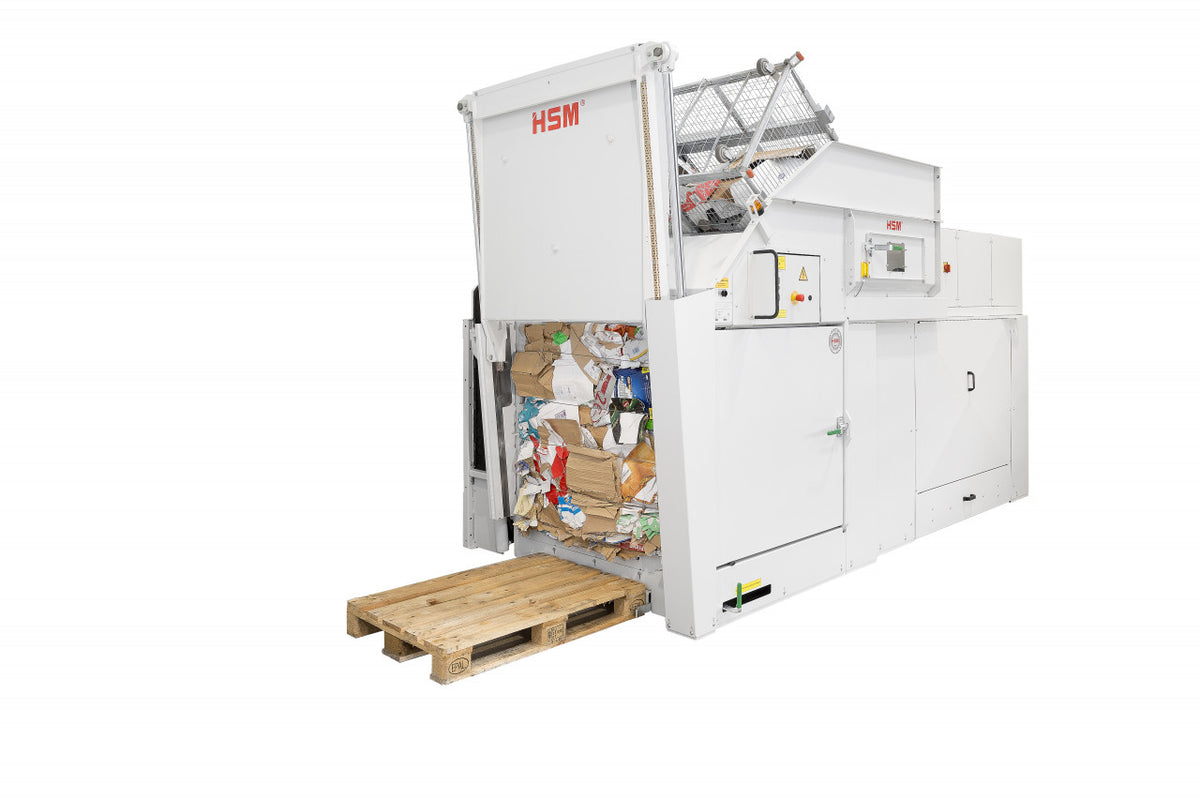

• Bales of 43.31 x 43.31 x 47.24 in (1100 x 1100 x 1200 mm)
• Specific pressing pressure of 84.1 psi (approx. 5.8 bar)
• 14.35 HP (10.7 kW) motor on 208 V / 60 Hz
• Idle throughput 1519 cft/h (approx. 43 m3/h) with a 47 s cycle

Why choose cart tipping over a hopper

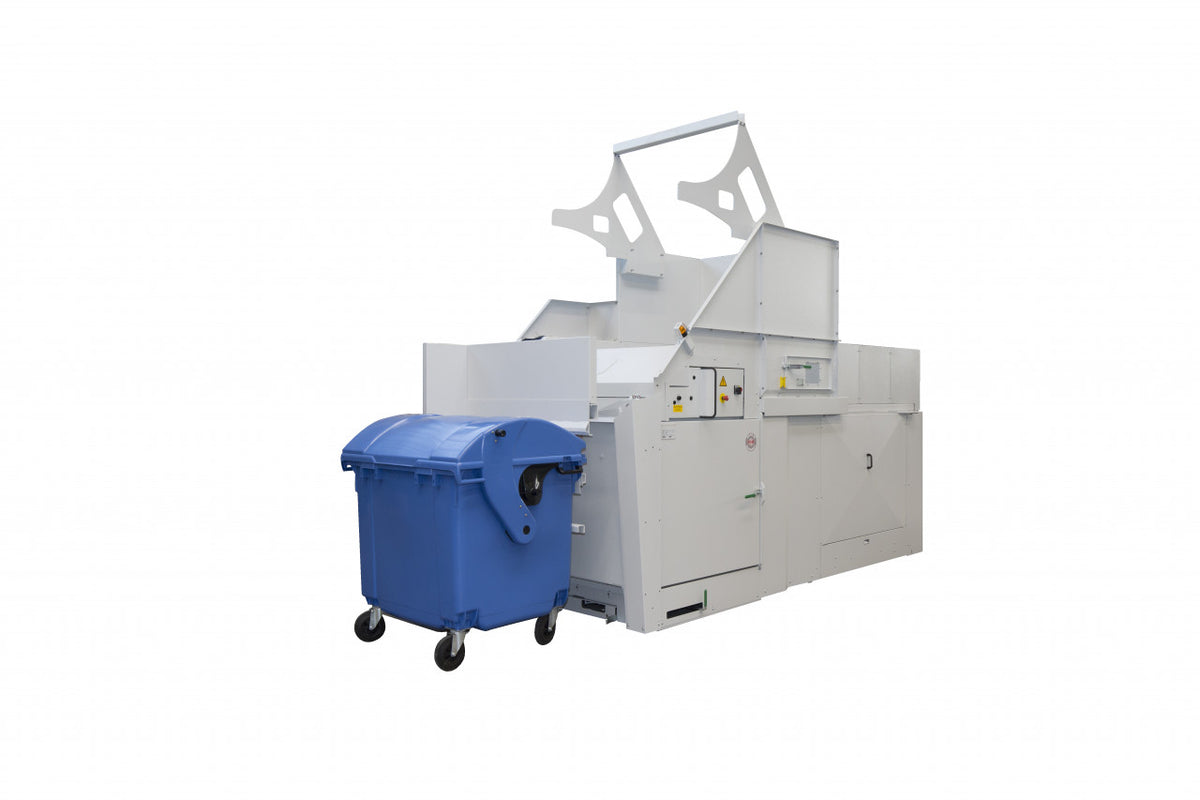

On a press of this size, hand loading is both the slowest part of the cycle and the main source of strain injuries. The lift-tilt unit takes that step away: carts are filled where waste is produced, brought to the press and emptied mechanically. It is the right configuration where material already moves around the site in wire mesh carts. Where it arrives loose or at height, HSM's bevelled hopper version is simpler and cheaper, and a variant for large refuse containers is also offered.

Reading the throughput figure

HSM's 1519 cft/h and 47-second cycle are measured with the press running empty. They show how fast the ram can cycle, not how much cardboard a site will bale per hour. Real output depends on how quickly carts are filled and swapped, and will normally be well below the idle number. The 1020 x 900 mm loading aperture accepts flattened boxes and loose film without pre-cutting.

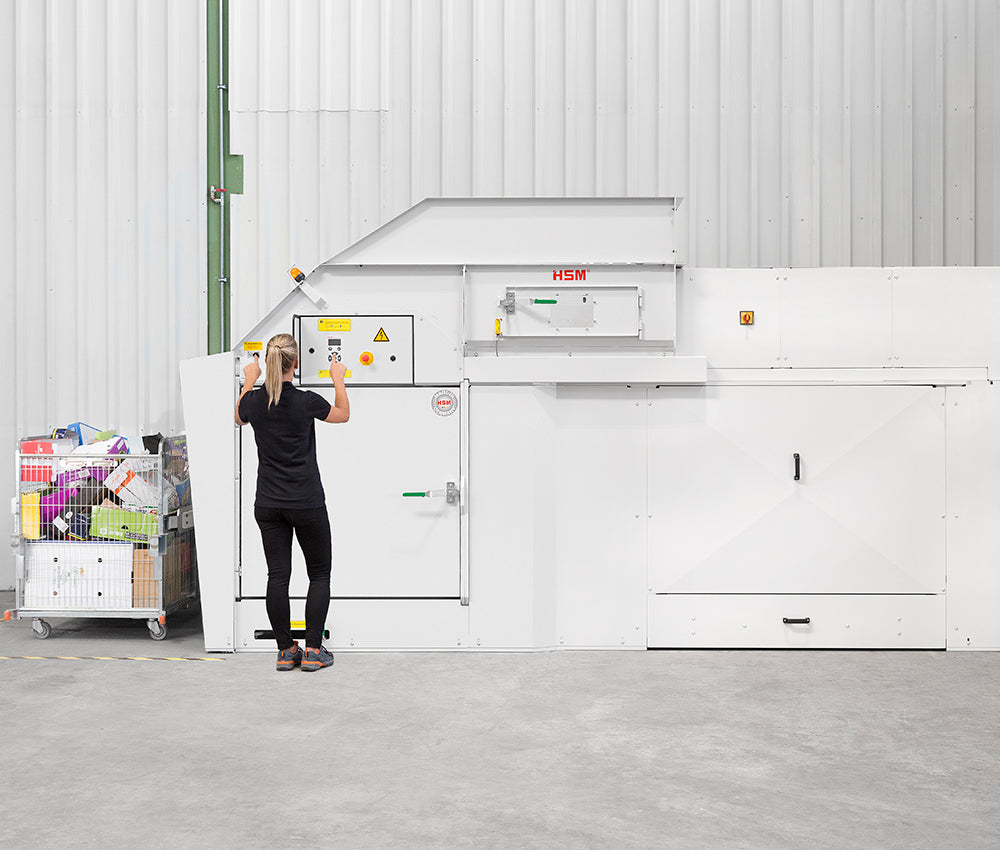

Space, services and handling

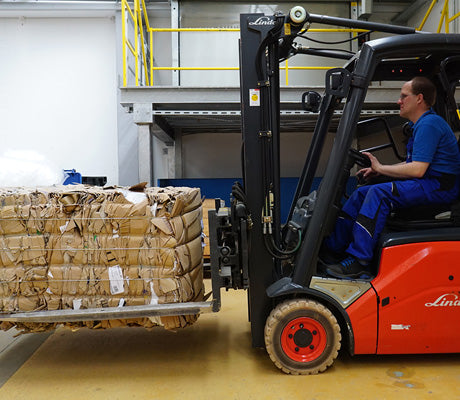

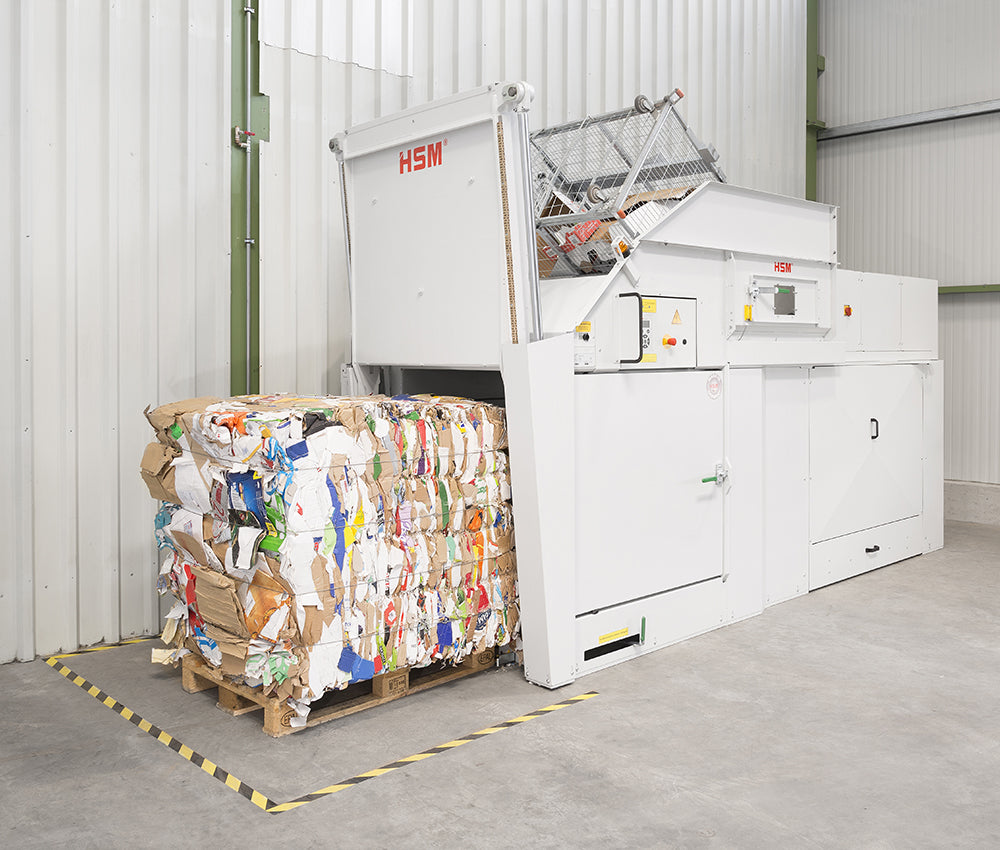

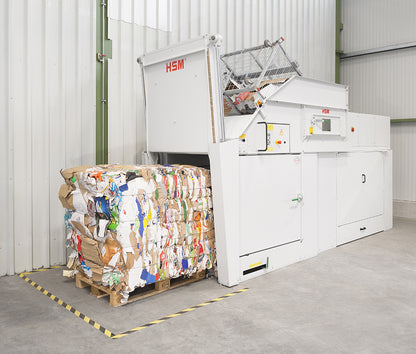

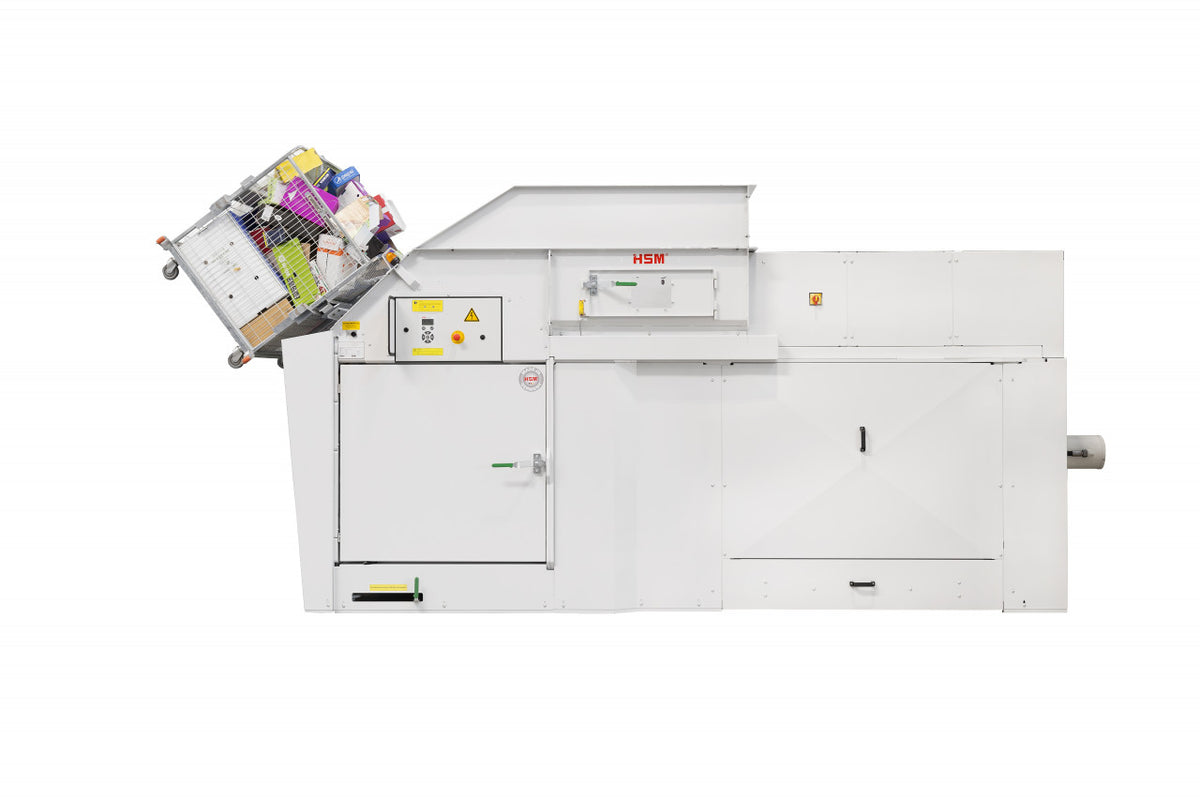

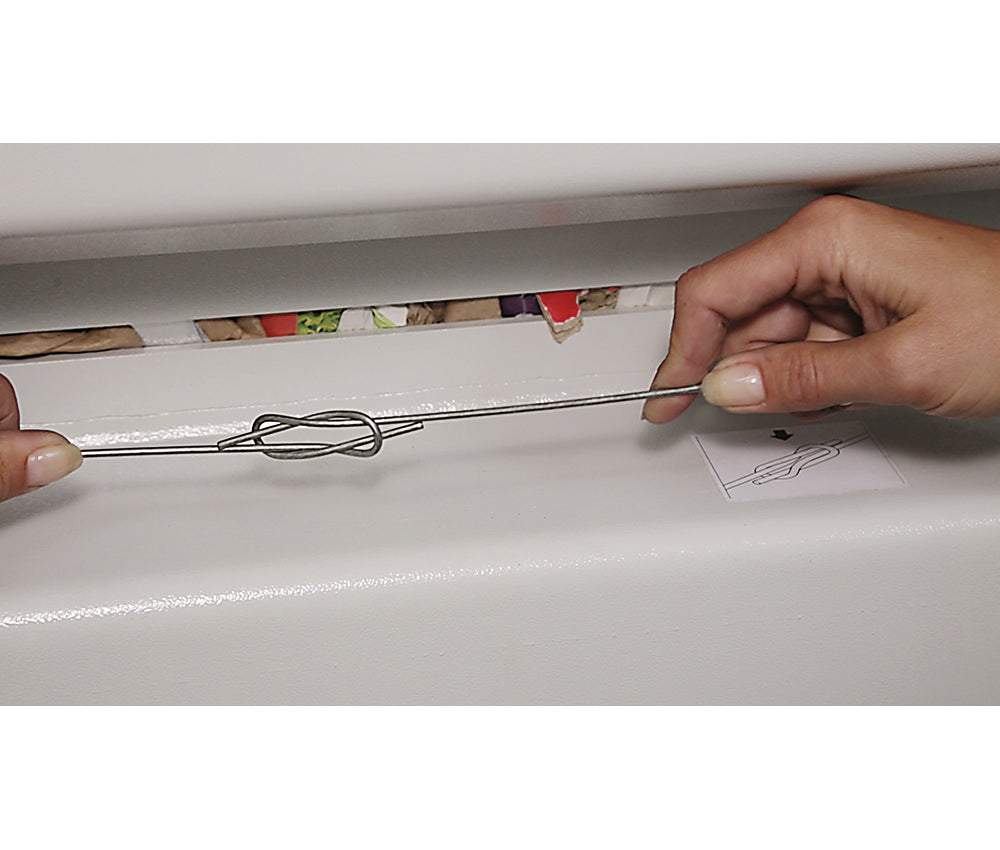

The installation measures 235.91 x 81.34 x 98.43 in (5992 x 2066 x 2500 mm) and weighs about 16,305 lb (7396 kg), so it needs a level floor rated for that load, clear delivery access and working space on the lift-tilt side. Finished bales of 600 kg require a forklift or bale clamp and a storage area to match. Bales are tied with baling wire; keep stock on site and confirm the gauge HSM specifies.

HL 7009 lift-tilt specifications

Lift-tilt or hopper-fed HL 7009?

The bevelled hopper HL 7009 costs less and has fewer hydraulics to maintain, and it works well where material is tipped in from height or arrives by conveyor. This lift-tilt version costs more but removes manual lifting from every load. If your site bales only shredded office paper, a 700 kN channel press is the wrong tool; HSM's SP 5080 shredder-baler or a vertical KP press fits that job.

Who should order it

Order it for distribution centers, recycling operations and manufacturers with steady cardboard and film volumes, carts already in circulation, and a documented manual-handling problem at the baler. It is not for offices, small print rooms, or any site lacking three-phase power, a reinforced floor and room for a machine nearly 6 m long.
