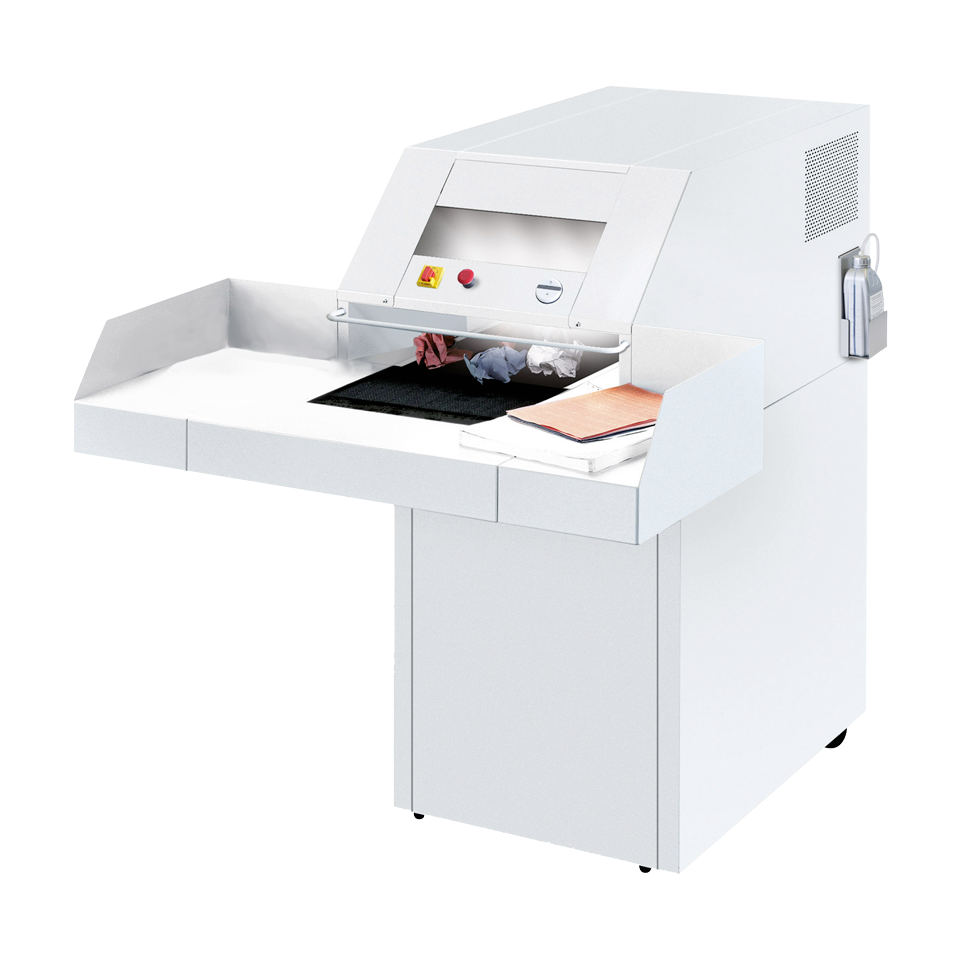

MBM DSH0348 4108 cross-cut 1/4" x 2" (6 x 50 mm)

The MBM DSH0348 is the cross-cut build of the Destroyit 4108 conveyor shredder, cutting paper into 1/4 x 2 in (6 x 50 mm) particles of 300 mm² for security level P-3 under DIN 66399. Its powered belt takes 65 to 82 sheets per pass on 70 gsm paper. It is aimed at a building-wide shred station or a destruction service that handles boxes of confidential business records.

DSH0348 4108 cross-cut at a glance

• P-3 cross cut: 6 x 50 mm, 300 mm² per particle
• 65-82 sheets per pass, loaded by conveyor
• 8 hp drive on a 220 V three-phase circuit
• 16.2 in throat fed from a wide table
• 79-gallon compartment behind a rear door

Why a cross-cut head on a conveyor chassis

Strip shredders are fast but leave readable ribbons. The DSH0348 cuts each strip across as well, turning a page into short 2 in pieces that are far harder to piece back together, while keeping the hands-off loading that makes the 4108 worth its footprint. An operator sets a stack on the table, the belt carries it into the head, and an automatic reverse-and-refeed cycle clears overloads without anyone reaching in.

Because a cross-cut head works harder per sheet, the electronic oil injection matters here. It lubricates the specially hardened shafts during operation, so the head is not running dry halfway through an archive purge. Keep its reservoir filled with shredder oil and schedule periodic inspections of the cutters and the belt.

What P-3 covers in practice

P-3 is the usual starting level for confidential commercial paper: invoices, purchase orders, internal reports and correspondence. Some privacy programs and client contracts now ask for P-4 or above for personal data, so read your policy before you specify this machine. MBM's product data lists staples, paper clips, credit cards and CDs/DVDs as accepted alongside paper.

Operating and installing the DSH0348

• EASY SWITCH control shows machine status at a glance.
• LED lighting illuminates the feed area.
• Standby engages automatically after 30 minutes idle.
• The bag frame rolls out on wheels, so full bags are not lifted out of the cabinet.
• The unit moves on castors but weighs 787 lb; check the delivery route and floor.
• Liners are not included, and the three-phase supply must be wired by an electrician.

As with every capacity figure from MBM, the 65-82 sheet rating assumes 70 gsm paper; MBM notes real throughput may be as little as half of it.

DSH0348 specification table

How the DSH0348 compares with nearby MBM models

• DSH0345 4108 strip-cut: same frame and bin with a 10 hp motor and 75-95 sheets, but only P-2. Worth it only when nothing confidential goes through.
• DSH0265 4606 cross-cut: the same 6 x 50 mm P-3 particle at 50-60 sheets, an 18 in throat and a 61-gallon bin, without the 4108's conveyor.
• DSH0264 4606 cross-cut: a P-5 cut of 2 x 15 mm at 32-37 sheets, for policies that require a finer particle.
• DSH0501L 4005 cross-cut: P-4 at 37-39 sheets on a 115 V outlet, for departments that do not need conveyor volume.

Who should choose the 4108 cross-cut

Choose it when you destroy confidential records by the box, three-phase power is available, and you want one operator to keep up with the load. If your rules call for P-4 or finer, or your volume fits an office cabinet shredder, one of the alternatives above is the better spend.
