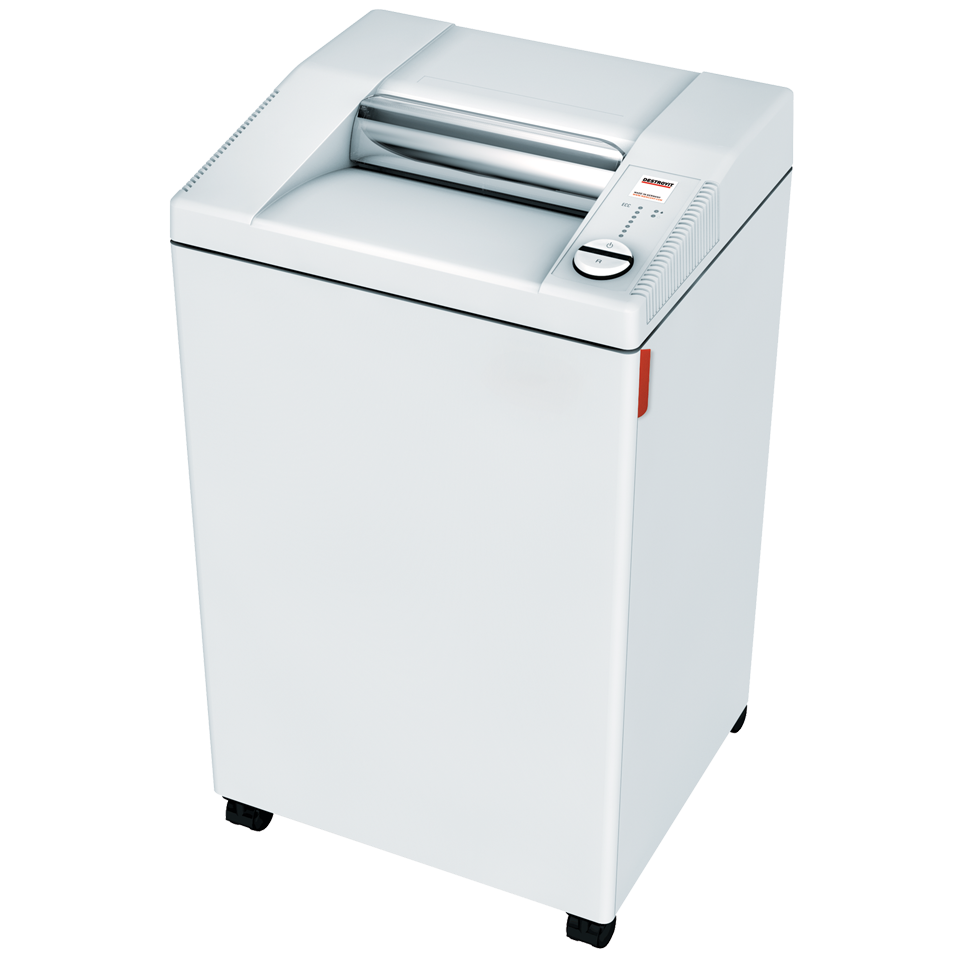

MBM DSH0314L 3104 strip-cut 3/16" (4 mm)

The MBM DSH0314L is the strip-cut version of the Destroyit 3104, a floor-standing office shredder that slices paper into 3/16 in (4 mm) strips at security level P-2 under DIN 66399. It accepts 27-30 sheets per pass through a 12 in feed opening and collects the waste in a 32-gallon bin. It is meant for teams that need to get rid of a lot of low-sensitivity paper quickly, not for anything carrying personal data.

DSH0314L at a glance

• P-2 strip cut, 3/16 in (4 mm) wide strips
• 27-30 sheets per pass, rated on 70 gsm paper
• 12 in throat takes letter, legal and tabloid flat
• Also destroys CDs, DVDs and credit cards; staples and clips can stay in
• 1 HP single-phase motor on an ordinary 115 V outlet
• No automatic oiler and no oil to buy

Where a P-2 strip cut is the right tool

Strip cutters run a sheet straight through a set of rotating discs, so every page leaves the machine as long ribbons. That simple geometry is why this 3104 takes more sheets per pass than either cross-cut build of the same cabinet. The flip side is security: a full-length 4 mm strip still carries readable fragments of each line it crossed, and DIN 66399 allows a P-2 particle to be as large as 2000 mm². Treat the DSH0314L as a disposal machine for drafts, misprints, out-of-date brochures and general internal paperwork. Anything that names an employee, patient or customer belongs on a P-4 or finer machine.

Running the 3104 strip-cut day to day

MBM's Electronic Capacity Control shows how hard the cutters are working, so users can judge a stack before it stalls. An electronically controlled SPS safety shield sits over the opening, the cutters reverse automatically on an overfeed, and power cuts out when the cabinet door opens or the bin is full. Double overheating protection guards the continuous-duty motor.

Ownership is simple. Strip-cut heads do not need lubrication, which is why MBM fits no oiler to this model. The 32-gallon bin is reusable and can be emptied straight into recycling; if your waste contractor wants bagged shred, AC0920 bags fit. The wooden cabinet rolls on casters, so it can be pushed against a wall in a print room and pulled out when the bin needs attention. Plan on emptying more often than with cross-cut waste, because loose strips take up a lot of room.

Destroyit 3104 strip-cut specifications

Comparing the three Destroyit 3104 builds

• DSH0315L (4 x 40 mm, P-4): same 12 in throat, 32-gallon bin and 1 HP motor, 22-25 sheets per pass, and still rated for CDs and DVDs. This is the one to pick if any of the paper is confidential.
• DSH0316L (2 x 15 mm, P-5): the finest cut in the cabinet at 14-17 sheets, without optical media.
• DSH0360L (2604 strip-cut): the same 27-30 sheet rating in a smaller cabinet with a 10.25 in opening and a 26-gallon bin, if tabloid sheets and bin size matter less.

Who should buy the DSH0314L

It suits a mailroom, print room or office clear-out where speed counts and the documents are not sensitive, and where the odd disc needs to be destroyed as well. It is the wrong purchase for HR, medical, legal or financial records; spend a little more on the P-4 DSH0315L instead, and keep the strip cutter for bulk paper if you need both.
