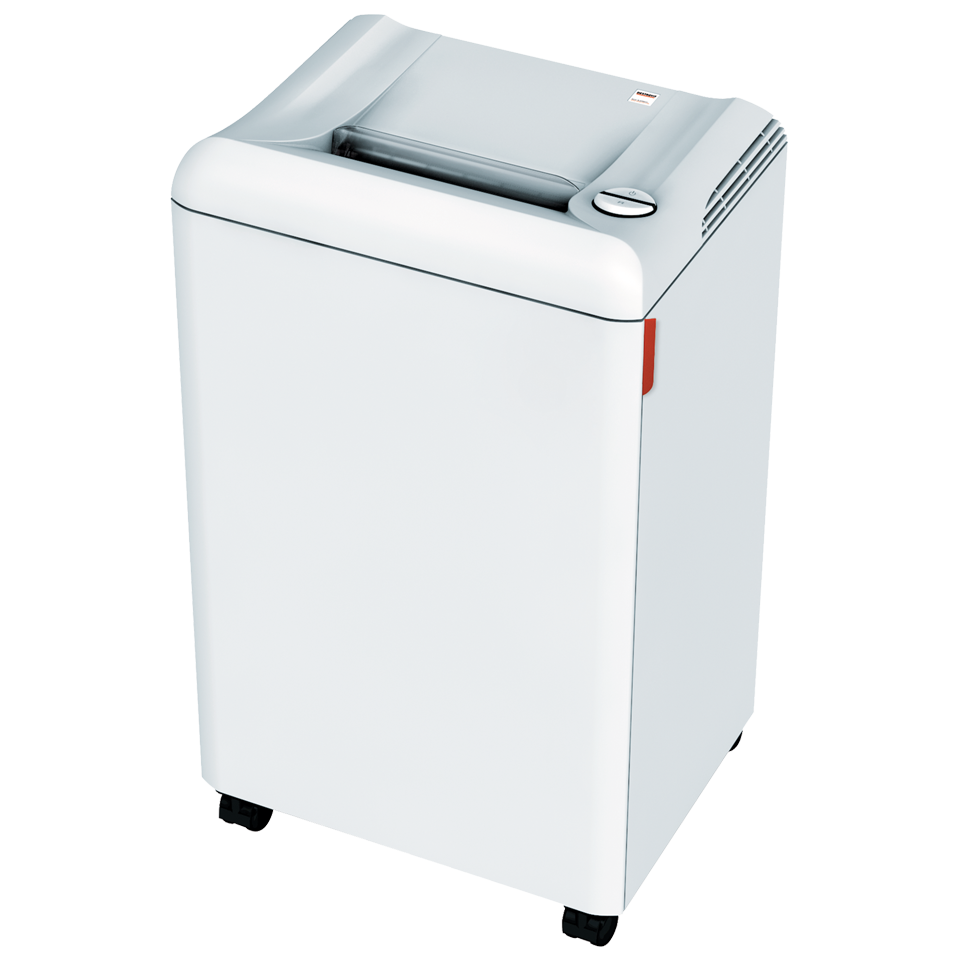

MBM DSH0301L 2503 cross-cut 3/32" x 5/8" (2 x 15 mm)

The Destroyit 2503 P-5 is what you buy when a high security level has to be sustained by a whole department rather than one desk. The 2 x 15 mm cut is the same one used on the smaller 2445 and 2465 machines, but here it feeds a 20-gallon bin through a 10.25-inch throat — and that matters more than it sounds, because P-5 confetti is bulky and a small bin is what usually makes a high-security shredder tiresome to live with.

There is a reason high-security machines so often end up disliked in offices: the finer the cut, the more air is trapped in the waste, and a 9-gallon bin that lasts a week at P-4 can need emptying every couple of days at P-5. Specifying the 20-gallon cabinet is not an upgrade in the marketing sense, it is the thing that stops the security level you have committed to from becoming a daily administrative burden on somebody.

Key Features

• P-5 cross-cut, 2 x 15 mm — a 30 mm² particle, on the DIN 66399 P-5 limit.
• 20-gallon shred bin, which is the single most useful specification on a P-5 machine because fine confetti fills a small bin quickly.
• 10.25-inch feed opening, giving comfortable clearance for letter and legal and tolerance for stacks fed off-square.
• 8–10 sheets per pass at 24 ft/min from a 0.75 HP motor.
• Staples, paper clips and credit cards rated, so stapled case files and expired cards go in without preparation.
• Lifetime limited warranty on cutting shafts and wheels, plus zero-energy sleep after 30 minutes and automatic cut-off when the cabinet is opened or the bin is full.

Specifications

What's in the Box

Assembled floor-standing cabinet with the 20-gallon shred bin and operating instructions. Shred bags are not included. With P-5 output and a bin this size, most sites bag it rather than tip it.

Who Should Buy This — and Who Should Not

Specify this where P-5 is a stated requirement and the machine is shared: a clinic destroying patient records across several rooms, a law firm's file room, a finance department, or any site operating under a client contract that names the level. The 20-gallon bin is what makes P-5 practical for a group; the same cut on a 9-gallon deskside bin becomes a daily errand.

Do not buy it if you are chasing throughput. Eight to ten sheets is the price of a 30 mm² particle, and no amount of motor solves it. If P-4 satisfies your policy, the DSH0302L version of this cabinet takes 12–14 sheets for the same footprint, bin and price class. If P-5 is required but only one or two people use the machine, the Destroyit 2465 P-5 (DSH0069) is a smaller, mobile, cheaper alternative at 9–11 sheets — you give up bin volume, not cut quality. And if you need to destroy CDs, that is the strip-cut 2503 (DSH0300L), not this one.

Running Costs and Care

Bags and oil are the running costs, and neither ships with the machine. The oiling interval is in the operating instructions and is worth following precisely on a P-5 head, where paper dust builds up between fine teeth and quietly reduces the sheet capacity you paid for. Bags are not optional in practice: emptying 20 gallons of fine confetti from an unlined bin creates more mess than it saves money. Everything else is covered by the parts and shaft warranties.
