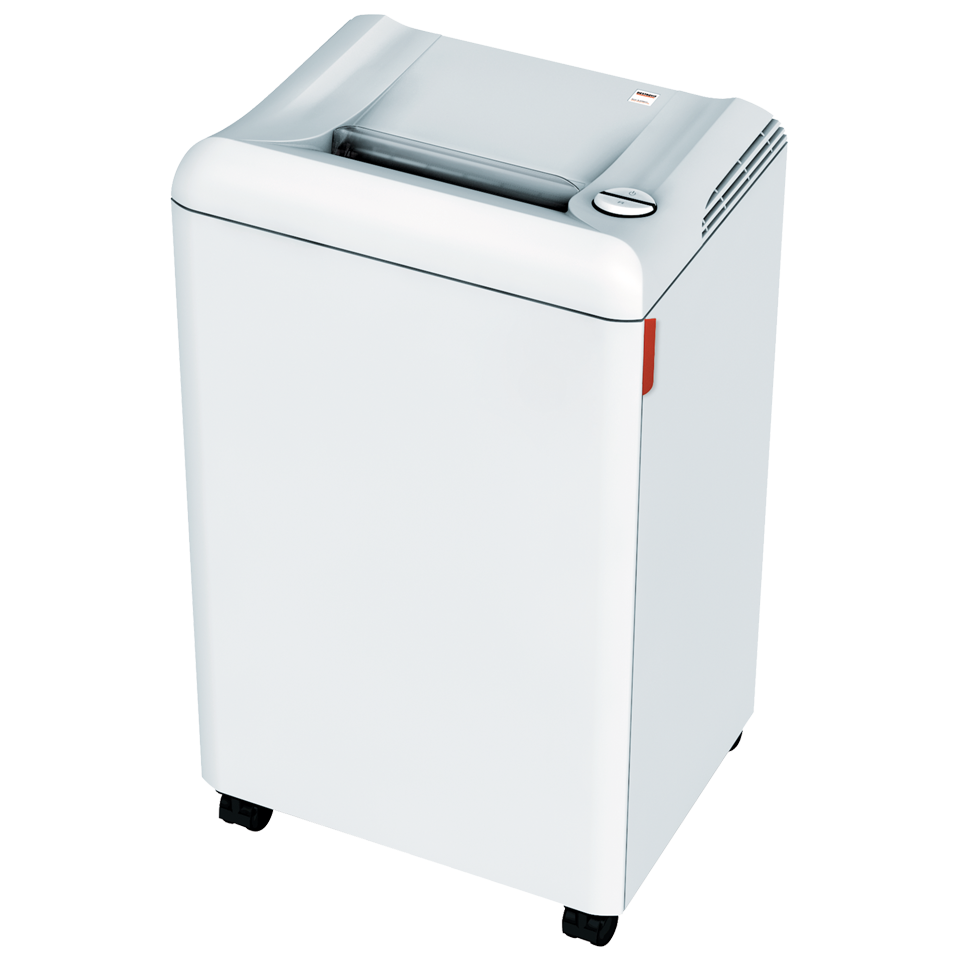

MBM DSH0300L 2503 strip-cut 3/16" (4 mm)

MBM DSH0300L 2503 strip-cut 3/16" (4 mm)

DIN 66399 security level P-2max 800 mm² particleInternal documents: work instructions, routine forms, correspondence carrying no personal data. See every P-2 machine
Cut
Strip Cut
Cut size
3/16" (4 mm)
Sheet capacity
19-21 sheets (70 g/m2)
Throat width
10.25 inch
Regular price $1,421.28 USD
Regular price $2,256.00 USD Sale price $1,421.28 USD
Sale Sold out
Quantity
  • Free shipping across the USA Included on every machine in the catalogue
  • 30-day return policy Shipping, refund and return terms published in full
  • +1 (858) 266-0509 Speak to a specification specialist · 08:00 AM – 05:00 PM PST, Monday to Friday

Authorized MBM Destroyit dealer New stock through the manufacturer's authorized channel, with the manufacturer's own warranty · what this covers

Description

The Destroyit 2503 moves the argument from deskside to departmental: a 10.25-inch feed opening, a 20-gallon bin and a 34-inch floor-standing cabinet. This strip-cut version is the one to choose when the objective is volume reduction rather than data protection — 19 to 21 sheets per pass at DIN 66399 P-2, plus the ability to destroy CDs and DVDs that the cross-cut 2503 models do not have.

The step from a deskside machine to the 2503 is not really about speed. A 2465 strip-cut takes much the same stack per pass. What changes is that the bin more than doubles and the throat widens by three quarters of an inch, which together decide whether a shared shredder is something people use willingly or something they avoid because it is always full. Bin volume is the specification that most often gets under-bought.

Key Features

  • 20-gallon shred bin, more than twice the capacity of the 2445 and 2465 cabinets, so a shared machine gets emptied far less often.
  • 10.25-inch feed opening, wide enough for letter and legal with margin, and forgiving of documents fed off-square.
  • 19–21 sheets per pass at 24 ft/min from a 0.75 HP single-phase motor.
  • Rated for CDs and DVDs as well as staples, paper clips and credit cards — the only 2503 variant that takes optical media.
  • Zero-energy sleep mode disconnecting the supply after 30 minutes of inactivity.
  • Lifetime limited warranty on cutting shafts and wheels, hardened steel milled in Balingen, with 3 years on other parts excluding wearables.

Specifications

Specification Detail
Security level P-2 (DIN 66399)
Cut type Strip-cut
Cut size 3/16 in (4 mm) strips
Sheet capacity 19–21 sheets (MBM rates capacity on 70 g/m² paper)
Feed opening 10.25 in
Shred bin volume 20 gallons
Motor 0.75 HP, single phase
Shred speed 24 ft/min
Voltage 115 V, single phase
Dimensions 14.75 in D x 19.75 in W x 34.25 in H
Weight 78 lb
Shreddable materials Paper, staples, paper clips, credit cards, CDs and DVDs
Warranty Lifetime limited warranty on cutting shafts and wheels; 3-year limited warranty on all other parts excluding wearables; 90-day limited warranty on labor

What's in the Box

Assembled floor-standing cabinet with the 20-gallon shred bin fitted, and operating instructions. Shred bags are not included and are usually ordered alongside a bin of this size, since lifting 20 gallons of loose strips out of a cabinet is awkward without one.

Who Should Buy This — and Who Should Not

This is a print-room and back-office machine. Buy it where a department produces a lot of non-confidential paper that still should not go out in the open recycling — misprints, obsolete manuals, superseded internal reports, old presentation decks — and where somebody also has a drawer of legacy CDs to get rid of. The 20-gallon bin means it can absorb that work without becoming somebody's chore.

Do not put it where personal data is destroyed. P-2 strips are the most reconstructable shredded format there is, and a 4 mm strip preserves a readable vertical slice of every line it crosses. For customer, patient, employee or financial records you want the P-4 version of this cabinet (DSH0302L, 12–14 sheets) or the P-5 (DSH0301L, 8–10 sheets), both of which keep the 20-gallon bin and 10.25-inch throat. If you need P-2 throughput and more of it, the Destroyit 2604 P-2 raises capacity to 27–30 sheets on a 26-gallon bin.

Running Costs and Care

Order shred bags with the machine. A 20-gallon bin full of loose strips is not something anyone will enjoy tipping, and bags turn emptying into a thirty-second job. The cutting shafts need oiling at the interval given in the operating instructions, and that matters more if you use the disk capability, since optical media is harder on a cutting head than paper. Otherwise the 2503 is designed to be left alone: no filters, no belts to adjust, and a 3-year parts warranty behind it.

Product Specification

Machine Type
Deskside Office Paper Shredders
Shredder Series
Destroyit 2503
Cut Type
Strip Cut
Shreddable Materials
Paper,Staples,Paper Clips,Credit Cards,CD / DVDs
Cut Size
3/16" (4 mm)
Bin Size / Container Volume
20 gallons
Throat Width
10.25 inch
Power Consumption
0.75 Hp
Voltage
115 V
Weight
78 lb
EAN
4019364576119
Security Level
P-2
Sheet Capacity
19-21 sheets (70 g/m2)
Dimensions (WxDxH)
14.75 x 19.75 x 34.25 inch
Warranty
Lifetime limited warranty on cutting shafts and wheels; 3-year limited warranty on all other parts excluding wearables; 90-day limited warranty on labor

Product listing details

Vendor
MBM
Product type
Deskside Office Paper Shredder
Condition
New
SKU
DSH0300L
GTIN
4019364576119
Price
$1,421.28 USD
Currency
USD
Availability
In stock
Shipping policy
Click to view policy
Refund policy
Click to view policy
Return policy
Click to view policy
View full details
Before you specify

Frequently Asked Questions

Will this destroy CDs and DVDs?

Yes. MBM rates optical media for the strip-cut 2503 only; the P-4 and P-5 cross-cut versions of this cabinet are not rated for it. Feed disks singly, not mixed with paper. Be clear about what this achieves: the disk is broken into strips, which prevents casual reuse but is not equivalent to a media destruction standard. Data-bearing disks from regulated systems should go to a dedicated media destroyer.

Is P-2 acceptable under a document destruction policy?

For non-sensitive internal paper, generally yes. For anything containing personal data, generally no. P-2 permits 4 mm strips, and strip-cut waste can be reassembled by someone with patience because each strip carries an intact column of the page. Most organisational policies and most insurers treat P-4 as the floor for records covering identifiable individuals. Use this machine for the bulk paper and a P-4 or P-5 machine for the regulated material.

How does it compare with the 2465 strip-cut?

The bin and the throat are the real differences. Both take roughly the same stack — 19 to 21 sheets here against 19 to 22 on the 2465 — and both use a 0.75 HP motor. But the 2503 has a 20-gallon bin against 9 gallons, and a 10.25-inch feed opening against 9.5 inches. At 78 lb and 34.25 inches tall it is a floor-standing unit, not a deskside one. Choose the 2503 when emptying frequency, not shredding speed, is the problem.

Will legal and tabloid paper fit?

Legal fits easily. The 10.25-inch feed opening leaves nearly two inches of clearance over legal paper's 8.5-inch width, which also makes it tolerant of stacks fed slightly off-square. Tabloid at 11 x 17 inches does not fit and has to be folded once, which roughly halves your effective sheet capacity for those pages. No Destroyit model in this size class accepts tabloid unfolded.

How often will the 20-gallon bin need emptying?

Much less often than a deskside machine, and strip-cut waste helps further because 4 mm strips compact more densely than cross-cut confetti. For a department of six to ten people using it for general paper disposal, weekly is a reasonable planning assumption. MBM does not publish a sheets-per-fill figure so we will not state one as fact. The shredder stops automatically when the bin registers full.

Does it need a dedicated circuit?

No. The 2503 is a 115 volt single-phase machine with a 0.75 HP motor, which runs on a standard US office outlet. MBM does not publish an amperage figure for this model on its spec sheet, so if you are planning a circuit around several machines rather than just plugging one in, ask us and we will obtain the current draw from MBM rather than estimate it from the horsepower.
