Dahle

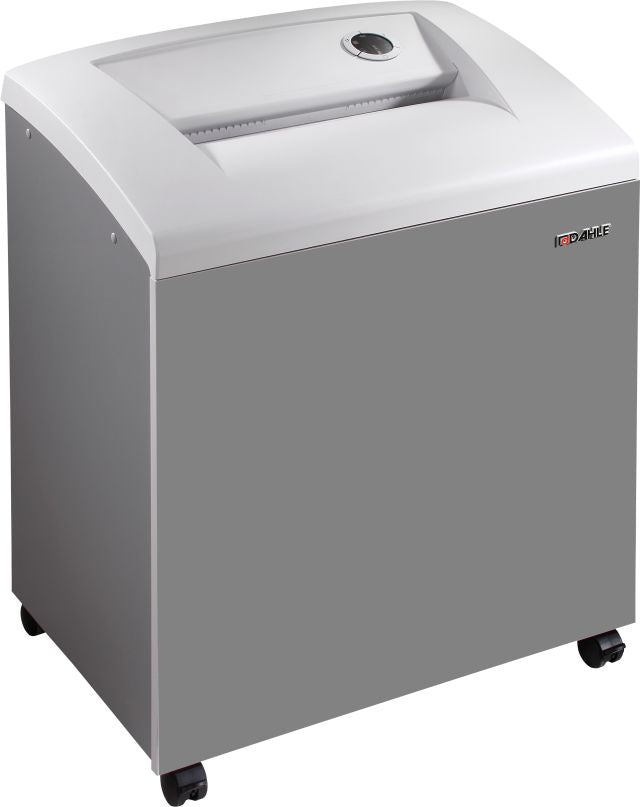

Dahle 40530 Paper Shredder w/Automatic Oiler, Jam Protection, SmartPower, Extreme Cross Cut, Security Level P-6, 10 Sheet Max, 5+ Users

Dahle 40530 Paper Shredder w/Automatic Oiler, Jam Protection, SmartPower, Extreme Cross Cut, Security Level P-6, 10 Sheet Max, 5+ Users

DIN 66399 security level P-6max 10 mm² particleSecret material with a high protection requirement: R&D, pre-announcement IP, sensitive government work. See every P-6 machine
Cut
Micro Cut
Cut size
1/32" x 7/16" (approx. 0.8 x 11.1 mm, about 8.8 mm2 per particle)
Sheet capacity
10 sheets (#20 bond); 12 sheets (#16 bond)
Throat width
12 inch
Regular price $2,445.00 USD
Regular price Sale price $2,445.00 USD
Sale Sold out
Quantity
  • Free shipping across the USA Included on every machine in the catalogue
  • 30-day return policy Shipping, refund and return terms published in full
  • +1 (858) 266-0509 Speak to a specification specialist · 08:00 AM – 05:00 PM PST, Monday to Friday

Authorized Dahle dealer New stock through the manufacturer's authorized channel, with the manufacturer's own warranty · what this covers

Description

The Dahle 40530 is the department-scale version of Dahle's P-6 cut, and the only one of the three that widens the throat. Where the 40330 and 40430 feed through 10.25 inches, the 40530 opens to 12 inches, holds 38 gallons and takes ten sheets a pass - all at the same 0.8 x 11.1 mm particle, around 8.8 mm2. It is the machine for five or more people who all need a high-security cut and cannot afford to queue at a six-sheet deskside unit.

Key Features

  • 12-inch feed opening. The widest throat of the three P-6 models. It handles wider stock and misaligned stacks with less fuss, and whole file folders go in more easily.
  • 38-gallon bin. Eight gallons more than the 40430 and fifteen more than the 40330 - fewer interruptions on a shared machine.
  • Ten sheets a pass. Ten sheets of #20 bond, twelve of #16, at P-6.
  • 8.8 mm2 particle. 0.8 x 11.1 mm, inside DIN 66399's 10 mm2 limit for P-6. Dahle calls this Extreme Cross Cut; under DIN it is a micro-cut.
  • 50 dB. Quieter than the smaller 40430 despite the larger cabinet, and only 3 dB above the very quiet 40330.
  • Automatic EvenFlow Lubricator. Continuous oiling across the full width of the cutting cylinders. Oil is a separate consumable.
  • SmartPower energy management. SmartPower energy management drops the machine into standby and powers it down after 30 minutes of inactivity, so it is not drawing current overnight.
  • Automatic jam protection. Overfeed detection with reverse.

Specifications

Security level (DIN 66399) P-6
Cut type Micro Cut (Dahle Extreme Cross Cut)
Cut size 1/32" x 7/16" (approx. 0.8 x 11.1 mm, about 8.8 mm2 per particle)
Sheet capacity 10 sheets (#20 bond); 12 sheets (#16 bond)
Throat / feed width 12 inch
Bin volume 38 gallons
Noise level 50 dB
Voltage 115 V
Dimensions (W x D x H) 29" W x 20" D x 34.5" H
Weight 146 lb
Shreddable materials Paper. Not rated by Dahle for CDs, DVDs or credit cards
Matching shred bag Dahle 20726
Warranty 2 years on the machine; 1 year on the cutting cylinders

Dahle does not publish motor wattage, current draw or a rated continuous duty cycle for this model, so those figures are deliberately omitted rather than estimated.

What's in the Box

Dahle does not publish a full carton packing list. Expect the shredder on its 38-gallon cabinet with the power cord. Shred bags are not included - the 38-gallon bin falls into the range covered by Dahle 20726 bags (31-55 gallon shredders, 100 per box), not the 20725 bags used by the smaller cabinets in this family. Lubricator oil is separate: Dahle 20721 (12 oz) or 20722 (1 gallon).

Who Should Buy This - and Who Should Not

Buy the 40530 if a department of five or more has to work to P-6 and the smaller cabinets are becoming a bottleneck. The wider throat is the practical daily difference - stacks do not need to be squared up as carefully, and awkward paper goes in without a fight. At 146 lb on castors it is a fixed installation; decide where it lives before it arrives.

Do not buy it for a small team. Six or eight people's worth of paper will not fill 38 gallons quickly, and the Dahle 40430 gives the identical cut in a smaller cabinet for less money, or the Dahle 40330 smaller and quieter still. Do not buy it for mixed media - Dahle does not rate it for CDs, DVDs or credit cards, and staples and clips should be removed. And it is not an NSA machine: P-6 does not meet NSA/CSS 02-01 and the 40530 is not on the Evaluated Products List. The Dahle 40434 is the EPL-listed option if that is the requirement.

Product Specification

Machine Type
Department Shredder
Cut Type
Micro Cut
Shreddable Materials
Paper. Not rated by Dahle for CDs, DVDs or credit cards
Cut Size
1/32" x 7/16" (approx. 0.8 x 11.1 mm, about 8.8 mm2 per particle)
Bin Size / Container Volume
38 gallons
Throat Width
12 inch
Voltage
115 V
Weight
146 lb
EAN
4007885250342
Security Level
P-6
Sheet Capacity
10 sheets (#20 bond); 12 sheets (#16 bond)
Dimensions (WxDxH)
29" W x 20" D x 34.5" H
Warranty
2 years on the machine; 1 year on the cutting cylinders
dB Level
50

Product listing details

Vendor
Dahle
Product type
Department Shredder
Condition
New
SKU
40530-06050
GTIN
4007885250342
Price
$2,445.00 USD
Currency
USD
Availability
In stock
Shipping policy
Click to view policy
Refund policy
Click to view policy
Return policy
Click to view policy
View full details
Before you specify

Frequently Asked Questions

What does the 12-inch throat actually buy me?

Two things. Wider stock enters without folding, and a stack of ten sheets that is not perfectly squared still feeds cleanly - which on a shared machine is what prevents jams. Note that 12 inches still does not take 11 x 17 tabloid or 8.5 x 14 legal sheets fed short-edge; letter paper fits comfortably either way. For legal and tabloid you need one of Dahle's 16-inch throat high-capacity machines.

How does it compare with the 40430 and 40330?

The cut is identical: roughly 0.8 x 11.1 mm at DIN P-6. The 40330 takes six sheets into a 23-gallon bin through a 10.25-inch throat at 47 dB and 94 lb. The 40430 takes nine into 30 gallons, same throat, 52 dB, 105 lb. The 40530 takes ten into 38 gallons through a 12-inch throat at 50 dB and 146 lb. You are buying capacity and feed width, not extra security.

Can it shred staples, paper clips or CDs?

Dahle does not rate the 40530 for CDs, DVDs or credit cards. Treat it as a paper-only machine and remove staples, clips and fasteners before feeding. A P-6 cutting head works at sub-millimetre tolerances and metal damages it quickly - which matters more here than on a cross-cut model, because Dahle warrants the cylinders on its P-6 machines for one year rather than for life.

What shred bags does it take?

The 38-gallon bin needs Dahle 20726 bags, rated for 31-55 gallon shredders and supplied 100 to a box. This is a change from the 40330 and 40430, which take the smaller 20725 bags - if you are adding a 40530 to a floor that already runs the smaller cabinets, order the correct box or the bag will not reach the rim. No bags ship with the machine.

How often will the bin need emptying?

It depends on volume, but the practical answer is less often than you would expect from the ten-sheet rating. Micro-cut particles compact considerably once the bin has been in use, so a 38-gallon bag holds a large number of pages. A department of five or six destroying routine confidential paper typically changes it every couple of weeks; a records purge fills it in an afternoon.

Is P-6 required, or would P-4 do?

For most commercial confidentiality and personal-data work, P-4 is the recognised standard and a P-4 machine of this size would take three or four times as many sheets a pass. P-6 is worth its cost in throughput when a policy, a contract or a regulator names it, or when the material is genuinely sensitive. If nothing specifies a level, be honest about whether you are buying security or reassurance.

What is covered under warranty?

Two years on the machine and one year on the cutting cylinders. Dahle's lifetime cutting-cylinder warranty is limited to its P-3, P-4 and P-5 models, so all of its P-6 and P-7 machines carry one year instead. On a department machine running daily, the cutting head should be treated as a wear part rather than a permanent fixture.
