Dahle 40434 High Security Paper Shredder w/Automatic Oiler, SmartPower, NSA/CSS 02-01, Security Level P-7, 8 Sheet Max, 3-5 Users

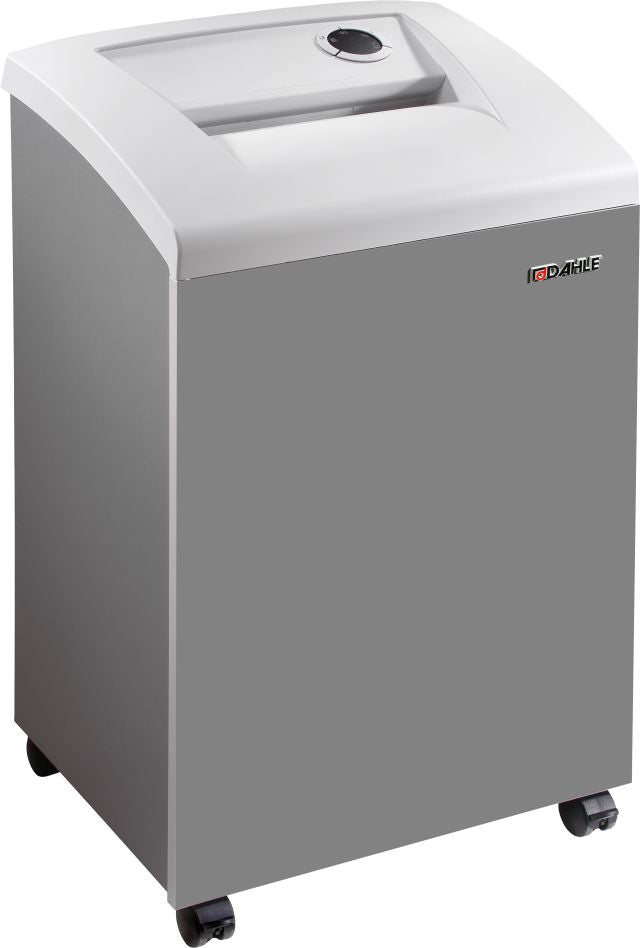

The Dahle 40434 is a P-7 high security cabinet shredder that reduces paper to 1 mm x 4.7 mm particles, eight sheets of #20 bond at a time, and it is named on the NSA/CSS Evaluated Products List with a High throughput rating. It is built for a small cleared team of three to five people, such as a records office or contractor facility, that must destroy classified paper to NSA/CSS 02-01 and does it often enough to need a real 30-gallon bin.

Dahle 40434 at a glance

• DIN 66399 P-7 micro cut: 1 x 4.7 mm, or 4.7 mm² per particle
• Listed by name on the NSA/CSS EPL for paper shredders, throughput rated High
• 8 sheets of #20 bond or 10 sheets of #16 bond per pass
• 10.25-inch feed opening over a 30-gallon cabinet bin
• EvenFlow automatic oiler, SmartPower standby and auto-reverse on overfeed

What the 40434's NSA listing actually covers

Two separate tests decide whether a shredder can be used under NSA/CSS 02-01. The particle must be no larger than 1 x 5 mm, and the exact model must appear on the Evaluated Products List. The 40434 passes both: its 1 x 4.7 mm cut sits under the NSA ceiling and inside the 5 mm² limit DIN 66399 sets for P-7, and "Dahle 40434" is on the list under Dahle North America, Inc. Its High rating is a throughput indicator, not a security grade. Every listed machine meets the same destruction standard; High simply signals that this one processes more than the five-sheet 40334, which carries a Med rating. Because EPL entries change from quarter to quarter, confirm the current revision before you certify the machine for a programme.

Running a P-7 head day to day

A 1 mm wide cut puts real strain on the cylinders, and lubrication is what keeps them cutting cleanly. The EvenFlow Lubricator meters oil across the full cylinder width as the machine runs, so nobody has to remember oil sheets; you only refill the reservoir with Dahle 20721 (12 oz) or 20722 (1 gallon). Feed paper only. Staples, clips, cards and discs are outside its rating and will damage cylinders that Dahle warrants for one year. When a stack is too thick, the jam protection senses it and reverses before the motor stalls. After 30 minutes without use, SmartPower drops the unit into standby and then switches it off.

The 30-gallon bin takes Dahle 20725 bags, which are sold separately. P-7 waste settles into a dense, heavy mass, so lift a full bag with care and seal it before it leaves the secure area.

Dahle 40434 specifications

40434, 40334, 40534 or 20394?

• Dahle 40334: the same P-7 particle in a smaller 23-gallon cabinet, at 5 sheets per pass and 50 dB. It is EPL-listed with a Med rating, so it suits one or two users.
• Dahle 40534: a 12-inch throat and 38-gallon bin at the same 8 sheets, but 146 lb. It does not appear on the current NSA/CSS list, so it is a weaker choice where the listing is mandatory.
• Dahle 20394: EPL-listed with a 16-inch throat, 9 sheets and a 50-gallon bin, for teams that feed legal or tabloid stock.

Who should choose the 40434

It fits a SCIF, government records room or cleared contractor where NSA listing is non-negotiable, the volume is steady, and floor space is limited to a cabinet about 21.5 inches wide. Look elsewhere if you shred wide paper often, since the 10.25-inch opening takes letter stock but not tabloid. It is also the wrong tool for media mixes, as it is paper only, and for ordinary commercial confidentiality, where a P-4 machine will feed several times more paper per pass.
