Dahle

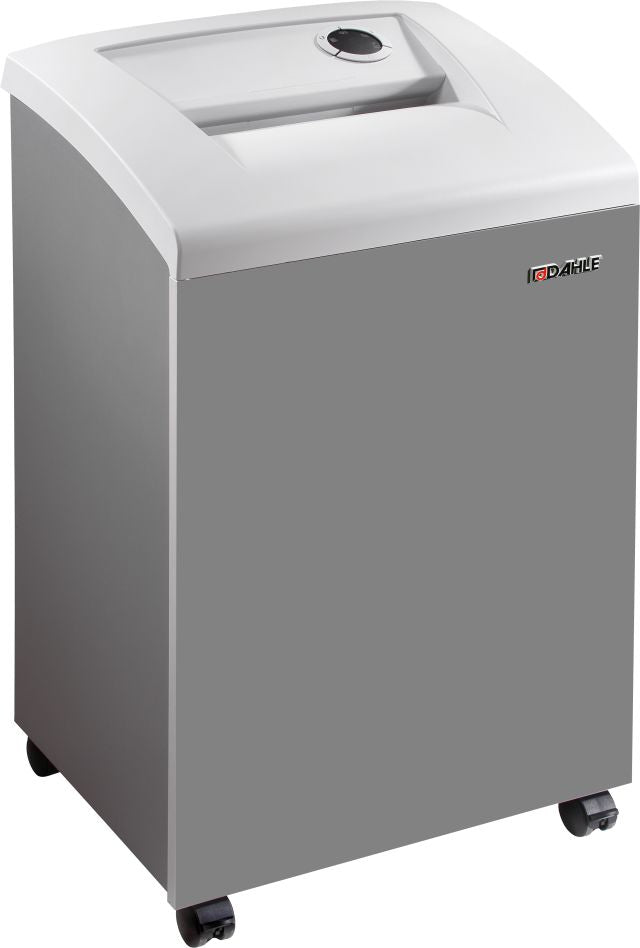

Dahle 40430 Paper Shredder w/Automatic Oiler, Jam Protection, SmartPower, Extreme Cross Cut, Security Level P-6, 9 Sheet Max, 3-5 Users

Dahle 40430 Paper Shredder w/Automatic Oiler, Jam Protection, SmartPower, Extreme Cross Cut, Security Level P-6, 9 Sheet Max, 3-5 Users

DIN 66399 security level P-6max 10 mm² particleSecret material with a high protection requirement: R&D, pre-announcement IP, sensitive government work. See every P-6 machine
Cut
Micro Cut
Cut size
1/32" x 7/16" (approx. 0.8 x 11.1 mm, about 8.8 mm2 per particle)
Sheet capacity
9 sheets (#20 bond); 11 sheets (#16 bond)
Throat width
10.25 inch
Regular price $2,070.95 USD
Regular price Sale price $2,070.95 USD
Sale Sold out
Quantity
  • Free shipping across the USA Included on every machine in the catalogue
  • 30-day return policy Shipping, refund and return terms published in full
  • +1 (858) 266-0509 Speak to a specification specialist · 08:00 AM – 05:00 PM PST, Monday to Friday

Authorized Dahle dealer New stock through the manufacturer's authorized channel, with the manufacturer's own warranty · what this covers

Description

The Dahle 40430 is the middle model of Dahle's three P-6 cabinet shredders, and the one most small departments should start with. It uses exactly the same cutting geometry as the 40330 and 40530 - roughly 0.8 x 11.1 mm, about 8.8 mm2 - but takes nine sheets a pass into a 30-gallon bin. It is the point where a high-security cut stops feeling like a penance and starts being usable by three to five people sharing one machine.

Key Features

  • Nine sheets a pass at P-6. Nine sheets of #20 bond, eleven of #16, at 20 ft/min. That is half again what the 40330 manages with the identical cut, which is the whole argument for stepping up a cabinet size.
  • 8.8 mm2 particle. 0.8 x 11.1 mm works out to roughly 8.8 mm2, inside DIN 66399's 10 mm2 ceiling for P-6. Dahle brands this cut Extreme Cross Cut; under DIN it is a micro-cut, one class below P-7.
  • 30-gallon bin. Seven more gallons than the 40330, which in micro-cut waste is a meaningful reduction in bag changes.
  • Automatic EvenFlow Lubricator. Slow, continuous oil across the full cylinder width rather than a monthly manual dose. Oil is a separate consumable.
  • SmartPower energy management. SmartPower energy management drops the machine into standby and powers it down after 30 minutes of inactivity, so it is not drawing current overnight.
  • Automatic jam protection. Senses an overfeed and reverses before the cylinders stall.
  • 10.25-inch feed. Letter-size feeds unfolded; legal and tabloid do not.

Specifications

Security level (DIN 66399) P-6
Cut type Micro Cut (Dahle Extreme Cross Cut)
Cut size 1/32" x 7/16" (approx. 0.8 x 11.1 mm, about 8.8 mm2 per particle)
Sheet capacity 9 sheets (#20 bond); 11 sheets (#16 bond)
Shredding speed 20 ft/min
Throat / feed width 10.25 inch
Bin volume 30 gallons
Noise level 52 dB
Voltage 115 V
Dimensions (W x D x H) 21.5" W x 17.25" D x 36.75" H
Weight 105 lb
Shreddable materials Paper. Not rated by Dahle for CDs, DVDs or credit cards
Matching shred bag Dahle 20725
Warranty 2 years on the machine; 1 year on the cutting cylinders

Dahle does not publish motor wattage, current draw or a rated continuous duty cycle for this model, so those figures are deliberately omitted rather than estimated.

What's in the Box

Dahle does not publish a full packing list for the 40430. Expect the shredder on its 30-gallon cabinet with the power cord. Shred bags are not included - use Dahle 20725 (rated for 20-30 gallon shredders, 100 bags per box). Oil for the lubricator is bought separately as Dahle 20721 (12 oz) or 20722 (1 gallon).

Who Should Buy This - and Who Should Not

Buy the 40430 if three to five people need to share one machine and your policy calls for P-6. It is the balance point in the family: enough sheet capacity to be practical, a bin large enough not to dominate the working week, and a footprint that fits against a wall in a normal office.

Do not buy it if the machine is going right beside desks in a quiet room - at 52 dB it is the loudest of the three P-6 models, and the Dahle 40330 does the same cut at 47 dB. Do not buy it for a whole floor either; the Dahle 40530 steps up to a 12-inch throat, ten sheets and a 38-gallon bin. It is not the machine for mixed media - Dahle does not rate it for CDs, DVDs or credit cards, and staples and clips should come out first. And it is not an NSA machine: P-6 does not qualify under NSA/CSS 02-01 and the 40430 is not on the Evaluated Products List. The Dahle 40434 is the EPL-listed model in this same 30-gallon cabinet.

Product Specification

Machine Type
Office Shredder
Cut Type
Micro Cut
Shreddable Materials
Paper. Not rated by Dahle for CDs, DVDs or credit cards
Cut Size
1/32" x 7/16" (approx. 0.8 x 11.1 mm, about 8.8 mm2 per particle)
Bin Size / Container Volume
30 gallons
Throat Width
10.25 inch
Voltage
115 V
Weight
105 lb
EAN
4007885250106
Security Level
P-6
Sheet Capacity
9 sheets (#20 bond); 11 sheets (#16 bond)
Dimensions (WxDxH)
21.5" W x 17.25" D x 36.75" H
Warranty
2 years on the machine; 1 year on the cutting cylinders
dB Level
52

Product listing details

Vendor
Dahle
Product type
Office Shredder
Condition
New
SKU
40430-06000
GTIN
4007885250106
Price
$2,070.95 USD
Currency
USD
Availability
In stock
Shipping policy
Click to view policy
Refund policy
Click to view policy
Return policy
Click to view policy
View full details
Before you specify

Frequently Asked Questions

How many people can realistically share the 40430?

Dahle positions it for three to five users, and that matches the numbers: nine sheets of #20 bond a pass at 20 ft/min into a 30-gallon bin. A small department clearing daily confidential paper will not queue. Push it to a whole floor and you will notice both the pass size and the bag changes - at that point the 40530, with a 12-inch throat and 38 gallons, is the right machine.

Can it shred staples, paper clips, CDs or credit cards?

Dahle does not rate the 40430 for CDs, DVDs or credit cards. Treat it as paper only and remove staples, clips and fasteners before feeding. The cutting cylinders work to sub-millimetre tolerances to produce an 8.8 mm2 particle, and metal is the fastest way to damage them - a repair that matters when the cylinder warranty on Dahle's P-6 models is one year rather than lifetime.

What is the difference between this and the 40330 and 40530?

The cut is identical across all three - roughly 0.8 x 11.1 mm at P-6. What changes is scale. The 40330 takes six sheets into 23 gallons at 47 dB and 94 lb; the 40430 takes nine sheets into 30 gallons at 52 dB and 105 lb; the 40530 takes ten sheets through a wider 12-inch throat into 38 gallons at 50 dB and 146 lb. Choose on volume, throat width and noise, not on security.

What bags fit the 30-gallon bin?

Dahle 20725, which covers 20-30 gallon shredders and comes 100 to a box. None are supplied with the machine. They are 1.5 mil gusseted bags sized to open into the cabinet. Micro-cut waste is fine and heavy once it settles, so a thin generic liner tends to split at the seam when you lift a full bag.

Will legal or tabloid sheets fit?

No, not without folding. The throat is 10.25 inches, which suits letter-size paper fed long-edge first. Legal at 8.5 x 14 and tabloid at 11 x 17 will not enter unfolded, and folding costs you capacity on a nine-sheet machine. If wide stock is routine, look at Dahle's 12-inch and 16-inch throat models.

Is P-6 overkill for ordinary office paper?

Often, yes - and that is worth saying plainly. Most commercial confidentiality and personal-data requirements are met at P-4, and a P-4 machine of similar size will take three or four times as many sheets a pass. P-6 is justified when a policy, a client contract or a regulator specifies it, or when the material genuinely warrants near-dust output. If nothing names a level, you are paying in throughput for security you may not need.

Does the warranty cover the cutting head?

For one year, alongside two years on the machine. Dahle's lifetime cutting-cylinder warranty applies to its P-3, P-4 and P-5 models only; every P-6 and P-7 machine, this one included, gets one year on the cylinders. If the shredder will run heavy daily volume, plan for the cutting head as a consumable rather than assuming it is covered indefinitely.
