KOBRA

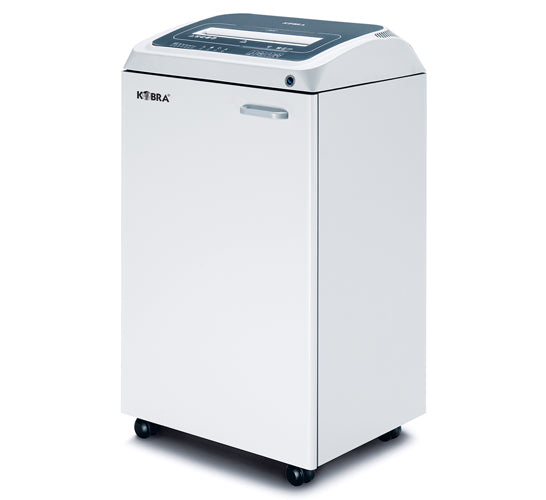

KOBRA 310 TS CC4 AO

KOBRA 310 TS CC4 AO

DIN 66399 security level P-4max 160 mm² particleOffice baselineParticularly sensitive personal data: HR files, contracts, payroll, patient and customer records. See every P-4 machine
Cut
Cross Cut
Cut size
3.9 x 40 mm
Sheet capacity
Up to 31 (A4 70 g/m2); 25-27 (80 g/m2)
Throat width
13 inch
Regular price $2,543.08 USD
Regular price Sale price $2,543.08 USD
Sale Sold out
Quantity

Volume pricing, freight, installation, trade-in and GSA pricing — written quote within one business day.

Request a quote

KOBRA 310 TS CC4 AO Listed at $2,543.08

Anything else we should price in?

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

No obligation. A specialist replies within one business day, 08:00 AM – 05:00 PM PST.

  • Free shipping across the USA Included on every machine in the catalogue
  • 30-day return policy Shipping, refund and return terms published in full
  • +1 (858) 266-0509 Speak to a specification specialist · 08:00 AM – 05:00 PM PST, Monday to Friday

Authorized Kobra dealer New stock through the manufacturer's authorized channel, with the manufacturer's own warranty · what this covers

Description

The KOBRA 310 TS CC4 AO is the model most offices in this range should be looking at. It cuts 3.9 × 40 mm cross-cut particles — 156 mm², just inside the 160 mm² ceiling for DIN 66399 P-4 — while still taking up to 31 sheets a pass, and it adds the integrated automatic oiler that the strip-cut versions of this chassis do not have. That combination of a defensible security class with usable throughput is what separates it from its siblings.

Key Features

  • P-4 cross cut at 31 sheets. Most machines that reach P-4 give up capacity to get there. The CC4 holds up to 31 sheets of 70 g/m² paper, which keeps it viable as a shared departmental machine.
  • Integrated automatic oiling system. Kobra's built-in oiler lubricates the cutting knives during operation, removing the single most commonly skipped maintenance task on a cross-cut shredder.
  • Touch-screen panel with EPC. Controls are touch-activated and the Electronic Power Control readout shows the real-time shredding load.
  • Separate optical media cutting unit. Discs and cards run through their own knives and their own bin, so plastic never reaches the paper head.
  • 24-hour continuous-duty motor. No published duty cycle or cool-down period.
  • Carbon-hardened knives. Staples and paper clips can go through with the paper.
  • Energy Smart System. Standby after roughly 8 seconds; mains disconnection after 4 hours idle.
  • TAA compliant, NPSA rated. Kobra lists the 310 TS line as Trade Agreements Act compliant and NPSA rated for UK government use.

Specifications

Specification Value
Security level (DIN 66399 / ISO 21964) P-4 O-3 T-4 E-3 F-1
Cut type Cross cut
Cut size 3.9 × 40 mm (156 mm²). Kobra's US datasheet renders this as 1/8 × 1-1/2 in. and the US web page as 3/16 × 1-1/2 in.; the metric figure is the authoritative one.
Sheet capacity Up to 31 sheets of A4 70 g/m²; 25–27 sheets at 80 g/m²
Throat width 13 in. (330 mm)
Shredding speed 17 ft/min
Bin volume 40 gallons (150 litres), bagged
Motor 1.5 HP (1200 W input), 24-hour continuous duty
Voltage 115 V / 60 Hz
Noise 58 dB(A)
Dimensions (W × D × H) 21.2 × 17.2 × 43 in. (530 × 430 × 1070 mm)
Weight 121 lb (55 kg)
Shreddable materials Paper, film, credit cards, chip cards, CDs/DVDs/Blu-ray
Lubrication Integrated automatic oiling system

What's in the Box

The shredder ships assembled on casters with the automatic oiler fitted and both bins in place. Kobra's US datasheet for the 310 TS models does not publish a bag article code or a warranty term; replacement oil for the automatic oiler is a consumable you will need to reorder. Confirm warranty terms in writing before purchase if length of cover is a decision factor.

Who Should Buy This — and Who Should Not

This is the default choice for a department that handles personal or commercial information and cannot justify the throughput penalty of a P-5 machine. P-4 is the level most corporate retention policies actually name, 31 sheets a pass keeps a shared machine from becoming a queue, and the automatic oiler means the head stays lubricated whether or not anyone remembers to do it.

It is the wrong machine if your policy specifies P-5 or finer — step across to the KOBRA 310 TS CC2 AO, identical chassis, 1.9 × 15 mm particles, but only up to 19 sheets a pass. It is also the wrong machine for classified material: for that you need the KOBRA 310 TS HS-6 AO, which is on the NSA/CSS Evaluated Products List. And if the department only ever shreds internal drafts, you are paying for security you will not use — the KOBRA 310 TS SS5 does 47 sheets a pass for less.

Product Specification

Machine Type
Departmental touch screen shredder
Shredder Series
Touch Screen Line
Cut Type
Cross Cut
Shreddable Materials
Paper, film, credit cards, chip cards, CDs/DVDs/Blu-ray
Cut Size
3.9 x 40 mm
Bin Size / Container Volume
40 gallons
Throat Width
13 inch
Power Consumption
1.5 HP
Voltage
115 Volt / 60 Hz
Weight
121 lb
EAN
8026064998758
Security Level
P-4
Sheet Capacity
Up to 31 (A4 70 g/m2); 25-27 (80 g/m2)
Dimensions (WxDxH)
21.2 x 17.2 x 43 inch
dB Level
58

Product listing details

Vendor
KOBRA
Product type
Large Size Office
Condition
New
SKU
310 TS CC4 AUTO OILER
GTIN
8026064998758
Price
$2,543.08 USD
Currency
USD
Availability
In stock
Shipping policy
Click to view policy
Refund policy
Click to view policy
Return policy
Click to view policy
View full details
Before you specify

Frequently Asked Questions

Is 3.9 x 40 mm really P-4?

Yes, and only just. DIN 66399 caps P-4 particles at 160 mm²; 3.9 × 40 mm is 156 mm². Be careful with the inch conversions floating around for this model — Kobra's own US datasheet prints 1/8 × 1-1/2 in. while the US product page prints 3/16 × 1-1/2 in., and the second of those works out at roughly 181 mm², which would be P-3. The metric figure on Kobra's European datasheet is the one that governs the rating.

What does the automatic oiler do, and what does it cost to run?

It injects lubricant onto the cutting knives during operation. On a cross-cut head, oil is what keeps particle quality consistent and stops the motor drawing extra current as residue builds up; skipping it is the most common cause of a cross-cut shredder losing sheet capacity over a couple of years. Kobra oil is sold in bottles as a consumable — budget for it in the same way you budget for bags.

How does it compare with the CC2 on the same chassis?

Same cabinet, same 13-inch throat, same 40-gallon bin, same 1.5 HP motor, same 58 dB(A). The CC4 cuts 3.9 × 40 mm at P-4 and takes up to 31 sheets; the CC2 cuts 1.9 × 15 mm at P-5 and takes up to 19. You are buying roughly 40% less throughput for one DIN class. If your policy does not name P-5, the CC4 is the more practical machine.

Is it NSA approved?

No. NSA/CSS Specification 02-01 requires a maximum 1 × 5 mm particle and a listing on the NSA/CSS Evaluated Products List. At 3.9 × 40 mm the CC4 is far outside that, and it does not appear on the EPL. The NSA-listed machine on this chassis is the KOBRA 310 TS HS-6 AO.

Can it shred CDs and credit cards?

Yes, through a second, dedicated cutting unit with its own opening and its own bin, so disc fragments never enter the paper waste and never touch the paper knives. The optical media unit on this model is rated O-3 T-4 E-3, which suits retired backup discs, expired cards and general commercial media. It is not rated for classified optical media.

How often will the bin need emptying?

Less often than on the strip-cut versions. Cross-cut particles settle far more densely than 5.8 mm strips, so the same 40-gallon bag holds considerably more paper by weight. A department of 30–40 people doing routine shredding typically changes the bag every week or two; the machine stops automatically when the bag is full, so you will not overfill it by accident.

Can it handle continuous-form or wide printouts?

Only up to 13 inches wide. That covers US letter, legal and tabloid fed 11-inch edge first, but not wide EDP printouts. If wide stock is a regular part of the workload, the KOBRA 390 C4 AUTO OILER offers the same P-4 cut through a 16-inch throat with a 53-gallon bin.
