KOBRA

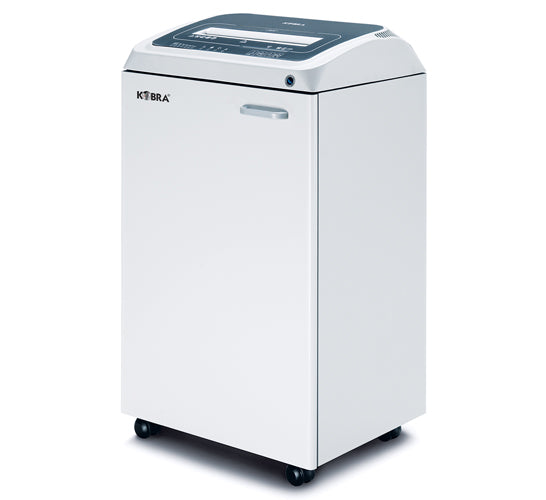

KOBRA 310 TS CC2 AO

KOBRA 310 TS CC2 AO

DIN 66399 security level P-5max 30 mm² particleInformation intended to be kept secret: medical reports, strategy papers, financial models, privileged material. See every P-5 machine
Cut
Micro Cut
Cut size
1.9 x 15 mm
Sheet capacity
Up to 19 (A4 70 g/m2); 14-16 (80 g/m2)
Throat width
13 inch
Regular price $2,595.06 USD
Regular price Sale price $2,595.06 USD
Sale Sold out
Quantity

Volume pricing, freight, installation, trade-in and GSA pricing — written quote within one business day.

Request a quote

KOBRA 310 TS CC2 AO Listed at $2,595.06

Anything else we should price in?

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

No obligation. A specialist replies within one business day, 08:00 AM – 05:00 PM PST.

  • Free shipping across the USA Included on every machine in the catalogue
  • 30-day return policy Shipping, refund and return terms published in full
  • +1 (858) 266-0509 Speak to a specification specialist · 08:00 AM – 05:00 PM PST, Monday to Friday

Authorized Kobra dealer New stock through the manufacturer's authorized channel, with the manufacturer's own warranty · what this covers

Description

The KOBRA 310 TS CC2 AO is the high-security member of Kobra's mainstream 310 Touch Screen family, short of the classified-grade HS-6. It cuts 1.9 × 15 mm particles — 28.5 mm², inside the 30 mm² limit for DIN 66399 P-5 — and Kobra classifies that output as micro cut. The distinguishing fact about this model is what it costs you: 19 sheets a pass against the 31 of the P-4 CC4 on the identical chassis. You are buying one security class with a third of the throughput.

Key Features

  • P-5 micro-cut output. 1.9 x 15 mm particles, which Kobra's European datasheet describes as micro cut, and which sit comfortably inside the DIN 66399 P-5 particle-area limit.
  • Integrated automatic oiling system. Micro-cut heads are the most oil-dependent cutting geometry there is. The built-in oiler removes the maintenance step that would otherwise degrade particle quality and sheet capacity.
  • Touch-screen panel with EPC load display. Real-time shredding load is displayed, which is genuinely useful on a machine where the sheet limit is only 19.
  • Separate optical media cutting unit. A second cutter and bin handle discs and cards, rated O-1 T-2 E-2 on this chassis, keeping plastic away from the micro-cut knives.
  • 24-hour continuous-duty motor. No published duty cycle, so it can run through a purge at its own pace.
  • Energy Smart System. Standby after roughly 8 seconds of inactivity; mains disconnection after 4 hours.
  • TAA compliant and NPSA rated. Listed by Kobra as Trade Agreements Act compliant and NPSA rated for UK government use.
  • Optional 170-sheet automatic feeder. Kobra's datasheet references a 310 TS AF CC2 AO variant with a 170-sheet automatic paper feeder, which addresses the low manual sheet capacity directly.

Specifications

Specification Value
Security level (DIN 66399 / ISO 21964) P-5 T-5 E-4 F-2 (paper unit); O-1 T-2 E-2 (optical media unit)
Cut type Micro cut
Cut size 1.9 × 15 mm (28.5 mm²); Kobra's US datasheet renders this as 3/32 × 5/8 in.
Sheet capacity Up to 19 sheets of A4 70 g/m²; 14–16 sheets at 80 g/m²
Throat width 13 in. (330 mm)
Shredding speed 17 ft/min
Bin volume 40 gallons (150 litres), bagged
Motor 1.5 HP (1200 W input), 24-hour continuous duty
Voltage 115 V / 60 Hz
Noise 58 dB(A)
Dimensions (W × D × H) 21.2 × 17.2 × 43 in. (530 × 430 × 1070 mm)
Weight 121 lb (55 kg)
Shreddable materials Paper, film, credit cards, chip cards, CDs/DVDs/Blu-ray
Article code 99.870+AO

What's in the Box

Delivered assembled on casters with the automatic oiler fitted and both collection bins in place. Automatic-oiler lubricant is a consumable and is not a lifetime fill. Kobra's US datasheet for this model does not publish a waste-bag article code or a warranty term, so treat both as items to confirm before you order.

Who Should Buy This — and Who Should Not

Buy the CC2 AO when a written policy, a client contract or a government framework names P-5, or when the department routinely destroys material whose exposure would be genuinely damaging — unpublished financial results, HR case files, legal privilege. The micro-cut head plus the automatic oiler is a combination that stays at its rated particle size over years rather than months.

Do not buy it as a general office machine. Nineteen sheets a pass on 70 g/m² paper, and 14–16 on the 80 g/m² stock most offices actually buy, is slow enough to change how people behave — documents get set aside instead of shredded. If your policy stops at P-4, the KOBRA 310 TS CC4 AO is the same machine with 31 sheets a pass. If you need P-5 with real throughput and have the floor space, the KOBRA 400 C2 AUTO OILER gives you the identical 1.9 × 15 mm cut at up to 31 sheets through a 16-inch throat. And if the requirement is classified destruction rather than P-5, only the KOBRA 310 TS HS-6 AO in this family is on the NSA/CSS Evaluated Products List.

Product Specification

Machine Type
Departmental touch screen shredder
Shredder Series
Touch Screen Line
Cut Type
Micro Cut
Shreddable Materials
Paper, film, credit cards, chip cards, CDs/DVDs/Blu-ray
Cut Size
1.9 x 15 mm
Bin Size / Container Volume
40 gallons
Throat Width
13 inch
Power Consumption
1.5 HP
Voltage
115 Volt / 60 Hz
Weight
121 lb
EAN
8026064998703
Security Level
P-5
Sheet Capacity
Up to 19 (A4 70 g/m2); 14-16 (80 g/m2)
Dimensions (WxDxH)
21.2 x 17.2 x 43 inch
dB Level
58

Product listing details

Vendor
KOBRA
Product type
Large Size Office
Condition
New
SKU
310 TS CC2 AUTO OILER
GTIN
8026064998703
Price
$2,595.06 USD
Currency
USD
Availability
In stock
Shipping policy
Click to view policy
Refund policy
Click to view policy
Return policy
Click to view policy
View full details
Before you specify

Frequently Asked Questions

Is 1.9 x 15 mm genuinely P-5?

Yes. DIN 66399 sets P-5 at a maximum particle area of 30 mm²; 1.9 × 15 mm is 28.5 mm². Note that the rounded imperial figure Kobra prints on the US datasheet, 3/32 × 5/8 in., converts to about 38 mm² and would fall outside P-5. The metric dimensions are the ones the rating is based on, and they are what Kobra's European datasheet publishes.

Why does it only take 19 sheets when the CC4 takes 31?

Because the particles are five times smaller in area. Producing 28.5 mm² particles instead of 156 mm² ones takes far more cutting work per sheet, and the motor is the same 1.5 HP unit in both machines. This is the fundamental trade in shredder selection: security class and sheet capacity move in opposite directions on a given chassis.

Is this shredder NSA approved?

No. NSA/CSS Specification 02-01 requires a maximum 1 × 5 mm particle and a current listing on the NSA/CSS Evaluated Products List. At 1.9 × 15 mm the CC2 meets neither condition. A P-5 rating is not an NSA approval and should never be presented as one. If you need an NSA-listed machine on this chassis, that is the KOBRA 310 TS HS-6 AO.

How much does the automatic oiler matter on a micro-cut machine?

More than on any other cut type. Micro-cut knives have the most cutting edges per revolution and the tightest clearances, so paper dust and adhesive residue build up quickly. An under-oiled micro-cut head loses sheet capacity first and particle consistency second, and both are hard to notice until performance has clearly dropped. An integrated oiler makes the maintenance happen without anyone remembering to do it.

Can it shred CDs and credit cards?

Yes, through a separate cutting unit with its own opening and bin. On this chassis that unit is rated O-1 T-2 E-2, which is a low destruction class — fine for retired backup discs and expired cards, not adequate for sensitive optical media. If discs carry data at the same sensitivity as the paper going through the P-5 head, use a dedicated optical media machine such as the KOBRA 400 HS OM.

How many people can share it?

Realistically, a team rather than a floor. With 14–16 sheets a pass on 80 g/m² paper, throughput is the constraint, not the motor. A workgroup of 10–20 people producing normal daily volumes is comfortable; a whole department feeding it during month-end will queue. If a group that size needs P-5, consider the automatic-feeder variant Kobra lists (310 TS AF CC2 AO, 170-sheet feeder) or a 400-series machine.

How often will the bin need emptying?

Micro-cut waste packs densely, so the 40-gallon bag holds a lot of paper by weight — substantially more than the same bag on a strip-cut machine. Against that, the shredder puts less paper through per hour. Most sites find the bag lasts weeks rather than days. The machine stops automatically when the bag is full.
