intimus 278174S1 45CP5 1/16" x 9/16"

intimus 278174S1 45CP5 1/16" x 9/16"

DIN 66399 security level P-5max 30 mm² particleInformation intended to be kept secret: medical reports, strategy papers, financial models, privileged material. See every P-5 machine
Cut
Micro Cut
Cut size
1.9 x 15 mm
Sheet capacity
Up to 12 sheets at 80 g/m2
Throat width
235 mm (9.25 in)
Regular price $965.00 USD
Regular price Sale price $965.00 USD
Sale Sold out
Quantity
  • Free shipping across the USA Included on every machine in the catalogue
  • 30-day return policy Shipping, refund and return terms published in full
  • +1 (858) 266-0509 Speak to a specification specialist · 08:00 AM – 05:00 PM PST, Monday to Friday

Authorized intimus dealer New stock through the manufacturer's authorized channel, with the manufacturer's own warranty · what this covers

Description

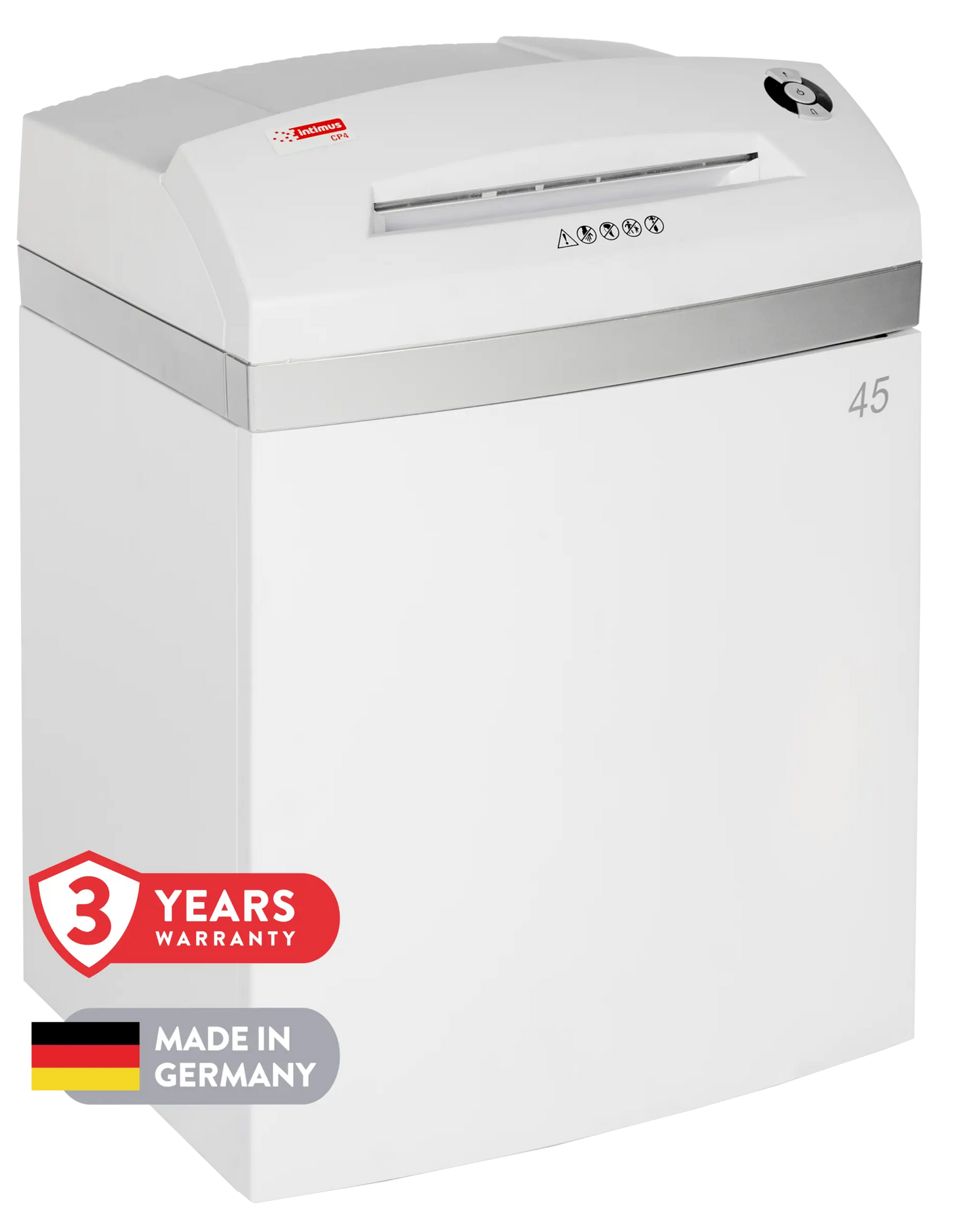

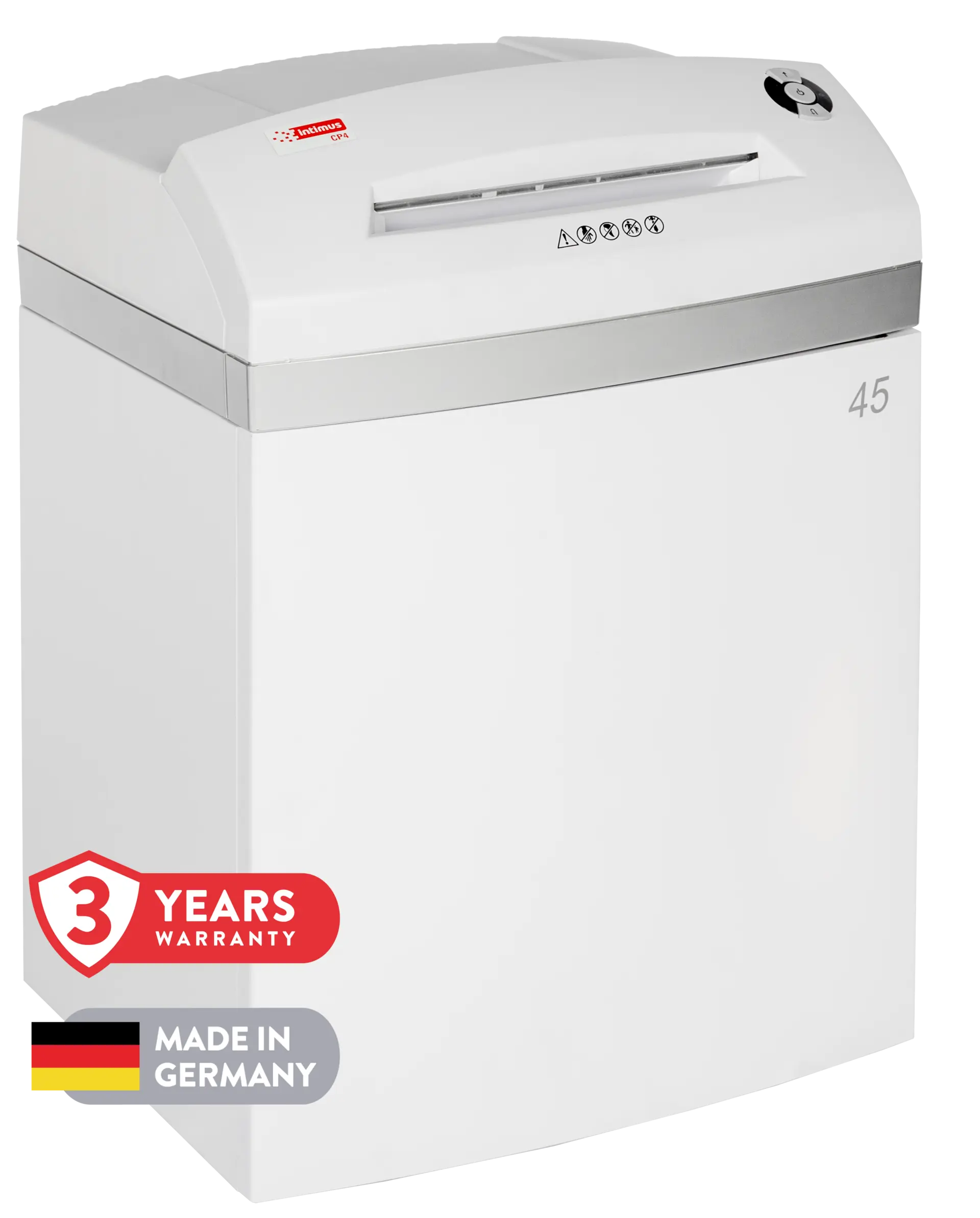

The intimus 45 CP5 is the high-security member of the intimus 45 deskside family: the same 45-litre cabinet as the CP4, driven to a 1.9 x 15 mm particle instead of 3.8 x 30 mm. That is a 28.5 mm² particle against a DIN 66399 P-5 ceiling of 30 mm² — it makes the level, but only just, which is precisely why the sheet capacity falls to twelve.

Key Features

  • P-5 at deskside scale. Most machines that reach P-5 are floor-standing departmental units. This one is 45 cm wide and rolls under a desk, which matters when the person handling the sensitive paper is not going to walk down a corridor to shred it.
  • 1.9 x 15 mm particle. Reconstruction of a P-5 particle is impractical without specialist resources; this is the level typically specified where documents are commercially sensitive or contain especially sensitive personal data.
  • Staples and paper clips go in with the paper. intimus rates the CP5 for paper with staples and clips, plastic cards and foil. Note the omission: unlike the CP4, optical media is not on the CP5's rated material list.
  • 45-litre bin holds roughly 1,100 sheets of P-5 waste — more sheets than the CP4's bin, because finer particles pack more densely.
  • 235 mm (9.25 in) throat, 55 dB(A) at idle, 30 kg on castors. Identical chassis figures to the rest of the intimus 45 range.
  • Lifetime limited cutting-cylinder warranty against fracture under intimus North America's commercial shredder terms — a benefit the P-7 version of this cabinet does not get.

Specifications

Security level (ISO/IEC 21964 / DIN 66399) P-5 / T-5 / F-2 / E-4
Cut type Cross-cut
Cut size 1.9 x 15 mm (28.5 mm² particle)
Sheet capacity Up to 12 sheets at 80 g/m²
Throat width 235 mm (9.25 in)
Bin volume 45 litres (approx. 12 US gallons), about 1,100 sheets
Motor 395 W nominal, 530 W power consumption
Voltage 115 V / 60 Hz (US configuration; intimus's international datasheet lists 220–230 V / 50 Hz)
Noise level 55 dB(A) at idle
Dimensions (W x D x H) 45 x 39 x 66 cm (17.7 x 15.4 x 26 in)
Weight 30 kg (66 lb)
Shreddable materials Paper with staples and paper clips, plastic cards, foil
Warranty Two years parts, 90 days labour; lifetime limited warranty on the cutting cylinders for fracture

What's in the Box

Cabinet, 45-litre bin and power cord. Bin liners are not supplied. intimus lists reusable collecting bag item 83079 for small shredders as the accessory for the intimus 45 cabinet. Cutting-block oil is sold separately and should be treated as a running cost, not an extra — a P-5 cutting head runs harder than a P-4 one and intimus's warranty explicitly depends on regular lubrication.

Who Should Buy This — and Who Should Not

Buy it if your retention policy names P-5 and the paper needs destroying at the desk where it is handled. Legal practices, clinical records, payroll and M&A work are the usual cases. Twelve sheets a pass is slow by office-shredder standards, but the tighter particle is the entire point of the purchase.

Do not buy it if volume matters more than the security level. Dropping to the intimus 45 CP4 buys you 17 sheets a pass and adds optical media to the rated material list, at P-4. Do not buy it either if you need to destroy CDs, DVDs or Blu-ray discs: they are on the CP4's rated list and not on the CP5's, so plan on a separate media route. And if you are shredding classified material to a government standard, this is not the machine — the intimus 45 CP7 in the same cabinet is the NSA-listed P-7 option, at five sheets a pass.

Product Specification

Machine Type
Small Office Shredder
Shredder Series
intimus 45 CP
Cut Type
Micro Cut
Shreddable Materials
Paper with staples and paper clips, plastic cards, foil
Cut Size
1.9 x 15 mm
Bin Size / Container Volume
45 litres (approx. 12 gallons)
Throat Width
235 mm (9.25 in)
Power Consumption
530 W (395 W nominal motor)
Voltage
115 V / 60 Hz
Weight
30 kg (66 lb)
EAN
689233278174
Security Level
P-5
Sheet Capacity
Up to 12 sheets at 80 g/m2
Dimensions (WxDxH)
45 x 39 x 66 cm (17.7 x 15.4 x 26 in) W x D x H
Warranty
2 years parts, 90 days labour; lifetime limited warranty on cutting cylinders for fracture
dB Level
55 dB(A) at idle

Product listing details

Vendor
intimus
Product type
Medium Office Shredder
Condition
New
SKU
278174S1
GTIN
689233278174
Price
$965.00 USD
Currency
USD
Availability
In stock
Shipping policy
Click to view policy
Refund policy
Click to view policy
Return policy
Click to view policy
View full details
Before you specify

Frequently Asked Questions

Can the intimus 45 CP5 shred CDs and DVDs?

No, and this is a real difference from its sibling. intimus's datasheet lists the CP5's shreddable materials as paper with staples and paper clips, plastic cards and foil. Optical media is not on that list, whereas it is on the intimus 45 CP4's. The P-5 cutting cylinders are cut to a much finer geometry and feeding polycarbonate discs through them risks damage. If you need to destroy discs and shred to P-5, budget for the CP4 alongside it or use a dedicated media shredder.

Why does this take only 12 sheets when the CP4 takes 17?

Because the particle is roughly a quarter of the area. The CP5 produces a 1.9 x 15 mm particle (28.5 mm2); the CP4 produces 3.8 x 30 mm (114 mm2). Making four times as many cuts through the same stack takes more torque from the same 395 W motor, so intimus derates the pass capacity. Every shredder range behaves this way. If twelve sheets a pass is too slow for your volume, the answer is a larger P-5 machine such as the intimus 175 CP5, not a different setting on this one.

Is 1.9 x 15 mm genuinely P-5, or is it borderline?

It is genuinely P-5, but with little margin. DIN 66399 caps P-5 particles at 30 mm2 and 1.9 x 15 mm works out at 28.5 mm2. That is inside the limit and intimus certifies the machine as P-5 / T-5 / F-2 / E-4 under ISO/IEC 21964. It does mean the cutting cylinders need to stay sharp and well lubricated to keep producing on-spec particles; a neglected P-5 head is the kind that drifts.

How often will the bin need emptying?

The 45-litre bin holds roughly 1,100 sheets of P-5 waste according to intimus's datasheet — more sheets than the CP4's bin because finer particles pack tighter. For a single user shredding a couple of folders a day, that is comfortably a week. For two or three people sharing it, expect to empty it twice a week. Do not let it overfill: cross-cut particles bridge above the bin lip and start packing back into the cutting chamber.

Will legal-size paper fit?

Yes. The throat is 235 mm (9.25 in) and legal stock is 8.5 in on the short edge, so it feeds portrait without folding, exactly like letter. Tabloid at 11 in wide will not fit and would have to be folded, which costs you sheet capacity you cannot spare on a 12-sheet machine. A4 at 210 mm also fits if you handle international documents.

What is the warranty, and does it differ from the P-7 model?

Yes, it differs. The 45 CP5 is covered under intimus North America's commercial shredder terms: two years parts, 90 days labour, and a lifetime limited warranty on the cutting cylinders against fracture. The NSA-listed 45 CP7 falls into the high-security class instead, which is one year parts, 90 days labour and one year on the cutting cylinders. Moving up to P-7 is therefore also a warranty downgrade, which is worth weighing if your requirement genuinely stops at P-5.
