KOBRA

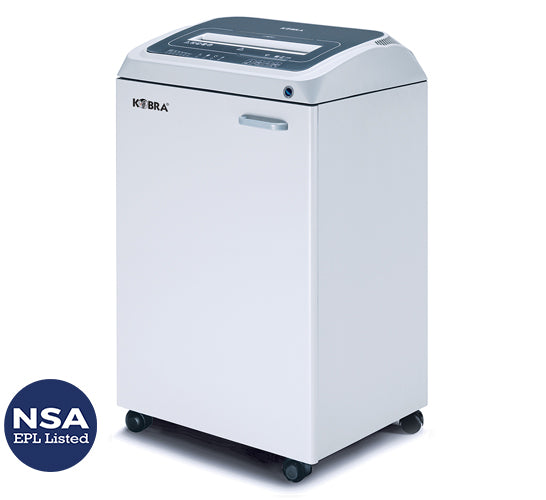

KOBRA 270 TS HS-6 AO

KOBRA 270 TS HS-6 AO

DIN 66399 security level P-7max 5 mm² particleHighest levelStrictly confidential material: classified national security, military and intelligence documents. See every P-7 machine
Cut
Micro Cut
Cut size
0.8 x 5 mm
Sheet capacity
4-5 (70 g/m2) / 3-4 (80 g/m2)
Throat width
12.2 inch (310 mm)
Regular price $2,770.00 USD
Regular price Sale price $2,770.00 USD
Sale Sold out
Quantity

Volume pricing, freight, installation, trade-in and GSA pricing — written quote within one business day.

Request a quote

KOBRA 270 TS HS-6 AO Listed at $2,770.00

Anything else we should price in?

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

No obligation. A specialist replies within one business day, 08:00 AM – 05:00 PM PST.

  • Free shipping across the USA Included on every machine in the catalogue
  • 30-day return policy Shipping, refund and return terms published in full
  • +1 (858) 266-0509 Speak to a specification specialist · 08:00 AM – 05:00 PM PST, Monday to Friday

Authorized Kobra dealer New stock through the manufacturer's authorized channel, with the manufacturer's own warranty · what this covers

Description

The KOBRA 270 TS HS-6 AO destroys a sheet of paper into roughly 20,000 particles measuring 0.8 x 5 mm. That is 4 mm² each, comfortably inside the DIN 66399 / ISO 21964 P-7 limit of 5 mm², and it is the particle size the NSA/CSS 02-01 specification is written around. It is the high-security member of the 270 TS touch-screen family: same cabinet, same touch panel, same continuous-duty motor as the S4, S5 and C4 AO, but a completely different cutting head and a completely different job.

Key Features

  • 0.8 x 5 mm particle cut, rated P-7 F-3. At 4 mm² the output is below the P-7 ceiling of 5 mm², and the fragment size satisfies the dimensional requirement of NSA/CSS Specification 02-01.
  • Kobra 270 TS HS-6 appears on the NSA Evaluated Products List for Paper Shredders. The EPL revision current at the time of writing (April 2026) lists the model under Marquis Business Systems.
  • Integrated automatic oiling system. A P-7 head has far more cutting edges in contact with paper than a cross-cut head; keeping it lubricated is not optional, and the AO build takes the decision away from the operator.
  • Touch panel with EPC load indication. The Electronic Power Control readout matters more here than on any other machine in the range, because the safe sheet count is small and the penalty for guessing is a jam.
  • 24-hour continuous duty 500 W motor with thermal protection and no timed cool-down interval.
  • Energy Smart standby after eight seconds and automatic disconnection from the mains after four hours of inactivity.
  • Automatic start and stop, automatic reverse on jamming, and a safety stop triggered by an open door or a full bin.
  • 29-gallon cabinet on casters — unusually large for a high-security machine, and useful because P-7 waste is fine and dusty.

Specifications

Security level P-7 (ISO/IEC 21964 / DIN 66399: P-7 F-3)
Cut type Micro cut (particle cut)
Cut size 0.8 x 5 mm (4 mm² per particle)
Sheet capacity 4–5 sheets at 70 g/m²; 3–4 sheets at 80 g/m²
Throat width 12.2 in (310 mm)
Bin volume 29 gallons (110 litres)
Motor 500 W (rated 3/4 HP on Kobra's US datasheet), 24-hour continuous duty
Voltage 115 V / 60 Hz
Noise level 54–55 dB(A)
Dimensions (W x D x H) 21.2 x 17.2 x 35.2 in (53 x 43 x 88 cm)
Weight 110 lb (50 kg)
Shreddable materials Paper and films

What's in the Box

The shredder head and its 29-gallon caster-mounted cabinet ship as one assembled unit, together with the power cord and the operating manual. Waste bags are not included and neither is a spare bottle of Kobra cutting-head oil; both are ordinary consumables and are worth adding to the first order so the machine is usable on day one.

Who Should Buy This — and Who Should Not

This is a machine for a specific requirement: destruction of classified, Top Secret or otherwise compartmented paper records where the governing policy names NSA/CSS 02-01 or DIN P-7. Government contractors, defence suppliers, embassies and legal teams handling protectively marked material are the buyers. The touch-screen chassis and the 29-gallon bin make it far more pleasant to live with than a compact high-security machine.

Do not buy it as a general office shredder. Four or five sheets a pass is a fifth of what the KOBRA 270 TS S5 on the same chassis manages, and shredding a single archive box would take an afternoon. If you need personal-data destruction rather than classified destruction, the KOBRA 270 TS C4 AO at P-4 is the sensible machine and takes 24–26 sheets. If you want P-7 in a smaller, cheaper package and can live without the touch panel and the big bin, the KOBRA 300 HS-6 gives the identical 0.8 x 5 mm cut in a 22-gallon classic-line cabinet. Note too that this head takes paper and film only — there is no optical media unit on the HS-6 build.

Product Specification

Machine Type
Large Size Offices
Shredder Series
High Security NSA
Cut Type
Micro Cut
Shreddable Materials
Paper, Films
Cut Size
0.8 x 5 mm
Bin Size / Container Volume
29 gallons (110 litres)
Throat Width
12.2 inch (310 mm)
Power Consumption
500 W (3/4 HP)
Voltage
115 Volt / 60 Hz
Weight
110 lb (50 kg)
EAN
8026064998550
Security Level
P-7
Sheet Capacity
4-5 (70 g/m2) / 3-4 (80 g/m2)
Dimensions (WxDxH)
21.2 x 17.2 x 35.2 inch (53 x 43 x 88 cm)
dB Level
54-55 dB(A)

Product listing details

Vendor
KOBRA
Product type
Large Size Office
Condition
New
SKU
270 TS HS6 AUTO OILER
GTIN
8026064998550
Price
$2,770.00 USD
Currency
USD
Availability
In stock
Shipping policy
Click to view policy
Refund policy
Click to view policy
Return policy
Click to view policy
View full details
Before you specify

Frequently Asked Questions

Is this shredder NSA approved?

The Kobra 270 TS HS-6 appears on the NSA/CSS Evaluated Products List for Paper Shredders, listed under Marquis Business Systems, and its 0.8 x 5 mm particle satisfies the 1 mm x 5 mm dimensional requirement of NSA/CSS Specification 02-01. One caution: the EPL lists the model as 270 TS HS-6, without the AO suffix used for the auto-oiler build. If you are procuring against the EPL, have your security officer confirm the exact model designation on the current revision before you order.

How many sheets can it really take at once?

Kobra specifies four to five sheets of 70 g/m2 paper, dropping to three or four at 80 g/m2. US 20 lb bond is about 75 g/m2, so plan on four sheets and treat five as the ceiling. This is normal for P-7: the machine is converting one sheet into roughly 20,000 fragments, and the work per sheet is enormous. Feeding it like a general office shredder will jam it, which is why the load display is on the panel.

Can it shred CDs, DVDs or credit cards?

No. Kobra lists the shreddable materials for this model as paper and films only. Unlike the 270 TS C4 AO and the strip-cut models in the same family, the HS-6 build does not carry a separate optical media cutting unit, and pushing a disc or a card into the P-7 head risks damaging it. For optical media and cards you need a separate machine or a model with a dedicated media unit.

How often will the bin need emptying?

Less often than you would expect from the low sheet rate. Particle-cut waste is fine and packs densely, so a 29-gallon (110-litre) cabinet holds a very large number of destroyed sheets. In practice the limit on this machine is throughput, not bin volume. The practical warning is dust: P-7 waste is powdery, so empty carefully, and if the machine lives in a small room a bin liner rather than a loose fill is worth the small cost.

Does it need oiling, and does the AO version handle it?

It absolutely needs oiling, and the AO version handles it. A P-7 head has far more knife-to-paper contact than a cross-cut head, so lubrication is what keeps sheet capacity from collapsing. The integrated automatic oiling system feeds the knives from an on-board reservoir; your job is to keep that reservoir topped up with Kobra cutting-head oil and check it whenever you empty the bin. Never substitute cooking or aerosol oils.

Is there a cool-down period between runs?

No. The 500 W motor is rated for 24-hour continuous duty with thermal protection, so there is no timed rest interval. In practice a high-security shredder rarely gets near that limit because the sheet rate is low. If the machine does stop mid-run, it is almost always an overload rather than heat, and the automatic reverse plus the load display are there to get you out of it.

Will Legal and Tabloid paper fit?

Yes. The throat is 12.2 in (310 mm) wide, so US Letter and Legal both feed easily, and Tabloid at 11 x 17 in goes in 11 in edge first. A4 and A3 also fit. Bear in mind that the four-to-five-sheet capacity is quoted for A4, so on larger formats you should feed fewer sheets, not the same number. Fold nothing: folded paper counts as multiple thicknesses at the throat.

What warranty covers this machine in the US?

We do not publish a US warranty term on this page because Kobra's US warranty is set by the importing distributor rather than printed on the factory datasheet. Kobra's UK distributor publishes two years on the machine and ten years on the cutting blades (parts only) for this chassis, which is a reasonable guide to the factory position but not a US commitment. Ask us for the warranty document that ships with your unit before you order, and we will send the current terms in writing.
