KOBRA

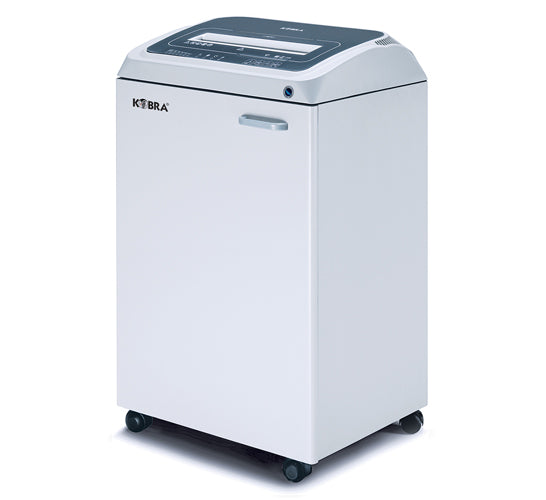

KOBRA 270 TS C4 AO

DIN 66399 security level P-4max 160 mm² particleOffice baselineParticularly sensitive personal data: HR files, contracts, payroll, patient and customer records. See every P-4 machine

Cut: Cross Cut
Cut size: 3.9 x 40 mm
Sheet capacity: 24-26 (70 g/m2) / 19-21 (80 g/m2)
Throat width: 12.2 inch (310 mm)

$1,826.31 USD

Sale Sold out

Free shipping across the USA Included on every machine in the catalogue
30-day return policy Shipping, refund and return terms published in full
+1 (858) 266-0509 Speak to a specification specialist · 08:00 AM – 05:00 PM PST, Monday to Friday

Authorized Kobra dealer New stock through the manufacturer's authorized channel, with the manufacturer's own warranty · what this covers

Description

The KOBRA 270 TS C4 AO is a P-4 cross-cut shredder that cuts 3.9 x 40 mm particles, takes 24-26 sheets of 70 gsm paper per pass and empties into a 29-gallon cabinet bin. It sits on the 270 TS touch-screen chassis with a 12.2 in throat and adds an integrated automatic oiler. It is built for departments that shred records with names, account numbers or health details every day.

270 TS C4 AO highlights

P-4 cross cut, 156 mm² particles, about 2,000 per A4 sheet
24-26 sheets at 70 gsm; 19-21 at 80 gsm
12.2 in (310 mm) throat and 29-gallon (110-liter) bin
Automatic oiler plus separate CD and DVD cutter
500 W continuous-duty motor on a steel-gear chain drive

The 270 TS C4 AO cutting system

Carbon-hardened steel knives on a chain drive with steel gears do the cutting, and Kobra rates them as unaffected by staples and paper clips, so stapled sets go in as they are. Binder clips and ring mechanisms still need removing. The 500 W motor (3/4 HP on Kobra's US datasheet) is rated for 24-hour continuous duty, so there is no cool-down timer to work around during a purge. The integrated oiler lubricates the head from an on-board reservoir; cross-cut knives that run dry lose sheet capacity first, and this takes the task out of human hands.

Touch controls built for daily use

Forward, reverse and stop are capacitive touch pads rather than switches. An EPC display shows the cutting load in real time, so staff can see an overload coming. For transparent film, hold Forward for five seconds and the machine runs continuously for 30 seconds. Auto start and stop, auto reverse and safety stops for an open door or full bin are standard. Energy Smart puts the machine on standby after eight seconds idle and cuts it from the mains after four hours.

What comes in the box

The head and caster-mounted cabinet arrive as one assembled unit with the power cord and operating manual. Bags and Kobra cutting-head oil are not included; add both to your first order.

Full specifications: 270 TS C4 AO

Security class	P-4 under ISO/IEC 21964 / DIN 66399; full rating P-4 O-3 T-4 E-3 F-1
Cut pattern	Cross cut
Particle	3.9 x 40 mm, 156 mm² each
Capacity	70 g/m²: 24-26 sheets. 80 g/m²: 19-21 sheets
Throat	12.2 in (310 mm)
Bin	29 gallons (110 liters), cabinet on casters
Motor	500 W, listed as 3/4 HP on Kobra's US datasheet; 24-hour continuous duty
Electrical	115 V, 60 Hz
Noise	54-55 dB(A)
Size (W x D x H)	21.2 x 17.2 x 35.2 in (53 x 43 x 88 cm)
Weight	101 lb (46 kg)
Materials	Paper, films, credit and chip cards; CDs, DVDs and Blu-ray via the separate media unit

270 TS C4 AO against nearby models

The KOBRA 270 TS S5 on the same chassis takes 30-32 sheets but only reaches P-2 with strip cut. The KOBRA 270 TS C2 AO moves up to P-5 at 10-12 sheets of 80 gsm. For classified paper, the KOBRA 270 TS HS-6 AO cuts 0.8 x 5 mm and appears on the NSA Evaluated Products List, at 4-5 sheets a pass. If bin volume is the limit, the KOBRA 300.2 C4 pairs the same P-4 cut with a 40-gallon cabinet and a 900 W motor.

Who it suits

A department that needs P-4 for personal data, shreds every day and has nobody assigned to oiling. It is not for classified documents, and it is slower than the strip-cut S5 if security genuinely does not matter.

Product Specification

Machine Type

Large Size Offices

Shredder Series

General Office Shredders

Cut Type

Cross Cut

Shreddable Materials

Paper, Films, Credit cards, Credit cards with chip, CDs/DVDs/Blu-ray disks

Cut Size

3.9 x 40 mm

Bin Size / Container Volume

29 gallons (110 litres)

Throat Width

12.2 inch (310 mm)

Power Consumption

500 W (3/4 HP)

Voltage

115 Volt / 60 Hz

Weight

101 lb (46 kg)

EAN

8026064998451

Security Level

P-4

Sheet Capacity

24-26 (70 g/m2) / 19-21 (80 g/m2)

Dimensions (WxDxH)

21.2 x 17.2 x 35.2 inch (53 x 43 x 88 cm)

dB Level

54-55 dB(A)

Product listing details

Vendor: KOBRA
Product type: Large Size Office
Condition: New
SKU: 270 TS C4 AUTO OILER
GTIN: 8026064998451
Price: $1,826.31 USD
Currency: USD
Availability: In stock
Shipping policy: Click to view policy
Refund policy: Click to view policy
Return policy: Click to view policy

View full details

Before you specify

Frequently Asked Questions

Is the KOBRA 270 TS C4 AO NSA approved?

No. NSA/CSS Specification 02-01 requires particles of 1 x 5 mm or smaller and a listing on the NSA Evaluated Products List. The 270 TS C4 AO cuts 3.9 x 40 mm at P-4, so it meets neither condition. The 270 TS HS-6 AO is the classified-grade model in this family.

Can I put stapled documents into the 270 TS C4 AO?

Yes. Kobra states its carbon-hardened steel knives are unaffected by staples and paper clips, so normal stapled or clipped sets can go straight in. Remove binder clips, bulldog clips, ring mechanisms and plastic comb bindings first, as they are too thick for the throat.

How do I shred transparencies on the KOBRA 270 TS C4 AO?

Hold the Forward touch pad for five seconds. The machine then runs continuously for 30 seconds, so clear film that the sensors may not detect is still pulled through the cutters.

Does the 270 TS C4 AO have a duty cycle?

No timed duty cycle applies. Kobra rates the 500 W motor for 24-hour continuous duty with thermal protection. If it stops, the usual cause is an overloaded throat; the EPC load display and automatic reverse help you avoid and clear that.

Will tabloid paper fit the 270 TS C4 AO?

Yes. The 12.2 in (310 mm) opening accepts letter and legal easily, and 11 x 17 in tabloid fits when fed on its 11 in edge. Sheet capacity is quoted for A4, so feed fewer sheets of larger formats.

What do I need to order with the 270 TS C4 AO?

Bags and oil. The shredder arrives assembled with its power cord and manual, but waste bags and Kobra cutting-head oil for the automatic oiler are sold separately. Ordering both up front means the machine is ready on the day it arrives.
