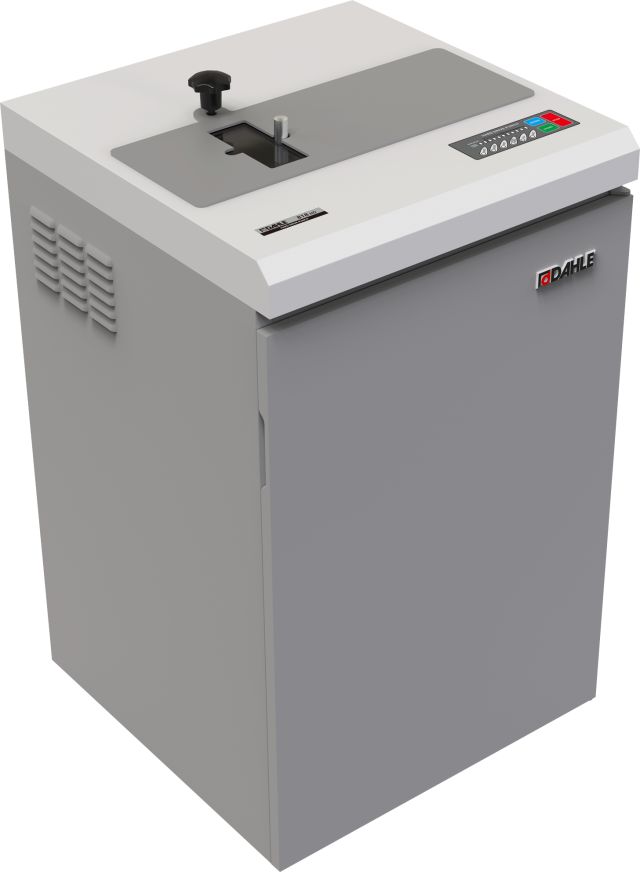

Dahle PowerTEC 818 HD Hard Drive Punch

The Dahle PowerTEC 818 HD is a hard drive punch: rather than cutting a drive into pieces, it drives a hardened, nickel-plated ram through 2.5 in and 3.5 in magnetic hard drives so the platters and spindle are bent beyond normal use, reaching level H-3 under DIN 66399. It is listed as a deformer on the NSA/CSS Evaluated Products List and plugs into an ordinary 115 V outlet. It is meant for IT teams, data centers and agencies that retire spinning drives in-house.

PowerTEC 818 HD at a glance

• Mechanical deformation, one drive per cycle
• Accepts laptop (2.5 in) and desktop (3.5 in) hard drives through a 4.7 in chute
• DIN 66399 class H-3 for hard disk media
• Named 818HD on the NSA/CSS EPL under Hard Drive Deformers
• 0.75 HP chain-driven motor on standard 115 V power
• 27-gallon bin, cabinet on casters, 154 lb

Punching versus shredding: what the 818 HD actually does to a drive

A shredder grinds a drive into fragments. The 818 HD takes a different route: a single stroke of the punch buckles the disc stack and the spindle so the drive cannot be spun up and read in an ordinary way. Because nothing is being cut, there are no cutting cylinders inside the cabinet, which means no lubricant to buy, no oiling routine and no blades to wear out. The trade-off is that H-3 is a mid-range rating on the DIN hard disk scale, appropriate for confidential business data rather than the highest classes, which call for the drive to be broken into small pieces.

Where the NSA listing fits into a sanitization procedure

The NSA/CSS listing confirms the 818 HD as an evaluated deformer. It does not make punching a complete process for classified magnetic media on its own: NSA/CSS Policy Manual 9-12 places degaussing with an EPL-listed degausser ahead of physical destruction for classified drives. For commercial and unclassified drives, deformation is commonly the whole job. Check your own classification level against the current manual before you write the procedure.

Running the 818 HD day to day

An illuminated chute and LED keypad let the operator see that the drive is seated before starting the stroke, which helps when someone is recording serial numbers as each unit goes in. The machine keeps no record of its own, so pair it with a log if auditors need one. Deformed drives fall into the 27-gallon bin; bags are not supplied. At 154 lb on casters it will roll across a level floor, and the 115 V supply means no special wiring wherever it ends up.

PowerTEC 818 HD specifications

818 HD, 828 HD or 808 MS?

• PowerTEC 828 HD: shreds hard drives into 40 x 40-90 mm pieces at H-4 and also takes paper through an 11.8 in throat, but it needs a 220 V three-phase supply and weighs 1,257 lb.
• PowerTEC 808 MS: a 3.5 HP device shredder producing 4 x 15 mm particles, the right tool for flash media that a punch cannot reliably reach.

Who should choose the 818 HD

It suits organizations that retire magnetic hard drives regularly and want an NSA-listed, in-house method that runs off a wall socket and fits in a server room corner. It is the wrong choice for SSDs, phones and USB sticks, whose memory chips sit on a circuit board with no platters to bend, and for anyone who wants paper and drives handled by one machine.
