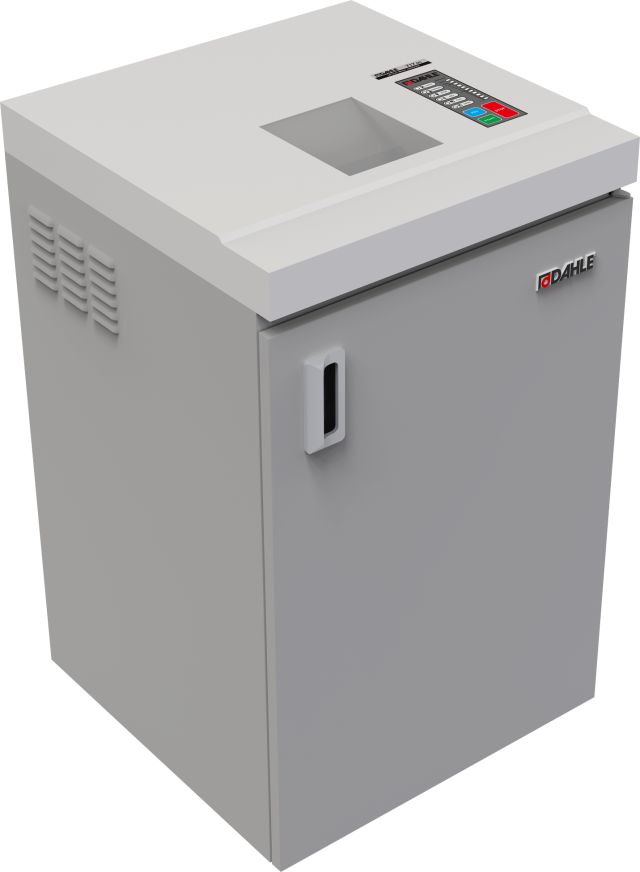

Dahle PowerTEC 717 OS High Security Optical Media Shredder

The Dahle PowerTEC 717 OS does one job: it destroys optical discs. It is not a paper shredder with a disc slot bolted on - the whole 165 lb cabinet, the 5-inch feed and the 20-gallon bin exist to turn CDs and DVDs into 2 x 4 mm fragments at DIN 66399 level O-5. That single-purpose design is the reason to buy it. In a media destruction room where paper is already handled by another machine, the 717 OS keeps disc waste in its own stream and its own bin, which is exactly what a chain-of-custody log wants.

Siting the 717 OS is straightforward. It runs on a standard 115 V outlet, occupies a footprint under two feet square, and weighs 165 lb on casters, so it can be moved into a secure area and rolled out again for servicing. The ongoing cost is lubricant for the automatic oiler; there are no consumable blades or cartridges. Because discs are considerably more abrasive than paper, cutting cylinder life on any optical shredder depends heavily on keeping the lubricator filled, and Dahle warrants the cylinders for one year against two years on the machine.

Key Features

• O-5 optical cut at 2 x 4 mm. Each disc is reduced to 8 mm2 fragments, comfortably inside the 10 mm2 ceiling DIN 66399 sets for optical class O-5.
• Gear-driven continuous-duty motor. Dahle uses a steel gear drive on this model rather than a belt, so there is no slip when a stack of discs hits the head at once.
• Dedicated 20-gallon media bin. Disc fragments stay separate from paper waste, which simplifies weighing, logging and disposal under a media destruction policy.
• Automatic EvenFlow Lubricator®. Continuous oiling across the cutting cylinders, with no manual oiling schedule to enforce.
• Runs on 115 V. A standard wall outlet. No three-phase drop, no electrician, so the machine can sit wherever the media actually is.
• Automatic jam protection and self-cleaning mode. The controller cycles forward and reverse to clear an overload, and a self-cleaning routine clears fragments from the head.
• Bin-full auto-off and safety door sensors. The machine stops when the bin fills and when the cabinet door is opened, and rubber shock mounts damp the vibration a disc shredder generates.

Specifications

What's in the Box

Supplied as a complete cabinet on rolling casters with the cutting head, automatic lubricator and 20-gallon bin fitted. Waste bags are not included and Dahle does not publish a bag part number for this model. Lubricant for the EvenFlow Lubricator® is a consumable.

Who Should Buy This — and Who Should Not

Buy the 717 OS if optical media is a distinct, regular waste stream for you and you want it destroyed on its own machine with its own bin - a media library, an imaging department, a government records office that already has a paper shredder it trusts.

Do not buy it if you need one machine for both paper and discs. Feeding paper into the 717 OS is not what it is built for. The 727 CS gives you a P-7 paper throat and a separate O-5 optical slot in one cabinet, and the 747 CS cuts optical media finer at O-6. If Blu-ray discs are in scope, look at the 747 CS instead: NSA's paper shredder EPL specifically records the 747 CS as sanitizing CDs, DVDs and BD, and the 717 OS carries no such entry.
